Inta IR120CP User manual

Infra Red Basin Tap
IR120CP & IR121CP
Installation and Maintenance Instructions
In this pro edure do ument we have endeavoured to make the
information as a urate as possible.
We annot a ept any responsibility should it be found that in
any respe t the information is ina urate or in omplete or
be omes so as a result of further developments or otherwise.
Intatec Lt
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
Tel: [phone]
Fax: [phone]
email: [email protected]
web: www.intatec.co.uk
© Intatec Ltd. 2014

© Intate Ltd 2014 1
Intro uction
This installation guide has been produced for the IR120CP & IR121CP infra red basin taps.
These instructions cover the installation, operation and maintenance. Please read the enclosed
instructions before commencing the installation of this product, please note;
We recommen that the installation of any Inta pro uct is carrie out by an
approve installer.
Pro ucts
Infra red basin mounted tap with battery box IR120CP
Infra red basin mounted tap with electronic transformer IR121CP
Check Contents
Before commencing remove all components from packaging and check each component with
the contents list.
Ensure all parts are present, before discarding any packaging. If any parts are missing, do not
attempt to install your Inta electronic tap until the missing parts have been obtained.
Item Qty Components Part Nos
1 1 x Tap and attachments IR110CP
2 1 x Solenoid valve IR07230002
3 1 x Solenoid housing IR07231001
4 1 x Sensor kit IR08002199
5 1 x Battery box (IR120CP only) IR06530020
6 1 x Transformer (IR121CP only) IR06530021
1
4
5 or 6
2
3

© Intate Ltd 2014 2
Technical Data
Power specification: 9V low voltage system
Power source - IR120CP: 6 x 1.5V AA batteries
IR121CP: 240V conversion kit
Recommended water pressure: 1.0 to 8.0 bar (14.5 to 116 psi)
With water pressure in excess of 8 bar use
with a pressure reducing valve.
Preset sensor range: 220 mm adjustment
Minimum sensor range: 80 mm
Maximum sensor range: 300 mm
Security time: 90 seconds
Hot water temperature: 70˚ C maximum - To limit the outlet
temperature to 41˚C max. we recommend
using theIntamix Thermostatic Mixing Valve
code 40015CP.
Pre-installation Information
Warning
Do not install the tap facing a mirror or any other electronic system operated by an infra red
sensor.
This tap is also vulnerable to stray sensor readings from users wearing high visibility or other
reflective clothing.
To prevent reflection problems, it is recommended to keep a minimum distance of 1.5m
between the tap and other objects.
Preparation for installation
Flush the water supply pipes thoroughly prior to installation. Do not allow debris, PTFE tape or
any metal particles to enter the tap.
Turn off the water supply.
Important: All plumbing is to be installed in accordance with applicable codes and
regulations.
Installation
Step 1 - Preparation for mounting the tap
1. Shut off the water supply and remove the retaining nut and
washer from the threaded inlet.
Step 2 - Installing the tap
1. Ensure the ‘ ’ ring and rubber washer are positioned on the
threaded inlet and located in the recess in the base of the tap.
2. Position the tap into the hole in the basin or water proof work
surface ensuring the ‘ ’ ring is seated correctly.
3. Slide the washer and retaining nut over the flexible hose.
‘O’ ring
Rubber
washer
Retaining
nut
Washer

© Intate Ltd 2014 3
Installation
Step 2 - Installing the tap
4. Secure the tap to the basin or work surface using the retaining nut and washer.
Step 3 - Connecting the water supply
1. A service ball valve must be installed in the supply pipe to
enable the tap to be isolated for servicing should it be required.
2. Connect the tap to the solenoid valve and then from the
solenoid valve to the service ball valve.
Ensure the flow direction through the solenoid valve is the same
as indicated by the arrow on the valve body.
3. Ensure the filter is assembled between the inlet joint and the
solenoid valve.
4. Turn on the water supply and check all joints for leakage.
5. Isolate via the service ball valve and tighten or remake joints if
leakage occurs.
Step 4 - Connecting the power supply
1. Install the battery box on the wall under the basin using the screws provided or the two
sided adhesive foam tape.
2. Wait a few seconds before activating the tap.
3. If the range is unsatisfactory, refer to the ‘Range Adjustment’ section.

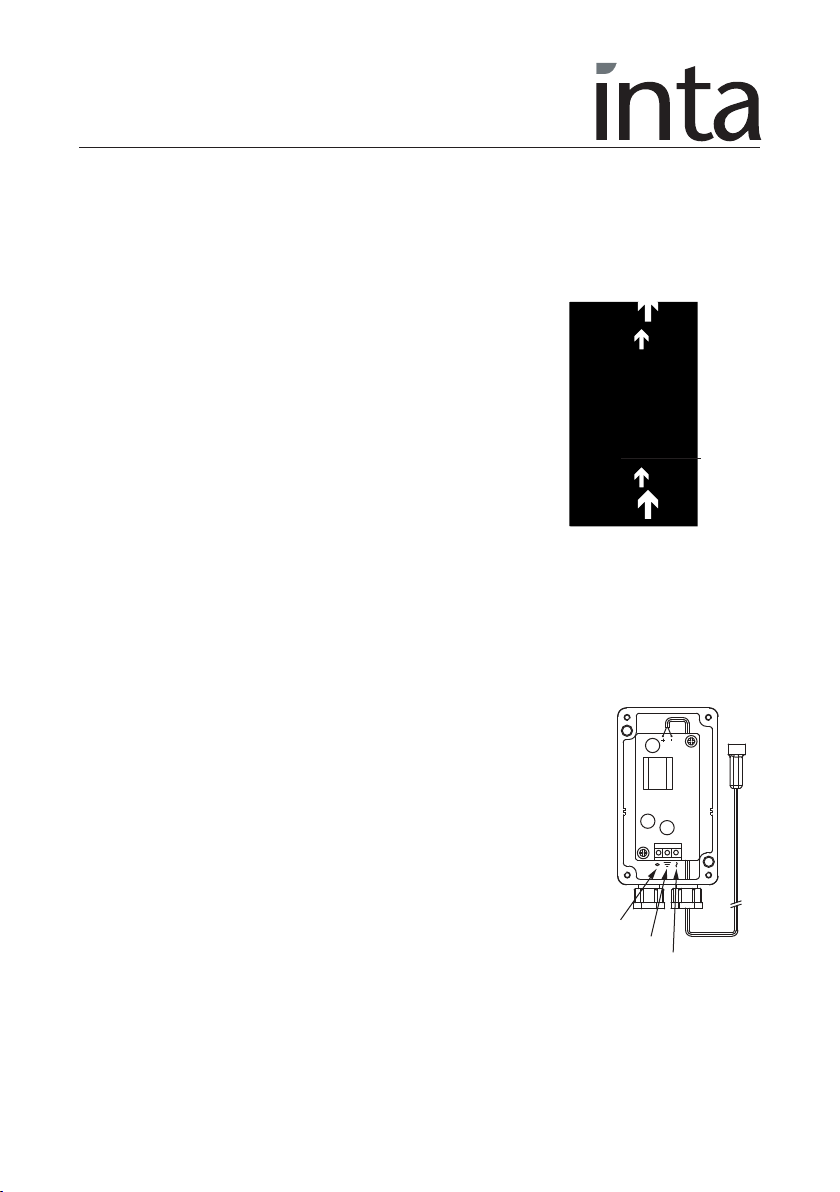

Step 4 - IR121CP only
1. The IR06530021 electronic 240V conversion kit is only to be
used with the IR121CP in lieu of the 9V DC standard battery
pack.
2. Install the transformer box on the wall under the basin using the
screws provided or the two sided adhesive foam tape.
3. Connect the electricity supply using the second connection point
and connect as shown.
Input Characteristics - 100 or 240V
- 50 to 60 Hz
utput Characteristics - Voltage = 9V ± 5%
- Load Current = 300mA
IMPORTANT:
This product must be installed by a suitably qualified and competent person carrying the
relevant current IEE electrical qualification.
Water Outlet
Water Outlet
Filter
Neutral
Earth
Live

© Intate Ltd 2014 4
Sensor Range
The tap is supplied with a self adjusting sensor, the optimum sensor
range will be set automatically after installation.
• Before connecting the power supply check that there are no objects
or persons in front of the sensor.
• Remove the protective sticker covering the sensor.
• Connect the power supply
• Wait until the red light on the LED of the sensor stops flashing,
which is approximately 10 seconds.
• The tap is now set and ready for use.
Battery Replacement
When the battery is ready for changing the red indicator light will flash at a constant rate. The
battery must be changed within two weeks.
To replace the battery
1. Carefully open the battery box.
2. Remove the old battery
3. Replace with 6 x AA batteries, a lithium battery is recommended.
4. Close the battery box.
Maintenance
Filter cleaning
This tap is provided with a stainless steel filter preventing foreign particles from entering the
tap.
If the water flow has decreased, this may be due to the filter becoming blocked.
The filter can be cleaned as follows;
1. Turn off the water supply by closing the service ball valve.
2. Disconnect the solenoid valve from the service valve and dismantle the filter adaptor from
it.
3. Remove the filter and wash thoroughly using running water.
4. Reassemble the parts.
5. Re-connect the solenoid valve and turn on the water supply at the service valve.
6. Check to ensure none of the joints are leaking.
Remove
Protective
Sticker

© Intate Ltd 2014 5
Maintenance
Aftercare
Inta electronic taps have a high quality finish and should be treated with care.
An occasional wipe with a mild detergent on a soft damp cloth followed by a thorough rinse
and wipe dry with a soft clean cloth is all that is required.
Do not use an abrasive or chemical househol cleaner as this may cause
amage to the surfaces.
When cleaning bathroom tiles the tap should be protected from any splattering of harsh
cleaners.
Warranty
Limite Warranty
This product is covered by a limited warranty for one year from the date of purchase.
During this period Intatec Ltd undertakes, at its option, to repair or replace any faults caused by
defective material or manufacturing faults that may arise (see Intatec Warranty).
This guarantee does not cover faults or damage caused by incorrect installation and/or
maintenance, wear and tear, battery or water composition (eg hard water), this includes but is
not limited to the following:
• Incorrect installation, inversion of supply pipes.
• Pressure or temperatures exceeding the recommended limits.
• Improper use, tampering, bad or lapsed maintenance.
• Foreign bodies, dirt or scale introduced by the water supply.
Please Leave this Manual for the User

© Intate Ltd 2014 6
Trouble Shooting
Problem Indicator Cause Solution
No water from tap 1 Sensor flashes
ontinuously when use’s
hands are within range.
1 Low batteries Repla e batteries
2 Red light in the sensor
does not flash when the
user’s hands are within the
sensor’s range.
1
2
3
1. Batteries are ompletely
used up.
Unit is in ‘Se urity Mode’*.
Sensor is pi king up
refle tions from mirror or other
obje ts.
The batteries must be
repla ed.
Eliminate the ause of the
refle tion.
* & ** see notes at
foot of following
page.
3 Red light in the sensor
flashes when the user’s
hands are within the
sensor’s range.
1
2
3
4
5
Conne tor between the
ele troni unit and the
solenoid are dis onne ted.
Debris or s ale in solenoid.
The entral orifi e in the
diaphragm is blo ked or the
diaphragm is torn.
The water supply pressure is
higher than 8 bar.
The water supply pressure is
under 8 bar and yet the
pressure in the tap’s body is
higher.
This situation ould be aused
by a sudden in rease in water
supply pressure that the he k
valve or double he k valve
prevents from dropping, even
after the water supply pressure
falls below 8 bar.
Conne t the ele troni unit’s
onne tor to the solenoid.
Uns rew solenoid, pull out
the plunger and the spring
from the solenoid and lean
them. Use s ale removal
agent if required. When
repla ing the plunger,
please ensure that the spring
is in the verti al position.
Clean the orifi e or repla e
the diaphragm.
Redu e the water supply
pressure.
Shut off the water supply
and uns rew one of the
flexible pipes in order to
release the entrapped
pressure.
Water flow from the
spout does not stop.
1
2
Sensor flashes when the
user’s hands are within the
sensor’s range.
Red light in the sensor
does not flash when the
user’s hands are within the
sensor’s range.
1
2
Debris or s ale in diaphragm
or the diaphragm is torn.
Sensor is dirty or overed **.
Sensor is pi king up
refle tions from a mirror or
other obje t.
Clean the orifi e or repla e
the diaphragm.
Clean or remove ause of
interferen e.
Remove the ause of the
refle tion.
Water flow diminishes Filter or aerator is logged Remove, lean and re-install.

© Intate Ltd 2014
Intatec Lt
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
Tel: [phone]
Fax: [phone]
email: [email protected]
web: www.intatec.co.uk
E & .E
10-06-14
To active your product warranty please visit
www.intatec.co.uk
and click on Product Registration
Notes:
* ‘Se urity Mode’: If the sensor is overed for more than 90 se onds the tap will automati ally
turn off the water flow. To return to normal operation remove the obstru tive overing.
** Water flow will stop after 90 se onds due to se urity timing.
