Thank you for purchasing our welding machine. Before using the product,
please read and follow the instructions and safety instructions carefully.
These instructions apply to IPOTOOLS brand products purchased in Europe.
INSTRUCTION MANUAL

MIG-160ER
1
TABLE OF CONTENT
MAIN FUNCTIONS .................................................................................................................................. 2
SAFETY MEASURES ............................................................................................................................. 3
TECHNICAL INFORMATION .................................................................................................................. 5
OPERATING CONDITIONS & WORKING ENVIRONMENT .................................................................. 6
BEFORE STARTING WORK .................................................................................................................. 6
CONTROL PANEL .................................................................................................................................. 7
WELDING WIRE INSTALATION ............................................................................................................. 8
CONNECTION & SETTINGS .................................................................................................................. 9
MIG/MAG welding with/without gas: ..................................................................................................... 9
MMA Welding ..................................................................................................................................... 10
WELDING TIPS ..................................................................................................................................... 11
MIG MAG WELDING – WHICH WELDING WIRE? .............................................................................. 12
TROUBLESHOOTING .......................................................................................................................... 12
PROPER DISPOSAL ............................................................................................................................ 14
MANUFACTURER WARRANTY ........................................................................................................... 14

MIG-160ER
2
Dear customer!
Thank you for choosing to purchase our welding machine. Please read the instructions carefully for safe
use and trouble-free operation of the device. Follow the instructions strictly for safe work!
The IPOTOOLS welding devices are suitable for private users in the hobby sector.
MAIN FUNCTIONS
MIG MAG WELDING
Direct current (DC) gas protection welding with inert gas “MIG welding” (e.g. – argon)
or with active gas “MAG welding” (a mixture of carbon dioxide CO2 and argon)
WELDING WITH FLUX CORED WIRE
Welding with FLUX cored wire (welding without protective gas)
MMA
Welding with stick electrodes
DIGITAL DISPLAY
Digital control of the individual welding parameters
INVERTER
Modern IGBT technology, which provides high power and long duty cycle

MIG-160ER
3
SAFETY MEASURES
Caution: Improper use of any welding machine can result in injury or death.
CONNECT THE WELDING APPLIANCE ONLY TO THE APPROPRIATE ENERGY SOURCE. This
information is given on the rating plate on the welding machine. When welding outdoors, use only an
extension cord designed for such use.
WORK WITH THE APPLIANCE ONLY ON A DRY AREA AND ON A SOLID GROUND. Make sure the
work area is clean and tidy.
MAKE SURE THERE ARE NO FLAMMABLE SUBSTANCES IN THE WORKING AREA.
KEEP CLEAN CLOTHES WITHOUT TRACE OF GREASE OR OIL AT WORK.
MAKE SURE THE CABLES DO NOT COME INTO CONTACT WITH GREASE OR OIL and never
wrap them around your shoulders.
SAFE WORK WITH CLAMPS or in other means, do not overdo it.
NEVER ESTABLISH AN ARCH ON A PRESSURE GAS TANK.
THE UNINSULATED PART OF THE ELECTRODE HOLDER SHOULD NEVER TOUCH THE
GROUND WHILE THE CURRENT IS FLOWING!
IT IS NECESSARY TO TURN OFF AND DISCONNECT THE CABLES WHEN REPAIRING OR
ADJUSTING THE APPLIANCE. Check the device before each use. Use only original spare parts.
FOLLOW ALL MANUFACTURER'S RULES regarding modification, and adjustment of the device.
APPROPRIATE PROTECTIVE NON-FLAMMABLE CLOTHING AND FOOTWEAR AGAINST HEAT
AND FLAMMES MUST BE CARRIED AT WORK. The welder should be dressed in a work suit made
of non-combustible fibbers during welding. The dress should be dry, clean, not too loose and without
cut-outs or pockets. Shoes should be closed, high. The use of non-flammable gloves, a hat, a
protective mask, and a leather apron is mandatory. Low shoes, self-made fibber dresses and short
gloves are not suitable for welding.
ALWAYS WARE A WELDING MASK WITH APPROPRIATE EYE PROTECTION WHEN WELDING.
Sparks can cause blindness during welding, so always wear protection under the welding mask.
BE CAREFUL OF HOT METAL PARTS, ESPECIALLY WHEN WELDING OVER YOUR HEAD.
Always wear head, arm, leg, and body protection.
MAKE SURE YOU HAVE A FIRE EXTINGUISHER ALWAYS AT YOUR HAND.
DO NOT SKIP THE MACHINE OPERATING CYCLE. The estimated cycle of the welding machine is a
percentage of ten minutes, with this in mind the machine can operate safely in terms of output power.
PREVENT CHILDREN, ANIMALS AND THIRD PARTIES FROM ACCESSING THE WORK AREA.
When storing equipment, make sure it is out of the reach of children.
PROTECT YOURSELF AGAINST ELECTRIC SHOCK. Do not work when you are tired or under the
influence of drugs, alcohol, or other illicit substances. Do not allow the body to come into contact with
grounded surfaces.
SPECIAL WARNINGS:
 Welding is not allowed in rooms with flammable and explosive materials,
 it is not allowed to weld in / on containers where there were gases, oils, paints…,
 more demanding welds should be welded only by certified welders,
 persons with a pacemaker should consult a doctor before welding.

MIG-160ER
4
Before welding, always make sure that all regulations and instructions for safe work are met.
When welding by MIG / MAG process, the noise can be higher than 85db (A), so the worker must
wear non-flammable earmuffs during welding.
Welding produces strong UV rays that can burn uncovered parts of the body.
The protective glass on the mask should be numbered 9-15 according to DIN 4647.
Do not look into the electric arc during welding, as there is a risk of instantaneous glare.
Only weld when there is another person nearby who can give you first aid in case of injury.
PEOPLE IN THE VICINITY MUST FOLLOW THE INSTRUCTIONS ABOVE!
In the rooms where we weld, it must be sufficiently airy, suction is desirable. Ventilation device to
protect against particles must be available during welding. Toxic gases are formed especially when we
weld material that is galvanically coated with other metals or materials with detergent residues. Do not
weld closed containers containing flammable liquids (petrol, oil, varnishes…) as there is a high risk of
explosion!
FIRE HAZARD
Follow these instructions:
 Remove combustible materials within 5m of the welding site
 Cover openings, cracks, and other objects that can trap sparks
 Keep fire extinguishers nearby
 After welding, inspect the welding area again
 Do not weld on containers with flammable liquids
Shielding gas cylinders must be protected against mechanical damage and excessive heat (max. 50 C).
cylinders must also be protected from frost.
DANGERS OF ELECTRIC CURRENT
The device can only be connected to the mains with a shielded connection cable. The fuse must be of
the same power as specified in the technical data of the device. The fuse design must be slow.
Replace damaged torch parts, cable ground, or damaged mains connector immediately. Replacement
of parts on the network, replacement of the connecting cable can only be performed by an authorized
person. Never hold the burner under your arm or otherwise wrapped around your body. In the event of
prolonged work interruptions, switch off the appliance and close the shielding gas supply.
In the event of an accident, immediately pull out the plug of the connecting cable!

MIG-160ER
5
PURPOSE AND USE
The IPOTOOLS MIG160ER is a welding machine with two welding functions. You can use it for MMA
and MIG / MAG welding. Any other use may endanger the safety of the welder or cause the device to
malfunction! Use of the device in violation of these operating instructions is not permitted! Damage to
the device resulting from improper use is not covered by the warranty statement. The machine can be
used to weld several materials, such as steel and stainless steel. The welding current is stable and
stepless adjustable. The appliance provides a beautiful weld, and the welding itself takes place quietly
and without spattering. The device is small in size, light and thus easy to transport.
TECHNICAL INFORMATION
Type MIG MAG Inverter Welding Machine MIG-160ER
Welding procedures MMA & MIG/MAG, LIFT TIG
Connection voltage 230V 1-Phase / Frequency: 50/60Hz
Housing protection IP21S
Overload display Yes
Cooling Fan
Magnetic valve Yes
MIG Duty Cycle 160A – 60% / 125A – 100%
MMA Duty Cycle 160A – 60% / 125A – 100%
Welding current MIG 40-160A / MMA: 40-160A
No-load Voltage 60 – 65 V
Welding Wire Ø MIG 100mm / Wire Ø MIG: 0,8/1,0mm
Wire feed 2 Wheels (1 with drive)
Max. welding wire diameter Ø 0,6mm / 0,8mm / 0,9mm / 1,0mm
MMA electrode diameter 1-4mm
Dimensions 360x150x350mm
Weight 8 kg
Note: The above parameters may change with future machine improvements!

MIG-160ER
6
OPERATING CONDITIONS & WORKING ENVIRONMENT
1. Operating conditions:
 Voltage, voltage source: AC 220 V/230V/240V,
 Frequency: 50/60Hz,
 Reliable grounding.
2. Work environment
 Relative humidity: not more than 90%,
 Ambient temperature: -10 ℃ ~ 40 ℃,
 The welding site must not contain any harmful gas, chemicals, mold and flammable
substances, explosive and corrosive media. The welder must not be subjected to any vibration
or other disturbances,
 Avoid rain and water, work in such circumstances is prohibited.
BEFORE STARTING WORK
Before welding, it is necessary to read and understand the instructions of use,
Check the machine for any defects or damage,
To ensure the safety of persons and equipment, it is necessary to properly install the earthing with a 4
mm2 conductor, depending on the requirements of the power supply system,
Welding must take place in a dry and well-ventilated area. Objects in the vicinity must be at least 0,5 m
away from the appliance,
Check that all cables are tightly fastened / connected,
The appliance must not be moved while the appliance is switched on and welding is in progress.
The appliance must be maintained, used, and operated by a qualified person,
Distribution board current: less than 40A.

MIG-160ER
7
CONTROL PANEL
Description of the control panel and the front and back of the appliance:
1. Digital display: Amps
2. Overload display
3. Choice: FLUX / MIX / Co2 / LIFT TIG / MMA
4. Control knob: Wire / ampere feed
5. Control knob: Voltage (deviation +/- 10V)
You can see more on our website!

MIG-160ER
8
6. Control panel
7. Connection "+"
8. Connection "-"
9. On / off switch
10. Connection cable
11. Shielding gas supply
12. "+" Pol
13. "-" Pol
14. Star grip (tension lever)*
15. Welding wire reel holder
* Be careful not to overtighten the tensioner lever when mounting the wire!

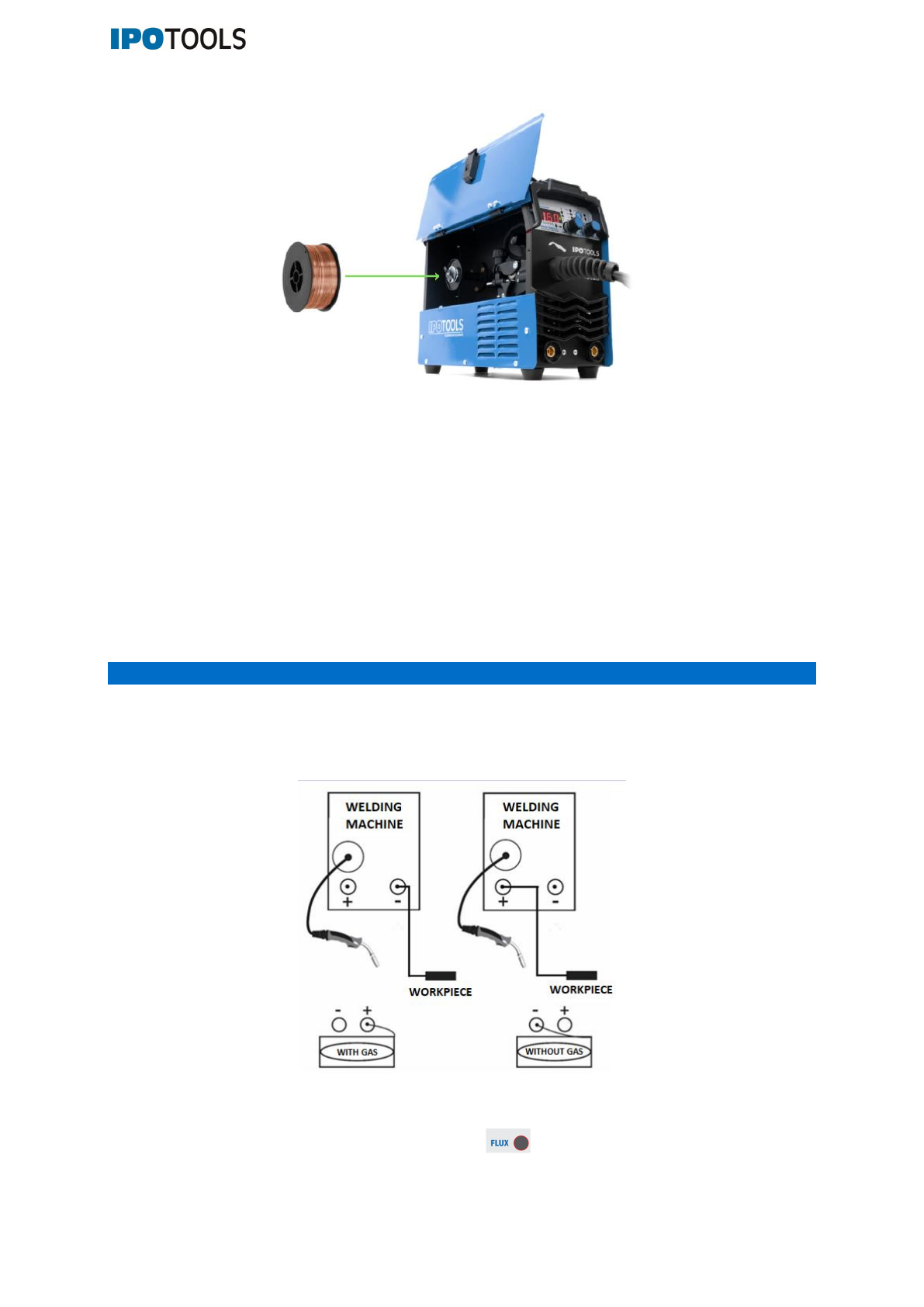

WELDING WIRE INSTALATION
- Open the door on the side of the device, move the star knob towards you and lift the lid of the clamping
system.
- Make sure that, depending on the welding wire diameter, the appropriate wire feed roller (e.g. 0.8mm,
1,0mm, etc.) is in the wire feed system (the wire feed roller side with the correct mm specification must
point towards the wire feed).
- Unscrew the screw of the wire locating pin, place the corresponding welding wire on the wire locating
pin and retighten the screw (The welding wire must be positioned so that it enters the wire feeder from
its lower part.)

MIG-160ER
9
- Guide the welding wire into the right opening of the wire feeder, over the wire feed roller into the left
opening of the wire feeder.
- Close the cover of the clamping system and move the star grip away from you so that the cover is
locked. Adjust the tensioner with the star grip (e.g., with 0,9 mm wire to 3.5). Do not turn the tensioner
past value 5!
- The next step is to turn on the unit, make sure the torch cord is straight and remove the nozzle and
nozzle assembly from the gun.
- You can then pull the wire to the torch nozzle either with the button on the torch or with the “Fast Wire
Drive” button. After the wire comes out of the gun, reattach the nozzle and nozzle assembly to the gun.
CONNECTION & SETTINGS
MIG/MAG welding with/without gas:
Connect the torch and the earth cable correctly, depending on whether you want to weld with or
without gas (filler wire).
Filled wire welding (without gas)
Set the appliance to "FLUX" by pressing the button (3)

MIG-160ER
10
In this welding process, a filled wire is used for welding, which already contains particles that form a
protective atmosphere during welding and thus prevent air from entering. You do not need shielding
gas for this welding process.
When you select FLUX, the welding machine automatically adjusts some parameters to help you
achieve the best results during welding.
Use the control knob (4) to set the appropriate welding current, which is usually set in the range of
approx. 80A when filling with charged wire. Then place the control knob (5) in the middle. During
welding, both control buttons must be adjusted until you get a satisfactory or a desired weld.
Shielding gas welding
Depending on which shielding gas you want to work with, press the button (3) to set the "Co2" or
"MIX" selection:
If you use CO2 as the shielding gas, set the "Co2" setting with the button, or if you use the argon /
CO2 mixture as the shielding gas, you must select the "MIX" setting with the key.
Use the control knob (4) to set the appropriate welding current depending on the diameter of the
welding wire. Then place the control knob (5) in the middle. During welding, both control buttons must
be adjusted until you get a satisfactory or. of the desired weld.
MMA Welding
Connect the welding cable and the earthing cable to the socket (7, 8) with the appropriate polarity
according to the electrode manufacturer's recommendation.
Pay attention to positive and negative attachment. Different types of electrodes require
different polarities, see electrode manufacturer's instructions.
* In TIG mode (LIFT TIG), connect the cables in the same way as in the case of "A rutile
electrode ".
Polarity:
The polarity depends on the information provided by the electrode manufacturer on the electrode
packaging.

MIG-160ER
11
Electrode NEGATIVE / workpiece POSITIVE - low-alloy rutile electrode types. (These are the most
commonly used)
Electrode POSITIVE / workpiece NEGATIVE - basic and high-alloy electrode types.
Connect the power cord to the appropriate voltage and power source and ensure the cord is secure.
The device can now be switched on by operating the on/off switch on the back and thereby putting it
into operation.
Electrode Welding
Electrode welding or MMA welding is one of the oldest welding processes that uses stick electrodes
that protect the melt from chemical reactions with the ambient air. In this process, an arc burns
between an electrode and the workpiece, melting the electrode into a filler material.
Electrode Diameter
Depending on the electrode diameter, you determine the desired current range in which you will be
welding. You set the amperage on the front of the device with the welding control button, which you
can also read on the digital display. To know which area to select, refer to the information in the table
below.
Stick electrode Ø mm Current
MIN MAX
Ø1,6mm 44A 84A
Ø2,0mm 60A 100A
Ø2,5mm 80A 120A
Ø3,2mm 100A 150A
Ø4,0mm 140A 180A
LIFT TIG mode
Press the button (3) to select the "LIFT TIG" mode:
In Lift TIG mode, it can be welded according to the TIG process with the optional TIG burner (not
included in the package).
In this mode, the corresponding welding current can only be set with the control knob (4).
WELDING TIPS
Stainless steel welding
Note that it is essential to use clean gases (e.g., argon) when welding stainless steel. The setting of
the welding current can be adjusted in the same way as for steel welding.
Recommended types of shielding gas:
Steel: CO2, it is also possible to use mixtures, e.g., 18% argon and 82% CO2

MIG-160ER
12
MIG MAG WELDING – WHICH WELDING WIRE?
A MIG welding wire is indispensable for arc welding because it is inserted into the construction during
welding and thus creates a strong connection. MIG welding wires are located on wire rolls and are
differentiated depending on the material, roll and wire diameter. When choosing the right MIG welding
wire, you must consider the material composition, the quality, and the suitable wire diameter for the
welding current. As a rule, the thicker the welding wire, the stronger the materials that can be welded
with it. However, the material composition, which depends on the application, is particularly important
when making the selection. The right choice depends on the material and material thickness that you
want to weld. The rule applies that the additional material is the same as the material of the workpiece.
You can choose from the following types of welding wire:
Solid wire - Solid wire refers to welding wires such as steel and stainless steel, which require a
protective gas to prevent oxidation during the welding process. The shielding gas guarantees a stable
arc and protects the liquid weld pool from the ingress of air from the atmosphere. This variant is used
by more than 80% of users because it produces less spatter, and the seams are of better quality than
those produced by welding without gas. Solid wires are also gentler on the wire feed in the device due
to their higher column cross-section strength, they are also stiffer and do not bend as easily. A gas
cylinder, a manometer and a wire feed roller with a V-groove are used for welding with solid wire. The
protective gas used for steel (82% argon and 18% CO2) and stainless steel (97.5% argon and 2.5%
CO2).
Cored Wire / FLUX / Gasless Wire - These wires consist of a thin metallic jacket that is filled with
powder and layered with metal compounds and then rolled into a cylinder to shape the finished wire. At
high temperatures, the FLUX wire creates an atmosphere with protective gas, which means that you do
not need a gas cylinder or manometer for use. The cored wire is softer than the solid wire and behaves
in a similar way to the aluminium wire when it is fed to the workpiece, which can mean less safety in
feeding and possible crushing of the wire when it exits the drive. For cored wire, you will find special
knurled wire feed rollers which have small teeth in the groove so that the wire is better gripped and thus
a better feed is created, but over time the surface of the welding wire will slowly erode, which can lead
to blockages in the wire guide A U-groove roller for cored wire can also be used, thanks to which one
can avoid a blockage at the price of lower feed quality. Compared to solid wire, cored wire welding has
the advantage that you do not need any accessories for gas, you can also do work outside, but there
are also disadvantages because this method creates more spatter, the slag must be removed, and the
quality of the seams is poorer than with inert gas welding. Shielding gas is not used for cored wire.
TROUBLESHOOTING
Our welding machines are always tested and calibrated before shipment. Any unauthorized
modification of the device is prohibited and has a negative effect on the guarantee!
The modifications can only be caried out by the technicians of the sales company!
The operating instructions must be read carefully to ensure that there are no unintended complications
that could endanger the user.
Before starting any repairs, it is necessary to switch off the welding machine!
If there is a problem with the device and there is no authorized specialist in your place of residence, it
is best to contact the seller.
For simple problems and errors on the welding machine, please follow the table below:

MIG-160ER
13
Nr.
Defect
Cause
Solution
1 No function Micro fuse defective Replace micro fuse: 2.5 A (3.15
A)
Wrong power connection Have the connection checked
by a specialist
2 Irregular wire feed Wrong contact pressure on the
feed roller
Set the correct pressure (it must
be possible to block the wire roll
by hand)
Wire guide on the feed motor
not in a line
Bring the feed roller and wire
guide into line
Guide spiral blocked or not
suitable for wire size
Check, possibly change
Badly coiled wire or wire
crossings
Replace the wire roll
Rusted wire or poor quality Replace the wire roll, clean or
replace the guide spiral
Too much tightened mandrel
brake
Release mandrel brake, screw
on
The feed roller is dirty Clean the feed roller
Feed roller worn or not suitable
for wire size
Replace the feed roller
3 Brittle or porous weld
seam
Gas hose connections leaky Check connections
Empty gas bottle Fill up the gas bottle
Gas tap closed Open the gas tap
Defective pressure reducer Check pressure reducer
Solenoid valve defective Test the voltage at the solenoid
valve (220 volts)
Gas nozzle on burner or hose
package clogged
Clean the gas nozzle and
grease the burner with nozzle
grease or spray with nozzle
spray, blow out the hose
package
Draft at the welding point Shield the welding point or
increase the gas flow.
Dirty workpiece Remove rust, grease or paint
Bad wire quality or unsuitable
shielding gas
New welding wire, use suitable
shielding gas or mixed gas
4 Constant gas leakage Solenoid valve defective, foreign
body in the valve
Clean or replace solenoid valve
Hose is not tight Fasten hose clamps
5 No wire feed when the
fan is running
Microswitch in the torch or
control line in the hose package
is defective
Bridging the two small contacts
in the central connection with a
piece of wire
Control board defective Reset the control board
Fine fuse at the control
transformer defect
Replace micro fuse (1 A)
6 Wire feed cannot be
regulated, motor only
runs at 1 speed
Control board defective Reset the control board
7 No welding current
when the feed is
working normally
Main contactor defect Check line contactor, replace if
necessary
Step switch defective Measure the step switch
function
Ground cable or hose package
is not making contact
Check ground cable and hose
package connection and pliers
for contact
Overload protection has turned
on
approx. 10-20 min cooling with
the fan motor running

MIG-160ER
14
8 An arc is created as
soon as the gas
nozzle is touched
Short circuit between electricity
and gas nozzle
Clean the gas nozzle and torch
neck and spray with welding
spray
9 Torch gets too hot Contact tip too big or loose Use a contact tip suitable for the
wire size or screw the tip tight
10 Insufficient welding
current
Bad contact Check ground cable and pliers
or hose package, replace if
necessary
PROPER DISPOSAL
In accordance with the DIRECTIVE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL on waste
electrical and electronic equipment and its implementation in national law, used power tools must be
collected separately and recycled in an environmentally friendly manner.
CAUTION! Do not throw away power tools in the household waste!
The device consists of various materials that must be collected separately, as it can contain
both environmentally harmful substances and valuable raw materials such as aluminium,
which must be disposed of properly. The trash can symbol indicates the need for separate
collection.
You too can help protect the environment and ensure that as many resources as possible are used
again and that the environment is preserved. If you no longer wish to use this device, please take it to
the system provided for this purpose, the local recycling centre, so that it can be disposed of there.
For this purpose, the public waste disposal authorities set up collection points where old devices from
private households in their area can be accepted free of charge. The legal disposal authorities may also
collect the old devices from private households. - Please check your local waste calendar or your city or
local authority for information about the return or collection options for waste equipment in your area.
BATTERIES
Do not dispose of the batteries with household waste. Batteries are pre-installed in the toolbox and
cannot be removed from the tool by the user. The disposal of the battery must only be carried out by a
specialist.
The use of these substances in new devices is severely restricted by the Electrical and Electronic
Equipment Act. In some components, however, it is still necessary to use them today, so that the old
devices often still contain significant amounts of pollutants.
MANUFACTURER WARRANTY
1. MANDATORY WARRANTY
IPO Technik-Handels GmbH grants a warranty to all customers for all welding machines and/or plasma
cutters purchased directly from IPO Technik-Handels GmbH of the IPOTOOLS brand.
All devices are subject to a 2-year statutory warranty from the invoice date under the warranty conditions
below and if it is not due to incorrect or careless handling by the customer.

MIG-160ER
15
Warranty Conditions
The warranty and service are valid only with the invoice.
1.1. Guarantor
The guarantor is the company:
IPO Technik-Handels GmbH
Otto-Lilienthal-Str. 4
88046 Friedrichshafen
Germany
Email: [email protected]u
Website: www.ipotools.eu
The guarantee has to be claimed against the guarantor.
1.2. Personal Scope of Application
The guarantee applies equally to entrepreneurs and consumers
1.3. Territorial Scope
The guarantee is valid in the area of the EU member states.
2. ADDITIONAL MANUFACTURER WARRANTY
For equipment delivered on or after April 29th, 2021, in addition to the statutory claims for defects under
the German Civil Code (BGB), a 7-year durability guarantee as defined in § 443 of the German Civil
Code (BGB) applies in accordance with the warranty conditions below. For devices that have been
delivered by IPO Technik-Handels GmbH until 29.04.2021, the previous warranty of 2 years applies.
After 2 years, you still get the 5-year guarantee, which relates to the components defined under point 2
“Technical Scope”.
The warranty refers to components which are inside the device, especially the circuit board and the
inverter. It does not include the housing, the components of the housing as well as connections, ground
cables and hose packages. It also does not cover the accessories and wearing parts supplied.
2.1. Material Scope of Application
The seven-year warranty applies only to electronic welding machines and plasma cutters of the
IPOTOOLS brand, which were delivered by IPO Technik-Handels GmbH on or after April 29th, 2021.
The warranty does not apply to equipment sold as B-goods or used equipment.
2.2. Technical Scope
The warranty covers the components located in the housing of the device, in particular the circuit board
and the inverter. It does not cover the housing, the components of the housing, the LCD display as well
as connections, ground cables, electrode holders and hose packages. It also does not include the
accessories and wearing parts supplied.
2.3. Contents of the Warranty Claim
The warranty grants a right to free repair of any damaged parts covered by the warranty.
2.4. Right of Subsequent Delivery
IPO Technik-Handels GmbH is entitled to deliver a new device instead of repair.

MIG-160ER
16
2.5. Replacement Right for Discontinued Models
If an identical device is no longer sold by IPO Technik-Handels GmbH or the manufacturer of the device
at the time of the assertion of the warranty claim, IPO Technik-Handels GmbH is entitled to supply the
customer, in fulfillment of his warranty claim, with an equivalent or higher-quality, non-identical device
that fully meets the technical requirements of the device. For the equivalence it is not the replacement
value at the time of the warranty claim but the value at the time of purchase that counts.
2.6. Exclusion of Far-Reaching Claims, in Particular for Damages
There shall be no further claims under the warranty. In particular, there are no claims for damages,
especially not for consequential damages.
2.7. Duration and Commencement of the Warranty
The warranty period is seven years and begins with the invoice date.
2.8. Relation to Legal Claims
The warranty applies in addition to the statutory claims for defects. These are not limited by the warranty
in any way.
2.9. Assertion
The warranty is to be asserted for customers who have purchased directly from IPO Technik-Handels
GmbH by sending the repair request in text form (e-mail or letter) to IPO Technik-Handels GmbH and
sending the device to IPO Technik-Handels GmbH to the following address:
IPO Technik-Handels GmbH
c/o K36302 LogoiX
Wasserburger Str. 50a
83395 Freilassing
Germany
For the assertion of the guarantee the presentation of the original invoice, from which the product and
buyer data result, is a requirement.
2.10. Shipping Costs
The customer bears the shipping costs to IPO Technik-Handels GmbH. The costs of the return shipment
from the manufacturer IPO Technik-Handels GmbH to the customer shall be borne by IPO Technik-
Handels GmbH.
If the shipping address of the buyer at the time of the warranty claim differs from his shipping address
at the time of the purchase, and if the shipping address at the time of the warranty claim is not in a
member state of the European Union, IPO Technik-Handels GmbH will only bear the costs of the return
shipment that would be incurred if a return shipment were made to the shipping address of the buyer at
the time of the conclusion of the purchase contract. Because of the additional costs, IPO Technik-
Handels GmbH can make the return shipment dependent on prior reimbursement by the buyer.
2.11. Exclusion of Warranty
The warranty is excluded if the defect was caused by improper handling of the device. If the device was
not properly maintained and a defect occurs in the course of this, the claim to the warranty expires. The
warranty is excluded in particular if the defect is due to the fact that the customer has not followed the
instructions for use or has carried out repair work inside the device himself. The warranty is also
excluded if the defect was caused by a random external event.
2.12. Spare parts
In the 7-year period of the manufacturer's guarantee, the procurement of spare parts is also guaranteed.
Further information on the procurement of spare parts can be found on our homepage.
