iShare S10W User manual

S10W User Manual

2
Settings in playback mode..................................................................22
Connections............................................................................................................24
Connecting to a computer.................................................................24
Connecting the HDTV........................................................................... 25
Wi-Fi Connecting.................................................................................... 26
Using the PC camera function........................................................... 28
Installing software.................................................................................................. 28
Installing the Software........................................................................... 28
Specification........................................................................................................... 30

4
Knowing the camcorder
Part names
1
1.USB jack
2.Start/Stop/Power/Shutter button
3.Busy indicator light
4.Speaker
5.Microphone
6. OK button
7.Up/Wi-Fi button
8.Mode button
9.Menu button
10.Down button
11.LCD screen
12.Lens
13.TF card slot
1
All images and illustrations given in this manual are for explanation purpose and
may differ slightly from the actual product.

5
14.HDMI jack
15.Reset
16.Bracket
17.Tripod slot
18.Water resistant case
Part 16 and part 18 are protectors for
the camcorder, it not only can keep
your sportive clean, but also can
protect your sport camcorder from
some damages, and because of the
tripod slot , it’s convenient fix to a bike
or a helmet, the detail refers to the
following pages.

6
Installing mounts
2
In order to use the camcorder more convenient in outdoor sports or in
under water situations, We have provide some mounts to fix the
camcorder to solve it .
There are two kinds of mounts packaged in this the camcorder.
a b
By installing these mounts, the camcorder can fix to bikes or helmets.
The operating steps as follow:
Fix the sportive camcorder to a bike
1. Find the water resistant case or the bracket, and put the camcorder
2
In this paragraph, all camcorders in images are used the water resistant, and the
bracket also can make it in the same way.

7
into it, then lock it .
2. Find the mount a , open the round of the mount (1) , and put the
rubber pad(2) into it, then use the screw to fix them roughly.
3. Fix the metal screw of the mount to the tripod slot of the camcorder
respectively.
4. Fix them to handlebars of the bike, and adjust the screws to make
the camcorder more steady and convenient.
Fix the sportive camcorder to a helmet
1. The same way to wear the water resistant case for your camcorder.
2. Find the mount b , then you can fix the metal screw of the mount to
the tripod slot of the camcorder.

8
3:After fixing the camcorder to the mount , you need to choose which
way to fix them to the helmet.
a: Using a strap. Insert a strap into the two ends of the mount, adjust
length according to helmet’s size, and then you can use the strap fix to
your helmet.
b :using a sticker Use the side of sticker paste to the mount, and the
other side paste to your helmet.
NOTES:
It will record no sounds when using the water resistant case .
when used underwater, water resistant case with spray or drops is
a normal phenomenon.
Recording at once after using it in water may cause the recording
files is blurry.

9
Preparing before using
Charging the camcorder
The camcorder has an internal lithium-ion battery, please charge it for
the first time use.
1.Turn off the camcorder.
2.Connect the USB cable to the power adapter, and then plug the
power adapter into a power outlet.
3. Open the USB cover at the side of the camcorder, and find the USB
jack in it .
4. Connect the other side of the USB cable to the USB jack of the
camcorder .
5. During charging , the busy indicator light turns red, once the battery
is fully charged , the busy indicator light will turn off .
6. It’s normal that the camcorder will become warm after extend using.
7. Don’t use the power adapter output current is below 1A.
8. Over heat of the camcorder, please turn it off.

10
Inserting the TF card
Before using this camcorder , a TF card(at
least class 4) that can save your video files
and images is necessary prepared .
1.Find the SD card cover at the bottom of
the camcorder.
2.Open it and find the TF card slot in it , then put the TF card into the slot
as shown, making sure that the direction in the card is the same with in
the slot cover.
3.If it’s inserted successfully , you will hear a litter clear buzzer.
TIPS: The camcorder can not record without a TF card.
Basic operation
Turning the camcorder on and off .
1. Turning on the camcorder
Long press the Power/shutter button to turn on the camcorder .

11
2. Turning off the camcorder
Long press the power/shutter button again to turn off the
camcorder.
Normally, the busy indicator light always keep blue after turning on the
camcorder, but when turning on and turning off the camcorder and
other movement, the busy indicator light will flash.
Switching the mode
The camcorder has three type of modes:video mode, capture mode,
playback mode. After turning on the camcorder , press the shutter
button to end it ,then press the mode button to switch between these
modes.
Video mode Recording movie clips
Capture mode Taking still images
Playback mode Viewing the recorded files

12

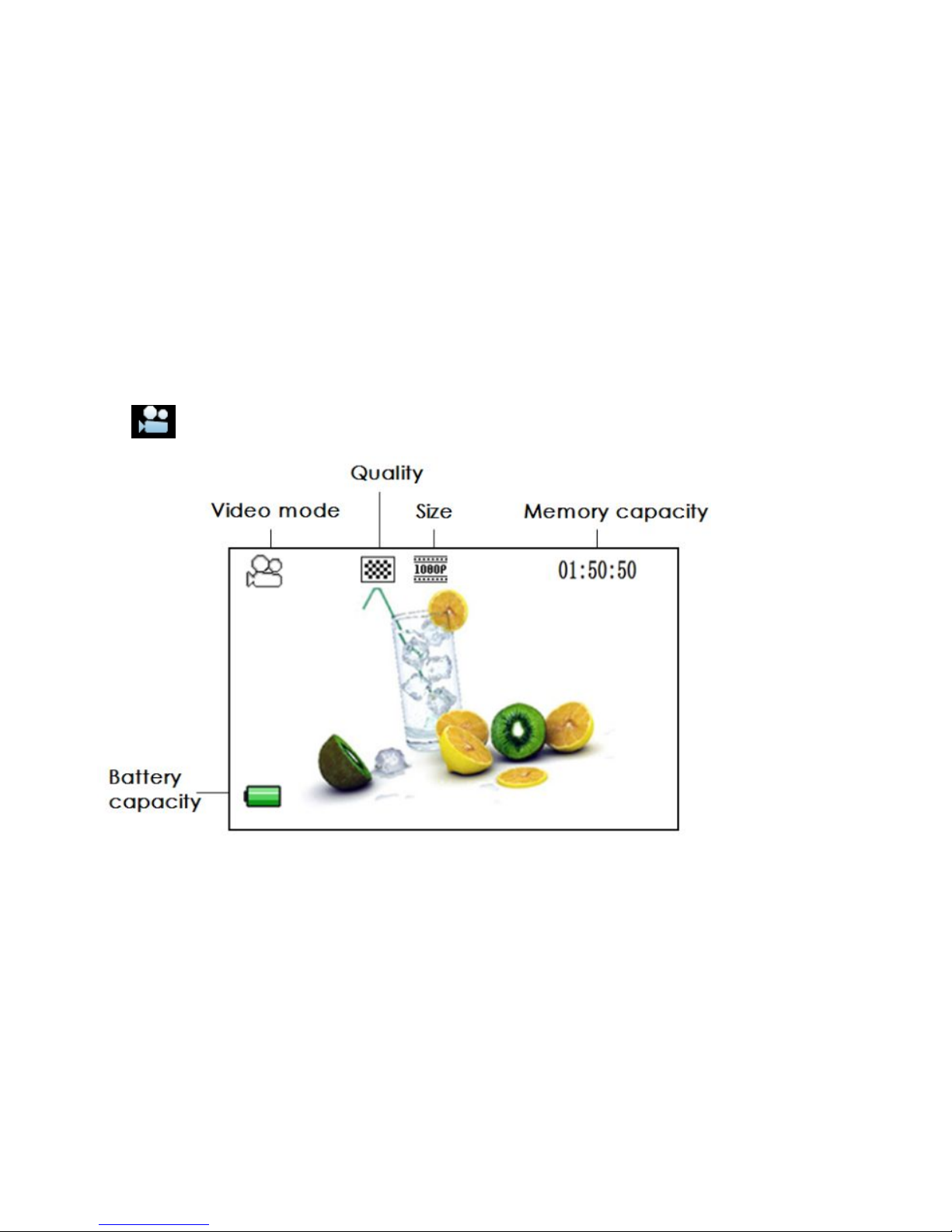

Recording movie clips
1. Normally, after long pressing the power/shutter button to turn on the
camcorder, it starts to record movie clips automatically . If in other
mode ,press the mode button to switch the camcorder to video
mode , the screen shows as below:
2. Use the screen to view the object that you want to record.
3. Press the shutter button to start recording, and after pressing the
shutter button ,you will see the interface as below:

13
4. Press the UP button to have a pause, repeat it to recovery.
5. Press the DOWN button to enter the power save mode, and the
screen is totally black. During this time, it still stay recording movie clips.
Press it again to recovery.
6. Pressing the OK button to capture a still image while recording
movies, and the icon “capture done” will show on the screen.
7.Press shutter button again to stop recording .
8. After exit the recording , Press the UP button to enter the Wi-Fi
connection mode, the detail use refers to Wi-Fi connecting.

14

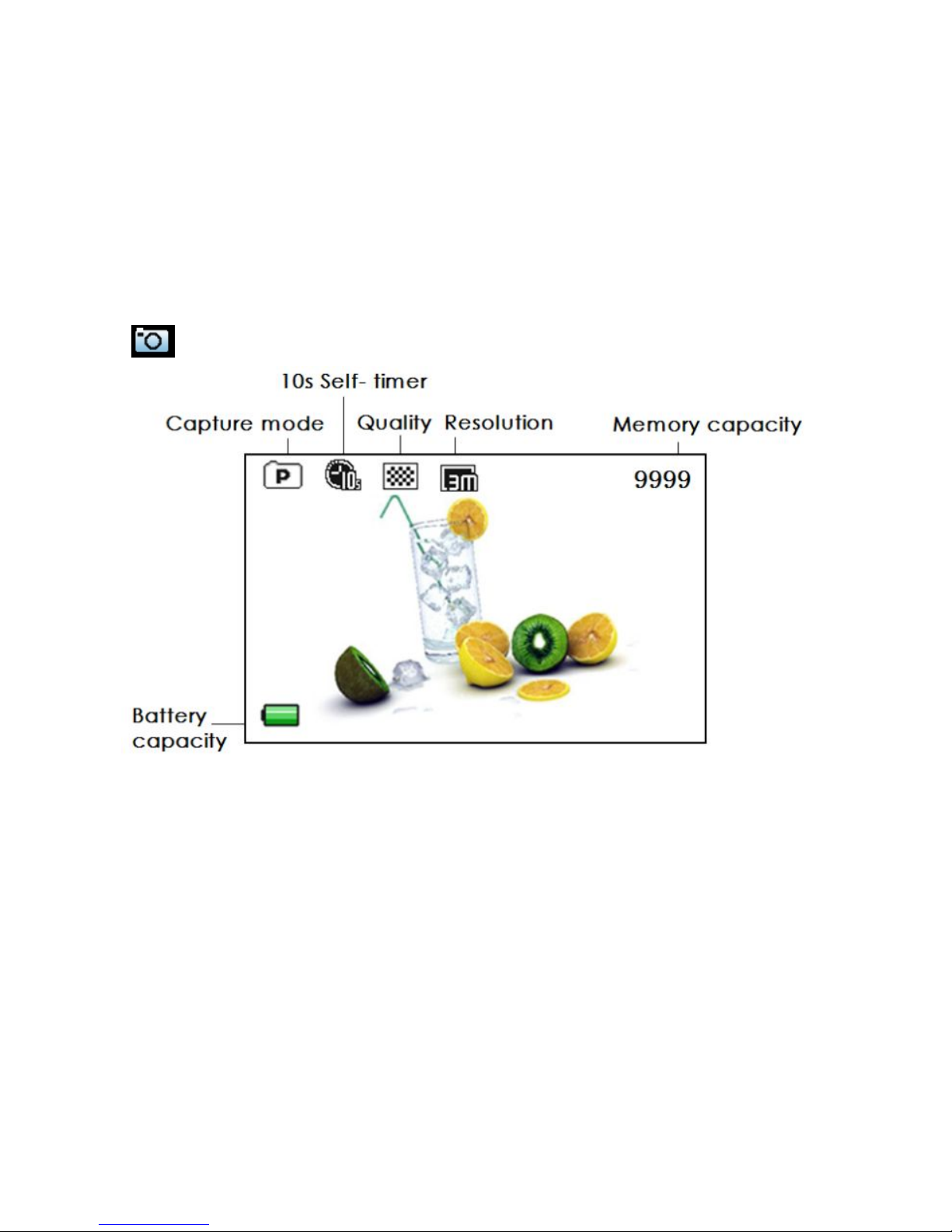

Taking still images
1. Press the mode button to switch the camcorder to capture
mode , the on-screen will show as below:
2. Use the screen to view the object that you want to take, then press
the SHUTTER or the OK button to capture it .
3. Press the DOWN button to enter the power save mode, and the
screen is totally black.
4. Press the UP button to enter the Wi-Fi connection mode, the detail

15
use refers to Wi-Fi connecting.

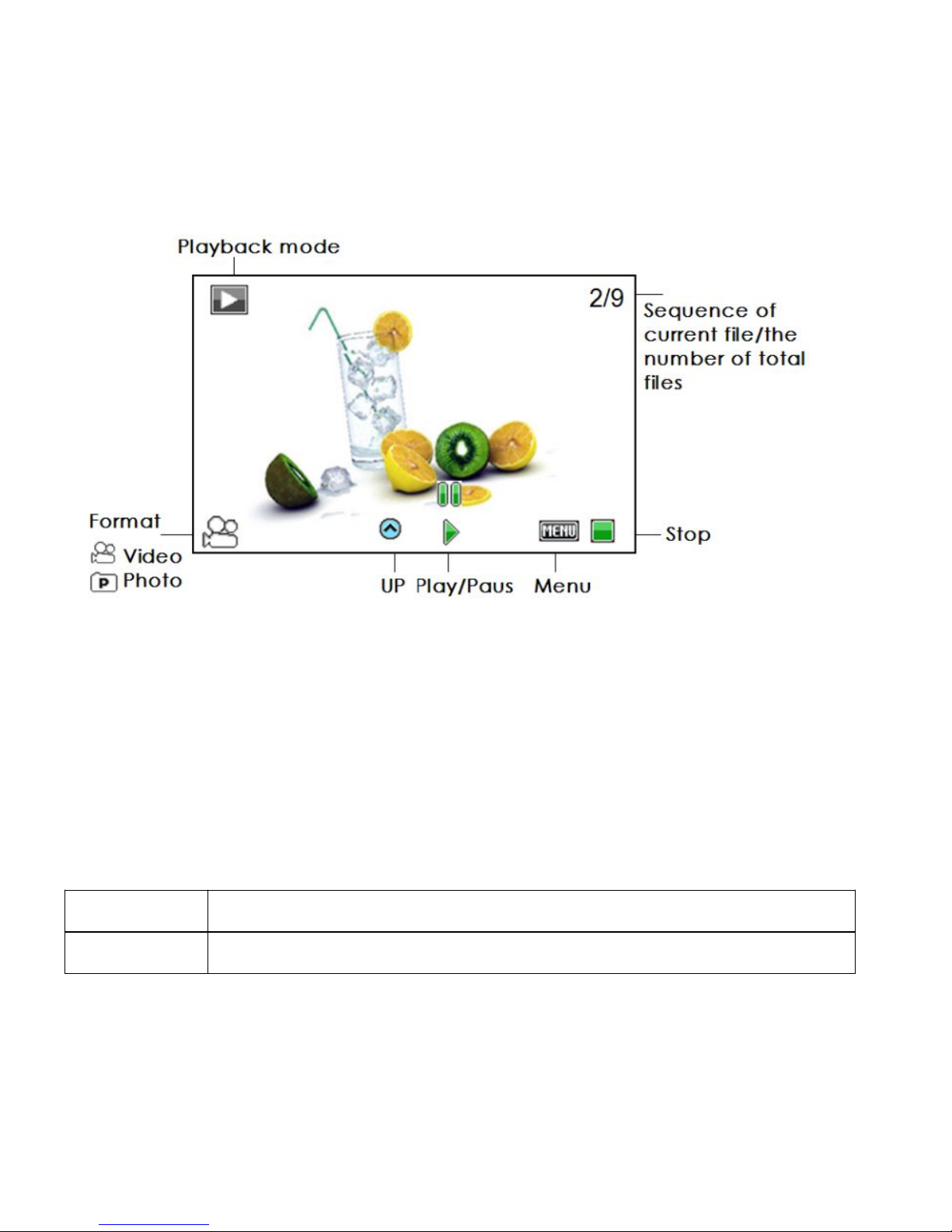

playback
All recorded videos and images are saved in the TF card, only after
inserting the TF card you can view the recorded files .
1. Press the mode button to enter the playback mode , and you will
see the interface as shown in blow picture.
2. Press the UP and DOWN button to view all the files. The first file you
have saw is the the last recorded file.
3. When viewing images, press the OK button to start the slide show,
press the MENU button to exit.

16
4. When playing video files, press the OK button to start playing, press
the UP button to have a pause, at last, press the MENU button to stop
replaying .
Setup menu
Function of buttons.
Button Function
Menu Enter the main menu, exit, back to the last menu

17
Up/down View all the setting options
Mode switch between all the submenu options
OK Enter the submenu , Ensure the settings
Settings for the camcorder
Press the menu button in any mode, then press the mode button to
switch into the setup menu .
Menu Function and options
Sounds Set all the sounds for the camcorder .
Shutter : [on]/[off]
Start up: [1]/ [2] /[3]/[None]
Beep : [on]/[ off ]
Volume :[0 ]/[1]/[ 2]/[ 3]
Backlight Set the backlight :
[On]/[Off]
Power
frequency
Light Frequency should be setted depending on
your region:
[50Hz]/[60Hz]

18
Power
save
To save power, using this function ,the camcorder
will turn off automatically after a period of time.
[Off ]/[1 min]/[ 3min ]/[5min ]
Date &
time
Set the date and time for the camcorder .
Language Set a on-screen language:
[EN]/[FR ]/[NL]/[ES]/[ IT] /[PT]/[ DE]
USB
Extend other functions by using USB.
[MSDC]:choose this option to enter the storage
mode when connecting to a computer.
[PICTbridege]:choose this option to print files when
connecting to a printer marked with the pictbridge
logo.
[UVCH264]:choose this function to set it as a PC
camera when connecting to a computer. And the
recorded file is H264.
[UVCMJPG]:choose this function to set it as a PC
camera when connecting to a computer. And the
recorded file is MJPG.

19
Format Delete all date including protected files. It is
advised to download important files to a computer
before formatting.
[Yes]/[ No]
Reset all.. To reset the entire menu and button operation
settings to initial default.
[Yes]/[ No]
Settings in video mode
Menu Function and options
Movie size
Changing the video resolution for the recording.
Select small movie size to record longer time. There
are four options:
[1920*1080(@30fph)]/[1280*720(@60fph)]/[1280*720(
@30fph)]
Format Choose a format of the video：
[AVI]/[MOV]
Video
Select a lower image quality to decrease the image

20
quality size in order to take more images. There are three
options for choice:
[Super fine]/[ fine]/[ normal]
White
balance
Adjust the white balance to suit different light
sources. There five items for option:
[auto]/[daylight]/[cloudy]/[tungsten]/[fluor]
Metering Change the metering method to change the
brightness of the picture.
[Center]/[Multi]/[Spot]
Effect
Set the color effect to add a color tone to the
video:
[Normal]/[b&w]/[sepia]/[negative]/[red]/[green]/[b
lue]
Seamless Set a loop recording time, so when the time is up, it
will start another video, and during this time, it won’t
be powered off :
[Off ]/[1Min]/[ 3min]/[ 5min]
Date
stamp
Show the date in the video files :
[Off ]/[date]/[date&time]

21
Settings in capture mode
Menu Function and options
Resolution [2560*1920]/[2048*1536]/[1600*1200]/[1280*960]/[64
0*480]
Quality Refer to the settings in video mode
Metering Refer to the settings in video mode
White
balance
Refer to the settings in video mode
ISO
The ISO menu allows you to set the level of sensitivity
that your camera has to light in the surrounding
environment.
[Auto]/[50]/[100]/[200]/[400]/[800]
Exposure Set the exposure value manually to compensate for
unusual lighting conditions ：
[-2.0]/[-1.7]/[-1.3]/[-1]/[-0.7]/[-0.3]/[0.0]/[0.3]/[0.7]
/[1.0] /[1.3]/[1.7]/[2.0]
Sharpness The sharpness level shows up in the edges of objects
