Juggernaut RAPTOR User manual

RAPTOR
MANUAL

GENERAL OPERATION
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
SECTION 2: FIND OUT MODEL AND SERIAL NUMBER
SECTION 3: AFTER SALE SERVICE
SECTION 4: OPERATING RANGE
SECTION 5: ASSEMBLY
SECTION 6 : CONTROLS AND OPERATING
SECTION 7 : MAINTENANCE
SECTION 8 : OFF-SEASON STORAGE
SECTION 9 : TROUBLE SHOOTING GUIDE
SECTION 10 : TECHNICAL DATA
BJC TOOLS OFFICIAL IMPORTER OF

GENERAL OPERATION
PRACTICE
· Read this owner’s guide carefully in its entirety before attempting to assemble this machine. Read,
understand, and follow all instructions on the machine and in the manuals before operation. Be
completely familiar with the controls and the proper use of this machine before operating it. Keep
this manual in a safe place for future and regular reference and for ordering replacement parts.
· Your scarier is a precision piece of power equipment, not a plaything. Therefore,
exercise extreme caution at all times. Your scarier has been designed for removing the dead thatch
and moss from lawns and other grassed areas.
· Never allow children under 14 years old to operate a scarier . Children 14 years old and over
should only operate scarier under close parental supervision. Only responsible individuals who
are familiar with these rules of safe operation should be allowed to use your scarier.
· Keep the area of operation clear of all persons, particularly small children and pets. Stop engine
when they are in the vicinity of your scarier to help prevent blade contact or thrown object injury.
Although the area of operation should be completely cleared of foreign objects, an object may
have been overlooked and could be accidentally thrown by the scarier in any direction and cause
serious personal injury to the operator or any others allowed in the area.
GENERAL OPERATION
PREPARE
· Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire,
bones, toys and other foreign objects which could be picked up and thrown by the scarifer in any
direction and cause serious personal injury to the operator or any others allowed in the area. Plan
your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the
likes. To help avoid a thrown objects injury, keep children, bystanders and helpers at least 75 feet
away from the scarier while it is in operation.
· Always wear safety glasses or safety goggles during operation or while performing an adjustment
or repair, to protect eyes from foreign objects that may be thrown from the machine in any direction.
· Wear sturdy, rough-soled work shoes and close-tting slacks and shirts. Shirts and pants that
cover the arms and legs and steel-toed shoes are recommended. Do not wear loose tting clothes
or jewelry. They can be caught in moving parts. Never operate a scarifer in bare feet, sandals,
slippery or light weight (e.g. canvas) shoes.

GENERAL OPERATION
SAFETY
· Do not operate the scarier while under the inuence of alcohol or drugs.
· Do not engage the self-propelled mechanism on units so equipped while starting engineo
· The blade control handle is a safety device. Never attempt to bypass its operation. Doing so
makes the safety device inoperative and may result in personal injury through contact with the
rotating blade. The blade control handle must operate easily in both directions and automatically
return to the disengaged position when released.
· Never operate the scarier in wet grass. Always be sure of your footing. A slip and fall can cause
serious personal injury. Keep a rm hold on the handle and walk, never run. If you feel you are
losing your footing, RELEASE THE BLADE CONTROL HANDLE IMMEDIATLEY and the blade
will stop rotating within three seconds.
· Mow only in daylight or good articial light.
· Stop the blade when crossing gravel drives, walks or roads.
· If the equipment should start to vibrate abnormally, stop the engine and check
immediately for the cause. Vibration is generally a warning of troubleo
GENERAL OPERATION
PETROL ENGINE
· Shut the engine o󰀨 and wait until the blade comes to a complete stop before removing the grass
catcher or unclogging the chute. The cutting blade continues to rotate for a few seconds after the
engine is shut o󰀨. Never place any part of the body in the blade area until you are sure the blade
has stopped rotating.
· If petrol engine “choke dead”, please don’t take down spark plug, adjust choke to the ‘fast’ , and
keep pulling start rope, until the engine start.
· Only use engine approved by the manufacturer. Read, understand and follow all instructions
provided
with the approved accessory.
· If mu󰀪er doesn’t work,never start work before changing the new spare parts.
· Clean the engine regularly with a cloth or brush. Keep the cooling system (blower housing area)
clean to permit proper air circulation which is essential to engine performance and life. Be certain
to remove all grass, dirt and combustible debris from mu󰀪er area.
· Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have
stopped. Disconnect the spark plug wire, and keep the wire away from the spark plug to prevent
accidental starting.
· Mu󰀪er and engine become hot and can cause a burn. Do not touch
· Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually
inspect blade for damage (e.g., bent, cracked or worn). Replace with blade which meets original
equipment specications listed in this manual.

· Never run an engine inside a closed area.
· To reduce re hazard, keep scarier free of grass, leaves, or other debris build-up. Clean up oil or
fuel spillage. Allow scarier to cool at least 5 minutes before storing.
· Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have
stopped. Disconnect the spark plug wire, and keep the wire away from the spark plug to prevent
accidental starting.
· Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually
inspect blade for damage (e.g., bent, cracked or worn). Replace with blade which meets
original equipment specications listed in this manual.
· Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
· Never tamper with safety devices. Check their proper operation regularly.
· After striking a foreign object, stop the engine, remove the wire from the spark plug, and thoroughly
inspect the scarier for any damage. Repair the damage before starting and operating the
scarier.
· Never attempt to make a wheel or cutting height adjustment while the engine is running.
· Do not change the engine governor setting or over speed the engine. Excessive engine speeds
are dangerous.
SLOPE OPERATION
· If the slope is greater than 15 degrees as shown on the slope gauge, do not operate this scarier
on that area or serious injury could result.
· Comb across the face of slopes, never up and down. Exercise extreme caution when changing
direction on slopes. Watch for holes, ruts, hidden objects, or bumps. Tall grass can hide obstacles.
Always be s ure of your footing. A slip and fall can cause serious personal injury.
WEAR EYE AND EAR PROTECTION
KEEP
BYSTANDERS
AWAY
REED
THE
MANUAL
SHARP TINES-BEWARE OF CUTTING FINGERS
OR TOES-REMOVE SPARK PLUG LEAD BEFORE
MAINTENANCE

SECTION 1: IMPORTANT SAFE
OPERATION PRACTICES
WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS
WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR
PROPERTY OF YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN
THIS MANUAL BEFORE ATTEMPTING TO OPERATE YOUR LAWN SCARIFIER.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL
INJURY. WHEN YOU SEE THIS SYMBOL, HEED ITS WARNING.
DANGER: YOUR SCARIFIER WAS BUILT TO BE OPERATED ACCORDING TO THE RULES
FOR SAFE OPERATION IN THIS MANUAL. AS WITH ANY TYPE OF POWER EQUIPMENT,
CARELESSNESS OR ERROR ON THE PART OF THE OPERATOR CAN RESULT IN SERIOUS
INJURY. THIS LAWN SCARIFIER IS CAPABLE OF AMPUTATING HANDS AND FEET AND
THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR DEATH.
SECTION 2: FIND OUT MODEL AND SERIAL
NUMBER
Data brand shows this scarier’s model and serial No. on the chassis of the scarier.
SECTION 3: AFTER SALE SERVICE
Any problems in assembling ,controlling, operating or repairing, please contact a specialis to Before
contacting, please make sure of your model and serial No., and you can get the specialist’s quickly and
perfect service.
SECTION 4: OPERATING RANGE
Used for curing grass and lawn.
Scarier activities in mechanical blade under the action of centrifugal force can e󰀨ectively remove
spring layer, reduce weeds spreading, and improve the soil of the air permeability and water, and promote
the growth of the lawn, recover the lawn health.
SECTION 5: ASSEMBLY
ITEMS REQUIRED FOR ASSEMBLY
● Pair of Pliers (Not necessary, but helpful)
● Motor Oil
● Fresh Gasoline
IMPORTANT: This lawn scarier is shipped WITHOUT GASOLINE or OIL in the engine.
Be certain to service engine with gasoline and oil as instructed in the separate engine manual
before operating your scarier.
NOTE: Reference to right or left hand side of the scarier is observed from the operating position.

STEP 3
PUT NUT INTO THE SLOTS OF KNOB NUT, USING BOLT FIX
UPPER AND LOWER HANDLE.
STEP 1
LIFT UPPER HANDLE
STEP 2
ALIGN UPPER HANDLE WITH LOWER HANDLE
FOLLOW STEPS 1 THROUGH 3 TO ASSEMBLE YOUR RAPTOR

TO START ENGINE AND ENGAGE BLADE
· Attach spark plug wire to spark plug. Make certain the metal cap on the end of the spark plug wire
is fastened securely over the metal tip on the spark plug.
· Move towards the throttle control.
· Prime engine as instructed in the separate engine manual.
· Stand behind the scarier, squeeze the blade control handle and hold it against the upper handle.
· Pull starting rope handle to the compression stroke starting point (the rope feeling a little di󰀩cult)
Release the rope a little, and then pull the rope quickly and continuous, using one arm
stroke .At this moment, don’t loosen the rope, put the rope handle to the hook.
· If not start, repeat again.
· After starting the throttle control handle can switch to the required position to work. Please remember,
the optimal design of the load on scarier is the biggest throttle of the engine.
NOTE: If any problems are encountered, refer to the TROUBLE SHOOTING GUIDE
Section of this manual.
SECTION 6: CONTROLS AND OPERATING
WARNING: Keep hands and feet away from the chute area on the cutting deck.
The operation of any scarier can result in foreign objects being thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses or eye shields.
NOTE: For best results raise the cutting position until it is determined which height is best
for your lawn. See CUTTING HEIGHT ADJUSTMENT LEVER in the CONTROLS section.
GASOLINE AND OIL FILL-UP
Service the engine with gasoline and oil as instructed in the separate engine manual.
Read all instructions carefully.
WARNING: Never ll fuel tank indoors with engine running or until the engine has been
allowed to cool for at least two minutes after running.

SECTION 6 TO STOP ENGINE AND BLADE
Release the ywheel brake lever to stop the blade and switch o󰀨 the engine’s
ameout button to stop the Scarier.
(Please refer the the position of the ameout button from Engine operation brochure)
NOTE: If a Scarier equipped a throttle, also can choose pushing down the
throttle to “N” position to stop the engine
WARNING: The blade continues to rotate for a few seconds after the engine is shut o󰀨.

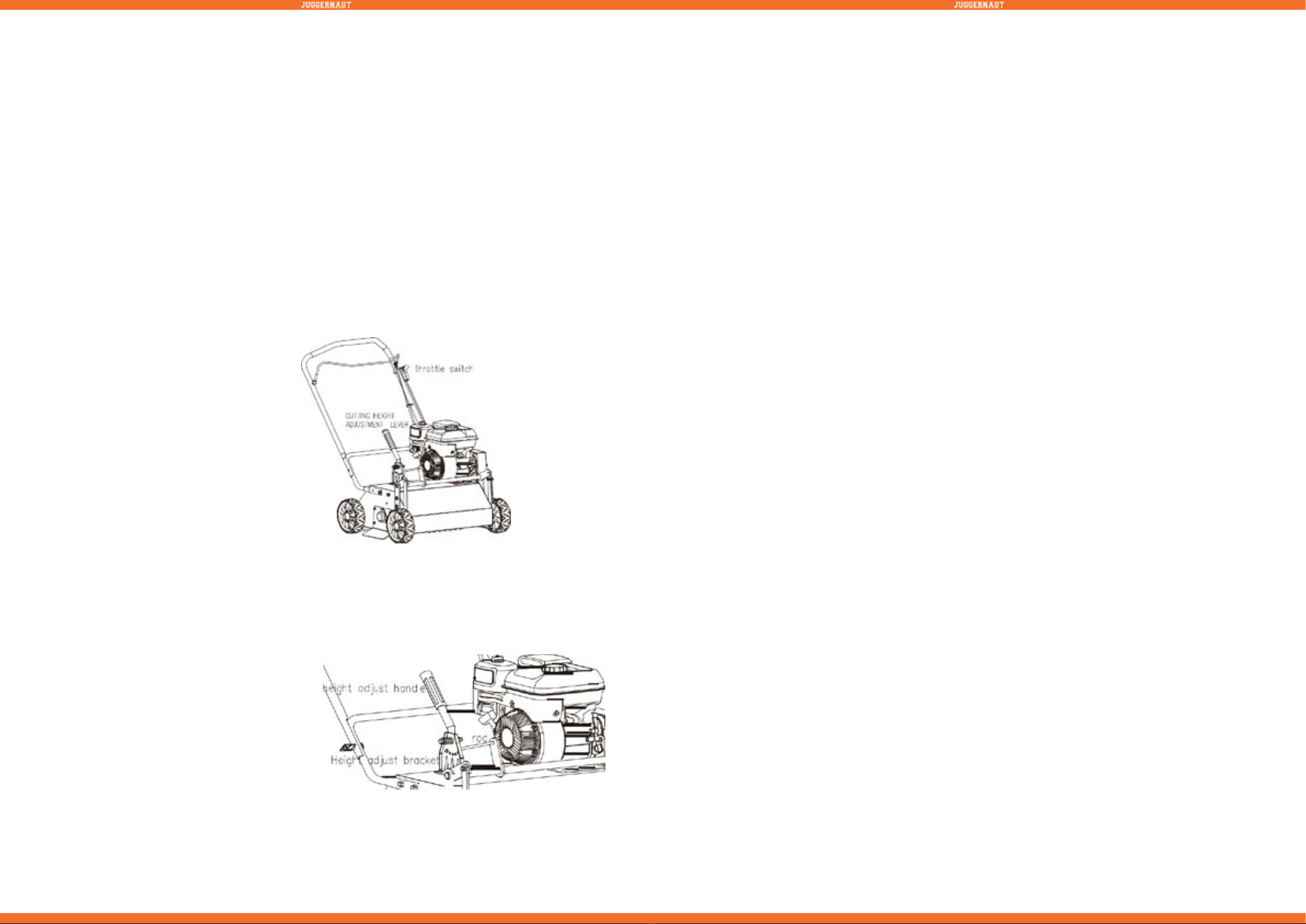

BLADE BRAKE HANDLE(See FIG 5)
This handle is on the top of upper handle. If you want to work, push down this handle.
If you want to stop, loosen it.
CUTTING HEIGHT ADJUSTMENT LEVER
The cutting height adjustment lever is
located on the right of engine. To adjust
the cutting height, hold the adjustment
handle, pull to the right, make the rod out
of the height adjustment bracket, move it
forward or backward to choose suitable
height. See FIG. 7
WARNING:Blade brake
handle is a safety device.
Never attempt to bypass its
operations.
FIG.5
FIG.7
SECTION 7: MAINTENANCE
WARNING: Always stop engine and disconnect spark plug wire before cleaning, lubricating
or doing any kind of service work on the scarier.
NOTE: When tipping the scarier, empty the fuel tank. Never tip the scarier more than 90
degrees in any directions and do not leave the scarier tipped for any length of time.
Oil can drain into the upper part of the engine causing a starting problem.
ENGINE
Refer to the separate engine manual for all engine maintenance instructions.
· Maintain engine oil as instructed in the separate engine manual packed with your scarier.
Read and follow instructions carefully.
· Service air cleaner every 25 hours under normal conditions. Clean every few hours under extremely
dusty conditions. Poor engine performance and ooding usually indicate that the air
cleaner should be serviced. To service the air cleaner, refer to the separate engine manual packed
with your scarier.
· The spark plug QC12YC should be cleaned and the gap reset once a season.
Spark plug replacement is recommended at the start of each mowing season; refer to engine
manual for correct plug type and gap specications.
· Clean the engine regularly with a cloth or brush. Keep the cooling system (blower housing area)
clean to permit proper air circulation which is essential to engine performance and life. Be certain
to remove all grass, dirt and combustible debris from mu󰀪er area.

BLADE SHAFT
The inside blade shaft should be cleaned after each use .If not, it will cause rust and corrosion ,
and increase the engine ‘s burden. After pulling out spark plug, can use wood chip, or other tool to
clean xtures.

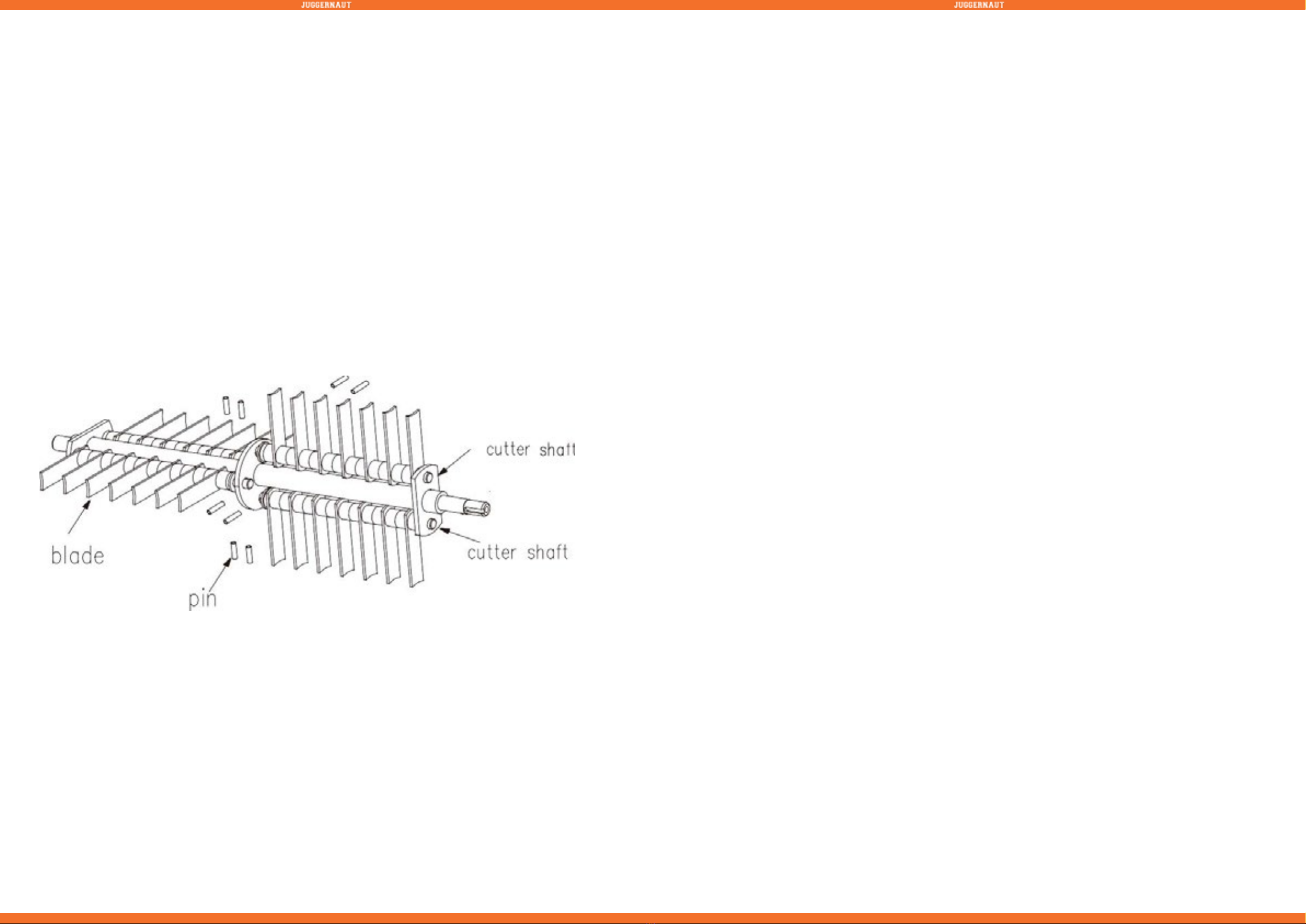

BLADE REMOVAL, REPLACEMENT AND
SHARPENING ( See FIG 15)
· When removing the blade for sharpening or replacement, protect your hands with a pair of heavy
gloves or use a heavy rag to hold the blade.
· Remove the pin which is holding the blade.
WARNING: Periodically inspect the blade adapter for cracks, especially if you strike a
foreign object. Replace when necessary.
LUBRICATION
WARNING: Always stop engine and disconnect spark plug wire before cleaning, lubricating
or doing any kind of service work on the scarier.
· Lubricate the wheels and bearings at least once a season with light oil (or engine oil). Also, if
the wheels are removed for any reason, lubricate the surface of the rear axle or front shaft and
the inner surface of the wheel with light oil.
· Follow engine manual for lubrication instructions.
SECTION 8: OFF-SEASON STORAGE
The following steps should be taken to prepare your scarier for storage.
● Clean and lubricate scarier thoroughly as described in the lubrication instructions.
● Refer to engine manual for correct engine storage instructions.
● Coat scarier’s blade with chassis grease to prevent rusting.
● Store scarier in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in a poorly ventilated or metal storage shed, care
should be taken to rust-proof the equipment. Using a light oil silicone, coat the equipment, especially
cables and all moving parts.

SECTION 9: TROUBLE SHOOTING GUIDE
BJC TOOLS OFFICIAL IMPORTER OF JUGGERNAUT
NOTES
TROUBLE CAUSE REMEDY
ENGINE FAILS TO START
Blade control handle disengaged.
Spark plug wire disconnected.
rottle control lever not in correct
starting position.
Fuel tank empty, or stale fuel.
Blocked fuel line.
Faulty spark plug.
Engine ooded.
Engage blade control handle.
Connect wire to spark plug.
Move throttle lever to FAST or START
position.
Fill tank with clean, fresh gasoline.
Clean fuel line.
Clean, adjust gap or replace.
Crank engine with throttle in FAST
position.
ENGINE RUNS ERRATIC
Scarier running in START position.
Spark plug wire loose.
Blocked fuel line or stale fuel.
Vent in gas cap plugged.
Water or dirt in fuel system.
Dirty air cleaner.
Carburetor out of adjustment.
Move throttle lever to FAST position.
Connect and tighten spark plug wire.
Clean fuel line, ll tank with clean, fresh
gasoline.
Clean vent.
Drain fuel tank. Rell with fresh fuel.
Clean air cleaner.
Adjust carburetor.
ENGINE OVERHEATS
Engine oil level low.
Air ow restricted.
Carburetor not adjusted properly.
Fill crankcase with proper oil.
Remove blower housing and clean.
Adjust carburetor.
OCCASIONAL SKIP (HESITATES)
AT HIGH SPEED
Spark plug gap too close. Adjust gap to .030”.
IDLES POORLY
Spark plug fouled, faulty or gap too
wide.
Carburetor improperly adjusted.
Dirty air cleaner.
Reset gap to.030” or replace spark plug.
Adjust carburetor.
Clean air cleaner.
UNEVEN CUT
Wheels not positioned correctly.
Dull blade.
Place all four wheels in same height
position.
Sharpen or replace blade.
NOTE: FOR REPAIRS BEYOND THE ADJUSTMENTS LISTED ABOVE,
CONTACT YOUR NEAREST AUTHORIZED SERVICE DEALER.
MODEL RAPTOR
DIMENSIONS(MM) 1300×680×1000
N.W/G.W (KG) 41/47
WORKING WIDTH (MM) 500
HEIGHT ADJUSTMENT (MM) 0-25 (6 POSITIONS )
TRANSMISSION TYPE BELT
CUTTING WIDTH (MM) 500
CUTTING DEPTH (MM) 0-25
MEASURED SOUND PRESSURE
LEVEL AT OPERATOR’S EAR LPA
82.9DB(A)
MEASURED SOUND POWER
LEVEL LWA
93.85DB(A)
K=3DB(A)
GUARANTEED SOUND POWER
LEVEL LWA
97DB(A)
VIBRATION 5.389M/S2 K=1.5M/S2
