Lassco Wizer Spinnit FMMH-3 User manual

USER’S MANUAL
Spinnit FMMH 2 Hydraulic Paper Drill
Before operating this equipment, please read these
instructions completely and keep these operating
instructions for future reference.
485 Hague Street, Rochester, NY 14606 U.S.A.
Tel: [phone] Fax: [phone]
www.lasscowizer.com [e-mail]
Serial Number:
Date of Purchase:
Dealer:
Address:
Telephone Number:
-
R

Table Of Contents
1 - Introduction
1.1
1.2
1 - Introduction
1.1 - Your New FMMH-2 Paper Drill
1.2 - Shipping Damage Inspection
Remove the machine from the carton and inspect for
any shipping damage. If any damage is present, report
the damage to the carrier immediately; failure to do so
may void any warranties.
Page 01
Page 01
R
Page 01
Your New FMMH-2 Paper Drill...............
Shipping Damage Inspection...............
2 - Safety
2.1
2.2
2.3
Page 02
Page 03
Page 04
Safety Instructions................................
Warning Labels.....................................
Grounding Instructions.........................
3 - Setting Up Your Machine
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
Page 05
Page 05
Page 06
Page 06
Page 07
Page 08
Page 08
Page 08
Loose Items Inventory..........................
Accessories Warning............................
Uncrating and Removing From the
Pallet....................................................
Installing the Leveling Feet..................
Adding the Oil.......................................
Attaching the Paper Side Stops...........
Attaching the Chip Bag........................
Electrical Instructions...........................
4 - Operation
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Page 09
Page 09
Page 10
Page 11
Page 11
Page 12
Page 12
Protective Guard..................................
Drill Bit Removal and Installation.........
Leveling the Drill Bits............................
Adjusting the Back-Gauge Assembly...
Adjusting the Distance Between
Heads...................................................
Drilling Procedures...............................
Tips on Drilling......................................
5 - Maintenance
5.1
5.2
5.3
5.4
Page 13
Page 13
Page 14
Page 15
Safety....................................................
Annual Lubrication................................
Inspecting the Flex Drive......................
Changing the Hydraulic Oil..................
6 - Trouble Shooting Guide
6.1
Page 17
Determining the Cause and Correction
to Certain Problems..............................
Thank you for your purchase of the Spinnit FMMH-2
Paper Drill.
We ask that you take a moment to ll in the serial
number and other information on the front cover of the
manual. Please keep this manual as a reference for
future use.
For parts and service, please contact the Lassco-Wizer
Dealer from whom you purchased the machine. If you
require assistance in locating a Lassco-Wizer Dealer
please contact our customer service department at 585-
436-1934. Please have the model of your machine and
the serial number when you call.
7 - Parts Diagrams
7.1
7.2
7.3
7.4
7.5
Page 19
Page 20
Page 21
Page 22
Page 23
Side View.............................................
Head Assembly....................................
Spindle and Chuck Assembly...............
Rear View.............................................
Parts List..............................................

2 - Safety
2.1 - Safety Instructions
Page 02
All operators must read and understand the Users
Manual including all safety instructions before using this
equipment. Failure to fully understand the safety
instructions can result in personal injury. If after reading the
manual you are still uncertain about use, please
contact the dealer from whom you purchased the
machine for assistance. If you need contact information for
a Service Technician nearest you please call
585-436-1934.
SAFETY OF THIS EQUIPMENT IS THE RESPONSIBILITY
OF THE USER(S).
Please read and follow all warning labels on your machine.
WEAR PROPER APPAREL. Do not wear loose
clothing , gloves, neckties, rings, bracelets, or other jewelry
which may get caught in moving parts. Non slip footwear
is recommended. Wear protective hair covering to contain
long hair.
Keep hands clear while operating machine.
ALWAYS USE SAFETY GLASSES. Also use face or dust
mask if drilling operation is dusty. Everyday eyeglasses only
have impact resistant lenses, they are NOT safety glasses.
KEEP GUARDS IN PLACE and in working order.
Always disconnect the power before servicing this machine.
Service should only be performed by a QUALIFIED TECH-
NICIAN.
Always turn the machine to o󰀨 mode and wait for the drills
to stop spinning before installing or removing drill bits. Keep
hands away from drills when operating. PLEASE NOTE
THAT THE DRILL BITS MAY BE HOT AFTER USE. PRO-
CEDE WITH CAUTION WHEN CHANGING THE DRILL
BITS.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use
this machine in damp or wet locations, or expose it to rain.
Keep work area well lighted.
THIS MACHINE IS DESIGNED FOR ONE PERSON OP-
ERATION. Never operate the machine with more than one
person.
KEEP CHILDREN AWAY. All visitors should be kept a safe
distance from the work area.
MAKE WORKSHOP KID-PROOF with padlocks or master
switches.
DON’T FORCE MACHINE. It will do the job better and safer
at the rate for which it was designed.
USE RIGHT MACHINE. Don’t force tool or attachment to
do a job for which it was not designed.
MAINTAIN MACHINE WITH CARE. Keep tools sharp and
clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from machine before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
DISCONNECT MACHINE before servicing; when changing
accessories, such as drill bits, drill blocks, and the like.
REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure the power switch is in the o󰀨 position before
plugging in.
USE RECOMMENDED ACCESSORIES. Consult the us-
er’s manual for recommended accessories. The use of im-
proper accessories may cause risk of injury to persons.
NEVER STAND ON MACHINE. Serious injury could occur
if the machine is tipped.
DON’T OVERREACH. Keep proper footing and balance at
all times.
CHECK DAMAGED PARTS. Before further use of the ma-
chine, a guard or other part that is damaged should be care-
fully checked to determine that it will operate properly and
perform its intended function--check for alignment of moving
parts, binding of moving parts, breakage of parts, mount-
ing, and any other conditions that may a󰀨ect its operation.
A guard or other part that is damaged should be properly
repair or replaced.
NEVER LEAVE MACHINE RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave machine until it comes to
a complete stop.

2 - Safety
2.2 - Warning Labels
Page 03
WARNING: DO NOT EXPOSE TO
RAIN OR USE IN DAMP LOCATIONS.

Page 04
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to re-
duce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conduc-
tor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not t the outlet, have the proper outlet installed by a QUALI-
FIED ELECTRICIAN.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor
with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding con-
ductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal. Check with a QUALIFIED ELECTRICIAN or service personnel if the grounding instruc-
tions are not completely understood, or if in doubt as to whether the tool is properly grounded. Use only 3-wire
extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the machine’s plug.
This machine is intended for use on a circuit that has an outlet that looks like the one illustrated in diagram 2-10.
The machine has a grounding plug that looks like the plug illustrated in diagram 2-10. Make sure the machine is
connected to an outlet having the same conguration as the plug. No adapter is available or should be used with
this machine. If the machine must be reconnected for use on a di󰀨erent type of electric circuit, the reconnection
should be made by qualied service personnel; and after reconnection, the tool should comply with all local codes
and ordinances.
2.3 - Grounding Instructions

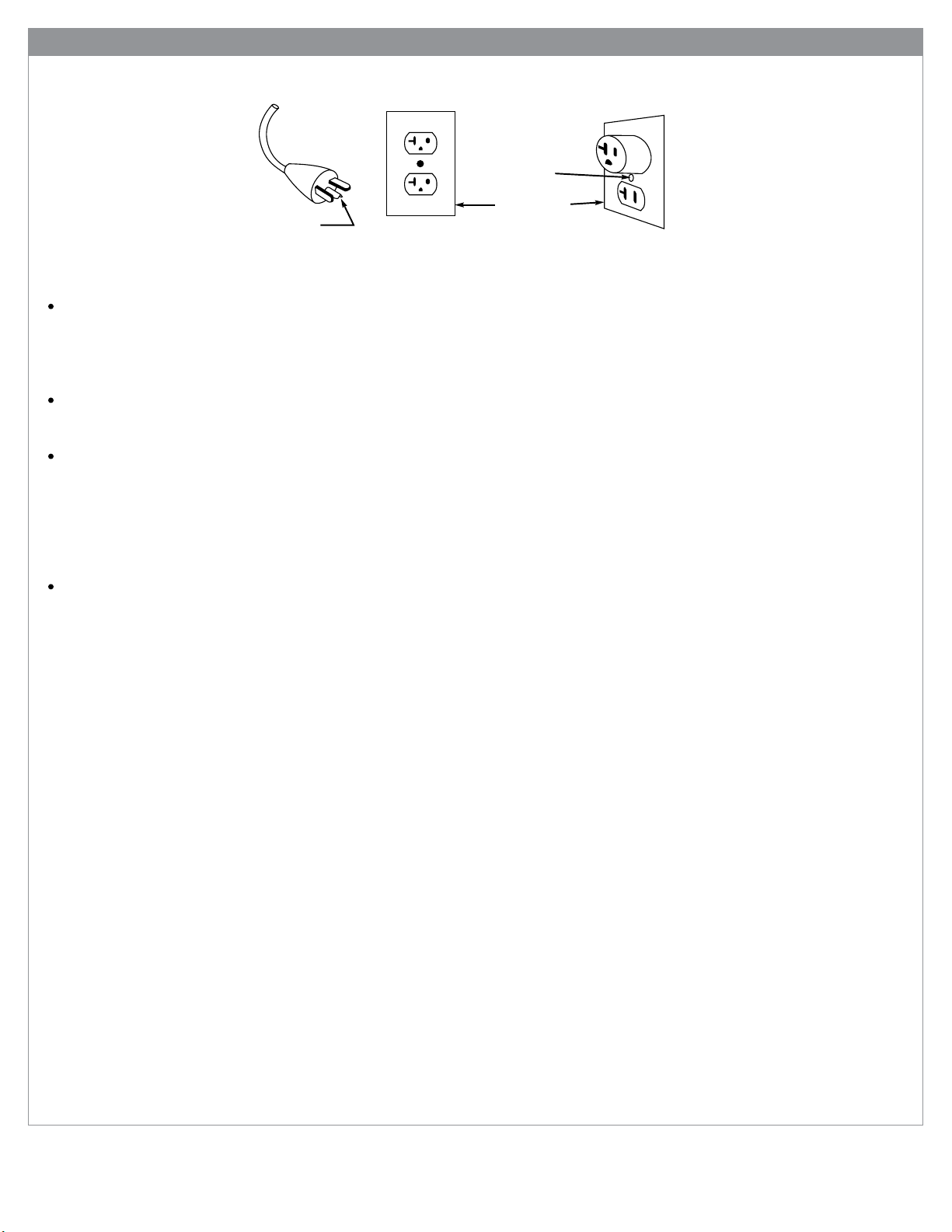

Diagram 2-10
METAL SCREW
GROUNDING
PIN
COVER OF GROUNDED
OUTLET BOX

Page 05
3 - Setting Up Your Machine
3.1 - Loose Items Inventory
Please remove and inspect the following items:
3.2 - Accessories Warning
USE RECOMMENDED ACCESSORIES. Only use accessories approved by a Lassco-Wizer. The use of improper acces-
sories may cause risk of injury to persons.
CC-2: Chip Clearer (1)FMM6-652A: Chip Bag
Assembly (1)
MS-1: Drill Sharpener (1)FMM6-651A: Master Chip
Chute (1)
(this item may be installed)
HEX-732-T: Hex Wrench
7/32” T Style (1)
HEX-18: Hex Wrench
1/8” (1)
FM4-4007: Side Stop
Screws (4)
Paper Side Stops (2)
FM4-4001: 25” Drill Strip (1)
(this item comes installed)
EBM-32: Chuck Re-
lease Key (1)
FMM9-957A: Spindle
Rotation Tool (1)
HG07: Plastic
Funnel (1)
FMH-2030: Hydraulic
Oil (1)
Hollow Drill Bits (2)
(these items may be installed)
EBM-41: Sharpening
Stone (1)
DRILL-EASE: Drill Bit Lubricant (1)

3 - Setting Up Your Machine
3.3 - Uncrating and Removing From the Pallet
Page 06
Remove the wooden framing around the outside box.
Remove the box up and over the machine.
Remove the two (2) 5/16” bolts which are securing the machine to
the pallet: access through the rear of the machine using a 5/16”
wrench (not provided) as shown in diagram 3-10. Discard the two
(2) 5/16” bolts.
Remove the FMMH-2 from the pallet carefully “stepping” it o󰀨 the
edge. DO NOT drop the machine. DO NOT lift by the table. Two
people may be needed to remove the machine from the pallet
safely.
3.3.1
3.3.2
3.3.3
3.3.4
3.4 - Installing the Leveling Feet
Set the machine down in its desired location and determine if the
machine is level, making sure that it does NOT rock in any direc-
tion. If it does, determine which Leveling Feet need to be adjusted
and whether they need to be adjusted up or down.
If adjustment is needed, start by loosening the four (4) nuts which
are accessed through the rear of the machine.
Next adjust the four (4) Leveling Feet by screwing them clockwise
to raise them or counter-clockwise to lower. After each adjust-
ment set the machine down completely to verify that the machine
no longer rocks. Continue adjustment as needed until the ma-
chine sits securely in place. Tighten the four (4) nuts down to
secure the position of the Leveling Feet.
3.4.1
3.4.2
3.4.3
Diagram 3-10
Diagram 3-20
Leveling Feet
Base of the Machine
Nut
Wooden Pallet
5/16” Bolts

3 - Setting Up Your Machine
3.5 - Adding the Oil
Page 07

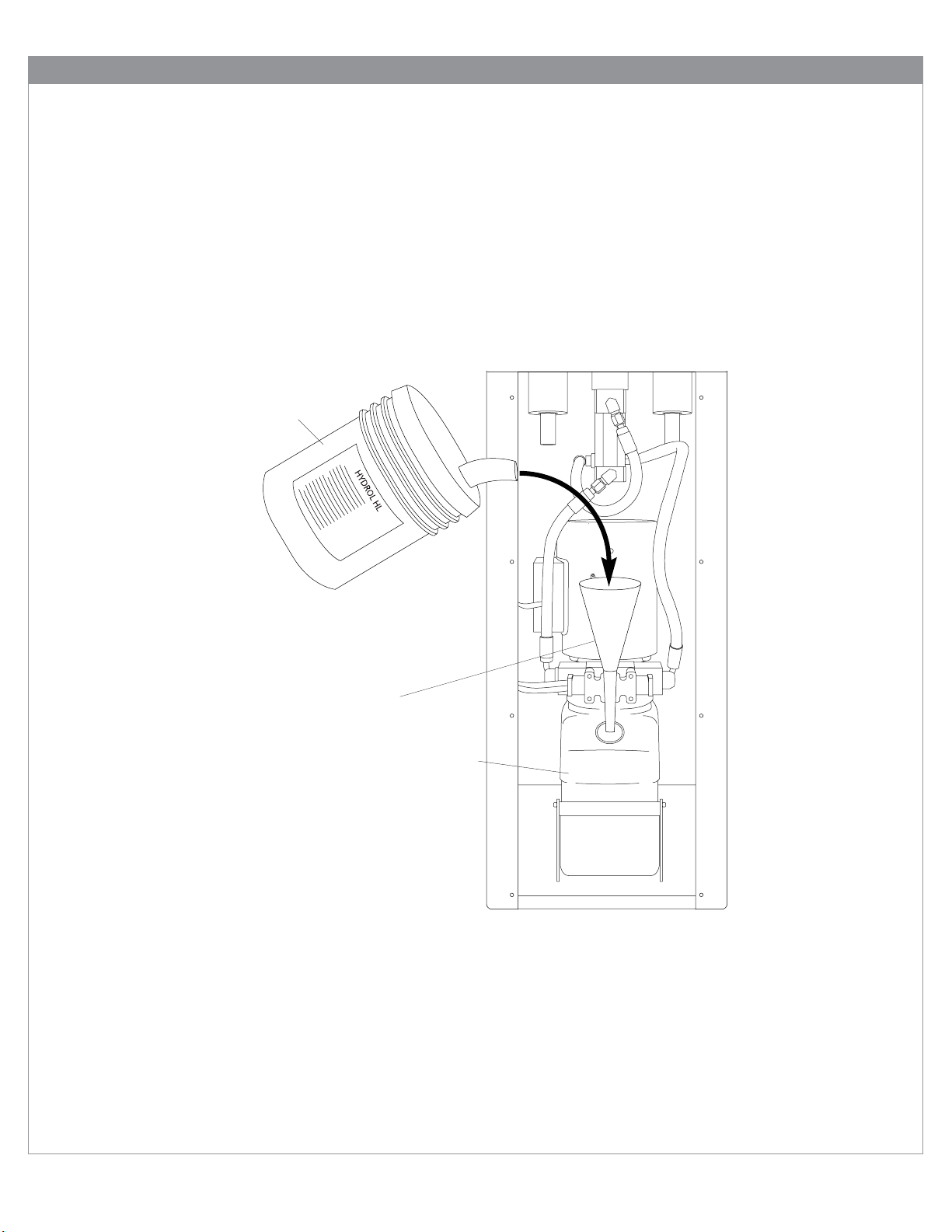

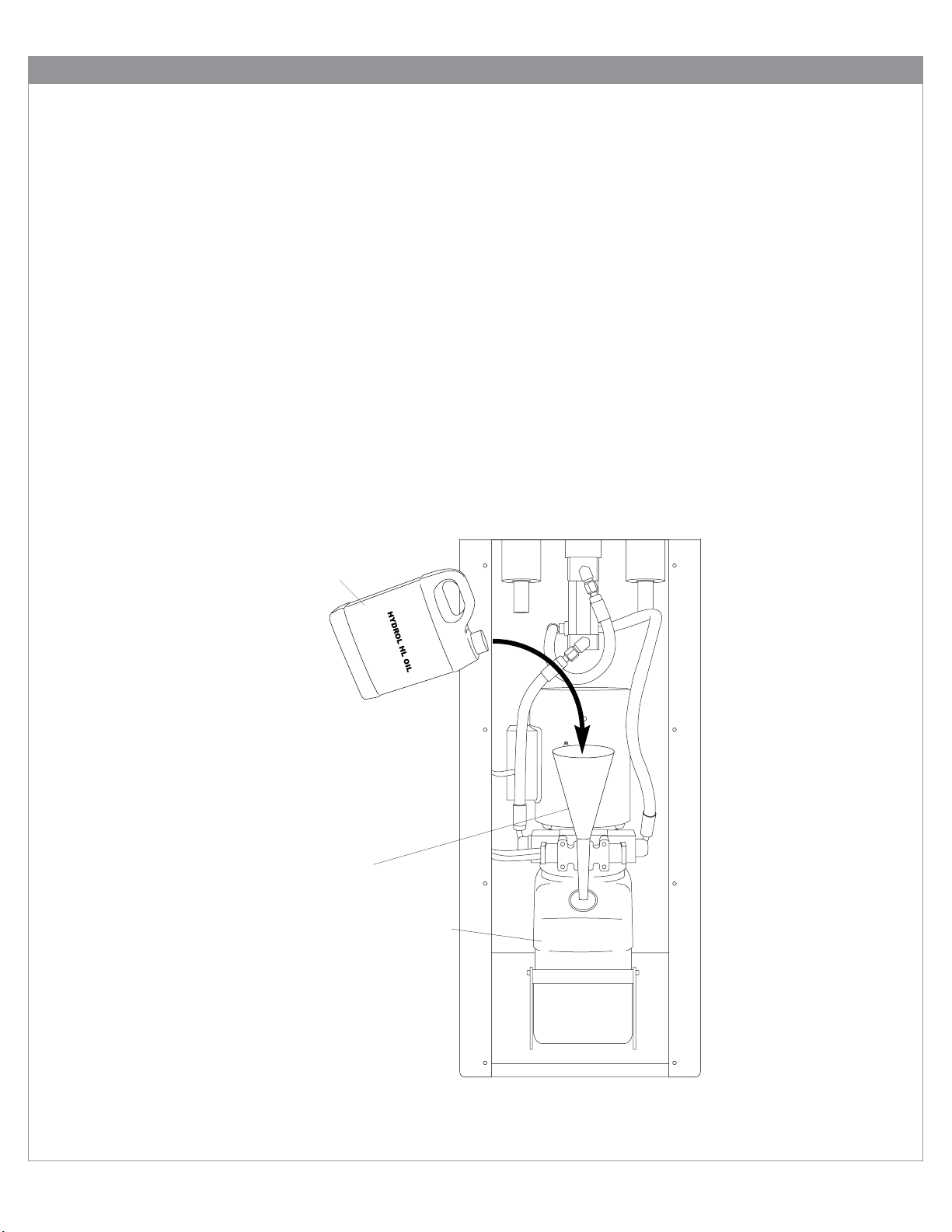

Remove the back cover by unscrewing the eight (8) hex screws that hold it in place.
Remove the Cap on the Oil Tank.
Insert the Plastic Funnel, included with the machine, into the Oil Tank and, using the new batch of Hydrol HL Oil
(HL3HY) included with the machine, ll the tank with 1-1/2 gallons or until the Oil Tank is approximately 3/4 lled with
oil.
Replace the Cap making sure it is sealed securly.
Replace the Back Cover by securing the eight (8) hex screws that hold it in place.
After adding the oil it will be necessary to work the air out of the system. This is done by turning the power to the
Hydraulic Motor on and activating the foot pedal to raise and lower the table. Air in the hydraulic lines may make the
table motion irratic. Continue raising and lowering the table until the machine responds in the usual way indicating
the all the air has been bled out of the hydraulic lines.
Diagram 3-25
3.5.1
3.5.2
3.5.3
3.5.4
3.5.5
3.5.6
Funnel (included)
Oil Tank
Hydrol HL
(included)

3 - Setting Up Your Machine
3.6 - Attaching the Paper Side Stops
Page 08
3.6.1 Diagram 3-30
Attach the Paper Side Stops using two (2) Side Stop Screws
(FM4-4007) each. Position the Paper Side Stop as desired and
tighten down with light pressure.
3.7 - Attaching the Chip Bag
3.7.1 Diagram 3-50
Attach the Chip Bag (FMM6-652A) to the machine by stretching
the mouth of the bag over the Master Chip Chute and hooking
the aluminum bar onto the bracket located on the top at portion
of the master chip chute as shown. Please note that you must
empty this bag as needed to avoid clogging.
Master Chip Chute
Chip Bag
3.8 - Electrical Instructions
3.8.1
3.8.2
Your FMMH-2 comes with an electrical cord containing the plug to
t into standard grounded 115V outlets. This machine has a com-
bined full load draw of 18.8 Amps and requires a 20 Amp Circuit.
Making sure that nothing is interfering with the drill bits, plug the
cord set into a grounded 115V outlet. To turn the Drill Motor on,
face the machine and press the Rocker Switch on the left-hand
side labeled “Drill Motor.” To turn the Table Motor on, face the ma-
chine and press the Rocker Switch on the right-hand side labeled
“Table Motor.”
Diagram 3-60
Rocker Switch
(Drill Motor)
Rocker Switch
(Table Motor)
Table
Paper Side Stop
Side Stop Screws

Page 09
4 - Operation
4.1 - Protective Guard
4.2.1
4.2.2
4.2.3
4.2.4
4.2.5
4.2.6
4.2.7
CAUTION: DRILL BITS MAY BE HOT AFTER USE. ALLOW DRILL BITS TO COOL
DOWN BEFORE TOUCHING.
BEFORE REMOVING OR INSTALLING THE DRILL BITS, DISCONNECT OR
LOCK-OUT THE POWER SUPPLY TO THE DRILL MOTOR.
4.2 - Drill Bit Removal and Installation
Diagram 4-10
4.1.1
4.1.2
We recommend using a piece of card stock on the Table when
leveling the drill bit to avoid drilling into the drill strip. This will
lengthen the life of your drill bits and keep them sharper.
Remove the hole guard which is attached to the chuck. This is
done by grasping the tab and sliding the guard o󰀨.
Using the Chuck Release Key (EBM-32), insert the tapered end
facing down into the chuck hole. In a clockwise motion turn the
Chuck Release Key 45 degrees. The drill bit will slide out of the
chuck. It is recommended that you hold onto the drill bit so that it
does not drop out of the chuck damaging the tip.
To install a drill bit, grasp the drill bit, and being careful to keep it
straight, press it up into the chuck.
Seat the drill bit by using a stack of scrap paper. Set the scrap on
the table. Lower the table lift speed by turning the Table Adjust-
ment Knob (see section 4.9). Step on the foot pedal slowly rais-
ing the table toward the Drill Bit. Put light pressure on the hollow
Drill Bit seating it rmly in place.
Remove the scrap paper and turn the machine on to check the
concentricity of the bit. If the bit is not concentric, remove it and
repeat steps 4.2.2 through 4.2.5 until it is concentric.
When the drill bit is correctly installed replace the hole guard back
onto the chuck to protect debris from clogging the chuck.
Diagram 4-20
Chuck
Hole Guard
Drill Bit
Chuck Release Key
Tab
Chuck Hole Guard
Drill Bit
Diagram 4-30
Your FMMH-2 comes with a protective guard installed. DO NOT
operate this machine without the guard in place.
Please note that when you are performing certain operations such
as removing and installing drill bits, you will need to move the
guard out of the way. Making sure the power to the machine is
disconnected or locked-out, push the guard up and hold in place
while performing necessary operations or maintenance. The pro-
tective guard should not be removed during operation.

4 - Operation
Page 10
4.3 - Leveling the Drill Bits
4.3.1
4.3.2
4.3.3
4.3.4
4.3.5
4.3.6
4.3.7
4.3.8
4.3.9
4.3.10
4.3.11
4.3.12
We recommend using a piece of card stock on the Table when
leveling the drill bits to avoid drilling into the drill strip. This will
lengthen the life of your drill bits and keep them sharper.
Remove one (1) of the two (2) Access Guard Screws using
the 1/8” Hex Wrench (HEX-18). Swing the Access Guard as
shown in diagram 4-40 to gain access to the motor shaft.
Insert the Spindle Rotation Tool (FMM9-957A) into the end of
the motor shaft through the opening in the top of the machine
shroud until the notch in the Spindle Rotation Tool ts into the
keyway securely.
Swing the access cover located on the front of the heads to
one side allowing access to the spindle and chuck.
Turn the Spindle Rotation Tool by hand until the Insert Retainer
Screw can be seen in the opening.
Turn the rocker switch labelled Table Motor on. Stepping on
the foot pedal, raise the table so that it meets the bottom of the
pressure foot assembly. By keeping the foot pedal activated
during steps 4.3.7 through 4.3.8 the table will stay in the full
upright postion.
Using the 7/32” Hex Wrench (HEX-732-T), loosen the insert
retainer screw approximately one half turn (loosening too
much may cause the insert retainer screw to come out com-
pletely). Retighten the insert retainer screw until it is snug but
not tight; this will allow you to raise or lower the chuck without
too much play. Hold onto the Spindle Rotation Tool to pre-
vent the belts from turning. Lower the height of the Chuck by
turning it counter-clockwise. Raise the height of the Chuck by
turning it clockwise.
When the drill bit is just touching the drill strip, re-tighten the
insert retainer screw. This may require you to turn the Spindle
Rotation Tool until the Insert Retainer Screw is again access-
able through the opening.
Lower the table
Repeat steps 4.3.3 through 4.3.9 on the remaing Drill Bits so
that they are all level with each other.
REMOVE THE SPINDLE ROTATION TOOL FROM THE MO-
TOR SHAFT. Leaving this attached can cause injury to the
user as it can y out of the machine upon startup.
Replace all the Access covers and Access Guards so that they
cover the motor shaft opening and the retainer screw open-
ings.
Diagram 4-50
Diagram 4-40
A
ccess Guard
1/8” Hex Wrench
Access Guard Screw
Diagram 4-60
Diagram 4-70
BEFORE LEVELING THE DRILL BITS,
MAKE SURE THAT THE DRILL MOTOR
SWITCH IS IN THE OFF POSITION.
7/32 Hex Wrench
Insert Retainer
Screw
Chuck
Table
Card Stock
Spindle Rotation Tool
Access Cover
Pressure Foot
Table

4 - Operation
Page 11
4.4 - Adjusting the Back-Gauge Assembly
4.4.1
4.4.2
4.4.3
4.4.4
4.4.5
Adjust the Back-gauge so that it is the correct distance from the
edge of the product to the center of the hole to be drilled by per-
forming the following:
Loosen the Clamp Knob on the right side of the Back-gauge.
Using the two (2) Scales embedded in the rear corners of the
table, align the front edge of the Back-gauge with the desired dis-
tance.
Zero (0) on these scales align with the center of the hollow drill
bits.
Tighten down the Clamp Knob when the Back-gauge
is positioned as desired.
Diagram 4-80
4.5 - Adjusting the Distance Between Heads
4.5.1
4.5.2
To adjust the outside spindles to a desired spacing, loosen the
Hand Wheel Lock Knob. Turn the Hand Wheel to move the spin-
dle farther away from the center or to move the spindle closer
to the center. Please note that the direction you turn the Hand
Wheel depends on the side of the machine. Use the Back-gauge
Scale as a guide. When the spindle is at its desired location tight-
en the Hand Wheel Lock Knob by turning clockwise. Repeat with
the second outside spindle.
When drilling fewer than two (2) holes simply remove undesired
drill bits.
Diagram 4-90
Clamp Knob
Back Gauge
Table
Back Gauge Scale
Back Gauge Scale
Back Gauge Scale
Drill Strip
Drill Strip
Hollow Drill Bits
Hand Wheel
Lock Knob
Hand Wheel
Shroud

4 - Operation
4.6 - Drilling Procedures
Page 12
4.6.1
4.6.2
4.6.3
4.6.4
4.6.5
4.7 - Tips on Drilling
4.7.1
4.7.2
4.7.3
4.7.4
Use a sharp drill bit at all times... Using the MS-1 drill bit sharpener, sharpen your drill bits regularly. Apply light pres-
sure when sharpening. Too much pressure may cause aring of the tip. (Once a drill bit has a ared tip, it becomes
defective.)
Sharpening Stone... Use to debur the outside cutting edge of the drill bits for better performance.
Lubricate drill bits occasionally... Use Drill-Ease or Spin-Eze. While the drill is running, simply touch the Drill-Ease
stick to the drill bit or brush on the Spin-Eze. Drill through scrap to remove any excess. This will allow for a smoother
cut.
Drill Strips...When drilling, a drill bit must stop slightly above the drill strip. Replace worn out drill strips regularly to
ensure proper drilling.

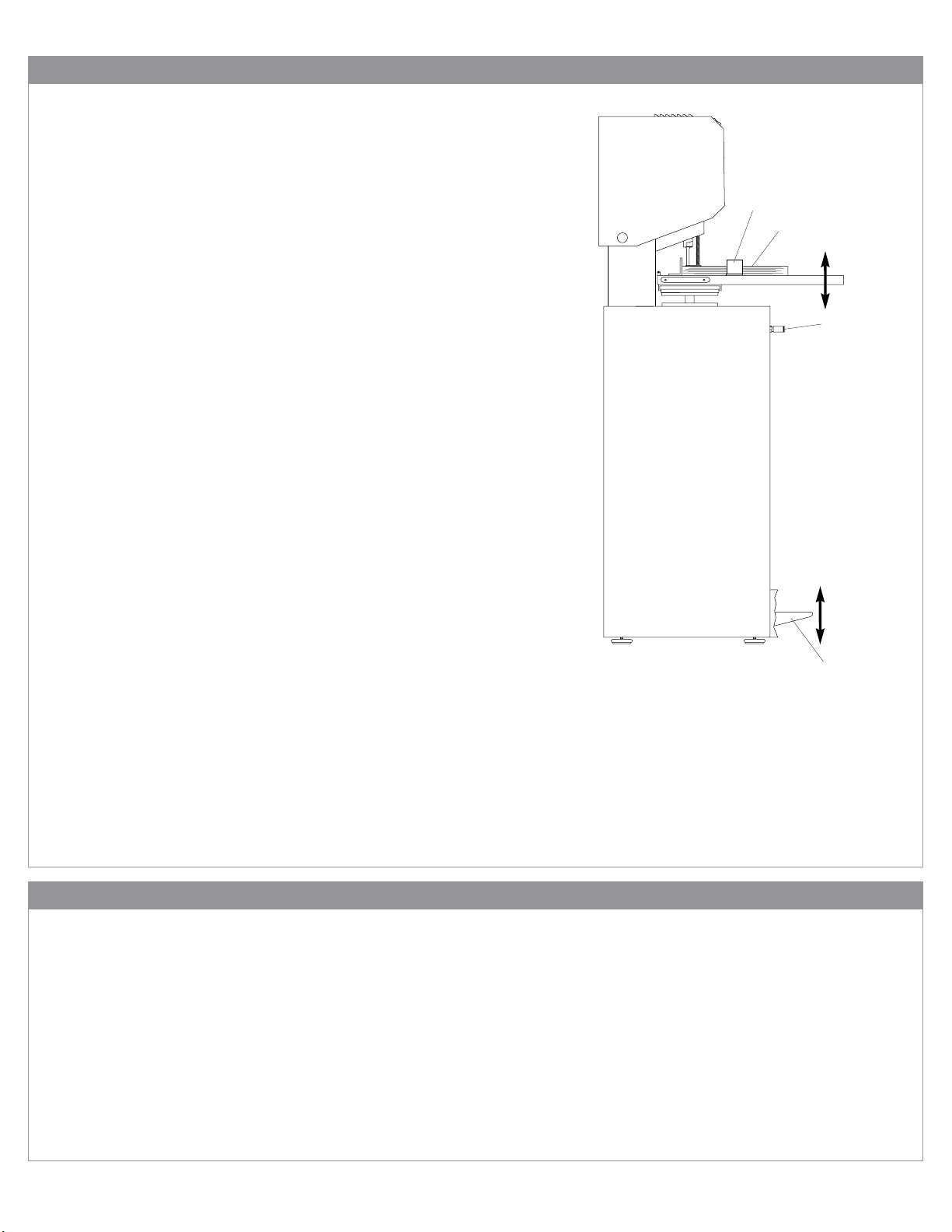

After all your adjustments are made as desired, position the Table
in its primary position. Set the product to be drilled on the table
and make sure it is secure using the Paper Side Stops. To drill,
step down on the Foot Pedal and hold, raising the Table up to
meet the drill bits. Make sure the Table rises fully allowing the drill
bits to drill through the product. When the drill bits have penetrat-
ed through the entire stack of product, release the Foot Pedal,
which alows the table to return to its lowered position.
It is important you do not drill too slow or too fast. If you drill too
slow you can burn the paper leaving undesired marks. If you
drill too fast, the drill bits will act more like a punch and they will
break.
If your Table rises too slow: increase the speed of your Table
rise by turning the Table Adjustment Knob, located just under the
Table on the front of the machine, counterclockwise.
If your Table rises too fast: decrease the speed of your Table rise
by turning the Table Adjustment Knob clockwise.
Di󰀨erent product requires di󰀨erent speeds. It is always recom-
mended to drill through a test stack of the product until the opera-
tor is condent of the required speed.
Diagram 4-100
Product
Paper Side Stop
Table Adjustment
Knob
Foot Pedal

5 - Maintenance
Page 13
5.2 - Annual Lubrication
5.1 - Safety
ALWAYS DISCONNECT THE POWER BEFORE PERFORMING THE FOLLOWING
MAINTENANCE ON THIS MACHINE. MAINTENANCE SHOULD ONLY BE PER-
FORMED BY A QUALIFIED TECHNICIAN.
KEEP HANDS CLEAR WHILE PERFORMING MAINTENANCE ON THIS MACHINE.
MOVING PARTS CAN CRUSH AND CUT.
Diagram 5-10
Diagram 5-20
Diagram 5-30
5.2.1
5.2.2
5.2.3
5.2.4
Lubricating your FMMH-2 should be done at least once every 12
months; however, it may be necessary to lubricate certain parts
more often depending on use. Whenever a moveable or adjust-
able part starts becoming di󰀩cult to move or adjust, it may be time
to lubricate.

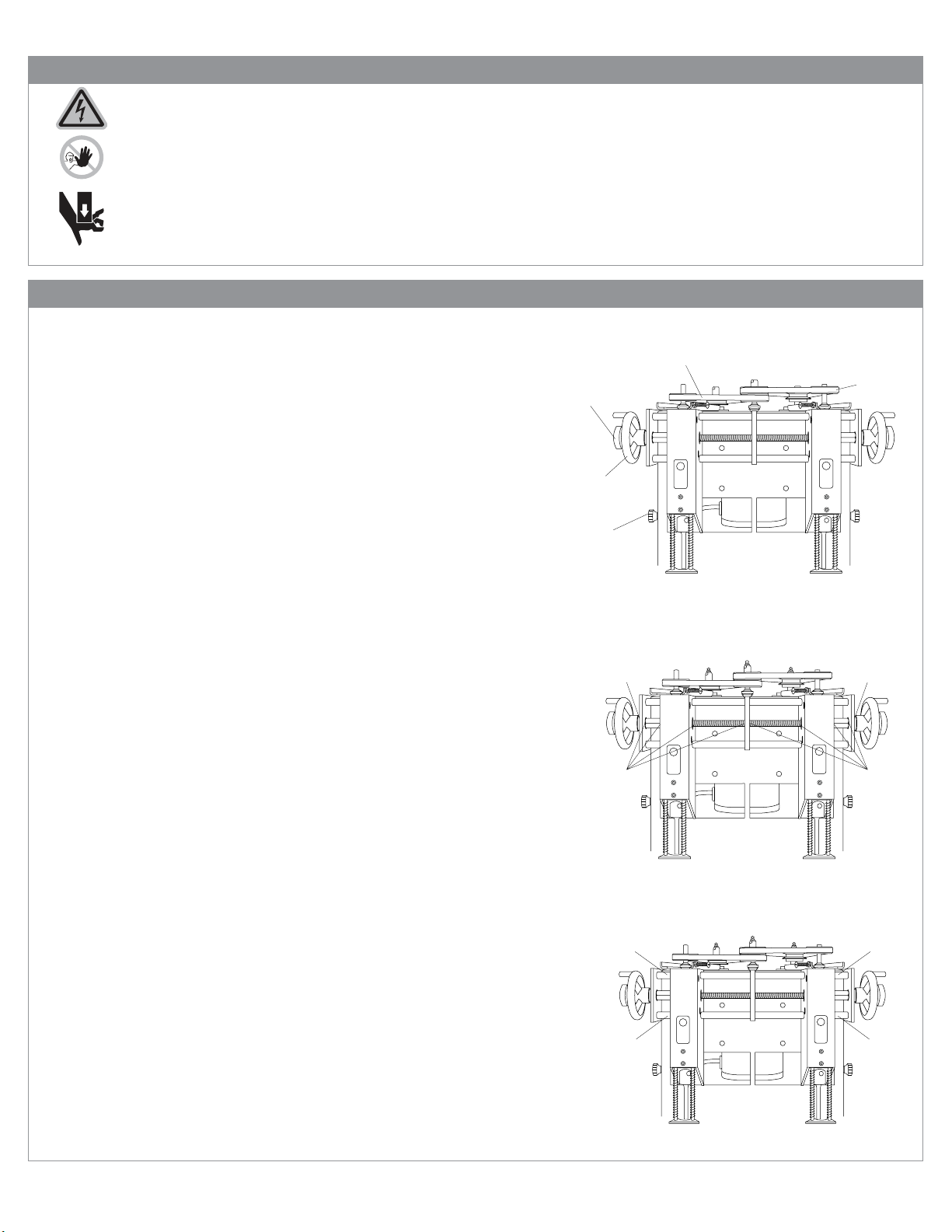

Loosen the Shroud Locking Knob on each side of the Shroud, but
do not remove them. Remove the Hand Wheel Lock Knobs by
turning them counter-clockwise. Turn the Hand Wheels until the
slot at the inside end of the wheel is facing straight up. Remove
the Hand Wheels. Remove the two (2) 1/8” button head screws
and the washers that they secure in place. Disconnect the electri-
cal wiring to the switches inside the rear of the Shroud. Remove
the Shroud by lifting straight up.
Lubricate the Head Traverse Screws by applying light grease ei-
ther by hand, or a small brush to the points indicated in diagram
5-20. Move the heads to both extremes to coat the complete
surface of the screws and inspect them for thread wear.
Apply a light grease on the two (2) Traverse Rods either by hand
or with a small brush to the points indicated in diagram 5-30.
Crank both heads in and out to distribute the lubrication and to
check the head movement.
Belt
Belt
Hand Wheel
Lock Knob
Hand
Wheel
Shroud
Locking
Knob
Greas
e
Greas
e
Grease
Grease
Grease
Grease
Greas
e
Grease

5 - Maintenance
Page 14
5.3 - Inspecting the Flex Drive
Diagram 5-40
Inspecting the Flex Drive on your FMMH-2 should be done at
least once every 12 months; however, it may be necessary to
check this more often if problems with the rotation of the spindles
is noticed. Pelt shavings are normal for new adjusted belts, but
contact a service technician if it becomes excessive.
Inspect the Belts for wear and the proper tension. The tension
should be adjusted to an approximate 1/2” gap between a straight
edge placed from the outside edge of the Idler Pulley to the out-
side edge of the Outside Pulley with the pulleys located one be-
hind the other. Depress the belt halfway between the two pulleys
and measure the distance between the straight edge and the belt
depression.
The belts can be adjusted by loosening the Lock Nut on the Belt
Adjustment Screw located on the front portion of the Flex Drive
Pivot Assembly and turning the screw clockwise to tighten the belt
and counterclockwise to loosen the belt. After the belt has been
properly adjusted, re-tighten the Lock Nut.
Visually check the Flex Drive Pivot Assembly for unusual wear.
Check the Pivot Assembly bolts and tighten if necessary.
Be sure the wiring is clear of all moving components and is prop-
erly attached when replacing the Shroud.

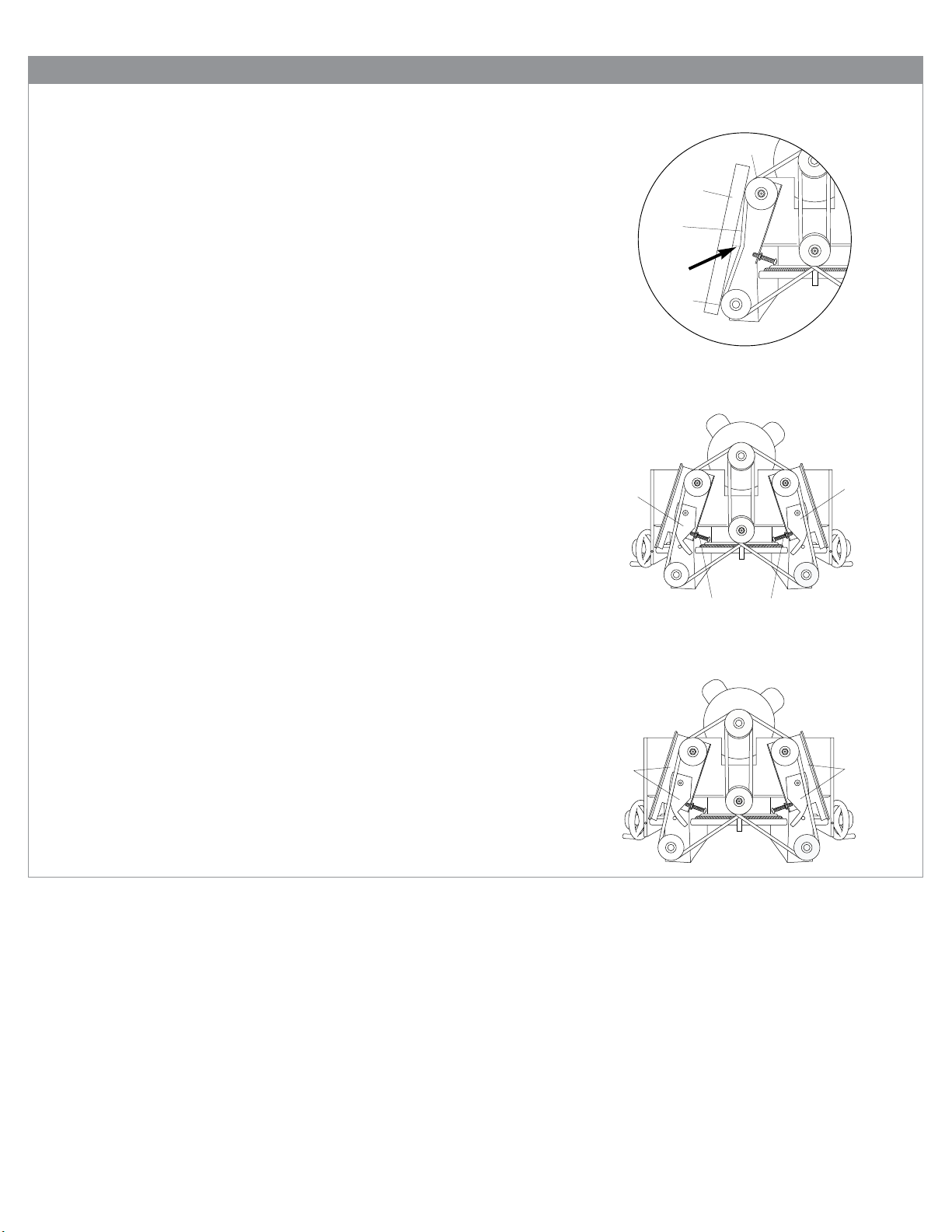

5.3.1
5.3.2
5.3.3
5.3.4
5.3.5
Diagram 5-50
Diagram 5-60
1/2”
Straight
Edge
Belt
Idler Pulley
Outside
Pulley
Belt Tension
Flex Drive
Pivot Assembly
Flex Drive
Pivot Assembly
Belt Adjustment Screw
Flex Drive
Pivot Assembly
Flex Drive
Pivot Assembly

5 - Maintenance
Page 15
5.4 - Changing the Hydraulic Oil
When using Lassco Wizer Hydrol HL, the Hydraulic Oil should be changed every 2100 Machine Hours. Machine
Hours are dened as the period of time that the Table Motor is turned on and pumping oil, regardless of being oper-
ated or not (Even when not drilling, the Table Motor is pumping oil continuously).
If an equivalent oil (other than Hydrol HL) is used, this maintenance schedule may vary, depending on the manufac-
turer’s specications. Some hydraulic oils break down when their temperature exceeds 120 F (48.9 C). Hydrol HL
will maintain its consistency until it reaches 210 F (98.9 C)
Access the Oil Tank by removing the eight (8) hex screws on the rear of the machine which hold the Back Cover in
position. Remove the back cover.
To drain the Hydraulic Oil: Remove the Cap by twisting it counterclockwise. Drain the Hydraulic Oil using either a
pump system to pump the oil out of the machine, or use a syphon system to drain out the oil. It is important to remove
as much of the oil as possible.
Discard the used hydraulic oil making sure to follow all local regulations when disposing.
5.4.1
5.4.2
5.4.3
5.4.4
5.4.5
Diagram 5-70
Back Cover
Cap
Hex
Screw
Use Oil
Oil Tank

5 - Maintenance
Page 16
5.4 - Changing the Hydraulic Oil
Insert the included Plastic Funnel into the Oil Tank and, using a new batch of Hydrol HL Oil (HL3HY) or an equivalent
brand, ll the tank with 1-1/2 gallons or until the Oil Tank is approximately 3/4 lled with oil.
Replace the Cap making sure it is sealed securly.
Replace the Back Cover by securing the eight (8) hex screws that hold it in place.
After changing the oil it will be necessary to work the air out of the system. This is done by turning the power to the
Hydraulic Motor on and activating the foot pedal to raise and lower the table. Air in the hydraulic lines may make the
table motion irratic. Continue raising and lowering the table until the machine responds in the usual way indicating
the all the air has been bled out of the hydraulic lines.
5.4.6
5.4.7
5.4.8
5.4.9
Funnel (included)
Oil Tank
Hydrol HL
(recommended)
Diagram 5-80

6 - Trouble Shooting Guide
6.1 - Determining the Cause and Correction to Certain Problems
Page 17
Problem Cause Correction
Drill bit not concentric. Foreign material in chuck or in
drill plug.
Inspect and clean.
Drill bit is bent. Replace drill bit.
Drill bit not seated in chuck
properly.
Re-insert drill bit correctly.
See Operating Instructions.
Chuck is not tight to spindle. Tighten set screw.
Drill bit not drilling. Drill bit plugged. Remove and clear chips. Check
for other foreign matter.
Drill bit dull. Sharpen drill bit.
Table lift system lifts
unevenly or is noisy.
The Push Pins are dry and need
lubrication.
Lubricate the Push Pins as shown
in the Maintenance portion of the
users manual.
In extreme conditions, the drill chuck and/or chip chute may
be plugged. Remove the drill bit, loosen the chip chute,
pull down, and clean. See Operating Instructions
Note:
In order to maintain smooth table operation, DO NOT sit
on, lean on, or force the table out of alignment.
Note:
Uncommon metallic sounds
from under the shroud.
The Drive Pulley is loose. Adjust the Drive Pulley to the
proper height and tighten or
replace the Set Screw.
The Chuck cannot be
adjusted according to the
Operating Instructions.
The Chuck has been adjusted
too far down causing the adjust-
ment threads to be disengaged.
Re-adjust to a lower position
which may require you to use
new hollow drill bits.
The Chuck has been rotated
while in the down position.
Push up on the Chuck and rotate
slowly while holding the Spindle
stationary until the Chuck returns
into a locked position.
The Needle Bearings on the Idler
Pulley(s) are not lubricated.
Lubricate the Needle Bearings as
needed.
The Chuck adjustment is designed for a 1/4” total move-
ment up and down. Once you have sharpened the drill bit
down more than a 1/4” from its original length you must
replace it. Any drill bits that are longer than approx 2-1/4”
or shorter than approx 2” may cause Chuck adjustment
problems.
Note:

6 - Trouble Shooting Guide
6.1 - Determining the Cause and Correction to Certain Problems
Page 18
Problem Cause Correction
Machine vibrates, wobbles,
resonates, etc.
The machine is not level on the
floor.
Use the leveling feet to make the
machine level on the floor. See
Setting Up Your Machine.
The drill bit(s) are drilling into
the drill strip or they are not
drilling through the bottom
sheet of the product you are
drilling.
Drill bit(s) are not adjusted
properly to the card stock/card
stock not used.
Adjust your drill bit(s) per Operat-
ing Instructions.
The outside Heads are
difficult to adjust.
The Lead Screw and/or Traverse
Rods are dry or damaged.
Lubricate per Maintenance
schedule. Check for damaged or
worn components.
The drill bit(s) do not rotate
when the motor is turned on.
A Drive Belt is broken on the
Flexible Drive System.
Replace the broken belt. See
Maintenance.
A Drive Belt is loose on the
Flexible Drive System.
Tighten the loose belt. See
Maintenance.
An Insert Retainer Screw is
hitting the inside of the Chuck
Housing.
Adjust the Chuck and tighten the
Insert Retainer Screw.
The Hand Wheel Lock is tightend
down in place.
Loosen the Hand Wheel Lock
enough so the Hand Wheel can
be turned.
An obstruction is between the
traversing heads.
Check and remove the obstruc-
tion.
The Chuck(s) were not tightened
after adjustment.
Re-adjust and tighten.
The machine is located directly
on a concrete floor.
Place a rubber mat or carpet
under the machine.
Drill bit(s) are not concentric. Re-install drill bit(s) until they are
concentric. See Operating
Instructions.

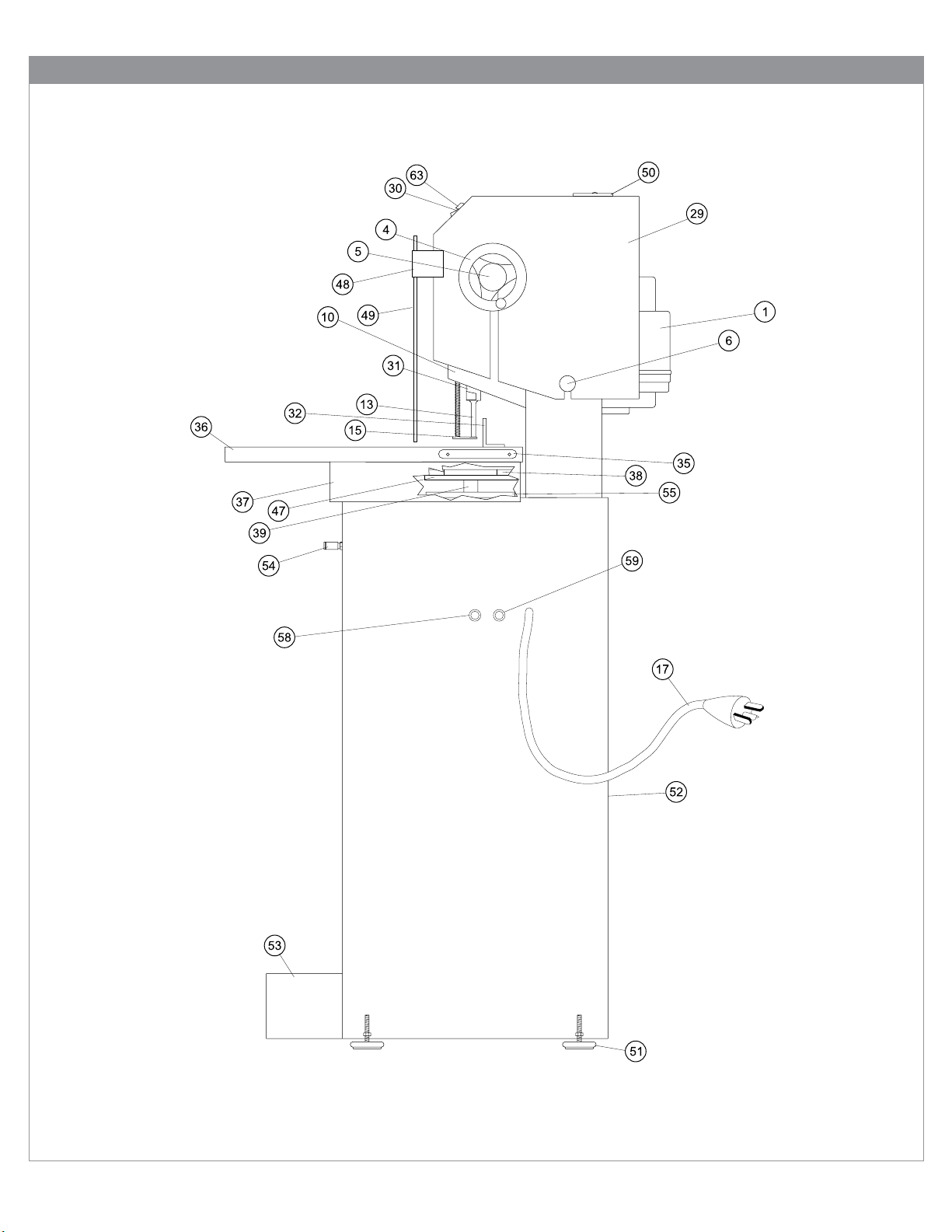

7 - Parts Diagrams
7.1 - Side View
Page 19
