Lawn-King LK 41 B&S User guide

ORIGINAL INSTRUCTION MANUAL
PETROL LAWNMOWERS
LK 41 B&S
LK 46 SP 139 cc OHV
LK 41 99 cc OHV
LK 46 B&S –LK 46 SP B&S
LK 51 SP HW SM B&S
LK51SPHWSM 173 cc OHV
LK41 99 cc OHV
LK41SP 99 cc OHV
LK46SP 139 cc OHV
LK56SPHWSM 173 cc OHV
(mod.: TZ41PB-BS450E / TZ46SB-139 / TZ46PB-BS450E / TZ46SB-BS450E / TZ51SF-BS625EX /
TZ51SF-173 / TZ41PB-99 / TZ41SB-99 / TZ46SB-139 / TZ56SF-173)
READ THIS MANUAL CAREFULLY BEFORE OPERATING THE MACHINE
KEEP THIS MANUAL FOR FUTURE REFERENCE
WARNING THIS SYMBOL INDICATES IMPORTANT SAFETY FEATURES
Serialnumber:

2
CONTENT
Introduction ..........................................................................................................................................................................3
Safety instructions..............................................................................................................................................................4
Training
Preparation
Operation
Maintenance and storage
Product specifications.......................................................................................................................................................7
Definition of symbols......................................................................................................................................................10
Description of components..........................................................................................................................................12
Unpacking and set up instructions ...........................................................................................................................13
Removal from the carton
Disconnect the spark plug
Items required for assembly
Assembly of the handle
Cutting height adjustment
Operating.............................................................................................................................................................................16
Grass box assembly
Grass box removal
How to fix the mulching plug ?
Operating without a grass collecting box
Side discharge
Starting and stopping .....................................................................................................................................................18
Starting a cold engine
Starting a warmed up engine
Stop engine and blade
Self propelled mower
Maintenance.......................................................................................................................................................................20
Oil service
Spark plug Air
cleaner Engine
cleaning
Deck housing
Off season storage
Conditions of warranty..................................................................................................................................................21
EC declaration of conformity.......................................................................................................................................22

3
INTRODUCTION
Dear Customer, thank you for purchasing our petrol lawnmower .
This manual explains how to use the machine correctly.
Before using it, please read this operator’s manual carefully, to ensure correct and safe operation.
Due to ongoing changes of specification, all the details of your machine may not agree with this manual.
Your lawnmower is designed solely for grass cutting and collecting It should not be used for any other
purpose and extreme caution should be exercised at all times.
A lawnmower motor is a machine designed to cut and collect (depending on equipment) grass from
private ornamental gardens.
Any other use not expressly permitted in these instructions may result in damage and may pose a serious hazard
to the user and is not permitted.
This machine must NEVER be used :
- Intensively
- For professional use (including rental) or agriculture
- For public parks or forest maintenance
- On a rainy day or in a humid environment
- By children under 16 years and unaccompanied minors
READ THIS MANUAL CAREFULLY BEFORE
OPERATING THE MACHINE
KEEP THIS MANUAL FOR FUTURE USES

4
SAFETY INSTRUCTIONS
TRAINING
Read the instructions carefully in its entirety before assembling this machine. Read, understand
and follow all instructions on the machine and in the manual before the first operation. Be
completely familiar with the controls and the proper use of the equipment.
Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
Never allow children under 16 years old or people unfamiliar with these instructions to use the lawn
mower. Local regulations can restrict the age of the operator.
Children 16 years old and over should only operate a petrol mower under parental supervision; ensuring
only responsible individuals who are familiar with these rules of safe operation should be allowed to use
your mower.
Never mow while people, especially children, or pets are nearby;
If a situation occurs that is not covered in this user manual, use care and common sense and
contact your dealer for assistance.
PREPARATION
Keep the work area clear of all persons, particularly small children and pets. Stop engine when they
are in the vicinity of your lawnmower to help prevent any blade contact or any injuries from thrown
objects. Although the work area should be completely cleared of foreign objects, an object may have
been overlooked and could be accidentally thrown by the lawnmower in any direction and cause
serious personal injury to the operator or any others in the vicinity.
Thoroughly inspect the area where the lawnmower is to be used and ensure removal of all stones,
sticks, wire, bones, toys and other foreign objects which could be picked up by the lawnmower and
thrown in any direction and cause a serious injury to the operator or others in the vicinity.
The use of safety goggles or glasses is imperative during operation or while performing an adjustment
or repair to the machine to protect eyes from foreign objects that could be thrown from the machine in
any direction
Also, wear steel‐toe capped safety shoes, long trousers and long sleeved shirts when operating the
machine. Do not wear loose fitting clothes or jewellery as these can be caught in mowing parts.
Never operate a lawnmower in bare feet, open sandals, slippery or light weight (canvas) shoes.
Do not put hands or feet near or underneath rotating parts on the lawnmower and keep well clear of
the discharge opening at the rear of the machine at all times as the rotating blade can cause serious
injury
Ensure you have a firm footing when holding the machine as many injuries occur as a result of the
lawnmower being pulled over a foot during a fall. If you feel unsteady at all, release the handle of the
mower immediately. This will ensure stopping of the engine before any injuries can occur.
Never pull the mower towards you while you are walking. If you must back the lawnmower away from
an obstruction follow these step :
oLook down and behind where you are standing
oStep back from the lawnmower and extend your arms
oEnsure you are balanced with solid footings
oPull the lawnmower back slowly, no more than half way towards you
oRepeat these steps when necessary
Plan your cutting pattern to avoid discharge of foreign objects towards roads, footpaths or bystanders.
To help avoid injuries from thrown foreign objects, keep children, bystanders and aids at least 50
meters away from the lawnmower while it is in operation and keep in mind that the user is responsible
for hazards and accidents occurring to others and their property
While mowing, always wear substantial footwear and long trousers. Do not operate the equipment
when barefoot or wearing open sandals;
Thoroughly inspect the area where the equipment is to be used and
remove all objects which can be thrown by the machine;
WARNING ! DANGER !
4

5
Petrol is highly flammable !!
Store fuel only in containers specifically designed and approved for this purpose ;
Refuel outdoors only with the engine stopped and do not smoke while refueling ;
Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is
running or when the engine is hot ; allow the engine at least 2 minutes to cool before refuelling.
If petrol is spilled, do not attempt to start the engine but move the machine away from the area of
spillage and avoid creating any source of ignition until petrol vapours have dissipated. Clean up
before starting the engine. Do not overfill !
Replace all fuel tank and container caps securely before staring the engine ;
Replace faulty silencers;
Before each use, always visually inspect to see that the blades, blade bolts and cutter assembly are
not worn or damaged., but secure and that the machine is in a safe working condition. Replace worn
or damaged blades and bolts in sets to preserve balance;
Before each use inspect the cutting blade for any bends, cracks or worn and replace when
required with a replacement blade that needs the original specification as listed in this manual
Grass collector parts are subject to wear, damage or deterioration this could expose moving parts
and allow foreign objects to be thrown from the machine. For safety, check all components
frequently and replace worn or damaged parts where necessary
USE ORIGINAL SPARE PART. Parts not produced by manufacturer may cause poor fit and possible injury
Do not change the engine governor setting or the speed of the engine, as excessive engine speeds
are dangerous. Do not adjust the throttle while the engine is running.
Do not smoke near the machine. All cigarettes and other sources of ignition must be removed
from the area
OPERATION
WARNING ! DANGER !
Do not operate the engine in a confined space where dangerous carbon monoxide
fumes can collect.
Do not operate the lawnmower whilst under the influence of drugs or alcohol
Do not hold self drive in position while starting the engine. This must not be completed until the
engine is running
Mow only in daylight or in good artificial light ;
Always be sure of your footing on slopes as a slip and fall can cause serious personal injury ;
If you feel you are losing your footing always release the OPC/Operators Presence Control handle
immediately and the blade with stop rotating within a few seconds ;
The Operators Presence Control (OPC) handle is a safety device. NEVER attempt to bypassy its
operation as this makes the safety device inoperative and can result in injuries through contact with the
cutting blade. The OPC handle must operate freely in both directions and release automatically to the
disengaged position when let go.
Walk, never run. Hold the handles firmly
Avoid operating the equipment in wet grass, where possible
Do not operate the lawnmower whilst under the influence of Drugs or alcohol
Do not hold self drive in position while starting the engine. This must not be completed until the
engine is running
When using wheeled or rotary machines, mow across the face of slopes, never up and down. A slope
gauge must be used and if the slope is greater than 20 degrees you must not operate the lawnmower on
the area or it may result in serious injury
Exercise extreme caution when changing direction on slopes;
Do not mow excessively steep slopes;
Use extreme caution when reversing or pulling the lawn mower towards you;
Stop the blade(s) if the lawn mower has to be tilted for transportation when crossing surfaces other than

6
grass, and when transporting the lawn mower to and from the area to be mowed;
Never operate the lawn mower with defective guards, or without safety devices, for example
deflectors and/or grass catchers, in place;
Disengage all blade and drive clutches before starting the engine;
Start the engine carefully according to instructions and with feet well away from the blade(s);
Do not tilt the lawn mower when starting the engine;
Do not start the engine when standing in front of the discharge chute;
Do not put hands or feet near or under rotating parts. Do not touch rotating blade.
Keep clear of the discharge opening at all times;
Never pick up or carry a lawn mower while the engine is running;
If the machine should start vibrating abnormally, stop the engine and visually inspect the cutting
mechanism to ensure it is in good condition. Vibration is usually a warning sign for trouble. A damaged
cutting blade must be replaced immediately with a new replacement blade
The engine and exhaust of the lawnmower become hot while running and can cause a burn. Ensure
these are not touched.
Stop the engine and disconnect the spark plug wire, make sure that all moving
parts have come to a complete stop and, where a key is fitted remove the key:
- Before clearing blockages or unclogging chute;
- Before checking, cleaning or working on the lawn mower;
- After striking a foreign object. Inspect the lawnmower for damage and make repairs before restarting and
operating the lawn mower;
- If lawn mower starts to vibrate abnormally (check immediately);
Stop the engine and disconnect the spark plug wire, make sure that all moving
parts have come to a complete stop and, where a key is fitted remove the key:
- Whenever you leave the lawn mower;
- Before refueling;
Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve,
turn the fuel off at the conclusion of mowing ;
Go slow when using a trailing seat ;
MAINTENANCE AND STORAGE
Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition;
Never store the equipment with petrol in the tank inside a building where fumes can reach an open
flame or spark;
Allow the engine to cool before storing in any enclosure; store the product always out of reach of children;
To reduce the fire hazard, keep the engine, silencer, exhaust, battery compartment and petrol storage
area free of grass, leaves, or excessive grease;
Check the grass catcher frequently for wear or deterioration;
Replace worn or damaged parts for safety. Only use original spare parts
Blade sharpening and balancing including relative dismantling and re-assembly are complicated
operations which involves specific competence as well as special equipment. For safety reasons, these
operations must be carried out by a specialized technical assistance center. The same procedure
applies for blade replacement.
The cutting edges of the mower blade are sharp and can lacerate (cut) skin tissue. Care should be
taken when doing any repair work on or around the mower blade.
If the fuel tank has to be drained, this should be done outdoors.

7
PRODUCT SPECIFICATIONS
Model
LK 41 B&S
LK 46 SP 139 cc OHV
LK 46 B&S
LK46 SP B&S
Factory model
TZ41PB-BS450E
TZ46SB-139
TZ46PB-BS450E
TZ46SB-BS450E
GARDIF model
TOT911415
TOT911414
TOT911416
TOT911417
Drive
Hand propelled
Self-propelled
Hand propelled
Self-propelled
Engine
B&S 450E Series
TZ1P65F Rally
B&S 450E Series
B&S 450E Series
Nominal Power
1.7kW
2.0kW
1.7kW
1.7kW
Rated Engine Speed
2800 rpm
2800 rpm
2800 rpm
2800 rpm
Displacement
125 cm3
139 cm3
125 cm3
125 cm3
Height Adjustments
Central adjustement
Central adjustement
Central adjustement
Central adjustement
Cutting Heights
25-70mm (7 stages)
25-70mm (7 stages)
25-70mm (7 stages)
25-70mm (7 stages)
Grass collector
Rear bag
Rear bag
Rear bag
Rear bag
Grass collector volume
45 litres
50 litres
50 litres
50 litres
Cutting width
41 cm / 16’’
46 cm / 18’’
46 cm / 18’’
46 cm / 18’’
Deck material
steel
Steel
Steel
Steel
Net weight
20 kg
30,50 kg
22 kg
26 kg
A-Weighted emission Sound
Pressure Level or equivalent
at the operator's working
place determined in
accordance with ISO 5395-
1:2013/A1:2018, Annex F)
80.8 dB(A)
82 dB(A)
82 dB(A)
82 dB(A)
Incertainty of
Measurement
K=3 dB(A)
K=3 dB(A)
K=3 dB(A)
K=3 dB(A)
A-Weighted Sound
Power Level, determined in
accordance with ISO 5395-
1:2013/A1:2018, Annex F)
93.1 dB(A)
93.6 dB(A)
93.9 dB(A)
93.9 dB(A)
Incertainty of
Measurement
K=2.35 dB(A)
K=1.85 dB(A)
K=2.05 dB(A)
K=2.05 dB(A)
Guaranteed sound
power level
LWA(2000/14/EC)
96 dB(A)
96 dB(A)
96 dB(A)
96 dB(A)
Vibrations level hand/arm,
total value equivalent to
highest vibrations value for
each handle or hand
position, measured
(as per ISO 5395-
1:2013/A1:2018, Annex G)
Max. 6.74 m/s2
Max. 6.87 m/s2
Max. 6.74 m/s2
Max. 6.74 m/s2
Uncertainty of
declared values
K=1.5 m/s2
K=1.5 m/s2
K=1.5 m/s2
K=1.5 m/s2
Blade type
TZ21080152
TZ21080142
TZ21080142
TZ21080142
Spark plug type
QC12YC
TORCH F6RTC
QC12YC
QC12YC
Tank capacity (fuel)
0.80 L
1.50 L
0.80 L
0.80 L
Tank capacity (oil)
0.47L
0.60L
0.47L
0.47L

8
Model
LK 51 SP HW SM B&S
LK51SPHWSM
173 cc OHV
LK 41 99 cc OHV
LK 41 SP 99 cc OHV
Factory model
TZ51SF-BS625EX
TZ51SF-173
TZ41PB-99
TZ41SB-99
GARDIF model
TOT911418
TOT911314 /
TOT911497
TOT911413
TOT911469
Drive
Self
Propelled
Self
propelled
Hand propelled
Self propelled
Engine
B&S 625EX Series
TZ1P70F Rally
TZ1P56F - Rally
TZ1P56F-Rally
Nominal Power
2.2 kW
2.5 kW
1.3 kW
1,3 kW
Rated Engine Speed
2800 rpm
2800 rpm
3000 rpm
3000 rpm
Displacement
150 cm3
173 cm3
99 cm3
99 cm3
Height Adjustment
Central adjustment
Central adjustment
Central adjustment
Central adjustment
Cutting Heights
25 –70 mm (7 stages)
25–70mm (7 stages)
25–70mm (7 stages)
25-70mm (7 stages)
Grass collector
Rear bag
Rear bag
Rear bag
Rear bag
Grass collector
volume
60 litres
60 litres
45 litres
45 litres
Cutting width
51 cm / 20’’
51 cm / 20’’
41 cm / 16’’
41 cm/ 16’’
Deck material
Steel
Steel
Steel
Steel
Net weight
29 kg
35 kg
21 kg
25 kg
A-Weighted emission
Sound Pressure Level or
equivalent at the
operator's working place
determined in
accordance with ISO
5395-1:2013/A1:2018,
Annex F)
84 dB(A)
84.1 dB(A)
82.2 dB(A)
82,2 dB(A)
Incertainty of
Measurement
K=3 dB(A)
K=3 dB(A)
K=3 dB(A)
K = 3 dB(A)
A-Weighted Sound
Power Level, determined
in accordance with ISO
5395-1:2013/A1:2018,
Annex F)
95.6 dB(A)
95.6 dB(A)
92.3 dB(A)
92,3 dB(A)
Incertainty of
Measurement
K=2.17 dB(A)
K=2.29 dB(A)
K=2.01 dB(A)
K = 2,01 dB(A)
Guaranteed sound
power level
LWA(2000/14/EC)
98 dB(A)
98 dB(A)
96 dB(A)
96 dB(A)
Vibrations level
hand/arm, total value
equivalent to highest
vibrations value for each
handle or hand position,
measured
(as per ISO 5395-
1:2013/A1:2018, Annex
G)
Max. 4.01 m/s2
Max. 5.72 m/s2
Max. 3.95 m/s2
Max.3.95 m/s²
Uncertainty of
declared values
K=1.5 m/s2
K=1.5 m/s2
K=1.5 m/s2
K = 1.5 m/s²
Blade type
CLT31100606001
(TZ21080022)
CLT31100606001
(TZ21080022)
TZ21080152
TZ21080152
Spark plug type
XC92YC
TORCH F7RTC
TORCH F7RTC
TORCH F7RTC
Tank capacity (fuel)
0.8 L
1.5 L
0.7 L
0,7 L
Tank capacity (oil)
0.47 L
0.6 L
0.4 L
0,4 L

Model
LK41 99 cc OHV
LK41SP 99 cc OHV
LK46SP 139 cc OHV
LK56SPHWSM
173 cc OHV
Factory model
TZ41PB-99
TZ41SB-99
TZ46SB-139
TZ56SF-173
GARDIF model
TOT911494
TOT911495
TOT911496
TOT911498
Drive
Hand propelled
Self propelled
Self propelled
Self propelled
Engine
TZ1P56F - Rally
TZ1P56F - Rally
TZ1P65F Rally
TZ1P70F Rally
Nominal Power
1.3 kW
1.3 kW
2.0 kW
2.5 kW
Rated Engine Speed
3000 rpm
3000 rpm
2800 rpm
2800 rpm
Displacement
99 cm3
99 cm3
139 cm3
173 cm3
Height Adjustment
Central adjustment
Central adjustment
Central adjustment
Central adjustment
Cutting Heights
25-70mm (7 stages)
25-70mm (7 stages)
25-70mm (7 stages)
25-70mm (7 stages)
Grass collector
Rear bag
Rear bag
Rear bag
Rear bag
Grass collector
volume
45 litres
45 litres
50 litres
70 litres
Cutting width
41 cm / 16’’
41 cm / 16’’
46 cm / 18’’
56 cm / 22’’
Deck material
Steel
Steel
Steel
Steel
Net weight
21 kg
25 kg
30,50 kg
41 kg
A-Weighted emission
Sound Pressure Level or
equivalent at the
operator's working place
determined in
accordance with ISO
5395-1:2013/A1:2018,
Annex F)
82.2 dB(A)
82.2 dB(A)
82 dB(A)
85.2 dB(A)
Incertainty of
Measurement
K=3 dB(A)
K=3 dB(A)
K=3 dB(A)
K=3 dB(A)
A-Weighted Sound
Power Level, determined
in accordance with ISO
5395-1:2013/A1:2018,
Annex F)
92.3 dB(A)
92.3 dB(A)
93.6 dB(A)
96.2 dB(A)
Incertainty of
Measurement
K = 2,01 dB(A)
K = 2,01 dB(A)
K = 1,85 dB(A)
K=1.88 dB(A)
Guaranteed sound
power level
LWA(2000/14/EC)
96 dB(A)
96 dB(A)
96 dB(A)
98 dB(A)
Vibrations level
hand/arm, total value
equivalent to highest
vibrations value for each
handle or hand position,
measured
(as per ISO 5395-
1:2013/A1:2018, Annex G)
Max. 3.95 m/s2
Max. 3.95 m/s2
Max. 6.87 m/s2
Max. 5.72 m/s2
Uncertainty of
declared values
K=1.5 m/s2
K=1.5 m/s2
K=1.5 m/s2
K=1.5 m/s2
Blade type
TZ21080152
TZ21080152
TZ21080142
TZ21080162
Spark plug type
TORCH F7RTC
TORCH F7RTC
TORCH F6RTC
TORCH F7RTC
Tank capacity (fuel)
0.7 L
0.7 L
1.5 L
1.5 L
Tank capacity (oil)
0.4 L
0.4 L
0.6 L
0.6 L
9

10
DEFINITION OF SYMBOLS
1 : DANGER ! WARNING ! ATTENTION
2 : Read the operating and service instruction manual carefully. Be thoroughly
familiar with the controls and the proper use of the lawnmower.
3 : Projection hazard. Beware of thrown objects.
4 : Never mow while people, especially children or pets, are nearby.
5 &6 : When cleaning, repairing or inspecting, make certain the blade and all mowing
parts have stopped. Disconnect the spark plug cap and keep the cap away from the
plug to prevent accidental starting
7 : Wear steel‐toe capped safety shoes, long trousers and long sleeved shirts when operating
the machine
8 : WARNING !
Oil tank and fuel tank are clearly seperated.
This lawnmower is sold without fuel and oil. Ensure machine is oiled and fuelled before
starting the engine.
9 : Moving blades !! Do not put hands or feet near the blades.
10 : The blade continues to rotate for a few seconds after stopping the mower.
12 : High risk of explosion. Do not fill the fuel tank whilst the engine is running
13 : Emission of toxic gas, do not use the lawnmower in doors or a non ventilated area
14 : Caution : hot surfaces
15 : LwA (ISO 19884)
16 : WARNING: Keep hands and feet away from the blades!
Wear gloves when operating the machine.
When mowing, wear safety glasses to protect yourself.
When mowing, wear ear plugs to protect yourself.

11
To start the mower, push the OPC brake control lever against thehandle, then pull the engine
starter cord.
To stop the mower, release the OPC brake control lever.
To start self propelling function, if the mower has this function (optional, depending on models),
push the traction lever against thehandle and keep it in this position. The mower starts to move
forward.
To stop the self propelling function, release the traction lever (optional, depending on models).
Min. speed position –idle speed (optional, depending on models).
Max. speed position –full throttle (optional, depending on models).

1 : Fly brake lever or Operators Presence Control (OPC)
12

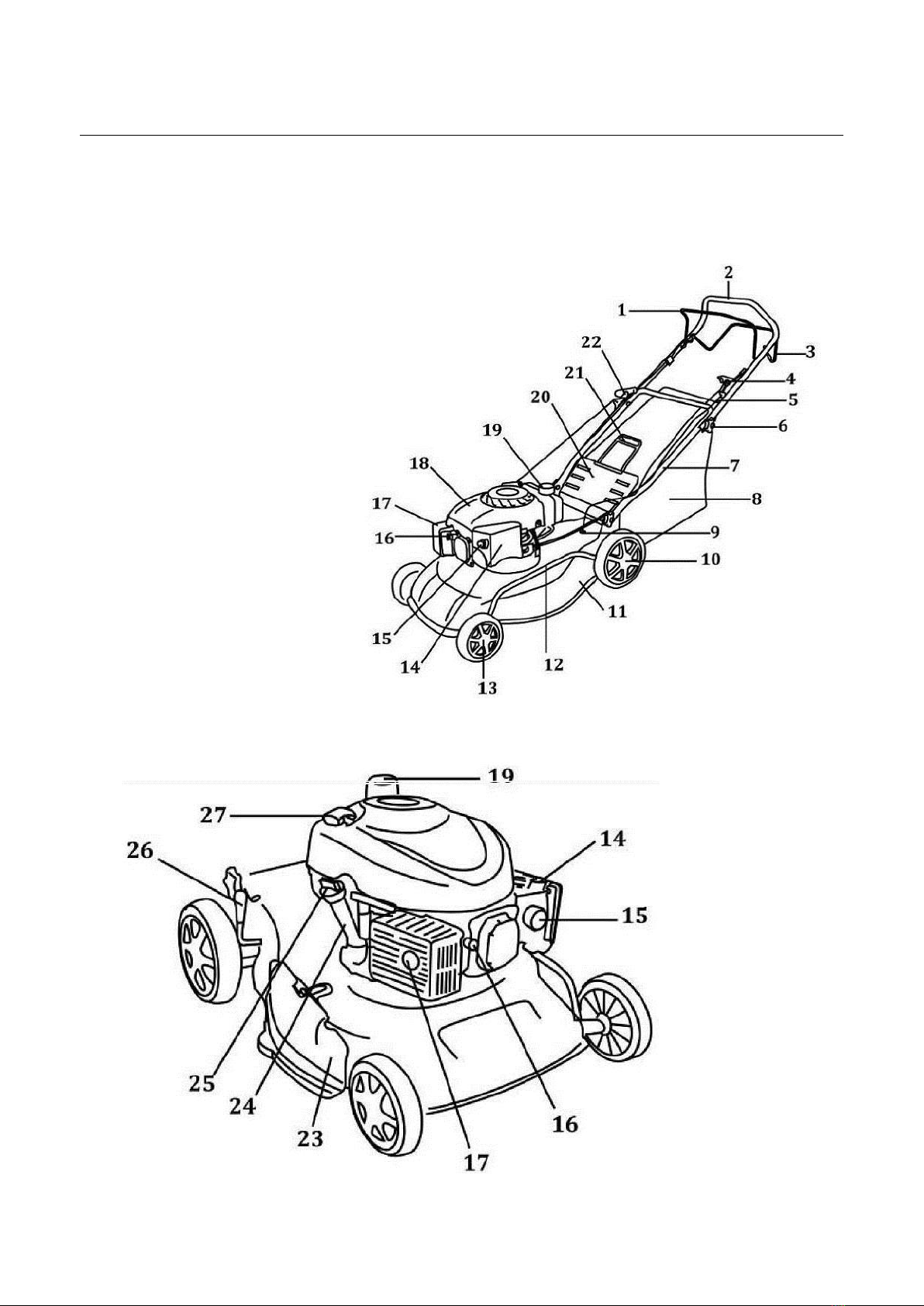

DESCRIPTION OF COMPONENTS
2 : Upper handle
3 : Traction lever (not valid for LK41 / LK46)
4 : Throttle control (not valid for LK41 / LK41SP
99 cc OHV)
5 : Accelerator (speed) cable (not valid for LK41 99
cc OHV / LK41SP 99 cc OHV)
6 : Bolts
7 : Lower handle
8 : Grass collecting box
9 : Self propelling cable (not valid for LK41/ LK46)
10 : Back wheel
11 : Cutting deck
12 : Heights adjustment arm
13 : Front wheel
14 : Air filter
15 : Primer
16: Spark plug and cap
17 : Silencer (exhaust)
18 : Engine
19 : Fuel tank
20 : Rear flap / deflector
21 : Metal frame of the grass collecting box
22 : Recoil starter
23 : Shutter for side discharge (valid only for
LK51 SPHWSM / LK56SPHWSM)
24 : Oil tank
25 : Oil lever
26 : Central heights adjustment lever
27 : Recoil starter

13
UNPACKING & SET UP INSTRUCTIONS
Use of safety gloves is imperative while performing
adjustment or repair of the machine
A- Removal from the carton
WARNING –Unpacking and completing the assembly should be done a flat, stable surface with
enough space for machine handling and its packaging. Packaging must be disposed of in accordance
with the local regulations.
Remove the staples, break the glue on the top box flaps or cut the tape at the carton end and peel
along the top flat to open the carton.
Remove any loose parts included with the lawnmower e.g. grassbox and including the
instruction manuals and tools where applicable and and store safely for future reference.
Cut along the corners of the carton and lay flat.
Remove any packing material and roll or slide the lawnmower out of the carton checking the
empty carton for loose parts.
1 2 3 4 5
1 : Spark plug wrench
2 : Cable clips
3 : Grass catch bag and its metal frame
4 : Mulching plug (only on LK51SPHWSM / LK56SPHWSM)
5 : Side discharge deflector (only on LK51SPHWSM / LK56SPHWSM)
B- Disconnect the spark plug
Before assembling your lawnmower, disconnect the spark plug wire from the spark plug and ground it
to the engine by attaching the rubber boot or metal clip to the grounding post on the engine.
C- Items required for assembly
Pliers (may be useful)
0.6 Litre SAE 30 Oil
Fresh Petrol

14
IMPORTANT –This lawnmower is shipped without fuel and oil. Ensure machine is oiled
and fuelled as detailed in this manual before starting the engine.
NOTE –Reference to right hand or left hand side of the mower is observed from the rear of
the machine (operating position)

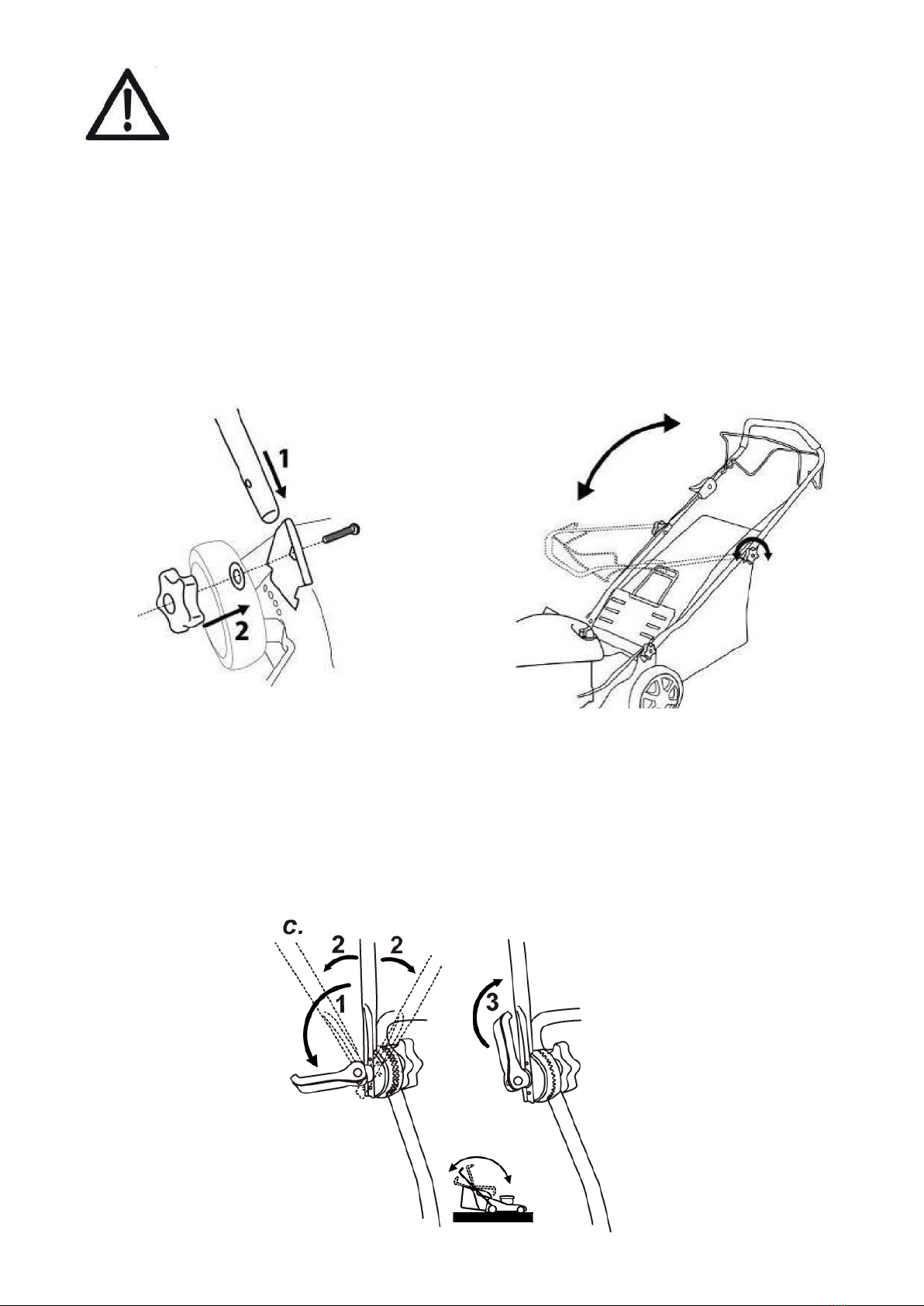

D- Assembly of the handle
Nip together the lower handle against the mounting bracket (using pliers).
Connect the lower handle, right bracket and left bracket with two knob nuts and two square neck bolts.
Lift the upper handle and align it with the lower handle. Tighten knob nuts or the quick lock handle
to the upper handle.
Raise the complete handlebar whilst depressing both levers to release the starter handle, taking
care not to crease the control cables at the pivot point.
Attach the control cables to the handle with cable ties and attach the recoil starter to the rope guide
on the upper handle
Adjustable handle (only valid for model LK56SPHWSM)
For a more ergonomic use, the upper handle can be adjusted in height.
Loosen the locking knobs located between the lower handle and upper handle, by pulling them
outwards. The jaws fixing the 2 parts of handle will now open.
Adjust now the upper handle, moving up and down, to obtain the ideal position of handle.
Once the ideal height position is reached, tighten the handle knobs by folding them against the handle.
E-
Cutting
height

15
Assembly of the dashboard on handle (only valid for model LK56SPHWSM)
Remove the plastic dashboard from the packaging carefully.
Place the dashboard on upper handle, matching the corresponding holes (points 1, 2, 3 - picture 5)
Clip now the dashboard on the handle and check it is secure.
E- Cutting height adjustement
The cutting height adjustment lever is situated above the right rear wheel.
To adjust the cutting height, pull the height adjustment lever out and away from the lawnmower and move
forward or backwards into another slot depending whether you want it to cut shorter (low position of
lever) or longer (high position of lever) on some models or vice versa cut shorter (high position of lever) or
cut longer (low position of lever) : it depends on mower models (as indicate here below).
NOTE
For rough and uneven lawns, move the height adjuster to a higher position as this will stop scalping.

16
OPERATING
KEEP HANDS AND FEET AWAY FROM THE REAR DISCHARGE ON
THE CUTTING DECK
A- Grass box assembly
Put the metal frame inside the grass collector. Fix the bag onto the frame
securely. Lift the rear flap / deflector and attach the grass collector in place,
on rear of the mower.
B- Grass box removal
Release the OPC/Operators Presence Control handle and wait for the blade to stop rotating.
Lift the rear flap / deflector and remove the grass collector from its place.
Release the rear flap / deflector. Empty the collection bag.

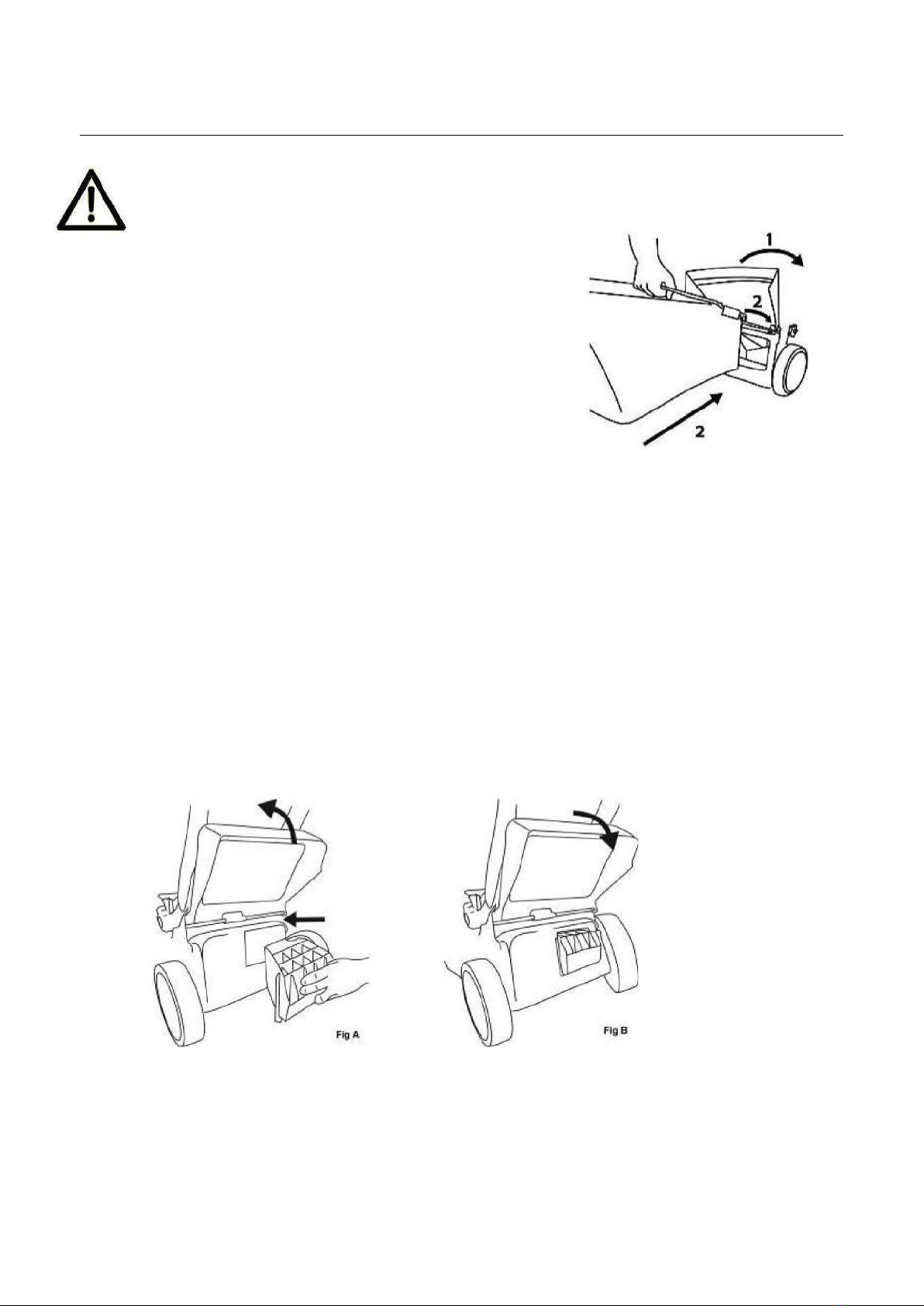

C- How to fix the mulching plug (only for model LK51SPHWSM/LK56SPHWSM)
STOP the engine before fixing the mulching plug or before removing it.
Remove the collection bag.
Lift the rear flap and insert the mulching plug in the grass evacuation channel (picture A)..
As soon as properly fixed, release the rear flap on the mulching plug (picture B)
To remove the mulching plug, lift the rear flap, remove the plug, fix the collection bag et release
the flap on the bag.

17
D- Operating without a grass collecting box
You can operate the lawnmower without grass collecting box nor mulching plug. You must nevertheless
always ensure that the rear flap / deflector is always folded against the deck.
E- Side discharge (only for model LK51SPHWSM / LK56SPHWSM)
Lift the side discharge shutter on the cutting deck
Attach the side discharge shutter in place, in the hooks provided for this purpose.
Release the shutter so it also compresses the deflector against the deck
Caution: Leave the mulch plug in place to use the mower with the side discharge function.

The blade
starts to
rotate
after the
engine is
switched
on.
18
STARTING AND STOPPING
WARNING !
This lawnmower is sold without fuel and oil.
Ensure machine is oiled and fuelled before starting the engine
Do not overfill
Never fill a fuel tank in a confined area, indoors or when the
engine is running.
Allow to cool for at least two minutes before refuelling
A- Starting a cold engine
1. The throttle control, located on the right hand side of the upper handle, is used to regulate the
engine speed. Move the throttle on « STARTER MAX » position (this is not valid for models LK41
with 99 cc OHV engine / LK41SP with 99 cc OHV engine).
2. Press 3 times in hot weather or 5/6 times a very cold time the red primer on the front left side of the
air filter.
3. Attach the spark plug ensuring the metal cap is fastened securely to the metal tip on the spark plug.
4. The flywheel brake lever / operators presence control / OPC handle is located in the upper handle of the
lawnmower. The handle must be depressed to allow the ignition and held against the upper handle.
5. The recoil starter handle is attached to the upper handle on the right hand side. When starting,
always stand behind the lawnmower in the operating position. Pull the recoil starter handle until
the engine runs.
6. Once started, allow 2 / 3 minutes for the engine to warm up before mowing.
B- Starting a warmed up engine
Move the throttle on «MIN» position (NOT valid for model LK41 99 cc OHV /
LK41SP 99 cc OHV)
Depress the OPC handle to allow the ignition and held against the upper
handle. Pull the recoil starter handle until the engine runs.

C- Stop engine and blade
Move the throttle control onto « STOP » position (NOT valid for
LK41 99 cc OHV / LK41SP 99 çç OHV).
Release the Operators Presence Control (OPC) handle to
stop the engine and blade.
WARNING !!!
19
ATTENTION : the blade continues to rotate after the engine is switched off.
WARNING !!!
The OPC handle is a safety device.
Never attempt to bypass its operations. The blade will be rotating when the engine is running
D- Self propelled mower (not valid for model LK41 and for LK46)
Once engine has been started, push the traction lever up against the upper handle and keep it in this
position. The mower now starts to move.
To stop the mower, release the lever.
