LEFA FM 120 User manual

Edition:January2016 LEFA
USERMANUAL
3POINTFinishingMower
Model : FM120. 150. 180
ATTENTION
3-PointFinishing MowerofLEFAmay appeardangersduring itsuse.Read the usermanualattentively
before coming into service
LEFA No.2, HongYang Road, Changzhou, Jiangsu, China

Thank you forhavingbought3pointfinishingmowerofLEFA.
Pleasefollowourrecommendationstobefullysatisfiedwith this purchase.
Inthis manualyou willfind all theinformationofuseandsecurity.
Itisimportanttofollowtheinstructions fortheregularoperationoftheapparatus andthesafetyofthe
operator.
Pleasereadattentivelyand carefullyall theoperationsandthecaution concerningthesecurity
describedin this manualbeforethestartupofthemachine.
LEFAdeclinesallresponsibilityfordamagecausedbythenon-readingoftheinstructionsgiven in this
manualorforanyusenotinaccordancewiththedestinationofthemachineorlackofmaintenance.
All thesemachinesofLEFAareequippedwithanidentificationplatewhereyou willfindthedata
whichareessentialtoorderspareparts.
Themodels maybedifferentforsomedetails.
EachmachineofLEFAis equippedwithanidentification platewhereyouwill findall thedatawhich
arefundamentalto verifytheaccountingbetweenthemachineandthetractorand forall order ofspare
parts.
3 pointfinishingmowerLEFAis designedformaintenanceandthecutting ofthegrass.

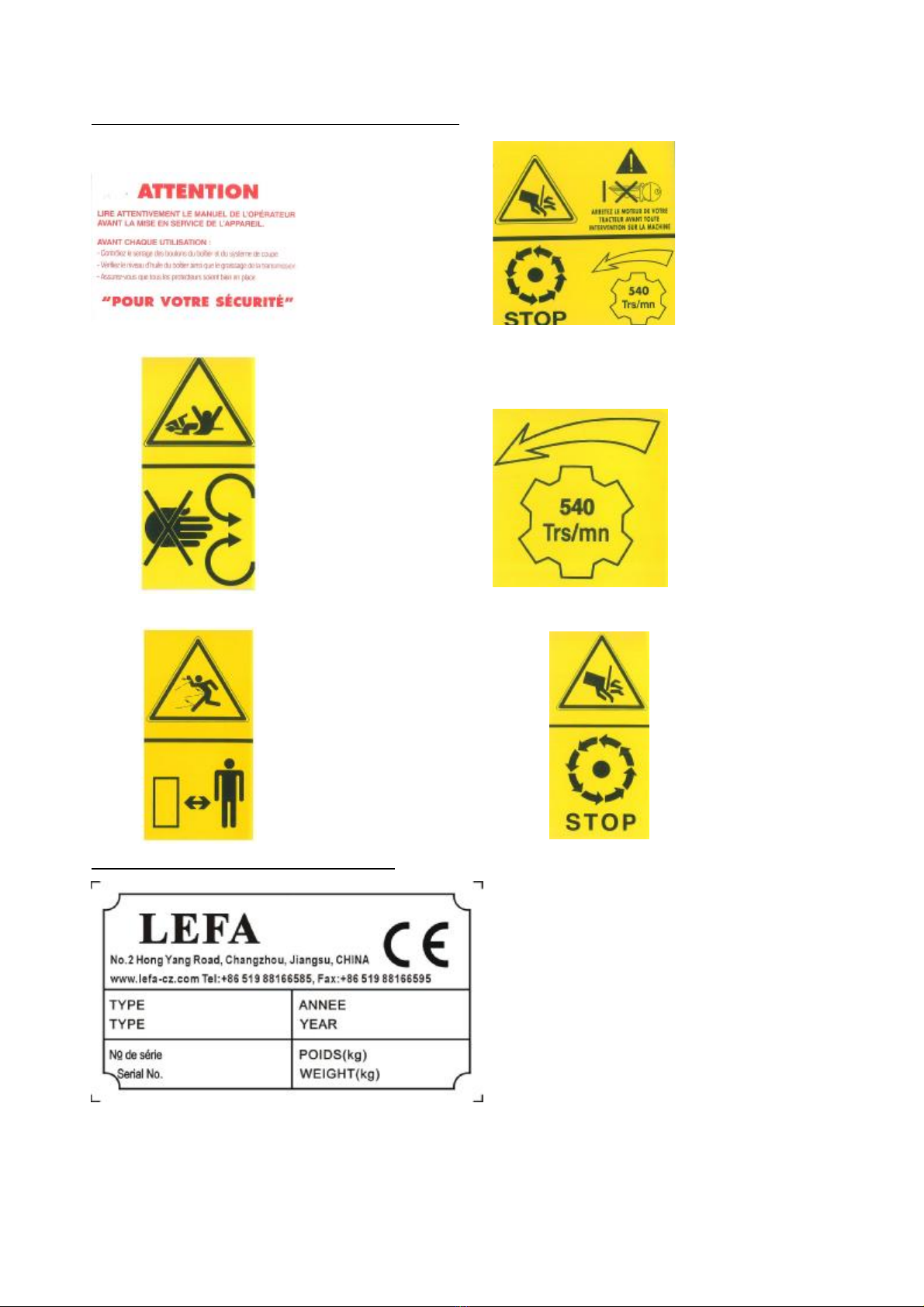

Labelsofsafetyand plateofidentification
Read instruction
manualbeforeuseor
maintenance.
Stop thetractor
engineand remove
thekeybefore
workingon the
machine.
Risk ofbeingcaught
bythetransmission.
Do notapproach the
machineand avoid
wearinglooseclothes
which could become
entangled in moving
parts.
PTOSpeed max. :
540 tr/min
MAX
Risk ofprojections.
To beheld apartfrom
theoperatingrangeof
themachine. Make
sure thatall the
guards arein their
place duringtheuse.
Danger ofcutting.
To beheld apart
fromtheoperating
rangeofthe
machine. Make
sure thatall the
guards arein their
place duringthe
use.
Manufacturer's identificationlicense:
Itis strictlyprohibited to removeprotections ofsafety, labels ofsafetyand theplateof
identification manufacturer.

Safetyrules:
In order to avoid accidents duringwork, it is necessaryto observethemostelementaryrules
ofprudence:
1. Operator
-Theoperatorshould notstartthemachineiftheydon’thaveall his mentaland physical
faculties: §Good eyesightand good hearing
§Read and studythemanual
§Beattentiveto its and others’security
§Befamiliar with theuseand maintenanceofthemachine
§Itis strictlyforbidden todrink alcohol, ingestdrugs and other substances
thatmightaffecttheuseofthemachine
-Do notwear loosefloatingclothingthatcould becaughtbymovingparts.
-Wear theappropriatesecurityequipment:
§Standardized workinggloves
§Safetyshoes
§Helmet
§Hearingprotection device
§Protectiveglasses
2. Machine
-Thecouplingmustbedoneonlyon thepoints provided forthis purposeinaccordancewith
safetystandards.
-Prohibit usingthemachineas means oftransportofpeople, animals orobjects.
-Themachineshould bein perfectworkingcondition, maintained with originalparts.
-Itis strictlyprohibited to makemodifications on themachinewithoutauthorization ofthe
manufacturer.
3. Utilization
-Prudence is required duringtheattachmentofthemachineto thetractorand duringits
uncoupling.
-Themaintenance, thecleaningas well as theadjustments mustbemadeonlyiftheengine
ofthetractoris turned offand theignition keyis removed.
-Makesure thatno oneis in theoperatingarea ofthemachine.
LEFAdeclinesall theresponsibilitiesfordamagesofnaturereasoncausedbythe
non-observance ofsafety rules and ofuse
PREPARATIONANDSTARTUP

Before anywork, makeoil levelofthegear boxcasingup withoil HD 80W90, do notovertighten
theplugto avoid thedeformation ofthegasket
After 30 hoursofwork, replacetheoil ofthegearbox,fillwithoil80W90and checkthequantity
ofwhich is poured byusingthelevelofgauge
Locatetheoperation after100 hours ofwork, oreveryyear
Therotation and thenumber ofrevolutions ofthetractorPTOand themachinemustbethesame
speed 540 t/min
Thespeedthatisdifferentfromthosewhichareindicatedcancauseimportantdamagestothe
operatorand themachine
REPLACEMENTOFTHE BLADES
Before anyrepairon themachine,makesure thattheengineofthetractor,thecardanjointofthe
PTOand all theparties inmovementbestopped
Check thecondition oftheblades and replace thosedamaged ones to ensureaperfectfit
Forthereplacementoftheblades,putthefinishingmoweron solid supports, loosen thenutN04 to
see planebelow,removetheshaftoftheblade,replace it bycenteringtheholeofthebladeon the
shaft,tightenthenutN04byinterposingthewasher N03, thetighteningshouldalwaysbeatleast
10kg/fm.
Every10-12 hoursofworkgreasethesupportsofthebladeand theaxesofwheelswithgrease
EP2
After theworkiscompleted, thoroughlywash themachinetokeepit inperfectcondition, makea
lubrication after everywash
Onlyuseoriginalcuttingbladestoensure yoursafetyand thatofothers(also foraquestion of
guarantee)
CARDAN JOINTOFTRANSMISSION
Onlyusethecardan joints with theprotections ofCE
Once theapparatus isfixedtothetractor,checktheexactlengthofthecardanshaft,ifit istoo
longtoequaltheexternalprotections atfirst,thenthetubesoftransmissionofthecardanjointby
cleaningthemproperly
VERYIMPORTANT:duringthevarious workingpositions, thetubesofthetransmission ofthe
cardan jointofshaftshould beinserted onein theother atleast150mm(diagrambelow)

Repeatthis checkwhen thetoolis fixed to another tractor
Theprotections ofthecardanjointmustbeingood condition and beattachedduringtherotation
ofthisone,usethechains thatisprovidedforthispurpose,foryoursafety,replacetheprotections
ofthecardan jointimmediatelyas soon as theyaredamaged
Whenthemachineisstopped, usetheextra chainthatissuppliedwiththecardanjoint,so thatthis
lastoneis notbased on thefloor
Whenyou fixthecardanjointon thetractorand themachine, makesure it is securelylocked
DESCRIPTION OFLABELSFORALLTHE MODELS
Platethatindicates themodelofthemachine
Forthereasons oftransport, themachineis delivered withoutoil
Read thestandards ofsafety, useand maintenance before puttingthemachineinto service
Therevolutions ofeachminuteshould havethePTOofthetractorwhich is 540t/m
Never putthehands orfeetunder thecuttingofthemachinewhenit works and before each
intervention, makesure thatthetractoris turned offand thatall movingparts are stopped
Always keep safetydistance when themachineworks
Neverremovetheprotections ofthemachinethatisrunning,and makesure thattheyareclosed
before operation
Don’tclimb on themachinewhen it is workingorwhen thePTOis turning
DiagramofMounting

Finishing MowerAssembly 式割草机总成
Ser.No 代号名
称Name Qty.
1 FM120-00-013 轮总成 WheelAssembly 4
2 TM100-00-132 长调整圈 Longadjusting spacer 4
3 EF105-00-020 插销合件 Lockpin 4
4 GB/T95(10) 平垫圈 10 Plainwasher10 4
5 GB/T5782(M10X80) 半螺纹螺栓 M10X80 BoltsM10X80 4
6 FM120-00-011 轮支架焊和 Wheelbracket 2
7 TM100-00-131 短调整圈 Shortadjusting spacer 8
8 FM100-WG-102 弹簧 Spring lock 4
9 GB/T5783(M16X40) 螺栓 M16X40 BoltsM16X40 2
10 GB/T95(16) 平垫圈 16 Plainwasher16 2
11 GB/T889.1(M16) 锁紧螺母 M16 LocknutsM16 2
12 FM120-00-107 前拉杆 Front linkrod 2
13 FM120-00-105 悬挂销 Suspension pin 1
14 GB/T5782(M12X90) 螺栓 M12X90 BoltsM12X90 1
15 GB/T96(12) 特大平垫圈 12 Plainwasher12 1
16 FM120-00-111 隔圈 Spacer 2
17 FM120-00-108 上提升架 Uppersuspension linkage 1
18 GB/T96(12) 特大平垫圈 12 Plainwasher12 1
19 GB/T889.1(M12) 锁紧螺母 M12 LocknutsM12 1
20 GB/T889.1(M12) 锁紧螺母 M12 LocknutsM12 2
21 FM120-00-112 后拉杆 Rearlinkrod 2
22 GB/T95(12) 平垫圈 12 Plainwasher12 2
23 GB/T5783(M12X30) 螺栓 M12X30 BoltsM12X30 2
24 FM120-02-001 传动总成 Transmission Assembly 1
25 GB/T5783(M8X20) 螺栓 M8X20 BoltsM8X20 4
26 GB/T96(8) 特大平垫圈 8Plainwasher8 4
27 FM120-00-113 皮带轮罩(右)Right coverforbeltpulley 1
28 FM120-00-109 后出草门 Protecting plate 1
29 GB/T5783(M8X20) 螺栓 M8X20 BoltsM8X20 4
30 GB/T95(8) 平垫圈 8Plainwasher8 4
31 GB/T889.1(M8) 锁紧螺母 M8 LocknutsM8 4
33 FM120-01-001 机体焊和 Mainweldingassembly 1
34 FM100-00-119 R型销 R-pin 2
35 FM120-00-105 悬挂销 Suspension pin 2
36 GB/T889.1(M18) 锁紧螺母 M18 LocknutsM18 2
37 FM100-00-119 R型销 R-pin 1
38 FM120-00-106 下提升架 Lowersuspension linkage 2
39 GB/T95(18) 平垫圈 18 Plainwasher18 2

40 GB/T5783(M18X55) 螺栓 M18X55 BoltsM18X55 2
41 GB/T5783(M8X16) 螺栓 M8X16 BoltsM8X16 2
42 GB/T95(8) 平垫圈 8Plainwasher8 2
43 EF105-00-103 防护罩 Plasticcover 1
44 FM120-00-110 皮带轮罩(左)Left coverforbelt pulley 1
45 EF105-02-108 密封盖 Rubbercover 2
46 GB/T5783(M10X25) 螺栓 M10X25 BoltsM10X25 6
47 GB/T93(10) 弹簧垫圈 10 Spring lockwasher10 2
48 GB/T95(10) 平垫圈 10 Plainwasher10 6
49 FM120-00-013 盖板支座 Coverplate support 2
50 GB/T889.1(M10) 锁紧螺母 M10 LocknutsM10 4

Transmission Assembly 传动总成
Ser.No Reference Description Name Qty.
1 GB/T889.1(M16) 锁紧螺母 M16 LocknutsM16 4
2 LEFA-FM120-02-012 齿轮箱 Gearbox 1
3 GB/T95(16) 平垫圈 16 Plainwasher16 4
4 LEFA-FM120-02-107 齿轮箱垫板 Gearboxpad 1
5 LEFA-FM120-02-011 齿轮箱座 Gearboxseat 1
6 GB/T5783(M12X100) 螺栓 M12X100 BoltsM12X100 1
7 GB/T12(M16X45) 半圆头方颈螺栓 M16X45 BoltsM16X45 4
8 LEFA-FM120-02-115 大皮带轮(双)Bigbelt pulley(double) 1
9 GB/T95(24) 平垫圈 24 Plainwasher24 1
10 GB/T6178(M24) 六角开槽螺母 M24 Nut M24 1
11 GB/T91(5X50) 开口销 5X50 Cotterpin5X50 1
12 LEFA-FM120-02-113 小皮带轮(右单)Small belt pulley(single) 1
13 LEFA-FM120-03-001 刀轴总成 Blade axleassembly 3
14 LEFA-FM120-02-114 小皮带轮(双)Small belt pulley(double) 1
15 LEFA-FM120-02-116 小皮带轮(左单)Small belt pulley(single) 1
16 GB/T11544 V 带(B1549/1753/1930) Belt B-1549/1753/1930 2
17 GB/T889.1(M10) 锁紧螺母 M10 LocknutsM10 4
18 LEFA-FM120-02-106 橡皮垫 Rubberpad 2
19 GB/T95(10) 平垫圈 10 Plainwasher10 4
20 GB/T5783(M10X30) 螺栓 M10X30 BoltsM10X30 4
21 LEFA-EF105-02-108 堵头 Plug 1
22 GB/T1096(A10X40) 键A10X40 KeyA10X40 1

BladeAxle Assembly 刀轴总成
Ser.No 代号名
称Name Qty.
1 GB/T6172.2(M24X1.5)
圆螺母 M24+止退垫圈
24 NutsM24+washer24 1
2 GB/T276(6205) 轴承 6205 Bearing 6205 2
3 GB/T5783(M10X30) 螺栓 M10X30 BoltsM10X30 4
4 GB/T95(10) 平垫圈 10 Plainwasher10 4
5 LEFA-FM120-03-011 刀轴座焊和 Blade axle seat 1
6 GB/T889.1(M10) 锁紧螺母 M10 LocknutsM10 4
7 LEFA-FM120-03-105 刀轴隔套 Blade axle spacer 1
8 GB/T95(24) 平垫圈 24 Plainwasher24 1
9 LEFA-FM120-03-104 刀轴护罩 Protective coverforblade axle 1
10 GB/T1096(A8X28) 键A8X28 KeyA8X28 1
11 LEFA-FM120-03-103 刀轴 Blade axle 1
12 LEFA-FM120-02-108 刀Blade 1
13 GB/T889.1(M18) 锁紧螺母 M18 LocknutsM18 1
