Light Mandalas Mandala Astral Star User manual

User Manual
Mandala Astral Star
Please read the manual before using the tools.
Version 4.2

M a n d a l a A s t r a l S t a r U s e r Manual | 1
www.light-mandalas.com
Table of Contents
1 General Notes.......................................................................................................................2
1.1 Product Feature and Intend Use ............................................................................................... 2
1.2 Warning................................................................................................................................... 2
1.3 Warranty ................................................................................................................................. 2
1.4 Precautions.............................................................................................................................. 3
1.5 Maintenance .......................................................................................................................... 4
1.6 Product Include........................................................................................................................ 5
2 Technical Data ......................................................................................................................6
2.1 Specifications........................................................................................................................... 6
2.2 Overview and Function............................................................................................................. 7
3 Installation and Operation Instruction ..................................................................................9
3.1 Setup ....................................................................................................................................... 9
3.2 CPL Filter................................................................................................................................ 11
3.3 Crystal Holder ........................................................................................................................ 12
3.4 Light Wand and L-Shape Holder.............................................................................................. 14
3.5 Photoporation Crystal ............................................................................................................ 17
4 Fault Diagnosis .................................................................................................................19

M a n d a l a A s t r a l S t a r U s e r Manual | 2
www.light-mandalas.com
1 General Notes
1.1 Product Feature and Intend Use
Thank you for using Light Mandalas Product. Mandala Astral Star has been in good
condition before leaving factory.
Mandala Astral Star produces fractal light fields carrying precise informational
resonances, interacting through the human energetic meridian nodes, points, and
informational auric fields, resulting in harmonious mental, emotional & psycho-
spiritual states. It enhances the atmosphere of spaces resulting in improved mood
and overall energetic flow. It’s suitable for relaxation & wellness studios, health
retreats and personal meditation spaces.
The new built-in photon scalar wave generator –Energy Information Transfer (EIT)
makes Mandala Astral Star the most powerful Light Mandala product ever. The
photon emitted by the scalar wave generator is directly transformed into a four-
dimensional space. Within these processes, it helps people absorb photons faster and
more efficient, as well as clearing and healing of past trauma, parallel reality,
unsolved issues will be easier and faster.
1.2 Warning
Pay close attention to each safety REMARK and WARNING statement in the manual.
This manual contains important laser system safety and operation information.
Read and understand all instructions prior to powering on the device the first time,
to avoid laser eye injury and to avoid breaking the law. Lasers can be hazardous and have
unique safety considerations . Permanent eye injury and blindness is possible if lasers are
used incorrectly.
User should follow this manual to operate the product and make sure that everything
is clear on all laser safety and product operation information before powering it on.
Any wrong operating will make this unit out of warranty
This product is in perfect condition before delivery, please check all accessory when
unpacking the unit.

M a n d a l a A s t r a l S t a r U s e r Manual | 3
www.light-mandalas.com
Do not use in cases of Epilepsy. The flashing light may trigger a seizure pregnancy.
Never look directly at light beam or its reflections. Follow standard laser eye
protection.
1.3 Warranty
Each single product passes through a quality process. Nevertheless, if failures occur,
contact the customer service at once. The product is under 12 months (1 year)
warranty effectively according to the delivery date stated on the warranty card.
Warranty does not apply to damages, which result from misuse or neglect. The
warranty also expires if you dismantle the product or failed to provide the warranty
card. The manufacturer is not liable for consequential damage or in case of a non-
intended use of the product.
If a failure occurs during the warranty period, the product will be replaced or
repaired. The manufacturer reserves the right to exchange components of the
product instead of repairing it. If the failure results from misuse or neglect, the user
must pay for all cost that may occur. The freight cost and other costs will be
depending on which Term & Conditions criteria the product falls into. Import tax and
Customs clearance duty cost is not included in the term of warranty . In that case,
you may ask for an estimated cost beforehand.
1.4 Precautions
1. Please check Mandala Astral Star for damage during shipping. Do not use the
device if any damage is discovered. If the device is damaged, please contact the
dealer or Light Mandalas immediately
2. Please Confirm the product you have received are in correct voltage and
frequency for your country.
3. Do not disassemble or modify the device in any case.
4. Do not use the device outdoors when rains
5. Places the device in a well-ventilated area.
6. Keep dry and avoid excessive humidity, heat or dust.
7. Confirm fans are running properly and unobstructed.
8. Do not place the device closer than 2 feet from combustible object.

M a n d a l a A s t r a l S t a r U s e r Manual | 4
www.light-mandalas.com
9. Do not look directly into the tool to avoid harm eyes.
10. Disconnect power when cleaning the tool or not in use.
1.5 Maintenance
1. Clean with soft cloth, humid tissue moistened with water or a water-based
glass cleaner.
2. Clean the cooling fans with cotton swap when they are covered with dust.
3. Protect the Laser Output Head with Light Wand Cable plug in.
4. In order to guarantee the fixture works properly, it's essential to keep it clean.

M a n d a l a A s t r a l S t a r U s e r Manual | 5
www.light-mandalas.com
1.6 Product Include
1. Mandala Astral Star x1
2. Light Wand Set:
a. Optical Cable x1
b. Pyramid Crystal Holder x1
c. Support Piece x1
3. Crystal Holder x1
4. L-Shape Holder x1
5. Laser Key Switch x2
6. CPL Filter x 1
7. AC power cord x1
8. Harmonistic Universe Sphere 50 mm x1
9. Crystal Bead Set x1
1
2a
3
4
7
5
2b
2c
6
8
9

M a n d a l a A s t r a l S t a r U s e r Manual | 6
www.light-mandalas.com
2 Technical Data
2.1 Specifications
Input Voltage:
AC 100-240 V 50-60Hz
Power:
Max. 50W
Laser Power:
-Red:
-Green:
-Blue:
Mandala Astral Star (Class 3B)
182mW 638nm
114mW 532nm
257mW 450nm
Scanning speed:
0-30kpps
Laser Color ：
Mandala Astral Star
• White
• red
• green
• blue
• yellow
• magenta
• cyan
497 m W
182 m W
114 m W
257 m W
240 m W
382 m W
374 m W
Laser Pattern
Unlimited Patterns
Cooling System:
Fan Cooling
Operation temperature:
Indoor (10 —35 °C)
Case Color:
Black
Case Material:
Aluminum and Acrylic black
Machine size:
260 x 180 x 90 mm
Gross Weight:
3kg

M a n d a l a A s t r a l S t a r U s e r Manual | 7
www.light-mandalas.com
2.2 Overview and Function

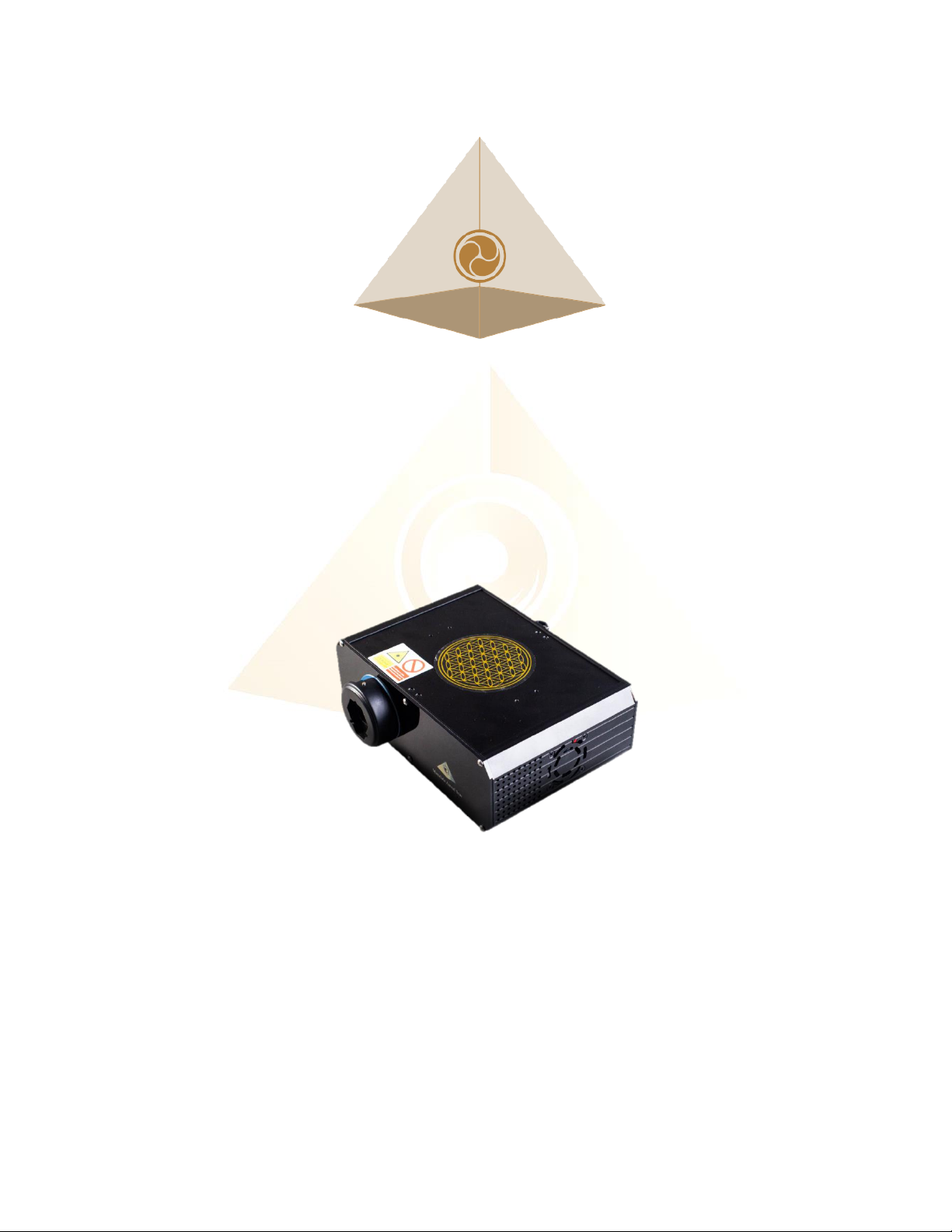

Front View and Top View
Side View
Cooling Fan

M a n d a l a A s t r a l S t a r U s e r Manual | 8
www.light-mandalas.com
Back View
No.
Description
Function
1.
Power Switch
Switch ON and OFF the device
2.
Power Supply Socket
Power Input socket build in fuse and spare fuse
3.
Sensitivity Knob
Pattern size adjustment - from 5% to 100 % clockwise
4.
Laser Key Switch
Switch ON and OFF the laser.
5.
Energy Information
Transfer (EIT)/ Scalar
Generator Switch
Switch ON and OFF the EIT function
6.
Display Screen
Display Bluetooth connection status of the device and
smartphone/tablet
1
2
3
4
5
6

M a n d a l a A s t r a l S t a r U s e r Manual | 9
www.light-mandalas.com
3 Installation and Operation Instruction
3.1 Setup

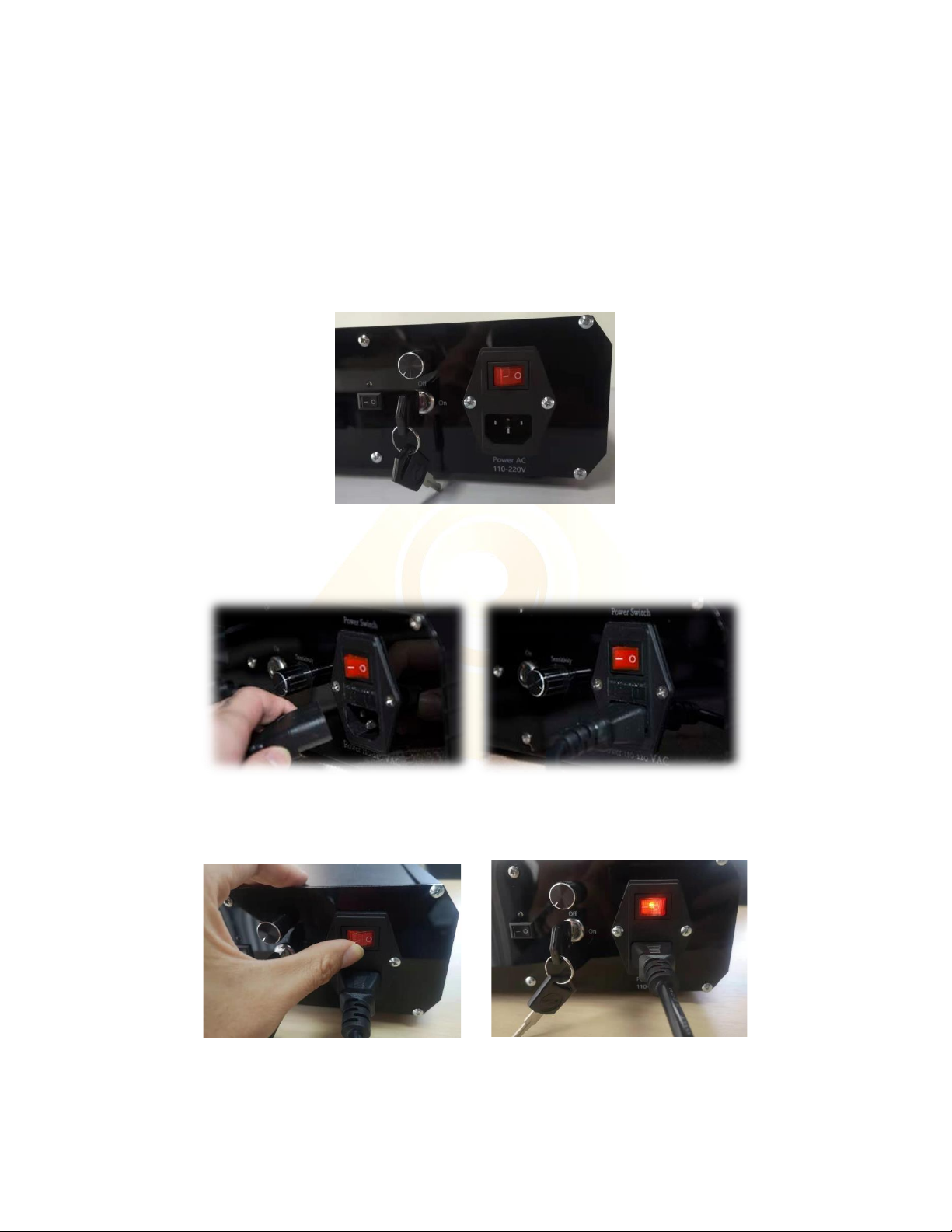

1. Before starting to use the device, ensure the Laser Key Switch is turned OFF to
prevent any damage to your eyes from laser light.
2.
Plug in the power cord. Use only AC 100-240 V, 50-60 Hz.
3.
Turn ON the Power Switch.

M a n d a l a A s t r a l S t a r U s e r Manual | 10
www.light-mandalas.com
4. Turn ON Scalar Generator Switch.
5. Turn ON Laser Key Switch to check laser light. Please be careful your eyes.
6. Tune the Sensitivity Knob to adjust the size of laser pattern.
• recommend tune to 1 or 2 0’clock.
• Tune too low will cause burn on CPL filter or crystal which placed in
front as the laser is too concentrate, therefore the output power is
too intense.
• Tune too high will cause damage to the laser module.

M a n d a l a A s t r a l S t a r U s e r Manual | 11
www.light-mandalas.com

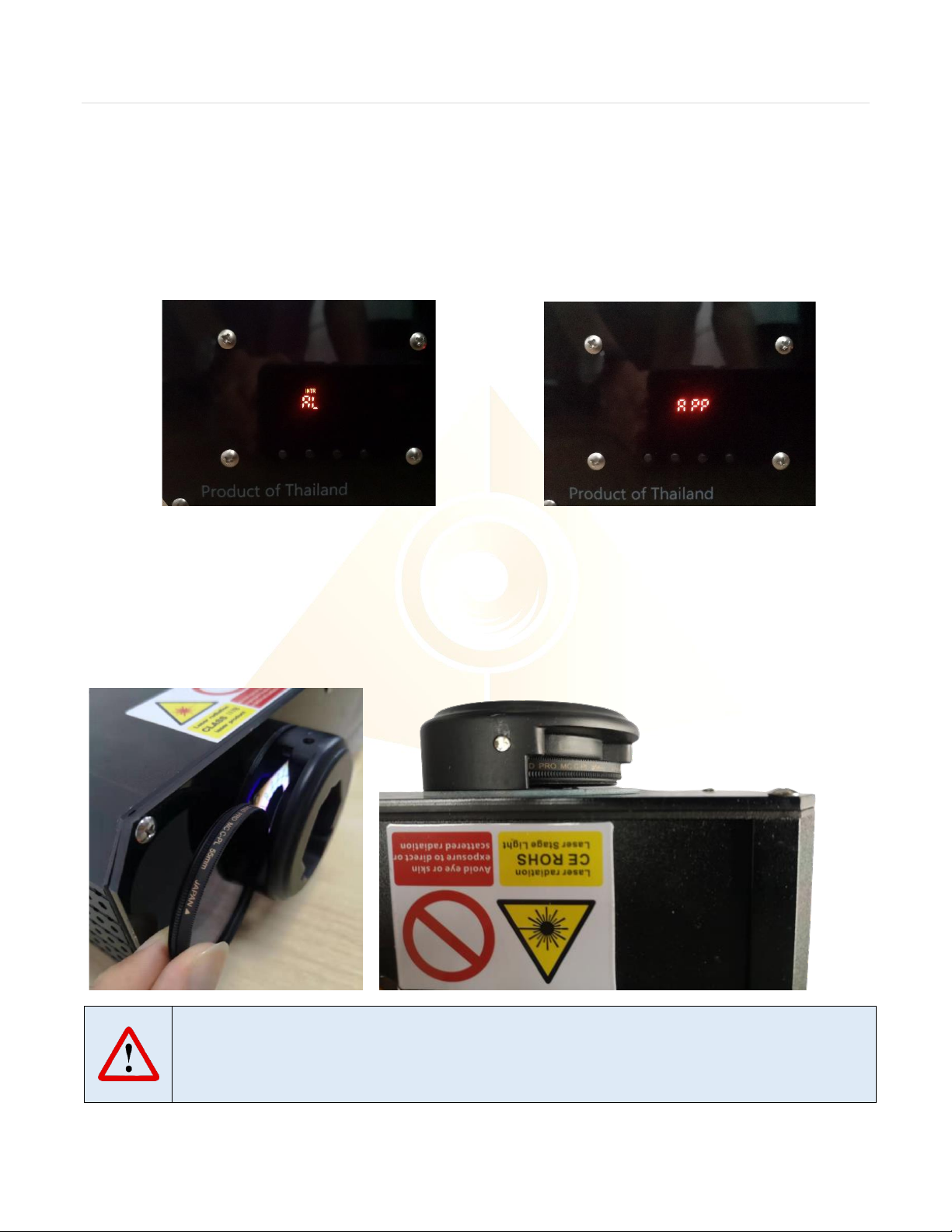

7. The device should be in Standby Mode now and playing with some default
patterns. Make sure the display screen is showing “INTR-AL” as it means the
device is ready to pair with APP. When the device is Bluetooth connected/paired
with tablet app (Mandala Star), it will show “APP”.
STANBY MODE Bluetooth connected/paired with tablet APP
3.2 CPL Filter
CPL Filter can be used to adjust the clarity of the laser pattern. It removes unwanted
reflections, increases color saturation and contrast.
1. Install the CPL Filter to the laser output head.
To confirm the correct installation of CPL filter, please make sure the
thread is facing towards the device and words on the CPL filter can be
read from the top view as shown in the picture.

M a n d a l a A s t r a l S t a r U s e r Manual | 12
www.light-mandalas.com
2. Tune the CPL Filter either clockwise or counter clockwise to adjust the clarity of
the laser pattern.
3.3 Crystal Holder
1. Turn OFF the laser.
2. Place crystal spere into the Holder.

M a n d a l a A s t r a l S t a r U s e r Manual | 13
www.light-mandalas.com

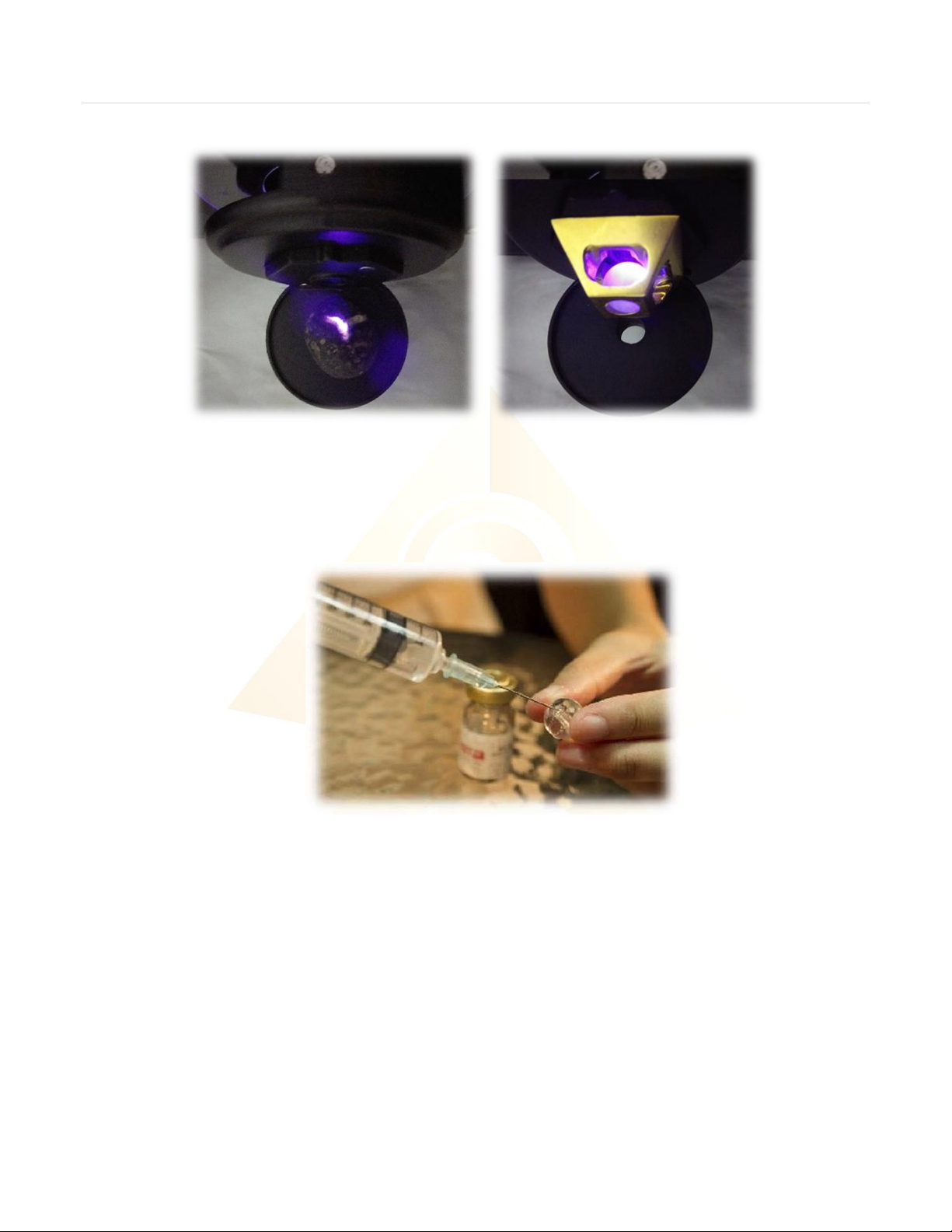

3. Clench both Crystal Holder and Harmonistic Sphere, then install to the laser output
head.
4. Lock the Crystal Holder by turning the screw.
Please DON’T over screw as it will cause the crystal holder to crack.
5. Turn ON the Laser Key Switch to release the laser light.

M a n d a l a A s t r a l S t a r U s e r Manual | 14
www.light-mandalas.com
3.4 Light Wand and L-Shape Holder
These tools can be used if user wish to use Crystal Bead Set to heal chakras.
• Light Wand
1. Turn OFF the laser.

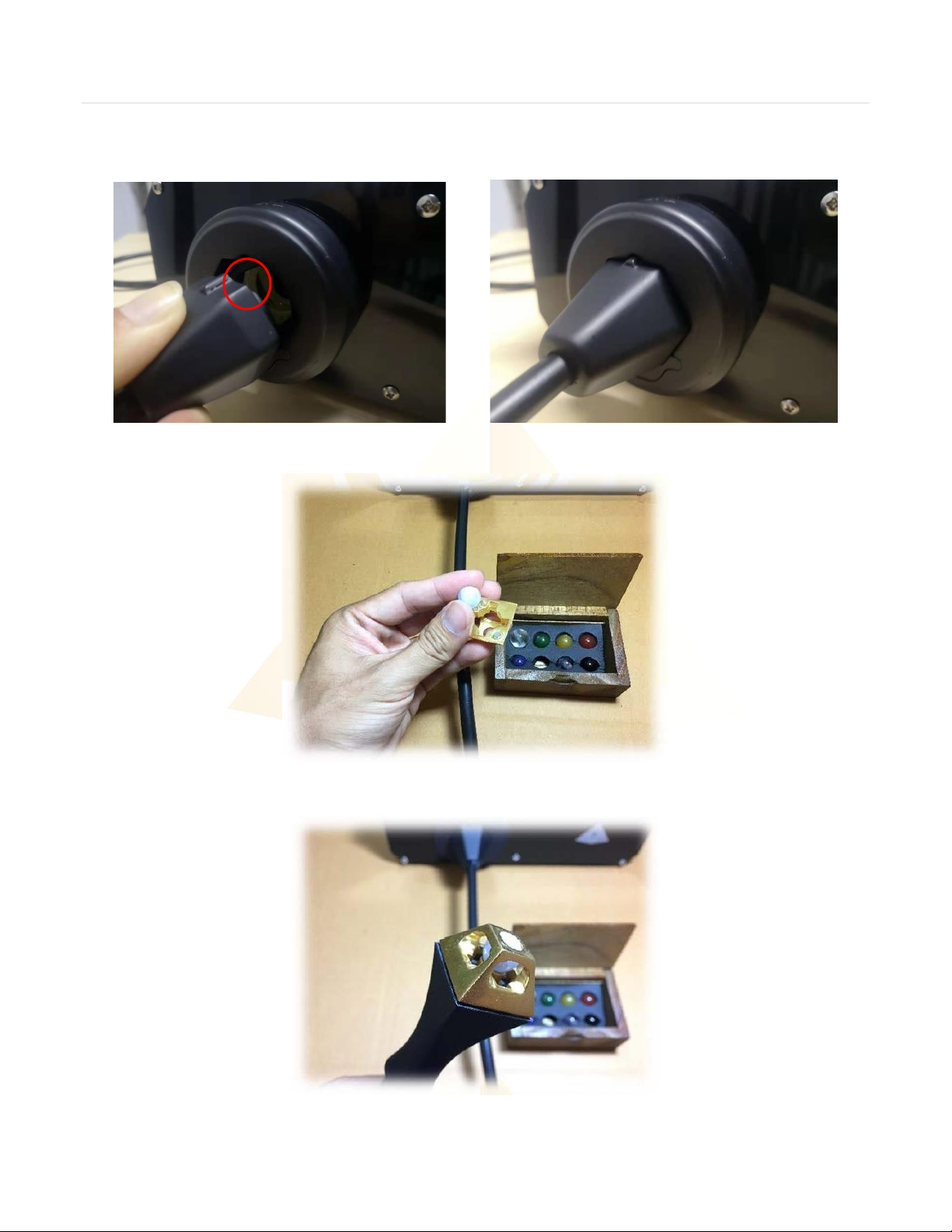

2. Plug in the Light Wand Cable into the laser output head. Please follow the
diagrams below to ensure the cable is installed correctly.
➢ Install the Support Piece to the laser output head.
Blue Chalcedony

M a n d a l a A s t r a l S t a r U s e r Manual | 15
www.light-mandalas.com
➢ Align the mark of the cable head to the laser output head.
3. Put crystal bead into the Pyramid Crystal Holder.
4. Install the Pyramid Crystal Holder onto the cable.

M a n d a l a A s t r a l S t a r U s e r Manual | 16
www.light-mandalas.com
5. Turn ON Laser Key Switch to release the laser. Tune the Sensitivity Knob to
adjust the brightness of light wand.
In order to receive complete pattern energy, it’s recommended to adjust
sensitivity knob to 9 or 10 o’clock.
• Adjust too over will cause the projected pattern to be too big
which unable the pattern to fit in completely into light wand.
• L-Shape Holder
1. Install the L-Shape Holder to the laser output head.
2. User can put the small size mineral or crystal on the holder or install the
Pyramid Crystal Holder with crystal bead inside onto it.

M a n d a l a A s t r a l S t a r U s e r Manual | 17
www.light-mandalas.com
3.5 Photoporation Crystal
1. Follow the same steps as shown above; use a dropper or syringe to put several
drops of the remedy substance such as flower essence, herbal tincture etc. into
the Clear Photoporation Crystal and seal with silicon caps tightly.
2. Place remedy substance filled Clear Photoporation Crystal into the freezer.
3. Place the frozen remedy filled Clear Photoporation Crystal into the Pyramid
Crystal Holder.

M a n d a l a A s t r a l S t a r U s e r Manual | 18
www.light-mandalas.com
4. Start the laser pattern and expose it to the area to be treated.

M a n d a l a A s t r a l S t a r U s e r Manual | 19
www.light-mandalas.com
4 Fault Diagnosis
Failures
Remedies
No power
• Check the input voltage. Does it match the
required input voltage on the specification?
• Check On/Off switch, if it is fully turn ON.
• Check the cable female socket. Is it fully inserted
into the device power socket?
• Check power fuse condition.
i. Unplug the power cord.
ii. Use a key to take out the fuse.
iii. Check fuse condition if there is a visible gap
in the wire or a dark or metallic smear inside
the glass then the fuse is blown and needs to
be replaced.
