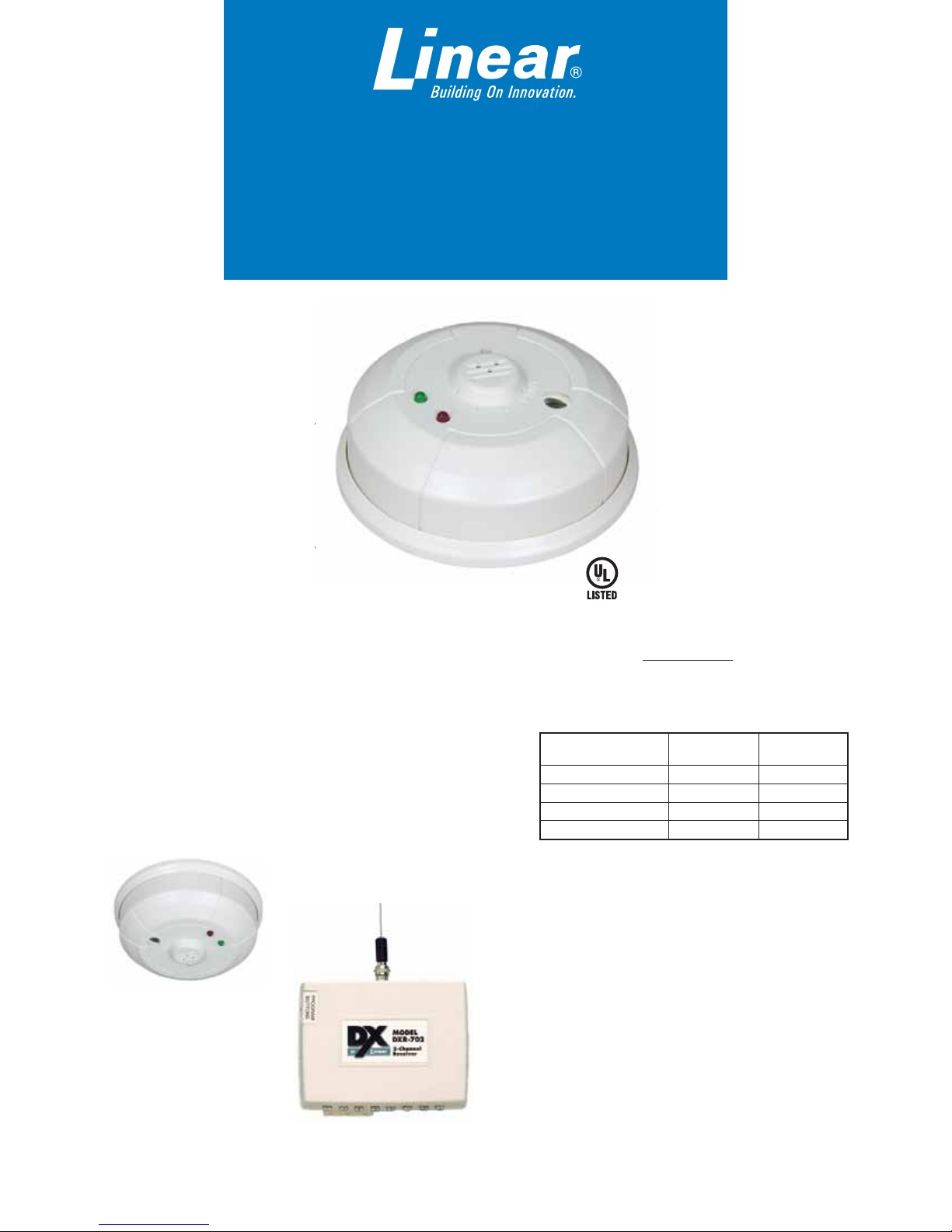

Linear DXS-80 User manual

DXS-80
The DXS-80 is a UL listed†, single
station, carbon monoxide alarm with
a built-in supervised transmitter. It is
compatible with Linear’s wireless
DXS Format Security Systems, Personal
Emergency Reporting Systems (PERS),
and other stand-alone receivers. The
DXS-80 provides a warning to alert
against both the acute and chronic
effects of carbon monoxide (CO)
poisoning.
When carbon monoxide is detected,
the alarm sounds a loud local alarm.
The built-in transmitter sends a digitally
coded wireless signal to its companion
receiver every 20 seconds until the air
has cleared and the detector is restored.
The local alarm can be silenced once by pressing the test/
reset button. The transmitter will continue to send an alarm
signal every 20 seconds. After 7 minutes, the alarm will sound
again if there is still an unsafe carbon monoxide concentration
level. The reset function can be used only once for each alarm
occurrence.
No field coding is required because the DXS-80 is factory set to
a unique code; one of over a million possible codes.
The DXS-80 is powered by one 3-volt
lithium battery.The battery is supplied
and can power the unit for up to the
six year life of the detector. If the
battery voltage drops below a preset
level the alarm will sound a low
battery chirp every 45 seconds and a
low battery signal will be sent to the
receiver.
At about 6 years,the carbon monoxide
detector element will reach the end of
its serviceable life.The self-supervising
detector will signal a permanent
trouble condition, indicating time for
replacement.
SPECIFICATIONS
REGULATORY LISTINGS: UL2034
DETECTION METHODS: Electrochemical
TIME TO ALARM PER UL 2034:
Carbon Monoxide
Concentration Level
Minimum Time
to Alarm
Maximum Time
to Alarm
50 ppm +/-5 ppm 30 days Indefinite
70 ppm +/-5 ppm 60 min 240 min
150 ppm +/-5 ppm 10 min 50 min
400 ppm +/-5 ppm 4 min 15 min
AUDIBLE OUTPUT: 85 dBA/10'
OPERATING TEMP. RANGE: 32º-100º F
POWER: 3-Volt battery (Lithium Type 123A)
(UL tested for greater than 1 year service life)
CURRENT: 7 mA alarm average, 15 µA standby
FREQUENCY: 315 MHz
NUMBER OF CODES: One of 1,048,576 possible codes
DIMENSIONS: 5.3" diameter, 2.0"h
COMPATIBLE RECEIVERS†:PERS-3600 PERS-2400A
DXSR-1504 DXSR-1508
DVS-1200 DXR-702
DUAL-824 DVS-2400
Model DXS-80
(SST00116)
Carbon Monoxide Alarm
Wireless Carbon Monoxide
Alarm
,
,
A
Model DXR-702
(SNR00149)
2-Channel Receiver
Also available as a kit:
DX-COKIT
(SSA00020)
Kit contains one DXR-702 receiver
with a DXS-80 already learned into
the receiver
NOTE: The DX-COKIT is not for use
in UL Listed applications † The DXS-80 is currently UL Listed for use with the Linear PERS Consoles only. It has not
been tested by UL with other compatible Linear receivers.

DXS-80
DXR-702
Security
Alarm
Panel
DX-COKIT
The DX-COKIT is an excellent
way to add CO protection to new
or existing security alarm panels
Security Alarm Panel Requirement:
Available input(s) which can accept a
dry N.C. or N.O. contact
DX-COKIT
• Includes one DXS-80 CO Detector and one Linear DXR-702 Receiver, with the DXS-80 already learned into the receiver
• Interconnects to any Security Alarm Panel that can accept a dry N.C. or N.O. contact for a zone input
• Perfect for installations that require one CO detector
For applications requiring more than one CO detector, Linear recommends and
offers the following product solutions:
NOTE: When multiple CO detectors are required for an application, Linear recommends that each CO
detector be assigned to its own receiver channel to assure proper device supervision and reporting.
Number of
CO Detectors
Linear
Receiver
Notes
1 DXR-702 Use the Linear DX-COKIT
1 to 4 DXSR-1504 Purchase the required number of DXS-80 Detectors
1 to 8 DXSR-1508 Purchase the required number of DXS-80 Detectors
Copyright © 2008 Linear LLC Printed in China 228209 AX2
USA & Canada [phone] & [phone]
[phone] - Toll Free FAX [phone]
www.linearcorp.com
NOTE: The DX-COKIT is not for use in UL Listed applications
