OPERATING MANUAL
DIAMOND CORE DRILLING MACHINES
CDM 25 W
CDM 25 WP
CDM 33 W
CDM 33 WP
LISSMAC Maschinenbau GmbH
Lanzstrasse 4
D-88410 Bad Wurzach
Telefon [phone] / 307 - 0
Telefax +49 (0) 7564 / 307 - 500
[e-mail]
www.lissmac.com
EN

2/30

3/30
Imprint The operating manual is valid for:
Diamond Core Drilling Machines
CDM 25 W
CDM 25 WP
CDM 33 W
CDM 33 WP
Company headquarters:
LISSMAC Maschinenbau GmbH
Lanzstraße 4
D - 88410 Bad Wurzach
Tel: [phone] / 307 – 0
Fax: [phone] / 307 – 500
[e-mail]
http://www.lissmac.com
Translation of the original operating manual
Stand: 11-2018
The dissemination or duplication of this operating manual in any form, or the reuse of contents is
forbidden unless permitted in writing. Non-compliance is subject to compensation for damages. All
rights reserved for the purpose of patent, utility model, or design patent registration.

4/30
BASIC SAFETY INSTRUCTIONS
Warning notices and symbols in this operating manual
Danger! Indicates that non-observance may cause heavy or even deadly injuries to the operator.
Caution! Indicates that non-observance may cause physical injuries.
Note Indicates that non-observance may cause damages to the device or to other material or physical
assets.
Handling information for operators
The defined sequence of the handling steps makes proper and safe handling of the machine easier.
Handling instructions for the operator
The following warning and safety symbols were attached on the machine:
This symbol indicates the reference to the operating manual
This symbol indicates that hearing protection must be worn
Recycling
Concrete
Brick

5/30
OPERATING MANUAL
Preface This operation manual has been established to make it easier to become familiar with the
machine and to utilise its intended application options.
This operation manual contains important information on how to operate the machine in a
safe, appropriate and economic manner. Observation of present operation manual
contributes to avoid dangers, repair costs and down times and to increase the reliability
and lifetime of the machine.
This operation manual is subject to supplementation by existing national regulations for
prevention of accidents and for environmental protection.
Present operation manual must always be at hand at site and place of operation.
It must be read thoroughly and be applied by each person charged with performing works
using this machine, such as
Operations including set-up routines, trouble-shooting during operation processes,
elimination of wastes from machining operation, care, elimination of process
materials
Maintenance (service, inspection, repair, etc...)
Apart from the provisions and instructions specified in this operation manual and the
regulations valid and in force in the land and at the place of operation for prevention of
accident also the acknowledged technical rules about the performance safety and
technical works must be observed.
Table of contents
1. Description of performance
2. Description of Machine
3. Commissioning
4. Transport
5. Operation
6. Tools
7. Recycling
8. Guarantee
9. Parts list
Changes and reservations
We attempt for this operating manual to be correct and up-to-date. To maintain our
technological lead, it can be necessary to change the product without advance notice and
to perform their operation. We accept no liability for malfunctions, breakdowns and
damage caused by this.

6/30
Notes:

7/30
DESCRIPTION OF PERFORMANCE
With their compact, robust design, the CDM 25 W and CDM 33 W provide reliable, user-friendly,
professional wet drilling every day on the construction site. The careful design of the safety clip
secures the core drill in the harsh construction site environment as well as acting as a functional
handle for daily transport and simple mounting on drilling stands.
User-friendly – three gear levels permit optimum speed selection adapted to the specific
core drill diameter
Fast drill crown collet with integrated spindle protection
Centrally positioned on/off switch on the control box is quick and easy to operate even in
difficult situations
MUTLI-SAFE-TRONIC
Overload protection for the highest possible operating comfort and long service life - Stotter-
Elektronik
Integrated smooth start makes operation easier when starting the drilling process
Maximum safety due to electronic and mechanical overload coupling and additional thermal
overload protection

8/30
1.1. Basics of intended use
1.1.1 The warranty obligation of the manufacturer and supplier is voided for improper or non-intended
use. Any change to the machine which is not carried out by the manufacturer is prohibited.
Changes, removal or addition of parts only with the written approval of the manufacturer.
1.1.2 The machine is constructed according to the state of the art and recognised technical safety rules.
However, danger to life and limb of the user or third parties, and/or damage to the machine or other
property may still arise from its use.
1.1.3 Only use the machine in technically faultless condition and for intended use, aware of safety and
danger complying with the operating manual. You should particularly handle malfunctions which
can compromise safety immediately, or have them addressed by experts.
1.1.4 The LISSMAC Diamond Core Dill Machine CDM 25W/CDM 33W is a wet core drill machine and
follows the machine classification of a core drill rig guided core drill machine. This core drill
machine works in conjunction with a diamond impregnated core drill bit and water to drill circular
holes into stone, concrete and composite materials. This type of core drill machine must be
mounted to a drill rig in order to operate properly.
Intended use also includes compliance with the operating manual and observance of inspection and
maintenance manual.
1.2. Drilling Safety Instructions
1.2.1 Never change gears while the spindle is still in motion.
1.2.2 Check to make sure the drill is turned off before plugging it in.
1.2.3 Inspect the drill for water leaks before using.
1.2.4 When drilling overhead, a water containment ring should be used.
1.2.5 Use a water pump to draw water away from the drill site.
1.2.6 When operating the drill a supervisor must be present.
1.2.7 Keep hands away from moving parts.
1.2.8 Operate the drill with both feet planted securely on the ground.
1.2.9 Do not wear loose clothing or articles that may be caught in moving parts. Wear hat or hair net to
contain long hair.
1.2.10 Wear face mask able to filter out the dust particles injected in the air.
1.2.11 Visually inspect the drill for signs of problem before operating it.
1.2.12 Vibration is induced throughout the machine whenever it is used. Before operating check that all
external hardware are properly tightened.
1.2.13 The core bit and the drill will be extremely hot after each drilling session. Use caution when near
the metallic surfaces as they could cause serious burns. Do not touch!

9/30
1.2.14 Never deactivate the drill by pulling out the power plug as it will automatically activate when
plugged back in. Turn the drill off before unplugging.
This machine is intended for use by an operator experienced in the field of construction.
Use of this machine other than as described in this manual is contrary to the intended
use.
1.3. General Safety Instructions
ATTENTION! Read the following instructions slowly and carefully before operating the drill. Failure
to comply may lead to serious personal injury or industrial accidents.
1.3.1. Maintain a clean and safe working environment
Familiarize self with current working environment. Do not allow non-essential personal into the job
site. Always put unused equipment away and keep the area clean. Power cables and conduits
should be properly grouped and covered.
1.3.2. Take into account all external factors
Always stay alert and keep the job site well lit. Electrical tools should not be used near flammable
liquids or gases and on rainy days. Such tools should be used only when dry.
1.3.3. Prevent electrical shocks
Keep clear of foreign metallic object such as tubes, beams, ladders, etc… Check to make sure no
electrical wiring is in drilling path.
1.3.4. Use equipment correctly and avoid overloading it
Equipment should be used as designed. Work within its design capacity to avoid catastrophic
failures
1.3.5. Use tools correctly
Tools should be used as designed.
1.3.6. Wear proper working attire
Attire worn at the job site should be form fitting to prevent snagging. Remove all lose articles and
long hair should be bound with a hat or hair net.
1.3.7. Protective gear
A hard hat should be worn at all construction/job sites. Wear the correct protective glove to handle
the job at hand. Safety goggles/glasses and face protection should be worn when dealing with
flying debris. Breathing mask should be used when dealing with airborne particles. Do not inhale
unfiltered masonry particles ejected into the air as they are harmful. Hearing protection must be
used when dealing with ambient noise 90 dB(A) and higher.

10/30
1.3.8. Dust extraction equipment
Equipment meant to have a dust extraction accessory installed, must be installed. Make sure it is
installed as explained in the manual.
1.3.9. Extension cables
Only heavy duty outdoor extension cables should be used. Check for exposed wiring before pluggin
in the extension cable. Unroll the cable completely to avoid unnecessary heat buildup. Use cables of
the proper size for the electrical load it must carry.
1.3.10. Working posture
Stand firm and maintain balance when operating equipment that relies on the user for support.
Keep both feet planted at all times on a dry surface.
1.3.11. Maintenance and repairs
Check tools and equipment regularly for wear and tear. Follow maintenance schedules as directed
by their respective manuals. Never operate equipment that is not fully functional or has a damaged
power switch. Repairs should be handled by authorized technicians.
1.3.12. Unplug electrical equipment
Electrical equipment should be unplugged when not in use, being maintained and or inoperable.
1.3.13. Loose items
Equipment should not be used with loose items sitting on top.
1.3.14. Transporting equipment
When transporting equipment, keep hands clear of power switch to prevent accidentally turning it
on.
1.3.15. Remain alert
Do not use equipment while under the influence of drugs or alcohol. Maintain focus while using the
equipment. If concentration cannot be maintained, do not operate the equipment.
1.3.16. Parts and accessories
Only use only authentic factory supplied parts and accessories. Not doing see may cause premature
failure or improper fitting.
1.3.17. Store this manual for future reference

11/30

12/30
DESCRIPTION OF MACHINE
2.1.

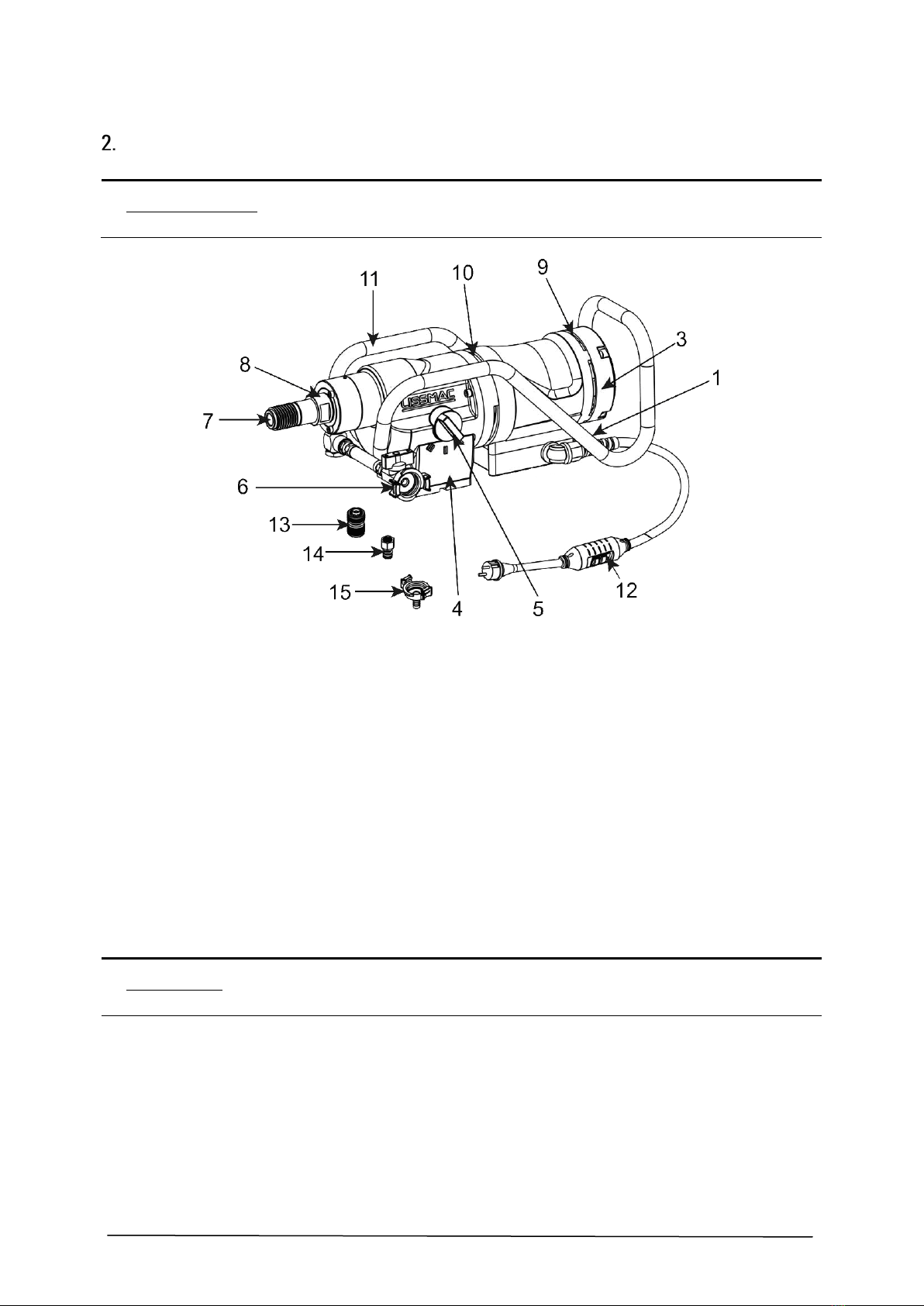

Name of machine parts
Pos. 1
On/off switch Pos. 9 Air let
Pos. 3
Carbon brush Pos. 10 Air outlet
Pos. 4
Motor mounting plate Pos. 11 Chassis handle
Pos. 5
Gear switch Pos. 12 PRCD
Pos. 6
Water connection (GEKA) Pos. 13 GARDENA- Quick Fitting
Pos. 7
Drill connection + quick release
(option)
Pos. 14 GARDENA-Nipple
Pos. 8
Spanner insert – 32 mm Pos. 15 GEKA-Fitting
2.2.
Scope of delivery
4m power cord with integrated PRCD safety circuit breaker
GEKA water coupling, adjustable hose clamp
Size 32 open-ended wrench (spindle)
Size 41 open-ended wrench (1 ¼“ UNC drill crowns)

13/30
2.3. Technical data
CDM 25 W CDM 33 W
230 V 110V 230 V 110V
Rated power: 2500 W 3300 W
Output power: 1800 W 2550 W
Current consumption 12 A 24A 16 A 24A
Kind of current Single phase Single phase
System of protection (Insulation) Class 2 Class 2
Spindle speed without load
Gear I 510 1/min 310 1/min 350 1/min
Gear II 1000 1/min 670 1/min 690 1/min
Gear III 1420 1/min 1000 1/min 1050 1/min
Spindle speed with load
Gear I 360 1/min 220 1/min 150 1/min
Gear II 680 1/min 420 1/min 295 1/min
Gear III 1050 1/min 650 1/min 450 1/min
Height 194 mm 194 mm
Width 181 mm 181 mm
Length 541 mm 541 mm
Net weight 12,7 kg 13.3 kg 13,3 kg 15.3 kg
Technical data written here may change without notice.
2.4.
Noise level
The measurements were carried out in corresponding to the norms EN ISO 3744, EN ISO 11201 and
EN 12418. Therefore, a standard core drill was used.
No load recorded loudness. Highest recorded loudness.
CDM 25 W/WP 95 dB 115 dB
CDM 33 W/WP 95 dB 118 dB

14/30
COMMISSIONING
3.1. Connections and operating materials
Connection of electricity
A reliable power source with an operating voltage (230V) and corresponding fuses as
shown on the model plate must be available. The automatic phase inverter automatically
regulates the direction of rotation. Never operate the machine without the equipped
portable residual current device (PRCD).
Water connection - Cooling
The core drill motor has integrated water cooling. If the core drill motor is put into
operation for drilling, it must be cooled with fresh water. The cooling water is fed
directly into the tool through the integrated water cooling. Drilling without water is
prohibited!
3.2. PRCD Switch
This drill has a portable residual current device (PRCD) hard wired into the power cable. In an
event of a short circuit, power surge, electrocution or power outage (voltage drop), the PRCD will
sever the power to the drill. After the problem has been resolved, reset the PRCD by simply
pressing the GREEN reset button on the device. Halten Sie den FI-Schalter von fließendem oder
stehendem Wasser fern.
Keep the PRCD away from any running or standing water.
Before operating the drill test the PRCD to make sure it is functioning properly.
Never use the drill if the PRCD is non-operational.
To check the PRCD press the test button.
Never tamper with the power cable plug head.
3.3. Carbon Brushes
As soon as the carbon brushes are almost worn out the core drill machine significantly loses
power. Replace the carbon brushes as soon as you notice a significant loss of power.
Do not wait until the carbon brushes are completely worn out, as this leads to damage to
the motor.

15/30
3.4. Tool selection
Danger!
The use of non-tested or unauthorised tools is prohibited. Damaged tools must not be used!
Depending on the application purpose and area, tools are different. To have the best results, the
parameters must match. For this the maximum core drill diameter must be observed in reference
to the peripheral speed.
Gear level I Gear level II Gear level III
CDM 25 W max. ø 250 mm max. ø 120 mm max. ø 80 mm
CDM 33 W max. ø 350 mm max. ø 160 mm max. ø 100 mm
Fixtures for tools
The core drill motor has a drill crown collet of 1 ¼" UNC.
Maximum tool length
The maximum tool length is dependent on the core drill stand.
Storage of tools
Tools must be protected against humidity during storage. The attached segments must be
protected from damage.
Note In the LISSMAC sales booklet, the prices for the tools are determined. This sales booklet can be
obtained from the manufacturer at any time.

16/30
TRANSPORT
Note During transport the core drill motor must be disconnected from the power mains.
Disconnect the power supply cable of the core drill motor from the power mains.
Remove the tool from the core drill motor.
Remove the core drill motor from the core drill stand.
OPERATION
Caution!
The core drill motor must be cooled with water for drilling. Without this cooling the motor
overheats and will become faulty.
Danger!
Avoid any contact with the running tool.
With this core drill motor water is used for cooling and for rinsing the core drill during drilling. To
supply the core drill motor with water, connect the included GEKA fitting onto the GEKA fitting
equipped on the core drill motor. Always use clean water for the core drill motor and ensure that
dirty water is properly removed from the drilling location. This contributes to longer service life of
the core drill and the water seals on the core drill motor. The water pressure must be maximum
three bar.
Notice whether excessive vibrations occur on the core drill. If vibrations are too high the
drill can possibly jam or be damaged.
Do not use any spiral core drill since in time this leads to damage of the drilling machine.
Make sure that no water escapes on the spindle. Replace the water seals in the drilling
machine immediately if leaks are detected.
During drilling always pay attention to the intermittent overload protection and avoid an
overload of the drilling machine motor.
Never operate the drilling machine if an electrical component or the cable is damaged.
Have a specialist repair the drilling machine.
Never carry or pull the drilling machine by the power cable.
Only position the core drill on the workpiece when the drill has reached its maximum
speed.
Change the gear setting only after the spindle has stopped completely.
If you want to replace a core drill, tightly hold the spindle with a key. Loosen the core drill
with another key. Never hit the bit to loosen it. This will damage the bit.

17/30
TOOLS
Rotation speed m/s
Diamond core bit rotation speed min - 1
Diamond core bit diameter mm
Labelling for concrete
Depending on the application purpose and area, tools are different. To have the best results, the
parameters must match. With this diagram, the optimal cutting performance can be determined.
Note In the LISSMAC sales booklet, the prices for the tools are determined. This sales booklet can be
obtained from the manufacturer at any time.

18/30
RECYCLING
To comply with regulation 2002/96/EC, LISSMAC Maschinenbau GmbH will recycle all
old electric drills that are returned. Bring said unit to an authorized dealer to be sent
back.
GUARANTEE
The guarantee period for this product period is 12 months from the date of purchase. During this
period LISSMAC Maschinenbau GmbH at its sole discretion will service or replace defects due to
faulty materials or workmanship, free of charge. Parts worn from normal wear and tear, or
damaged from abuse are not covered by this guarantee.
Exceptions to the guarantee:
Driving elements such as toothed racks, toothed wheels, pinions, spindles, spindle nuts,
spindle bearings, ropes, chains, chain wheels, belts
Guiding elements such as guiding joints, guiding bushes, guiding rails, rolls, bearing,
antislipping devices
Rotary shaft seal and sealing elements
Friction and overload clutches, brake gears
Fixing materials as plugs, anchor and screws
Drilling, parting-off and cutting tools

19/30
PARTS LIST
Pos. Art.-No. Description Specification Pcs.
Spare P
art
Recommendation
CDM 25W
CDM 33W
CDM 25W 110V
CDM 33W 110V
83.3
211266
ELLBOW FITTING SET
(INCL. 83,83.1,83.2,84) 230V
X X X
83.3
211267
ELLBOW FITTING SET
(INCL. 83,83.1,83.2,84) 110V
X X X
83
211164
ELLBOW FITTING 230V
NPTAB38-NPT3/8"
1
X
X
83
211263
ELLBOW FITTING 110V
NPTAB38-NPT3
1
X
X
83,1 211165 SEALING RING 230V NPTW38 1 X X
83,1
211264
SEALING RING 110V
NPTW12
1
X
X
83,2
211166
HEXAGON NUT 230V
NPTL38
1
X
X
83,2
211265
HEXAGON NUT 110V
NPTL12
1
X
X
84
211167
CORD SLEEVE 230V
AGN16SR
1
X
X
84
211269
CORD SLEEVE 110V
AGN20SR
1
X
X
119
700400
ANTI-FRICTION RING
X
X
X
X
X
120
211197
WATER –FITTING SET CPL
X
X
X
X
X
8
211038
WATER HOSE
1
X
X
X
X
8,1
211040
SEALING RING
2.0x16.7x21
1
X
X
X
X
9
211037
BALL VALVE
1
X
X
X
X
86
211085
GEKA-FITTING
3/8"PF
1
X
X
X
X
87
211086
GEKA-FITTING
3/8"
1
X
X
X
X
88
211083
HOSE-CLIP
5/8"
1
X
X
X
X
91
211151
GARDENA- QUICK FITTING
1/2"
1
X
X
X
X
92
211152
GARDENA-NIPPLE
3/8"
1
X
X
X
X
127
211723
COVER HANDLE CDM 25/33 CPL
X
X
X
X
X
2,1
211188
LOCK WASHER
M6-0.6x5.4
7
X
X
X
X
37
211118
COVER HANDLE
1
X
X
X
X
38
211119
HEX. SOC. HEAD SCREW
M6x1.0x40
2
X
X
X
X
128
211724
GEAR UNIT CDM 25 CPL
X
X
X
128
211725
GEAR UNIT CDM 33 CPL
X
X
X
128
211815
GEAR UNIT CDM 33 WP CPL
X
-
-
-
-
1
211186
GEAR HOUSING
1
X
X
2
300528
HEX. SOC. HEAD SCREW
M6x1.0x45mm
3
X
X
X
X
2,1
211188
LOCK WASHER
M6-0.6x5.4
7
X
X
X
X
3
211189
WATER SUPPLY RING
1
X
X
X
X
4
211190
SHAFT SEALING RING
1
X
X
X
X
4,1
211191
SHAFT SEALING RING
1
X
X
X
X
5
211090
SHAFT SEALING RING
OD 50x7(h)
1
X
X
X
X
6
211091
HEX. SOC. HEAD SCREW
M5x40
3
X
X
X
X
7
211092
ELLBOW FITTING
1
X
X
X
X
10
211093
LOCK RING
1x14.2x19.75
1
X
X
X
X
11
211094
DRILLING SPINDLE CDM 33W
1
X
X
11
211258
DRILLING SPINDLE CDM 33WP
1
X
X
12
211095
BALL
Ø5
1
X
X
X
X
13 211096 PRESSURE SPRING Ø0.5xID2.75x19ringx23
mm
1 X X X X

20/30
Pos. Art.-No. Description Specification Pcs.
Spare P
art
Recommendation
CDM 25W
CDM 33W
CDM 25W 110V
CDM 33W 110V
14
211097
FEED WORM
1
X
X
X
X
15
211098
BALL BEARING
6201CM-12x32x10
1
X
X
X
X
16
211099
LOCK KEY
A-4x4x10-DIN6885
1
X
X
X
X
17 211100 GEAR WHEEL 44T 1 X X
18
211101
PINION SHAFT
1
X
X
19
211102
NEEDLE BEARING
HK1412-
2
X
X
X
X
20
211103
BALL BEARING
6302 CM-15-42-13
1
X
X
X
X
21
211104
GEAR CHANGE SHAFT
1
X
X
22
211009
BALL
Ø4
2
X
X
X
X
23 211105 LOCK KEY A-6x6x45-DIN6885 1 X X X X
24
211106
GEAR WHEEL
27T
1
X
X
26
211107
SLIDING GEAR WHEEL
27T
1
X
X
26,1 211108 LOCK RING ID Ø20 1 X X X X
27
211109
GEAR WHEEL
40T
1
X
X
28
211110
LOCK RING
S16
1
X
X
X
X
29
211111
LOCK PIN
Ø6x10
2
X
X
X
X
30
211112
O-RING
Ø2x104.5x108.5
1
X
X
X
X
31
211113
SPACER BLOCK
1
X
X
32
211114
AIRFLOW GUIDANCE
1
X
X
X
X
33
211115
AIR FUNNEL
1
X
X
X
X
34
211045
HEX. SOC. HEAD SCREW
M5x0.8x12
1
X
X
X
X
34,1
211046
LOCK RING
M5
1
X
X
X
X
35
211044
GEAR CHANGE LEVER
1
X
X
X
X
36
211116
GEAR ADJUSTMENT KNOP
1
X
X
X
X
36,1
211117
O-RING
Ø3x21x27
1
X
X
X
X
39
211120
HEXAGON NUT
M22xP1.5x18mm
1
X
X
X
X
40
211121
DISC SPRING
Ø45x22.4x2.5-DIN2093
3
X
X
X
X
41
211122
PRESSURE RING
Ø47xØ26.1x7.3
1
X
X
42
211123
PRESSURE DISC
1.5T
3
X
X
43 211124 SPINDLE WHEEL 39T 1 X X
44
211125
BRAKE DISC
1.5T
2
X
X
45
211126
BRAKE DISC
Ø46.8xØ26.1x1
2
X
X
46 211127 NEEDLE BEARING K26x30x13---26x30x13 1 X X
47
211128
BRAKE DISC
Ø46.7xØ26.1x7
1
X
X
47,1
211185
BRAKE DISC
Ø46.7xØ26.1x5.1
1
X
X
48
211129
THRUST NEEDLE BEARING
AXK1106-30x47x2
1
X
X
X
X
49
211130
THRUST BEARING WASHER
AS1106-30.3x47x1
1
X
X
X
X
50
211131
NEEDLE BEARING
-NK30/20-
1
X
X
X
X
51
211132
THRUST BALL BEARING
51106
1
X
X
X
X
52
211133
NEEDLE BEARING
HK2016- -95-V9
1
X
X
X
X
101
211168
GEAR HOUSING
1
X
X
102
211169
BRAKE DISC
2
X
X
103
211170
SPINDLE WHEEL
39T
1
X
X
104
211171
BEARING SOCKET
1
X
X
105
211172
PRESSURE SHELL
1
X
X
106
211173
GEAR CHANGE SHAFT
1
X
X
107 211174 PINION SHAFT 1 X X
108
211175
GEAR WHEEL
42T
1
X
X
109
211176
GEAR WHEEL
27T
1
X
X
110
211177
SLIDING GEAR WHEEL
27T
1
X
X
111
211178
GEAR WHEEL
40T
1
X
X
112
211179
SPACER BLOCK
1
X
X
113 211180 LOCK KEY 6x6x30 1 X X
114
211181
DRILLING SPINDLE CDM 25W
1
X
X
