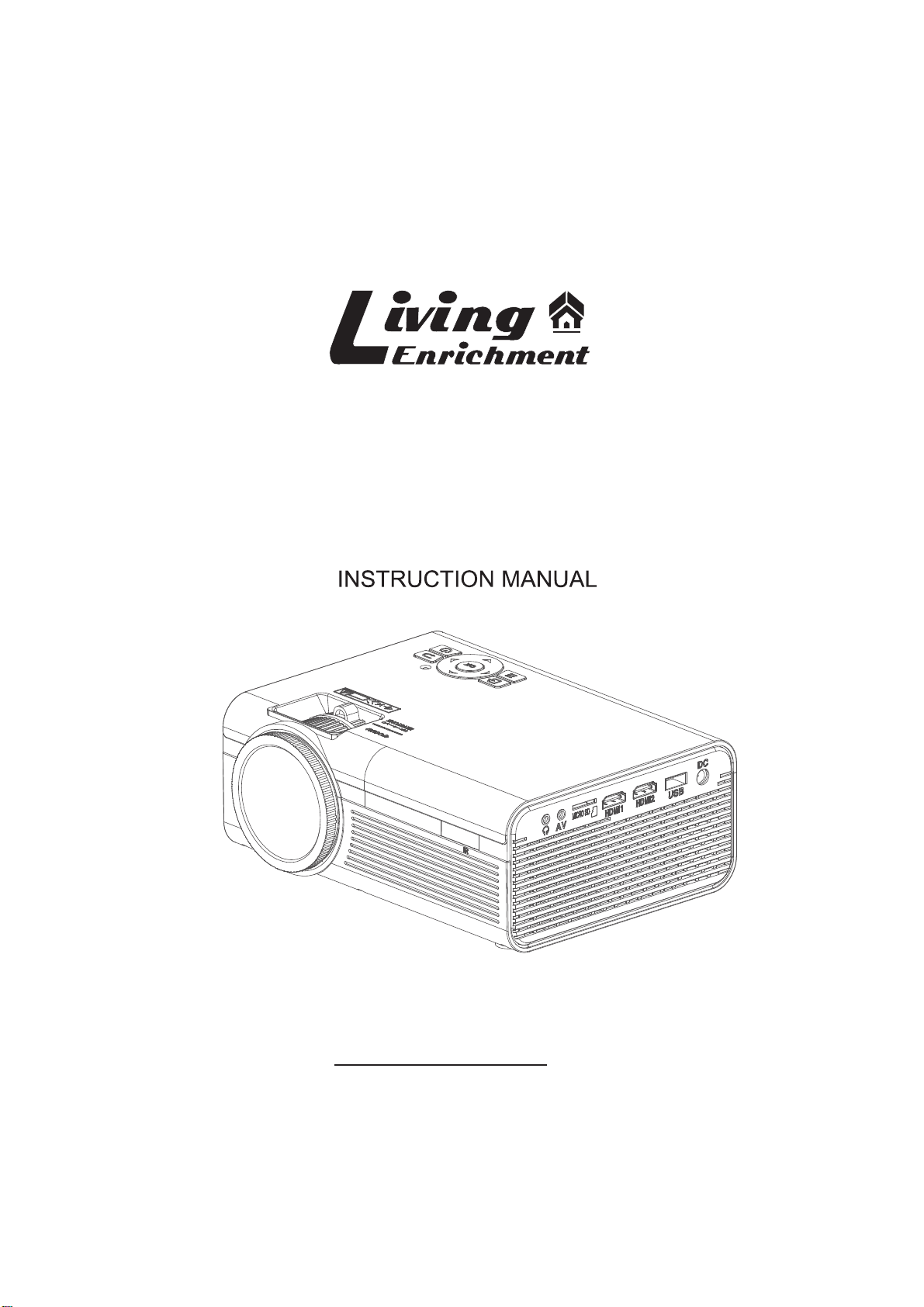

Living Enrichment LE-203 User manual

MODEL NO. LE-203
MULTIMEDIA PROJECTOR
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
Call customer service hotline: [phone]
Email: [email protected]

Important Safety Instrucons
1. Read these Instrucons.
2. Keep these Instrucons.
3. Heed all Warnings.
4. Follow all instrucons.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any venlaon openings. Install in accordance with the
manufacturer’s instrucons.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifier) that product heat.
9. Protect the power cord from being walked on or pinched parcularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
10. Only use aachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods
of me.
12. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
13. Use only with a cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is
used, use cauon when moving the cart/ apparatus combinaon
to avoid injury from p-over.
1

Addional Warnings and Precauons
1. Do not look directly into the projector light.
2. Don’t touch the project lens
3. Mains adapter is used as disconnect device and it should remain readily
operable during intended use. In order to disconnect the apparatus from
the mains completely, the mains plug should be disconnected from the
mains socket outlet completely.
4. CAUTION: Use of controls or adjustments or performance of procedures
other than those specified may result in hazardous radiation exposure.
5. WARNING: Changes or modified to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
6. WARNING: Use of this unit near fluorescent lighting may cause
interference regarding use of the remote. If the unit is displaying erratic
behavior move away from any fluorescent lighting, as it may be the
cause.
7. WARNING: Shock hazard - Do Not Open.
8. Caution and marking information is located at the rear or bottom of the
apparatus.
9. WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain, moisture, dripping, or splashing.
10. Objects filled with liquids, such as vases, shall not be placed on the
apparatus.
2

FCC Warning
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
In The Box
3
Remote
Main unit
Lens Cover User ManualAC Power Adapter
RECALL FAV/ x
(2 X AAA batteries
not included)
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Ttavel bag
HCMI cable

Table of Contents
Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - P1
Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - P2
FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3
In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3
Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4
Remove & Close the Lens Cover - - - - - - - - - - - - - - - - - - - - - - - - - P5
Placing Your Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P5
To Reduce Image Distortion - - - - - - - - - - - - - - - - - - - - - - - - - - - - P6
Distance Between The Projector And Screen - - - - - - - - - - - - - - - - P6
Placing Your Projector On Ceiling - - - - - - - - - - - - - - - - - - - - - - - - P6
Adjust the Vertical Location - - - - - - - - - - - - - - - - - - - - - - - - - - - - P7
Adjust the Focus and Keystone - - - - - - - - - - - - - - - - - - - - - - - P7
Controls of Remote - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P8
Install / Remove Battery Of Remote - - - - - - - - - - - - - - - - - - - - - - - P8
Controls of Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P9
Install Power Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P10
Main Operation - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - P10
Connect HDMI show the Image On Projector Screen - - - - - - - - - P11
Connect AV Show The Image On Projector Screen - - - - - - - - - - - - P11
Connect VGA Show The Image On Projector Screen - - - - - - - - - - - P12
Connect Audio Output (Aux Out / Line Out / Earphones) - - - - - - - - P13
Install USB Device And Micro Sd Card “TF” - - - - - - - - - - - - - - - - - P13
Using TF Card and USB Playback - - - - - - - - - - - - - - - - - - - - - - - - P14
4
Using Projector Menu 1.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P15
Using Projector Menu 2.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P16
Using Projector Menu 3.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P17
Using Projector Menu 4.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P18
Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P19
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P20

Remove & Close The Lens Cover
Placing Your Projector
Your projector can be installed in four different configurations ( see picture
below):
Front Table:
Select this location with the projector placed
near the floor in front of the screen. This is the
most common way to position the projector
for quick setup and portability.
Front Ceiling:
Select this location with the projector
suspended upside-down from the ceiling in
front of the screen.
NOTE: A projector mount is required to install
the projector in a ceiling.
Rear Table:
Select this location with the projector placed
near the floor behind the screen.
NOTE: That a special rear projection screen
is required.
Rear Ceiling:
Select this location with the projector
suspended upside-down from the ceiling
behind the screen.
NOTE:
A projector mount is required to install the
projector in a ceiling.
A special rear projection screen is required.
5
REMOVE
LENS COVER
CLOSE
LENS COVER
Remove the lens cover before using Close the lens cover when unit not using
FRONT TABLE
REARTABLE
FRONTCEILING
REARCEILING

It is recommended to move the projector as close to
center of screen.
Distance Between The Projector And Screen
Measure the distance between the projector and where you want to
position the screen. This is the projection distance.
Placing Your Projector On Ceiling
When installing the projector in the ceiling, please purchase a projector mount
recommended by an installation professional and follow the instructions that
come with the mount.
Before installing the projector in the ceiling, please check to make sure the
ceiling structure can support the weight of the projector and the mount. If in
doubt, please ask the advice from an installation professorial.
NOTE: Projector mount and screw(s) not included
6
CEILING HANGER
FIXED HANGER HOLE
Square /Rectangle
THECENTEROFLENS
SCREEN
72
"
60
"
50
"
45
"
37
"

Follow below picture to adjust the vertical location.
Adjust The Focus And Keystone
Follow below picture to adjust the focus and trapezoidal screen.
Adjust the focus by turning the knob while
observing the image pixels near the center of the
screen. Optimal focus is obtained when the
pixels are clearly visible. Depending on the
projected screen size, the focus near the screen
edges may be less sharp than the screen center.
Keystone image is created when the projector
beam is projected to the screen in an angle.
Keystone correction will restore the distorted
image to a rectangular or square shape.
7
SCREEN
PROJECTOR VERTICAL
DIMENSION
VERTICAL
DIMENSION
SCREEN
PROJECTOR
VERTICAL
DIMENSION
SCREEN
PROJECTOR
Adjust this knob (ANGLEADJ. knob)
to¿ne-tunethedisplayangletohigher.
FOCUSADJ. KNOB
Thensharpentheimage
byrotatingfocusknob.
TRAPEZOIDALADJ.KNOB

Controls Of Remote
Remove the battery compartment cover on the back of your remote by
carefully sliding to open. The battery cover can then be lifted away. Fit the
correct batteries (2 X AAA batteries not included), referring to the polarity
markings. Finally, replace the cover.
NOTES:
tBatteries shall not be exposed to excessive heat such as sunshine, fire
tBe sure that the batteries are installed polarity correctly.
tDo not mix old and new batteries.
tOnly same or equivalent type batteries as recommend are to be used.
tDo not dispose of batteries in fire, battery may explode or leak. Do not try
to recharge a battery
8
AAA/ UM4
AAA/ UM4
BATTERYDOOR
tDo not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh,
etc) batteries
OK
123
456
789
0
SOURCE
GOTO ZOOM
MENU
FLIP VOL – VOL +
EXIT
Power
Press to power ON.
Press twice to power OFF.
Previous / Next
Press to skip between chapters or tracks.
Stop
Press to stop playback.
Flip
Press t display image 180°.
Play/Pause
Press to play or pause an individual
chapter or track.
Arrows/OK
Press to navigate and c rm selections in
Settings and other menus.
Menu
Press to access projector Settings.
Go To/Number Keypad
Press to enter spec ter or track
numbers. Use Play button to begin
playing.
Mute
Press to mute volume.
Back / Fwd
Press to search through an individual
chapter or track.
VOL+ / VOL−
Press to adjust audio level.
Source
Press to select media source
(AV, PC, HDMI, MEDIA).
Exit
Press to exit menus.
Zoom
Press to zoom display image in or out.

Controls Of Projector
9
2.
3.
4.
5.
6.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
131415
16
1345
6
7
8
910
12
11
2
17
18
19
20
LENS
FOCUS ADJ. Knob
TRAPEZOIDAL ADJ. Knob POWER on Indicator
DC IN jack
OK
IR Window ( Rear Side)
IR Window ( Front Side)
ANGEL ADJ. Knob
EAR PHONE Jack
AV OUT Jack
Micro SD Card
HDMI Port 1
USB Port
VGA Port
HDMI Port 2

10
Install Power Adapter
Follow below picture to connect power adapter
Connect small end of adapter FIRST. Plug the adapter body to power outlet.
Source
Press to
change media
source mode.
Menu
Press to access
on-screen
menus and
options.
Arrows/OK
Press to
navigate on-
screen menus
and make
selections.
Back
Press to return
to a previous
page or setting
in the on-
screen menus.
Power
Press to
power on the
projector.
Press twice to power
off the unit

Connect HDMI Show The Image On Projector Screen
Follow below picture to connect HDMI cable and device.
1. Turn off the unit before connect HDMI cable.
light GREEN
3. Press the / SOURCE
device will show on projector screen. There are 2 HDMI input, HDMI1 interface
4. Press the button to turn off unit power.
Connect AV Show The Image On Projector Screen
Follow below picture to connect AV cable and device.
1. Turn off the unit before connect AV cable.
2. Use AV cable to connect follow below figure
3. After connect, press the button to turn on unit and power indicator will
light GREEN
4. Press the / SOURCE button to AV mode and the video of AV device
will show on projector screen
5. Press the button to turn off unit power.
11
HDMICABLE
CABLENOTINCLUDE
LEFTCHANNEL
RIGHTCHANNEL
VIDEOCABLE
VIDEOPLAYER
VIDEOCABLE:YELLOW
AUDIOLEFTCHANNEL: WHITE
AUDIORIGHTCHANNEL: RED
CABLENOT INCLUDE
In rare cases, if the projector’s speaker has
no sound when playing a DVD movie in a
player connecting to the HDMI input, please
check the player’s digital audio settings and
make sure it is set to “Auto” mode or “PCM”
mode.
HDMI hd signal input : this interface can be input with HD player
corresponds to HDMI 1 in SOURCE mode , and HDMI2 interface corresponds to
HDMI 2 in SOURCE mode.

Connect VGA Show The Image On Projector Screen
Follow below picture to connect HDMI cable and device.
1. Turn off the unit before connect VGAcable.
2. Press the button to turn off power of your projector before connection.
light GREEN
4. Press the / SOURCE
will show on projector screen.
5. Press the button to turn off unit power.
Please refer to the following table to adjust the output signal from computer
PC
VGA 640x480
31.5 60
34.7 70
37.9 72
37.5 75
SVGA 800x600
31.4 50
35.1 56
37.9 60
46.6 70
48.1 72
46.9 75
XGA 1024x768
40.3 50
48.4 60
56.5 70
12
To VGA PORT
NOTE BOOK DECK TOP
OR
COMPUTERCABLE COMPUTER CABLE
CABLENOTINCLUDE

Connect Audio Output ( Aux Out / Line Out / Earphones)
Follow below picture to connect audio cable and device.
1. Press the button to turn off power of your projector before connection.
2. Use audio cable to connect follow below figure.
3. After connect and turn on both units. Your projector sound from external
device now.
4. After using , turn off both unit
Install USB Device And Micro Sd Card “TF”
Follow below picture to install USB and TF card
Turn off the unit before install USB / TF card.
13
MICRO SD
CABLENOTINCLUDE
Station Amplifier
Audio cable

Using TF Card And USB Playback (Media Player)
Install USB / TF device:
1. Turn off the unit before install USB / TF card.
2. Install the USB device into USB port.
GREEN.
4. Press the / SOURCE
search the MEDIAPLAYER mode.
the button to
remote to start playback.
8. Press
NOTE FIRST.
Sub-Menu on Photo screen
1. When photo playback, press the
screen show on lower ;ĮŐƵre 1).
2. Use the button to select
icon and press
&ŝŐƵre 1.
Sub-Menu on Music screen
3. When music playback, press the
screen show on lower ;ĮŐƵre 2 ).
4. Use the button to select
icon and press
&ŝŐƵre 2
Sub-MenuonMoviescreen
5. When movie playback, press the
screen show on lower ;ĮŐƵre 3).
6. Use the button to select
icon and press
&ŝŐƵre 3
14
Rotate
Zo... Zo...
+-
M...
Rotate
Pause FB FF Next
Prev. Stop Re... SetA
PL... Info Go...
AB
i
MUTE
Pause FB FF Next
Prev. Stop Re...
Set A PL... Info St...
Sl... Go...
AB
i
AS...
OK
OK
OK
Pause Next
Prev. Stop Re...
PL...
Info
i
background
music

15
Using Projector Menu 1.0
Press button to enter projector menu. Press again to previous status.
Use buttons to select manual page.
This manual showed on right upper of view
screen.
Color temper… (temperature)
Customer define Parameter
red 0-100
blue 0-100
green 0-100
Aspect Ratio
4:3 The signal in a 4:3 aspect ratio projection image
16:9 The signal in a 16:9 aspect ratio projection image
OK

1. Picture Mode
Select Vivid, User (custom), Soft ,or Standard
2. Contrast ,Brightness, etc
Set Picture Mode to “User “ to adjust these settings
3. Color Temperature
Select Warm ,Cool, or Medium.
4. Aspect Ratio
Select 16:9, 4:3 , or Auto
5. Noise Reduction
Select Off, Low , Middle , High or Default
6. Screen

16
Using Projector Menu 2.0
Press button to enter projector menu. Press again to previous status.
Use buttons to select manual page.
This manual showed on right upper of view
screen.
Sound Mode - User Parameter
001-0elberT
001-0ssaB
OK
1. Sound Mode
Select Music, Movie, User (custom), Sports ,or Standard
2. Treble, Bass
Set Sound Mode to “User “ to adjust these settings
3. Balance
Adjust the audio balance.
4. Surround Sound
Turn Surround Sound ON or OFF.

17
English Hrvatski Nederlands Chinese
Franais Deutech Slovenina Slovak
Espanol Italiano Norsk
Portugues Magyar Srpski
Esky Polski Svenska
Dansk Romnete Suomi
Model:LE-203
SN: LE-203
Living Enrichment
SW Ver: V7.0
LOGO:Living Enrichment
FL040CT_30
Using Projector Menu 3.0
Press button to enter projector menu. Press again to previous status.
Use buttons to select manual page.
This manual showed on right upper of viewing
screen.
OK
1. OSD Language
Select different language, Follow below figure.
3.
4.
Restore Factory Default
Select Y or N.
Panel Flip Rotate
Select rotate 0, rotate 1, rotate 2, rotate 3..
5. INFO
Display the unit information as below.
2.
Keystone correction
Default by 0, adjust different angle between -22 to 22.

18
Using Projector Menu 4.0
Press button to enter projector menu. Press again to previous status.
Use buttons to select manual page.
This manual showed on right upper of viewing
screen.
OK
1. Clock-- --
Select clock to Day, Month, Year, Hour ,and Minutes.
2. Off Timer
Select turn off timer to Day, Hour ,and Minutes.
3. On Timer
Select turn on timer to Day, Hour ,and Minutes.
4. Sleep Timer
Select sleep timer to Off, 10min, 20min, 30 min, 60min, 90min, 120min,
180min, 240min
5. Auto Sleep
Select auto sleep function to Never, 4 hour, 6 hour, 8 hour.

Specifications
Light Source Type LED
Brightness Output LED bulb 2800 Lumens
White light output 45 Lumens
Display Native Resolution
800 x 480
HDMI Input Supported
Video Resolution.
1080p , 1080i , 720p, 576i , 480p, and 480i
Power Consumption
Operating 36W; Standby 0.8W
Power Input
Connect IncludedAdapter
DC 12V , 3.5A
Included Adapter
Connect DC input of unit
InputAC100-240V,50/60Hz
Output DC12V , 3.5 A
Display Color 16.7K
Projection Size 30-100 inch
Signal Port Video / VGA / HDMI
USBPort Support USB device up to 1TB
Su
pport format mpeg1, Mpeg2 ,mpeg4, mp3 , Jpeg
SD Card Support SD card up to 1TB
Support format mpeg1, Mpeg2 ,mpeg4, mp3 , Jpeg
Weight 0.9 KG
Dimension 203 x 150 x 82 mm
19
Ideal for dark viewing environments for optimal performance.
Please note:Projector brightness is measure in ANSI lumens. Your viewing environment
is the deciding factor on how many lumens your projector needs.
