LORD B7 User manual

BUILD-IN MICROWAVE
VESTAVĚNÁ MIKROVLNNÁ TROUBA
VSTAVANÁ MIKROVLNNÁ RÚRA
B7
USER MANUAL
NÁVOD K OBSLUZE
NÁVOD NA OBSLUHU

1
Dear customer:
Thank you for purchasing this device. To ensure that you get the best results from your
new appliance, read the simple instructions in this brochure
Please ensure that the packing material is disposed of in accordance with the current
environmental requirements.
When disposing of any equipment please contact your local waste disposal
department for advice on safe disposal.
This appliance must be only used for its intended purpose. This appliance is intended
to be used in household.

2
CONTENTS
CONTENTS .....................................................................................................................2
PRECAUTIONSTO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY..........................................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS .........................................................................4
INSTALLATION...............................................................................................................8
OPERATING THE APPLIANCE .....................................................................................10
BEFORE USING THE APPLIANCE................................................................................11
BEFORE USING THE APPLIANCE................................................................................12
USING YOUR APPLIANCE ...........................................................................................13
AUTOMATIC RECIPES..................................................................................................16
ACCESSORIES ..............................................................................................................17
ENERGY EFFICIENT USE .............................................................................................20
ENVIRONMENT............................................................................................................20
HEALTH.........................................................................................................................21
MAINTENANCE YOUR APPLIANCE............................................................................21
APPLIANCE DOOR.......................................................................................................24
CURE YOUR APPLIANCE WHEN NEEDED..................................................................25
CUSTOMER SERVICE...................................................................................................27
TEST FOOD ACCORDING TO EN 603501..................................................................30
DATASHEET EU 65/2014 & EU 66/2014...................................................................30

3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since
this can result in harmful exposure to microwave energy. It is
important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the
door or allow soil or cleaner residue to accumulate on sealing
surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its
surface could be degraded and aect the life span of the apparatus
and lead to a dangerous situation.

4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS WARNING
To reduce the risk of re, electric shock, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic precautions, including the following:
1. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance . Cleaning
and user maintenance shall not be made by children without
supervision.
2. Read and follow the specic:“PRE - CAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY“.
3. Keep the appliance and its cord out of reach of children less
than 8 years.
4. If the supply cord is damaged, it must be replaced by the
authorized service in order to avoid a hazard. (For appliance
with type Y attachment)
5. WARNING: It is hazardous for anyone other than authorized
service to carry out any service or repair operation that
involves the removal of a cover which gives protection against
exposure to microwave energy.
6. WARNING: Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
7. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
8. Only use utensils that are suitable for use in microwave ovens.
9. If smoke is emitted, switch o or unplug the appliance and
keep the door closed in order to stie any ames.

5
10. Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the
container.
11. The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
12. Eggs in their shell and whole hard- boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
13. The oven should be cleaned regularly and any food deposits
removed.
14. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely aect the life
of the appliance and possibly result in a hazardous situation.
15. Only use the temperature probe recommended for this oven.
(for ovens provided with a facility to use a temperature-
sensing probe.)
16. The microwave oven must be operated with the decorative
door open. (for ovens with a decorative door.)
18. This appliance is intended to be used in household.
19. Care should be taken not to displace the turntable when
removing containers from the appliance. (For xed appliances
and built-in appliances being used equal or higher than 900
mm above the oor and having detachable turntables. But this
is not applicable for appliances with horizontal bottom hinged
door.)
20. The appliance shall not be cleaned with a steam cleaner .
21. WARNING: Ensure that the appliance is switched o before
replacing the lamp to avoid the possibility of electric shock.
22. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead to
risk of injury, ignition or re.

6
23. Surface of a storage drawer can get hot.
24. WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
25. During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
26. Metallic containers for food and beverages are not allowed
during microwave cooking.
27. Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
28. The appliance is intended to be used built-in.
29. The appliance must not be installed behind a decorative
door in order to avoid overheating. (This is not applicable for
appliances with decorative door.)
30. WARNING: When the appliance is operated in the combination
mode, children should only use the oven under adult
supervision due to the temperatures generated.

7
Causes of damage
Caution!
• Creationofsparks:Metale.g.aspooninaglassmustbekeptatleast2cmfromthe
oven walls and the inside of the door. Sparks could irreparably damage the glass on
the inside of the door.
• Waterinthehotcookingcompartment:Neverpourwaterintothehotcooking
compartment. This will cause steam. The temperature change can cause damage.
• Moistfood:Donotstoremoistfoodintheclosedcookingcompartmentforlong
periods.
Do not use the appliance to store food. This can lead to corrosion.
• Coolingwiththeappliancedooropen:Onlyleavethecookingcompartmenttocool
with the door closed. Do not trap anything in the appliance door. Even if the door is
only slightly ajar, the fronts of adjacent units may be damaged over time.
• Heavilysoiledseal:Ifthesealisverydirty,theappliancedoorwillnolongerclose
properly during operation. The fronts of adjacent units could be damaged. Always
keep the seal clean.
• Operatingthemicrowavewithoutfood:Operatingtheappliancewithoutfoodin
the cooking compartment may lead to overloading. Never switch on the appliance
unless there is food in the cooking compartment. An exception to this rule is a short
crockery test (see the section "Microwave, suitable crockery").
• Usingtheappliancedoorforstandingonorplacingobjectson:
Do not stand or place anything on the open appliance door. Do not place ovenware
or accessories on the appliance door.
• Transportingtheappliance:Donotcarryorholdtheappliancebythedoorhandle.
The door handle cannot support the weight of the appliance and could break.
• Microwavepopcorn:Neversetthemicrowavepowertoohigh.
Use a power setting no higher than 600 watts. Always place the popcorn bag on a
glass plate. The disc may jump if overloaded.
• Liquidthathasboiledovermustnotbeallowedtorunthroughtheturntabledrive
into the interior of the appliance. Monitor the cooking process. Choose a shorter
cooking time initially, and increase the cooking time as required.
• Theovenshouldbecleanedregularlyandanyfooddepositsremovedsincethey
may explode, even after microwave heating has ended.
• Failuretomaintaintheoveninacleanconditioncouldleadtodeteriorationofthe
surface that could adversely aect the life of the appliance and possibly result in a
hazardous situation.

8
INSTALLATION
+8
min.
600
min.
550
560
546
20
435
576
530
596
595
min.
550
560+8
460 460
105
min. 5
+8
105
min.35
min.
600
min.
550
560
546
20
435
576
530
596
595
590
min.585
max.595 min.
550
560+8
460 460
105
min. 5
min.35
min.35
To operate this appliance safe , please be sure that it has been installed to a
professional standard respecting the installation instructions . Damages occur because
of incorrect installation are not within the warranty.
While doing the installation , please wear protective gloves to prevent yourself from
getting cut by sharp edges .
Check the appliance if there is any damage before installation and do not connect the
appliance if there is .
Before turning on the appliance , please clean up all the packaging materials and
adhesive lm from the appliance.
The dimensions attached are in mm.
It is necessary to have the plug accessible or incorporate a switch in the xed wiring, in
order to disconnect the appliance from the supply after installation when necessary.
Warning: The appliance must not be installed behind a decorative door in order to
avoid overheating.

9
1[ 2[ 3[
1
2
3

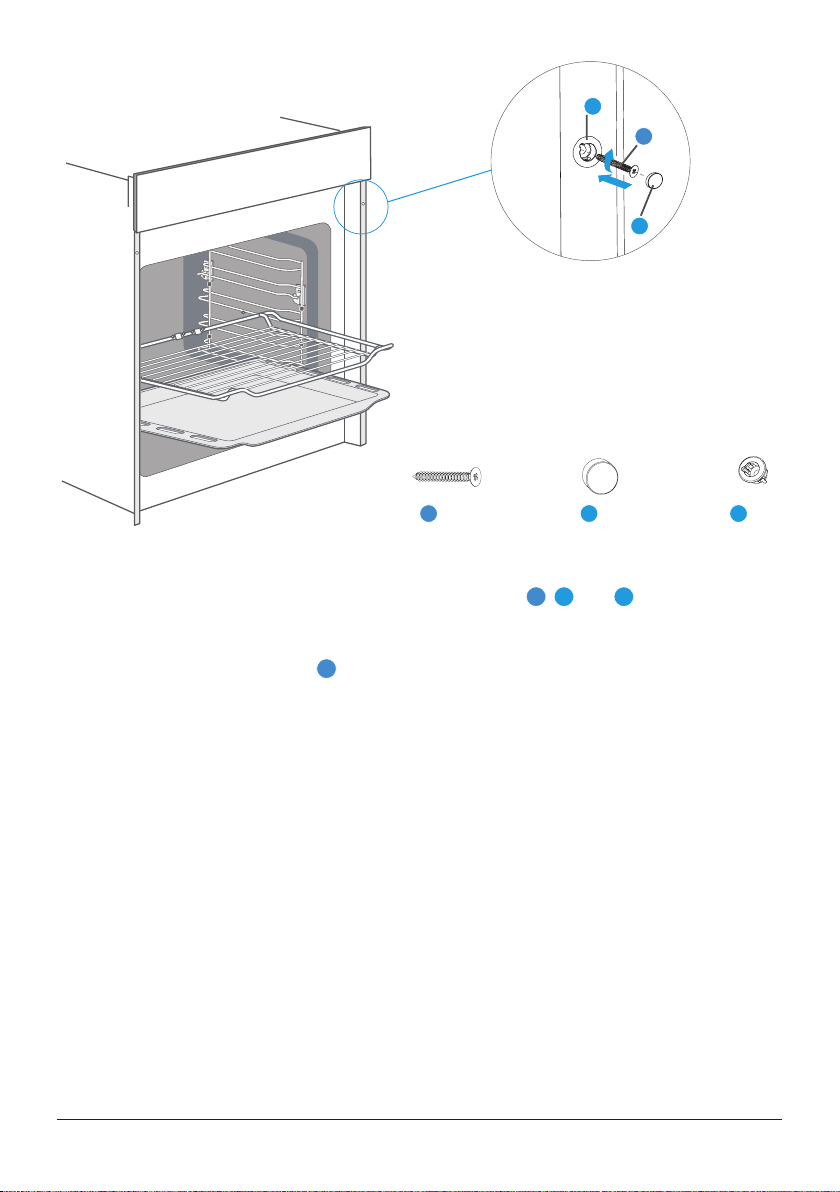

Once the oven has been lifted into place inside the appliance housing, locate the two
holes in the casing of the oven and x it into place using
1
,
2
and
3
.
Caution
Do not over tighten the screws
1
to avoid damage to the oven or appliance housing -
use a screwdriver only!

10
OPERATING THE APPLIANCE
COMPONENT
   
1. ON / OFF Switch on and o oven.
2. Micro wave symbol Use microwave and microwave combination function.
3. Timer / Child-Proof Lock Use timer function/use child-proof lock with 3s press
4. End time Set an end time to the cooking duration.
5. Quick preheat Use this to have a quick preheat.
6. F-symbol Touch the F-symbol to select functions. You can fast switching
by a long press.
7. Slider You can use the slider or“+/-“symbol nearby to change the
adjustment values shown in the display.
8. Auto recipes Press to use autorecipes.
9. Clock/Time/Temperature Set clock in standby mode/Change between time setting and
temperature setting.
10. Weight Press to set weight when you use autorecipes.
11. Lamp Switch on and o lamp.
12. Start Start and pause the cooking process.
13. Minus sign You can use the“-”symbol nearby to change the adjustment
values shown in the display.
14. Plus sign You can use the“+”symbol nearby to change the sign
adjustment values shown in the display.

11
BEFORE USING THE APPLIANCE
First using for the rst time
Before using the appliance to prepare food for the rst time, you must clean the
cavity and accessories.
1. Remove all stickers, surface protection foils and transport protection parts.
2. Remove all accessories and the side-racks from the cavity.
3. Clean the accessories and the side-racks thoroughly using soapy water and a dish
cloth or soft brush.
4. Ensure that the cavity does not contain any leftover packaging, such as polystyrene
pellets or wooden piece which may cause risk of re.
5. Wipe the smooth surfaces in the cavity and the door with a soft, wet cloth.
6. To remove the new-appliance smell, heat up the appliance when empty and with
the oven door closed.
7. Keep the kitchen highly ventilated while the appliance is heating up rst time. Keep
children and pets out of the kitchen during this time. Close the door to the adjacent
rooms.
8. Adjust the settings indicated. You can nd out how to set the heating type and the
temperature in the next section.
Settings
HeatingMode
Temperature 250°C
Time 1h
After the appliance has cooled down:
1. Clean the smooth surfaces and the door with soapy water and a dish cloth.
2. Dry all surfaces.
3. Install the side-racks.
Setting clock time
Before the oven can be used, the time should be set.
1. After the oven has been electrically connected, touch the clock symbol then you can
set time of day in hours by slider or“+/-”sign.
2. Touch clock symbol again then you can set time in minutes by slider or“+/-”sign.
3. Touch clock symbol to nish the setting.
NOTE: The clock has a 24 hour display.

12
TYPES OF HEATING
Your appliance has various operating modes which make your appliance easier to use.
To enable you to nd the correct type of heating for your dish, we have explained the
dierences and scopes of application here.
Types of Heating Temperature Use
Conventional 30~250°C For traditional baking and roasting on one level.
Especially suitable for cakes with moist toppings.
Convection 50~250°C Forbakingandroastingononeormorelevels.Heat
comes from the ring heater surrounding the fan evenly.
Conventional + Fan 50~250°C
For baking and roasting on one or more levels. The fan
distributes the heat from the heating elements evenly
around the cavity.
RadiantHeat 150~250°C
For grilling small amounts of food and for browning
food. Please put the food in the center part under the
grill heating element.
Double Grill + Fan 50~250°C For grilling at items and for browning food. The fan
distributes the heat evenly around the cavity.
Double Grill 150~250°C For grilling at items and for browning food.
Pizza 50~250°C
For pizza and dishes which need a lot of heat from
underneath. The bottom heater and ring heater will
work.
BottomHeat 30~220°C For add extra browning to the bases of pizzas, pies, and
pastries.Heatingcomefromthebottomheater.
Defrost _ For gently defrosting frozen food.
Dough Proving 30~45°C For making yeast dough and sourdough to prove and
culturing yogurt.
Caution!
If you open the appliance door during an on-going operation, the operation will be
paused. Please be especially careful with the risk of burns.

13
Notes
1. To defrost big portions of food, it is possible to remove the side-racks and place the
container on the cavity oor.
2. To warming tableware, it is benecial to remove the side-racks and the heating
modes“HotAirGrilling”and“FanHeating”withtemperaturesettingof50°Care
useful.“HotAirGrilling”shouldbeused,ifmorethanhalfofthecavityooris
covered by the tableware.
3. Due to an optimum evenness of heat distribution inside the cavity during “Fan
Heating”,thefanwillworkatcertaintimesoftheheatingprocess,toguarantythe
best possible performance.
Cooling fan
The cooling fan switches on and o as required. The hot air escapes above the door.
Caution!
Do not cover the ventilation slots. Otherwise, the appliance may overheat.
To make the appliance cools down more quickly after the operation, the cooling fan
may continue to run for a period afterwards.
USING YOUR APPLIANCE
Cooking with oven
1. After the oven has been electrically connected, touch the oven-function symbol to
select functions, use the slider or“+/-“sign to set cooking temperature.
2. Touch Start/Pause symbol, oven begin to work, if not, oven will back to clock after 5
minutes.
3. During the cooking process, you can touch to cancel it.
NOTE: After temperature setting, you can touch clock symbol to set the cooking
duration time, you can set it by slider or“+/-”sign .
Quick preheat
You can use quick preheat to shorten the preheat time. When you select a function,
touch the quick preheat symbol ,the mark of quick preheat in the screen will lights
up. If this function can’t quick preheat, then there will be a“beep”, there is no quick
preheat in auto recipes, defrost and dough proving.

14
Set a nish time
Then you nished the time setting, you can set a time when cooking end.
1. Touch , then you can use slider or“+/-“sign to set end time in hours, touch
again then set it in minutes. When you nished the setting, touch to make sure.
2. When you set the end time, you need set cooking duration time. Please check
cooking with oven →NOTE to see how to set cooking duration time.
3. For example, when you set end time is 10 o’clock, and cooking duration time is 1
hour, then oven will heat up at 9 o’clock, and nish at 10 o’clock.
Notes
1. Set the appointment time before choosing the menu, or select the menu before
setting the appointment time can be.
2. No reservation function for thawing, hot, automatic menu, microwave combination,
microwave and fermentation.
Change during cooking
During the period of appliance operating, you can change the heating type setting
and temperature setting by oven-function or slider. After the change, if there no other
action after 6 seconds the oven will heat as what you changed.
If you want change cooking duration time in the cooking process, please touch
and change it by slider or“+/-“ sign. After the change, if there no other action after 6
seconds the oven will work as what you changed. During the cooking process with a
end time setting, or in the auto recipes, you can’t do any change.
When you want cancel the cooking process, please touch .
Notes
1. Changing modes/temperature/rest cooking time may have some negative inuences
for the result of cooking, we warmly recommend you not to do so unless you are
well experienced on cooking.
Caution!
After the appliance switched o, it becomes very hot especially inside the cavity. Never
touch the interior surfaces of the appliance or the heating elements. Use oven gloves to
remove accessories or ovenware from the cavity, and allow the appliance to cool down.
Keep children at a safe distance at the same time to avoid the injury of burns.
Timer
You can use timer function by touch . When the time arrived, oven will give“beep”
for remind. At the rst touch of , set timer by hours, then touch again, set timer by
minutes. Touch again and the setting is nished.
You can set the timer before and during cooking process, but when you are selecting
function and temperature, it’s not available. Booking and reminders can not be set at
the same time..

15
Microwave and microwave combination
1. Your appliance has 4 kinds of microwave functions, including single microwave and
microwave combination.
Types of Heating Default power Default
temperature
Temperature Time
Microwave 800W / / 00:10-30:00min
Microwave +
convection 320W 160°C 50~250°C 00:01- 01:30hr
Microwave +
double grill+ 320W 180°C 50~250°C 00:01- 01:30hr
Microwave +
pizza mode 320W 180°C 50~250°C 00:01- 01:30hr
5 4 3 2 1
Microwave Power 100% (800) 70% (560) 50% (400) 30% (240) 10% (80)
Combination Power 40% (320) 30% (240) 20% (160) 10% (80)
2. The standby state is pressed by the microwave key, the microwave function is
selected, the microwave icon is lit, the default time is 1 minute, the default power
is 800W, and then the microwave bond is pressed, the power is ashing, and the
microwave power can be changed by pressing the sliding slider. The change range is
80W~ 800W, a total of 5 paragraphs, see the list below.
3. Press the time key, microwave time icker, press slide bar to change the microwave
time, change the range of 10 seconds to 30 minutes, step in 10 seconds within 15
minutes, step in more than 15 minutes for 30 seconds.
4. General .hot air tube, upper tube + infrared + hot fan, pizza three menus can be
combined with microwave function, choose other menus and press microwave keys
invalid, accompanied by invalid buzzer.
5. Always press the microwave key to cancel the microwave function for 3 seconds.
6. The power of the microwave and combination function can be remembered after
the standby state is selected. Until the menu is run or the cancel key is cancelled, the
default value is returned.
Note
1. When microwave cooking is suspended, time and power ashing display.
2. In the suspended state, press the microwave key rst, then press the“+,-” sign or
sliding slider to change the microwave power.

16
Childproof lock
In standby, reminder, reservation and menu work, pause state, long press the reminder
key 3s, beep, lock, Child Lock Icon Lit; Then Long Press the reminder key 3s, beep,
unlock, child lock icon extinguished.
In the child lock state, the microwave function can not be cancelled.
AUTOMATIC RECIPES
Your oven has a wide range of Automatic programs to enable you to achieve excellent
results with ease. Simply select the appropriate program for the type of food you are
cooking and follow the instructions in the display.
NO Recipes Microwave Preheat Default time Weight
d01 Defrost (Meat
)YES NO 08:00 min 0.2Kg 0.1Kg ~1.5Kg
d02 Defrost (Poultry) YES NO 04:48 min 0.2Kg 0.1Kg ~1.5Kg
d03 Defrost (Fish) YES NO 04:00 min 0.2Kg 0.1Kg ~1.0Kg
A01 Popcorn YES NO 03:05 min 0.1Kg
A02 Potato cheese
gratin YES NO 00:35 hr 0.5Kg
A03 Cheese Cake NO NO 01:16hr /
A04 Quiche Loraine NO 10 Preheat for 10
minutes 00:40 hr /
A05 Meatloaf NO NO 01:15hr (default)
00:30hr
0.5Kg-
1Kg 1.0kg/0.5Kg
A06 Marmor Cake NO NO 01:20hr /
A07 Flat Bread NO 8 Preheat for 8
minutes 00:35hr /
A08 Apple Pie NO 7 Preheat for7
01:00hr /
A09 Fresh Pizza on a
Tray NO 8 Preheat for 8 minutes 00:35hr /
A10 Apple Cake with
Crumbles NO NO 01:00hr /
Note
When you cook with recipes d01, d02, d03, A01, A02, the tray can’t be used.

17
ACCESSORIES
Yourapplianceisaccompaniedbyarangeofaccessories.Here,youcanndan
overview of the accessories included and information on how to use them correctly.
Accessories included
Your appliance is equipped with the following accessories:
Wire Rack
For ovenware, cake tins and
ovenproof dishes. For roasts
and grilled food
Bakeing tray- glass
Baking Tray
For tray bakes and small
baked products. (do not use in
microwave heating)
Bakeing tray- glass is installed in
the same position as Baking Tray
You can use the tray to place liquid or cooking food with juice.
Only use original accessories. They are specially adapted for your appliance.
You can buy accessories from the after-sales service, from specialist retailers or online.
Note
1. The accessories may deform when they become hot. This does not aect their
function. Once they have cooled down again, they regain their original shape.
2. The wire rack can be used not only for grill cooking, but also for microwave cooking.
And, the tray can’t be used for microwave cooking.
3. The second layer of the appliance is recommended for microwave function which
cooking best.
4. Do not use microwave function without any food in the cavity.
5. When cooking only the microwave function, please use only the glass tray.ln order to
ersure best cooking eect, the glass tray should be placed on the lowest level of the
rack. (optional accessories)

18
Inserting accessories
The cavity has ve shelf positions. The shelf positions are counted from the bottom up.
The accessories can be pulled out approximately halfway without tipping.
Note
1. Ensure that you always insert the accessories into the cavity the right way round.
2. Always insert the accessories fully into the cavity so that they do not touch the
appliance door.
34
5
4
3
2
1
2
1
Locking function
The accessories can be pulled out approximately halfway until they lock in place. The
locking function prevents the accessories from tilting when they are pulled out. The
accessories must be inserted into the cavity correctly for the tilt protection to work
properly.
When inserting the wire rack, ensure the wire rack is onto the right facing direction like
the picture
1
3.
When inserting the backing tray, ensure the backing tray is onto the right facing
direction like the picture
1
4.

19
Inserting accessories
The ceramic clips
21
1
[[
, 8
2
2
