Lyte Cube480 User manual
instruction manual
smart cube projector
cube480
2
Contents
General Safety Instructions 3
Package Contents 5
Unit Overview 6
Remote Overview 7
Getting Started 10
Using the Projector 12
Connecting 15
Apps 19
Troubleshooting 21
Specifications 23
3
Read this manual thoroughly before first use and keep it in a safe place
for future reference. Follow all instructions and take notice of all
warnings to reduce the risk of fire or electric shock.
The RCM is a visible indication of a product’s compliance with all applicable ACMA
regulatory arrangements, including all technical and record-keeping requirements.
General Safety Instructions
Usage Environment
When using the equipment, make sure to place it:
• In a well ventilated area, keeping a clearance of at least 20cm to the wall
or other equipment to ensure proper ventilation.
• Away from heat sources such as radiators, heat registers, stoves or other
equipment (including amplifiers) that produce heat.
• Away from areas with high temperatures, high humidity or direct sunlight.
• Away from excess dirt and dust.
Usage Conditions and Restrictions
• Instructions: Follow the instructions in this manual when installing and
adjusting this equipment. Only adjust those controls that are covered in
this instruction manual, as improper adjustment of other controls may
result in damage.
• Usage restriction: The equipment is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
4
General Safety Instructions (Cont.)
WARNING!
Batteries must not be exposed to sources of excessive heat such as direct sunlight.
• Children: Young children should be supervised to ensure they do not
play with the equipment. Close supervision is always necessary when an
appliance is used by or near children.
• Ventilation: Openings on the cabinet are provided for ventilation and to
protect the unit from overheating. To ensure proper operation, do not
cover the openings.
• Protect the equipment: Prevent metal objects falling onto the equipment.
Do not place heavy objects on top of the equipment or step on it. Do not
place objects filled with water or naked flame sources (such as candles)
near the equipment.
• Liability: We accept no liability for any damage or lost data caused by
non-compliance with these instructions or mishandling of the equipment.
• Battery CAUTION: Danger of explosion if battery is incorrectly replaced.
Battery should only be replaced by an authorised service technician.
5
Package Contents
Tripod User ManualUSB power adapter Warranty Card
Smart Cube Projector Micro USB Cable Bluetooth® Air Mouse R 2 x AAA Batteriesemote
6

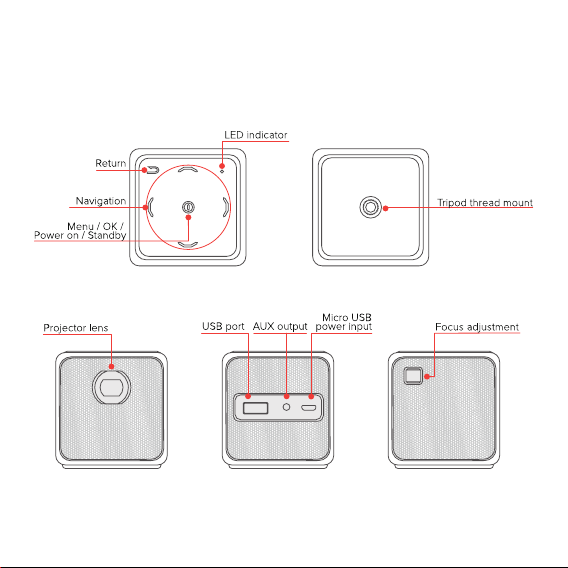

Unit Overview
7
Remote Overview
Air Mouse mode
Air Mouse on: press Air
Mouse button.
Air Mouse o: press any
navigation button.
LED indicator
Slow flash: unpaired
mode.
Fast flash: enter pairing
mode.
Flash: press each button
will flash once.
To open the battery cover, slide
the case as seen in the photo.
8
Remote Overview (Cont.)

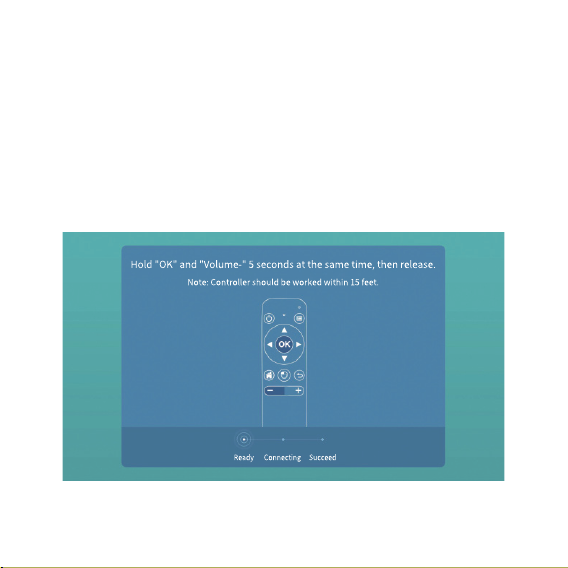

Pairing the Bluetooth® remote control
When you turn on the projector for the first time, the system will guide
you to pairing the remote control (see the screenshot below). Press
and hold the OK button together with the Volume - button on the
remote for 5 seconds. The remote control LED will fast flash for pairing.
9
Remote Overview (Cont.)
If the operation is still unable to pair to the remote, go onto the settings
to pair it manually. Using the navigation and power buttons, enter the
home page Menu. Choose “setting”=> “ Bluetooth® setting”. Press and
hold the OK button together with the Volume - button on the remote
for 5 seconds. The remote control LED will fast flash for pairing. Select
the “SONG-1” device by using the navigation button on the unit and
press the OK button to confirm.
Note: You should only need to pair the remote the first time you ever
use the projector.
Every time you turn on the projector, once into the home screen, press
any button on the remote and the remote will connect to the projector
in under 10 seconds.
When the remote is not being used for a few minutes, it will disconnect
from the projector in order to save battery. Press any button on the
remote to reconnect to the projector (takes under 10 seconds).
10
Getting Started
Power Supply and Charging
• The projector uses an AC adapter with 5V 2A output. Use the
included USB power adapter to ensure proper charging. The
projector may not work properly if you use adapters with output
dierent to 5V 2A.
• You can use a 5V portable power bank as a power supply, but
make sure it supports 5V 2A (or more than 2A) output.
Connect the USB cable to the adapter and the DC5V port of the
projector; the projector will show its battery level. For first time use,
charge the projector for 3 hours before turning it on.
Note: To improve battery
life, set to Normal mode in
projector settings, rather
than bright mode:
(Projector settings > LED
brightness > Standard Mode
> Brightest Mode.
11
Getting Started (Cont.)
Turning the Projector On
To turn on the projector, press and hold the power button for 5
seconds. For first time use, you need to connect the remote to the
projector. See the Remote Overview section on page 7 for details.
To turn o the projector, press and hold the power button on the
projector or the remote for 3 seconds.
Note: The power button on the remote cannot power on the projector;
you need to press and hold the power button on the projector, the
remote will not work until the projector is powered on and in working
state.
12
Using the Projector
Projector Status and Notifications
Notification icons will appear in the top of the screen; below is a
description of their meanings. Click on the column box to open the
notification list.
Adjust Focus
When you are using the projector for the first time, you will need to
adjust the focus and keystone correction.
WARNING: Do NOT look directly at the light beam or you risk eye damage.
13
Using the Projector (Cont.)

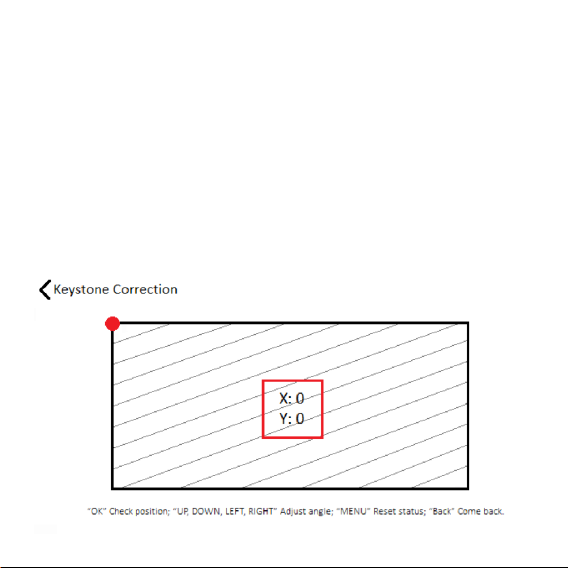

Adjust Keystone
Go to Settings--> Keystone to enter the keystone settings window.
The selected corner is highlighted with a red dot. To adjust its position,
use the navigation buttons on the projector or the remote (you can
press and hold the button for continuous adjustment).
Press the OK button to move to the next corner. Once adjusted, press
the Return or Home button to confirm and exit.
To reset the keystone to its original state, you can press the Menu
button anytime during the adjustment.
14
Using the Projector (Cont.)
Adjust Brightness
There are two dierent brightness modes: Brightest mode and
Standard mode.
To change the brightness mode, go to Settings > Picture > LED
Brightness.
15
Connecting
Network and Internet

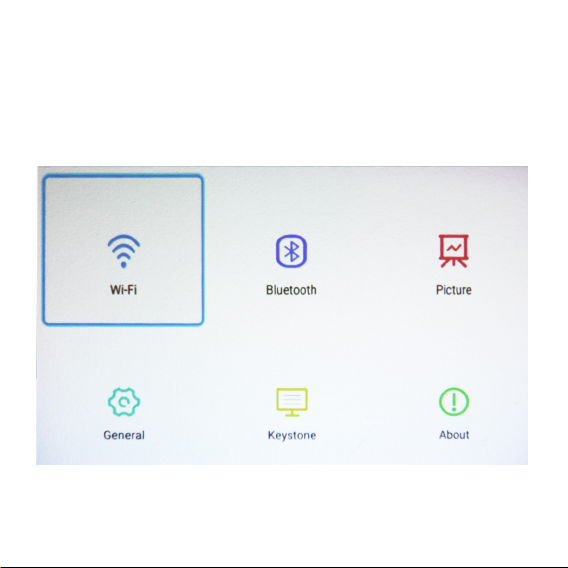

Go to Settings --> Wi-Fi to enter Wi-Fi settings menu; Turn the Wi-Fi on
and connect to your 5G or 2.4G network.
16
Connecting (Cont.)
Airplay on iOS device
There are two ways to use the iOS Airplay function: through the Wi-Fi
network and via Personal Hotspot.
Use Airplay via Wi-Fi network
• Make sure your iOS device and the projector are connected to the
same Wi-Fi network.
• On the projector, enter the Airplay app by clicking on the ‘iOS
Cast’ icon on the home page, then select iPhone.
• On the iOS device (iPhone, iPad), slide up from the home screen
to display the menu, and select Screen Mirroring. In the pop-up
menu, select ‘CUBE480’ and the screen will be mirrored to the
projector.
Use Airplay via Personal Hotspot
• On the iOS device (iPhone or iPad), turn on Personal Hotspot in
the settings menu.
• On the projector, enter the Wi-Fi settings menu and connect to the
Wi-Fi shared by the Personal Hotspot.
• On the iOS device (iPhone or iPad), slide up from the home screen
to display the menu, and select Screen Mirroring. In the pop up
menu, select “CUBE480” and the screen will be mirrored to the
projector.
17
Connecting (Cont.)
Airplay on macOS
Make sure your Mac and the projector are both connected to the same
Wi-Fi network.
• On the projector, enter the Airplay app by clicking on the ‘iOS
Cast’ icon on the home page, then select ‘Mac’.
• On the Mac, turn on the Airplay function. From the top taskbar,
click on the screen mirroring icon and select ‘CUBE480’; the
screen will be mirrored to the projector.
18
Connecting (Cont.)
Miracast on Android
On the projector, enter the Miracast app from
the the home screen.
• On the Android device (Android phone or or
tablet), go to settings > Display > Cast.
• On the top left screen, click
‘More Settings’ and and
select ‘Enable wireless display’.
• Select ‘CUBE480’ on the list and the
screen will be mirrored to the projector.
Note: Settings mentioned here are
according to Android version 7.0. The cast
setting may vary (or not be supported) for
dierent versions of the Android system.
The Mac airplay, iOS airplay and Android Cast function might be
aected by the network status and some versions of devices might not
be compatible.
19
Apps

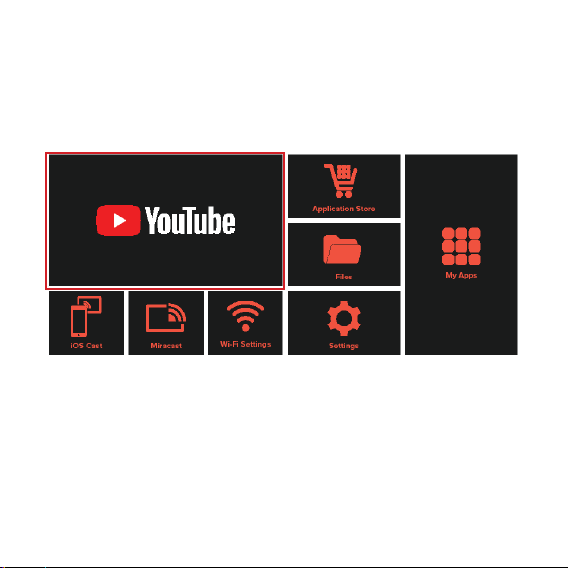

Using the Youtube App
• Select Youtube on the home screen to open the app.
• Select or search for the video you want to play.
• You must connect to the Internet before you can use this app. For
detailed instructions on connecting to the internet, see “Network and
Internet”.
20

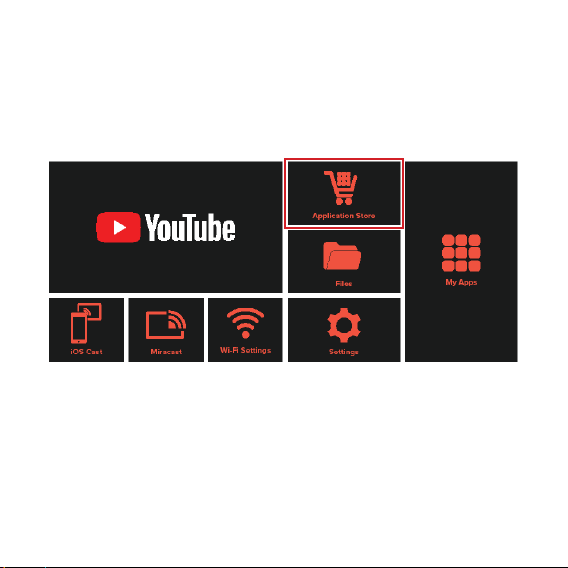

Using the Application Store
• Select and enter the Application Store from the home screen.
Note: Some apps downloaded from the application store or other
sources might not be compatible with this projector.
• Search for and select the Apps you to wish to install.
• You must connect to the Internet before you can access apps. For
instructions, see “Network and Internet”.
• To uninstall apps, enter the Settings --> General --> Application
Management menu. Use the Air Mouse remote to point at the app
you want to remove. Press and hold the Air Mouse button until a
pop-up menu appears, then select Uninstall.
Apps (Cont.)
