The new Lion's City CNG

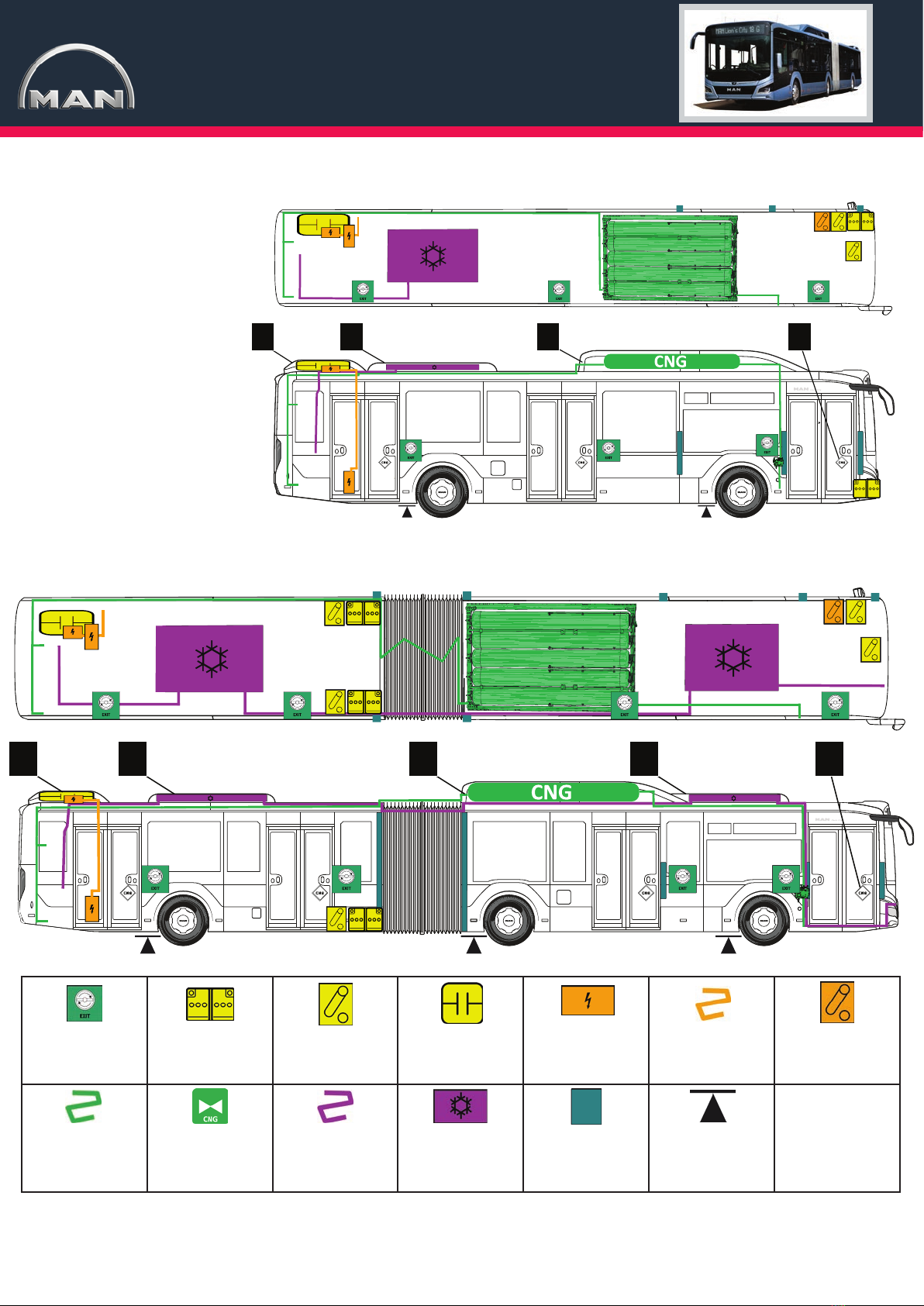

Vehicle identication
1. Cover for EcientHybrid, roof on
rear left.
Vehicles without this cover have
no high-voltage components.
2. Cover for refrigerant component.
Depending on the vehicle
equipment, up to three smaller
covers may be installed in the front
roof area.
3. Cover for CNG storage system.
4. CNG labels on front, doors and
rear.
Emergency
opening of doors
Low-voltage
battery
Vehicle electrical
system
Ultra Cap > 24 V High-voltage
component
High-voltage line High-voltage
disconnection
Gas pipe CNG storage
system
Refrigerant pipe Refrigerant
component
Chassis
reinforcement
Jacking points
1 2 3 4

©02.2020 MAN Truck & Bus Page 2 36.99296-2132
Deactivating the engine and the power
supply via the ignition key or the toggle
switch
1. Ignition key in “OFF position”
Turn and pull o the toggle switch.
▹ The engine and the power supply are
deactivated.
Blocking CNG
1. Switch o the ignition. Lock the CNG
shut-o valve on the CNG storage
system.
2. Close the CNG main cock behind the
maintenance ap on the rear.
3. In case of a possible line breakage
between the CNG storage system and the
engine or in case of malfunctions on the
CNG storage system, close the manual
shut-o valves on the CNG system.
External and internal manual emergency
opening
1. Remove the lock washer.
2. Press the push button or turn the rotary
switch to the right.
▹ Doors are depressurised and can be
opened by hand.
Deactivating the engine via the toggle
switch in the engine compartment
1. Press the toggle switch in the engine
compartment downwards.
▹ The engine is deactivated.
Deactivating the power supply via the
electrical main battery switch (optional)
1. Operate the bottom of the main battery
switch for 2 seconds.
▹ The ignition is deactivated.
2. Operate the bottom of the main battery
switch for 2 seconds again.
▹ Power supply is deactivated.
Deactivating the power supply via the
EMERGENCY-OFF switch (optional)
Variant 1:
1. Fold up the sealed cap and actuate the
switch below.
Variant 2:
1. Push the red locking mechanism forwards
in the direction of the arrow and press
the top of the EMERGENCY-OFF switch.
▹ Power supply is deactivated.
▹ The hazard warning system is active.
Disconnecting the power supply via
the mechanical main battery switch
1. Open the battery compartment.
2. Turn the main battery switch
anticlockwise.
▹ Power supply is deactivated.
Emergency opening of doors
Deactivating the drive and the power supply
CNG storage system
Open door 1 using the front button
1. If necessary, switch on the mechanical
main battery switch.
2. Press the front button.
▹Door 1 opens.
The front button can also be located behind
the front ap.
After actuating the EMERGENCY-OFF switch, the internal and entry lighting
is activated automatically as emergency lighting.
Rapid lowering of the vehicle is not to be expected as long as the air
suspension is not damaged.
