Marantz PV6080 Operator's manual

123
IN
OUT
SET-UP AND QUICK USE GUIDE
TABLE OF CONTENTS
Getting Started
Warning/Precautions..................................1
Hooking Up Your TV ................................1
How to Use the First Time Set-Up Control ..............2
Basic TV and Remote Control Operation .................3
Basic TV and Remote Control Operation .................3
How to Use the Onscreen Menu Controls.................4
12 1
2
3
4
5
6
7
8
9
10
11
• For details on product registration, warranty,
and service refer to the other literature included
with your TV information packet.
Please retain all these materials and keep them
handy for future reference.
For homes with Cable TV Converter
Descrambler Boxes (with
Premium/Movie Channels
scrambled), follow the
steps to the right for an
alternative ANT A and
ANT B PIP feature
hookup. Note the Cable TV
signal will be split before
connection to the
Converter box (an option-
al two-way 75 ohm Signal
Splitter will be required).
CABLE BOX
CABLE CONVERTER BOXES
Connect your Cable
TV signal to the single 75 ohm
INPUT plug on a two-way
Signal Splitter (optional).
Connect one end of RF
Coaxial Cable to each of the
OUTPUT plugs on the 75 ohm
Signal Splitter. The two lengths
of RF Coaxial Cable need F-
type connectors (screw-on or
push type) for both ends.
2
BEGIN
1
Round Cable
75ΩOhm Cable TV Company
Cable TV Signal
Connect one of the Signal
Splitter OUTPUTs to the
INput terminal on the Cable
TV Converter Box. Then route
another connection from the
Cable Converter OUTput ter-
minal to the ANT A Input on
the rear of the TV.
3
STOP
Your TV has two sepa- rate ANT(enna)/Cable
inputs on the rear of the
set. These two signal
inputs offer convenient
hook-up options for both
normal TV program view-
ing and Picture-In-Picture
(PIP) features.
The ANT(enna) A input is
intended for use and view-
ing on the TV’s main
screen. Your home’s pri-
mary Antenna, or Cable
TV signal, should be con-
nected to this input for
normal TV setup, use and
feature operation.
The ANT(enna) B input is
a second, or auxiliary sig-
nal source, designed to
supply your TV’s Picture-
In-Picture (PIP) feature.
For many homes the use of
a single existing Antenna
(or Cable TV) source, for
both ANT A and B, will be
the preferred method of
connection. This type of
connection (optional
Signal Splitter required)
will work properly for the
TV’s Main on-screen fea-
tures, as well as retain all
the features designed for
PIP. For more details refer
to the Picture-In-Picture
section in your other
owner’s manual.
ANTENNA OR
CABLE TV
ANT(ENNA) A & B INPUTS Note: Your
HD Widescreen
model TV is also
capable for connec-
tion and use with
digital signal Set
Top Box providers.
These optional
Advanced
Television Systems
Committee (ATSC)
equipment convert-
ers can be used to
display digital
broadcast system
programming on
your High
Definition ready
Widescreen TV.
Be sure to set the
TV for the type sig-
nal you've connect-
ed (see "SETUP" on
page 2 of this
Guide.)
Your TV can set itself
to select only the
channel numbers on
your Cable system
(see “Setup" page 2).
If you use a Cable
Converter box, set
the TV to the same
channel as the con-
verter's CH 3/4
switch (on the rear of
the converter.)
To order any option-
al accessory contact
your dealer or call
the toll-free accesso-
ry ordering number
(1-800-851-8885):
• Two Way Splitter
(M61000)
• 300-75 ohm
Adapter
(M61020)
• UHF/VHF
Antenna
Combiner
(SBV111133A01)
SMART
HELP
A typical ANT(enna)
A and B connection (using a
common signal source and an
optional Signal Splitter):
If your Antenna or Cable TV
signal has a round cable con-
nector (75 ohm) on the end,
then you're ready to connect it
to the 75ohm Signal Splitter.
If your antenna has flat twin-
lead wire (300 ohm), you first
need to attach the antenna wires
to the screws on a 300 to 75
ohm adapter before connecting
to the 75ohm Signal Splitter.
Connect your Antenna or
Cable TV signal to the single
75 ohm input plug on the two-
way Signal Splitter (optional).
Then connect two lengths of RF
Coaxial Cable to the two Output
plugs on the two-way Signal
Splitter (F-type connector on
both ends).
2
300 to 75ΩAdapter
(483521827003)
Twin Lead
Wire
Back of TV
BEGIN
1
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD DO NOT EXPOSE THIS UNIT TO
RAIN OR EXCESSIVE MOISTURE.
Round Cable
75ΩOhm
- Outdoor or Indoor Antenna -
receives normal broadcast channels
2-13 (VHF) and 14-69 (UHF).
OR
Note: Proper operation of your TV is not dependent upon
connection of the ANT B input. Its main purpose is to provide
an easily connected, dedicated picture source for PIP feature
use. Other signal source options (such as a satellite dish sys-
tem, additional external antenna, VCR, or Video Game) could
also be connected and displayed on the TV screen through the
use of the ANT B input.
Note: Although theANT B input can be used and swapped
as the source for the TV’s Main picture, certain setup fea-
tures (such as Smart Clock) are only based on a signal being
detected at the ANTA input. To ensure that all features are
operating properly, you may not want to rely solely on the ANT
B input as your TV’s Main screen signal source.
Connect the twin Output
plugs on the Signal Splitter to
the ANT A and ANT B inputs
on the rear of the TV. Push the
round connector end of the RF
Coaxial Cable onto the
ANT(enna) plug and screw it
down tight (if using threaded
cables).
OPTIONAL TWO-WAY
SIGNAL SPLITTER
OR
3
STOP
Combination VHF/UHFAntenna
(single 75ohm Input to twin
75 ohm Outputs - optional
RF Coaxial connecting
cables also required)
ANT(enna) A
Input ANT(enna) B
Input
• The signal routed to the TV’s ANT B input will allow for
the selection and viewing of Cable channels at the TV
(except for the scrambled Premium/Movie channels).
OPTIONAL TWO-WAY
SIGNAL SPLITTER
Cable TV Converter
Box Connection
Cable TV Company
Connect the remaining
Signal Splitter OUTPUT
from the Splitter to the ANT
B Input on the rear of the TV.
4
• The signal routed to the TV’s ANT A input will allow for
Premium/Movie channels to be viewable on the TV.
• Channel selection will be at the Converter.
• The ANT A input channel on the TV should be set to the same
output channel as the Converter box (usually CH3 or 4).
Connect to ANT A Input Connect to ANT B Input
1 - 3135 015 20901
NOTE: This owner's manual is used with several different
television models. Not all features (and drawings) dis-
cussed in this manual will necessarily match those found
with your television set. This is normal and does not
require you contacting your dealer or requesting service.
HD Widescreen Television
All manuals and user guides at all-guides.com
all-guides.com

FEATURES
EXIT
MAIN MENU
SOUNDPICTURE
1ST TIME SETUP
D1
D2
D3
D4
D5
D6
D7
D8
POWER
SOURCE OFFON ON/OFF
CLONE MACRO MODE
LEARNING REMOTE CONTROL
RC-18SR
MACRO MACRO
1
2
3
4
OK
VOLCH
LD DVD
AUX
TAPE CD
TV
TUNER
CD-R
/MD
DSS/
VCR2
VCR1
MUTE
GUIDEAMP
1
4
7
M
2
5
8
0
3
6
9
C
This completes the
First-Time Setup.
Press "M" to Exit Setup
TV GUIDE PLUS +
Setup
10:17a
Where do you live?
B USA
Y CANADA
Press color key to select
STOP
After ALL connections
and First-Time Setup for
the GUIDE PLUS+ system
are completed, the TV
will have to be turned
OFF overnight to receive
program information.
Many of the current TV
control settings will be
modified by continuing
with First-Time Setup.
Press STATUS to Quit
or
Press "M" to Continue
System is testing for
correct tuning mode
for ANT A.
* Please Wait *
1
The search for active
channels is complete
for ANT A.
17 channels were found
and saved in memory
.
Press "M" to Continue
System is searching for
all active channels
on ANT A.
* Please Wait *
Testing channel 2
in cable mode.
The First-Time Setup
provides a simple method
of adjusting the most
important controls for
this television receiver.
Press "M" To Continue
Press "▲▼" to select the
language you would like
the TV displays to use.
ENGLISH
ESPANOL
FRANCAIS
Press "M" to Continue
Please check that your
other antenna or cable is
connected to the plug
marked ANT B on
the TV rear input panel.
This TV is equipped with
the TV Guide Plus+ feature.
This feature is designed
to operate only on the
main antenna, ANT A.
Press "M" to Continue
OR
Please check that your
main antenna or cable is
connected to the plug
marked ANT A on
the TV rear input panel.
Press STATUS to Quit
or
Press "M" to Continue
System is testing for
correct tuning mode
for ANT B.
* Please Wait *
1
The search for active
channels is complete
for ANT B.
17 channels were found
and saved in memory
.
Press "M" to Continue
System is searching for
all active channels
on ANT B.
* Please Wait *
Testing channel 2
in cable mode.
Press STATUS to Quit
or
Press "M" to Continue
2
2
1
3
This TV is equipped with
a Surround-Sound system.
Surround Sound requires
the use of additional
speakers being placed
around your room.
Press "M" to Continue
Please thoroughly read
the section in your
owners manual which
details the proper setup
and operation of the
Surround-Sound System.
Press "M" to Continue
˜
CONVERGENCE MENU
ALIGN RED
ALIGN BLUE
CONVERGE MULTI POINT
BACK
PLEASE REFER
TO YOUR
GUIDE PLUS+
INSTRUCTION MANUAL
FOR DETAILS ON
1st TIME SETUP.
®
1

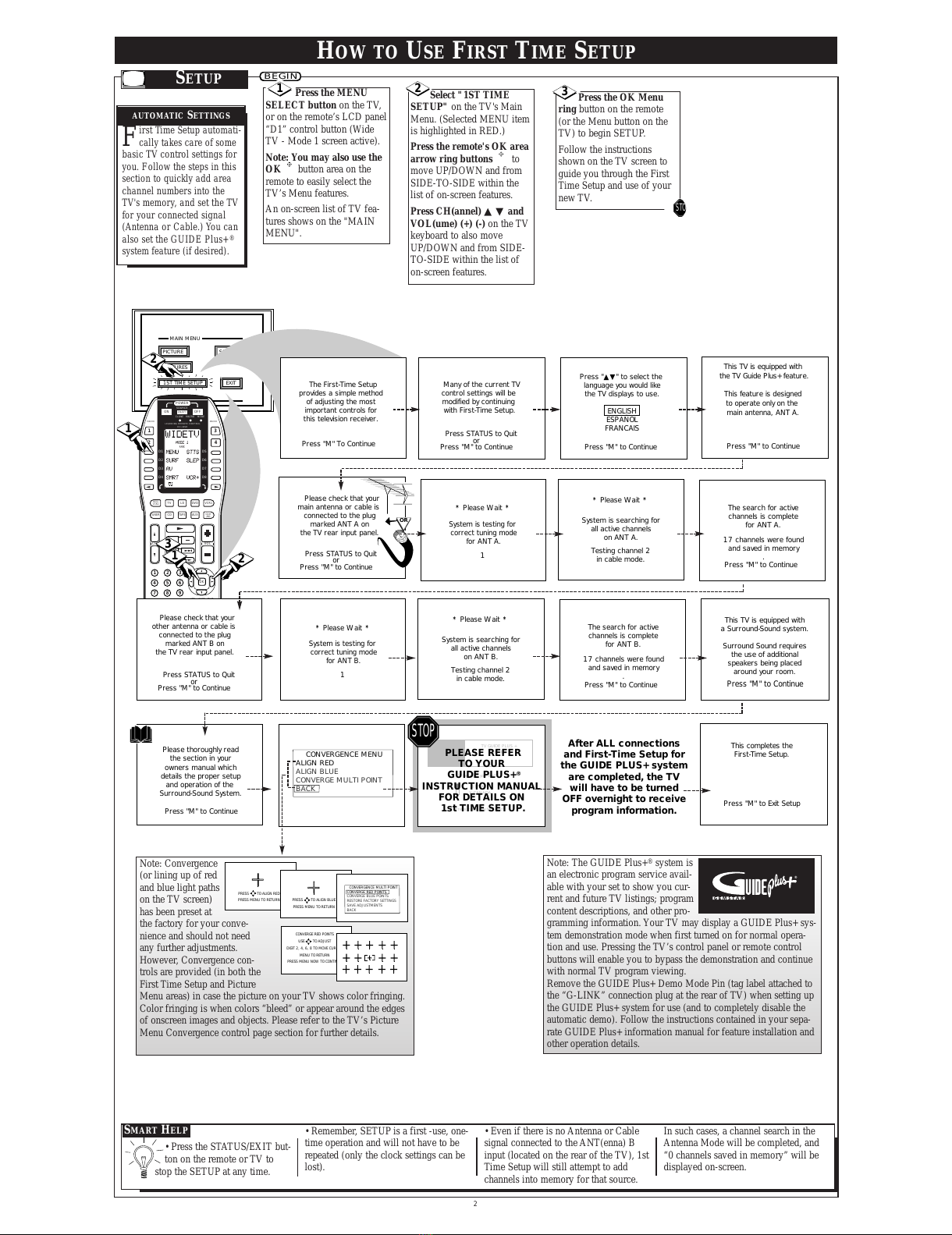

HOW TO USE FIRST TIME SETUP
First Time Setup automati- cally takes care of some
basic TV control settings for
you. Follow the steps in this
section to quickly add area
channel numbers into the
TV's memory, and set the TV
for your connected signal
(Antenna or Cable.) You can
also set the GUIDE Plus+®
system feature (if desired).
AUTOMATIC SETTINGS
SETUP Press the MENU
SELECT button on the TV,
or on the remote’s LCD panel
“D1” control button (Wide
TV - Mode 1 screen active).
Note: You may also use the
OK button area on the
remote to easily select the
TV’s Menu features.
An on-screen list of TV fea-
tures shows on the "MAIN
MENU".
BEGIN
1
Select "1ST TIME
SETUP" on the TV's Main
Menu. (Selected MENU item
is highlighted in RED.)
Press the remote's OK area
arrow ring buttons to
move UP/DOWN and from
SIDE-TO-SIDE within the
list of on-screen features.
Press CH(annel) ▲ ▼ and
VOL(ume) (+) (-) on the TV
keyboard to also move
UP/DOWN and from SIDE-
TO-SIDE within the list of
on-screen features.
2
Press the OK Menu
ring button on the remote
(or the Menu button on the
TV) to begin SETUP.
Follow the instructions
shown on the TV screen to
guide you through the First
Time Setup and use of your
new TV.
3
STO
OR
2
• Press the STATUS/EXIT but-
ton on the remote or TV to
stop the SETUP at any time.
• Remember, SETUP is a first -use, one-
time operation and will not have to be
repeated (only the clock settings can be
lost).
• Even if there is no Antenna or Cable
signal connected to the ANT(enna) B
input (located on the rear of the TV), 1st
Time Setup will still attempt to add
channels into memory for that source.
In such cases, a channel search in the
Antenna Mode will be completed, and
“0 channels saved in memory” will be
displayed on-screen.
SMART HELP
Note: The GUIDE Plus+®system is
an electronic program service avail-
able with your set to show you cur-
rent and future TV listings; program
content descriptions, and other pro-
gramming information. Your TV may display a GUIDE Plus+ sys-
tem demonstration mode when first turned on for normal opera-
tion and use. Pressing the TV’s control panel or remote control
buttons will enable you to bypass the demonstration and continue
with normal TV program viewing.
Remove the GUIDE Plus+ Demo Mode Pin (tag label attached to
the “G-LINK” connection plug at the rear of TV) when setting up
the GUIDE Plus+ system for use (and to completely disable the
automatic demo). Follow the instructions contained in your sepa-
rate GUIDE Plus+ information manual for feature installation and
other operation details.
®
Note: Convergence
(or lining up of red
and blue light paths
on the TV screen)
has been preset at
the factory for your conve-
nience and should not need
any further adjustments.
However, Convergence con-
trols are provided (in both the
First Time Setup and Picture
Menu areas) in case the picture on your TV shows color fringing.
Color fringing is when colors “bleed” or appear around the edges
of onscreen images and objects. Please refer to the TV’s Picture
Menu Convergence control page section for further details.
PRESS TO ALIGN BLUE
PRESS MENU TO RETURN
PRESS TO ALIGN RED
PRESS MENU TO RETURN
CONVERGENCE MULTI POINT
CONVERGE RED POINTS
CONVERGE BLUE POINTS
RESTORE FACTORY SETTINGS
SAVE ADJUSTMENTS
BACK
CONVERGE RED POINTS
USE TO ADJUST
DIGIT 2, 4, 6, 8 TO MOVE CURSOR
MENU TO RETURN
PRESS MENU NOW TO CONTINUE
All manuals and user guides at all-guides.com

POWER
ON/OFF
OFF
ON
CLONE MACRO MODE
LEARNING REMOTE CONTROL
RC-18SR
D1
D2
D3
D4
D5
D6
D7
D8
MACRO
MACRO
1
2
3
4
LD
TV
DSS/
VCR2
TUNER CD
TAPE AUX CD-R
/MD
VCR1
CH
VOL
OK
3
6
9
2
5
8
0
1
4
7
M
C
AMP
GUIDE MUTE
3
1
VOL
MENU
CH
STATUS/EXIT
6
2:30
WABC
VOL
MENU
CH
STATUS/EXIT
13
2
SOURCE
SELECT
TV AND REMOTE CONTROL OPERATION
TELEVISION
To load the supplied bat- teries into the remote:
1. Remove the battery
compartment lid on the
back of the remote.
2. Place the batteries (4-
AA) in the remote. Be
sure the (+) and (-) ends
of the batteries line up
correctly (inside of case is
marked.)
3. Reattach the battery lid.
BATTERY INSTALLATION
Press the TV
"System" button on the
remote to be sure the remote
sends its commands to the TV.
Point the remote control
toward the remote sensor win-
dow on the TV when operating
the TV with the remote.
BEGIN
1
STOP
Press the POWER
button to turn the TV ON. Press the VOLUME UP
(+) or DOWN (-) buttons to
adjust the TV sound level.
2
Press the CHANNEL UP
(▲) or DOWN (▼)button to
select TV channels.
Note: Always press two number
buttons on the remote when
selecting channels.
For example: press "0" then "6"
for channel 6.
3
REMOTE
BEGIN
1
STOP
Your LCD panel universal remote is designed for
flexible adaptability and use.
Set to automatically work all
Marantz HD Projection TV
Menu system features, the
remote also has preset
“Device” operations for a
variety of Audio and Video
accessory products (such as
VCR, DVD, CD, Tape, etc.)
Although the remote’s prepro-
grammed operating codes
were set to work with
Marantz and Philips branded
products, other manufacturer’s
equipment can easily be con-
trolled through the remote’s
“Learn” mode capabilities.
The remote can also memo-
rize select key button
sequences in order to auto-
mate or “short-cut” a feature
function selection or process.
Once created and placed in
memory, the recorded
“MACRO” buttons will exe-
cute desired commands to
various components in order
to complete, for example, a
VCR movie playback on the
HD PTV or other similar pro-
cedure.
REMOTE LCD PANEL &
"SYSTEM" BUTTONS
D1
D2
D3
D4
D5
D6
D7
D8
POWER
SOURCE OFFON ON/OFF
CLONE MACRO MODE
LEARNING REMOTE CONTROL
RC-18SR
MACRO MACRO
1
2
3
4
OK
VOLCH
LD DVD
AUX
TAPE CD
TV
TUNER
CD-R
/MD
DSS/
VCR2
VCR1
MUTE
GUIDEAMP
1
4
7
M
2
5
8
0
3
6
9
C
Menu Select (D1) Button
Press the Menu (D1) button to select the
TV’s Menu screen or highlighted feature
control. Note: You can also use the remote’s
OK and arrow buttons to select and access
Menu controls. The arrow buttons move up
and down (or left and right) through the list
of onscreen controls. The center OK button
selects the highlighted control.
Surf (D2) Button
Press to select previously viewed channels.
With the TV’s “Auto Surf” control ON you
can place up to 10 channels in memory. Then
by pressing the SURF button you can quickly
view the select channels.
See the "Auto Surf" section (in your other
owner's manual) to see how to select a series
of channels using the Surf button.
A/V (D3) Button
Press to quickly display the Auxiliary source
inputs on the TV (AUX1-5 VIDEO, etc.) as
well as Antenna A/B inputs.
Smart/Auto (D4) Button
Press to select from a list of Auto controls.
Auto Picture for factory preset picture con-
trol levels (set for different types of viewing
sources and programs.) Auto Sound to set
TV audio for more consistent volume pro-
gram levels even during commercial breaks.
Auto Surf to quickly select up to 10 chan-
nels (separate from the TV’s normal channel
scan memory). See the "Auto Features" sec-
tion in your other owner's manual for details.
Channel Scan Button
Press to scan up (▲) or down (▼) through
programmed channel numbers.
Number Buttons
Press the number buttons to select TV chan-
nels. Press two number buttons to select sin-
gle digit channels. For example: press "0"
then "6" for channel 6.
M (100+) Button
Press to select channel numbers greater than
99 (by direct button entry). Press the “M”
button then the remaining two digits to select
the desired channel.
Clear Button
Press to Clear current control entries and
return the TV to Factory Settings.
AMP Button
Press to reset the remote’s LCD Display panel
for use with Amplifier device mode controls.
3
Note: You
can press any of the
TV’s front keyboard
buttons to turn the
TV ON, but the
Power button must
be used to turn the
set OFF (from the
TV’s local key-
board).
The tuned channel
number will always
briefly appear when
the TV is first
turned ON (and
with channel
changes.)
You can also press
the STATUS button
(on the TV or
remote) to see what
channel the TV is
ON.
SMART
HELP
Remote Sensor
Window
Press the HIGHLIGHTING
button to illuminate or light
the remote’s buttons to make
them easier to read and use
in dark room conditions. Power On/Off Buttons
Press the separate ON (OFF) buttons on the
remote to turn the TV ON and OFF. Press
the “Power Source” ON/OFF button to turn
the selected LCD Panel device (TV, VCR,
DVD, etc.) ON or OFF.
Status/Exit (D5) Button
Press to see current channel number infor-
mation on the TV screen.Also press to clear
the TV screen after control adjustments.
Sleep (D6) Button
Press to set the TV to automatically turn
itself Off. Press the Sleep button repeatedly
to select the amount of time (15 minutes to 2
hours) before the TV shuts Off.
VCR+ (D8) Button
Press to display Guide Plus+®electronic TV
program guide schedule. See dedicated
Guide Plus+ feature button callout and
explanation shown below.
LCD Panel System Buttons
Press to send remote signals to either the TV
or other accessory devices (VCR, DVD, etc.).
VCR (LCD Device) Buttons
For use with VCR (Play, Stop, Pause, FF,
etc.) type feature operations. In some cases,
may also function with select LCD Display
devices (i.e., DVD, CD, etc.) See the "Using
the Remote With a VCR" in your other
owner's manual for further details.
Volume Buttons
Press to adjust the TV sound level up (+) or
down (-).
OK/Menu and Arrow Buttons
Press the OK button to show onscreen
Menus and select highlighted controls. Press
the direction arrow buttons to move up and
down (or left and right) through the list of
onscreen controls.
Mute Button
Press to turn the sound OFF on the TV.
Press again to return the sound to its previ-
ous level.
GUIDE Plus+® Button
Press to use the GUIDE Plus+ system elec-
tronic guide for TV program listings. Refer
to your separate GUIDE Plus+ information
manual for setup and use details.
See the following page for further
details on the LCD Display Panel
and its TV related D1-D8 button
functions (contained within the
WIDETV Mode settings).
Note: Due to the amount of
optional components avail-
able within the remote’s
Device Reference and Learn
Code Lists, please refer to
the separate full-use Remote
Control Owner’s Manual
for complete details on its
functions and operations.
All manuals and user guides at all-guides.com

POWER
ON/OFF
OFF
ON
CLONE MACRO MODE
LEARNING REMOTE CONTROL
RC-18SR
D1
D2
D3
D4
D5
D6
D7
D8
MACRO
MACRO
1
2
3
4
LD
TV
DSS/
VCR2
TUNER CD
TAPE AUX CD-R
/MD
VCR1
CH
VOL
OK
3
6
9
2
5
8
0
1
4
7
M
C
AMP
GUIDE MUTE
VOL
MENU
CH
STATUS/EXIT
VOL
MENU
CH
STATUS/EXIT
MAIN MENU
FEATURES
SOUND
EXIT
COLOR
PICTURE MENU
SHARP
CLEARVIEW
EXIT
1 OF 2
TINT
MORE...
BRIGHT
EXIT NEXT...
MIN MAX
COLOR
2
4
5
31
2
5
3
1
1ST TIME SETUP
PIP
4
ON-SCREEN MENU CONTROLS
Features for your HD PTV can be adjusted from a
MENU screen shown on the
TV. A MENU is nothing more
than an onscreen list of con-
trols. Each MENU item can
be adjusted by viewing the
screen and pressing a button.
FEATURE CONTROLS
MENUS
Press MENU on the
TV (or OK button on the
remote). An on-screen list of
TV features shows on the
screen - "MAIN MENU".
BEGIN
1
Press CH(annel) ▲ ▼
and VOL(ume) (+) (-) on the
TV to move UP/DOWN and
from SIDE-TO-SIDE within
the list of on-screen features.
The selected MENU item will
be highlighted in RED.
Press the remote's OK area
arrow buttons to move
UP/DOWN and from SIDE-
TO-SIDE within the list of
on-screen features.
2
Press (+) or (-) button
on the TV (or the OK
arrow buttons on the
remote) to adjust a selected
onscreen feature.
Press STATUS button
on the remote (D5 LCD
Display) or Status/Exit on the
TV to clear the screen after
an adjustment.
The screen can also be
cleared by selecting the Main
Menu's "EXIT" item and
pressing the MENU (OK)
button. Waiting about a
minute, without a button
press, will also remove the
MENU from the screen.
4
Press MENU on the
TV (or the OK button on the
remote) to select the RED
highlighted feature control.
NOTE: Many Main Menu
features have 2 or 3 screens
of controls listed under its
heading. Select the "MORE"
onscreen item and press the
MENU (M) button to view all
of the individual controls list-
ed under a Main Menu fea-
ture heading.
3
STOP
5
ON THE TV
ON THE REMOTE
SELECTED FEATURE CONTROL
HIGHLIGHTED IN RED
Select and then press
MENU (M) button to
return to previous Menu
screens.
Select and then press MENU
(M) button to view addition-
al controls grouped under
same feature heading. For
Example: Tint, Brightness,
Picture, etc.
4
If the
onscreen Menu dis-
appears and you are
not finished work-
ing with it, press the
MENU or OK but-
ton and the "Main
Menu" will return to
the screen. Continue
to press the MENU
or OK button and
the onscreen Menu
will advance until
you are returned to
the last feature con-
trol screen you had
selected.
SMART
HELP
REMOTE CONTROL OPERATION (CONTINUED)
D1
D2
D3
D4
D5
D6
D7
D8
POWER
SOURCE OFFON ON/OFF
CLONE MACRO MODE
LEARNING REMOTE CONTROL
RC-18SR
MACRO MACRO
1
2
3
4
OK
VOLCH
LD DVD
AUX
TAPE CD
TV
TUNER
CD-R
/MD
DSS/
VCR2
VCR1
MUTE
GUIDEAMP
1
4
7
M
2
5
8
0
3
6
9
C
The WIDETV Mode remote contains four LCD display
screens of TV related Menu
controls. Use of these “TV”
Menu features are made with
the remote’s D1-D8 control
buttons. Features such as PIP
(Picture-In-Picture); Gemstar
(Guide Plus+® electronic
program guide); and Wide
Screen Format (Theater 1/2,
Zoom, etc.) are available for
selection and use with these
various display screen items.
WIDETV MENU CONTROLS
LCD DISPLAY
Note: The
LCD display panels
for other select cate-
gory products work
in much the same
manner as WideTV.
Press the LCD
System button to
select the desired
accessory (VCR,
etc.), then use the
screen arrow keys
to scroll through the
various control item
displays.
SMART
HELP
Mode 2 - Screen Format Buttons
Press to display the TV in various height-to-width screen display options or aspect ratio
controls (4x3 - Standard; Theater 1 & 2 - Zoom, etc.)
PIP Buttons
Press to operate Picture-In-Picture features (such as SWAP, FREEZE, POSITION, etc.).
See the “PIP” section in your other owner’s manual for further details.
GUIDE Plus+® (Gemstar) System Buttons
Press to use the GUIDE Plus+ electronic guide for TV program listings and infor-
mation. Refer to your separate GUIDE Plus+ information manual for setup and use
details.
Mode 1 - Menu TV Feature Buttons
As described on the previous page press the appropriate D1 - D8 button to display for use
select TV features (such as: Sleep, Surf,A/V, Smart, etc.)
NOTE: Press the LCD Panel direction arrows (< or > ) to move through the four separate
screens of WIDETV control features.
All manuals and user guides at all-guides.com
