Mean Green ReVolt Series User manual

1
GENERAL INFORMATION
This manual applies to the following Mean Green Products equipment lines:
Mean Green Mowers –ReVolt 48”/52” Dual Drive Walk Behind
To the new owner
The purpose of this manual is to assist owners and operators in maintaining and operating the
mower. Please read it carefully; information and instructions furnished can help you achieve
years of dependable performance. It is the owner’s responsibility to make certain that the
operators and mechanics read and understand this manual and all decals before operating this
machine. It is also the owner’s responsibility to make certain that the operators and mechanics
are qualified and physically able individuals, properly trained in the operation of this equipment.
All operator and mechanics must become familiar with the safe operation of the equipment,
operator controls and safety signs. Never let children or untrained people operate or service the
equipment. Local regulations may restrict the age of the operator. The owner/user can prevent and
is responsible for accidents or injuries occurring to themselves, other people or property.
Using this manual
General operation, adjustment and maintenance guidance is outlined for both the experienced and
novice Mean Green Mower user. Operating conditions vary considerably and cannot all be
addressed individually. Through experience, however, operators should find no difficulty in
developing good operating skills suitable to most conditions. Directions used in this manual, for
example RIGHT or LEFT, refer to directions when seated on the mower/standing facing forward,
unless otherwise stated. Photographs and illustrations used were current at the time of printing,
but subsequent production changes may cause your machine to vary slightly in detail. Mean
Green Products reserves the right to redesign and change the machine as deemed necessary,
without notification. If a change has been made to your machine which is not reflected in this
owner’s manual, or the parts manual, see your Mean Green Products dealer for current
information and parts.
Warranty registration
The Owner must register the unit by filling out the Warranty Registration Form, provided in the
owner’s packet, to validate your warranty protection. As the new equipment owner, you are
expected to see that this is done at the time of delivery. If using the Warranty Registration Form,
it MUST be completed and signed by the authorized dealer and original purchaser.
Be sure to register the mower plus each attachment that displays a model and serial identification
number plate with Mean Green Products.
IMPORTANT: Any unauthorized modification, alteration, or use of non-approved attachments
voids the warranty and releases Mean Green Products from any liability arising from subsequent
use of this equipment.
Model and serial number
The mower serial number is found on the serial identification plate located on the inside left rear
wall of the battery/electronics compartment of the mower. The model is the type of Mean Green
Mower purchased i.e. WBX-33HD, SK-48, CXR-52. The serial numbers and model are required
on the Warranty Registration form. They will also assure you of the correct service parts when
replacement becomes necessary.
Parts and service
All warranty repair and service must be handled through an
authorized Mean Green Products dealer. Arrangements should be made
through your local service center or Mean Green Products LLC.

2
SAFETY PRECAUTIONS
This safety alert symbol is used to call attention to a message
intended to provide a reasonable degree of PERSONAL
SAFETY for operators and other persons during the normal
operation and servicing of this equipment.
DANGER –denotes immediate hazards which WILL result
in severe personal injury or death.
WARNING –denotes a hazard or unsafe practice which
COULD result in severe personal injury or death.
This manual uses two other words to highlight information.
IMPORTANT calls attention to special mechanical information
and NOTE: emphasizes general information worthy of special
attention.
All operators and mechanics should read this manual and be
instructed about safe operating and maintenance procedures. If
the operators or mechanics cannot read and understand English,
it is the owner’s responsibility to explain this material to them.
However, improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury, comply with
these safety instructions and always pay attention to the safety alert
symbol, which means DANGER or WARNING - “personal
safety instructions.” Failure to comply with the instructions
may result in personal injury or death.
Incorrect usage of this machine may result in severe
injury. Personnel operating and maintaining it should be
trained in the proper use and should read the manuals
completely and thoroughly before attempting to set-up,
operate, adjust, or service this machine.
It is the owner’s responsibility to make certain that the
operators and mechanics read and understand this manual and
all decals before operating this machine. It is also the owner’s
responsibility to make certain that the operators and mechanics
are qualified and physically able individuals, properly trained in
the operation of this equipment. All operators and mechanics
must become familiar with the safe operation of the equipment,
operator controls and safety signs.
Never let children or untrained people operate or service the
equipment. Local regulations may restrict the age of the
operator.
The owner/user can prevent and is responsible for accidents or
injuries occurring to themselves, other people or property.
The owner should also ensure that the operator/mechanic
know that they are responsible for their own safety as well as the
safety of other persons within the vicinity. Remember, the
operator is responsible for accidents or hazards occurring to
other people or their property.
Safety and Instruction Decals
Specific safety warning decals are located on the equipment near the immediate areas of potential hazards.
These decals should not be removed or obliterated. Replace them if they become non-readable.
The following illustrations show the various decals that are located on the machine. A brief explanation, for
those requiring one, is shown to help the operator understand the meanings of these decals.
• Read Owner’s Manual and Safety Warning Decals before attempting
to operate this machine.

3
DANGER: Rotating blades! (fig.1A)
* Keep shields and covers in place while
machine is in operation
* Keep hands, feet and clothing away from rotating blades
DANGER: Safety Precautions!: (fig.2A)
1. Read Owner’s Manual Before Operation
2. Keep Hands, Feet, And Clothing Away From Rotating Blades
3. Maintain Safe Distance From People And Pets
4. Roll Over Warning –Never Operate Machine On Greater Than 15 Degree Slope
5. Electrical Maintenance By Trained Professionals ONLY
6. Keep Safe Distance From Drop-Offs and Ditches
7. Do NOT Carry Passengers
8. Ejection Warning –Move Slowly On Slopes
9. Be Aware When Backing Up
10. Keep Flames Away From Charging Batteries
11. See Owner’s Manual For Other Information
WARNING: Never operate mower with defective guards or shields, or
without safety devices. For example, deflectors and/or grass catchers
in place. Ensure that only replacement cutting blades of the correct
type are used!
2A↓
Important: Red Battery Quick Disconnect Handle (Fig.7A) –(found outside
right rear of mower ) PULL Red Handle upward to remove & disconnect all power
to unit. (also see pages 13-23) Disconnect with all maintenance, repairs, and
cleaning.
7A
1A

4
Warning: Keep hands & feet away when mower is in operation! (fig.1B)
*Fall Hazard. Keep Hands & Feet Away When Mower Is In Operation!

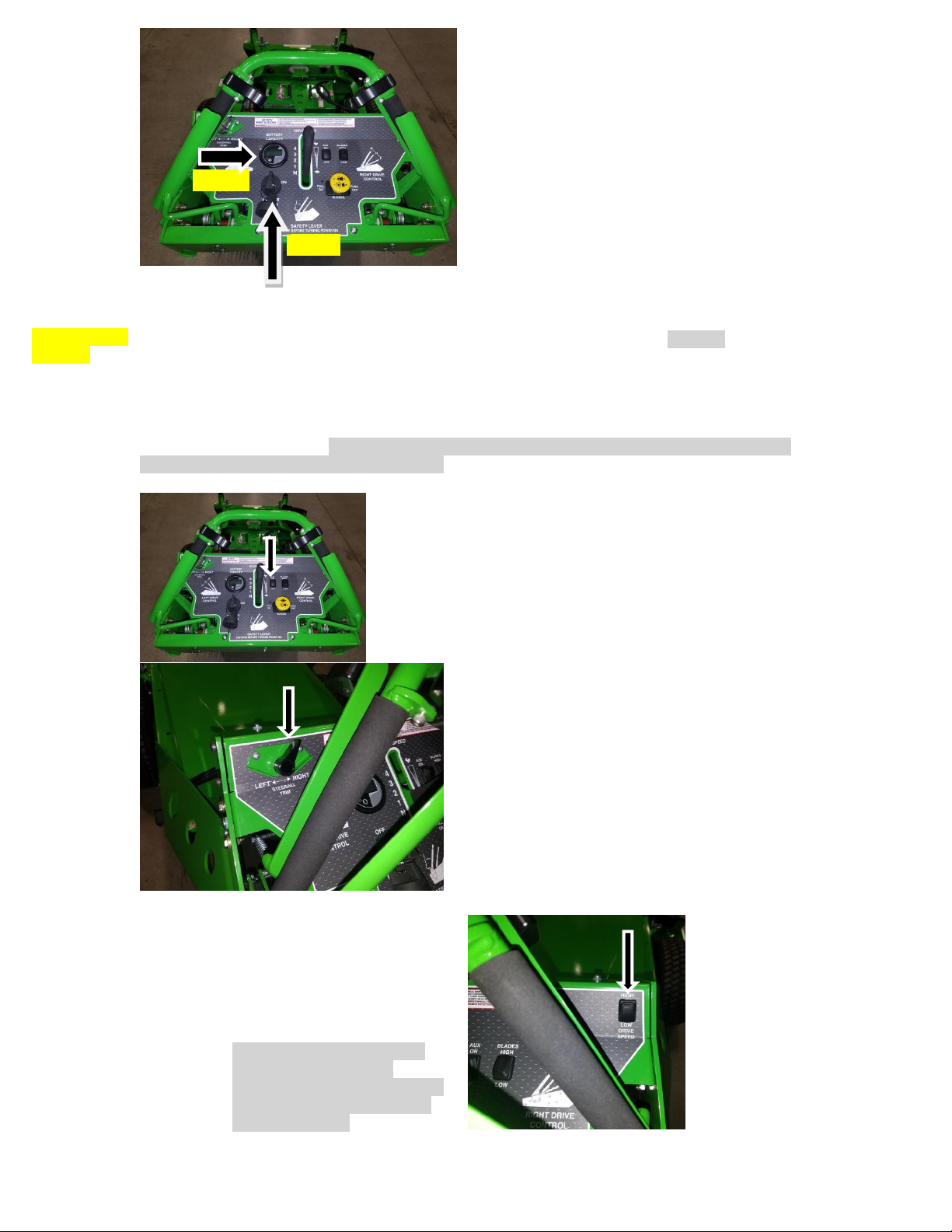

Important: Mower Control Panel (1C)
(May vary slightly due to model and year of manufacture)
1C
1B

5

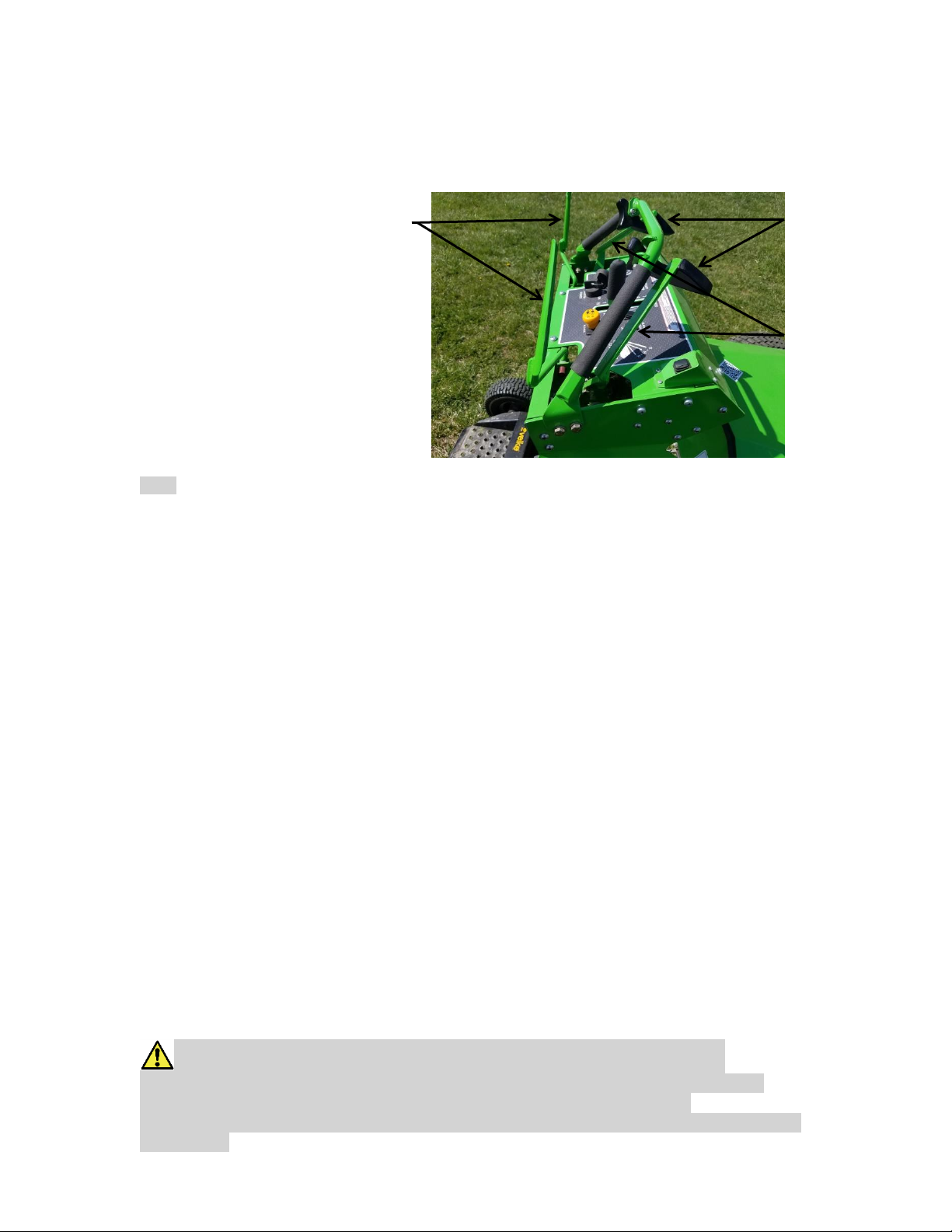

Fig. 1H: Operator Presence Safety Levers –(OPS) - 2 each large green levers on right
left side of handle bars closest to operator. Levers must be depressed for mower startup,
mower drive to engagement & for blade switch to engage. When lever is released mower
will automatically stop electric brakes are automatically applied & mower blades will
stop in less than 3 seconds.
***Important: IN CASE OF EMERGENCY: Operator should immediately release
Operator Presence Safety Levers to engage brakes & STOP blades!!***
1H
A.Master B.Battery C.Drive D. Aux E. Hi/Low F. Deck G. Steering
Power Capacity Speed ON/Off Blade Speed Blade Trim Lever
Ignition Indicator Control On/Off
Switch Switch
G C
B D E
A F
Operator Presence
Safety Levers Engaged

6
Fig.1E Battery Capacity Indicator: Indicates battery state of charge and diagnostic
information. Turn the key to the ON position, wait 3 seconds for diagnostics to load. Display will
indicate battery status and drive conditions with READY sign or FAULT indications. NOTE: If FAULT
occurs, first reset computer by turning key to OFF position and then to the ON position. If FAULT
continues: Call your Mean Green Mowers Dealer Immediately! ***SEE Appendix Smartec pages 8-12 for
detailed Battery Capacity Indications, Troubleshooting and Information Guide****
IMPORTANT: When battery voltage becomes low, the mower drives will go into “creep” mode, the drive
motors will continue to run enabling driver to continue to drive unit. When the batteries discharge to this
point they require recharging. The unit should immediately be returned to the battery charging area
and the unit connected to the battery charger.
Fig. 10
Fig. 11
Fig. 1E
Fig.1D
Fig. 1D: Master Power Ignition Switch –A two
position switch Off and On. With key inserted,
rotate it clockwise to the On position to activate mower.
IMPORTANT
READ!!
Aux On/Off Switch –Switch
turns lights on & off. (Fig.9)
Fig. 9
Steering Trim Lever –(Fig. 10)
Located far upper left control panel.
Allows operator to make slight
changes to the left or right direction
during hands free steering of the
mower.
High/Low Drive Speed Control
Switch –(Fig. 11) Located far
upper right control panel.
Increases or Reduces Drive Speed
by 25%.
Always EASY DOES IT when
unsure or new user to the
equipment! Get comfortable with
mower before increasing switch
into faster speeds!

7

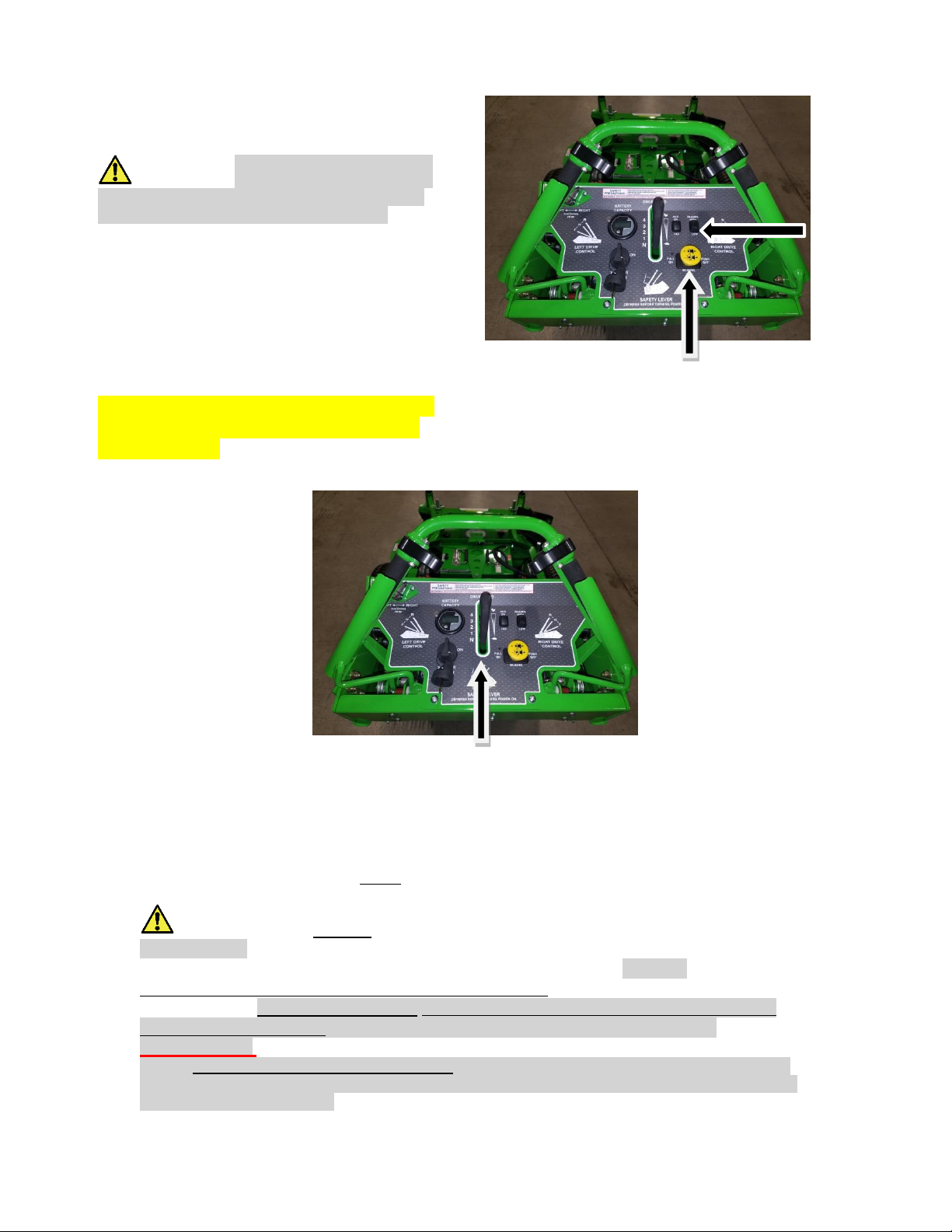

Fig. 2C: Drive Speed Control Lever –
Allows operator to select a comfortable walking speed with increments N- Neutral,
1 (slowest) - 4 (fastest) via the Drive Speed Control Lever on the Mower Control Panel. Push knob
forward to INCREASE drive speed and rearward to REDUCE drive speed. Turn knob to Lowest, Slow Speed
for inexperienced operators, for trimming around objects, buildings and other obstacles.
Always EASY DOES IT when unsure or new user to the equipment! Get comfortable with mower before
increasing lever into faster speeds! NOTE: Speed may be adjusted at any time whether mower is in motion or
stopped.
Fig.1Ga & 1Gb: Green Emergency Manual Drive Brake Release Lever –
IMPORTANT: If for any reason manual operation is needed to return to charging station or to
move mower without battery power, pull manual (2 each) brake levers outward to release brakes
(located lower rear of mower beneath battery compartment) and push mower slowly back to
desired location. NEVER exceed a slow walking speed when pushing or towing mower with
parking brake disengaged! PUSH DOWNWARD on levers to re-engage drive lever.
IMPORTANT:
NOTE: Never drive mower with lever released. Always push lever DOWNWARD to the CLOSED
position before driving! Failure to re-engage drive lever could cause serious damage to your mower
and void mower warranty!!!!
Fig. 1F: Deck Blades ON and OFF Switch:
This switch engages the deck blade motors.
Pull the switch up to engage blades and
push switch down to disengage blade motors.
IMPORTANT: ONLY engage Deck Blades
when throttle lever is in the neutral position.
NEVER engage blades when moving!!!!
Fig. 2B: High & Low Blades Switch –
High Blade Mode is higher blade speed for
cutting thicker grass.
Low Blade Mode provides lower blade
speed used for lower battery consumption
on thinner dry grass areas.
NOTE: Mowing time may be increased up
to 15% when mowing in low blade mode
when practical.
2C
2B
1F

8
OPERATION
Safe Operating Practices
This product is capable of amputating hands and feet and throwing objects. Always follow
all safety instructions to avoid serious injury or death.
Operation
Evaluate the terrain to determine what accessories and attachments are needed to properly and
safely perform the job. Only use accessories and attachments approved by the manufacturer.
Clean battery compartment, drive motor compartment, mower deck, seat etc. of all dirt and
debris. Keep unit free of grass clippings, leaves and other debris. DO NOT spray water in
electronics/battery compartment! Do not use solvents, hard cleaners or abrasives. Outer unit
can be cleaned with soap and water. Wear adequate eye and hearing protection when cleaning the unit.
Never leave a running machine unattended. Always stop on level ground, disengage deck blade switch,
place steering control levers in neutral position, turn key to off position,
remove key and disconnect battery cables by pulling LARGE RED exterior battery quick
disconnect handle upward to remove & disconnect all power to unit( located outer right rear battery box
compartment) for any reason including emptying the catcher or unclogging the chute.
Always keep safety shields and covers in place.
Always maintain a safe distance from people and pets when mowing.
Always stop machine if someone enters the area.
Avoid injury. Keep area clear of bystanders when engaging deck blade switch.
Always operate machine in daylight or with adequate working lights.
Follow daily and weekly checklists, making sure electrical connections are secured and
bolts are tightened. Always observe traffic laws while driving machine from
one location to another. Watch for traffic when operating near or crossing roadways.
Always be alert for hazards such as rocks, metal objects and other debris which may be
thrown or entangled by mower blades. Watch out for holes or deep depressions.
Inspect area to be mowed for hazards such as rocks, metal objects and other debris which
may be thrown or entangled by mower blades. Remove these objects before mowing.
Always inspect machine for damage after striking a foreign object. If damage is found,
repair machine immediately. Be sure to stop on level ground, disengage deck blade
switch, release Throttle Lever & Operator Presence Safety Lever, turn key to OFF position,
remove key and disconnect battery cables by pulling disconnect battery cables by pulling LARGE RED
exterior battery quick disconnect handle upward to remove & disconnect all power to unit( located outer
↑
1Ga
Manual Drive Lever
Engaged for driving.
(handles facing down)
1Gb
Manual Drive Lever
Dis-engaged for
towing/pushing.
(handles crossed)

9
right rear battery box compartment). Always wear adequate ear protection, such as earplugs, when
operating this equipment as prolonged exposure to uncomfortable or loud noises can cause impairment
or loss of hearing. Do not wear radios or music headphones while operating the machinery.
Safe operation requires your full attention.
Do not operate the equipment while wearing sandals, tennis shoes, sneakers, shorts or
any type of loose fitting clothing. Long hair, loose clothing or jewelry may get tangled in
moving parts. Always wear long pants, safety glasses, ear protection and safety shoes when
operating this machine.
Always wear safety goggles or safety glasses with side shields when operating the mower.
Always be aware of what is behind the machine before backing up. Do not mow in reverse
unless absolutely necessary.
Always look down and behind before and while backing up.
When moving in reverse, depress slowly the throttle lever and avoid sudden
movement. Rapid movement of the throttle lever in either direction
could result in a reaction of the machine that can cause serious injury.
Never operate a poorly maintained machine.
Never attempt high speed maneuvering, especially in crowded, congested areas or on slopes.
Never allow persons to operate this machine without proper instruction or allow children to
operate machine. Allow only responsible adults who have read and understand
these instructions to operate this machine.
Never put hands or feet under any part of the machine while it is running.
Never carry passengers.
Never direct discharged material toward anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet back toward the operator. Always disengage
the blades and wait for them to stop before crossing gravel drives, walks or roads.
Always keep clear of the mower blades and attachments during their operation.
Turn off blades when not mowing. Slow down before turning.
Turn the key to the OFF position, remove key and disconnect battery cables by pulling disconnect battery
cables by pulling LARGE RED exterior battery quick disconnect handle upward to remove & disconnect
all power to unit( located outer right rear battery box compartment) before removing the grass catcher or
unclogging the discharge chute. Never clear the discharge chute with the machine running. Turn
the key to the OFF position, remove key, and make sure the blades have stopped before cleaning.
Use a stick to clear a plugged discharge area. Never use your hand!
Do not operate the machine while under the influence of alcohol or drugs.
Exercise caution when loading or unloading the machine onto a trailer or truck.
Data indicates that operators, age 60 years and above, are involved in a large percentage
of mower-related injuries. These operators should evaluate their ability to
operate the mower safely enough to protect themselves and others from serious injury.
If any attachment or additional weight is mounted on the rear or side of the unit (depending on
model), any rapid movement in either direction could result in a reaction of the machine
that can cause serious injury.
Clean flammable material from machine. Prevent fires by keeping battery compartment, deck and
operator’s station clean of accumulated trash, grass clippings, and other debris.
Using a ramp
Use extreme caution when loading and unloading a unit onto a truck or trailer with a ramp.
Use only a single, full width ramp; do not use individual ramps for each side of the unit.
Having a full width ramp provides a surface for the mower frame to contact if the
unit starts to tip backwards. It also reduces the risk of a wheel going off and the
machine tipping over. Do not exceed a 20 degree angle between the ramp and the ground
or between the ramp and the trailer or truck. When on a ramp avoid sudden acceleration.
Slope operation
Slopes are a major factor in loss-of-control and tip-over
accidents, which can result in severe injury or death. All
slopes require extra caution.
REMINDER: It is recommended to only operate on slopes of 20 degrees or less.
Use extreme caution when operating on slopes.
• Be extremely careful changing directions on a slope.
• Slow down.
• Do not operate where the machine could slip or tip.
• Turn slowly
• Turn on the most level part of the slope

10
• To maximize traction, it is better to turn the front of the machine uphill, rather than downhill. If drive
tires lose traction, steering control is lost which could cause serious injury or death.
• If it becomes necessary to turn downhill, turn slowly and gradually.
Do not remove or modify the stabilizer wheels. Watch for holes, ruts, bumps, rocks or other hidden
objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.
Remove obstacles such as rocks, tree limbs, etc. Keep all movement on slopes slow and gradual. Do not
make sudden changes in speed or direction. Avoid starting and stopping on a slope. If tires lose traction,
disengage the blades and proceed slowly straight down the slope.
Mow a safe distance (minimum of 10 feet, 3.05 meters) away from drop-offs, retaining walls, drainage
ditches, embankments, water, and other types of hazards to avoid a wheel dropping over the edge or to
avoid the ground from breaking away. This will reduce the risk of the machine suddenly rolling over
causing serious injury or death. Do not mow on wet grass. Reduced traction could cause
sliding and loss of steering control. Do not tow on slopes. The weight of the towed equipment
may cause loss of traction and control. Do not try to stabilize the machine by putting your foot
on the ground. If the mower’s tires lose traction when operating on slopes, disengage the deck blade switch,
release Throttle Lever, & Operator Presence Safety Lever & turn the key to the
OFF position and get help OR in EMERGENCY release Operator Presence Safety Switch
to engage brakes & stop the blades. Never make sudden starts, stops, turns, or reverse direction,
especially when maneuvering on slopes. The steering is designed for sensitive response. Rapid movement
of the steering control levers in either direction could result in a reaction of the machine that can cause
serious injury. Never stop suddenly while backing down slopes. This action may result in a reaction of the
machine that can cause serious physical injury. The Mean Green Mower is capable of operating
horizontally (traverse) on moderate slopes. When operating on slopes up to 20 degrees, be aware of any
conditions that may cause the mower drive tires to lose traction resulting in a possible loss of control of the
machine. An operator should not operate on a slope until he is thoroughly familiar with the equipment. It is
strongly recommended that the operator drive the machine off of the slope, using extreme caution, if any
sign of loss of traction is detected. Wait until the condition that caused the problem is resolved before
attempting to operate on the slope again. Terrain conditions can affect traction resulting in possible loss of
control of the machine. Some of the conditions to be aware of are:
1. Wet terrain
2. Depressions in the ground; i.e. holes, ruts, washouts
3. Mounds of dirt
4. Soil type; i.e. sand, loose dirt, gravel, clay
5. Grass type, density, and height
6. Extremely dry conditions of grass
7. Tire pressure
The attachments mounted to the mower will also affect the way it handles on a slope. Be aware that each
attachment’s characteristics vary. Another consideration is to always mow a safe distance
(minimum of 10 feet 3.05 meters) away from drop-offs, retaining walls, drainage ditches, embankments,
water, and other types of hazards to avoid a wheel dropping over the edge or to avoid the ground from
breaking away and always be aware of what is located at the bottom of the slope. This will reduce the risk
of the machine suddenly rolling over causing serious injury or death. Extreme caution should be used when
there is a hazard located at the bottom of the slope. Some examples are:
1. Water; i.e. lake, river
2. Cliffs, retaining walls
3. Roads, highways
4. Buildings
5. Rocks
These are just a few examples of situations when caution must be used when operating on a slope. There
are many other possibilities too numerous to mention. Just remember to always exercise extreme
caution when operating on any slope.
Children
Tragic accidents can occur if the operator is not alert to the presence of children.
Children are often attracted to the machine and the mowing activity. Never assume that
children will remain where you last saw them.
Never leave machine unattended with key in switch, especially with children present.
Children or bystanders may be injured if they move or attempt to operate the machine while it is
unattended. Always disengage deck blade switch & turn key to OFF position and
remove key. Keep children out of the mowing area and under the watchful care of
a responsible adult other than the operator. Be alert and turn the machine off if children enter the area.
Before and while backing, look behind and down for small children.
Never carry children, even with the blades off. They may fall off and be seriously

11
injured or interfere with safe machine operation. Children who have been given rides
in the past may suddenly appear in the mowing area for another ride and be run over
or backed over by the machine. Never allow children to operate the machine.
Use care when approaching blind corners, shrubs, trees, the end of a fence or
other objects that may obscure vision. Never allow children or others in or on towed equipment.
Operator Controls
Steering Control: Fingertip drive control levers provide independent speed control, braking and
neutral to each drive wheel for moving forward or reverse, stopping, and power turning.
Fig.J
Note: For smooth operation of this machine, avoid quick, jerky movements of the drive levers. Move the
drive levers smoothly and deliberately.
Operator Presence Safety Levers (OPS)(Fig.J)
Located on the upper handle assembly directly above the handle grips.
When these levers are depressed, the OPS system senses that the operator is in the normal operator’s
position. When the levers are released, the OPS system senses that the operator has moved from the
normal operating position and the mower will automatically stop, electric brakes are automatically applied,
and mower blades will stop in less than 3 seconds.
Drive Levers (Fig.J)
Located on each side of the upper handle assembly ahead of and below the handle grips.
These levers individually control the speed and direction of each drive wheel. When the speed control
lever is moved out of the neutral position and the neutral lock latches are moved into the drive position, and
the drive levers are released, the drive wheels are engaged in the forward direction. Squeezing the left hand
and/or right hand lever causes the left hand and/or right hand drive wheel respectively to slow down, stop,
or reverse, depending on how far each drive lever is “squeezed”. Squeezing the drive levers beyond the
neutral position causes the drive wheels to engage in the reverse direction regardless of the position of the
neutral lock latches and the speed control lever.
Neutral Lock Latches (Fig.J)
Located on the upper handle assembly on the ends of the handle grips.
These latches allow the operator to lock the drive levers in a “neutral” position where the drive wheels
are not engaged in either a forward or reverse direction.
Operation
Starting Mower: 1. Depress Operator Presence Safety Levers 2. Turn Master Power Key to “On”
Driving the Mower
Drive Lever/Neutral Lock Latch Operation
To lock the drive levers in “neutral lock”, squeeze the drive levers to the “neutral” position (Do Not
squeeze the drive levers all the way back as this will cause the drive wheels to go into full reverse
direction). Place thumbs on the inner lobe of the neutral lock latches and rotate them under the drive levers
into the “neutral lock” position. Release the drive levers.
If the neutral lock latches are not completely engaged the drive levers could
unexpectedly slip into the forward drive position. If the drive levers slip into the drive
position the unit could lurch forward and cause injury or property damage.
Be sure the drive levers are past the detent and securely seated at the bottom of the neutral
lock latches.
Operator Presence Safety Levers (2each)
Neutral Lock Latches
(2 each)
Drive Levers
(2 each)

12
To place the drive levers in the “forward” position, slightly squeeze the drive levers while placing thumbs
on the outer thumb lobe of the neutral lock latches (or the index finger on the front lobe) and rotate them
from under the drive levers. Slowly and carefully release the drive levers. To place the drive levers in the
“reverse” position, squeeze the drive levers past the neutral position.
Driving Forward
1. With drive levers locked in “neutral”, shift speed
control lever to desired forward speed.
2. Slowly squeeze and hold both drive levers in
the neutral position and rotate both neutral lock
latches from the neutral lock position to the
forward position.
Note: Do Not squeeze both drive levers all the way back. This will cause the drive wheels to
engage in the reverse direction.
3. To move forward in a straight line, smoothly
release both drive levers to engage drive wheels.
To turn left or right, squeeze the right hand drive
lever to turn right and the left hand drive lever
to turn left.
To make a “zero turn”, squeeze either the left
hand or the right hand drive lever back into the
reverse position while the opposite drive lever is in
a forward position at an equal but opposite speed.
Note: For smooth operation of this machine, avoid quick, jerky movements of the drive levers.
Move the drive levers smoothly and deliberately.
To stop, squeeze drive levers back to the “neutral”
position. Move the neutral lock latches into the
“neutral lock” position and release drive levers.
Move the speed lever to the neutral position.AUTION
Driving in Reverse
To move rearward in a straight line, squeeze drive levers into the reverse position.
To turn left or right, squeeze the right hand drive lever to turn left and the left hand drive lever to turn right.
To make a “zero turn”, squeeze either the left hand or the right hand drive lever back into the reverse
position while the opposite drive lever is in a forward position at an equal but opposite speed.
Adjusting the Cutting Height (Fig.3B)
WARNING: When the two front support rod hairpins are removed from the mower
deck, the weight of the tractor section may cause the front frame of the unit to rise
suddenly. If the unit rises suddenly, injury may occur. Securely hold down the front of the
unit when the front support rod hairpins are removed.
3B
IMPORTANT
READ!
1.5 inches
2.0 inches
2.5 inches
3.0 inches
3.5 inches
4.0 inches
4.5 inches
5.0 inches
1
2

13
1. Deck support pin 2. Cutting Height

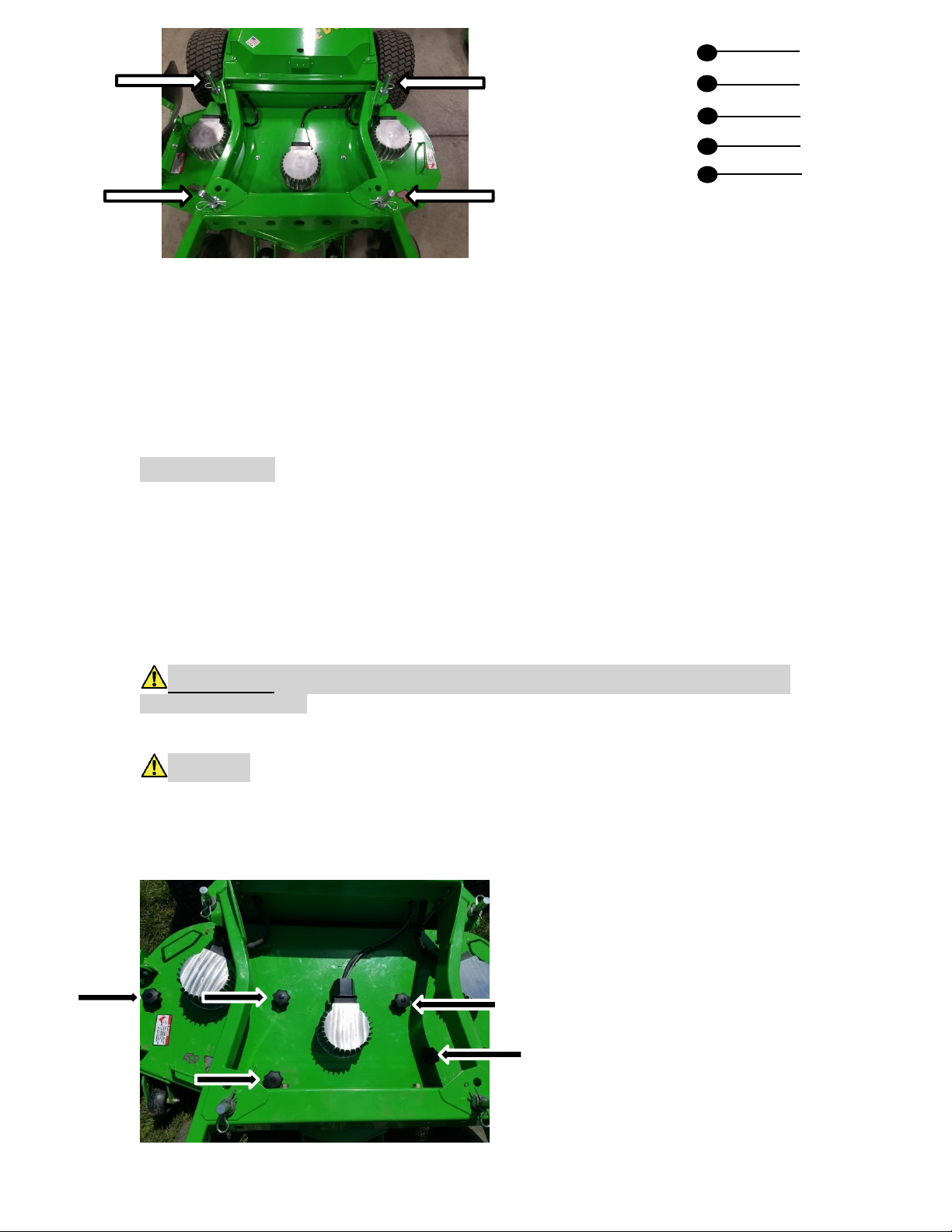

The cutting height of the mower deck is adjusted from 1 1/2 to 5.0 inches in ½ inch
increments.
1. Stop the machine and move the drive levers to the neutral locked position.
2. Disengage the PTO.
3. Turn key to OFF position and wait for all moving parts to stop. Disconnect
LARGE RED exterior battery quick disconnect handle.
4. Make sure manual brake levers are engaged.
5. Install hairpin clips in the holes for the desired cutting height.
IMPORTANT: To maintain correct cutting height and rake, check the
following for proper adjustment.
A. The front and rear hairpins are in the same holes with the proper spacers
under the hair pin clips. See Fig. 6
B. Tire pressures are set as directed page 17 –Tires section of manual.
Optional Mulching Baffle Deck: (Fig.12)
IMPORTANT: Disconnect RED battery quick disconnect handle BEFORE removing
baffles to avoid injury!
To remove mulching baffles from deck, lift deck to highest position, rotate 5 each black twist
knobs on top of mower deck counterclockwise. Baffles will release and fall to the ground.
WARNING: Remove baffles from beneath the mower deck before operating mower!
To replace baffles:
1. Disconnect RED battery quick disconnect handle
2. Using certified jack stands, lift front deck
3. Align baffle bolts with appropriate holes in deck.
4. Insert bolts through deck, and install black twist knobs clockwise on top of deck.
Fig.12
Fig. 6

14
Discharge Chute –(Fig. 3C) Found on right side of chassis. WARNING: Always keep
Discharge Chute in the down position when mowing and blades are moving.
Warning: Keep all shields in place at all times to prevent injury! DO NOT operate mower without
discharge chute or other safety devices in place & working condition!
Safety Start Interlock System
The machine is equipped with a safety start interlock system
consisting of the Operator Presence Safety Lever and Deck Blade Switch.
IMPORTANT:

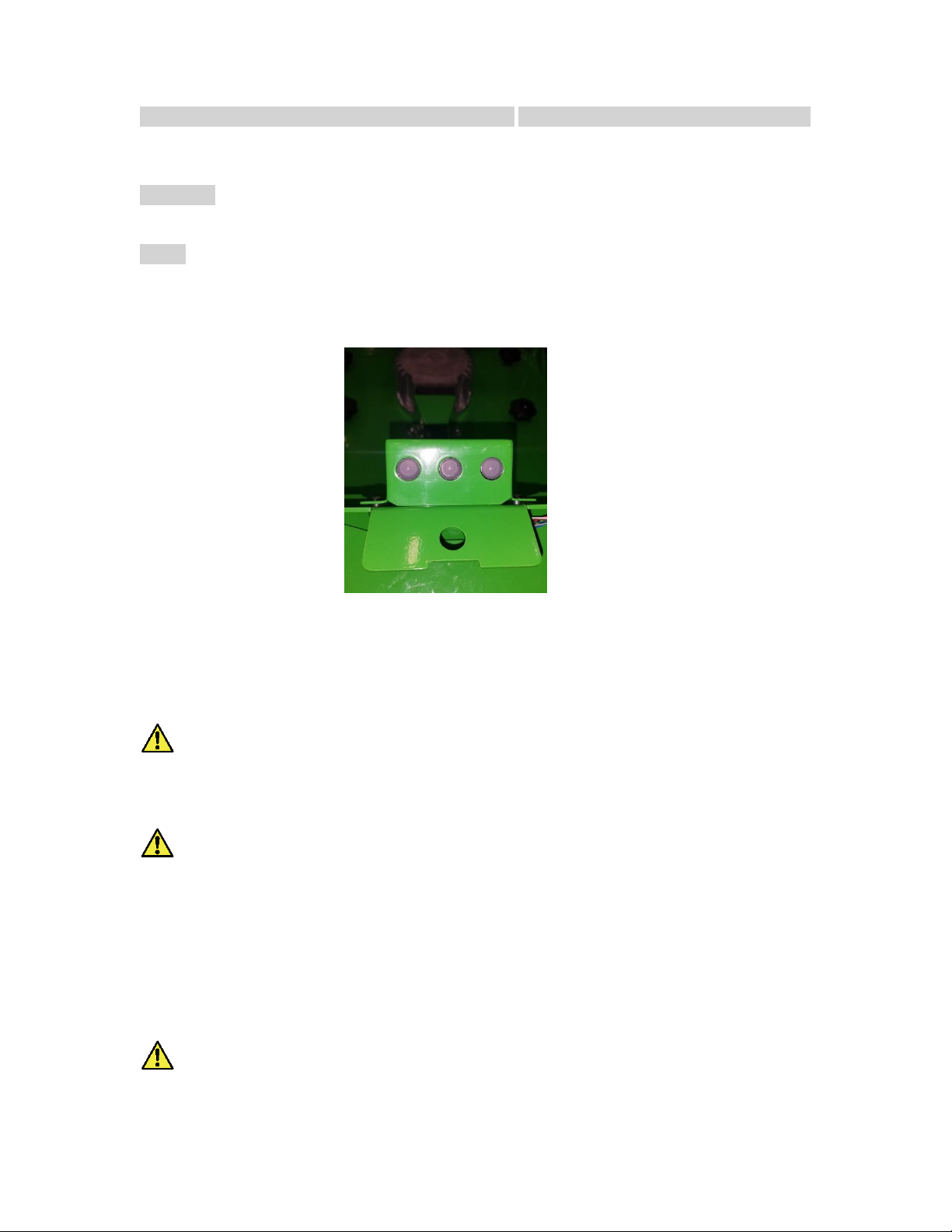

Blade Warning Light System: Fig.6A (located on top of mower in front of battery
compartment)
A 3 light system to assist operator with optimal mowing performance in all grass conditions
showing speed and performance of each blade. NOTE: Allow 10 seconds for the blade lights to
turn on after blades are engaged. (Operator can start mowing grass before lights are on.) The
lights run in order of the blades –for example, the left light is monitoring the left blade, center
light is monitoring center blade and right light is monitoring right blade. Once lights are on,
operator should see solid GREEN. This will indicate the blades are running at full speed and
optimal power.
GREEN Light: Operator can maintain speed and the cutting height is accurate for optimal
performance.
As the operator enters thicker grass, a light or lights (depending on which blade is cutting the
thickest grass) will be YELLOW. If this occurs, it is best to slow speed and allow blades to return
to GREEN. If slowing speed does not return lights to GREEN, operator may need to slightly raise
the deck to return to GREEN and an optimal cutting performance. A ¼ inch rise in the deck can
make a huge difference in cut quality and cutting speed especially in tall, wet grass.
YELLOW Light: Reduce speed. Operator may need to raise the deck ¼ inch to keep the deck at
optimal power and blade performance.
3C

15
If the operator continues to run the mower in YELLOW with longer, taller, wet grass, the lights
will turn RED. RED lights indicate the blade tip speed and power is at the lowest point and is on
the verge of shutting down. Continuing to run in RED will result in your blade or blades shutting
down completely, requiring the operator to turn Deck Blades Off and then On to reset the PTO.
TO AVOID THE BLADES SHUTTING OFF- SLOW DOWN AND RAISE DECK SLIGHTLY!
This means the grass is too tall, thick or wet and may need recut in this area for optimal
performance.
RED Light: Slow speed. Raise deck. You may need to look at double cutting area if grass is too
tall or thick.
NOTE: Once the blade/blades have shut down, the red light will go to a blinking green light. This
will inform the operator that a blade/blades have shut off and will need reset by turning Deck
Blades Switch Off and then On. Operator will also see flashing GREEN lights when turning the
mower deck blades off letting operator know that all blades have shut down.
Fig.6A
Operating suggestions
DANGER: Prior to operating the mower the operator should be thoroughly familiar with the proper
use and operation of the equipment, should read the manual completely and thoroughly, and should have
attempted slow moving maneuvers to become familiar with the operation of the equipment before
attempting normal speed operation. An inexperienced operator should not mow on slopes or on uneven
terrain and should always mow in Low Mode/Slow Drive Speed.
WARNING: Sharp depressions or raised obstacles (such as gutters or curbs) should not be directly
approached at high speed in an attempt to “jump” them as the operator could be thrown away from the
equipment. Approach at a slow speed and angle one drive wheel at the obstruction. Continue at an angle
until the wheel clears and then pivot the opposite wheel around. When turning on soft wet turf, keep both
wheels rolling either forward or backward. Pivoting on one stopped wheel can damage turf. This is
especially important when mowing. Keep blades sharp. Many professional mowing companies
have additional sets of blades and change blades twice a day: once in the morning and again at noon. Many
problems with incorrect cutting patterns are due to dull blades or blades which have been sharpened
incorrectly. Information on sharpening blades is listed in this manual’s maintenance section.
In addition, most communities have individuals or companies which specialize in sharpening mower
blades. Blade sharpness should be checked daily.
DANGER: Never work with blades while key is in the ignition switch. Always place deck blade
switch in the disengaged position, release Throttle Lever & Operator Presence Safety
Switch and turn key to the OFF position, remove key from switch and disconnect battery cables by pulling
disconnect battery cables by pulling LARGE RED exterior battery quick disconnect handle upward to
remove & disconnect all power to unit( located outer right rear battery box compartment). Wear gloves

16
when handling blades. Always check for blade damage if mower strikes a rock, a branch or another
foreign object during mowing!
Direct grass discharge to right (with side discharge models),
away from un-mown area. Select a mowing pattern that directs grass discharge
towards the outside, not towards center, of mowing area. Generally, this
means using a pattern utilizing left turns because side discharge
is to right. In any case, avoid throwing grass discharge onto
un-mowed area because grass is then mowed “twice”. Mowing
twice puts an unnecessary load on the unit and reduces mowing efficiency.
When mowing a lawn for the first time cut grass slightly
longer than normal to avoid scalping uneven terrain. When
possible, it is best to use the cutting height that was used in the
past. When cutting grass taller than six inches, you may want to
mow the lawn twice to achieve a better quality of cut. During normal mowing cut only about 1/3 of the
grass blade. Cutting more than that is not recommended unless grass is sparse or it is the end of the
mowing season. Alternate mowing direction to keep the grass growing straight and better dispersion of
the clippings. Remember, grass grows at different rates at different times of the year. Mow more often in
the early spring to maintain the same cutting height. As the growth rate slows in mid-summer,
mow less frequently. If you cannot mow at a regular interval, mow at a high cutting height; then mow again
two days later at a lower cutting height. Raise the cutting height of the mower if the cutting width of
the mower is wider than the previous mower. This ensures that uneven turf is not cut too short.
Raise the cutting height of the mower if the grass if slightly taller than normal or if it contains a high
degree of moisture. Then mow it again with the cutting height set lower.
WARNING: Never direct discharge of material from
mower deck towards bystanders. Do not operate the
mower without the discharge chute (with side discharge models).
MAINTENANCE & ADJUSTMENTS
Safe Servicing Practices
This product is capable of amputating hands and feet and
throwing objects. Always follow all safety instructions to avoid
serious injury or death.
Service
Park the mower on level ground. Rotate key to OFF position and remove key from switch before doing any
maintenance. Disconnect battery cables by disconnect battery cables by pulling LARGE RED exterior
battery quick disconnect handle upward to remove & disconnect all power to unit( located outer right rear
battery box compartment). Wait for all movement to stop before adjusting, cleaning or repairing. Repairs or
maintenance requiring power should be performed by trained maintenance personnel only. Read and
observe safety warnings in front of manual.
• Any maintenance operation that requires the removal of safety covers must be performed
by a trained service technician.
Before working on or under the deck, make certain master power ignition
switch is OFF and key is removed and deck blade switch cannot be accidentally
started. Disconnect battery cables by pulling disconnect battery cables by pulling LARGE RED exterior
battery quick disconnect handle upward to remove & disconnect all power to unit( located outer right rear
battery box compartment) for maximum safety! Repairs or maintenance requiring power should be
performed by trained maintenance personnel only.
Use a stick or similar instrument to clean under the mower making sure that no part of the body, especially
arms and hands are under mower. Keep your machine clean and remove any deposits of trash and
clippings, which can cause fires and overheating. Allow machine to cool before storing.
*Clean flammable material from machine. Prevent fires by keeping battery
compartment, deck and operator’s station clean of accumulated trash, grass clippings,
and other debris.*
Clean battery compartment, drive motor compartment, mower deck, seat etc. of all dirt and debris. DO
NOT spray electronics/battery compartment with water. Do not use, solvents, hard cleaners or
abrasives. Use only compressed air. Always wear adequate eye protection when servicing the
batteries, or when grinding mower blades and removing accumulated debris.
Never attempt to make any adjustments or repairs to the mower’s drive system, mower deck or any
attachment while the traction drive system is running or deck blades are
engaged. Repairs or maintenance requiring power should be performed by trained maintenance personnel
only. Never work under the machine or attachment unless it is safely supported with jack stands. Make
certain machine is secure when it is raised and placed on the jack stands.

17
The jack stands should not allow the machine to move
when the traction drive system is running and the drive
wheels are rotating. Use only certified jack stands. Use only appropriate jack stands, with a minimum
weight rating of 2000 pounds (907.2 kg) to block the unit up. Use in pairs only. Follow the instructions
supplied with the vehicle stands. Do not touch hot parts of machine.
Keep nuts and bolts tight, especially the blade attachment bolts. Keep equipment in good working
condition. Never tamper with safety devices. Check their proper operation regularly. Turn the key to the
OFF position before unclogging the discharge chute. Never clear the discharge chute with the machine
running. Turn the key to the OFF position and be sure the blades have stopped. Disconnect battery cables
by pulling disconnect battery cables by pulling LARGE RED exterior battery quick disconnect handle
upward to remove & disconnect all power to unit( located outer right rear battery box compartment) for
maximum safety before cleaning. Use a stick to clear a plugged
discharge area. Never use your hand!
Grass collection system components are subject to wear,
damage and deterioration, which could expose moving
parts or allow objects to be thrown. Frequently check
components and replace with manufacturer’s recommended
parts, when necessary.
Exercise caution when working under the deck as the mower blades are
extremely sharp. Wear gloves and use extra caution when servicing them.
Use only genuine Mean Green Mower parts to ensure that original standards are
maintained.
Always remove key and disconnect battery cables by pulling disconnect battery cables by pulling LARGE
RED exterior battery quick disconnect handle upward to remove & disconnect all power to unit( located
outer right rear battery box compartment) before working on this unit.
Always disconnect batteries when transporting unit.
Keep unit free of grass clippings, leaves and other debris. Wear adequate eye and hearing protection when
cleaning the unit. Always wear safety glasses and protective gear near battery. Use insulated tools.
Regular Maintenance
Regular maintenance is the best prevention for costly
downtime or expensive, premature repair. The following pages
contain suggested maintenance information and schedules
which the operator should follow on a routine basis. For more
detailed information order the correct parts manual for your unit.
Remain alert for unusual noises, they could be signaling a
problem. Visually inspect the machine for any abnormal wear or
damage. A good time to detect potential problems is while
performing scheduled maintenance service. Correcting the
problem as quickly as possible is the best insurance.
Daily inspect mower for grass clippings and wire and string
tangles. The underside of the mower deck may collect a buildup
of grass clippings and dirt, especially when grass is wet or
has high moisture content. This build-up will harden, restricting
blade and air movement and will probably show a poorer quality
of cutting. Therefore it should be removed routinely.
To do this it will be necessary to raise and block the deck,
using jack stands or blocks, in the full up position and scrape the
build-up from underneath.
Some repairs require the assistance of a trained service
mechanic and should not be attempted by unskilled personnel.
Consult Mean Green Products when assistance is needed.
Torque Values: WARNING: Particular attention must be given to
tightening the drive wheel lug nuts and blade spindle
bolts. Failure to correctly torque these items may
result in the loss of a wheel or blade, which can cause
serious damage or personal injury. Call your Mean Green Products Dealer for assistance.
Torque values are given below:
Ft.-lbs.
Wheel (lug) Nuts………. 65-75
Blade spindle bolt bottom. 60

18
Lug nuts only - It is recommended that these be checked after
the first 2 hours of operation, initially, every 100 hours and
following removal for repair or replacement.
Tires (Every 40 hours)
It is important for level mowing that the rear tires have the same
amount of air pressure. The recommended pressures are: 12 - 14 psi in rear tires.
Front tires are either no flat tires (do not require air) OR pneumatic tires with the
recommended pressures of 12-14 psi.
Lubrication
Use SAE multi-purpose grease for front wheel bearings.
IMPORTANT: Recommended maintenance at the beginning of each mowing season and every
50 hours of operation.
Electrical system
This mower operates on a 48 volt electrical system.
Refer to the Electrical section of this manual for detailed
information.
Mower blade maintenance
Check the mower blades daily, they are the key to power
efficiency and well-groomed turf. Keep them sharp, a dull blade
will tear rather than cut the grass, leaving a brown ragged top on
the grass within a few hours. A dull blade also requires more
power. Replace any blade which is bent, cracked or broken.
WARNING: Never attempt to straighten a bent blade by heating, or
weld a cracked or broken blade as the blade may break and cause serious
injury. Replace worn or damaged blades.
DANGER: Never work with blades while key is in
the ignition switch. Turn key to OFF position,
remove key from switch and disconnect battery cables by pulling disconnect battery cables by pulling
LARGE RED exterior battery quick disconnect handle upward to remove & disconnect all power to unit
(located outer right rear battery box compartment).
Block up mower when you must work under it. Wear gloves when handling blades. Always check for blade
damage if mower strikes a rock, branch or other foreign objects during mowing!
WARNING: Always wear adequate eye protection when grinding mower blades.
Mower blade removal
Use a 9/16” wrench or socket to remove the 3/8” cap screw
holding the blade to the motor shaft from underneath. It may be
necessary to use a 1-1/4” channel lock pliers to keep the blade adapter from
turning while removing blade cap screw. NOTE: The blade adapter will come off when the blade cap
screw is removed. Touch-up sharpening can be done with a file. Check the blades for balance following
grinding. A commercial balancing tool is available through most hardware
supply stores, or balancing can be done by placing the blade on an inverted line punch or 1/2” bolt. Blade
should not lean or tilt. Spin the blade slowly, blade should not wobble. If blade is out
of balance, true it up before reinstalling. Lay the blade on a flat surface and check for distortion. Replace
any distorted blade.
Mower blade installation
Do not re-use spindle bolts which have stripped, worn or undercut threads. Make sure that the blade adapter
is seated properly on the blade motor shaft before tightening the blade cap screw. Use a 9/16”
socket with a torque wrench to re-attach the blade to the motor shaft from underneath. It will be necessary
to use a 1-1/4” channel lock pliers to keep the blade adapter from turning. Torque cap
screws on motor shafts to 60 foot-pounds (67.8 Nm) when reinstalling blades.
IMPORTANT: The blade sail (curved part) must be pointing upward toward the inside of the deck to
ensure proper cutting.
IMPORTANT: When mounting blades, rotate them after installation to ensure blade tips do not touch each
other or sides of the mower.
WARNING: Failure to correctly torque the bolt may result in the loss of the blade which can cause
serious injury.

19
WARNING: Mower blades are sharp and can cut. Wear gloves and use extra caution when servicing
them.
Remove debris from rear (2each) air filtration vents. Check with each use that area is free and clear of
debris. Outer vents can be cleared by blowing with compressed air or a leaf blower. See figure 2A below.
Fig.2A
ELECTRICAL SYSTEM
Electrical System Safety
Remove key, disconnect battery cables by pulling up on
LARGE RED battery quick disconnect handle in battery box compartment
and read owner’s manual before adjusting or repairing unit. Always remove key and disconnect battery
cables by pulling disconnect battery cables by pulling LARGE RED exterior battery quick
disconnect handle upward to remove & disconnect all power to unit( located outer right rear battery box
compartment) before working on this unit.
Always disconnect battery cables by pulling disconnect battery cables by pulling LARGE RED exterior
battery quick disconnect handle upward to remove & disconnect all power to unit( located outer right rear
battery box compartment) when transporting unit. Keep unit free of grass clippings, leaves and other debris.
DO NOT spray water into battery/electronics compartment to clean unit. Use only compressed air in this
area. NOTE: Water can be used to clean outside areas of mower. Wear adequate eye and hearing protection
when cleaning the unit. Always wear safety glasses and protective gear near battery.
Use insulated tools. Clean battery compartment, drive motor compartment,
mower deck, seat etc. of all dirt and debris. Do not use solvents, hard cleaners or abrasives. Avoid injury.
With key in ON position mower blade can engage when deck switch is engaged, even if drive motor is not
turning. Keep area clear of bystanders when engaging switch.
All maintenance and storage areas should be properly ventilated in accordance with applicable fire codes
and ordinances to avoid fire hazards. Never allow flames, sparks or smoking near batteries.
Keep batteries out of reach of children. Always keep protective shields, covers and guards in
place and securely fastened. If they become damaged, repair or replace immediately. Never modify or
remove safety devices.
Electrical System Information
The Mean Green Mower is powered by a 48 volt electrical
system. It consists of the following components:
DWBX-33HD Walk Behind Mower
1. Deck controllers - (3)
2. Deck Motors - (3)
3. Accelerators - (2)
4. Digital battery display (1)
5. Integrated electric transaxle (2)
6. Lithium Energy Modules (LEMs)(1-2)
Component Maintenance
IMPORTANT: Maintenance for the various electrical
components found on the Mean Green Mower should only be performed
by a Mean Green Products trained technician.
IMPORTANT: When battery voltage becomes low, the mower drives will go into “creep” mode, the
drive motors will continue to run enabling driver to continue to drive unit. When the batteries discharge to

20
this point they require recharging. The unit should immediately be returned to the battery charging
area and the unit connected to the battery charger.
WARNING: Do not attempt to cross roads or railways
with low battery levels.
Battery Safety
WARNING: Charge batteries in an open well ventilated
area, away from spark and flames. Unplug charger
before connecting or disconnecting from the
charging port. Always wear safety glasses and protective
clothing/gear. Use insulated tools.
WARNING: A frozen battery can explode and
result in death or serious injury. Do Not charge batteries
if frozen. Thaw the batteries before connecting to charger.
WARNING: Sparks can cause a battery gas explosion
which will result in serious personal injury.
Prevent the battery terminals from touching any metal
mower parts when removing or installing the battery.
Do not allow metal tools to short between the battery
terminals and metal mower parts. Use insulated tools.
Always keep protective battery cover and rear cover in place.
WARNING: Incorrect battery cable routing could cause damage to the mower and battery cables.
This can cause sparks which can cause a battery gas explosion which will result in serious personal injury.
WARNING: Always disconnect battery cables by pulling disconnect battery cables by pulling
LARGE RED exterior battery quick disconnect handle upward to remove & disconnect all power to unit
(located outer right rear battery box compartment)when transporting unit.
Battery Connectors
The battery connectors are located under the battery cover.
Always disconnect battery cables by pulling LARGE RED exterior battery quick disconnect handle
upward to remove & disconnect all power to unit ( located outer right rear battery box compartment)before
performing maintenance on the unit.
Battery Maintenance
Your Mean Green Mower is powered by 1-2 Lithium Module(s) (LEM) which,
when maintained properly, will provide years of useful
life. For proper care, adhere to the following instructions:
WARNING: Charge only with a Mean Green Mower approved
charger. Do not use battery chargers other than those recommended by Mean Green Products. Incorrect
battery charging will void warranty and can lead to equipment damage, fire, serious injury or death.
1. Always charge batteries after each use, regardless of how little used. Once charging is complete, charger
can be disconnected. Charger will not turn back on once charging is complete. NOTE AGAIN: Unplug
charger from outlet and then from mower charging port!
2. Check that battery cables are securely tightened to batteries each time you service the battery.
3. Keep grass, dirt and debris from collecting near battery terminals.
4. Batteries are not to remain in a discharged state or damage to the batteries will occur.
5. Charge batteries indoors in a well-ventilated and dry location away from sparks or flames. Never expose
charger to rain, vapor or liquid (dry location use only).
6. Charge only Lithium Modules (LEMs) provided with the Mean Green Mower.
7. Do not touch un-insulated portion of charger (terminal pins) of output connector. (if applicable on
model)
8. Do not use with defective cords and wires. Replace defective cords and wires immediately.
Battery Charging Procedures and Options
LEM48140 lithium modules –approximate weight of 109-120 lbs.
