MeiDong KY-2020 User manual
Soundbar
User Manual
KY-2020
Contents
Features and Contents 1
Packaged Included 2
Installation 4
Get power and started 5
AUX Connections 6
RCA Connections 7
Bluetooth Connections 8
Operation 9
Troubleshooting 11
Troubleshooting&Warranty 12
FCC Warranty 13
Feedback 14
36
Version： Bluetooth 4.2
Features and Contents
01
R RCA IN L AUX
DCIN
1
8
6
7
9
10
2 3 4 5
M
1Standby
2Mode Switch
3Play/Pause
4VOL-
5VOL+
6LED indicator
7Wall Mount
8DC IN Socket
RCA IN L/R Sockets
9
AUX IN Socket
10
Packaged Included
Contents:
Before getting started, ensure the package contains the following components:
02

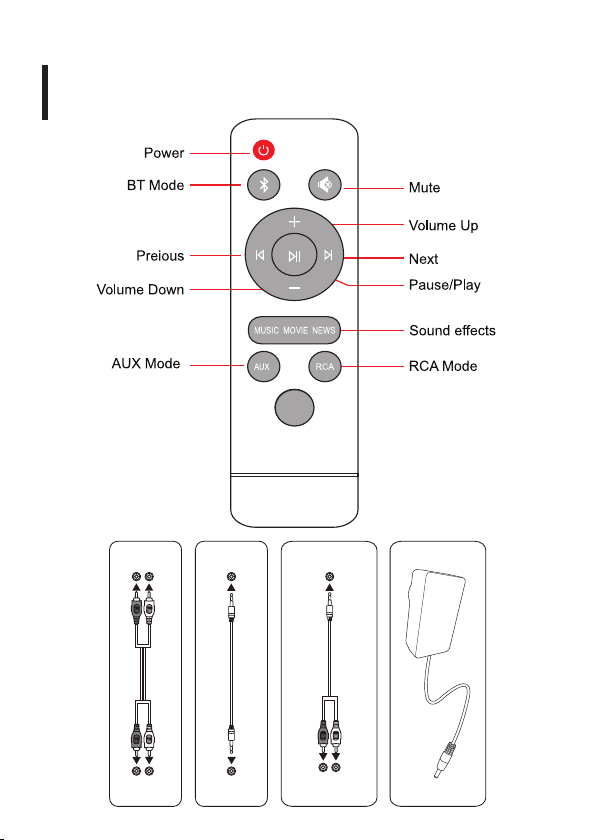

Packaged Included
Contents:
L R
L R
Audio InputAUX Input
Audio OutputAUX Output
L R
AUX Output Power adapter
Audio Input
03
Unpacking
• Remove all packaging.
• Check for the presence of all parts and for transport damage. In case of damage or incomplete
• Please keep the packaging. The appliance can be stored in it, if not used for a longer period of
time.
Intended use
The appliance serves as an audio output device and features wireless or wired connection.
Preparation
You can place the sound bar on a horizontal surface or mount it on a wall. When mounting it on a
wall, pay attention to the following:
• The supplied wall mount brackets can be used to fix the sound bar to a wall. The wall mount
brackets are designed for use on vertical walls constructed of solid concrete or bricks.
• When installing on a cinderblock wall, first verify that the blocks have a minimum of
of actual concrete wall thickness to be used for the wall plugs.
• If you are uncertain about the construction of your wall, please consult a qualified contractor
or installer for assistance.
• Ensure that the screws you use are strong enough to support the weight of the sound bar and
long enough to sufficiently grip the wall.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Use an electronic stud finder to check the wall type before drilling and mounting.
• During mounting, keep away children and pets.
• Make sure the sound bar is mounted in reach of a wall outlet.
Installation
04
Installation
Get power and started
IMPORTANT

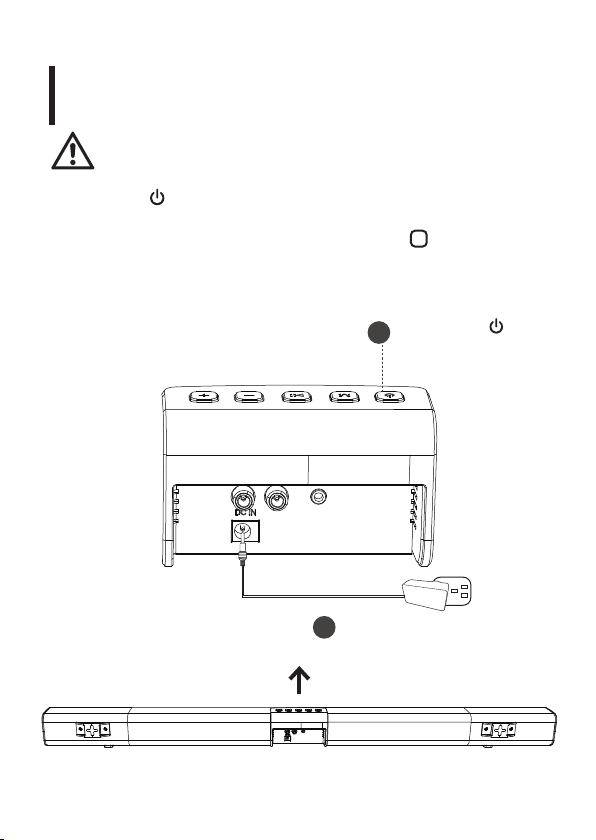

1.Use the “power adaptor” to connect from electronics outlet to get power.
2. Long press the " " button on the top of the sound bar Or the remote control to
enter Bluetooth Mode. When the LED Flash blue Unit will start searching for a Bluetooth
device to pair.Then you can select the connection mode by pressing M button,The LED indicator
will light up accordingly.
3. ready to pair with your audio device.
1
2
Use the “power adaptor” to connect from
electronics outlet to get power.
Long press the " " button
until the LED Flash blue
05
R RCA IN L AUX
Caution!
• Make sure the power adapter is connected from the electrical outlet before
making any connection.
• During operation, if the cables require to be reconnected, the power adapter must
be disconnected first. Otherwise damage to the appliance may result.
Installation
AUX Connections

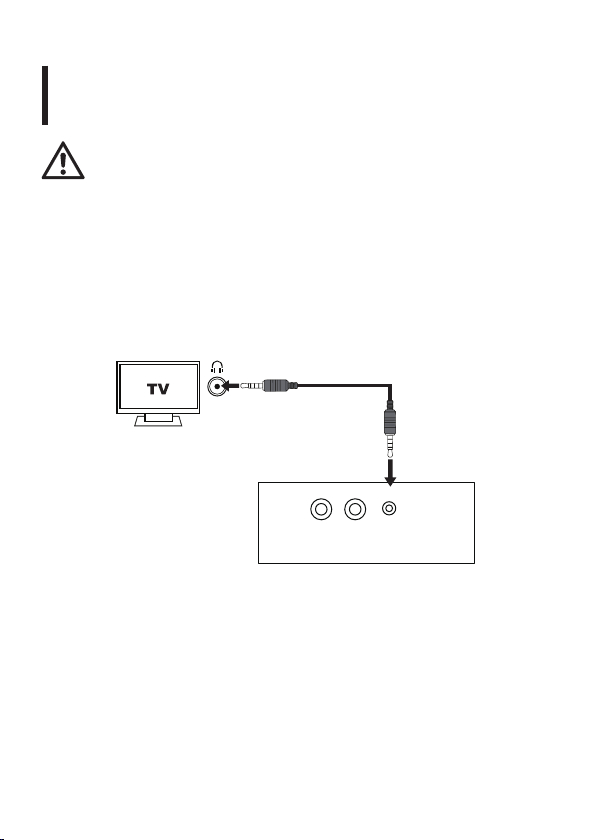

• Connecting the 1
/8inch (3.5 mm) audio cable:
- Connect one end to the headphone or aux in socket of the audio player
- Connect the other end to theAUX IN socket of the sound bar
06
*Note: If your TV don’t have Bluetooth/AUX/RCA connections, you can use
the RCA cable to conncet with your TV box to play.Or contact us firstly to
search for help, we will responsed you within 24 hours.
R RCA IN L AUX
R RCA IN L AUX
Installation
RCA Connections

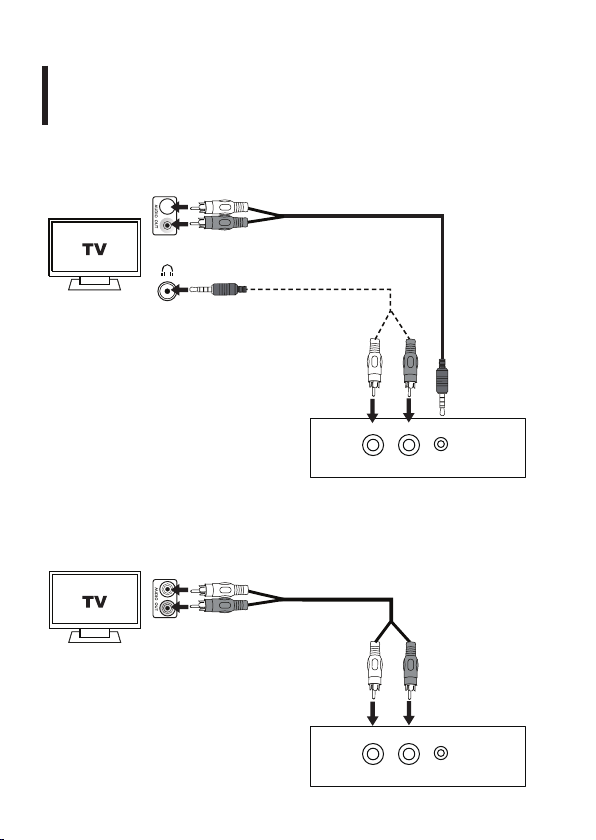

• Connecting the 3.5mm to RCA audio cable:
- Connect one end to the audio output sockets of the audio player
- Connect the other end to theRCA IN L/R sockets of the sound bar
07
• Connecting the RCA to RCA audio cable:
- Connect one end to the audio output sockets of the audio player
- Connect the other end to the RCA IN L/R sockets of the sound bar
Option 2
Option 1
Installation
Bluetooth Connection
1. Turn on the sound bar and then switch Bluetooth mode by short press M button on the
sound bar or remote until you find the indicator LED flashing blue.
2. Activate the Bluetooth function on your device and search for nearby Bluetooth connections.
For IOS: Settings > General > Bluetooth > On
For Android: Settings > Bluetooth > On > Scan for devices
3. Select “meidong” from the search results and tap to connect.
4. The Bluetooth indicator will turn solid BLUE, indicate a successful connection.
5. If connecting to Bluetooth through an adapter, you may require a password. Enter "0000"to
connect.
meidong
Flashing Blue
LED
08
Operation
Basic functions
Selecting a source
• You can have several source devices connected permanently to the sound bar.
• Available sources are: AUX / RCA / Bluetooth
Source Function
AUX Connection with a 1/8inch (3.5 mm) audio cable
RCA Connection with a RCA to RCA audio cable
Bluetooth Connection to a Bluetooth device via Bluetooth connection
• Press the button on the sound bar or on the remote to choose the source by RCA, AUX or
Bluetooth. The LED indicator will light up accordingly.
Note: The audio output of this appliance is affected by the settings of the connected source. If
necessary, adjust the settings of the source device to improve the audio output.
09
Button Control
Operation Status
Long press Standby/On
Short press Select Function(bluetooth, Line in, RCA)
Short press Play/Pause
Short press Volume-
Short press Volume+
Button
LED indicators
Function LED indicators Status
flashing Blue Ready to pair
Solid BluePaired
RCA Solid Green RCA Mode
AUX Solid White Line in Mode
Bluetooth Press the M button until LED Flashing Blue
How to Operate
Press the M button until LED turns White
Press the M button until LED turns Green
Operation
Basic functions
AUX
10
AUDIO OUT
L R
RCA OUT
TV BOX
Support TV, TV BOX, BD,
DVD, DVB and more...
The sound bar can be conencted with your device via Bluetooth,RCA, AUX.
And Support TV, TV BOX, BD,DVD, DVB and more...
*Note: If your TV don’t have Bluetooth/AUX/RCA connections, you can use
the RCA cable to conncet with your TV box to play.Or contact us firstly to
search for help, we will responsed within you 24 hours.
11
Troubleshooting
Problem Solution
Appliance does not
work
Check if the power plug is properly connected to an electrical outlet.
If the troubleshooting can’t solve your problem,pls contact us rstly via
[email protected], we will response you within 24 hours.
No sound • Increase the volume level.
• Press MUTE to restore sound.
• Ensure that the source device has correct volume settings and is
playing a track.
• Ensure the correct source device is selected ( “Basic functions”
on page 09).
Poor audio quality • Try with different source devices. If the problem still exists, check the
cable connections.
Bluetooth connection:
• Bring the Bluetooth device closer to the appliance and make sure
that no obstacles are disturbing the connection ( “Bluetooth
function” on page 08).
Cable connection:
• Ensure that the connector cables to the source devices are correctly
plugged in and the plugs are fully inserted
(“AUX Connections” on page 06 ).
(“Get power and started” on page 05 ).
(“RCA Connections” on page 07 ).
Remote control does
not work
• Ensure that the batteries are correctly inserted; if necessary, replace
the batteries.
• Bring the remote control closer to the sound bar and make sure
there are no obstacles in between. Ensure the remote control is
within 23 7
• Aim the remote control directly at the infrared receiver of the
appliance.
Appliance does not
react to pressed
buttons
It is a malfunction probably due to electrostatic discharge.
Disconnect the appliance from the power supply. Connect the power
plug again to an electrical outlet.
12
This product is covered by the meidong Product and Labor Warran-
ty for 18 months from the date of its original purchase. If manufac-
turing defects occur, please contact meidong support (support@mei-
dongaudio.com)
immediately to launch a warranty claim. We will instruct you on how
to return the defective unit back to us for repair or replacement. No
return will be accepted without seller authorization.
Troubleshooting
Problem Solution
Bluetooth device
cannot be connected
to sound bar
• Bring the Bluetooth device closer to the sound bar.
• Switch your device and/or sound bar off, then back on. Repeat the
pairing process.
• Make sure the sound bar is not connected to another Bluetooth
device.
• Make sure that you have selected meidong from the
Bluetooth device list on your device.
If the device is still not connected, try the following:
• Remove the sound bar from the list of ‘paired devices’ on your
phone/tablet.
• Turn the sound bar off and then on again.
• Pair it again with your phone/tablet. It should now successfully
establish the pairing.
Note: If none of the above solutions works, the Bluetooth device may be
malfunctioning. Try another bluetooth device. If not even the new device
can be connected, the sound bar may be malfunctioning. In this case,
please consult your dealer for repair.
13
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied antenna.
FCC ID: 2AB5T-KY2020
14
Feedback
Love it? Hate it?
Let us know with a customer review.
Meidong is committed to delivering customer-driven products that live up to your high standards.
We encourage you to write a review sharing your experiences with the product.
Please visit: amazon.com/review/review-your-purchases#
