Mellanox Technologies MHEH28-XSC User manual

Mellanox Technologies
ConnectX®IB Dual Port InfiniBand Adapter
Card User’s Manual
P/N: MHEH28-XSC, MHEH28-XTC, MHGH28-XSC, MHGH28-XTC,
MHGH29-XSC, MHGH29-XTC, MHJH29-XSC, MHJH29-XTC
Rev 1.2

2
Rev 1.2 Mellanox Technologies
© Copyright 2008. Mellanox Technologies, Inc. All Rights Reserved.
Mellanox Technologies, InfiniHost®, and ConnectX®are registered trademarks for Mellanox Technologies, Inc.
All other marks and names mentioned herein may be trademarks of their respective companies.
ConnectX IB Dual Port InfiniBand ®
Document Number: 2802
Mellanox Technologies, Inc.
2900 Stender Way
Santa Clara, CA 95054
U.S.A.
www.mellanox.com
Tel: [phone]
Fax: [phone]
Mellanox Technologies Ltd.
PO Box 586 Hermon Building
Yokneam 20692
Israel
Tel: [phone]
Fax: [phone]

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 3
Rev 1.2
Mellanox Technologies
Table of Contents
Table of Contents 3
List of Tables 4
List of Figures 5
Revision History 6
About this Manual 7
Chapter 1 Overview 8
1.1 Adapter Cards 8
1.2 Mellanox Part Numbering Legend 9
1.3 Finding the GUID and Serial Number on the Adapter Cards 10
Chapter 2 HCACard Installation 11
2.1 Hardware and Software Requirements 11
2.2 Installation Instructions 11
Chapter 3 DriverSoftwareand Firmware 13
3.1 Driver Software 13
3.2 Updating HCA Card Firmware 13
3.3 Single HCA Card Firmware Update 13
3.4 HCA Card Firmware Update as Part of a Cluster Firmware Update 13
Chapter 4 AdapterCardInterfaces 14
4.1 I/O Interfaces 14
4.2 I2C Compatible Interface 15
4.3 Power 15
4.4 Memory 16
4.5 VPDs 16
AppendixA Specifications 26
A.1 Board Mechanical Drawing and Dimensions 26
A.2 EMC Certification Statements 27
A.3 MHEH28-XSC and MHEH28-XTC Specifications 29
A.4 MHGH28-XSC and MHGH28-XTC Specifications 29
A.5 MHGH29-XSC and MHGH29-XTC Specifications 30
A.6 MHJH29-XSC and MHJH29-XTC Specifications 32
AppendixB Interface Connectors Pinout 33
B.1 I2C-Compatible Connector Pinout 33
B.2 InfiniBand Connector Pinout 33
B.3 PCI Express x8 Connector Pinout 34
AppendixC Replacing a Tall Bracket With a Short Bracket on HCA Cards 35
C.1 Removing Tall Bracket 35
C.2 Placing a Kapton® Polyimide Label 37
C.3 Assembling Short Bracket 38
AppendixD Avertissements de sécurité d’installation 41

4
Rev 1.2 Mellanox Technologies
List of Tables
Table 1: Revision History Table 6
Table 2: Documents List 7
Table 3: HCA Cards 8
Table 4: Mellanox HCA Cards Part Numbering Key 9
Table 5: Hardware and Software Requirements 11
Table 6: LEDs 15
Table 7: Jumper Configuration 16
Table 8: VPD Layout for MHEH28-XSC 17
Table 9: VPD Layout for MHEH28-XTC 18
Table 10: VPD Layout for MHGH28-XSC 19
Table 11: VPD Layout for MHGH28-XTC 20
Table 12: VPD Layout for MHGH29-XSC 21
Table 13: VPD Layout for MHGH29-XTC 22
Table 14: VPD Layout for MHJH29-XSC 23
Table 15: VPD Layout for MHJH29-XTC 24
Table 16: HCA Cards Certification Status 27
Table 17: Specifications for MHEH28-XSC/-XTC 29
Table 18: Specifications for MHGH28-XSC/-XTC 29
Table 19: Specifications for MHGH29-XSC/-XTC 30
Table 20: Specifications for MHJH29-XSC/-XTC 32
Table 21: I2C-compatible Connector Pinout 33
Table 22: Connector Pin Name and Number to Signal Name Correspondence 34

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 5
Rev 1.2
Mellanox Technologies
List of Figures
Figure 1: HCA Card 8
Figure 2: Port Numbering 14
Figure 3: Physical and Logical Link Indications 15
Figure 4: I2C Connector 15

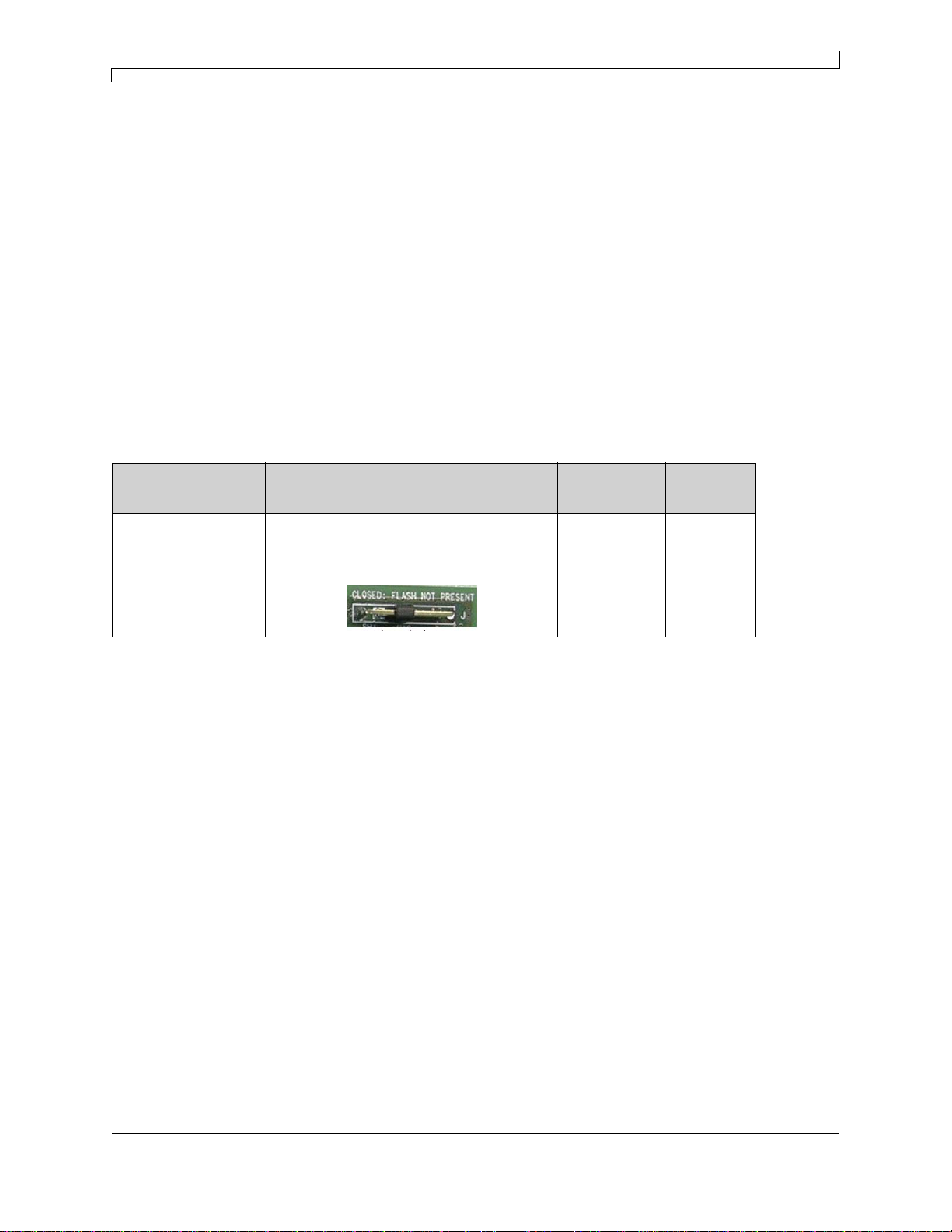

Figure 5: Flash Jumper 16
Figure 6: Schematic of the ConnectX IB HCA Card with CX4 Connectors 26
Figure 7: I2C-Compatible Connector Plug and Pinout 33
Figure 8: InfiniBand CX4 Connector Pinout 33
Figure 9: Tall Bracket of a Dual IB Port HCA Card 35
Figure 10: Connector Retention Clip 35
Figure 11: Extracting Connector Clip 36
Figure 12: Bracket Screws 36
Figure 13: Rotate the Bracket to Detach it From the Card 37
Figure 14: Hold Kapton Label With Pincers 37
Figure 15: Place Label on Print Side With Label’s and Card’s Holes Aligned 38
Figure 16: Ensure That Label is Well-attached 38
Figure 17: Place Short Bracket onto Card 39
Figure 18: Attach Bracket onto Card using Screws 39
Figure 19: Sliding Connector Clip Evenly 40
Figure 20: Assembled Short Bracket 40
Figure 21: Print Side View After Short Bracket Assembly With Kapton Label 40

6
Rev 1.2 Mellanox Technologies
Revision History
This document was printed on August 6, 2008 10:52 am.
Table 1 - Revision History Table
Date Rev Comments/Changes
August 2008 1.2 Removed watermark
May 2008 0.31 Added CTUVUS and CB report status to Cert Table in Appendix A.
April 2008 0.30 Preliminary release User’s Manual for ConnectX IB Adapter Cards
Added C-tick a nd Mic for relevant cards
Changed OFED link to Mellanox OFED
Removed Confidential

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 7
Rev 1.2
Mellanox Technologies
About this Manual
This User’s Manual describes Mellanox Technologies ConnectX IB PCI Express x8 HCA Adapter cards. It provides
details as to the interfaces of the board, specifications, required software and firmware for operating the board, and
relevant documentation.
Intended Audience
This manual is intended for the installer and user of these cards.
The manual assumes basic familiarity with Infiniband™ networks and architecture specifications.
Related Documentation
Table 2 - Documents List
Online Resources
• Mellanox Technologies Web pages: http://www.mellanox.com
• Mellanox Technologies Firmware download Web page: http://www.mellanox.com/ under Firmware downloads
• Mellanox Technologies Document Distribution System (DDS): http://docs.mellanox.com (requires a customer
login account)
Document Conventions
When discussing memory sizes, MB and MBytes are used in this document to mean size in mega bytes. The use of
Mb or Mbits (small b) indicates size in mega bits.
Mellanox Firmware Tools (MFT) User’s Manual
Document no. 2204UG User’s Manual describing the set of MFT firmware management tools for a single InfiniBand node. See http://www.mellanox.com under
‘Firmware’ downloads.
Mellanox MST User’s Manual
Document no. 2125SM This manual describes various tools and utilities, included in the Mel- lanox Software Tools (MST) package, for accessing, burning firmware,
and tracing Mellanox silicon devices.
InfiniBand Administration (IBADM) Package User’s Manual
Document no. 2130UM User’s Manual describing the utilities included in the IBADM tools package for system administration of an InfiniBand cluster. See
http://www.mellanox.com under ‘Management Tools’.
IB Specifications Release 1.0.a Infiniband Architecture Specifications
PCI Express 2.0 Specifications Industry Standard PCI Express 2.0 Card Electromechanical Specifica-
tion, Rev 1.3.

Overview
8
Rev 1.2 Mellanox Technologies
1 Overview
This document is a User’s Manual for Mellanox Technologies host channel adapter (HCA) Cards based on the
MT25408 ConnectX®IB integrated circuit device. The cards described in this manual have the following main fea-
tures:
• IBTA v1.2 compliant
• Two 4X InfiniBand CX4 copper ports for connecting InfiniBand traffic (4X IB connectors)
• PCI Express 2.0 (1.1 compatible) through an x8 edge connector up to 5GT/s
• ‘Media detect circuit’ with powered connectors supporting the use of active cables and external PHY fiber solu-
tions
• EU Restriction of Hazardous Substances (RoHS) compliant
• SDR/DDR/QDR: IB10Gb/s (SDR) or 20Gb/s (DDR) or 40Gb/s (DDR)
• Two bracket heights: short or tall

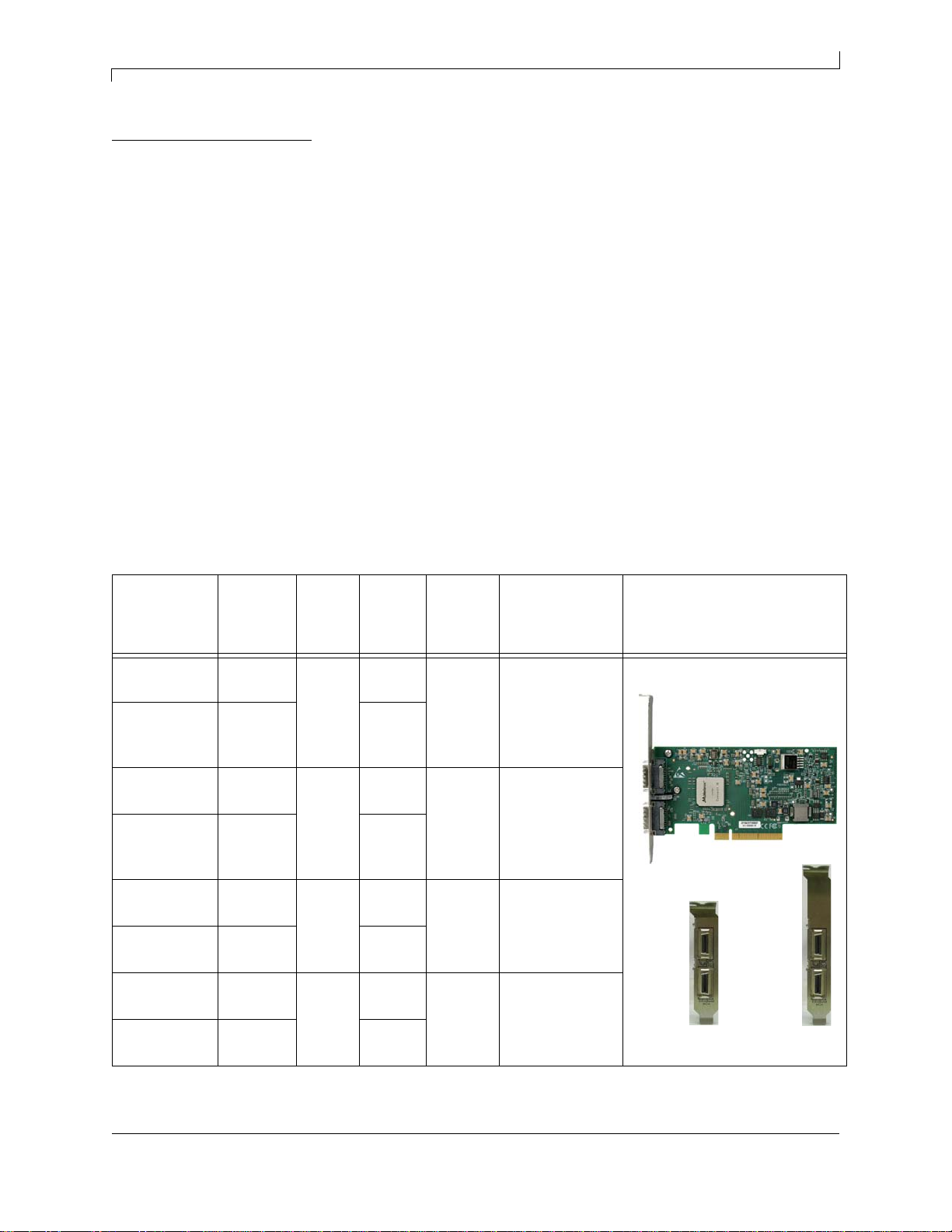

1.1 Adapter Cards
• Table 3 lists the InfiniBand HCA cards described in this manual.
Table 3 - HCA Cards
Ordering Part
Number (OPN)
PCI
Express
SERDES
Speed
IBSDR
/ DDR
Short /
Tall
Bracket
RoHS
Complian
ce
HCA IC
Part Number HCA Card Photo (1)
1. The HCA cards have a similar form and fit. The main visible difference is in the bracket height.
MHEH28-XSC 2.5 GT/s SDR Short RoHS-R5
(with
exemp-
tion)
MT25408A0-FCC-
SI
MHEH28-XTC 2.5 GT/s Tall
MHGH28-XSC 2.5 GT/s DDR Short RoHS-R5
(with
exemp-
tion)
MT25408A0-FCC-
DI
MHGH28-XTC 2.5 GT/s Tall
MHGH29-XSC 5.0 GT/s DDR Tall RoHS-R5
(with
exemp-
tion)
MT25408A0-FCC-
GI
MHGH29-XSC 5.0 GT/s Tall
MHJH29-XSC 5.0 GT/s QDR Tall RoHS-R5
(with
exemp-
tion)
MT25408A0-FCC-
JI
MHJH29-XTC 5.0 GT/s Tall
Tall
Bracket
(-XTC)
Short
Bracket
(-XSC)
Figure 1: HCA Card

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 9
Rev 1.2
Mellanox Technologies
1.2 Mellanox Part Numbering Legend
Table 4 describes the Mellanox Technologies adapter cards part numbering legend.
For example, the part number MHGH28-XSC describes Mellanox Technologies’ ConnectX™ IB HCA card with
dual CX4 ports, a PCIe2.0 x8 2.5GT/s interface, no on-board memory (mem-free), a short PCI bracket, and RoHS R5
compliance. Using the legend,
• field M = M to indicate a Mellanox Technologies product,
• field H = H to indicate an InfiniBand Adapter Card,
• field T = G to indicate CX4 DDR,
• field S = H to indicate the ConnectX family,
• field # = 2 to indicate two ports,
• field I = 8 to indicate PCI Express 2.0 x8 running at 2.5GT/s,
• field X = X to indicate no on-board memory,
• field B = S to indicate a short bracket, and
• field R = C to indicate RoHS R5 (w/ Exemptions) compliance
Table 4 - Mellanox HCA Cards Part Numbering Key
HCA Card OPN
MHTS#I-XBR Field Decoder
M Mellanox
Technologies
H Adapter Type H = InfiniBand Host Channel Adapter, N = Ethernet Network Interface Card, S = Express Module
T Media E=CX4 SDR, G=CX4 DDR, J=CX4 QDR, K=XFP SR, M=SFP+ SR, N=SFP+ LRM, O=SFP+
LR, Q=QSFP QDR, R=QSFP DDR, T=UTP
S Silicon H = ConnectX, S = InfiniHost III Lx®, T= InfiniHost®, A= InfiniHost®III Ex
# # ports 1 = 1, 2 = 2,
I Host Interface X = PCI-X, 4 = PCIe x4, 8 = PCIe x8, 9 = PCIe (SerDes @ 5.0 GT/s)
G Generation <blank> = Initial product generation
- Separator
X Memory Size X = MemFree, 1=128MB, 2=256MB, 3=512MB
B Bracket S = Short, T = Tall, N = None
R RoHS <blank> = non RoHS, C = RoHS w/ Exemption, R = RoHS Lead-Free

Overview
10
Rev 1.2 Mellanox Technologies

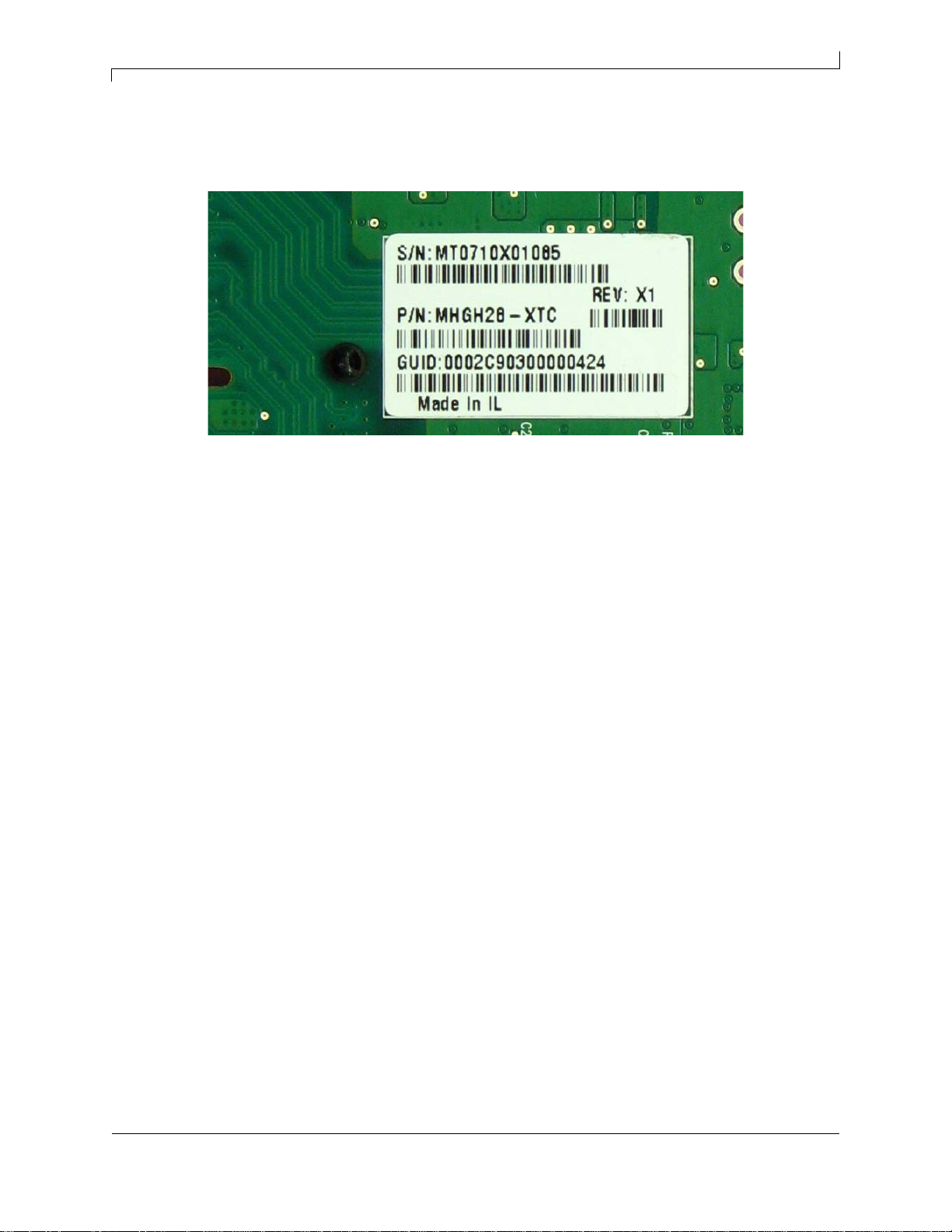

1.3 Finding the GUID and Serial Number on the Adapter Cards
All mellanox HCA adapter cards have a label on the printed side of the adapter card that has the card serial number
and the card GUID.

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 11
Rev 1.2
Mellanox Technologies
2 HCA Card Installation
2.1 Hardware and Software Requirements
Before installing the HCA Adapter card, please make sure that the system meets the hardware and software require-
ments listed in Table 5.
2.2 Installation Instructions
Read all installation instructions before connecting the equipment to the power source.
2.2.1 Installation Safety Warnings
1. Installation Instructions
2. Over-temperature
3. During Lightning - Electrical Hazard
4. Copper InfiniBand Cable Connecting/Disconnecting
Table 5 - Hardware and Software Requirements
Requirement Description
Hardware PCI Express x8 or x16 slots
Software
Operating
Systems/Distributions
• For Windows see WinIB ReadMe at https://docs.mellanox.com/dm/WinIB/ReadMe.html
• For Linux see Mellanox OpenFabrics Enterprise Distribution (OFED) software package available via the
Mellanox OpenFabrics Web site http://www.mellanox.com/products/ofed.php
Read all installation instructions before connecting the equipment to the power source.
This equipment should not be operated in an area with an ambient temperature exceed-
ing the maximum recommended5°C (°F). Moreover, to guarantee proper air flow, allow
at least 8cm (3 inches) of clearance around the ventilation openings.
During periods of lightning activity, do not work on the equipment or connect or discon-
nect cables.
Copper InfiniBand cables are heavy and not flexible, as such they should be carefully
attached to or detached from the connectors. Refer to the cable manufacturer for special
warnings and instructions.

HCA Card Installation
12
Rev 1.2 Mellanox Technologies
5. Equipment Installation
6. Equipment Disposal
7. Local and National Electrical Codes
2.2.2 Installation Instructions
The adapter cards listed in Table 3 on page 8 are standard PCI Express 8 cards each with a standard x8 edge connec-
tor. Please consult the host machine documentation for instructions on how to install a PCI Express card.
This equipment should be installed, replaced, or serviced only by trained and qualified
personnel.
Disposal of this equipment should be in accordance to all national laws and regulations.
This equipment should be installed in compliance with local and national electrical
codes.

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 13
Rev 1.2
Mellanox Technologies
3Driver Software and Firmware
3.1 Driver Software
For Linux, download and install the latest OpenFabrics Enterprise Distribution (OFED) software package available
via the Mellanox OpenFabrics Web site at http://www.mellanox.com/products/ofed.php. Follow the installation
instructions included in the download package.
For Windows, download the appropriate software from https://docs.mellanox.com/dm/WinIB/ReadMe.html.
3.2 Updating HCA Card Firmware
Each HCA card is shipped with the latest version of qualified firmware at the time of manufacturing. Firmware is
updated occasionally, and the most recent firmware can be obtained from http://www.mellanox.com through the
‘Firmware’ downloads link.
3.3 Single HCA Card Firmware Update
Firmware can be updated on the standalone single card using the flint tool of the Mellanox Firmware Tools (MFT)
package. This package is available for download, along with its user’s manual, from the single HCA card firmware
update page. See http://www.mellanox.com under ‘Firmware’ downloads.
A firmware binaries table lists a binary file per HCA card. The file name of each such binary is composed by combin-
ing the firmware name, the firmware release version, and the card part number. Please contact your assigned Field
Application Engineer if you cannot find the firmware binary for your adapter card. This may happen if the product is
not yet available for general distribution.
3.4 HCA Card Firmware Update as Part of a Cluster Firmware Update
If the HCA card is part of an InfiniBand cluster, its firmware can be updated as part of the entire cluster firmware
update1, using the ibfwmgr tool of the IB administration (IBADM) tools package. IBADM is available for download
from http://www.mellanox.com, through the Management Tools download link. Check the ‘Firmware’ downloads
link for cluster update instructions.
1. Currently, only the Linux distributions support updating firmware for an entire InfiniBand cluster.

Adapter Card Interfaces
14
Rev 1.2 Mellanox Technologies
4Adapter Card Interfaces
4.1 I/O Interfaces
Each HCA card includes the following interfaces:
• Two 4X InfiniBand Copper Connectors
• PCI Express x8 edge connector
• I/O panel LEDs
•I
2C compatible connector (for debug)
4.1.1 InfiniBand Interface
The ConnectX®IB (MT25408)device is compliant with the InfiniBand Architecture Specification, Release 1.2. It has
two compliant 4X InfiniBand ports, 1 and 2, each having four Tx/Rx pairs of SerDes. Each of the HCA cards (listed
in Table 3 on page 8) based on this device provides access to these ports by means of two InfiniBand connectors.
These cards are also compliant with the IBTA specification 1.2. Connector 1 connects to port 1 of the device, while
connector 2 connects to port 2.
Figure 2: Port Numbering
Each of the HCA cards is embedded with a ‘media detect circuit’ that supports active cables and external InfiniBand
fiber solutions to be connected to the InfiniBand port connectors. Fiber Solutions require the use of active media con-
verters.
Port 1
Port 2

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 15
Rev 1.2
Mellanox Technologies
The cards can be either a master initiating the PCI Express bus operations or a slave responding to PCI bus opera-
tions.
4.1.2 LED Assignment
The board has four LEDs located on the I/O panel - 2 LEDs per port. The green LED, when lit, indicates that the
InfiniBand driver is running and a valid physical connection between nodes exists. The yellow LED when lit, indi-
cates a valid data activity link, this is the logical link. The yellow LED illuminates when the InfiniBand network is
discovered over the physical link. A valid data activity link without data transfer is designated by a constant yellow
LED indication. A valid data activity link with data transfer is designated by a blinking yellow LED indication. If the
LEDs are not active, either the physical link or the logical link (or both) connections have not been established.
Figure 3: Physical and Logical Link Indications
Note: The short bracket has the same port and LED footprint as the tall bracket.
4.2 I2C Compatible Interface
A three-pin header on the HCA card is provided as the I2C compatible interface. See Figure 6 on page 26 for the loca-
tion on the board.
Figure 4: I2C Connector
4.3 Power
All adapter cards receive power from the PCI Express Edge connector. All other required power voltages are gener-
ated by on-board switch mode regulators. See “Specifications” on page 26.
Table 6 - LEDs
Port Number LED Name
Port 1 Physical Link - Green
Constant on indicates a good physical link
Blinking indicates a problem with the Physical link
Data Activity - Yellow
Blinking indicates Data Transfer
Constant on indicates no Data Transfer
Port 2 Physical Link - Green
Constant on indicates a good physical link
Blinking indicates a problem with the Physical link
Data Activity - Yellow
Blinking indicates Data Transfer
Constant on indicates no Data Transfer
Port 1
Port 2

Adapter Card Interfaces
16
Rev 1.2 Mellanox Technologies
4.4 Memory
The HCA cards support multiple memory devices through the PCI Express, Flash, and I2C-compatible interfaces.
4.4.1 System Memory
Each of the HCA cards utilizes the PCI Express interface to store and access IB fabric connection information and
packet data on the system memory.
4.4.2 Flash
Each of the HCA cards includes one 2MB SPI Flash device (M25P80 device by ST Microelectronics) accessible via
the Flash interface of the MT25408 ConnectX IB device.
There is a jumper on each adapter card that indicates to the device whether an on-board Flash device exists (or is to be
used). Table 7 provides information on this jumper. See Figure 6 on page 26 for the jumper location.
4.4.3 EEPROM
Each board incorporates an EEPROM that is accessible through the I2C-compatible interface. The EEPROM is used
for storing the Vital Product Data (VPD). The VPD format adheres to the PCI Local Bus specification rev 2.3 VPD
definition. The EEPROM capacity is 512 bytes.
4.5 VPDs
Table 7 - Jumper Configuration
Description Option Card Default
Configuration Comments
Flash present/ not present connection open – Flash present
connection shorted – Flash not present
Figure 5: Flash Jumper
connection open
– Flash present Header 1x2

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 17
Rev 1.2
Mellanox Technologies
The PCI VPD (Vital Product Data) layout, for each of the described Mellanox Technologies ®ConnectX IB HCA
adapter cards, complies with the format defined in the PCI 2.3 Specification, Appendix I. All ConnectX IB HCA
adapter cards share the same PCI VPD layout.“A1” was used as the HCA card (PCB) revision. Later revisions of the
HCA card will have the same format.
Note: “A1” was used as the HCA card (PCB) revision. Later revisions of the HCA card will have the same
format.
Table 8 - VPD Layout for MHEH28-XSC
Offset (Decimal) Item Value Format Description
0 Large Resource Type ID String Tag (0x02) 0x82
1 Length [7:0] LSB 0x9
2 Length [15:8] MSB 0x0
3DataEagleSDRSTR
12 Large Resource Type VPD-R Tag (0x10) 0x90
13 Length [7:0] LSB 0x4F
14 Length [15:8] MSB 0x00
15 VPD Keyword PN STR Add in Card Part Number
17 Length 0x15
18 PN MHEH28-XSC %STR_SPC
39 VPD Keyword EC STR Engineering Change
Level of the card (rev)
41 Length 0x2
42 Revision A1 %STR PCB revision
44 VPD Keyword SN STR Serial Number
46 Length 0x18
47 Serial Number %STR_SPC “00..00XXXX..XX”
71 VPD Keyword V0 STR Misc. Information
73 Length 0x10
74 Data PCIe x8 STR_SPC
90 VPD Keyword RV STR
92 Length 0x1
93 Data 0,92 %CS0
94 Large Resource Type VPD-W Tag (0x11) 0x91
95 Length [7:0] LSB 0x9E
96 Length [15:8] MSB 0x00
97 VPD Keyword V1 STR EFI Driver version
99 Length 0x6
100 Data N/A STR_SPC
106 VPD Keyword YA STR Asset Tag
108 Length 0x20
109 Data N/A STR_SPC “N/A”
141 VPD Keyword RW STR Remaining read/write
area
143 Length 0x6F
144 Data STR_ZERO Reserved (0x00)
255 Small Resource Type END Tag (0x11) 0x78

Adapter Card Interfaces
18
Rev 1.2 Mellanox Technologies
Note: “A1” was used as the HCA card (PCB) revision. Later revisions of the HCA card will have the same
format
Table 9 - VPD Layout for MHEH28-XTC
Offset (Decimal) Item Value Format Description
0 Large Resource Type ID String Tag (0x02) 0x82
1 Length [7:0] LSB 0x9
2 Length [15:8] MSB 0x0
3DataEagleSDRSTR
12 Large Resource Type VPD-R Tag (0x10) 0x90
13 Length [7:0] LSB 0x4F
14 Length [15:8] MSB 0x00
15 VPD Keyword PN STR Add in Card Part Number
17 Length 0x15
18 PN MHEH28-XTC %STR_SPC
39 VPD Keyword EC STR Engineering Change
Level of the card (rev)
41 Length 0x2
42 Revision A1 %STR PCB revision
44 VPD Keyword SN STR Serial Number
46 Length 0x18
47 Serial Number %STR_SPC “00..00XXXX..XX”
71 VPD Keyword V0 STR Misc. Information
73 Length 0x10
74 Data PCIe x8 STR_SPC
90 VPD Keyword RV STR
92 Length 0x1
93 Data 0,92 %CS0
94 Large Resource Type VPD-W Tag (0x11) 0x91
95 Length [7:0] LSB 0x9E
96 Length [15:8] MSB 0x00
97 VPD Keyword V1 STR EFI Driver version
99 Length 0x6
100 Data N/A STR_SPC
106 VPD Keyword YA STR Asset Tag
108 Length 0x20
109 Data N/A STR_SPC “N/A”
141 VPD Keyword RW STR Remaining read/write
area
143 Length 0x6F
144 Data STR_ZERO Reserved (0x00)
255 Small Resource Type END Tag (0x11) 0x78

ConnectX IB Dual Port InfiniBand Adapter Cards With PCI Express x8 User’s Manual 19
Rev 1.2
Mellanox Technologies
.
Note: “A1” was used as the HCA card (PCB) revision. Later revisions of the HCA card will have the same
format
Table 10 - VPD Layout for MHGH28-XSC
Offset (Decimal) Item Value Format Description
0 Large Resource Type ID String Tag (0x02) 0x82
1 Length [7:0] LSB 0x9
2 Length [15:8] MSB 0x0
3DataEagleSDRSTR
12 Large Resource Type VPD-R Tag (0x10) 0x90
13 Length [7:0] LSB 0x4F
14 Length [15:8] MSB 0x00
15 VPD Keyword PN STR Add in Card Part Number
17 Length 0x15
18 PN MHGH28-XSC %STR_SPC
39 VPD Keyword EC STR Engineering Change
Level of the card (rev)
41 Length 0x2
42 Revision A1 %STR PCB revision
44 VPD Keyword SN STR Serial Number
46 Length 0x18
47 Serial Number %STR_SPC “00..00XXXX..XX”
71 VPD Keyword V0 STR Misc. Information
73 Length 0x10
74 Data PCIe x8 STR_SPC
90 VPD Keyword RV STR
92 Length 0x1
93 Data 0,92 %CS0
94 Large Resource Type VPD-W Tag (0x11) 0x91
95 Length [7:0] LSB 0x9E
96 Length [15:8] MSB 0x00
97 VPD Keyword V1 STR EFI Driver version
99 Length 0x6
100 Data N/A STR_SPC
106 VPD Keyword YA STR Asset Tag
108 Length 0x20
109 Data N/A STR_SPC “N/A”
141 VPD Keyword RW STR Remaining read/write
area
143 Length 0x6F
144 Data STR_ZERO Reserved (0x00)
255 Small Resource Type END Tag (0x11) 0x78

Adapter Card Interfaces
20
Rev 1.2 Mellanox Technologies
.
Table 11 - VPD Layout for MHGH28-XTC
Offset (Decimal) Item Value Format Description
0 Large Resource Type ID String Tag (0x02) 0x82
1 Length [7:0] LSB 0x9
2 Length [15:8] MSB 0x0
3DataEagleSDRSTR
12 Large Resource Type VPD-R Tag (0x10) 0x90
13 Length [7:0] LSB 0x4F
14 Length [15:8] MSB 0x00
15 VPD Keyword PN STR Add in Card Part Number
17 Length 0x15
18 PN MHGH28-XTC %STR_SPC
39 VPD Keyword EC STR Engineering Change
Level of the card (rev)
41 Length 0x2
42 Revision A1 %STR PCB revision
44 VPD Keyword SN STR Serial Number
46 Length 0x18
47 Serial Number %STR_SPC “00..00XXXX..XX”
71 VPD Keyword V0 STR Misc. Information
73 Length 0x10
74 Data PCIe x8 STR_SPC
90 VPD Keyword RV STR
92 Length 0x1
93 Data 0,92 %CS0
94 Large Resource Type VPD-W Tag (0x11) 0x91
95 Length [7:0] LSB 0x9E
96 Length [15:8] MSB 0x00
97 VPD Keyword V1 STR EFI Driver version
99 Length 0x6
100 Data N/A STR_SPC
106 VPD Keyword YA STR Asset Tag
108 Length 0x20
109 Data N/A STR_SPC “N/A”
141 VPD Keyword RW STR Remaining read/write
area
143 Length 0x6F
144 Data STR_ZERO Reserved (0x00)
255 Small Resource Type END Tag (0x11) 0x78
