Meterk Z1J-GW20-13 User manual

Translation of the original instructions
IMPACT DRILL
Z1J-GW20-13
IMPACT DRILL
US

2
1
2 3
1 2 3
7
4
6
5
8
1
8
8
2

3
A
B
4 5
67
8
2
8
1
7
6
5
4
3
3

4
1. Proper usage
The machine is intended for impact drilling in
brick, concrete and stone as well as for drilling
in wood, metal and plastic. Machines with
electronic control and right/left rotation are also
suitable for screwdriving and thread-cutting.
2. Safety instructions and warnings
The equipment complies with the safety
regulations required for electrical equipment.
Read through the instructions for use before
starting up the equipment.
Improper use can lead to personal injury and
property damage. Persons, who are not familiar
with the instructions, may not operate the
equipment.
Keep the instructions for use in safe custody.
This device may be used by children of at least
8 years old and persons with reduced physical,
organoleptic or mental characteristics, or with no
experience or knowledge if they are supervised
or instructed to use the device safely and if they
understand the hazards associated with the
use of the device.Children should not play with
an electrical appliance.Children cannot clean
or maintain an electrical appliance without
supervision.
3. General safety instructions
General Power Tool Safety Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/
or serious injury.
Save all warnings and instructions for future
reference.
The term“power tool” in the warnings refers to
your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodied
plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges and moving parts.
Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor

5
use reduces the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool
while you are tired or under the inuence
of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the o-position before
connecting to power source and/or battery
pack, picking up or carrying the
tool. Carrying power tools with your nger
on the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench
or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and
properly used. Use of dust collection can
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The
correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and o. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any adjustments,
changing accessories, or storing
power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may aect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool
bits etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations dierent from those

6
intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
4. Special safety instructions
• Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
• Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring or its own cord. Cutting accessory
contacting a“live”wire may make exposed
metal parts of the power tool“live”and
could give the operator an electric shock.
• Use appropriate detectors to determine if
utility lines are hidden in the work area or
call the local utility company for assistance.
Contact with electric lines can lead to re
and electric shock. Damaging a gas line can
lead to explosion. Penetrating a water line
causes property damage or may cause an
electric shock.
• Switch o the power tool immediately
when the tool insert jams. Be prepared for
high reaction torque that can cause kickback.
The tool insert jams when:
— the power tool is subject to overload or
— it becomes wedged in the workpiece.
• When working with the machine, always
hold it rmly with both hands and provide
for a secure stance. The power tool is guided
more secure with both hands.
• Secure the workpiece. A workpiece clamped
with clamping devices or in a vice is held
more secure than by hand.
• Keep your workplace clean. Blends of materials
are particularly dangerous. Dust from light alloys
can burn or explode.
• Always wait until the machine has come to
a complete stop before placing it down. The
tool insert can jam and lead to loss of control
over the power tool.
• Never use the machine with a damaged cable.
Do not touch the damaged cable and
pull the mains plug when the cable is damaged
while working. Damaged cables increase
the risk of an electric shock.
Products sold in GB only: Your product is tted
with an BS 1363/A approved electric plug with
internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets,
it should be cut o and an appropriate plug tted
in its place by an authorised customer service
agent. The replacement plug should have the
same fuse rating as the original plug.
The severed plug must be disposed of to avoid a
possible shock hazard and should never be
inserted into a mains socket elsewhere.
Products sold in AUS and NZ only: Use a residual
current device (RCD) with a rated residual
current of 30 mA or less.

7
Important.
Read the instructions for use before
starting the machine.
Wear safety goggles.
Wear ear protection.
Wear good quality, strong gloves.
Always use breathing apparatus when
machining materials which generate
dust.
End of life machines contain valuable
materials and therefore they should not
be placed in household waste.
We would ask you to play your part in
protecting resources and help protect
the environment by returning this
machine to a return point (if one is
available) when it reaches the end of its
life.
6. Layout
1. Drill chuck
2. Drill depth stop
3. Drill/hammer drill selector switch
4. Locking button
5. ON/OFF switch
6. Speed controller
7. Clockwise/Counter-clockwise switch
8. Additional handle
7. Before starting the equipment
Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
Always pull the power plug before making
adjustments to the equipment.

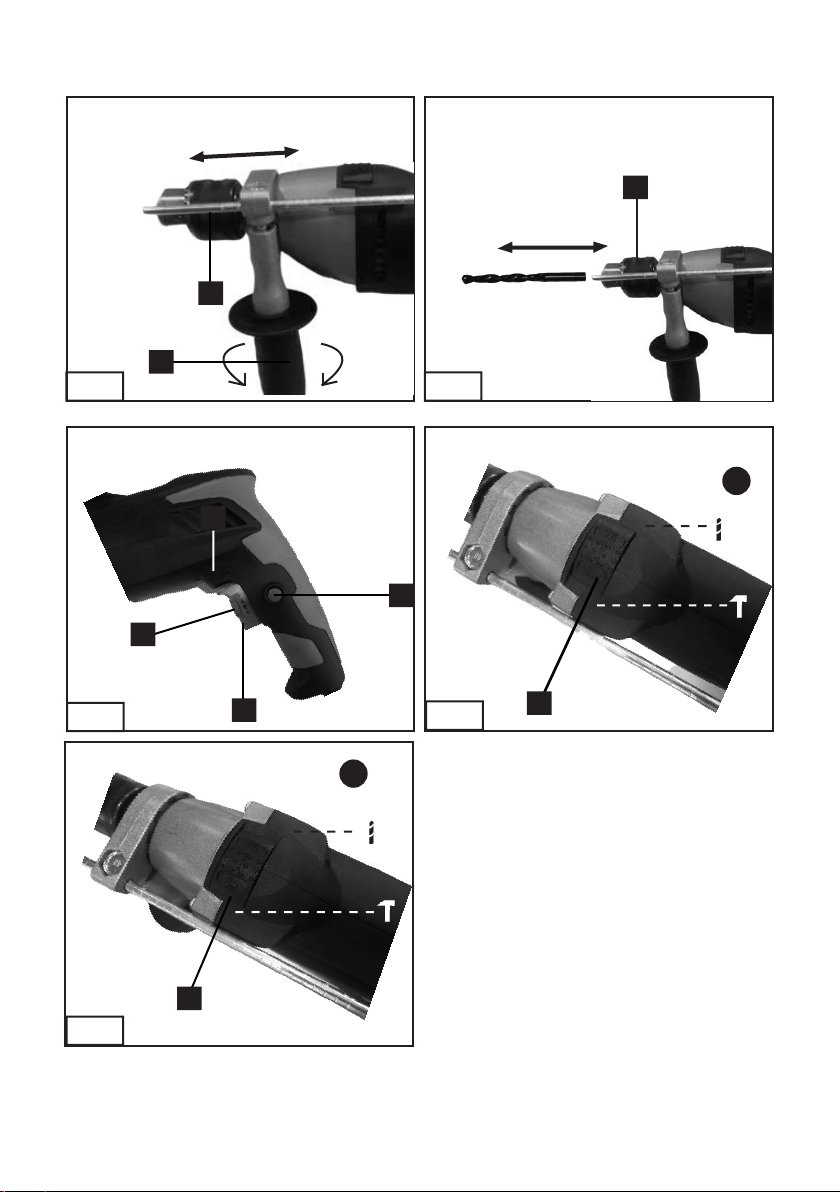

7.1. Fitting the additional handle (Fig. 2-3/Item
8)
The additional handle (8) enables you to achieve
better stability whilst using the hammer drill. Do
not use the tool without the additional handle.
The additional handle (8) is secured to the
hammer drill by a clamp. During the handle
clockwise tightens this clamp. Turning it anti-
clockwise will release the clamp.
• The supplied additional handle (8) must rst be
tted. To do this, the clamp must be opened by
turning the handle until it is wide enough for the
additional handle to be slid over the chuck (1)
and on to the hammer drill.
• After you have positioned the additional handle
(8), turn it to the most comfortable working
position for you.
• Now turn the handle in the opposite direction
again until the additional handle is secure.
• The additional handle (8) is suitable for both
lefthanded and right-handed users.
5. Description of symbols
Pay attention to all the signs and symbols shown
in these instructions and on your tool.
Make a note of these signs and symbols. If you
interpret the signs and symbols correctly, your
work with the machine will be safer and better.

8
7.2 Fitting and adjusting the depth stop
(Fig. 4/Item 2)
The depth stop (2) is held in place by the
additional handle (8) by clamping. The clamp can
be released and tightened by turning the handle.
• Release the clamp and t the depth stop (2) in
the recess provided for it in the additional handle.
• Set the depth stop (2) to the same level as the
drill bit.
• Pull the depth stop back by the required drilling
depth.
• Turn the handle on the additional handle (8)
until it is secure.
• Now drill the hole until the depth stop (2)
touches the workpiece.
7.3 Fitting the drill bit (Fig. 5)
• Always pull the power plug before making
adjustments to the equipment.
• Release the depth stop as described in 7.2 and
push it towards the additional handle. This
provides free access to the chuck (1).
• This hammer drill is tted with a keyless chuck
(1).
• Open the chuck (1). The drill bit opening (1)
must be large enough to t the drill bit into.
• Select a suitable drill bit. Push the drill bit as far
as possible into the chuck opening.
• Close the chuck (1). Check that the drill bit is
secure in the chuck (1).
• Check at regular intervals that the drill bit or tool
is secure (pull the mains plug).
8. Operation
8.1 ON/OFF switch (Fig. 6/Item 5)
• First t a suitable drill bit into the tool (see 7.3).
• Connect the mains plug to a suitable socket.
• Position the drill in the position you wish to drill.
To switch on:
Press the ON/OFF switch (5)
Continuous operation:
Secure the ON/OFF switch (5) with the locking
button (4).
To switch o:
Press the ON/OFF switch (5) briey.
8.2 Adjusting the speed (Fig. 6/Item 5)
• You can innitely vary the speed whilst using the
tool.
• Select the speed by applying a greater or lesser
pressure to the ON/OFF switch (5).
• Select the correct speed: The most suitable
speed depends on the workpiece, the type of use
and the drill bit used.
• Low pressure on the ON/OFF switch (5): Lower
speed (suitable for: small screws and soft
materials)
• Greater pressure on the ON/OFF switch (5):
Higher speed (suitable for large/long screws and
hard materials)
Tip: Start drilling holes at low speed. Then
increase the speed in stages.
Benets:
• The drill bit is easier to control when starting the
hole and will not slide away.
• You avoid drilling messy holes (for example in
tiles).
8.3 Preselecting the speed (Fig. 6/Item 6)
• The speed setting ring (6) enables you to dene
the maximum speed. The ON/OFF switch (5) can
only be pressed to the dened maximum speed
setting.
• Set the speed using the setting ring (6) on the
ON/OFF switch (5).
• Do not attempt to make this setting whilst the
drill is in use.
8.4 Clockwise/Counter-clockwise switch
(Fig. 6/Item 7)
• Change switch position only when the drill is
at a standstill!
• Switch the direction of the hammer drill using
the clockwise/counter-clockwise switch (7):
Direction Switch position
Clockwise (forwards and drill)
Counter-clockwise (reverse)

9
8.5 Drill / hammer drill selector switch
(Fig. 7-8/Item 3)
Change switch position only when the drill is
at a standstill!
Drill
Drill / hammer drill selector switch (3) in the drill
position. (Position A)
Use for: Wood, metal, plastic
Hammer drill
Drill / hammer drill selector switch (3) in the
hammer drill position. (Position B)
Use for: Concrete, rock, masonry
8.6 Tips for working with your hammer drill
8.6.1 Drilling concrete and masonry
• Switch the Drill/Hammer drill selector switch (3)
to position B (Hammer drill).
• Always use carbide drill bits and a high speed
setting for drilling into masonry and concrete.
8.6.2 Drilling steel
• Switch the drill / hammer drill selector switch (3)
to position A (drill).
• Always use HSS drill bits (HSS = high speed
steel) and a low speed setting for drilling steel.
• We recommend that you lubricate the hole with
a suitable cutting uid to prevent unnecessary
drill bit wear.
8.6.3 Inserting/Removing screws
• Switch the Drill/Hammer drill selector switch (3)
to position A (drill).
• Use a low speed setting
8.6.4 Starting holes
If you wish to drill a deep hole in a hard material
(such as steel), we recommend that you start the
hole with a smaller drill bit.
8.6.5 Drilling tiles
• To start the hole, switch the drill / hammer drill
selector switch (3) to position A (drill).
• Switch the drill / hammer drill selector switch (3)
to position B (hammer drill) as soon as the drill
bit has passed through the tiles.
10. Technical data
Wear ear-mus.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three
directions) determined in accordance with EN
60745.
Hammer drilling in concrete (handle)
Vibration emission value ah= 15,4 m/s2
K uncertainty = 1.5 m/s2
Hammer drilling in concrete (additional
handle)
Vibration emission value ah= 9,6 m/s2
K uncertainty = 1.5 m/s2
Drilling in metal (handle)
Vibration emission value ah= 4,6 m/s2
K uncertainty = 1.5 m/s2
Drilling in metal (additional handle)
Vibration emission value ah= 2,5 m/s2
K uncertainty = 1.5 m/s2
Important!
Drilling capacity Concrete 13 mm
Steel 10 mm
Wood 25 mm
Protection class: II /
Weight: 2 kg
Idling speed: 0-2800 RPM
Mains voltage: 120 V ~/60 Hz
Power input: 7.5 A

10
The vibration value changes according to the area
of application of the electric tool and may exceed
the specied value in exceptional circumstances.
11. Cleaning and maintenance
Always pull out the mains power plug before
starting any cleaning work.
11.1 Cleaning
• Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
with compressed air at low pressure.
We recommend that you clean the device
immediately each time you have nished using it.
• Clean the equipment regularly with a moist
cloth and some soft soap. Do not use cleaning
agents or solvents; these could attack the plastic
parts of the equipment. Ensure that no water can
seep into the device.
11.2 Carbon brushes
In case of excessive sparking, have the carbon
brushes checked only by a qualied electrician.
Important! The carbon brushes should not be rep
laced by anyone but a qualied electrician.
11.3 Maintenance
There are no parts inside the equipment which
require additional maintenance.
12. Repairs
Only use accessories and spare parts
recommended by the manufacturer.
If the equipment should fail some day in spite of
our quality controls and your maintenance, only
have it repaired by an authorized electrician.
If the supply cord of the appliance is damaged,
this has to be done by the manufacturer or his
agent or electrician in order to avoid a safety
hazard.
13. Environmental protection
End of life electrical equipment must
not be placed in household waste.
Please take it to a return point. Find out
about your nearest return point from
your council or sales outlet.

Importer name:FISHING KING, SLU
Importer address: PIEDRABUENA, 4,4B, MADRID MADRID, 28026 Spain
Manufacturer name: Shenzhen TOMTOP Technology Co., Ltd.
Manufacturer address:G-4 Zone 5/F, No.1 Exchange Square, Huanan City, Pinghu Town,
Longgang District, Shenzhen, Guangdong,China
MADE IN CHINA
