MGG Gizmow T130 User manual

SAVE THIS MANUAL FOR FUTURE REFERENCE
Gizmow T130
Gizmow T140
Gizmow T160
Gizmow T180
Lawn Tractor Rear Discharge
Operator’s Manual

Introduction
ENVIRONMENTAL
Recycle unwanted materials instead of
disposing of them as waste. All tools, hoses
and packaging should be sorted, taken to
the local recycling centre and disposed of in
an environmentally safe way.
Wear hearing protection
Wear eye protection
Wear breathing protection
TABLE OF CONTENTS
INTRODUCTION
SYMBOLS
The rating plate on your lawn tractor may show symbols.
These represent important information about the
product or instructions on its use.
Read these instructions for use carefully.
Wear safety footwear.
Wear safety gloves.
It is forbidden to remove or tamper with the
protection devices and safety devices.
Keep bystanders away as there may be
ejected objects propelled from the unit during
operation.
Never operate the unit without either the
stone-guard or grass-catcher in place.
2
Symbols 2
6SHFL´FDWLRQV 4
General Safety Rules 5
6SHFL´F6DIHW\5XOHV 7
6DIHW\ 5
13
14
17
19
28
Lawn Tractor Rear Discharge
2
'RQRWVPRNHRUKDYHRSHQµDPHV
10
Trouble Shooting 35
3DUWV6FKHGXOH 37
Notes 97
10
10
Max
Max
0DFKLQH5ROORYHU
Do not use this
machine on slopes
greater than 10°.
'LVPHPEHUPHQW
Make sure that children stay
clear of the machine all the time
when engine is running.
Disconnect the ignition key and read the
instructions before carry out any repair and
maintenance work.
Do not operate without either the stone-guard
or grass-catcher in place.
Slope Guide
8QSDFNLQJDQG$VVHPEO\
%HIRUH6WDUWLQJ

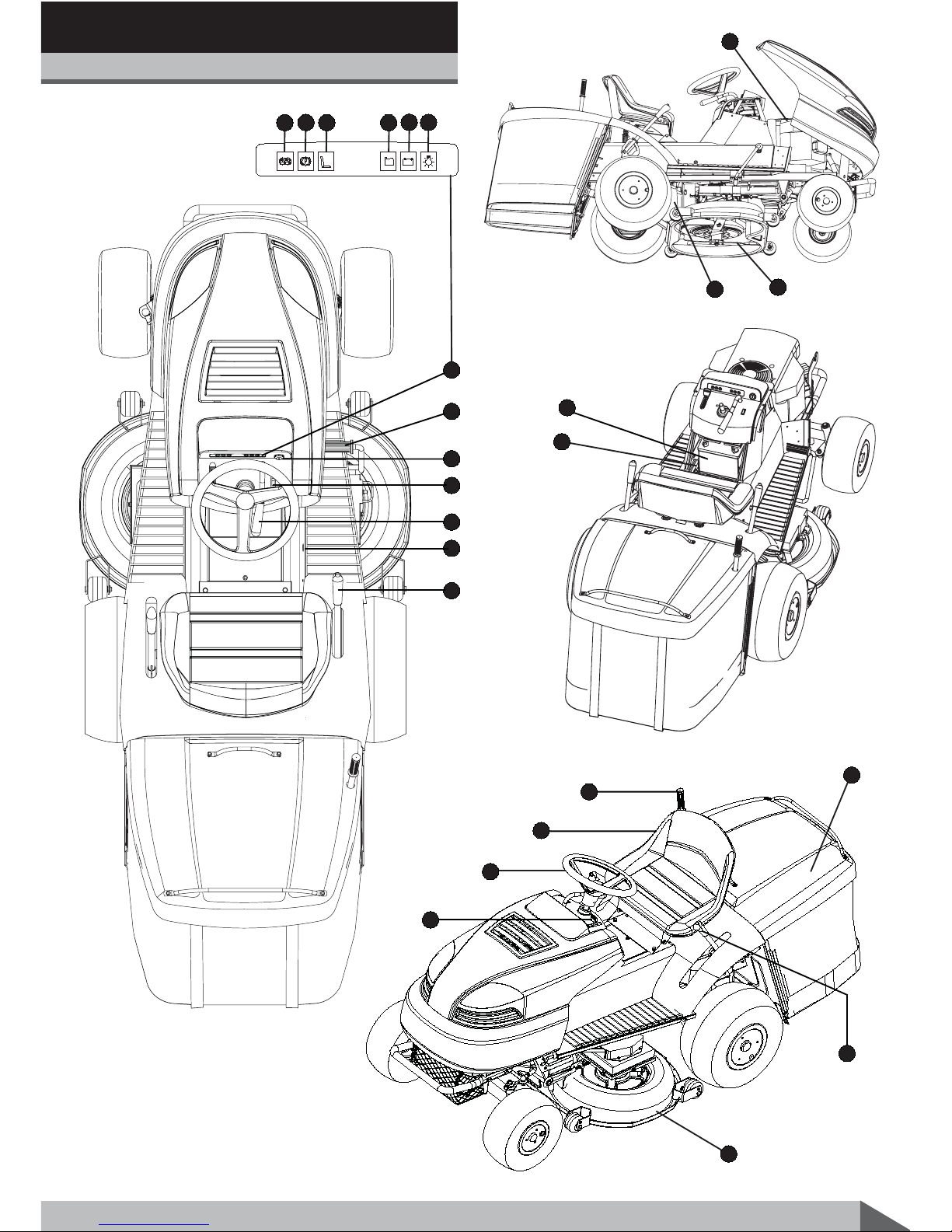

Know your product
2SHUDWLRQ
0DLQWHQDQFH
Your new MGG Lawn Tractor will more than satisfy your
expectations. It has been manufactured under stringent
MGG Quality Standards to meet superior performance
FULWHULD<RXZLOO´QG\RXUQHZWRROHDV\DQGVDIHWR
operate, and with proper care, it will give you many years
of dependable service.
CAUTION. Carefully read through this entire Instruction
Manual before using your new MGG Lawn Tractor. Take
special care to heed the Cautions and Warnings.
Your MGG Lawn Tractor has many features that will make
your job faster and easier. Safety, performance, and
dependability have been given top priority in the
development of this tool, making it easy to maintain and
operate.

SYMBOLS
Lawn Tractor Rear Discharge 3
Dumping of used oil in the environment is
forbidden. The oil must be disposed of
according to current legislation in the
country where this operation is carried out.
FNR
LH
Forward Neutral
Reverse
Low High
Lights On Choke
Clutch
Fast Slow
Ignition Key
Pedal
Blades
Engaged
Hot
Surfaces
Parking Brake
Locked
Parking
Brake
Driver Seat
Free
Battery
Charging
Missing
Container
Headlights
On
Danger of cutting yourself. Blades in
movement. Do not put hands or feet near
or under the opening of the cutting plate.
The responsibility of the owner is to follow the
instructions below:
• Carefully read and follow the rules for safe
operation.
• Follow all the assembly instructions.
• Inspect the unit.
• Make sure that the operator of the unit knows
how to correctly use all standard and accessory
equipment.
• Operate the unit only with guards, shields, and
other safety items in place and working correctly.
• Correctly adjust the unit.
• Service the unit only with authorized or approved
replacement parts.
• Complete all maintenance on the unit.
Environmental Awareness
'RQRW´OOWKHHQJLQHVIXHOWDQNFRPSOHWHO\IXOO
• Drain fuel for off–season storage.
• Use only unleaded gasoline.
• Service the air cleaner regularly.
• Change oil regularly.
• Tune–up the engine regularly.
.HHSHTXLSPHQWLQHI´FLHQWRSHUDWLQJFRQGLWLRQ
• Dispose of used engine oil properly.
Dimensions of Lawn Tractor
Responsibility of the Owner
935
1060
1020
1165
1835
2380
940
1105

Lawn Tractor Rear Discharge
4
SPECIFICATIONS
Item Number 33000
Model Number T130
Gross Weight 254 kg
150 kg
Engine
Gross Weight of Semi Trailer
Engine Manufacturer Briggs & Stratton
Engine Type I/C OHV
Motor 12.5 HP, 4 Stroke
Yes
Fuel Tank Capacity 7L
Electric Start
Oil Capacity Appr. 48oz (1.42L)
Oil Type SAE30/SAE5W-30
Electric Circuit Voltage 12V
Battery Capacity 24 Ah
Charging System DC regulated
Part NO. 5066
Operation Noise Level 98 dB
Spark Plug
Real Wheel Drive Yes
CVT 7+R
Transmission
Forward Speed (approx) at 3000 min-1 2.2 – 9.2 km/h
Reverse Speed 4.6 km/h
Front Tyres 15 x 6.00 - 6
Rear Tyres 18 x 8.50 - 8
Front Tyre Pressure 1.4 Bar
Rear Tyre Pressure 1.0 Bar
Number of Blades 2
Cutting Width 102 cm
Capacity
Cutting Height 3 - 9 cm
Number of Cutting Heights 7
Grass Collector Capacity 300L
Fuel Type Unleaded Regular
Turning Radius 75 cm
33005
T140
257 kg
150 kg
Briggs & Stratton
Intek AVS OHV
13.5 HP, 4 Stroke
Yes
7L
Appr. 48oz (1.42L)
SAE30/SAE5W-30
12V
24 Ah
DC regulated
Part NO. 5066
98 dB
Yes
7+R
2.2 – 9.2 km/h
4.6 km/h
15 x 6.00 - 6
18 x 8.50 - 8
1.4 Bar
1.0 Bar
2
102 cm
3 - 9 cm
7
300L
Unleaded Regular
75 cm
33010
T160
261 kg
150 kg
Briggs & Stratton
I/C AVS OHV
15.5 HP, 4 Stroke
Yes
7L
Appr. 48oz (1.42L)
SAE30/SAE5W-30
12V
24 Ah
DC regulated
Part NO. 5066
98 dB
Yes
7+R
2.2 – 9.2 km/h
4.6 km/h
15 x 6.00 - 6
18 x 8.50 - 8
1.4 Bar
1.0 Bar
2
102 cm
3 - 9 cm
7
300L
Unleaded Regular
75 cm
33015
T180
263 kg
150 kg
Briggs & Stratton
ELS AVS OHV
17.5 HP, 4 Stroke
Yes
7L
Appr. 48oz (1.42L)
SAE30/SAE5W-30
12V
24 Ah
DC regulated
Part NO. 5066
98 dB
Yes
7+R
2.2 – 9.2 km/h
4.6 km/h
15 x 6.00 - 6
18 x 8.50 - 8
1.4 Bar
1.0 Bar
2
102 cm
3 - 9 cm
7
300L
Unleaded Regular
75 cm

Lawn Tractor Rear Discharge 5
Read, understand, and follow all instructions on the machine
and in the manual before starting.
• Do not put hands or feet near rotating parts or under the
machine. Keep clear of the discharge opening at all times.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
• Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blades.
• Be sure the area is clear of bystanders before operating.
Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
• Never direct discharged material toward anyone. Avoid
discharging material against a wall or obstruction. Material
may ricochet back toward the operator. Stop the blades
when crossing gravel surfaces.
SAFETY
Slope Operation
• Do not operate machine without the entire grass catcher,
discharge guard, or other safety devices in place and
working.
• Slow down before turning.
• Never leave a running machine unattended. Always turn
off blades, set parking brake, stop engine, and remove
keys before dismounting.
• Disengage blades when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge guard.
2SHUDWHPDFKLQHRQO\LQGD\OLJKWRUJRRGDUWL´FLDOOLJKW
'RQRWRSHUDWHWKHPDFKLQHZKLOHXQGHUWKHLQµXHQFH
of alcohol or drugs.
:DWFKIRUWUDI´FZKHQRSHUDWLQJQHDURUFURVVLQJ
roadways.
• Use extra care when loading or unloading the machine
into a trailer or truck.
• Always wear eye protection when operating machine.
• Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding machine
related injuries. These operators should evaluate their
ability to operate the riding machine safely enough to
protect themselves and others from serious injury.
• Follow the manufacturer's recommendation for wheel
weights or counterweights.
• Keep machine free of grass, leaves or other debris
build-up which can touch hot exhaust / engine parts
and burn. Do not allow the machine deck to plow leaves
or other debris which can cause build-up to occur. Clean
any oil or fuel spillage before operating or storing the
machine. Allow machine to cool before storage.
DANGER: THIS CUTTING MACHINE IS
CAPABLE OF AMPUTATING HANDS AND
FEET AND THROWING OBJECTS. FAILURE
TO OBSERVE THE FOLLOWING SAFETY
INSTRUCTIONS COULD RESULT IN
SERIOUS INJURY OR DEATH.
Safe Operation Practices for Ride-On Machines
WARNING: In order to prevent accidental
starting when setting up, transporting,
adjusting or making repairs, always
disconnect spark plug wire and place wire
where it can not contact spark plug.
WARNING: Do not coast down a hill in
neutral, you may lose control of the tractor.
WARNING: Tow only the attachments that
are recommended by and comply with
VSHFL´FDWLRQVRIWKHPDQXIDFWXUHURI\RXU
tractor. Use common sense when towing.
Operate only at the lowest possible speed
when on a slope. Too heavy of a load, while
on a slope, is dangerous. Tyres can lose
traction with the ground and cause you to
lose control of your tractor.
WARNING: Engine exhaust, some of its
constituents and certain vehicle components
contain or emit chemicals which may cause
cancer and birth defects or other
reproductive harm.
WARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds, chemicals which may cause
cancer and birth defects or other
reproductive harm. Wash hands after
handling.
• Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution. If
you cannot back up the slope or if you feel uneasy on it,
do not mow it.
• Mow up and down slopes, not across.
• Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine.
Tall grass can hide obstacles.
• Choose a low ground speed so that you will not have
to stop or shift while on the slope.
• Do not mow on wet grass. Tyres may lose traction.
Always keep the machine in gear when going down
slopes. Do not shift to neutral and coast downhill.
• Avoid starting, stopping, or turning on a slope. If the
tyres lose traction, disengage the blades and proceed
slowly straight down the slope.
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction,
which could cause the machine to roll over.
• Use extra care while operating machine with grass
catchers or other attachments; they can affect the
stability of the machine. Do not use on steep slopes.
• Do not try to stabilize the machine by putting your
foot on the ground.
• Do not mow near drop-offs, ditches, or embankments.
The machine could suddenly roll over if a wheel is over
the edge or if the edge caves in.

Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume that
children will remain where you last saw them.
• Keep children out of the mowing area and in the watchful
care of a responsible adult other than the operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for small
children.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with safe
machine operation. Children who have been given rides in
the past may suddenly appear in the mowing area for
another ride and be run over or backed over by the
machine.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a child.
• Never operate machine in a closed area.
• Keep all nuts and bolts tight to be sure the equipment
is in safe working condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep machine free of grass, leaves, or other debris
build-up. Clean oil or fuel spillage and remove any fuel
soaked debris. Allow machine to cool before storing.
• If you strike a foreign object, stop and inspect the
machine. Repair, if necessary, before restarting.
• Never make any adjustments or repairs with the engine
running.
• Check grass catcher components and the discharge
guard frequently and replace with manufacturer's
recommended parts, when necessary.
• Machine blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing them.
• Check brake operation frequently. Adjust and service
as required.
• Maintain or replace safety and instruction labels, as
necessary.
• Be sure the area is clear of bystanders before operating.
Stop machine if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while backing.
• Never carry children, even with the blades shut off. They
may fall off and be seriously injured or interfere with
safe machine operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over by
the machine.
• Keep children out of the mowing area and in the
watchful care of a responsible adult other than the
operator.
• Be alert and turn machine off if a child enters the area.
• Before and while backing, look behind and down for
small children.
• Mow up and down slopes (10° Max), not across.
• Choose a low ground speed so that you will not have to
stop or shift while on the slope.
• Avoid starting, stopping, or turning on a slope. If the
tyres lose traction, disengage the blades and proceed
slowly straight down the slope.
• If machine stops while going uphill, disengage blades,
shift into reverse and back down slowly.
• Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
Lawn Tractor Rear Discharge
6
Towing
General Service
Children
• Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.
• Follow the manufacturer's recommendation for weight
limits for towed equipment and towing on slopes.
• Never allow children or others in or on towed equipment.
• On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.
• Travel slowly and allow extra distance to stop.
Service
Safe Handling of Gasoline
• To avoid personal injury or property damage, use extreme
FDUHLQKDQGOLQJJDVROLQH*DVROLQHLVH[WUHPHO\µDPPDEOH
and the vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other sources
of ignition.
• Use only approved gasoline container.
• Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.
• Never fuel the machine indoors.
• Never store the machine or fuel container where there is
DQRSHQµDPHVSDUNRUSLORWOLJKWVXFKDVRQDZDWHU
heater or other appliances.
1HYHU´OOFRQWDLQHUVLQVLGHDYHKLFOHRURQDWUXFNRUWUDLOHU
bed with plastic liner. Always place containers on the
JURXQGDZD\IURP\RXUYHKLFOHZKHQ´OOLQJ
• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then
refuel such equipment with a portable container, rather
than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immediately.
1HYHURYHU´OOIXHOWDQN5HSODFHJDVFDSDQGWLJKWHQ
securely.
10
10
Max
Max

Lawn Tractor Rear Discharge 7
Before Mowing
• Ensure to dress correctly. Wear hard shoes, not sandals
or tennis shoes.
• Examine the blade. A blade that is bent, cracked, or
damaged must be replaced with a factory replacement
blade.
• Fill the fuel tank outside. Clean off spilled fuel.
• Read and follow the Owner’s Manual, the instructions with
the engine, and the instructions with any attachments.
Owner’s Manual instructions are for your safety and the
safety of others.
• Exhaust fumes are dangerous. Start the engine outside.
• Make sure all safety devices are in place and working
correctly.
• Operation of the machine is only for a person that has
experience.
• Wet grass can be dangerous. Let the grass dry.
• Instruct children and others to keep away from the work
area.
• Never cut the grass without good light.
• Pick up loose objects. Remove them from the mowing
area.
While Mowing
:DWFKIRU´[HGREMHFWVDQGDYRLGWKHP7KH\FDQGDPDJH
the machine or cause injury.
$KRWHQJLQHPXIµHUDQGWUDQVPLVVLRQZLOOFDXVHDEXUQ
Do not touch.
• Inclines and slopes must be carefully mowed. Reefer to
page 13 of this manual to check a slope.
/DFNRIGD\OLJKWRUJRRGDUWL´FLDOOLJKWLVFDXVHWRVWRS
mowing.
• Examine the machine, the blade, and other parts for
damage after hitting a foreign object or if the unit vibrates
excessively.
• Do not make adjustments or repairs without stopping the
engine. Disconnect the spark plug wire.
2QRUQHDUURDGVZDWFKRXWIRUWUDI´F'LUHFWGLVFKDUJH
away from roads.
• When mowing, avoid areas where traction is unsure. Look
back before changing direction of travel.
• In heavy grass, raise the cutting height. Cut slower. Stop
the engine to remove clogged grass from the machine.
• Never remove any safety related parts.
• Do not pour gasoline into a engine that is hot or running.
After Mowing
• Always let the machine cool before storing in an enclosed
area.
• Foreign material on the machine is dangerous. Clean off
grass, leaves, grease and oil before storing.
• Tighten all loose nuts, bolts and screws before you use
the unit.
• Empty and clean any grass catcher or other accessory.
• Remove the key or disconnect the spark plug wire to
prevent unauthorized use.
• Make sure the machine is not kept near a source of
ignition. Gas fumes can cause an explosion.
• Only original parts or factory approved substitutes can be
used to service the machine.
• When storing the machine for an extended period, remove
the fuel from the fuel tank.
• Instruct children to leave the machine alone. It is not a toy.
• Never keep gasoline near a source of ignition. Always use
an approved container. Keep gasoline away from children.
Each person that operates power equipment must learn
to use correct and safe mowing procedures. To help you
learn, carefully read the following pages. Most of the time
the operator was not correctly shown or did not read the
instructions on the unit or in the Instruction Manual before
using the unit. Also, some operators do not have enough
experience. The result is unsafe use, endangering the
operator, bystanders and the equipment. Another result
can be a poor appearance of the area mowed.
Read this manual.
Read the instructions on the unit. Operate the mower
according to the Safe Mowing Guide. Follow all safety
rules, cautions or warnings in this manual and on the unit.
Make sure anyone that uses the unit reads the instructions
and is told how to safely operate the mower. The mower
will give you good service and durability, if operated in
normal conditions. If the mower is not correctly serviced
or is used where the terrain is rough or unsuitable,
product performance and safety will be decreased.
• Correct clothing is an important part of safe mowing.
Safety glasses will protect the eyes from objects
discharged by the mower. Safety shoes with steel
plates can protect a foot from injury by the blade.
For protection from objects discharged from the
mower, wear clothing that will cover the arms and legs.
• Before you start cutting the grass, practice using the
mower in a large open and level area. Learn the location
of the controls on the mower. Know the purpose of the
controls and how they work. In an emergency, how fast
you can stop the blade is important. Learn how to
control the mower at all times.
• For electric start engines, sit in the seat to start the
engine. The battery can be dangerous. Follow the
instructions on the battery, the acid container, and in
this manual when working with the battery. Even small
batteries have enough voltage to cause an injury.
Always be careful.
• The mower is designed to be operated by one person.
Never let another person ride with you on the unit or on
any accessories. A passenger will make the unit harder
to control, block the visibility or distract the operator
and is dangerous to the operator, the passenger and the
equipment. Without a passenger seat, the passenger
can fall from the mower or contact dangerous parts.
A mower is not a toy for showing off or for giving rides.
• Never cut a wet lawn. Wet grass can cause an accident,
affect mower performance and can cause problems
with future lawn growth and appearance. Wet grass is
slippery and can cause the mower to slip. Someone can
get injured by touching the blade(s). Wet grass tends
to clog the mower, causing poor discharge. Cut wet
grass will collect on the lawn, retarding the growth of
the grass. Also, getting the mower wet will cause parts
to rust and decrease the life of the unit.
Steps to follow Additional safety rules for ride on mowers

• When you look over the lawn, remember to look for
obstacles that cannot be removed, like pipes, stumps or
rocks. Keep away from these obstacles that can cause
damage to the mower or injury to the operator or a
person near the mower. Clear the area of rocks, toys,
wire or other loose objects. These items can damage the
mower or can be discharged by the mower blade.
• The blade of a power mower rotates very fast. It can
discharge rocks and other objects over a long distance
which can be dangerous. The force of the objects can
break windows, cause injuries or even put an eye out.
Most of the time the injury is to a person, like a child.
Keep every person completely away from the area to
be mowed. Make sure the grass is not discharged
toward anyone. Planning your mowing pattern has a
double advantage. It can decrease the possibility of an
injury and make the clean up after mowing easier.
• Check the terrain of the area to be mowed. Mow in a
pattern that will keep you away from dangerous areas.
Check the distance you need to stop and the distance
available to turn. Slopes and rough terrain must be
mowed carefully and some areas must not be mowed
at all. With riding mowers, mow up and down the hill.
When you must mow rough terrain or on slopes, never
change directions or change gears and stop in these
areas only in an emergency. Before you ride up or down
a slope, try to back straight up the slope. Do not ride up
or down a slope that is too steep to back straight up.
Refer to page 13 of this manual to check any slopes.
• Before you start cutting, make sure the mower was
completely assembled according to the Instruction
Manual. If the mower was completely assembled at the
store, you must still check the mower according to the
assembly instructions. Make sure the mower is correctly
assembled and that all fasteners are tight. Make sure the
engine has the correct amount of oil. Check these items
often during the life of the mower.
• Your mower has a gasoline engine. Gasoline is a
dangerous fuel. Keep gasoline only in an approved safety
gasoline container. Do not keep large amounts of gasoline.
When you add gasoline to the fuel tank, do not smoke.
Store the gasoline container and the mower in an area
that has good ventilation. Also, keep the gasoline away
IURPDQ\µDPHVOLNHWKHSLORWOLJKWRIDIXUQDFHRUDQ\
other source of ignition. If the mower is to be stored for
more than a few weeks, remove the gasoline from the
fuel tank. When inside an enclosure, do not add gasoline
to the fuel tank. Before you add gasoline, move the
mower outside and add gasoline carefully. Before you
start the engine, remove any gasoline from the outside
of the fuel tank or from the mower. Warm gasoline will
expand. Leave some space in the fuel tank for the
gasoline to expand. Also, the fuel cap has a vent hole for
fuel vapors. Always use the correct fuel cap. Failure to
IROORZVDIHW\UXOHVDERXWJDVROLQHZLOOFDXVH´UHVDQG
explosions, injury to you and damage to the equipment
and other property.
• If you add gasoline to an engine that is running or hot,
the result can be an explosion. Before you add gasoline,
stop the engine and let the engine cool for several
minutes. Remove dry grass and other debris from the
mower. Keep the mower clean to improve the
performance, help the engine and transmission run
cooler, extend the life of moving parts, and decrease
WKHGDQJHURID´UH
• Fires and explosions are not the only dangers when
working around a mower. The engine, transmission, and
WKHPXIµHUZLOOJHWKRWLQVHYHUDOPLQXWHVZKHQWKH
engine is running. Do not touch these parts of the
mower. Stop the engine. Let the engine and transmission
cool before servicing the mower. Remember, exhaust
fumes are dangerous. Never operate the engine inside a
building.
• When you get a new mower, it can be a new experience
for the family. Tell each person how a mower can be
dangerous. Remember, a mower is not a toy. A mower
is not to be used by children or anyone not old enough,
strong enough or that does not have experience.
• If the mower is not correctly assembled, not operated
correctly, or not regularly serviced, the mower can be
dangerous. The most important rule to follow is always
use good judgment and common sense. Mow safely
and carefully.
• Your mower when in operation is extremely
dangerous. Fingers, feet and other parts can be cut by
the blade. Injuries occur when the operator does not
think and reaches into the chute opening. Always
operate the mower as if the blade is rotating. Do not
service or make an adjustment, except to the
carburetor, while the engine is running.
• Use only accessories that are factory approved for your
mower. The wrong accessory can decrease the safety
of the mower and can even damage the unit. Read and
follow the instructions included with the accessory and
the mower.
• Use only original equipment or replacement parts that
are factory approved for service. If you need service,
select an Authorized Service Center for your mower. If
you do the work on the unit, follow the instructions in
the Instruction Manual.
• When you mow, remember that children are attracted
to the mower. Always use caution when mowing around
obstacles like trees or shrubs or when moving backward.
Only mow in a forward direction if possible. Your
visibility is decreased when you mow backward. Also,
the blades are made to cut while the unit is moving
forward. If you mow backward, the cutting performance
decreases.
Lawn Tractor Rear Discharge
8

Lawn Tractor Rear Discharge 9
• Before you leave the mower, stop the engine. Remove
the key. Disengage and lower any attachment. Set the
parking brake. Never mount or dismount from the seat
while the engine is running. An accident can occur if you
touch the brake, shift lever, throttle, and clutch or blade
control while the engine is running.
• Make sure you are in good condition when you mow.
:KHQ\RXPRZIRUVHYHUDOKRXUV\RXUUHµH[HVZLOO
decrease and your mind will not be as alert. Take a short
break or an accident can occur. If the temperature is hot,
use caution to prevent dehydration. If you are tired, angry
or not completely alert, do not operate the mower. If you
use alcohol, medication or drugs, do not use the mower
or any type of power equipment.
• Engine speed is a key to safe mowing and to a good
looking lawn. 7KHPD[LPXPVSHHGRIWKHHQJLQHZDVVHW
at the factory. Do not change the setting of the engine
governor.
• Select the maximum engine and ground speed that is
right for the terrain and the height of the grass. The blade
FXWVEHVWZKHQWKHHQJLQHLVRSHUDWLQJDWPD[LPXP
speed. The engine and transmission will also run cooler at
PD[LPXPHQJLQHVSHHG
• Also, the grass bagger will function better when the
engine is operating at maximum speed. On slopes,
decrease the ground speed and use care making sure the
mower feels safe to operate.
• If the weather conditions are bad, do not mow. If weather
FRQGLWLRQVEHFRPHEDGVWRSFXWWLQJDQG´QLVKODWHU,WLV
GDQJHURXVWRFXWJUDVVLQWKHUDLQ$OZD\V´QGSURWHFWLRQ
LQDQHOHFWULFDOVWRUP,IWKHZHDWKHUFRQGLWLRQVDUHH[WUD
dry, protect your eyes with safety glasses from the dust
and from the objects discharged by the mower. Also, a
dust or a pollen mask can help.
• Your mower is equipped with a number of safety devices
which are important to the safety of the operator and
bystanders and must never be changed or removed from
the mower. If a safety device is lost, damaged or no longer
functions, repair or replace the device before you operate
the mower.
•It is best to mow during the day. If you must mow at night,
make sure there is enough light for safe operation.
• Your mower will require regular maintenance and service.
The maintenance schedule depends on the hours of use.
Also, mowing conditions can change the schedule. Check
the Instruction Manual for more information. Correct
maintenance will help the mower function safely.
• Do not service the mower (except for the carburetor
adjustment) while the engine is running. Before you
service the unit, even with the engine stopped, always
disconnect the wire from the spark plug to prevent the
engine from starting.
• If you hit a large object during operation, stop the
engine. Remove the wire from the spark plug. Carefully
inspect the mower for damage. Before you start the
engine again, make the necessary repairs. If you feel
QHZRUH[FHVVLYHYLEUDWLRQLPPHGLDWHO\VWRSWKHHQJLQH
and check for the problem. Vibration can be a warning
of a problem. Keep all nuts, bolts and screws tight.
• The blade is the most dangerous part of the mower.
Frequently check the blade and the blade mounting
fasteners. Keep the fasteners tight. If the blade hits a
solid object, stop the engine. Remove the wire from
the spark plug. Check for a blade that is bent, cracked
or for other damages. Before you start the engine,
replace a damaged blade(s). For safety, replace the
blade every two years.
• A sharp blade decreases the workload on the engine
and more evenly cuts grass. Frequently sharpen the
blade for a better looking cut. Ensure to use every side
of the mower housing to trim near an object.
• A grass bagger is a good accessory for your mower.
For best performance and safety, make sure the grass
bagger is approved for use with your mower. Follow
the assembly and operation instructions included with
the grass bagger.
• Some grass baggers require a special blade for best
performance. Before you attach, check, or empty the
grass bagger, always stop the engine. Before each use
of the grass bagger, check for cracks, wear or
deterioration. Before you use the grass bagger, replace
a damaged part with a replacement part approved by
the factory.
• For you to have a good green lawn, follow the mowing
procedures below. Do not cut the grass too short. If you
cut the grass too short you can cause the grass to
become yellow or make the lawn look brown. Use a
lower height of cut in cool months when the grass is
thicker. Raise the height of cut in hot dry periods. If you
cut the grass with a blade that is not sharp or at a slow
engine speed you can damage the grass. Move the
throttle control to the FAST position when mowing and
using the grass bagger. Also, use a proper ground
speed when using the grass catcher.
• If you change the direction or pattern of cut slightly
every time you mow will make the grass grow stronger
and thicker. Do not add oil or gasoline to the mower
while on the lawn. Spilled oil or gasoline can kill the
grass. In high or thick grass, do not try to cut all the
JUDVVWKH´UVWWLPH5DLVHWKHKHLJKWRIFXWRQWKH´UVW
FXWWLQJDQGORZHUWKHKHLJKWIRUWKHQH[WFXWWLQJ
Another way is to cut only part of the width of the
mower and decrease your ground speed (not the
engine) to move more slowly so that the mower can
discharge the grass as it moves forward.

Lawn Tractor Rear Discharge
10
KNOW YOUR PRODUCT
1. Gear Shift Lever. Changes the directional
movement of the lawn tractor from reverse, neutral,
forward. It also and helps determine the acceleration
of the lawn tractor.
2. Steering Wheel. Turns and controls the direction
of the front wheels.
3. Gas Control Lever (Choke Control and Throttle
Control Lever). Choke control (upmost position)
improves the mixture and therefore should be
used when the engine is starting from cold.
Accelerate lever (position between low to fast)
regulates the engine's r.p.m.
4. Blade Engagement Lever. For switching the blades
driver on and off
5. Key Ignition Switch. This switch has 3 setting:
a. OFF: Everything is switched off
b. ON: Activates all parts
c. START: Engages the starter motor
6. Dashboard Display. When the key is turned to
«ON», all the lights come on at the same time for
about half a second to indicate that the machine
is working properly. Afterwards, when a warning
light comes on, it indicates the following signal
lamps:
a. Blades Engaged
b. Parking Brake Engaged
c. Driver Seat Free
d. Missing Container
e. Headlights On
f. Battery Charging
7. Brake and Clutch Pedal. This pedal has a double
IXQFWLRQGXULQJWKH´UVWSDUWRILWVWUDYHOLWDFWV
as a clutch, engaging and disengaging drive to
the wheels, and in the second part it acts as a
brake on the rear wheels.
8. Headlight Switch. This allows you to turn on the
lights «ON» or «OFF».
9. Parking Brake Button. This button allows you
to stop the lawn tractor from moving when it has
been parked. There are two positions, which will
be indicated on the dashboard display signal lamp:
a. Brake Off
b. Brake Engaged
10. (Cutting Height Adjusting) Lift Lever.
This lever allows you to adjust the blade height
to seven positions which range from 3cm – 9cm.
11. Cutting Deck. This is the guard which encloses
and covers the rotating blades.
12. Cutting Blades. These are components which
cut the grass. Specially designed wings at the
ends help push the cut grass towards the
collector channel.
13. Collector Channel. This is the part which
channels the cut grass and connects the cutting
deck to the grass catcher.
14. Grass Catcher. Apart from collecting the grass
clippings it also acts as a safety element by
stopping any objects drawn up by the blades
from being thrown outside of the machine.
6WRQH*XDUGRU'HµHFWRUFXUUHQWQRW
available)7KLVFDQEH´WWHGLQSODFHRIWKH
grass-catcher and prevents objects drawn up
by the blades from being thrown outside of the
machine.
16. Engine. This controls the blades and drives the
wheels.
17. Battery. Provides the energy to start the engine.
18. Driver’s Seat. This is where the lawn tractor
operator sits.
19. Regulations and Safety Decals. Provides
important reminders on the main provisions for
working safely.
20. Inspection Hatch. Allows access for making
several adjustments.
21. Handle for Tipping Grass Catcher. This is a
manual operation and allows the grass catcher
to be tipped in order to empty the grass
clippings.
IMPORTANT: Before you commence using
your lawn tractor, you need to familiarize
yourself with the location and the
operation of the controls. This will reduce
the chances of any accidents occuring
and will enhance the performance of the
lawn tractor.
IMPORTANT: Do not have the pedal
in half way of clutch engagement
or disengagement because it will
cause overheating and damage the
transmission belt. When the lawn
tractor is moving, ensure your foot
is of the pedal.

Lawn Tractor Rear Discharge 11
KNOW YOUR PRODUCT
Illustrated Drawings
Check
Panel
4
5
6
7
8
9
10
bcdef
a
12
13
16
20
17
1
2
11
14
18
3
21

KNOW YOUR PRODUCT
Lawn Tractor Rear Discharge
12
Decals and Labels

Lawn Tractor Rear Discharge 13
When using the lawn tractor, it is important to determine if
the slope of the land is safe to mow. Take the following
measures to determine the safety of the slope:
1. Disengage the blades.
2. Position the rear of the lawn tractor to face up the slope.
3. Engage the gear into reverse.
4. Slowly reverse straight back up the slope.
5. If you can achieve this, in general terms the slope is safe
to mow, however, in addition to this, you should also use
the following procedure:
a. Fold this page along dotted line indicated above.
b. Hold the page in front of you and position the
left edge of the page against a vertically parallel
such as a tree trunk, corner of an upright
structure, a power line pole or a fence.
c. Sight across the fold in the direction of hill slope
you want to measure.
d. Compare the angle of the fold with the slope of
the hill.
6. If the slope angle is above 10 degrees DO NOT ATTEMPT
TO CUT THE LAWN.
SLOPE GUIDE
Safe Mowing Guide
WARNING:
1. Use extreme care at all times and avoid
sudden turns or maneuvers.
2. To avoid serious injury, always operate
your lawn tractor up and down the face
of slopes.
3. Never mow across the face of the slope.
4. Do not mow slopes greater than 10
degrees.
5. Make turns gradually to prevent tipping
or loss of control.
6. Exercise extreme caution when changing
direction on slopes.
IMPORTANT:
Keep this guide in a safe and easy
accessible place. DO NOT dispose of this
guide.
ONLY RIDE UP AND DOWN HILL, NOT ACROSS A HILL
10° SLOPE MAXIMUM
FOLD PAGE ALONG THIS DOTTED LINE - THIS REPRESENTS A 10° SLOPE
ONLY RIDE UP OR DOWN A
SLOPE NOT ACROSS
WARNING: To prevent the serious injury, operate your lawn tractor
up and down the slope, NEVER across the face.
NEVER mow slopes greater than 10
°.
Ensure that you make turns gradually to prevent the risk of tipping
or loss of control.
Extreme caution must be exercised when changing direction on
slopes.
1. Fold this page along the dotted line as shown above.
2. To ensure that the page is aligned correctly, line the left hand side of the page
against a vertical object (i.e. Tree, Telephone Pole, Building, Fence....e.t.c.)
3. Then horizontally slide the page across to the slope you wish to measure.
4. Compare the slope against the angle of the fold.
SLOPE GUIDE
10° SLOPE MAXIMUM
ONLY RIDE UP OR DOWN A
SLOPE NOT ACROSS
WARNING:To prevent the serious injury, operate your lawn tractor
upand down the slope, NEVER across the face.
NEVERmow slopes greater than 10
°.
Ensurethat you make turns gradually to prevent the risk of tipping
orloss of control.
Extremecaution must be exercised when changing direction on
slopes.
1. Fold this page along the dotted line as shown above.
2.To ensure that the page is aligned correctly, line the left hand side of the page
againsta vertical object (i.e. Tree, Telephone Pole, Building, Fence....e.t.c.)
3.Then horizontally slide the page across to the slope you wish to measure.
4.Compare the slope against the angle of the fold.
Topreventtheseriousinjury,operateyourlawntractor
°.
9
X

For storage and transport reasons, some components of
the machine are not directly installed in the factory, but
have to be assembled after their removal from the packing.
Final assembly is carried out by following these simple
instructions. Use the correct tools as necessary to ensure
proper tightness.
UNPACKING AND ASSEMBLY
NOTE: Once you have moved the cutting deck to its
maximum height, you can now roll your lawn tractor off
the skid
1. Remove all accessible loose parts and parts cartons
from carton. (Fig 1)
2. Loose the screw at four corner. (Fig 2)
3. Lift upper parts of carton. (Fig 3)
Lawn Tractor Rear Discharge
14
Removing the lawn tractor from the carton
IMPORTANT: The machine is supplied
without engine oil or fuel. Before starting
XSWKHHQJLQH´OOZLWKRLODQGIXHOIROORZLQJ
the instructions given in the engine manual.
WARNING: Before doing any assembly or
maintenance to the mower, remove the wire
from the spark plug.
When unpacking the machine, take care to gather all
LQGLYLGXDOSDUWVDQG´WWLQJVDQGGRQRWGDPDJHWKHFXWWLQJ
deck when taking the machine off the base pallet.
The packing contents:
• Lawn Tractor
• Battery
• Steering Wheel
• Seat
• Grass Catcher Components
• Envelope containing:
- Operator’s manuals and documents
- Nuts and bolts including a pin for locking the
steering wheel
- 2 x starter keys
- 1 x spare 4 A fuse
- 2 x spare lamps
NOTE: To prevent damaging the cutting deck when getting
the machine down from the pallet, take it to the maximum
height and be very careful.
Unpacking the carton
Fig 1
Fig 3
IMPORTANT: Check and remove any
staples in the skid which may puncture the
tyres whilst trying to roll the lawn tractor
off the skid.
4. Press lift lever plunger and raise attachment lift lever to
its highest position.
5. Release parking brake by depressing the clutch/brake
pedal.
6. Place freewheel control in “transmission disengaged
position” or place the shift lever into “N”.
7. Roll the lawn tractor forward off the skid.
8. Remove machine and packing materials.
9. Check for any additional loose parts or cartons and
remove.
Fig 2

Lawn Tractor Rear Discharge 15
1. Fill the six battery cells with the electrolyte. (Fig 4)
2. Take off the cover (5) to other position. (Fig 5)
3. Position the battery (2) in its compartment under the
instrument board.
4. Connect the red cable to the positive (4) terminal (+) and
the black cable to the negative (1) terminal (–) using the
supplied screws.
5. Grease the connectors and pay attention to the right
location of the protective cover and its polarity.
6. Fix the battery by using the fender (3) and bolt.
7. Fit the cover (5) on and secure with the bolt (6).
3ODFHWKHODZQWUDFWRURQWKHµDWVXUIDFH
2. Position the front wheels of the lawn tractor so they are
pointing straight forward. (Fig 6)
3. Slide the steering wheel (1) onto the steering shaft
extension. (Fig 7)
4. Position steering wheel so that the cross bars are
horizontal (left to right).
NOTE: On both the steering wheel hub and the
steering shaft extension there are locating pin holes.
Once the steering wheel has been positioned, ensure
that the locating pin hole matches the hole on the
steering shaft extension.
Fitting the steering wheelAssemble and checking the battery
IMPORTANT: Always fully charge the battery
according to the instructions in the battery’s
manual.
WARNING: The battery electrolyte is
dangerous. Use work gloves and follow the
safety instructions of the battery
manufacturer.
IMPORTANT: To prevent the safety device
in the electronics card from cutting in,
never start the engine until the battery is
fully charged!
WARNING: Follow the battery
manufacturer's instructions regarding safe
handling and disposal.
WARNING: Before installing the battery,
remove all metal bracelets, wrist watch
bands, rings and other metallic objects from
your hands or other areas which may get in
contact with the battery. Touching these
items to the battery could result in burns.
Fig 4
Fig 6
Fig 8
5. Insert the pin supplied (2) into the hole and use a
hammer to drive the pin. (Fig 8) Check to ensure that
the end comes completely through to the opposite
side.
NOTE: To prevent damaging of the hub we
recommend driving the pin with a punch or a
screwdriver of the same diameter as the pin.
6. Pull on the steering wheel to make sure it has been
locked in place.
Fig 5
5
1
4
3
6
2
Fig 7
1
2

Lawn Tractor Rear Discharge
16
Fitting the seat
Grass Catcher Assembly
Components
1. Frame – Upper Part
2. Frame – Lower Part
3. Frame – Front Part
4. Frame – Side Part x 2
5. Canvas Cover
6. Steel Cover
7. Front Handle
8. Rear Handle
9. Emptying Lever
1. Unfold the upper part (1),
front part (3) and the lower
part (2) of the frame.
2. Then proceed to join the
upper holes of the 2 x side
parts (4) to the upper part
(1) holes with supplied two
bolts.
3. Check and adjust the
frame in the canvas
cover (5) making sure it
is correctly positioned on
the base perimeter. Then
hook the 14 x plastic
SUR´OHVRQWRWKHIUDPH
tubes with the aid of a
screw-driver (if needed).
4. Place the two straps onto
the upper part (1) of the
frame. Let the bolts go
through the holes of the
straps and upper part (1),
then tight them with the
supplied nuts.
6. Place the steel cover (6)
onto the upper part (1) of
the frame. To secure steel
cover (6) onto the frame
attach both the front
handle (7) and rear
handle (8) with the
fasteners supplied.
7. Insert the emptying lever
(9) through the steel
cover (6) hole and secure
it to the frame with the
M6 x 25 bolt and nut
supplied.
1. Lift the seat pan (3) into a
vertical position. (Fig 9)
2. Place seat (1) onto the
seat pan (3).
3. The underside of the seat
has 4 threaded holes.
Ensure that these
threaded holes match the
slots on the seat pan.
4. Once the seat has been
positioned secure it by
tightening the 4 x bolts (2) securely.
5. Close the seat pan and sit in the seat to determine if it
needs adjustment.
NOTE: The seat is adjustable for individual settings
in relation to the clutch and brake pedal. If the seat needs
adjustment follow steps 1 – 4.
Fig 9
Fig 11 Fig 12
Fig 13 Fig 14
Fig 15 Fig 16
1
2
8
2
1
3
4
5
6
7
9
Fig 10
1
2
3
4
5
1
7
6896

Lawn Tractor Rear Discharge 17
1. Do not use the machine for any other purpose other than
the purpose of has been designed for (cutting and
collection of grass).
'RQRWWDPSHUZLWKRUUHPRYHWKHVDIHW\GHYLFHV´WWHG
to the machine.
3. Ensure you read the general safety regulations and pay
particular attention to driving and cutting on slopes
before using the machine;
a. Carefully read the instructions for use and
become familiar with the various controls, their
functions and on how to quickly stop the blades
and engine;
b. The rotating parts are extremely dangerous
therefore never put your hands or feet next to
these parts or beneath them and always keep
away from the discharge opening.
'ULYLQJXQGHUWKHLQµXHQFHRIPHGLFDWLRQVGUXJVRU
alcohol is EXTREMELY DANGEROUS as they serious
impact your concentration level. It is the user's
responsibility to assess the potential risk of the area
where work is to be carried out, as well as to take all the
necessary steps to ensure his own safety and that of
others, particularly on slopes or rough, slippery and
unstable ground.
5. NEVER leave the machine stopped on high grass with
the engine running. There is a potential risk of starting
D´UH
6. This machine must not be used on slopes greater than 10°.
7. For storage and transportation reasons, there are some
components which are not installed in the factory, but
have to be assembled after their removal from the
packing. Final assembly is carried out by following these
simple instructions. Use the correct tools as necessary to
ensure proper tightness
NOTE: It is necessary to carry out several checks and
operations before starting work to ensure that the work
gives the best results and is done in maximum safety.
1. It is important to have the correct tyre pressure as it is
the main condition for ensuring that the cutting deck is
horizontal and thus mows evenly.
7KHW\UHVRQ\RXUODZQWUDFWRUZHUHRYHULQµDWHGDWWKH
factory for shipping purposes. Correct tyre pressure is
important for best cutting performance.
3. Tyres with too much air pressure will cause the unit to
ride rough.
4. The incorrect air pressure will prevent the mower
housing from sitting level.
5HPRYHWKHKXEFDSVLI´WWHGXQVFUHZWKHYDOYHFDSV
and connect a compressed air line with a gauge to the
valves.
6. Adjust the tyre pressure
accordingly to the
VSHFL´FDWLRQVVKRZQEHORZ
The correct pressures are:
• FRONT:
1.4 bar (tyres 15 x 6.00-6)
• REAR:
1.0 bar (tyres 18 x 8.50-8)
Fuelling the engine
BEFORE STARTING
Checks and Precautions
Tyre Pressure
IMPORTANT: The operator is always
responsible for damage and injuries to
others.
WARNING: Before doing any assembly or
maintenance to the mower, remove the wire
from the spark plug.
Seat Adjustment
1. The seat can be adjusted by lifting the seat pan and
adjusting the 4 bolts underneath the seat.
2. This will allow you to slide the seat from rear to front.
NOTE: See the engine manufacturer’s instructions for
the type of fuel and oil to use. Before you use the unit,
read the information on safety, operation, maintenance,
and storage.
IMPORTANT: The machine is supplied
without engine oil or fuel. Before starting
XSWKHHQJLQH´OOZLWKRLODQGIXHOIROORZLQJ
the instructions given in the engine manual.
Oil Level
7KHFRPELQHGRLOUH´OOLQJFDSDQGWKHRLOVWLFNLV
accessible when the bonnet is lifted forwards. The oil
level in the engine should be checked before each run.
2. Make sure that the tractor is horizontal.
3. With the engine stopped, check its oil level. Follow
exactly the methods described in the engine manual,
this must be between the MIN and MAX marks on the
dipstick. (Fig 18)
4. Unscrew the oil stick and wipe clean. (Fig 19)
5. Replace the oil stick and screw tight. Remove again
and check the level.

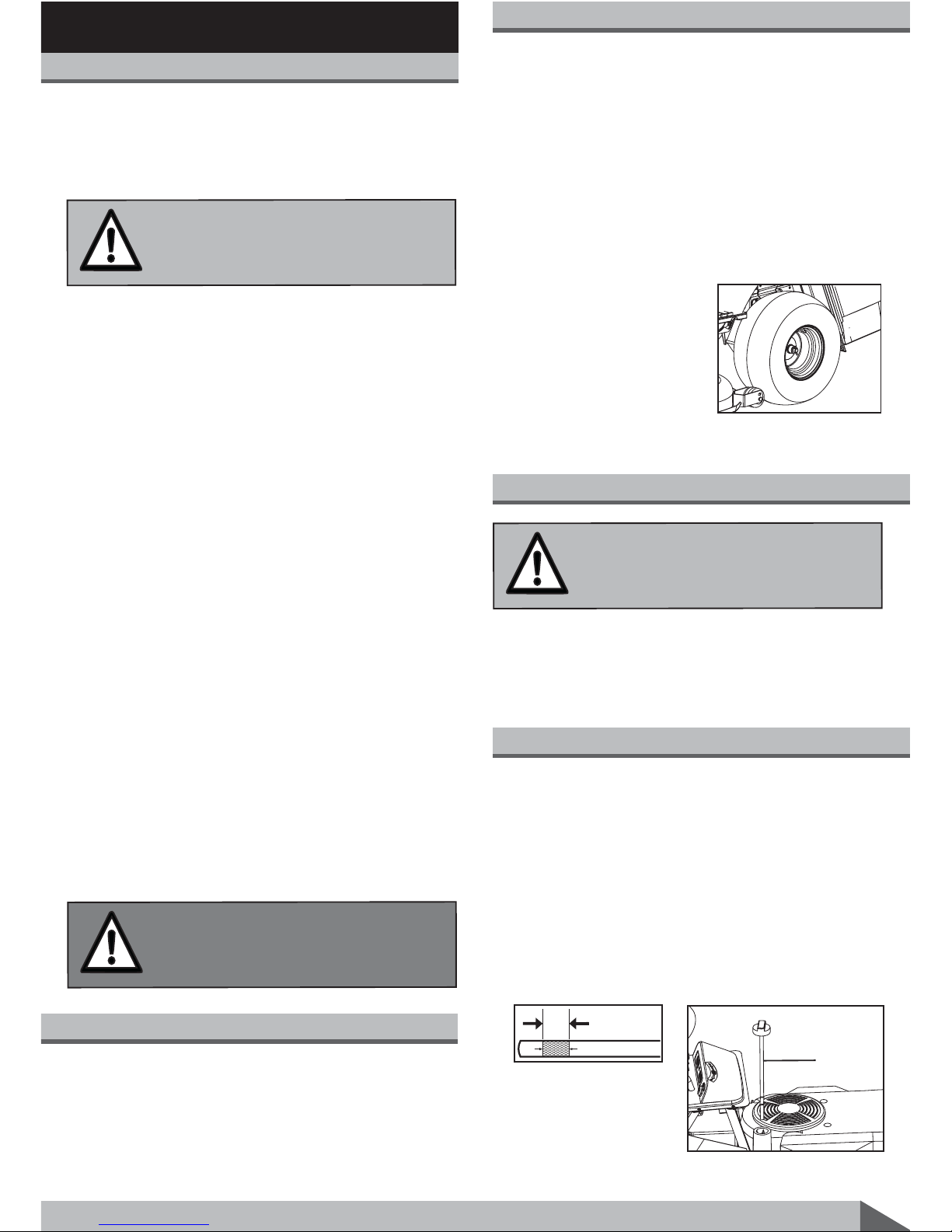

Fig 17
Fig 19
Oil Stick
Fig 18
ADD FULL CAUTION - DO

1. Tilt the grass catcher
and then hook into
the slots. (Fig 21)
Lawn Tractor Rear Discharge
18
Fuel Level Attaching the grass catcher
WARNING: 3HWUROLVKLJKO\LQµDPPDEOH'R
QRW´OOXSZKHQWKHHQJLQHLVZDUP
DANGER: RE-FUELLING SHOULD BE
CARRIED OUT IN AN OPEN WELL
VENTILLATED AREA WITH ENGINE
STOPPED. ALWAYS REMEMBER THAT
PETROL FUMES ARE INFLAMMABLE. DO
NOT TAKE A NAKED FLAME TO THE TANK’S
OPENING IN ORDER TO SEE THE TANK’S
CONTENTS AND DO NOT SMOKE WHEN
REFUELLING.
IMPORTANT: 'RQRWGULSSHWURORQWRWKH
SODVWLFSDUWVWRDYRLGUXLQLQJWKHP,QWKH
HYHQWRIDFFLGHQWDOOHDNVULQVHLPPHGLDWHO\
ZLWKZDWHU
IMPORTANT: 7KLVXQLWLVHTXLSSHGZLWKDQ
LQWHUQDOFRPEXVWLRQHQJLQHDQGPXVWQRW
EHXVHGRQRUQHDUDQ\XQLPSURYHG
IRUHVW¨FRYHUHGEUXVK¨FRYHUHGRU
JUDVV¨FRYHUHGODQGXQOHVVWKHHQJLQHV
H[KDXVWV\VWHPLVHTXLSSHGZLWKDVSDUN
DUUHVWHUPHHWLQJDSSOLFDEOHORFDORUVWDWH
ODZVLIDQ\,IDVSDUNDUUHVWHULVXVHGLW
PXVWEHPDLQWDLQHGLQHIIHFWLYHZRUNLQJ
RUGHUE\WKHRSHUDWRU
WARNING: 1HYHUXVHWKHPDFKLQH
ZLWKRXWKDYLQJ´WWHGWKHJUDVVFDWFKHU
IMPORTANT: The grass container is
FRQWUROOHGE\WKHPLFURVZLWFKZKLFK
WXUQVWKHHQJLQHRIILQFDVHWKHGULYHLV
RQDQGWKHGHYLFHLVGLVFRQQHFWHG,WLV
GDQJHURXVWRGDPDJHWKLVGHYLFHRUWR
OLPLWLWVRSHUDWLRQ
2. Then lower the grass
catcher into position.
(Fig 22)
&KHFNLQJWKHEODGHV
&KHFNWKDWWKHEODGHVDUHZHOOVKDUSHQHGDQG´UPO\
´[HGWRWKHLUKXEV
%DGO\VKDUSHQHGEODGHVZLOOSXOODWWKHJUDVVDQGFDXVH
WKHODZQWRWXUQ\HOORZ
/RRVHEODGHVZLOOFDXVHXQXVXDOYLEUDWLRQVGXULQJWKH
PRZLQJRSHUDWLRQDQGFDQEHGDQJHURXV
4. NOTE: :HDUVWURQJJORYHVZKHQKDQGOLQJWKHEODGHV
WARNING: %HIRUHGRLQJDQ\DVVHPEO\
RUPDLQWHQDQFHWRWKHPRZHUUHPRYH
WKHZLUHIURPWKHVSDUNSOXJ
&KHFNOLVW
7KHIROORZLQJFKHFNOLVWKDVEHHQGHYHORSHGWRDVVLVWZLWK
WKHSUHSDUDWLRQRI\RXUQHZODZQWUDFWRUSULRUWR
operation:
$OODVVHPEO\LQVWUXFWLRQVKDYHEHHQFRPSOHWHG
1RUHPDLQLQJORRVHSDUWVLQFDUWRQ
%DWWHU\LVSURSHUO\SUHSDUHGDQGFKDUJHG0LQLPXP
KRXUDWDPSV
6HDWLVDGMXVWHGFRPIRUWDEO\DQGWLJKWHQHGVHFXUHO\
$OOW\UHVDUHSURSHUO\LQµDWHG)RUVKLSSLQJSXUSRVHV
WKHWLUHVZHUHRYHULQµDWHGDWWKHIDFWRU\
%HVXUHPRZHUGHFNLVSURSHUO\OHYHOHG
VLGHWRVLGHIURQWWRUHDUIRUEHVWFXWWLQJUHVXOWV
7LUHVPXVWEHSURSHUO\LQµDWHGIRUOHYHOLQJ
&KHFNPRZHUDQGGULYHEHOWV%HVXUHWKH\DUHURXWHG
SURSHUO\DURXQGSXOOH\VDQGLQVLGHDOOEHOWNHHSHUV
&KHFNZLULQJ6HHWKDWDOOFRQQHFWLRQVDUHVWLOOVHFXUH
DQGZLUHVDUHSURSHUO\FODPSHG
0DNHVXUHWKHEDWWHU\FDEOHVDUHDWWDFKHG
(QJLQHRLOLVDWLWVSURSHUOHYHO
)XHOWDQNLV´OOHGZLWKIUHVKFOHDQUHJXODUIXHO
%HFRPHIDPLOLDUZLWKDOOFRQWUROVWKHLUORFDWLRQDQG
IXQFWLRQ2SHUDWHWKHPEHIRUH\RXVWDUWWKHHQJLQH
%HVXUHEUDNHV\VWHPLVLQVDIHRSHUDWLQJFRQGLWLRQ
7KHHQJLQHVKRXOGEHUXQRISXUHQRWRLOPL[HGIXHO
'RQRW´OOEH\RQGWKHORZHUHGJHRIWKH´OOLQJKROH
'RQRW´OORYHUPD[OHYHO
'RQRWRYHU´OOWKHWDQNVLQFHWKHSHWUROFDQH[SDQG
DQGRYHUµRZ
0DNHVXUHWKDWWKHSHWUROFDSLVVHFXUHO\WLJKWHQHG
DIWHU´OOLQJ
6WRUHSHWUROLQDFRROSODFHLQDQDSSURSULDWHFRQWDLQHU
IRUHQJLQHIXHO
&KHFNWKHSHWUROWDQNDQGSLSHVIRUDQ\OHDNDJHV
5HIXHOXVLQJDIXQQHOEXWGRQRWFRPSOHWHO\´OOWKHWDQN
7KHIXHOWDQNVFDSDFLW\LVDERXWOLWUHV
$OZD\VXVHDVDIHW\IXHOFRQWDLQHU
%HIRUH\RXDGGIXHOVWRSWKHHQJLQHDQGOHWWKHHQJLQH
FRROIRUVHYHUDOPLQXWHV
12. NOTE:$FWXDOVXVWDLQHGKRUVHSRZHUZLOOOLNHO\EHORZHU
GXHWRRSHUDWLQJOLPLWDWLRQVDQGHQYLURQPHQWDOIDFWRUV

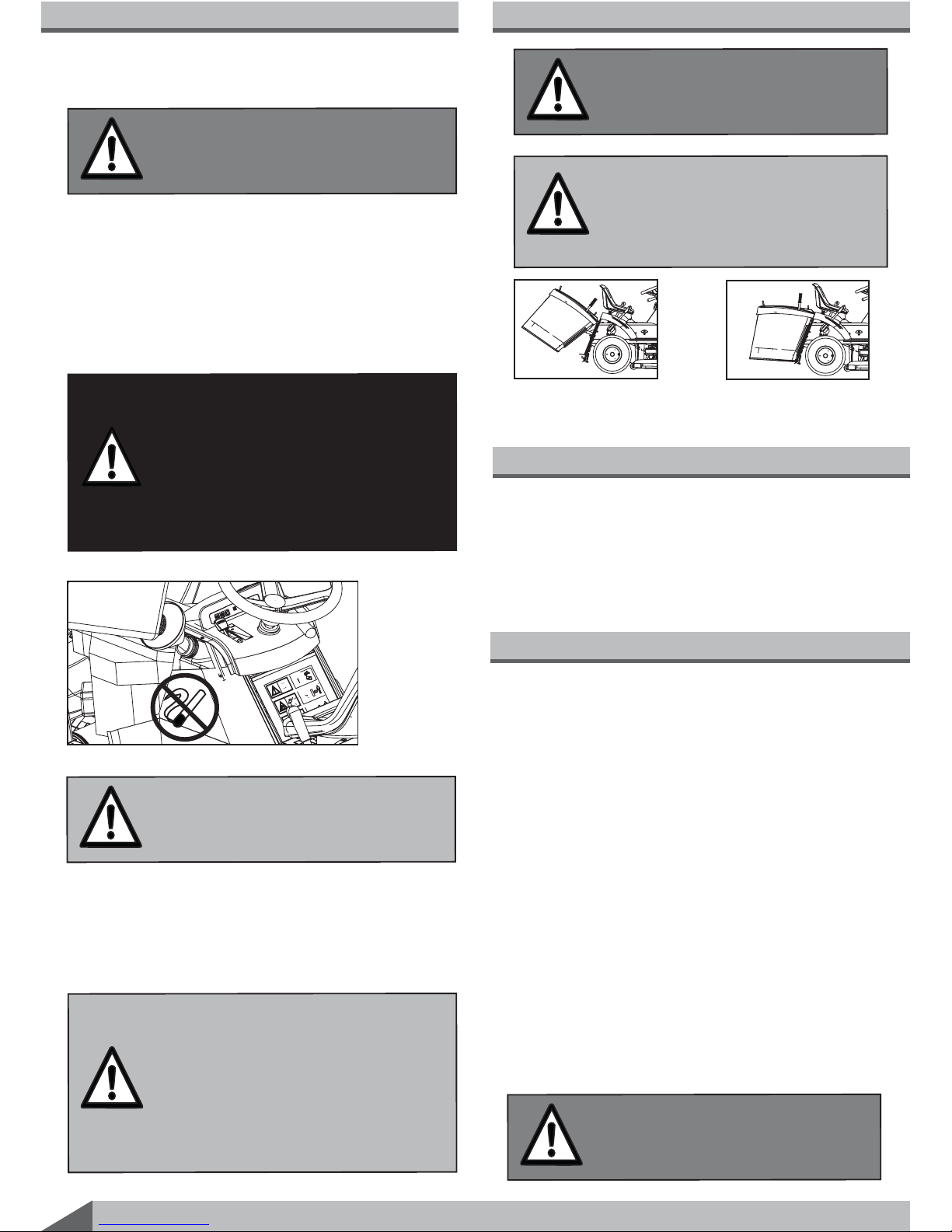

Fig 20
Fig 21 Fig 22

Lawn Tractor Rear Discharge 19
1. Handle for Tipping Grass Catcher: This is a manual
operation and allows the grass catcher to be tipped in
order to empty the grass clippings.
2. Shift Lever: Use the shift lever to change the direction
and speed of the unit.
3. Lift Lever: Use the lift lever to change the height of cut.
4. Blade Engagement Lever: Use the blade rotation control
to start and stop the rotation of the blade.
5. Gas (throttle and choke) Control Lever: Use the gas
control lever to increase or decrease the speed of the
engine. And when gold starting use the throttle position.
6. Headlight Switch: The independant headlight can be
switched <<ON>> or <<OFF>> without having the engine
operational.
7. Ignition Switch: Use the ignition switch to start and stop
the engine.
8. Parking Break Button: Use the parking brake button to
engage the brake when you leave the unit.
9. Clutch/Brake Pedal: The pedal has two functions. The
´UVWIXQFWLRQLVDFOXWFK7KHVHFRQGIXQFWLRQLVDEUDNH
The following section will help you understand the how to
operate the controls.
OPERATION
Locatios of Controls
Understanding your Controls
IMPORTANT: When operating a lawn tractor
it can result in foreign objects thrown into
the eyes, which can result in severe eye
damage. Therefore, it is critical that the
operator always wears safety glasses or eye
shields while operating the tractor or
performing any adjustments or repairs. We
recommend a wide vision safety mask over
spectacles or standard safety glasses.
IMPORTANT: Put the lawn tractor into
operation only at an open ventilated area
as the engine exhalations are toxic.
IMPORTANT: Become familiar with the
operation of controls before you start
the lawn tractor.
Always operate engine at full throttle. The throttle
control is used to increase or decrease the speed of the
engine.
1. For normal operation and when using a grass catcher,
move the throttle control to the FAST position. For
maximum charging of the battery and for a cooler
running engine, operate the engine in the FAST
position.
a. When operating the engine at less than full
throttle, it reduces the battery charging rate.
b. Full throttle offers the best bagging and
mower performance.
2. For transport and to tow pull behind attachments,
move the throttle control to the SLOW position.
3. The engine governor is set at the factory for
maximum performance. Do not adjust the governor
to increase the speed of the engine.
WARNING: Always keep your hands and
IHHWDZD\IURPWKHEODGHGHµHFWRU
opening, and the mower housing when
the engine is running.
1
2
3
4
56
7
8
9
Fig 23
How to use the throttle control
How to use the choke control
How to use the blade engagement lever
You can start the engine at choke position when cold.
The blade engagement lever is next to the steering
wheel. Use the engagement lever to engage the
blade(s).
1. Before you start the engine, make sure the blade
engagement lever is in the DISENGAGE position.
2. Move the blade engagement lever to the ENGAGE
position to rotate the blade(s).
NOTE: If the engine stops when you engage the
blade(s), the seat switch is not activated. Make sure
you sit in the middle of the seat. Also, make sure the
wire is connected to the seat switch.
3. Move the blade engagement lever to the DISENGAGE
position to stop the blade(s). Before you leave the
operator’s position, make sure the blade(s) has
stopped rotating.
4. Before you ride the unit across a sidewalk or a road,
move the blade engagement lever to the DISENGAGE
position.

To change the forward speed or the direction of the unit,
follow the steps below.
Lawn Tractor Rear Discharge
20
WARNING: Before you move the shift lever,
completely push the clutch/brake pedal
forward to stop the unit. If the unit is not
stopped, the gearbox can be damaged.
FUNCTION SHIFT LEVER
7 SPEEDS
Trimming and Snow Thrower 1or2
Bagging Grass 1to6
Mulching Grass 1 to 3
Normal Mowing 2 to 6
Easy Mowing and Snow Blade 3to6
Transport 7
Pull Behind Attachments 1 to 3
To change the cutting height, raise or lower the lift lever
as follows:
1. To release the lift lever, push the button on top of the
lift lever.
2. Move the lift lever forward to lower the mower housing
and back to raise the mower housing.
3. When you ride on a sidewalk or road, move the lift
lever to the highest position and move the blade
rotation control to the DISENGAGE position.
WARNING: Before you leave the
operator’s position, move the shift lever
to the neutral (N) position. Set the
parking brake. Move the blade rotation
control to the DISENGAGE position. Stop
the engine and remove the ignition key.
• The position of the attachment lift lever determines the
cutting height. The cutting height range is approximately
3 cm to 9 cm.
• The heights are measured from the ground to the blade
tip with the engine not running. These heights are
approximate and may vary depending upon soil
conditions, height of grass and types of grass being
mowed.
• The average lawn should be cut to approximately 3.6 cm
during the cool season and up to 9 cm during hot months.
For healthier and better looking lawns, mow often and
after moderate growth.
• For best cutting performance, grass over 15 cm in height
VKRXOGEHPRZHGWZLFH0DNHWKH´UVWFXWUHODWLYHO\KLJK
the second to desired height.
To transport the unit, follow the steps below.
1. Move the blade rotation control to the DISENGAGE
position
2. Raise the lift lever to the highest position.
3. Move the throttle control to a position between SLOW
and FAST.
4. To go faster, move the shift lever to a faster speed.
Blade engagement position
Throttle
Choke Blade
disengage
position

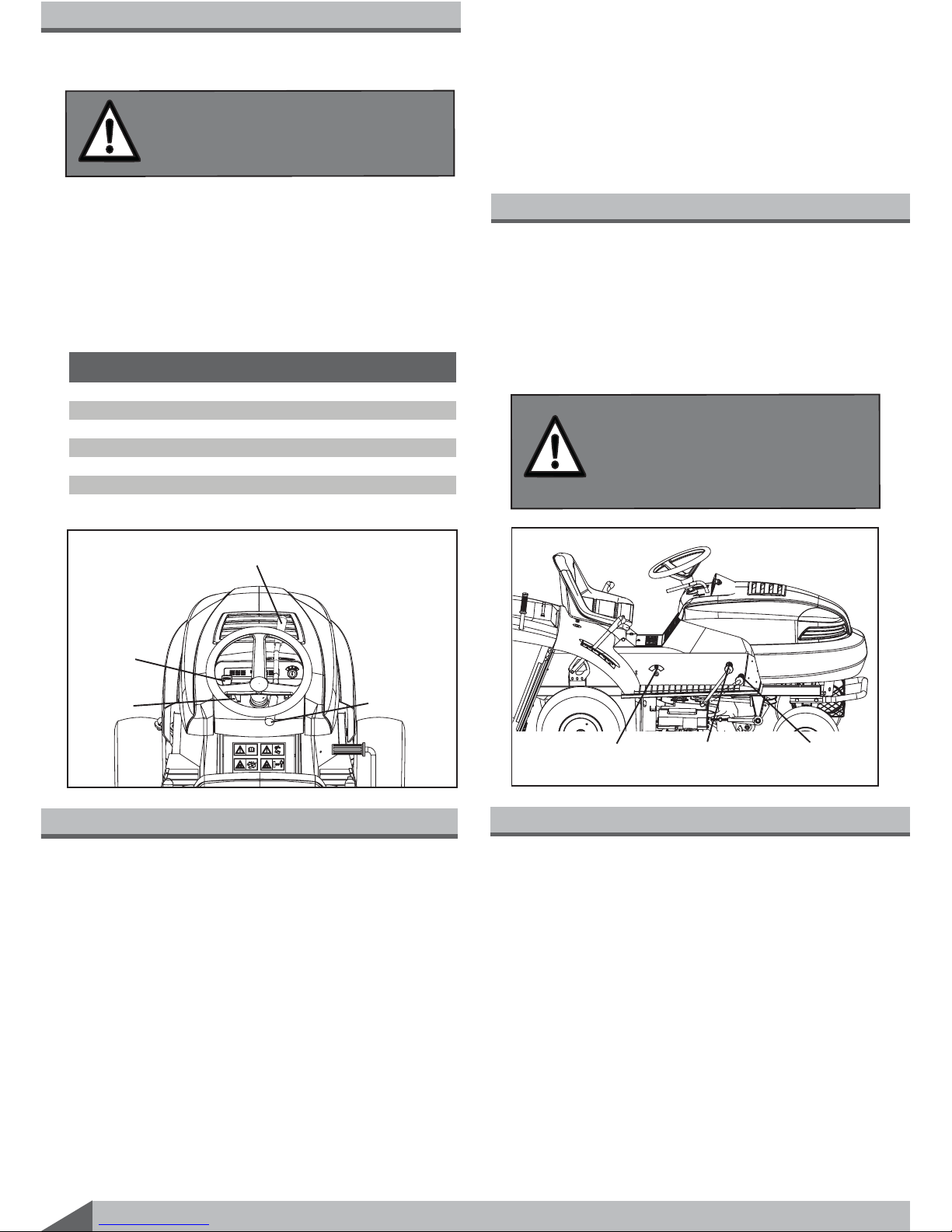

Fig 24
Parking brake
button
Operating
position
Parking
position
Fig 25
How to use the shift lever
How to set the parking brake
How to change the cutting height
1. Completely push the clutch/brake pedal forward to stop
the unit. Keep your foot on the pedal.
2. Move the throttle control lever to the SLOW position.
3. To go forward, move the shift lever to a forward speed
setting. To go backward, move the shift lever to reverse.
4. Slowly release the clutch/brake pedal. Do not keep your
foot on the pedal if not need.
5. Move the throttle control to the FAST position.
1. Completely push the clutch/brake pedal forward.
2. Push the parking brake button.
3. Remove your foot from the clutch/brake pedal and then
release the parking brake button. Make sure the parking
brake will hold the unit.
4. To release the parking brake, completely push the
clutch/brake pedal forward. The parking brake will
automatically release.
How to transport the unit
