Pulsar Finishing Mower Operator’s / Parts Manual
THIRD ANGLE PROJECTION
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\53285.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 3 OF5
DATE DRAWN
MATERIAL
53285
May-17-16 10:54:20 AM
DESCRIPTION
Finishing Mower 60 rear
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\
Weight(lbs.)
0
Width Height Length
0 0 422.75 0
Blank Size Unit of Measure
ITEM ID.
53285
Config ID
53285
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
REV: 18-1

Table of Contents
Warranty -------------------------------------------------------------------------------------------------
Registration ---------------------------------------------------------------------------------------------
Safety -----------------------------------------------------------------------------------------------------
Assembly ------------------------------------------------------------------------------------------------
Decal Location -----------------------------------------------------------------------------------------
Operation ------------------------------------------------------------------------------------------------
Sign O󰀨 Form -------------------------------------------------------------------------------------------
48 - 72 Parts --------------------------------------------------------------------------------------------
Deector Parts ------------------------------------------------------------------------------------------
Belt Arrangement --------------------------------------------------------------------------------------
Gearbox --------------------------------------------------------------------------------------------------
PTO Driveline Dimensions --------------------------------------------------------------------------
PTO -------------------------------------------------------------------------------------------------------
Maintenance -------------------------------------------------------------------------------------------
Bolt Torque Chart --------------------------------------------------------------------------------------
2
3-4
5-6
7
8-9
10-11
12
14-16
16-17
17
18-19
20
21-22
23
24

2
Warranty
Eff ective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on  le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by MK Martin Enterprise Inc. to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or a󰀨 ect the replacement of defective parts, unless otherwise approved
by
MK Martin . Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
 misuse, negligence, accident, theft or  re
 use of improper or insu󰀩 cient fuel,  uids or lubricants
 use of after market parts or accessories, unless approved by
MK Martin
 modi cations, alteration, tampering or improper repair
 any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc. shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on  le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Steffl er Rd.  Elmira  Ontario, Canada  N3B 2Z3  Email : [email protected]  Fax : [phone]  Tel : [phone]
230817

3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above

4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration

5
Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potentially hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: [phone]
3950 Steffl er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: [phone]
e-mail [email protected]
www.mkmartin.ca

6
Safety -- It’s in your interest!
1. Read and understand the Operator’s Manual and all safety signs before operating, servicing,
adjusting, repairing or unplugging.
2. Do not allow riders.
3. Install and secure all guards and shields before operating the equipment.
4. Keep hands, feet, hair and clothing away from all moving parts.
5. Place all controls in neutral, stop tractor engine, set park brake, remove ignition key and wait
for all moving parts to stop before servicing, adjusting, repairing or unplugging the mower.
6. Place all tractor controls in neutral before starting.
7. Never operate the mower unless you are sitting on the tractor seat.
8. Do not operate the tractor inside a building unless there is adequate ventilation.
9. Clear the area of bystanders, especially small children before starting.
10. Stay clear of the machine when engaging the PTO. Keep others away.
11. Clean reectors, SMV sign and lights if used, before transporting.
12. When transporting use hazard ashing lights.
13. Do not put hands or feet under machine while tractor engine is running.
14. Do not operate the mower in a raised position.
15. Objects can be thrown out from the mower with su󰀩cient force to severely injure
people or pets. Stay away from mower when it is running, keep others away.
16. Remove all sticks, stones and other loose matter in the area before starting.
17. Review operator’s manual annually.
It is the responsibility of the owner or operator to read this manual and to train
all other operators before they start working with the mower.
Follow all safety instructions. Safety is everyones business. By following recom-
mended procedures, a safe working environment is provided for the operator,
bystanders and the area around the work-site.
Untrained operators are not qualied to operate the mower!

7
These Finish Mowers are shipped with the “A” Frame disassembled.
Assemble by undoing the top “A” Frame bolt and inserting the Brace Bars as shown above.
After tightening the nut on the bolt, back the nut o󰀨 1/3-1/2 turn to allow some movement in the
linkage.
Ensure the Anti-Scalp roller turns free, a few drops of oil my be added on the axle shaft at this
time.
Ensure the wheels and the caster pivot turn freely. Lightly grease the caster pivot.
When attaching Mower to tractor ensure drive-line is the right length and does not bind.
(See page 22 for directions)
Assembly Information
THIRD ANGLE PROJECTION
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\53285.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 3 OF5
DATE DRAWN
MATERIAL
53285
May-17-16 10:54:20 AM
DESCRIPTION
Finishing Mower 60 rear
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\
Weight(lbs.)
0
Width Height Length
0 0 422.75 0
Blank Size Unit of Measure
ITEM ID.
53285
Config ID
53285
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING

8

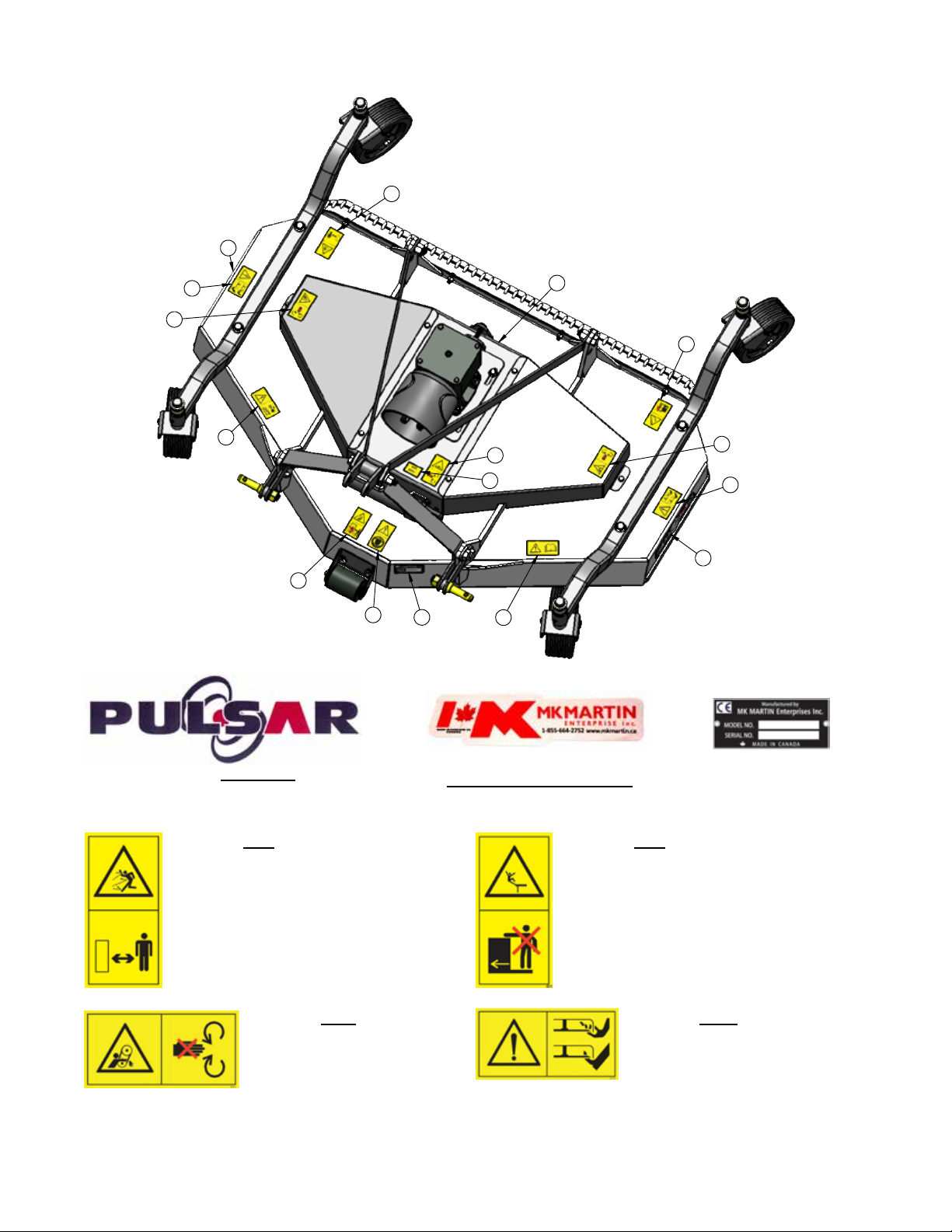

Decal Location
THIRD ANGLE PROJECTION
1
2
3
4
5
7
8
9
10
11
4
5
6
6
12
13
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\53285.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 6 OF7
DATE DRAWN
MATERIAL
53285
May-17-16 11:54:20 AM
DESCRIPTION
Finishing Mower 60 rear
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\
Weight(lbs.)
0
Width Height Length
0 0 420.08 0
Blank Size Unit of Measure
ITEM ID.
53285
Config ID
53285
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
6 - Part # PULSAR
- x2
5 - Part # A75 - x2
DANGER of possible
shearing of limbs. Keep
a safe distance from the machine while it is
working.
1 - Part # 224
DANGER. Sharp objects could
be thrown. Keep safe distance
from the machine
3 - Part # 227
Danger of dropping. Do not climb
on to the machine.
4 - Part # 211 - x2
Risk of injuries. Do not
remove the protective
shields from the belts unless all moving
parts of the machine have reached a com-
plete standstill.
2 - Part #
MKlogomadeincanada 8 - Serial Plate

9
13 - Part # 540
Operate with PTO at 540 RPM
9 - Part # Noise
Loud noise. Wear adequate
hearing protection, e.g. head-
phones.
11 - Part # 226
Before any operation
of maintenance a/o ad-
justment, stop, brake the tractor on level
ground, lower the machine to the ground
and read the instruction manual.
10 - Part # 207
DANGER of being crushed.
Do not get between the tractor
and the machine.
7 - Part # F9
Before operating ma-
chine, carefully read the
instruction manual
Technical Data
MOD. Cut Width HP # Blades RPM Weight
Pulsar 48 side 48 14-20 3540 350
Pulsar 48 rear 48 14-20 3540 365
Pulsar 60 side 60 14-22 3540 420
Pulsar 60 rear 60 14-22 3540 425
Pulsar 72 rear 72 18-25 3540 520
12 - Part # 220
DANGER of being caught by
the PTO shaft. Do not go near
the rotating members of the ma-
chine while in operation.
Noise Level
No- load noise detection
Level of acoustic pressure LpA dB - - - - 94 dB
Level of acoustic power LwA dB - - - - 103 dB
103

10
Operating
For the new operator
This nish Mower is designed to cut a variety of grasses. The mower will work best on dry grass.
When cutting damp or long grass, use slower travel speed and you my need to frequently clean
the underside of the mower deck. Power to the blades is provided by the tractor through a PTO
Shaft, Gearbox and Belts.
This mower is designed for a 540 RPM PTO speed and will give the best performance at this
speed.
Many features in this mower are the result of suggestions made by customers like you.
By following the operating instructions in conjunction with a good maintenance program, your
Pulsar Finish Mower will provide you with many years of service.
To Operate
Attach the mower to the tractor 3ph. Ensure the deck is level to the ground by adjusting the right
hitch arm adjustment and the top link until the deck is level.
Cutting height is controlled with spacers on the caster pivot. Move spacers from top to bottom
of wheel beam or bottom to top as needed for the proper cutting height.
Starting the Mower
With the mower slightly raised from the ground. (wheels may be o󰀨 the ground 3-6 inches)
Run the engine at a slow speed and slowly engage the PTO.
Slowly bring the engine to PTO speed. Do not exceed rated speed.
Lower the mower to the ground and proceed to mow.
Ground Speed
Travel speed can vary between 1 and 4 mph (1.5 and 6km/h) depending on the grass and ter-
rain conditions. It is the responsibility of the operator to note the conditions of the job being done
and to set the speed to obtain a quality cutting job while maintaining control of the equipment.
The speed can be increased for lighter cutting conditions.
Decrease your speed if the cut is ragged and uneven, or uncut patches.
Transport on Road - Be Safe, Be Seen!
When driving on the road please follow all regulations. Use lights, reectors, SMV sign as re-
quired by law.

11
Wheel Height
When setting the height of the deck, follow this procedure:
1. Clear the area of bystanders, especially children.
2. Raise the 3 point hitch or lift with a hoist until the wheels are far enough o󰀨 the ground to
remove the casters.
3. Stop the engine, set the park brake, remove the ignition key and wait for all moving parts to
stop before dismounting.
4. Place a large block or safety stands under the deck to support the mower.
5. Remove the lynch pin on the caster shaft and lower the caster until it is out of it’s socket.
6. Rearrange the spacers above and below the wheel beam for your desired deck height. Ar-
range all spacers equally on all 4 casters.
7. Ensure all lynch pins are secure.
8. Remove the blocks or safety stands.
1. Operating Tips:
2. Although it is best to cut when it is dry, the Mower will work in wet conditions as well. The op-
erator will have to travel slower for the same quality of cut. It will also be necessary to clean
the bottom of the deck more frequently to prevent caking or clogging of the blade area.
3. Cutting should always be done at the rated PTO speed of 540 RPM. The cutting action is
generated at the blade tips. When the speed drops below a certain point the blade will start
to tear the material rather than cut it. It will look uneven and ragged.
4. Change gears to vary the ground speed. For your safety do not travel faster then 4 MPH (6
km/h). It is the operator’s responsibility to operate the machine in a safe manner at all times.
5. If the grass is tall, cut it twice to obtain the best results. This allows the unit to cut less material
on each pass.
6. When mowing a new area for the rst time, you may want to set the deck height higher to
clear any objects that may be hidden in long grass. When you are familiar with the area and
have not detected any foreign objects the mower height can be set to the preferred cutting
height.
7. Never cut grasses shorter than recommended for your weather conditions. Short grass is
less able to withstand hot and dry conditions. It is better to cut more frequently at a longer
length than cutting too short.
8. The blades need sharpening when the grass is not cut evenly and appears to ripped o󰀨 rath-
er than a clean cut.
9. Reduce ground speed when mowing in close quarters and around obstructions.
10. The mower should always be operated with all 4 wheels on the ground. The mower may be
lifted a few inches o󰀨 the ground when maneuvering around corners or objects.
11. The mower has three blades that turn at a high rate of speed and can expel objects out of
the discharge area, 50 ft or more. It is important that the operator is aware of this and never
points the mower discharge towards people, animals or property. It is better to stop cutting
when people are in the area, especially children.

12
Sign Off Form
M K Martin Enterprise Inc. follows the general Safety Standards speci ed by the American
Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration
(OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly
understand ALL Safety Operating and Maintenance instructions presented in this manual. Do not
operate or allow anyone else to operate this equipment until such information has been reviewed.
Annually review this information before the season start-up. Make these reviews of SAFETY and
OPERATION annually as a standard practice for all your equipment. We feel that an untrained op-
erator is unquali ed to operate this machine. A sign-o󰀨 sheet is provided for your record keeping
to show that all personnel who will be working with the equipment have read and understood the
information in the operator’s manual and have been instructed in the operation of the equipment.
Date Employees Signature Employers Signature

13
Sign Off Form
M K Martin Enterprise Inc. follows the general Safety Standards speci ed by the American
Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration
(OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly
understand ALL Safety Operating and Maintenance instructions presented in this manual. Do not
operate or allow anyone else to operate this equipment until such information has been reviewed.
Annually review this information before the season start-up. Make these reviews of SAFETY and
OPERATION annually as a standard practice for all your equipment. We feel that an untrained op-
erator is unquali ed to operate this machine. A sign-o󰀨 sheet is provided for your record keeping
to show that all personnel who will be working with the equipment have read and understood the
information in the operator’s manual and have been instructed in the operation of the equipment.
Date Employees Signature Employers Signature
NOTES

14
THIRD ANGLE PROJECTION
1
2
3
4
5
67
89
10
11
1213
14
151617
18
19
20
21
222324
25
26
27
28
2930
31
32
33
34 35
36
37
38 39
40 41 42
43 44
45 46
47 48 5049
51 52 53
54 55 56
57
58 59
60 61 62
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\53285.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 5 OF5
DATE DRAWN
MATERIAL
53285
May-17-16 10:54:20 AM
DESCRIPTION
Finishing Mower 60 rear
\\DC1\Engineering\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\
Weight(lbs.)
0
Width Height Length
0 0 423.59 0
Blank Size Unit of Measure
ITEM ID.
53285
Config ID
Exploded
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
48 - 72 Pulsar Finish Mower Parts
Item # Part # Description Qty 48 Qty 60 Qty 72
153537 Short spacer 8 8 8
253536 Long spacer 8 8 8
3OL 3/16 Lynch pin 4 4 4
453245 Wheel fork 4 4 4
5OL Bolt 1/2 x 4 1/2 c/w ln 4 4 4
653337 Wheel spacer 8 8 8
753670 Wheel 4 4 4
8176004 48 Blades 3
176009 60 Blades 3
90007 72 Blades 3
910118 Heavy washer 3 3 3
10 OL Bolt 5/8 x 1 c/w lw 3 3 3
11 OL Bolt 3/8 x 1 1/4 c/w lw,n 12 12 12
12 1400-100 Snap ring 3 3 3
13 21397 Short keystock 2 2 2
14 900001 Spindle 3 3 3
15 21399 Scalp roller axle 1 1 1
16 53671 Scalp roller end 2 2 2
17 10304 Scalp roller body 1 1 1
18 OL Cotter pin 1/8 x 1 1 1 1
19 OL Bolt 3/8 x 1 c/w fw,ln 2 2 2

15
Item # Part # Description Qty 48 Qty 60 Qty 72
20 53267 Roller bracket 1 1 1
21 21392 Pulley spacer 2 2 2
22 900008 48 Outside spindle pulley 2
900010 60 Outside spindle pulley 2
900004 72 Outside spindle pulley 2
23 Belt58 48 Belt 2
Belt68 60 Belt 2
Belt78 72 Belt 2
24 900009 48 Center spindle pulley 1
900011 60 Center spindle pulley 1
900003 72 Center spindle pulley 1
25 21395 Long keystock 2 2 2
26 900002 Gearbox pulley 1 1 1
27 OL 1 1/4 Flatwasher 1 1 1
28 53260 Gearbox mount 1 1 1
29 DJA7011 Manual tube 1 1 1
30 OL Bolt 1/4 x 1 self drilling screw 2 2 2
31 53252 48 Right belt cover 1
53292 60 Right belt cover 1
53559 72 Right belt cover 1
32 OL Bolt 5/16 x 3/4 c/w lw 2 2 2
33 53672 Slip clutch 1 1 1
34 DJA69351 PTO shield 1 1 1
35 F205J808 Gearbox 1 1 1
36 OL 5/8 Nut c/w lw 4 4 4
37 53267 Gearbox slider 1 1 1
38 OL Bolt 3/8 x 1 c/w lw,fw,n 10 10 10
39 OL Bolt 1/2 x 3 Full thread c/w ln 1 1 1
40 NSMMZ29206 Adapter 3 3 3
41 OL Flange nut 7/16 3 3 3
42 OL 1/4-28 Grease nipple 3 3 3
43 OL Bolt 5/16 x 3/4 c/w lw 4 4 4
44 53252 48 Left belt cover 1
53291 60 Left belt cover 1
53558 72 Left belt cover 1
45 OL Bolt 5/8 x 6 c/w ln 1 1 1
46 53314 Top link stop 1 1 1
47 53236 Top link 1 1 1
48 53237 Top link bushing 1 1 1
49 53234 A frame 2 2 2
48 - 72 Pulsar Finish Mower Parts

16
48 - 72 Pulsar Finish Mower Parts cont.
Item # Part # Description Qty 48 Qty 60 Qty 72
50 53235 48 A frame brace bar 2
53209 60 A frame brace bar 2
53557 72 A frame brace bar 2
51 53264 Stop washer 2 2 2
52 OL Bolt 3/4 x 2 1/4 c/w ln 2 2 2
53 OL Bolt 3/4 x 2 c/w ln 2 2 2
54 21401 Spacer 2 2 2
55 53232 Hitch link 4 4 4
56 OL Bolt 3/4 x 2 1/4 c/w ln 2 2 2
57 53061 Hitch pin c/w lw,n 2 2 2
58 53540 Short grease hose 2 2 1
59 53562 Long grease hose 1 1 2
60 OL Bolt 1/2 x 3 c/w lw,fw 4 4 4
61 53240 48 Wheel beam 2
53295 60 - 72 Wheel beam 2 2
62 53673 Bushing 4 4 4
90 Pulsar Finishing Mower Parts
Item # Part # Descritption Qty
1OL Bolt 3/8 x 1 c/w lw, n 5
2OL 3/16” Lynch Pin 4

17
90 Pulsar Finishing Mower Parts cont.
Item # Part # Description Qty
3OL Bolt 1/2 x 3 c/w fw, lw 4
453537 Short Spacer 8
553536 Long Spacer 8
6OL 1/4 - 28 Grease Fitting 4
736727 90 Wheel Beam 2
853245 Wheel Fork 4
9OL Bolt 1/2 x 4 1/2 clw ln 4
10 53670 Wheel 4
11 53337 Wheel Spacer 8
12 mkfm900001 Spindle 5
13 OL Bolt 3/8 x 1 1/14 c/w lw, n 20
14 walfm900005 90 Blades 5
15 10118 Heavy Washer 5
16 OL Bolt 5/8 x 1 c/w lw 5
17 53016 Hitch Pin c/w lw, n 2
18 OL Bolt 3/4 x 2 c./w ln 2
19 53232 Hitch Link 4
20 21401 Spacer 2
21 OL 1/8 x 1 Cotter Pin 3
22 21400 Complete Scalp Roller 3
23 OL Bolt 3/8 x 1 c/w lw, fw, ln 6
24 21399 Scalp Roller Axle 3
25 53267 Roller bracket 3
26 OL 5/16 x 3/4 c/w lw 2
27 36168 90 Left Belt Cover 1
28 53229 Gearbox Slider 1
29 mkfm900002 Gearbox Pulley 1
30 DJA70111 Manual Tube 1
31 36173 90 RIght Belt Cover 1
32 DJA69351 PTO Shield 1
33 cnxLF205J808 LF 205 Gearbox 1
34 OL 5/8 Nut c/w lw 4
35 OL 5/16 x 3/4 c/w lw 4
36 53260 Gearbox Mount 1
37 1400-100 Snap Ring 5
38 21392 Pully Spacer 4
39 mkfm900010 90 Outside spindle pulley 4
40 36188 ?? 2
41 ?90 MOwer Belt 2
42 53314 Top Link Stop 1
43 53237 Top Link Bushing 1

18
THIRD ANGLE PROJECTION
1
2
34
5
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Finish Mower\EURO Finishing Mower\60 Finishing Mower\60 Rear Discharge\53285.SLDASM
DWG. NO.
REV
Model
SCALE 1:12
SHEET 1 OF1
DATE DRAWN
MATERIAL
Rear deflector
November-23-16 5:56:02 PM
DESCRIPTION
Finishing Mower 60 rear
\\DC1\ENGINEERING\SOLIDWORKS\SOLIDWORKS_ELO\FINISH MOWER\EURO FINISHING MOWER\60 FINISHING MOWER\60 REAR DISCHARGE\
Weight(lbs.)
0
Width Height Length
0 0 17.14 0
Blank Size Unit of Measure
ITEM ID.
53285
Config ID
53285
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Item # Part # Description Qty 48 Qty 60 Qty 72
153545 48 Rear deector 1
53539 60 Rear deector 1
53560 72 Rear deector 1
253546 48 Holder cable 1
53538 60 Holder cable 1
53561 72 Holder cable 1
3OL 3/16 Cable clamp 2 2 2
453081 Chain 37 47 55
5OL Bolt 3/8 x 1 c/w lw,n 4 4 4

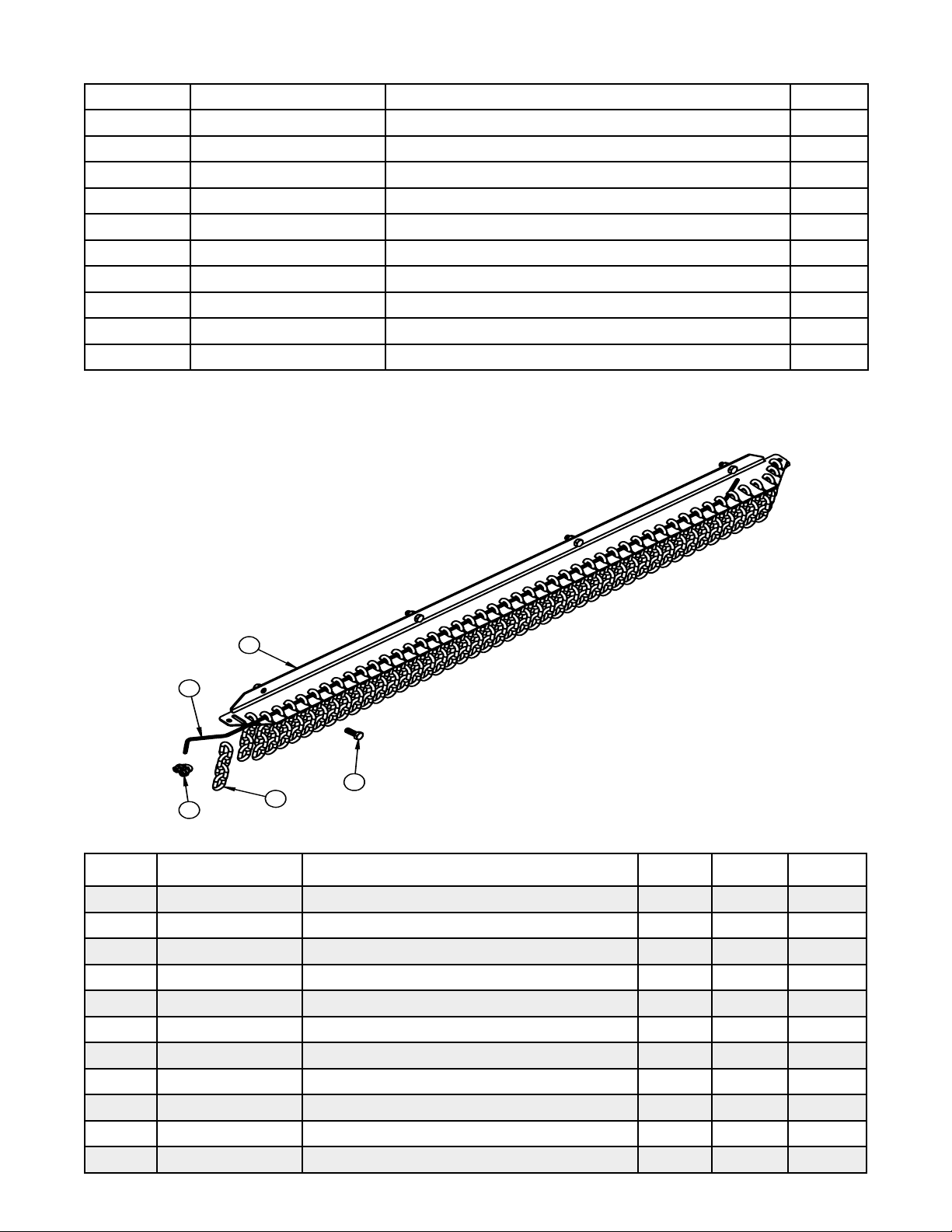

48 - 72 Pulsar Finish Mower Rear Shield
Item # Part # Description Qty
44 53239 Top Link 1
45 53557 A Frame Brace Bar 2
46 OL Bolt 5/8 x 6 c/w ln 1
47 53234 A Frame 2
48 53264 Stop Washer 2
49 OL Bolt 3/4 x 2 1/4 c/w ln 2
50 mkfm900011 90 Inside spindle pulley 1
51 36167 Main Body Assembly 1
52 OL Bolt 3/4 x 2 c/w ln 2
53 36519 Rear Shield 1
90 Pulsar Finishing Mower Parts cont.
