Moyu XPB30-F1 User manual

The folding washing machine
Manual
Moyu Washing Machine The second washing machine for your family

An act or practice
that must be prohibited An act or practice that must be followed If fail to do so may cause the loss of goods and property
Dear Moyu users:
Thank you for choosing Moyu portable folding washing machine. In order that you
canuse this product better and prevent personal injury and goods damage accident,
please be sure to read and follow the contents with these signs in this manual.
1.Safety Caution
Working scenario: The portable folding washing machine can’t be used to clean the clothing
contaminated with gasoline, paint, caustics, or acid-base chemicals
When installation:
Please use 220V one-way two-hole socket
Only use the matching adapter, and do not use other substitutes at will, so as to avoid damage
to the machine due to inconsistent parameters.
The plug at the end of the adapter is inserted into the position of the power socket of the whole
machine, keeping it in place and stable.
The adapter plug should be firmly inserted into the boom. After the machine is placed stably, the
plug should touch the bottom easily.
Maintenance:
Please use appropriate detergent for decontamination. When using detergent, please pay
attention to preventing the detergent from splashing into your eyes. If detergent gets into your
eyes, rinse eyes immediately with clear water.
Wipe the plug regularly with a dry cloth (Dust accumulation or moisture, etc., may lead to poor contact)
Children must stay away from powdered detergent used to clean washing machines
Please do not tilt or move the machine during operation (May cause leakage, etc.)
In case of abnormality or failure, please stop using immediately, pull out the adapter plug and turn
off the power.
Do not repair or replace any part of the washing machine, and do not attempt to repair the washing
machine unless otherwise specified in this manual. If necessary, please contact the customer
service for repair, or see the "questions" section for information
If the flexible wire of the adapter is damaged, to avoid danger, it must be replaced by a professional
from the manufacturer or similar department
Washing machine repair must be carried out by professional technicians
When installation:
Maintenance:
Please do not touch the adapter plug with wet hands. Please do not pull out the adapter by hand；
Please do not store gasoline or other flammable gases or liquids near the washing machine.
(In case of fire)
Please do not pour water or water into the lower part of the washing machine. (Will cause the
machine motor damage)
Please do not put hot water above 60℃ directly into the machine to wash the clothes. (Avoid
product deformation due to high temperature, resulting in machine damage)
During use, please be sure to power off after finishing the current washing program. Do not cut
off power before the program is completed. (There is a fan arranged inside the machine to
dissipate heat from the motor. If the heat dissipation of the machine do not reach the designed
temperature drop range, it will continue to run the washing work, which is easy to cause damage
to the motor gear) If the power is cut off before the program is completed, do not enter the new
washing program immediately, please standby for 10 minutes and then enter the next washing.
Malfunction or damage to the machine:
ATTENTION
Do not place the washing machine in an excessively humid environment such as a bathroom;
Please do not install or use washing machine in the environment with temperature below 5℃

2.Technical data
Nominal
Voltage Rated Frequency Rated Power Level of Noise Working status appearance dimension Folding state appearance size
Rated Washing
Capacity
180~240V~ 50/60Hz 40W 0.8kg 292×292×290mm 292×292×96mm
≤60dB
3.Installation steps
The folding washing machines must be connected properly, or it will not work well
Water intake and drainage condition and electrical connections must conform to thefollowing or the
standards specified in the manual
Please remove the packing cases, bags and other packing materials of this machine. Count all items
according to the packing list. Each washing machine is tested before it goes out, so there will be a
small amount of water or water marks left inside the machine
Receiving inspection
The position should be away from heat source and avoid direct
sunlight to prevent shell coating from peeling or fading
Please unroll the washing machine first, and then place it on a stable level
Select installation position
① The first lower drainage method: After the machine is packaged,
the drain pipe at the bottom is arranged in Z shape on the base.
Place the drain port above the drainage position, and then pull
up the manual drain switch on the right side 80 degrees.
The machine will start to drain water
②The second lower drainage method:Pull the drain pipe on the base
along the outlet position, pull the drain pipe out of 3 buckles, pull it
straight along the drain pipe and put it into the groove for in-line
drainage. Then lay the machine down steadily. When the machine
wants to drain water, pull the manual drain switch on the right side
up to 80 degrees, and the machine starts to drain water
③The third upper drainage method:For the sake of emptying the
water inside the machine immediately, manual drainage is an option.
First power off the whole machine and disconnect the whole machine
from the adapter . Lift the handle of the machine with one hand and
buckle the other hand into the buckle hole of the base . Tilt the upper
mouth of the machine downward and empty the water gradually
Drain water away
For using the bottom of the machine for drainage , it may not be able to drain all the water
in a short time. Therefore, when using the lower drainage method, it is recommended to use
the upper drainage method to drain all the residual water after the completion of drainage
*Explanation: Due to the mini portability of the machine, small drainage pipe diameter and
slow drainage are normal. Please wait patiently
Drain
Drain
Drain
Take out the
drain pipe
and keep
it straight
Grab the handle with
the other hand
Lift the
bottom
Caution
It should be placed in an open
place as much as possible. Do
not place in a place that may be
frozen in winter (5 ° C)
Pull the drain
switch to
drain
① Pour clean water directly into the bucket of washing machine. The injected water level shall not
exceed the maximum level "H"
Flooding water

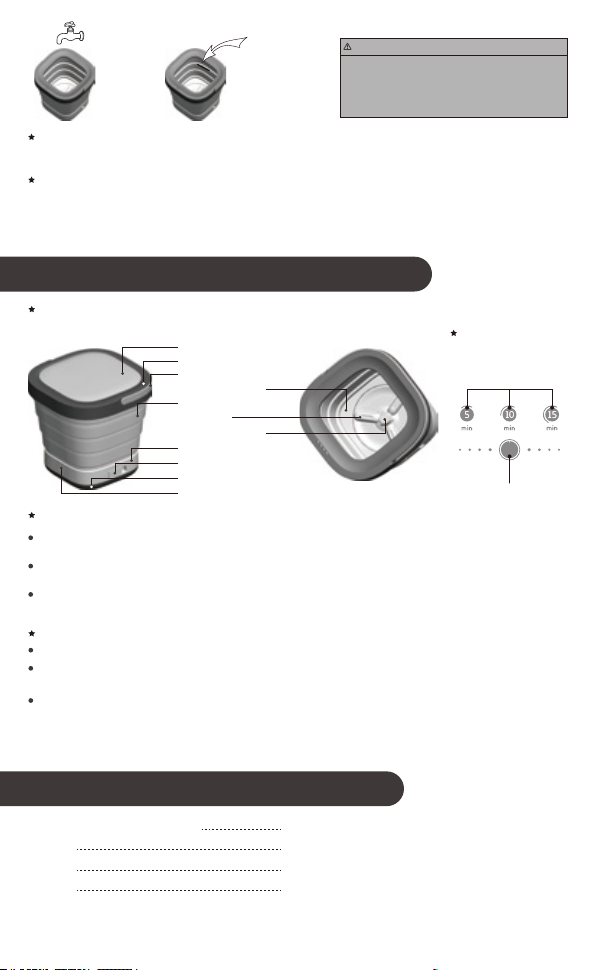

Name of each part
4. Learn about portable folding washing machines
5. packing list
Detergent
Washed clothing
Control panel
Bucket lid
Barrel
Handle
Barrel bottom
Folding bucket
Pulsator
Pulsator cover
Shell
Drain switch
Base
Control panel
Program signal light
Touch key switch
Function: It can effectively reduce the adhesion between stains and clothing, and enhance the
washing effect;
Detergent selection:It is recommended to use low-foam or non-foam soap powder that is
commercially available;
Solution of adding detergent: When adding detergent, please put the detergent directly into the
washing tub.
Able to wash small pieces of clothing (weight less than 0.3KG), such as: underwear, socks, etc.;
Cannot be used to wash large pieces of clothing (weight more than 0.3kg). Because the whole
machine is designed with protection programs, it will not be able to wash large pieces of clothing;
Since the washing machine is a single washing machine, after the washing process is completed,
please take out the agricultural materials manually, wring them out or put them into the dehydrator
for dehydration.
The folding washing machine
Adapter
Manual
Cloth bag
1
1
1
1
Adapter connection：
The power voltage and frequency shall be the same as the nameplate specification
Follow these steps to remove the washer connection:
① Disconnect the adapter from the socket ② Disconnect the adapter from the machine
③ Drain the water from the washing bucket ④ Wipe the machine and keep it clean
Inject water
directly into
the bucket
The injected water
cannot exceed the
maximum H level
Caution
Please do not put hot water above 60℃
directly into the machine to wash the
clothes.(Avoid product deformation due to high
temperature , resulting in machine damage)
Washing

commencement of washing machines
7. Method of use (expansion and folding of washing machines)
First take out the bucket cover, lift the handle in one hand, and then press the bottom of the bucket
with the other (do not press the wheel with your hand and place it to cause the deformation of the
wheel), then lift the handle hard and gradually unfold the folding bucket of the washing machine
pretreatment of clothing
8. Method of use (adding detergent)
The detergent is put directly into the washing bucket, and an appropriate amount of detergent is
invested according to the amount of washing clothes;
6. How to use (pretreatment and placement of clothes)
Pretreatment of clothing
In order to avoid clogging the drain pipe and affecting the performance of the washing machine,
please remove the obvious dirt and fiber inside and outside the laundry out before putting the
laundry into the washing machine.
Placement of clothing
In order to ensure better washing effect, please open the clothes into the washing tub to avoid the
washing effect being unsatisfactory due to the knotting of the clothes.
The folded
washing machine
① first takes
out the bucket ②raises the handle
with one other hand
③presses the bottomof
the bucketwith the other
handpull the hand upward
and pull up
④ to complete the
operation after the
folding bucket is fully
expanded.
Folding of washing machines
First take out the bucket cover, hold down the upper frame of the washing machine with both hands,
then work down, gradually recover the folding bucket into a folded state, and then cover the bucket cover.
① put both hands
down on the bucket box
② when the folding bucket cannot be pressed
in place, please press the folding edge of the
folding bucketinward-down to ensure that the
folding bucket is in place
③ after folding the folding
bucket in place, put the
bucketcover in and complete
the operation
Do not use strong acid or strong alkaline detergent which may corrode the machine; please use
detergent soluble in water, so as not to clog the drain pipe in the washing process
Please choose low foam or non-bubble detergent to avoid a large amount of foam overflow
in the washing process and affect the washing effect.
CAUTION

10.Operating washing machine
① Put the clothes to be washed into the washing bucket, and then put the appropriate amount of
detergent
② Pour in the right amount of water (water can completely cover the clothes, and about 3 ~ 5 cm
above the clothes is preferred)
③ Tap the “Washing” for 1 second and switch the required program with "di" sound. After selecting
the program, it will automatically enter the washing program without operation for 3 seconds
④ When the program is finished, the program's signal lamp will flash for 5 seconds and beep for
3 seconds at the same time. After 5 seconds, the signal lamp will be off and the program will be finished
⑤ Take out washing clothes
⑥ Disconnect the adapter from the machine and socket
⑦ Choose the right way to drain the water out of the washing machine
⑧ Wipe the machine
After washing
11.cleaning and maintenance
When the washing program is finished, please drain the dirty water from the washing machine,
avoiding standing for a long time to spoil the water
Need to carry out
Please wipe the machine clean and fold the washing machine as the folding method, and put the
cover on the bottom. Then place it into the accompanying cloth bag and place the matching adapter
Make sure the adapter is disconnected from the socket and machine before cleaning the parts
CAUTION
9.Usage (program settings)
The washing machine is set up with three programs: 5, 10, 15. Among them, 5, 10 and 15 represent
the washing time of 5 minutes, 10 minutes and 15 minutes respectively. Because the program is set
to complete the current washing process, it will extend the cooling time of the whole machine for 3
minutes, so the cycle working time of each program will be 3 minutes longer than the marked time.
Please understand.
Please choose the required procedure according to the amount of washing clothes and the degree
of dirt.
Program setup steps
Touch the button once, the first "5" program is on, then touch again and the second "10" program is
on. So loop operation can switch the program. When the desired program is selected, the machine
will automatically enter the selected program if there is no action in three seconds. When the program
is finished, the fan continues to work for 3 minutes, then the program lights shine for 5 seconds, and
the buzzer drops three times and the lights go out after 5 seconds. That is, the program runs.
Caution
During use, please be sure to power off after finishing the current washing program. Do not cutoff
power before the program is completed. (There is a fan arranged inside the machine to
dissipate heat from the motor. If the heat dissipation of the machine do not reach the designed
temperature drop range , it will continue to run the washing work, which is easy to cause
damage to the motor gear)
If the power is cut off before the program is completed, do not enter the new washing program
immediately, please standby for 10 minutes and then enter the next washing.

13.Warranty instructions
Dear user: Thank you for using moyu portable folding washing machine. Our company will provide
you with the following services in accordance with the Consumer Rights and interests Protection Law
of the people's Republic of China and the relevant provisions of the State Bureau of Technical Supervision
and Finance on the liability for the replacement of partial Commodity maintenance and replacement
The whole machine is guaranteed free of charge for one year (calculated from
the date of invoice).
① During the warranty period, any failure caused by the quality of the product itself shall be repaired
free of charge at the maintenance center authorized by moyu all over the country on the basis of the
completed warranty instructions and machine purchase invoices;
② Won’t receive machines that broken because of modification or installation of other functions;
③ Once this description and purchase invoice are modified, the warranty will expire;
④ During each maintenance, the maintenance personnel shall check the machine manufacturing
number and user files and fill in the maintenance records.
⑤ Customers are requested to properly keep the purchase invoice and warranty instructions as
warranty vouchers, no replacement if lost
Warranty instructions for "Moyu" Portable folding washing Machine
12.Questions and answers
If you have any questions, or suspect that the washing machine has broken down during use,
please look at the list first . The following content provides you with the answers to the possible
problems and will try to give the solution. Please call the after-sales service hotline if it fails to solve
your problem. Please do not dismantle the washing machine by yourself
Three signal lights flash
at the same time
No response when
touching the key
Residual water after
drainage of the machine
Excessive clothing
Serious entanglement
of clothes
Insensitive to touch
Drainage is not
exhausted
Reduce the number of washing clothes, and select
the program again after waiting for a while.
Disperse the clothes manually, and select the
program again to wash after waiting for a while.
Disconnect from the socket, then power on again, and
touch the key to select the required program
Drain water again by means of upper drainage.
When there is no obvious water drop, dry it with dry cloth.
During the washing process,
there are water drops on the
upper edge of the machin
Excessive water level Reduce the amount of water, reduce the water level, and
ensure that water in the washing process will not overflow
from the edge gap at the top.
phenomenon Possible causes How to solve
Power off suddenly during
washing Poor contact between
adapter and the
machine base
In the process of use, please be sure to power off after
washing the current program. If the program is not completed,
power off in advance (because the whole machine is designed
with fan to heat the motor, if the motor heat does not reach the
designed cooling range, continue to run the washing work,
which is easy to cause damage to the motor gear)
Loud noise during
washing Sound inside the machine If the power is cut off in advance when the procedure is
not completed, please do not enter into the new washing
program immediately. Please wait for the machine to stop
for 10 minutes before the next washing.

① Without three packages of vouchers and valid invoices;
② Failure to operate the machine in accordance with the requirements of the specification;
③ Damage caused by the dismantling of non-moyu maintenance personnel;
④ Faults, scratches or breakage caused by movement or fall;
⑤ If the customer keeps, maintains or uses improperly causing damage;
⑥ Failure or damage caused by irresistible force;
⑦ Where the service life of consumable spare parts expires.
The following conditions are beyond the scope of warranty and can be repaired
for a fee
Type：
XPB30-F1 XPB30-F1M XPB30-F1H XPB30-F1Z XPB30-F1S
XPB30-F2 XPB30-F2M XPB30-F2H XPB30-F2Z XPB30-F2S
Product Executive Standard ：
GB4706.1-2005 GB4706.24-2008 GB17625.1-2012 GB4343.1-2009
Please read this manual before working on this product
The company reserves the right to interpret this manual
Product appearance please take the physical object as the standard
Please keep it properly after reading
No notice will be given in case of technical upgrade or software upgrade,
please understand
Address: NO.28, Huanfeng North Road
Jinshan District, Shanghai
After-Sale Service Hotline: [phone]
Shanghai little Pearl Electric Co., Ltd
