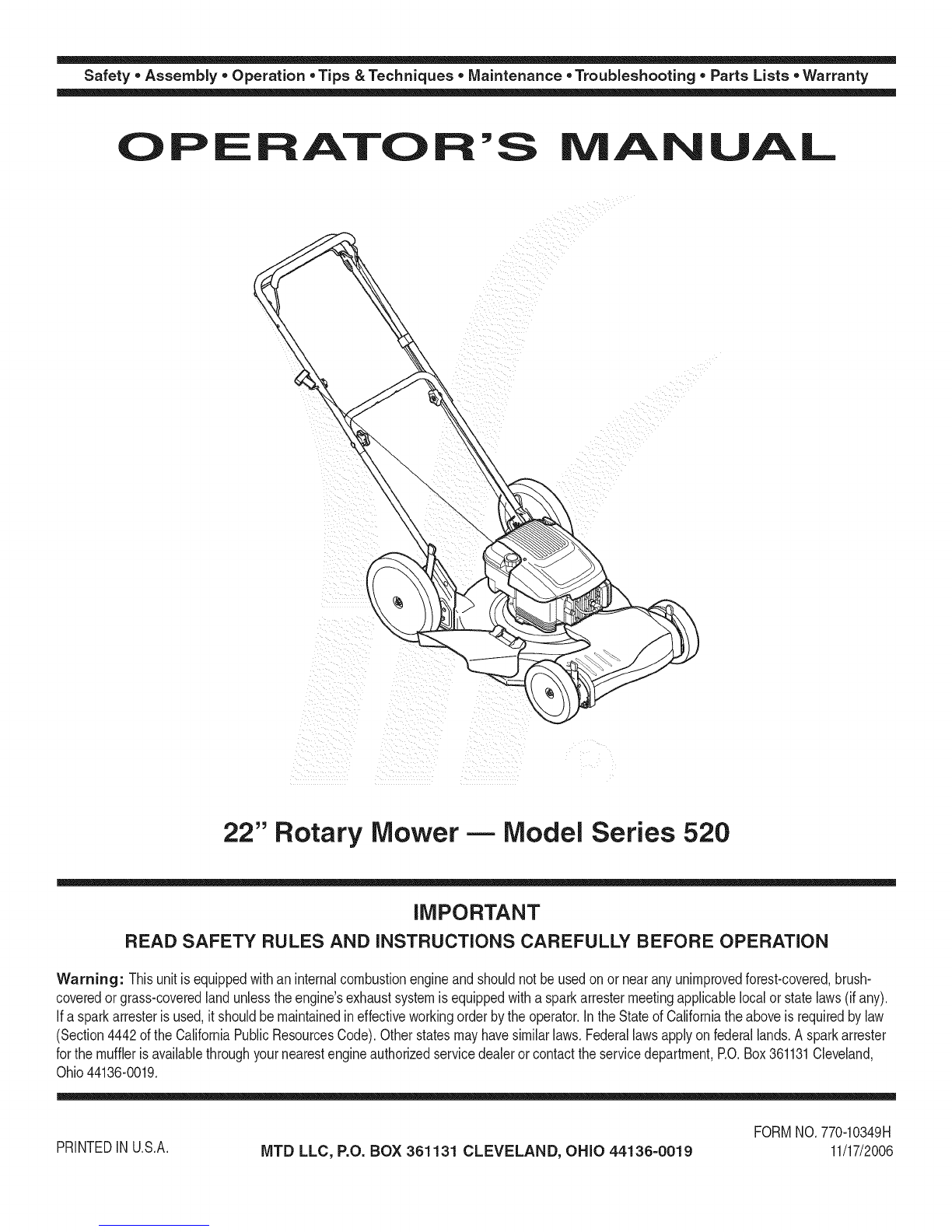

MTD 12A-527G030 User manual

Safety • Assembly • Operation • Tips &Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
OF AOAL
22" Rotary Mower- Model Series 520
iMPORTANT
READ SAFETY RULES AND iNSTRUCTiONS CAREFULLY BEFORE OPERATION
Warning: Thisunitisequippedwithan internalcombustionengineandshouldnotbeusedon or nearanyunimprovedforest-covered,brush-
coveredor grass-coveredlandunlesstheengine'sexhaustsystemisequippedwitha sparkarrestermeetingapplicablelocalor statelaws(if any).
If a sparkarresterisused,it shouldbemaintainedineffectiveworkingorderbytheoperator.IntheStateofCaliforniatheaboveisrequiredbylaw
(Section4442oftheCaliforniaPublicResourcesCode).Otherstatesmayhavesimilarlaws.Federallawsapplyonfederallands.A sparkarrester
forthemufflerisavailablethroughyournearestengineauthorizedservicedealeror contacttheservicedepartment,RO.Box361131Cleveland,
Ohio44136-0019.
PRINTEDIN U.S.A. MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORMNO.770-10349H
11/17/2006

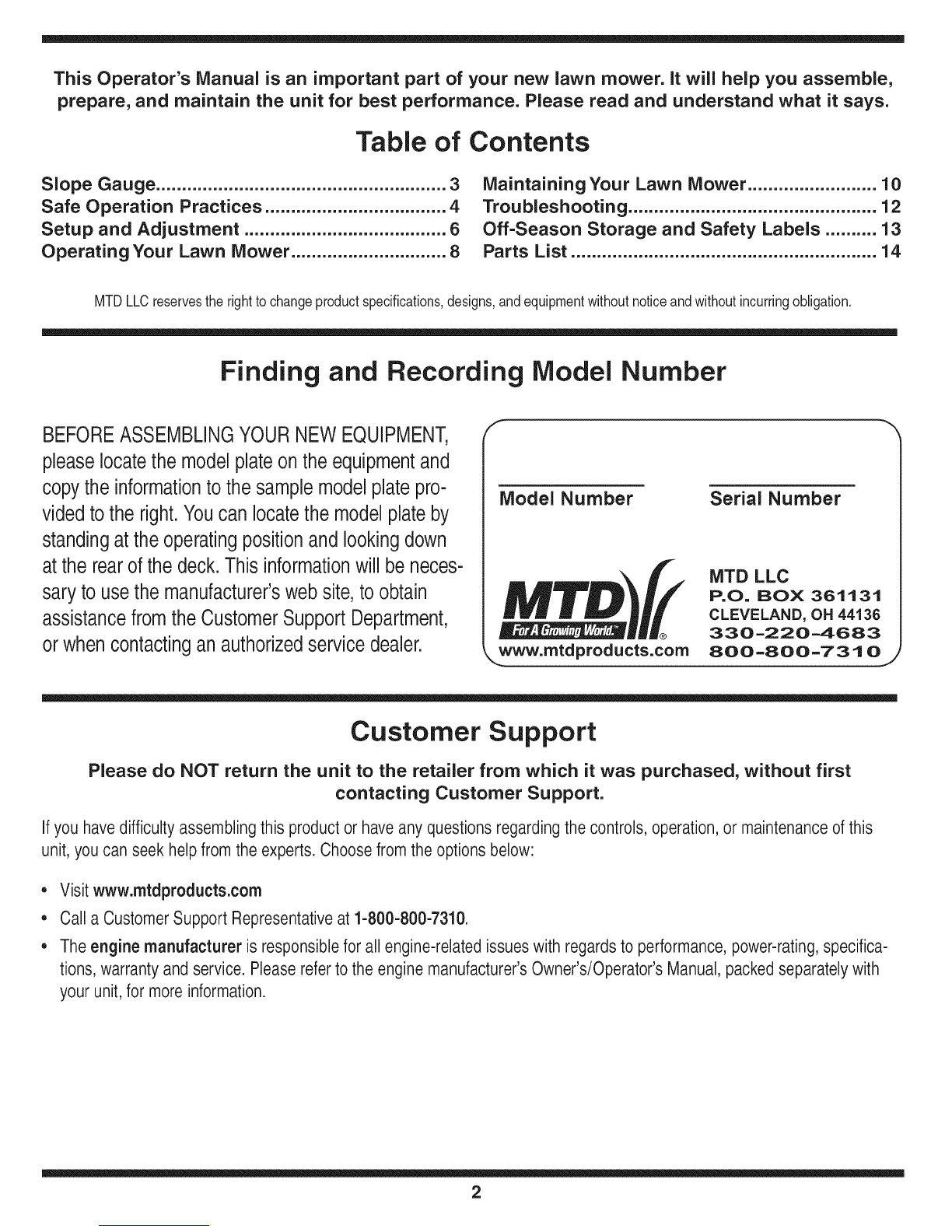

This Operator's Manual is an important part of your new lawn mower, it will help you assemble,
prepare, and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Slope Gauge ........................................................ 3
Safe Operation Practices ................................... 4

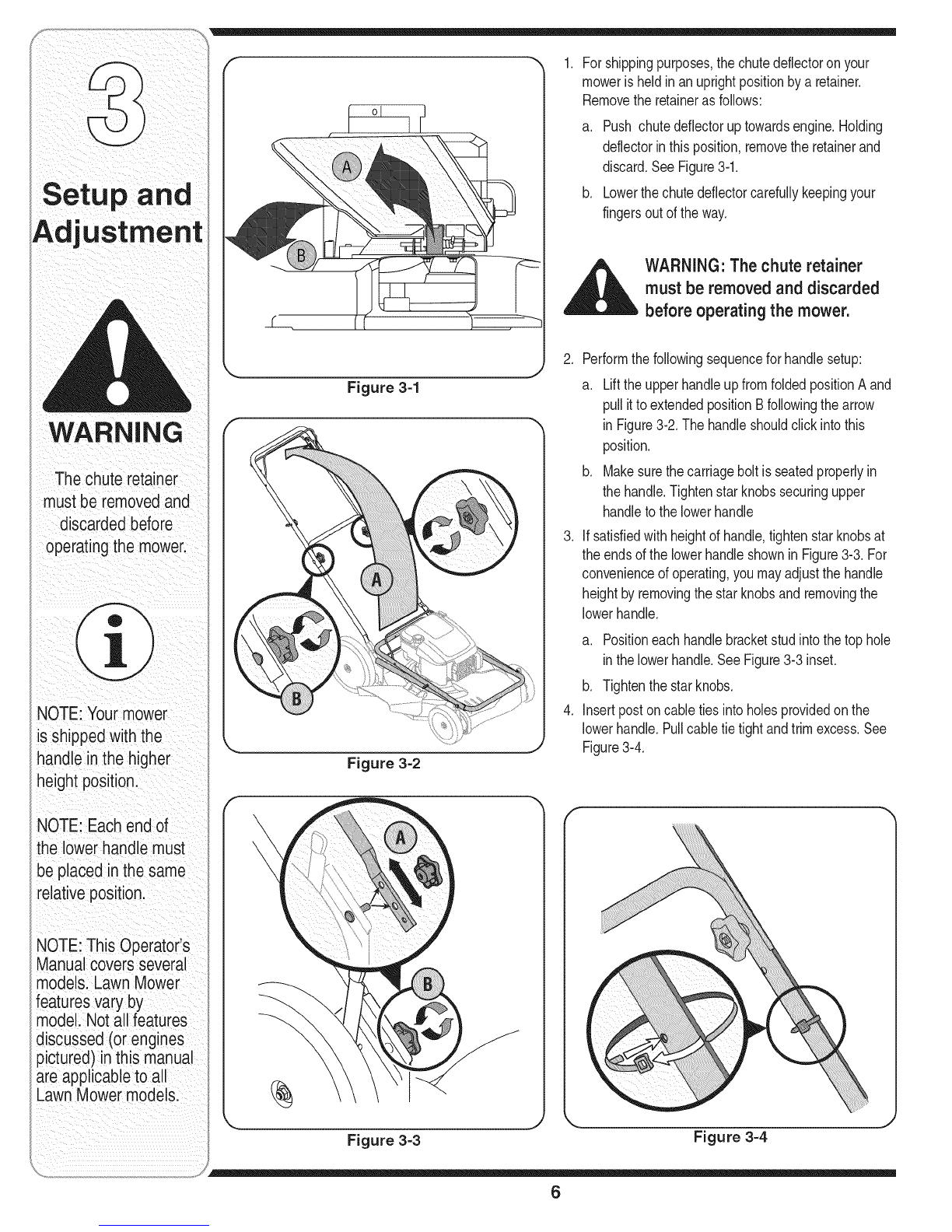

Setup and Adjustment ....................................... 6
Operating Your Lawn Mower .............................. 8

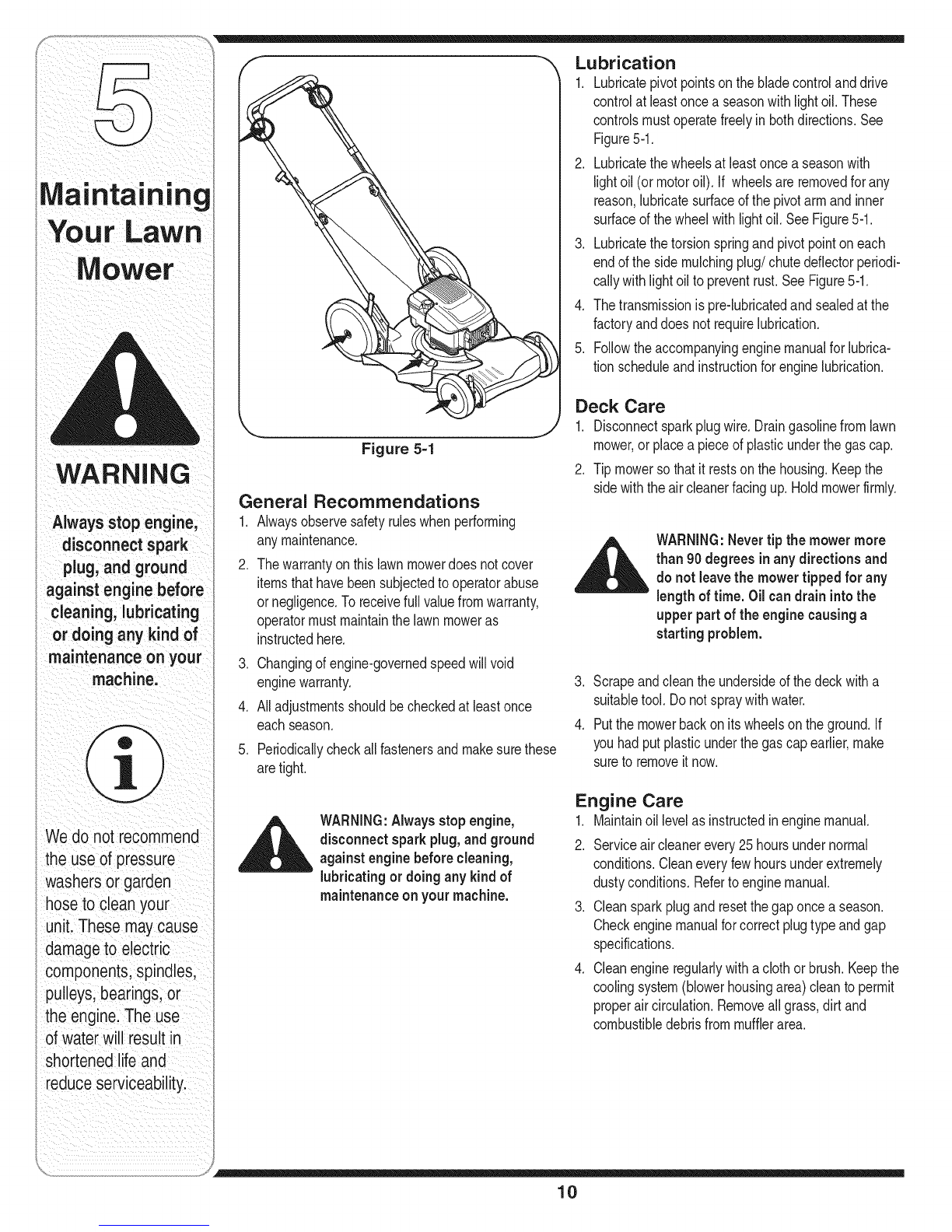

Maintaining Your Lawn Mower ......................... 10
Troubleshooting ................................................ 12
Off-Season Storage and Safety Labels .......... 13

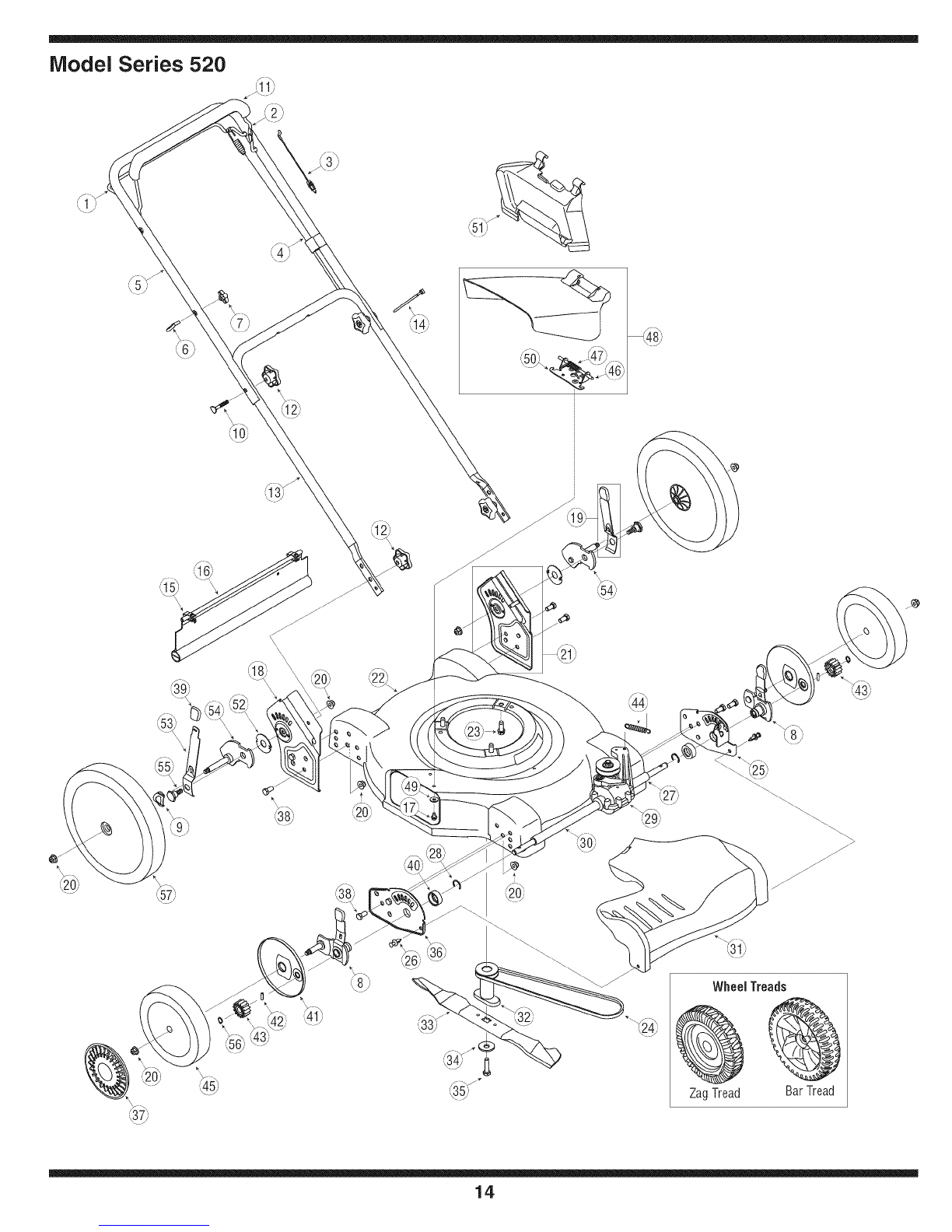

Parts List ........................................................... 14
MTDLLCreservestherighttochangeproductspecifications,designs,andequipmentwithoutnoticeandwithoutincurringobligation.
Finding and Recording Model Number
BEFOREASSEMBLINGYOURNEWEQUIPMENT,
pleaselocatethe modelplateon theequipmentand
copythe informationto thesamplemodelplatepro-
videdto the right.Youcan locatethe modelplateby
standingat theoperatingpositionand lookingdown
atthe rearofthe deck.Thisinformationwillbe neces-
saryto usethe manufacturer'swebsite,toobtain
assistancefromtheCustomerSupportDepartment,
orwhencontactingan authorizedservicedealer.
Model Number
www.mtdproducts.com
Serial Number
MTD LLC
PoO= BOX 361131
CLEVELAND, OH 44136
330-220-4683
800-800-7310
Customer Support
Please do NOT return the unit to the retailer from which it was purchased, without first
contacting Customer Support.
Ifyou have difficultyassemblingthis productor have anyquestionsregardingthe controls, operation,or maintenanceof this
unit,youcanseek helpfromthe experts.Choosefrom the options below:
• Visitwww.mtdproducts.com
• Call a CustomerSupport Representativeat 1-800-800-7310.
• The engine manufacturer is responsiblefor all engine-relatedissueswith regardsto performance,power-rating,specifica-
tions,warranty and service. Pleasereferto the engine manufacturer'sOwner's/Operator's Manual,packedseparatelywith
your unit,for moreinformation.
2

>:.
G.)
o9
(13
(13
O
O
C
::>.,
E
c_
O
G.) c5
_- (13
o9 .oo
G.) o9
o -_
O9 C:_
G.) O9
C C
_ o
(13
-_ o_
OC
(13
c_
0
o3 _,_
0
C
o9 0
_ a
Sightandh01dthis levelwith a verticaltree...
m_ or a cornerof a building...
|
I__ or a fence post
|
| |
do;
-- fine (repros
I _ _ erlts a 75o
15°
cO

WARNING
Thissymbolpoints
out importantsafety
instructionswhich,if
notfollowed,could
endangerthe personal
i safetyand/or property
I ofyourselfand others.
Readandfollowall
instructionsinthis
manualbeforeat-
temptingto operate
i this machine.Failure
I to complywith these
instructionsmay result
i in personalinjury.When
youseethis symbol.
i HEED ITS WARNING!
i Your Responsibility
Restrictthe use
ofthis powermachine
to personswho read.
i understand
andfollow thewarnings
and instructions
I. =nthis manual
and onthe machine.
WARNING: EngineExhaust,some of itsconstituents,and certainvehiclecompo-
nentscontain or emitchemicals knownto Stateof Californiato cause cancer and
birth defectsor other reproductiveharm.
DANGER: This machine was builtto be operatedaccordingto the rulesfor safeoperation in this
manual.As with anytypeof powerequipment,carelessnessor erroronthe part ofthe operator
can resultin serious injury.This machineis capableof amputatinghandsand feet and throwing
objects. Failureto observethe following safety instructionscouldresult in serious injury or death.
Children
Tragicaccidentscanoccurifoperatorisnotalertto presence
ofchildren.Childrenareoftenattractedtomowerand mowing
activity.Theydonot understandthe dangers.Neverassume
thatchildrenwill remainwhereyoulastsawthem.
1. Keepchildrenoutofthe mowingareaand underwatchful
careofa responsibleadultotherthanthe operator.
2. Bealertandturnmoweroffif achildentersthearea.
3. Beforeand whilemovingbackwards,lookbehindanddown
forsmallchildren.
4. Useextremecarewhenapproachingblindcorners,
doorways,shrubs,trees,or otherobjectsthatmayobscure
yourvisionofachildwhomayrunintothe mower.
5. Keepchildrenawayfromhotor runningengines.Theycan
sufferburnsfroma hotmuffler.
6. Neverallowchildrenunder14yearsoldto operateapower
mower.Children14yearsoldandovershouldreadand
understandoperationinstructionsandsafetyrulesinthis
manualandshouldbetrainedandsupervisedbyaparent.
General Operation
1. Readthis operator'smanualcarefullyin its entiretybefore
attemptingtoassemblethismachine.Read,understand,
andfollowall instructionsonthe machineandin the
manual(s)beforeoperation.Becompletelyfamiliarwith
thecontrolsandthe properuseofthis machinebefore
operatingit. Keepthis manualin a safeplaceforfuture
andregularreferenceandfor orderingreplacementparts.
2. Thismachineisaprecisionpieceof powerequipment,
nota plaything.Therefore,exerciseextremecautionat all
times.Yourunithas beendesignedto performonejob: to
mowgrass.Do notuseit for anyotherpurpose.
3. Neverallow childrenunder 14yearsoldto operatethis
machine.Children14yearsoldand overshouldreadand
understandthe instructionsinthis manualandshould
betrainedand supervisedby a parent.Onlyresponsible
individualswhoarefamiliarwiththeserulesofsafe
operationshouldbeallowedto usethismachine.
4. Thoroughlyinspectthe areawherethe equipmentisto
beused.Removeall stones,sticks,wire,bones,toys
andotherforeignobjects,whichcouldbetrippedoveror
pickedupandthrownbythe blade.Thrownobjects can
causeseriouspersonalinjury.Planyourmowingpattern
toavoiddischargeofmaterialtowardroads,sidewalks,
bystandersandthe like.Also,avoiddischargingmaterial
againsta wallor obstruction,whichmaycausedischarged
materialto ricochetbacktowardthe operator.
5. Tohelpavoidbladecontactorathrownobjectinjury,
stayinoperatorzonebehindhandlesandkeepchildren,
bystanders,helpersandpetsatleast75feetfrom mower
whileit is inoperation.Stop machineifanyoneenters
area.
6. Alwayswearsafetyglassesor safetygogglesduringopera-
tionandwhile performinganadjustmentor repairtoprotect
youreyes.Thrownobjectswhich ricochetcancauseserious
injurytothe eyes.
7. Wearsturdy,rough-soledworkshoesand close-fitting
slacksandshirts. Shirtsandpantsthatcoverthe armsand
legsandsteel-toedshoesarerecommended.Neveroperate
this machinein barefeet,sandals,slipperyor light-weight
(e.g.canvas)shoes.
8. Do notputhandsorfeet nearrotatingpartsor undercutting
deck.Contactwithbladecanamputatehandsandfeet.
9. Amissingor damageddischargecovercancauseblade
contactor thrownobject injuries.
10.Manyinjuriesoccurasa resultofthe mowerbeingpulled
overthefoot duringa fall causedby slippingor tripping.
Do notholdontothe mowerifyouare falling;releasethe
handleimmediately.
11.Neverpullthe mowerbacktowardyouwhileyouare
walking.If youmust backthe mowerawayfroma wallor
obstructionfirstlookdownand behindtoavoidtrippingand
thenfollowthesesteps:
a. Stepbackfrommowertofully extendyourarms.
b. Besureyouarewellbalancedwithsurefooting.
c. Pullthe mowerbackslowly,no morethanhalfway
towardyou.
d. Repeatthesestepsas needed.
12.Do notoperatethe mowerwhileunderthe influenceof
alcoholordrugs.
13.Do notengagetheself-propelledmechanismon unitsso
equippedwhilestartingengine.
14.Thebladecontrolhandleisasafetydevice.Neverattempt
tobypassitsoperation.Doingso makesthe safetydevice
inoperativeandmayresult in personalinjurythrough
contactwiththe rotatingblade.Thebladecontrolhandle
mustoperateeasily in bothdirectionsandautomatically
returntothe disengagedpositionwhenreleased.
15.Neveroperatethe mowerinwetgrass.Alwaysbesureof
yourfooting. A slipand fall cancauseseriouspersonal
injury.If youfeelyouarelosingyourfooting,releasethe
bladecontrolhandleimmediatelyand the bladewillstop
rotatingwithinthreeseconds.
16.Mowonlyin daylightor goodartificiallight.Walk,neverrun.
17.Stopthe bladewhencrossinggraveldrives,walksor roads.
18.If the equipmentshouldstartto vibrateabnormally,stopthe
engineand checkimmediatelyfor the cause.Vibrationis
generallya warningoftrouble.
4

19.Shutthe engineoffandwaituntilthe bladecomestoa
completestopbeforeremovingthe grasscatcherorunclog-
gingthe chute.
Thecuttingbladecontinuesto rotatefora few secondsafter
the engineisshutoff. Neverplaceany partofthe body in
the bladeareauntilyouaresurethe bladehasstopped
rotating.
20.Neveroperatemowerwithoutpropertrailshield,discharge
cover,grasscatcher,bladecontrolhandleorothersafety
protectivedevicesin placeand working.Neveroperate
mowerwith damagedsafetydevices.Failureto dosocan
resultin personalinjury.
21.Mufflerandenginebecomehotandcancausea burn.Do
nottouch.
22.Only usepartsandaccessoriesmadeforthis machineby
manufacturer.Failuretodoso can resultin personalinjury.
23. Ifsituationsoccurwhicharenotcoveredinthis manual,
usecareand goodjudgment.Contactyourdealerfor
assistance.
Slope Operation
Slopesare amajorfactorrelatedtoslip andfall accidents,which
canresultinsevereinjury.Operationonslopesrequiresextra
caution.If youfeeluneasyona slope,do notmowit. Foryour
safety,usetheslopegaugeincludedaspartofthis manualto
measureslopesbeforeoperatingthis uniton aslopedorhilly
area.Ifthe slopeisgreaterthan15degrees,donotmowit.
Do:
1. Mowacrossthefaceofslopes;neverupand down.Exercise
extremecautionwhenchangingdirectiononslopes.
2. Watchfor holes,ruts,rocks,hiddenobjects,or bumps
whichcancauseyouto slipor trip. Tallgrasscan hide
obstacles.
3. Alwaysbesureofyourfooting.A slipand fallcan cause
seriouspersonalinjury.Ifyoufeel youarelosingyour
balance,releasethe bladecontrolhandleimmediately,and
the bladewill stoprotatingwithin3 seconds.
Do Not:
1. Do notmowneardrop-offs,ditchesor embankments,you
could loseyourfootingor balance.
2. Do notmowslopesgreaterthan 15degreesas shownon
the slopegauge.
3. Do notmowonwet grass.Unstablefootingcouldcause
slipping. Service
Safe Handling Of Gasoline:
1. Toavoidpersonalinjuryor propertydamageuseextreme
carein handlinggasoline.Gasolineisextremelyflammable
and thevaporsareexplosive.Seriouspersonalinjury can
occurwhengasolineisspilledonyourselfor your clothes,
which canignite.Washyourskin andchangeclothes
immediately.
2. Use onlyan approvedgasolinecontainer.
3. Neverfillcontainersinsideavehicleor ona truckortrailer
bedwitha plasticliner.Alwaysplacecontainersonthe
groundawayfromyourvehiclebeforefilling.
4. Removegas-poweredequipmentfromthe truckor trailer
and refueliton theground.If thisisnot possible,thenrefuel
suchequipmenton atrailer withaportablecontainer,rather
thanfroma gasolinedispensernozzle.
5. Keepthe nozzlein contactwiththe rimofthe fueltankor
containeropeningatall timesuntilfuelingiscomplete.Do
not usea nozzlelock-opendevice.
6. Extinguishallcigarettes,cigars,pipesandothersources
ofignition.
7. Neverfuel machineindoorbecauseflammablevaporswill
accumulatein thearea.
8. Neverremovegascap oradd fuelwhileengineishot or
running. Allowengineto coolatleasttwo minutesbefore
refueling.
9. Neveroverfillfueltank. Filltankto nomorethanY2inch
belowbottomoffiller neckto provideforfuelexpansion.
10.Replacegasolinecapandtightensecurely.
11.If gasolineis spilled,wipe itoff theengineand equipment.
Moveunittoanotherarea.Wait5minutesbeforestarting
engine.
12.Neverstorethe machineorfuel containernearanopen
flame,sparkor pilotlightas ona waterheater,space
heater,furnace,clothesdryeror othergasappliances.
13.Toreducefire hazard,keepmowerfreeofgrass,leaves,
orother debrisbuild-up.Cleanupoil orfuelspillageand
removeanyfuel soakeddebris.
14.Allowamowertocoolat least5 minutesbeforestoring.
GeneralService:
1. Neverrun anengineindoorsorin a poorlyventilatedarea.
Engineexhaustcontainscarbonmonoxide,anodorless
anddeadlygas.
2. Beforecleaning,repairing,or inspecting,makecertainthe
bladeandall movingpartshavestopped.Disconnectthe
sparkplugwireandgroundagainstthe engineto prevent
unintendedstarting.
3. Checkthe bladeandenginemountingboltsatfrequent
intervalsfor propertightness.Also,visuallyinspectblade
fordamage(e.g.,bent,cracked,worn)Replacebladewith
theoriginalequipmentmanufacture's(O.E.M.)bladeonly,
listedin thismanual."Useof partswhichdo notmeetthe
originalequipmentspecificationsmayleadto improper
performanceand compromisesafety!"
4. Mowerbladesaresharpandcancut.Wrapthebladeor
weargloves,anduseextracautionwhenservicingthem.
5. Keepallnuts,bolts,andscrewstightto besurethe equip-
mentis insafeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproper
operationregularly.
7. Afterstrikingaforeignobject,stopthe engine,discon-
nectthesparkplugwireandgroundagainsttheengine.
Thoroughlyinspectthe mowerfor anydamage.Repairthe
damagebeforestartingandoperatingthe mower.
8. Neverattemptto makea wheelor cuttingheightadjust-
mentwhilethe engineisrunning.
9. Grasscatchercomponents,dischargecover,andtrail
shieldaresubjecttowear anddamagewhichcould
exposemovingpartsor allowobjectstobethrown.For
safetyprotection,frequentlycheckcomponentsand re-
placeimmediatelywithoriginalequipmentmanufacturer's
(O.E.M.)partsonly,listedin thismanual."Useofparts
whichdo notmeetthe originalequipmentspecifications
mayleadtoimproperperformanceand compromise
safety!"
10.Do notchangetheenginegovernorsettingor over-revthe
engine.Thegovernorcontrolsthe maximumsafeoperating
speedoftheengine.
11.Maintainor replacesafetylabels,asnecessary.
12.Observeproperdisposallawsandregulations.Improper
disposaloffluidsandmaterialscanharmtheenvironment.
Practices
WARNING
This symbol points
out importantsafety
instructions,which if
notfollowed,could
endangerthe personal
safety and/or property
of yourselfand others.
Readand followall
instructions inthis man-
ual beforeattemptingto
operatethis machine.
Failureto comply with
these instructionsmay
result in personalinjury.
Whenyousee this
symbol.
HEED iT'S WARNING!
Your Responsibility
Restrictthe use
of this powermachine
to personswho read.
understand
and followthe warnings
and instructions
in this manua
and onthe machine.
5

WARNING
Thechute retainer
must be removedand
discardedbefore
operatingthe mowerl
NOTE: Yourmower
isshippedwith the
handlein the
heightpositionl
the lowerhandlemust
_eplaced inthe same
relativepositionl
NOTE:ThisOperator!s
Manual coversseveral
modelsl LawnMower
featuresvary by
model:Not allfeatures
disCuSsed(orengines
pictured) in this manual
are applicableto all
LawnMowermodelsl
Forshippingpurposes,thechutedeflectoron your
mowerisheldin anuprightpositionbya retainer.
Removetheretaineras follows:
a. Push chutedeflectoruptowardsengine.Holding
deflectorin thisposition,removetheretainerand
discard.See Figure3-1.
b. Lowerthechutedeflectorcarefullykeepingyour
fingersoutoftheway.
,_ WARNING: The chute retainer
must be removed and discarded
before operating the mower.
Figure 3-1
Figure 3=2
.
.
.
Performthefollowingsequenceforhandlesetup:
a. LifttheupperhandleupfromfoldedpositionAand
pullittoextendedpositionBfollowingthearrow
in Figure3-2.Thehandleshouldclickintothis
position.
b. Makesurethecarriageboltis seatedproperlyin
thehandle.Tightenstarknobssecuringupper
handletothelowerhandle
If satisfiedwith heightof handle,tightenstarknobsat
theendsofthelowerhandleshownin Figure3-3.For
convenienceof operating,youmayadjustthehandle
heightbyremovingthestarknobsandremovingthe
lowerhandle.
a. Positioneachhandlebracketstudintothetophole
in thelowerhandle.SeeFigure3-3 inset.
b. Tightenthestarknobs.
Insertpostoncabletiesintoholesprovidedon the
lowerhandle.Pullcabletietightandtrimexcess.See
Figure3-4.
Figure 3=3
f
i
Figure 3=4
6

5. RopeguideSetupasfollowsin Figure3-5:
a. Holdthebladecontrolagainsttheupperhandle.
b. Slowlypullstarterropeoutofengine.
c. Slipstarterropeintotheropeguide.
d. Tightenropeguidewingnut.
6. If notalreadyon theunit,installrearwheelsasfollows
in Figure3-6:
a. Placerearofthemowerdeckon raisedblocks.
b. Removelocknutfrompivotarmassembly(on
selectmodels,thesemaybe includedseparately
ina plasticbag).
c. Slidewheel,withhollowsidein,ontopivotarm
andsecurewithlocknut.
d. Assembletheothersidein thesamemanner.
7. Eachwheelhasa heightadjustmentlevertochange
thecuttingheightofthe mower.
a. Depressheightadjustmentlevertowardswheel.
b. Slidelevertodesiredpositionfora changein
cuttingheight.SeeFigure3-7.
c. Releaselevertowardsdeck.
8. Installmulchingbaffleonthe rightsideofthemower
followingthestepsbelow:
a. Lift upandholdtheside-dischargechutedeflector
andinsertbottomlip ofthemulchingbaffleinside
thechuteopening.See Figure3-8.
b. Snaphooksofthemulchingbaffleoverthehinge
pinofthechutedeflector.Thehooksmustsnap
intoplaceon thehingepin,lockingthemulching
bafflefirmlyontomower.Releasechutedeflector.
Figure 3=8
i ii iiii
Figure 3=5
Figure 3=6
\
_., =J
Figure 3W
iCUTTINGHEIGHT
Allwheels must be
placedin the same
i relativeposition. For
roughor unevenlawns,
i movethe heightadjust-
i mentleverto a higher
i positon This will stop
i scalping of grass.
MULCHINGBAFFLE
Forproperassembly,
installbottom lip inside
chute opening before
placinghooks overthe
hingepin.
IMPORTANT
Thisunit isshipped
without gasolineor
oil inthe engine.Fill
up gasolineand oil
as instructed inthe
accompanyingengine
manual BEFORE
operatingyour mower.
7

WARNING
The bladecontrol
mechanismisa
safety device. Never
attemptto bypassits
operations.
; Useextreme care
when handling
gasoline.Gasolineis
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
I Extinguish cigarettes,
cigars, pipesand
other sources of
ignition.
Keep hands and feet
away from the chute
area on cutting deck.
Referto warning
label onthe unit.
Know Your Lawn Mower
BladeControl
DriveControl
RecoilStarter
Mulching Baffle 4eightAdjustment
Levers
Figure 4-1
Nowthatyouhavesetupyourlawnmowerforopera-
tion,getaquaintedwithits controlsandfeatures.These
aredescribedbelowandillustratedonthis page.This
knowledgewillallowyoutouseyournewequipmentto
itsfullestpotential.
Blade Control
Thebladecontrolisattachedtothe upperhandleof
themower.Depressand squeezeitagainsttheupper
handletooperatetheunit. Releaseittostopengineand
blade.
_ WARNING:Thisblade control mecha-
nism isasafetydevice. Neverattempt
to bypass itsoperations.
Drive Control
Thedrivecontrolislocatedontheundersideofthe
upperhandleand isusedtoengagethedrive.Squeeze
itagainsttheupperhandleto engagethedrive; release
ittoslowdownor stopmowerfrompropelling.See
Figure4-1.
Mulching Baffle
insteadofcollectingthegrassclippingsinthegrass
catcher,yourmowerhastheoptionof recirculatingthe
clippingsbacktothelawn.Removegrasscatcher(if
applicable),andoperatewiththemulchingbaffleonly
forthispurpose.
Cutting Height Adjustment Levers
Oneadjustmentleverislocatedon eachwheelandis
usedtoadjustthecuttingheight.All fourlevershaveto
beatthesamerelativepositiontoensurea uniformcut.
Recoil Starter
Therecoilstarterisattachedtotherightupperhandle.
Standbehindtheunitand pullthe recoilstarterropeto
startthe unit.
Gas and Oil Fill-Up
1. Checkoillevelandaddoil if necessary.Followengine
manualforthis.
2. Servicetheenginewithgasolineasinstructedinthe
enginemanual. SeeEnginemanualforlocationofoil
andgasfill.
_ARNING:Useextremecarewhenhan-
dling gasoline.Gasolineis extremely
flammableand the vapors areexplosive.
Neverfuel the machine indoorsor while
the engine ishot or running. Extinguish
cigarettes, cigars, pipesand other
sources of ignition.
8

WARNING:The operationof any lawn
mowercan result inforeign objects
being thrownintothe eyes,whichcan
damageyoureyesseverely.Always
wearsafetyglasseswhileoperating
the mower,or whileperforming any
adjustmentsor repairson it.
Starting Engine
WARNING:Besureno one otherthan
theoperatorisstandingnearthe lawn
mowerwhilestartingengine or operat-
ingmower.Neverrun engine indoors
or in enclosed, poorly ventilated areas.
Engine exhaustcontains carbon monox-
ide,an odorless and deadly gas. Keep
hands,feet,hairand loose clothing
awayfrom any moving partson engine
and lawnmower.
1. Pushprimer(ifequipped)threetimes.Waitabout
two secondsbetweeneachpush.SeeFigure4-2. In
temperaturearound550For below,primefivetimes.
Donotprimetorestarta warmengine.
2. Standingbehindthe mower,squeezethebladecontrol
againstupperhandle.
3. Holdingthesetwo handlestogetherfirmly,grasprecoil
starterhandleand pullropeoutwitha rapid,continu-
ous,fullarmstroke.SeeFigure4-2.Keepinga firm
gripon thestarterhandle,lettheroperewindslowly.
Repeatuntilenginecranks.Letthe roperewindeach
timeslowly.
Stopping Engine
1. Releasebladecontroltostoptheengineand blade.
2. Disconnectsparkplugwirefromsparkplugand
groundagainsttheengine.
,_l_k WARNING:Waitfor the blade to stop
completelybeforedoing anywork
on the mower or to removethegrass
catcher.
Figure 4=2
Using Your Lawn Mower
Besurelawnisclearofstones,sticks,wire,orother
objectswhichcoulddamagelawnmoweror engine.
Suchobjectscouldbeaccidentlythrownbythemower
inanydirectionandcauseseriouspersonalinjurytothe
operatorandothers.
WARNING:If you strikeaforeign
object,stopthe engine.Remove
wire from thespark plug,thoroughly
inspectmowerfor anydamage,and
repairdamagebeforerestarting and
operating. Extensive vibration of
mower during operation isan indica-
tion of damage.The unit should be
promptlyinspectedand repaired.
1. Oncetheengineis running,squeezethedrive
controlagainsttheupperhandleto propelmower.
2. Forbest results,do notcut wetgrass.
3. Fora healthierlawn,nevercut offmorethanone-
thirdofthetotallengthofthegrass.
Using as Mulcher
Formulchinggrass,removethegrasscatcher(if
apllicable)andinstallmulchingbafflefollowinginstruc-
tionsin"SettingUpYourLawnmower".
1. Foreffectivemulching,do notcut wetgrass.
2. Newor thickgrassmayrequirea narrowercut.
Adjustgroundspeedaccordingtoconditionoflawn.
3. If thegrasshasbeenallowedto growinexcessof
4 inches,mulchingisnotrecommended.Usethe
grasscatchertobagclippingsinstead.
perating
The operation of any
lawnmower can result
inforeign objects
being thrown into
the eyes,which can
damage your eyes
severely. Always wear
safety glasseswhile
operatingthe mower,
or while performing
any adjustments or
repairs on it.
Be sure no one other
than the operator is
standing nearthe lawn
mower while starting
engine or operating
mower. Never run
engine indoors or
in enclosed, poorly
ventilated areas. En-
gine exhaust contains
carbon monoxide, an
odorless and deadly
]as. Keep hands, feet,
lair and loose clothing
_wayfrom any moving
partson engine and
lawn mower.
9

Mower
Wedo notrecommend
the useof preSsure
washersorgarden
hose to Ccan
uniL These maycause
damageto electric
components spindles
theengine, The use
of WaterWillresultin
shortenedlifeand
,reduce serViceabilityl
-, Lubrication
Figure 5=1
General Recommendations
1. Alwaysobservesafetyruleswhenperforming
anymaintenance.
2. Thewarrantyon thislawnmowerdoesnotcover
itemsthathavebeensubjectedtooperatorabuse
ornegligence.Toreceivefullvaluefromwarranty,
operatormustmaintainthelawnmoweras
instructedhere.
3. Changingofengine-governedspeedwillvoid
enginewarranty.
4. Alladjustmentsshouldbecheckedat leastonce
eachseason.
5. Periodicallycheckallfastenersand makesurethese
aretight.
1. Lubricatepivotpointson thebladecontrolanddrive
controlatleastoncea seasonwithlightoil.These
controlsmustoperatefreelyin bothdirections.See
Figure5-1.
2. Lubricatethewheelsatleastoncea seasonwith
lightoil (ormotoroil). If wheelsareremovedforany
reason,lubricatesurfaceofthepivotarmandinner
surfaceof thewheelwithlightoil.SeeFigure5-1.
3. Lubricatethetorsionspringandpivotpointoneach
endofthesidemulchingplug/chutedeflectorperiodi-
callywithlightoil topreventrust.SeeFigure5-1.
4. Thetransmissionis pre-lubricatedand sealedatthe
factoryanddoesnotrequirelubrication.
5. Followtheaccompanyingenginemanualforlubrica-
tionscheduleandinstructionforenginelubrication.
Deck Care
1. Disconnectsparkplugwire.Draingasolinefromlawn
mower,or placea pieceof plasticunderthegascap.
2. Tipmowersothat itrestsonthe housing.Keepthe
sidewiththeair cleanerfacingup.Holdmowerfirmly.
_ARNING:Alwaysstopengine,
disconnect sparkplug, and ground
against enginebeforecleaning,
lubricating ordoing any kind of
maintenanceonyourmachine.
,,_I_II_IL WARNING:Nevertip the mowermore
than 90 degreesin anydirections and
do not leavethe mower tipped for any
lengthoftime. Oil candrain intothe
upper part ofthe engine causinga
starting problem.
3. Scrapeandcleantheundersideofthedeckwitha
suitabletool.Donotspraywithwater.
4. Putthemowerbackonitswheelsontheground.If
youhad putplasticunderthegascapearlier,make
sureto removeitnow.
Engine Care
1. Maintainoil levelasinstructedin enginemanual.
2. Serviceaircleanerevery25 hoursundernormal
conditions.Cleaneveryfewhoursunderextremely
dustyconditions.Refertoenginemanual.
3. Cleansparkplugand resetthegaponcea season.
Checkenginemanualfor correctplugtype andgap
specifications.
4. Cleanengineregularlywitha clothorbrush.Keepthe
coolingsystem(blowerhousingarea)cleantopermit
properaircirculation.Removeall grass,dirtand
combustibledebrisfrommufflerarea.
10

w
Blade Care /,I _'_
__k ARNING:Whenremovingcutting
bladefor sharpeningor replacement,
protectyourhandswithapairof heavy
gloves or usea heavy ragto hold blade.
1. Disconnectsparkplugwirefromsparkplug.Turn
moweron itssidemakingsurethattheairfilterand
thecarburetorareup.
2. Removebolt,bellwasher,blade,andbladeadapter
fromtheenginecrankshaft.SeeFigure5-2.
3. Thebladecanbe sharpenedwitha fileor on a grind-
ing wheel.Donotattempttosharpenthebladewhile
it is stillon themower.Whensharpeningblade,follow
originalangleofgrind.Grindcuttingedgesequallyto
keepbladebalanced.
4. Removebladefromtheadapterfortestingbalance.
Balancethebladeona roundshaftscrewdriverto
check.Removemetalfromtheheavysideuntilit
balancesevenly.
8
k,.. j
Figure 5=2
__i WARNING:Anunbalanced bladewill
causeexcessivevibration whenrotating
athigh speeds, itmay causedamage
to mower,and could breakcausing
personalinjury.
5. Lubricatetheenginecrankshaftandtheinnersurface
ofthebladeadapterwithlightoil.Slidetheblade
adapterontotheenginecrankshaft.Placetheblade
on theadaptersuchthatthesideoftheblademarked
"Bottom"(orwithpartnumber)facesthegroundwhen
themowerisin theoperatingposition.Makesurethat
bladeisalignedandseatedon bladeadapterflanges.
6. Placebellwasheronthe blade.Replacehexboltand
tightenhexbolttotorque:450in.Ibs.rain.,600 in.Ibs.
max.
Toensuresafeoperationofyourmower,periodically
checkthebladeboltforcorrecttorque.
Figure 5=3
Belt Care
1. Removethefrontdrivecoverbyslidingoffthe
two plasticrivetson eachsideofthecoverwitha
screwdriver.SeeFigure5-3.
2. Disconnectbelttensionspringfromtransmission.See
Figure5-3.
3. Pushtransmissionup a littleandslidebeltoffthe
transmissionpulley.Lift mowertoaccessbeltfrom
undersideofmower.Slidebeltoff ofenginepulleyand
aroundtheblade.SeeFigure5-4.
4. Replacewithnewbelt,workingaroundblade.Make
surebeltisfirmlyseatedon enginepulleywhile
pullingfromtheothersideandslidingitaroundthe
transmissionpulley.Securebelttensionspringtothe
transmission.Reassemblefrontdrivecover. Figure 5-4
11
Maintaining
WARNING
When removing
the cutting blade
for sharpening or
replacementor
when sliding the belt
around it, protect
your hands with a
pairof heavy gloves
or use a heavy rag to
hold the blade.
An unbalanced blade
will causeexcessive
vibrationwhen rotat-
ing at high speeds. It
may cause damage
to mower, and could
break causing per-
sonal injury.

Problem Cause Remedy
Ena nefa sto start 1. Bladecontroldisengaged, i. Engagebladecontro!.
sParkPiugwiie disconnected: conneO!wiretOsparkplugl
3. Fueltankemptyorstalefuel. & Filltankwith clean,freshgasolinel
4. Enginenot piimed(if equippedwth 4. primeengineaSinstr,u,ctedin Operat,
primer)i ing YourLawnMower.
Faultysparkp ugl c ean adjustgap or repiacel
61 BloCked fuel linel clean fuellinel
7: Engineflooded. 7. Wait a few minutesto restait,but do
I notprimel
" 8. Fue!valve(ifequipped)closed, & Openfuelva!ve:See engine manuaI.
........... 91 Enginenotchoked(ifequippedw/choke). 9. Chokeengine:Seeenginemanual.
For repairsbeyond
minor adjustments
listed here, contact
an authorized service
dealer.
Engineruns erratic 1. Sparkplugwireloose.
2. Blockedfuel lineor stalefuel.
3. Ventingascap plugged.
4. Wateror dirt infuel system.
5. Dirtyair cleaner.
6. Carburetorout ofadjustment.
1. Connectandtightensparkplugwire.
2. Cleanfuelline;filltank withclean,
freshgasoline.
3. Clearvent.
4. Drainfueltank. Refillwithfreshfuel.
5. Referto enginemanual.
6. Referto enginemanual.
Engne overheats 1. Engineoil levellow. 1. Fillcrankcasewith properoil.
2. Airflow restricted. 2. Removeblowerhousing
andc ean.
3. Carburetornotadjustedproperly. 3. Referto enginemanual.
I
Occasionalskips 1. Sparkpluggap tooclose. 1. Adjustgap to .030".
(hesitates)at 2. Carburetoridlemixtureadjustment 2. Referto enginemanual.
highspeed improperlyset.
Idlespoorly 1. Sparkplugfouled,faultyor gap 1. Resetgapto .030"or replace
--too wide. _ sparkplug.
I 2. Carburetorimproperlyadjusted. 2. Referto enginemanual.
3 Dirtyair cleaner. 3. Referto enginemanual.
Excessive 1. Cuttingbladelooseor unbalanced. 1. Tightenbladeandadapter.Balance
Vibration blade.
2. Bentcuttingblade. 2. See anauthorizedservicedealer.
Mower will not 1. Wetgrass. 1. Donot mowwhengrassLswet;walt
mulch clrass/If I I untillatertocut.
._ ,_" I 2 Excessvey hghgrass 2. Mowonce ata highcuttingheight
_-qulppea_ then mowagainatdesiredheight'or
I makeanarrowercuttingpath.
I 3. Dullblade. I 3. Sharpenor replaceblade.
H
Unevencut 1. Wheelsnotpositionedcorrectly. 1. Placeallfour wheelsin same
heightposition.
2. Dullblade. 2. Sharpenor replaceblade.
1. Beltnotinsialledproperly. 1. Checkbeltfor properpulleyinstallation
Mowerwill not
seIfpropeI ' , and movement.
2. Debrsclogg ngdriveoperation 2. Stopengine,disconnectsparkplug
wireand cleanoutdebris.
3. Damagedor wornbelt. 3. Inspectandreplacebelt.
M
12

S".............
Off=Season Storage 4. Coatmower'scuttingbladewithchassisgreaseto
Thefollowingstepsshouldbetakentoprepareyourlawn
mowerforstorage.
1. Cleanandlubricatemowerthoroughlyasdescribedin
thelubricationinstructions.
2. Wedonotrecommendtheuseofa pressurewasher
or gardenhosetocleanyourunit.
3. Refertoenginemanualforcorrectengine
storageinstructions.
preventrusting.
5. Storemowerina dry,cleanarea.Donotstorenext
tocorrosivematerials,suchas fertilizer.
Whenstoringanytypeof powerequipmentin a poorly
ventilatedor metalstorageshed,careshouldbetaken
torust-prooftheequipment.Usinga lightoil or silicone,
coattheequipment,especiallycablesandall moving
partsofyourlawnmowerbeforestorage.
Safety Labels Found On Your Lawn Mower
WARNING
DO NOTremove safety
(or any) labelsfrom
mower for any reason.
13

Model Series 520
\
_4_
WheelTreads
ZagTread BarTread
14

Ref. PartNo. Description
No.
1. 747-1214 DriveControl
2. 747-1161A BladeControl
3. 746-1132 BladeControlCable- 40.75"
746-04389 BladeControlCable- 42.0"
4. 746-04204 DriveControlCable
5. 749-1092A UpperHandle
6. 710-1205 EyeBolt
7. 720-0279 WingNut,1/4-20
8. 687-02141 FrontLeverAssembly- RH
687-02140 FrontLeverAssembly- LH
9. 736-0182t SprgWasher,.500x 1.00x.022
10. 710-1174 CarriageBolt5/16-18x2.0
11. 731-04859t BailCover- Gray
731-2626t BailCover- Black
12. 720-04072 WingNut
13. 749-04037 LowerHandle
14. 725-0157 CableTie
15. 17098 HingeClip
16. 731-2537 TrailShield
17. 710-0599 HexScrew,1/4-20x.500
18. 682-3062A HandleBracketAssy- RH
19. 687-02052 RearHgt.Adj.LeverAssembly
20. 712-04065 LockNut3/8-16
21. 682-3063A HandleBracketAssembly-LH
22. 687-02046 22" DeckAssembly
23. 710-0654A HexWasherScr., 3/8-16x 1.0
24. 754-04100 V-Belt,3Lx32.90
25. 782-0585A ForwardHeightAdj.Plate- LH
26. 728-0199 Rivet
27. 750-04407 SleeveSpacer,.550IDx 2.22
28. 716-0198 RetainerRing
29. 618-04375A TransmissionAssemblyComp.
Ref. Part No. Description
No.
30. 750-04406A SleeveSpacer,.550IDx7.42
31. 731-04014 TransmissionCover-Gray
731-0073 TransmissionCover- Black
32. 748-04016A BladeAdapter
33. 742-0742A 22"MulchingBlade
34. 736-0452 Washer,Bell,.396x 1.140x .095
35. 710-1044 HexCapScrew3/8-24x 1.5
36. 782-0584 ForwardHght.Adj.Plate- RH
37. 731-0981At HubCap
38. 710-0216 HexCapScrew3/8-16x.75
39. 720-0426 AdjustmentKnob
40. 748-0390 BearingSupportSpacer
41. 731-04643 WheelDustCover
42. 715-0221 Pin
43. 717-1762 SpurGear14T- RH
717-1761 SpurGear14T- LH
44. 732-04049 Ext.Spring.47ODx2.50
45. 734-2042 FrontWheel,8 x2.125,Zag
46. 747-0710 HingePin
47. 732-1014 TorsionSpring
48. 731-1034B SideDischargeAssembly
49. 736-0270 BellWasher.265IDx.75OD
50. 17032A DeflectorChuteAdapter
51. 631-04045 MulchingBaffle
52. 741-0717 ThrustBrg.688IDx 1.938OD
53. 732-0984B SpringLever
54. 687-02080 RearPivotArmAssy- RH
687-02079 RearPivotArmAssembly- LH
55. 738-1127 ShoulderScrew3/8-16
56. 716-0865 SnapRing.500
57. 734-04093 RearWheel,12x2.125,Zag
tif Equipped
15
!ii(]_i_i__i_ii!__i_iii __ _i!IiI_i_ii__I
£NUIN£
_FACTORY PARTS
iiii iii i
To order replacement
parts,
1"800:800:7310
www,mtdproducts:com
iMPORTANT
Fora properworking
machine,use Factory
ApprovedParts.
V-BELTSare specially
designedto engage
anddisengagesafely.
A substitute (non OEM)
V-Beltcanbe danger-
ousby not disengaging
completely.

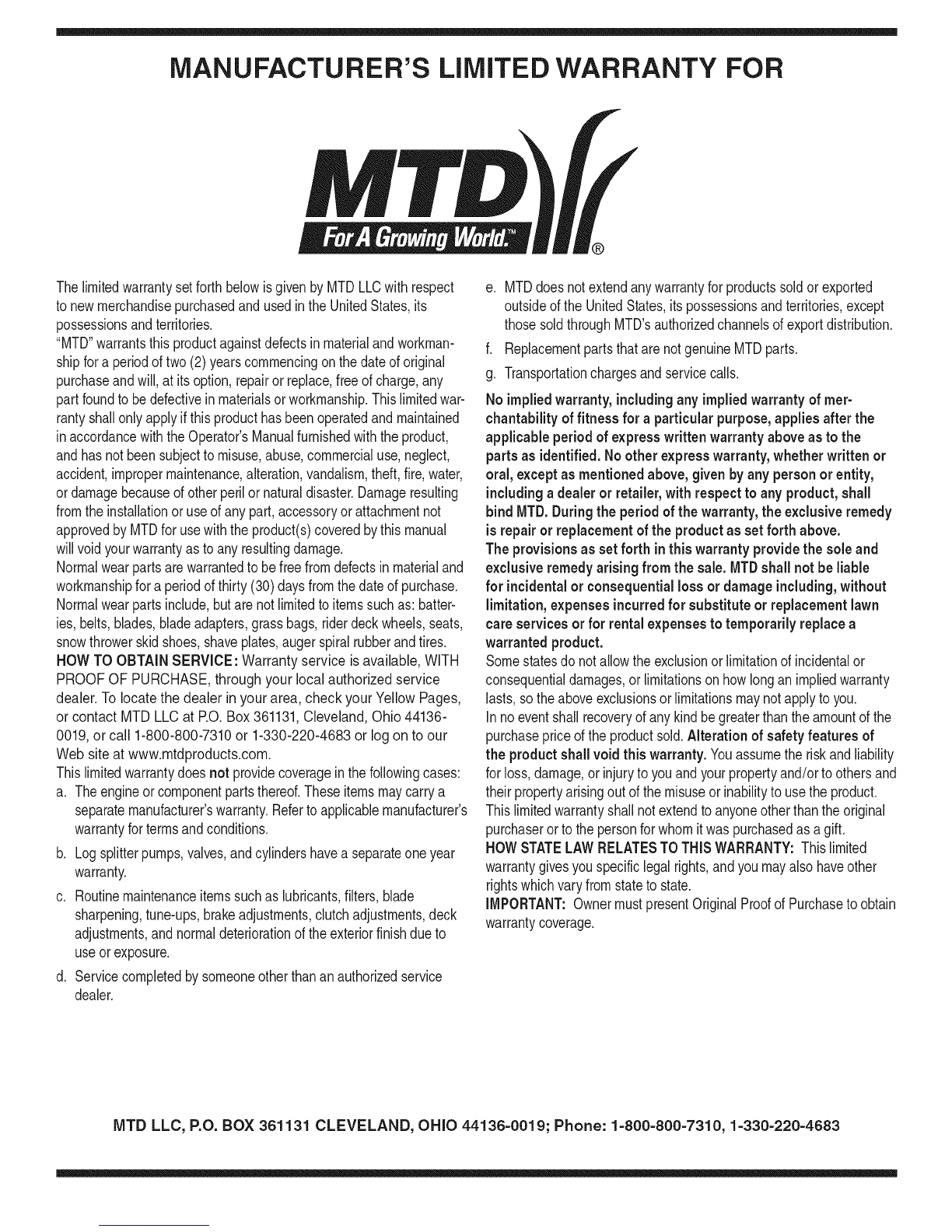

MANUFACTURER'S LiMiTED WARRANTY FOR
ThelimitedwarrantysetforthbelowisgivenbyMTDLLCwithrespect
tonewmerchandisepurchasedandusedin theUnitedStates,its
possessionsandterritories.
"MTD"warrantsthisproductagainstdefectsinmaterialandworkman-
shipfora periodoftwo (2)yearscommencingonthedateoforiginal
purchaseandwill,at itsoption,repairor replace,freeofcharge,any
partfoundto bedefectiveinmaterialsorworkmanship.Thislimitedwar-
rantyshallonlyapplyifthisproducthasbeenoperatedand maintained
inaccordancewiththeOperator'sManualfurnishedwiththeproduct,
andhasnotbeensubjectto misuse,abuse,commercialuse,neglect,
accident,impropermaintenance,alteration,vandalism,theft,fire,water,
ordamagebecauseofotherperilor naturaldisaster.Damageresulting
fromthe installationor useofanypart,accessoryor attachmentnot
approvedby MTDforusewiththeproduct(s)coveredbythis manual
willvoidyourwarrantyastoanyresultingdamage.
Normalwearpartsarewarrantedto befreefromdefectsinmaterialand
workmanshipfora periodofthirty(30)daysfromthedateof purchase.
Normalwearpartsinclude,butare notlimitedto itemssuchas: batter-
ies,belts,blades,bladeadapters,grassbags,riderdeckwheels,seats,
snowthrowerskidshoes,shaveplates,augerspiralrubberandtires.
HOW TO OBTAINSERVICE: Warrantyservice isavailable,WITH
PROOFOF PURCHASE, throughyour localauthorized service
dealer.Tolocate the dealer in yourarea, check yourYellowPages,
or contact MTDLLCat RO. Box361131,Cleveland,Ohio 44136-
0019,or call 1-800-800-7310or 1-330-220-4683 or log on to our
Website at www.mtdproducts.com.
Thislimitedwarrantydoesnot providecoverageinthefollowingcases:
a. Theengineor componentpartsthereof.Theseitemsmaycarrya
separatemanufacturer'swarranty.Refertoapplicablemanufacturer's
warrantyfortermsandconditions.
b. Logsplitterpumps,valves,andcylindershavea separateoneyear
warranty.
c. Routinemaintenanceitemssuchaslubricants,filters,blade
sharpening,tune-ups,brakeadjustments,clutchadjustments,deck
adjustments,andnormaldeteriorationoftheexteriorfinishdueto
useor exposure.
d. Servicecompletedbysomeoneotherthananauthorizedservice
dealer.
e. MTDdoesnotextendanywarrantyforproductssoldor exported
outsideoftheUnitedStates,its possessionsandterritories,except
thosesoldthroughMTD'sauthorizedchannelsofexportdistribution.
f. ReplacementpartsthatarenotgenuineMTDparts.
g. Transportationchargesandservicecalls.
Noimpliedwarranty,includingany impliedwarranty of mer-
chantabilityof fitness for a particular purpose,applies after the
applicable periodof expresswritten warranty aboveasto the
partsasidentified.Nootherexpresswarranty, whetherwrittenor
oral, exceptas mentioned above,givenby anypersonor entity,
includingadealeror retailer, withrespect to any product,shall
bindMTD.Duringthe periodof the warranty,the exclusiveremedy
isrepairor replacementof the productas setforth above.
Theprovisionsasset forth inthis warrantyprovidethesoleand
exclusiveremedy arising from the sale.MTDshallnot be liable
for incidentalor consequentiallossor damageincluding,without
limitation, expensesincurredfor substituteor replacementlawn
careservicesor for rentalexpensesto temporarily replacea
warranted product.
Somestatesdo notallowtheexclusionor limitationofincidentalor
consequentialdamages,or limitationsonhowlongan impliedwarranty
lasts,sotheaboveexclusionsor limitationsmaynotapplytoyou.
Innoeventshallrecoveryofanykindbegreaterthantheamountofthe
purchasepriceof theproductsold.Alterationof safetyfeaturesof
the productshallvoid this warranty. Youassumetheriskandliability
forloss,damage,or injurytoyouandyourpropertyand/ortoothersand
theirpropertyarisingoutofthemisuseor inabilitytousethe product.
Thislimitedwarrantyshallnotextendtoanyoneotherthantheoriginal
purchaserorto thepersonforwhomitwas purchasedasa gift.
HOWSTATELAWRELATESTOTHISWARRANTY:This limited
warrantygivesyouspecificlegalrights,and youmayalsohaveother
rightswhichvaryfromstatetostate.
IMPORTANT:OwnermustpresentOriginalProofof Purchasetoobtain
warrantycoverage.
IViTDLLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019; Phone: 1=800=800-7310, 1-330=220-4683
