MTD 344 Series User manual

PRINTED IN U.S.A.
Operator’s Manual

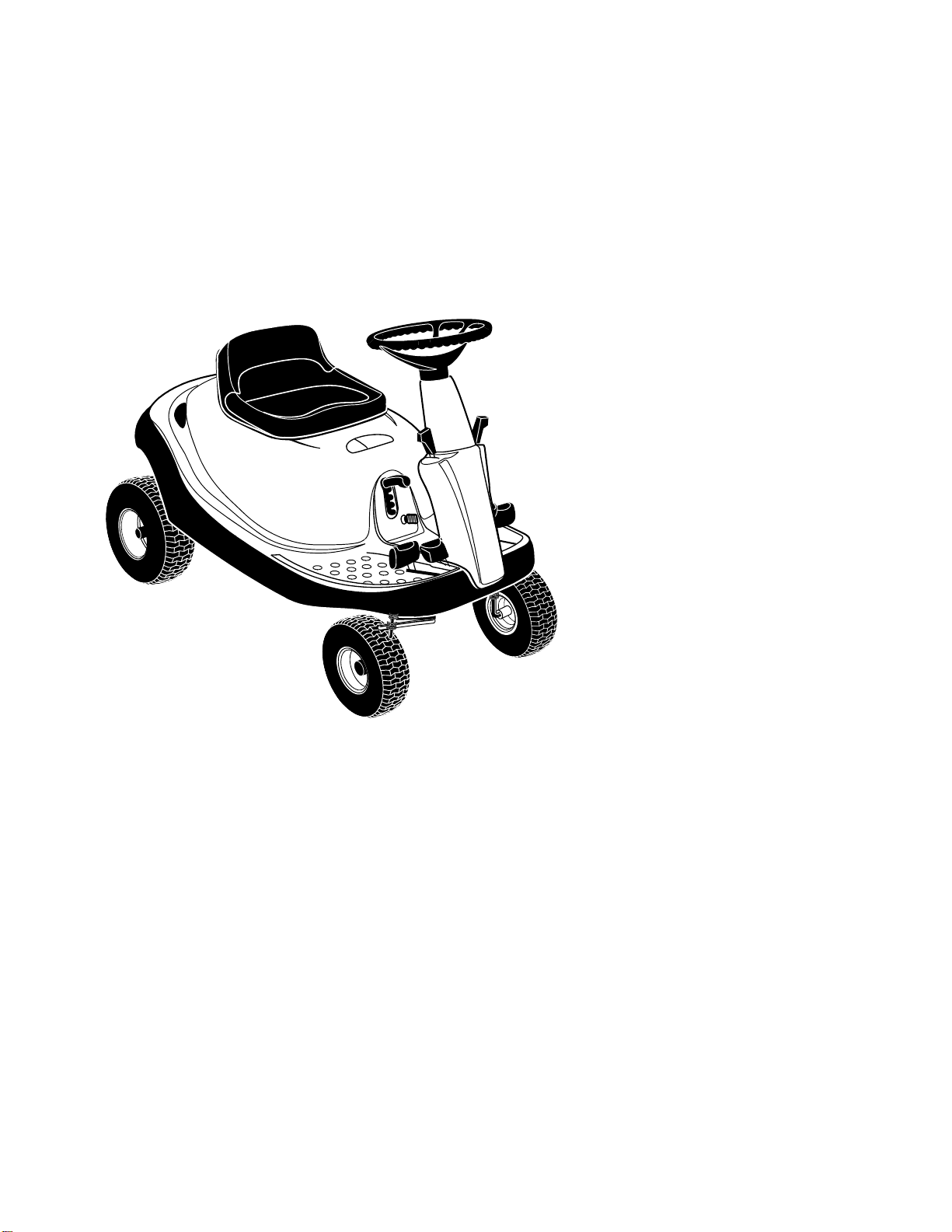

Riding Mower
Internal Bagging System
Model 344
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO.
769-01115.fm
(1/2004)

2
TABLE OF CONTENTS
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new garden tractor. It will help you assemble, prepare
and maintain the unit forbest performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate under the
seat of the tractor and copy the information in the space provided below. A sample model plate is
also given below. This information will be necessary to use the manufacturer’s web site and/or
help from the Customer Support Department or an authorized service dealer.
CUSTOMER SUPPORT
Please do NOT return the unit to the retailer from where it was purchased, without first contacting Customer Support.
If you have difficulty assembling this productor have any questions regarding the controls, operation or
maintenance of this unit, you can seek help from the experts. Choose from the options below:
Visit mtdproducts.com for many useful suggestions. Click on Customer Support button and
you will get the four options reproduced here. Click on the appropriate button and help is
immediately available.
To reach the Customer Support Line, please call 1-800-800-7310.
The engine manufacturer is responsible for all engine-related issues with regards to
performance, power-rating, specifications, warranty and service.Please refer to the engine
manufacturer’s Owner’s/Operator’s Manual, at the end of this manual, for more information.
Content Page
Customer Support 2
Important Safe Operation Practices 3
Assembling Your Rider Mower 7
Know Your Rider Mower 9
Operating Your Riding Mower 11
Making Adjustments 13
Service 16
Maintenance 18
Off-Season Storage 20
Troubleshooting 20
Illustrated Parts List 22
Warranty Back Cover
Content Page
Copy the model number here:
Copy the serial number here:
www.mtdproducts.com
MTD LLC
P. O. BOX 361131
CLEVELAND,OH 44136
330-220-4683
800-800-7310
The answer you are
looking for could be just
a mouse click away!
The answer you are
looking for could be just
a mouse click away!
Engine
Manual

3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
Your riding mowerwas built to be operated according to the rules for safe operation in this manual. As with any type
of power equipment, carelessness or error on the part of the operator can result in serious injury. If you violate any
of these rules, you may cause serious injury to yourself or others.
General Operation
• Read, understand, and follow all instructions in the
manual and on the machine before starting. Keep
this manual in a safe place for future and regular
reference and for ordering replacement parts.
• Only allow responsible individuals familiar with the
instructions to operate the machine. Know controls
and how to stop the machine quickly.
• Do not put hands or feet under cutting deck or near
rotating parts.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade. A small object may have been overlooked
and could be accidentally thrown by the mower in
any direction and cause injury to you or a
bystander. To help avoid a thrown objects injury,
keep children, bystanders and helpers at least 75
feet from the mower while it is in operation. Always
wear safety glasses or safety goggles during
operation or while performing an adjustment or
repair, to protect eyes from foreign objects. Stop
the blade(s) when crossing gravel drives, walks or
roads.
• Be sure the area is clear of other people before
mowing. Stop machine if anyone enters the area.
Never carry passengers.
• Disengageblade(s)beforeshifting into reverse and
backing up. Always look down and behind before
and while backing.
• Be aware of the mower and attachment discharge
direction and donot point it at anyone. Do not
operate the mower without either the entire grass
catcher or the chute guard in place.
• Slow down before turning. Operate the machine
smoothly. Avoid erratic operation and excessive
speed.
• Never leave a running machine unattended.
Always turn off blade(s), place transmission in
neutral, set park brake, stop engine and remove
key before dismounting.
• Turn off blade(s) when not mowing.
• Stop engine and wait until blade(s) comes to a
complete stop before (a) removing grass catcher or
unclogging chute, or (b) making any repairs,
adjusting or removing any grass or debris.
• Mow only in daylight or good artificial light.
• Do not operate the machine while under the
influence of alcohol or drugs.Watch for traffic when
operating near or crossing roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck. This unit should not
be driven up or down a ramp onto a trailer or truck
under power,because the unit could tip over,
causing serious personal injury. The unit must be
pushed manually on a ramp to load or unload
properly.
• Never make cutting height adjustment while engine
is running, if operator must dismount to do so.
• Wear sturdy, rough-soled work shoes and close-
fitting slacks and shirts. Do not wear loose fitting
clothes or jewelry. They can be caught in moving
parts. Never operate a unit in bare feet, sandals, or
sneakers.
• Check overhead clearance carefully before driving
under power lines, wires, bridges or low hanging
tree branches,before entering or leaving buildings,
or in any other situation where the operator may be
struck or pulled from the unit, which could result in
serious injury.
• Disengage all attachment clutches, thoroughly
depress the brake pedal, and shift into neutral
before attempting to start engine.
• Your mower is designed to cut normal residential
grass of a height no more than 10". Do not attempt
to mow through unusually tall, dry grass (e.g.,
pasture) or piles of dry leaves. Debris may build up
on the mower deck or contact the engine exhaust
presenting a potential fire hazard.
WARNING: This symbol points out important safety instructions which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this
manual before attempting to operate your Riding Mower. Failure to comply with these instructions may
result in personal injury. When you see this symbol—heed its warning.
WARNING: Engine exhaust, some of its constituents, andcertain vehicle components contain or
emit chemicals known to State of California to cause cancer and birth defects or other
reproductive harm.

4
Slope Operation
• Slopes are a major factor related to loss of control
and tip-over accidents which can result in severe
injury or death. All slopes require extra caution. If
you cannot back up the slope or if you feel uneasy
on it, do not mow it.
• For your safety,use the slope gauge included as
part of this manual to measure slopes before
operating this unit on a sloped or hilly area. If the
slope is greater than 15° as shown on the slope
gauge, do not operate this unit in that area or
serious injury could result.
Do:
• Mow up and down slopes, not across.
• Remove obstacles such as rocks, limbs, etc.
• Watch for holes, ruts or bumps. Uneven terrain
could overturn the machine. Tall grass can hide
obstacles.
• Use slow speed. Choose a low enough gear so that
you will not have to stop or shift while on the slope.
Always keep machine in gear when going down
slopes to take advantage of engine braking action.
• Follow the manufacturer’s recommendations for
wheel weights or counterweights to improve
stability.
• Use extra care with grass catchers or other
attachments. These can change the stability of the
machine.
• Keepallmovementonthe slopes slow andgradual.
Do not make sudden changes in speed or direction.
Rapid engagementor braking could cause the front
ofthe machine toliftandrapidly flipoverbackwards
which could cause serious injury.
• Avoid starting or stopping on a slope. If tires lose
traction,disengagetheblade(s)andproceedslowly
straight down the slope.
Do Not:
• Do not turn on slopes unless necessary; then, turn
slowly and gradually downhill, if possible.
• Do not mow near drop-offs, ditches or
embankments.Themowercouldsuddenlyturnover
if a wheel is over the edge of a cliff or ditch, or if an
edge caves in.
• Do not mow on wet grass. Reduced traction could
cause sliding.
• Do not try to stabilize the machine by putting your
foot on the ground.
• Do not use grass catcher on steep slopes.
Children
• Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you
last saw them.
• Keep children out of the mowing area and in
watchful care of an adult other than the operator.
• Be alert and turn machine off if children enter the
area.
• Before and when backing, look behind and down
for small children.
• Never carry children. They may fall off and be
seriously injured or interfere with the safe machine
operation.
• Never allow children under 14 years old to operate
the machine. Children 14 years and over should
only operate machine under close parental
supervision and proper instruction.
• Use extra care when approaching blind corners,
shrubs, trees or other objects that may obscure
your vision of a child or other hazard.
• Remove key when machine is unattended to
prevent unauthorized operation.
Service
• Use extreme care in handling gasoline and other
fuels. They are extremely flammable and the
vapors are explosive.
a. Use only an approved container.
b. Never remove fuel cap or add fuel with the
engine running. Allow engine to cool at least
two minutes before refueling.
c. Replace fuel cap securely and wipe off any
spilled fuel before starting the engine as it may
cause a fire or explosion.
d. Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
e. Never refuel the machine indoors because fuel
vapors will accumulate in the area.
f. Never store the fuel container or machine
inside where there is an open flameor spark,
such as a gas hot water heater, space heater
or furnace.
• Never run a machine inside a closed area.
• To reduce fire hazard, keep the machine free of
grass, leaves or other debris build-up. Clean up oil
or fuel spillage. Allow machine to cool at least 5
minutes before storing.
• Before cleaning, repairing or inspecting, make
certain the blade and all moving parts have
stopped. Disconnect the spark plug wire, and keep
the wire away from the spark plug to prevent
accidental starting.
• Check the blade and engine mounting bolts at
frequent intervals for proper tightness. Also,
visually inspect blade for damage (e.g., excessive
wear, bent, cracked). Replace with blade which
meets original equipment specifications.
• Keep all nuts, bolts and screws tight to be sure the
equipment is in safe working condition.
• Never tamper with safety devices. Check their
proper operation regularly. Use all guards as
instructed in this manual.

5
• After striking a foreign object, stop the engine,
removethe wire from the spark plug and thoroughly
inspect the mower for any damage. Repair the
damage before restarting and operating the mower.
• Grass catcher components are subject to wear,
damage and deterioration, which could expose
movingparts or allowobjectsto be thrown.Foryour
safety protection, frequently check components
and replace with manufacturer’s recommended
parts when necessary.
• Mower blades are sharp and can cut. Wrap the
blade(s)or wearglovesand use extracautionwhen
servicing blade(s).
• Check brake operation frequently. Adjust and
service as required.
• Muffler, engine and belt guards become hot during
operationand can cause a burn. Allow to cooldown
before touching.
• Do not change the engine governor settings or
overspeed the engine. Excessive engine speeds
are dangerous.
• Observe proper disposal laws and regulations.
Improper disposal of fluids and materials can harm
the environment and the ecology.
a. Prior to disposal, determine the proper method
to dispose of waste from your local office of
Environmental Protection Agency. Recycling
centers are established to properly dispose of
materials in an environmentally safe fashion.
b. Use proper containers when draining fluids. Do
not use food or beverage containers that may
mislead someone into drinking from them.
Properly dispose of the containers immediately
following the draining of fluids.
c. DO NOT pour oil or other fluids into the ground,
down a drain or into a stream, pond, lake or
other body of water. Observe Environmental
Protection Agency regulations when disposing
of oil, fuel, coolant, brake fluid, filters, batteries,
tires and other harmful waste.

6
SECTION 2: SLOPE GUAGE
15°
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
A POWER POLE
A CORNER OF A BUILDING
OR A FENCE POST
FOLDONDOTTEDLINE,REPRESENTINGA15°SLOPE
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain your footing and you could slip, resulting in serious injury. Operate RIDING mowers up and down slopes, never across the face of slopes. Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.
WARNING
USE THIS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT
OPERATE RIDING MOWER SAFELY:

7
SECTION 3: ASSEMBLING YOUR RIDING MOWER
Unpacking
• Remove all screws and staples from the crate.
• Holding sides of the crate firmly, lift top of the crate
up and set it aside. Avoid tire punctures.
• Remove and discard plastic bag covering the unit.
• Lift the rear of the mower and clear the bottom of
the crate. Repeat for the front.
• Be sure the parking brake is disengaged. See
Figure 7 for location of the parking brake. Roll unit
out of the crate.
Loose Parts
• Remove the following loose parts from the grass
catcher and/or the crate very carefully.
1. Mulching plug & side-discharge chute
2. Oil drain sleeve
3. Bumper
4. Ignition keys
5. Operator’s manual
• Your riding mower is shipped with motor oil in the
engine. However, you must check the oil level
before operating. Be careful not to overfill.
NOTE: Reference to RIGHT or LEFT side of the tractor
in this manual is observed from operator’s position.
Attaching Battery Cable
The battery is located under the hood assembly above
the left rear wheel. Refer to Figure 2 .
• To access the battery, lift the hood assembly from
theleft side of the hood only.Standon the rightside
of the unit and pivot the hood assembly towards
you until fully opened. See Figure 1 .
NOTE: Do not lift the hood assembly by the two vent
openings located behind the seat.
Figure 1
• Remove wing nut from front battery hold-down rod.
• Slide the battery cover towards the rear to access
the front (negative) terminal.
• Remove screw from this terminal with a wrench.
• Attach the black battery cable to this negative
terminal on the battery and tighten securely. See
Figure 2 .
Figure 2
• Move the battery cover to its original position. Make
sure to tuck away the battery cables completely
under the battery cover. Check to ensure that the
cables pass easily through slots in the cover.
• Reinstall wing nut on the front battery hold-down
rod and tighten.
• Place right hand on the left side of the seat and
slowly lower the hood assembly untill fully closed.
NOTE: Do not place your hand around the bottom
edge of the hood assembly; it may get pinched between
the hood assembly and grass catcher or the frame rail.
Attaching Side-Discharge Chute
Your riding mower is shipped to you with the grass
catcher fully assembled on the unit. A side-discharge
Vent
Opening
Hood Assembly
WARNING: Be careful not to contact any
adjacent metal part or short across posts.
WARNING: Keep battery cables away from
the engine exhaust system.
WARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds. Wash hands after handling.
Cable
Wing Nut
Cover
Screw Hold-Down
Rod

8
chute and a mulching plug are included as loose parts.
Follow instructions below to attach this chute.
• Lower the cutting height adjustment lever to the
lowest position and pivot the hood assembly up.
• Remove the two wing nuts (A and B in Figure 3 )
from two ends of the grasscatcher chute.
• Slide the grasscatcher chute to the right and out of
the deck frame. Slide the side-discharge chute on
to the deck so that the two wing nut positions align
with those on the deck.
• Reinsert and tighten both wing nuts.
Figure 3
Attaching Mulch Plug
While operating your riding mower, you have three
options: (i) to collect grass clippings in the grass
catcher, (ii) to discharge grass clippings on the side, or
(iii) to mulch grass and recirculate clippings back to the
lawn. For the third option, attach the mulching plug to
the side-discharge chute and then to the deck.
• Put two hex bolts through the mulching plug at the
respective openings. See Figure 4 .
• Place speed nuts over the hex bolts.
Figure 4
• Insert the plug into the side-discharge chute
aligning the two slots on two sides of the side-
discharge chute with those on the mulching plug.
• To attach the mulching plug now to the unit, follow
instructions on previous page to attach side-
discharge chute to the deck.
• Place wing nut on each of the hex bolts and thread
a few turns. See Figure 4 . Check that the mulch
plug is aligned correctly within the discharge chute.
• Tighten both wing nuts
Attaching Bumper
• Remove bumper from inside the grass catcher.
• Loosen and remove the two pairs of hex bolts and
lock nuts from the front rail on the riding mower.
See Figure 5 .
• Align the two holes on the bumper tube with the
correspondingholes on theriderframe (from where
you removed the hardware). See Figure 5.
• Re-insert thetwo hex bolts through the bumper and
the rider frame and secure with the two lock nuts.
Figure 5
Attaching Hitch Plate
The hitch plate was loosely attached to the rear frame
of the rider for shipping purposes.
• Loosen one of the two hex nuts attaching the hitch
plate to the frame.
• Remove speed nut, lock washer and hex nut from
the other side of the hitch plate. Save the hardware.
• Swing the hitch plate outward aligningits wider side
with the rear frame as shown in Figure 6 .
• Re-position the hole on the hitch plate (from where
you removed the hardware earlier) on top of the
corresponding hex bolt on the rear frame. Secure
with speed nut, lock washerand hex nut removed
earlier. See Figure 6 .
• Tighten both hex nuts securely.
Figure 6
WARNING: Do not operate the mower if any
one or more of the grass catcher, discharge
chute or mulching plug is not firmly installed on
the mower.
Grass Catcher
Chute
Side-
Discharge
Chute
Wing
Nut A
Wing
Nut B
Side Discharge Chute
Mulching
AB
Wing Nut
Speed
Nut
Plug
Hex Bolt
Lock
Nut Bumper
Hex Bolt
Rider Frame
Rail
Hitch Plate
Hex Bolt
Lock
Washer
Hex Nut
Rear Frame Speed Nut

9
SECTION 4: KNOW YOUR RIDING MOWER
Compare the illustrations in Figure 7 with your riding mower to familiarize yourself with the location of various
controls and adjustments.
Figure 7
Throttle/Choke Control
Use to regulate the engine speed and to start the
engine.
Drive Pedal
Use to regulate the ground speed of the riding mower.
Ignition Switch
Use to turn the engine ON or OFF.
Shift Lever
Use to change direction of the mower.

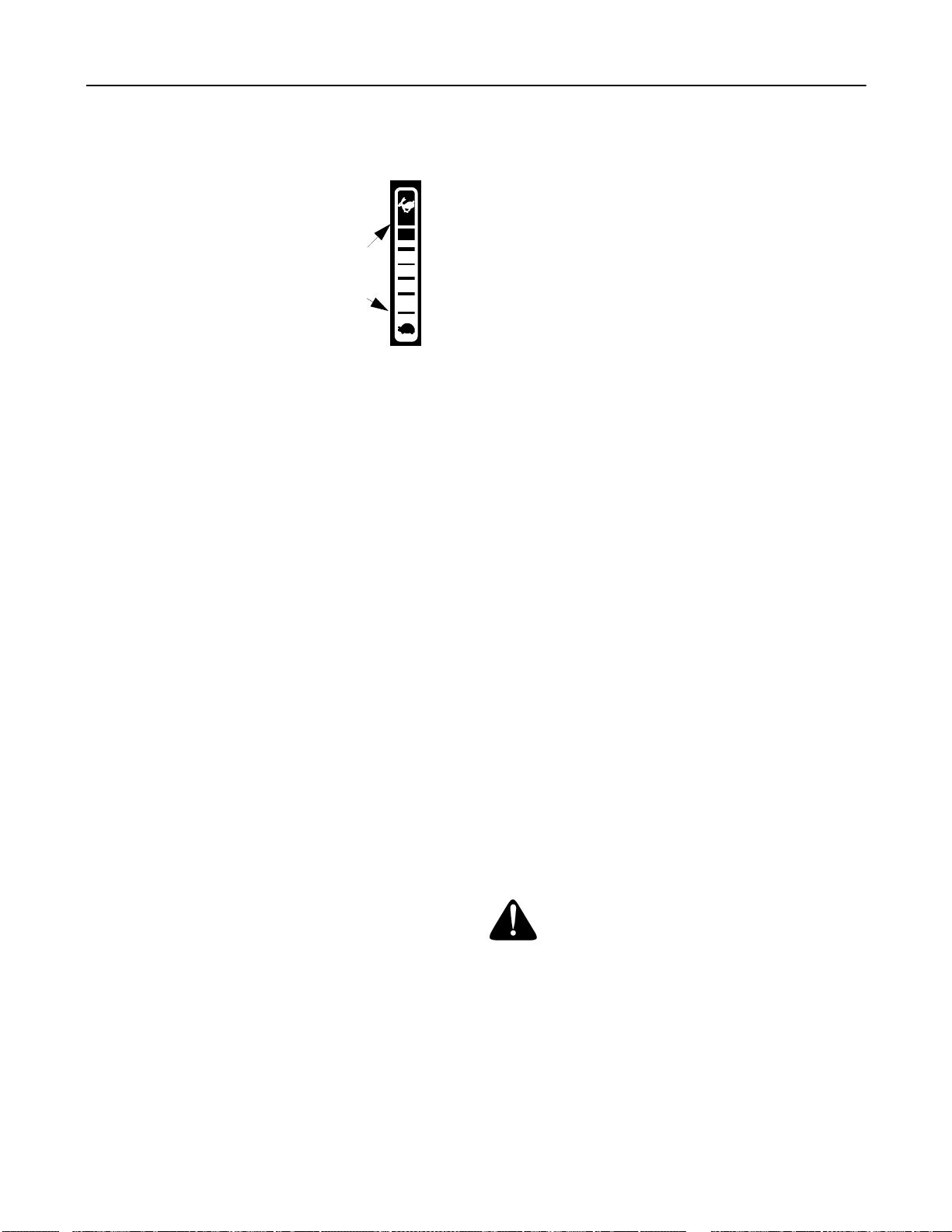

Grass Fill Level Indicator
Use to determine the level of grass clipping in the bag
and when to stop and empty it.
Parking Brake
Use to stop the mower from moving while parked.
WARNING: The operation ofany riding mower can result in foreign objects being thrown into the
operator’s eyes, causing severe eye damage. Always wear safety glasses beforeoperatingthemower, or
while performing any adjustments or repairs on it.
Side Discharge
Chute Cutting
Deck
Ignition
Switch
Steering Wheel
Shift Lever
Cutting Height
Pedal Brake
Pedal
Grass Fill Level
Indicator
LeverAdjustment
Throttle/Choke
Control
Blade Engagement
Pedal
Seat
Battery
Engine
Grass
Parking
Brake
Blade
Pedal
Blade
Lock
Hood
Drive
Engagement
Catcher
Assembly
NOTE: Gas tank is not shown here

10
Blade Engagement Pedal
Use to engage or disengage the blade.
Blade Lock
Use to lock blade at the engaged position.
Cutting Height Adjustment Lever
Use to raise and lower the cutting deck which
determines the cutting height.
Brake Pedal
Use to stop the mower’s forward or reverse motion.
Stopping Mower
• Release blade engagement pedal all the way.
• Release the drive pedal and depress the brake
pedal.
• When the mower comes to a complete stop, place
the shift lever in neutral.
• Engage the parking brake by pulling up on the
parking brake knob.
• Turn the ignition key to OFF position and remove
the key.
Safety Interlock
This unit is equipped with a safety interlock system for
your protection. The interlock safety switches are
connected to the brake pedal, the blade engagement
pedal, the shift lever, and the seat.
The purpose of the safety interlock system is threefold:
a. to prevent the engine from starting unless the
brake pedal is depressed and the blade
engagement pedal is disengaged;
b. to shut off the engine if the blade pedal is not
disengaged when the shift leveris put into
reverse; and
c. to shut the engine off when the operator leaves
the seat without engaging the parking brake.
• Remove objects that could be thrown by the
blade(s).
• Know location and function of all controls.
• Be sure blade(s) and engine are stopped before
placing hands or feet near blade(s).
• Before leaving operator's position, disengage
blade(s), place the shift lever in neutral, engage
parking brake, shut engine off and remove key.

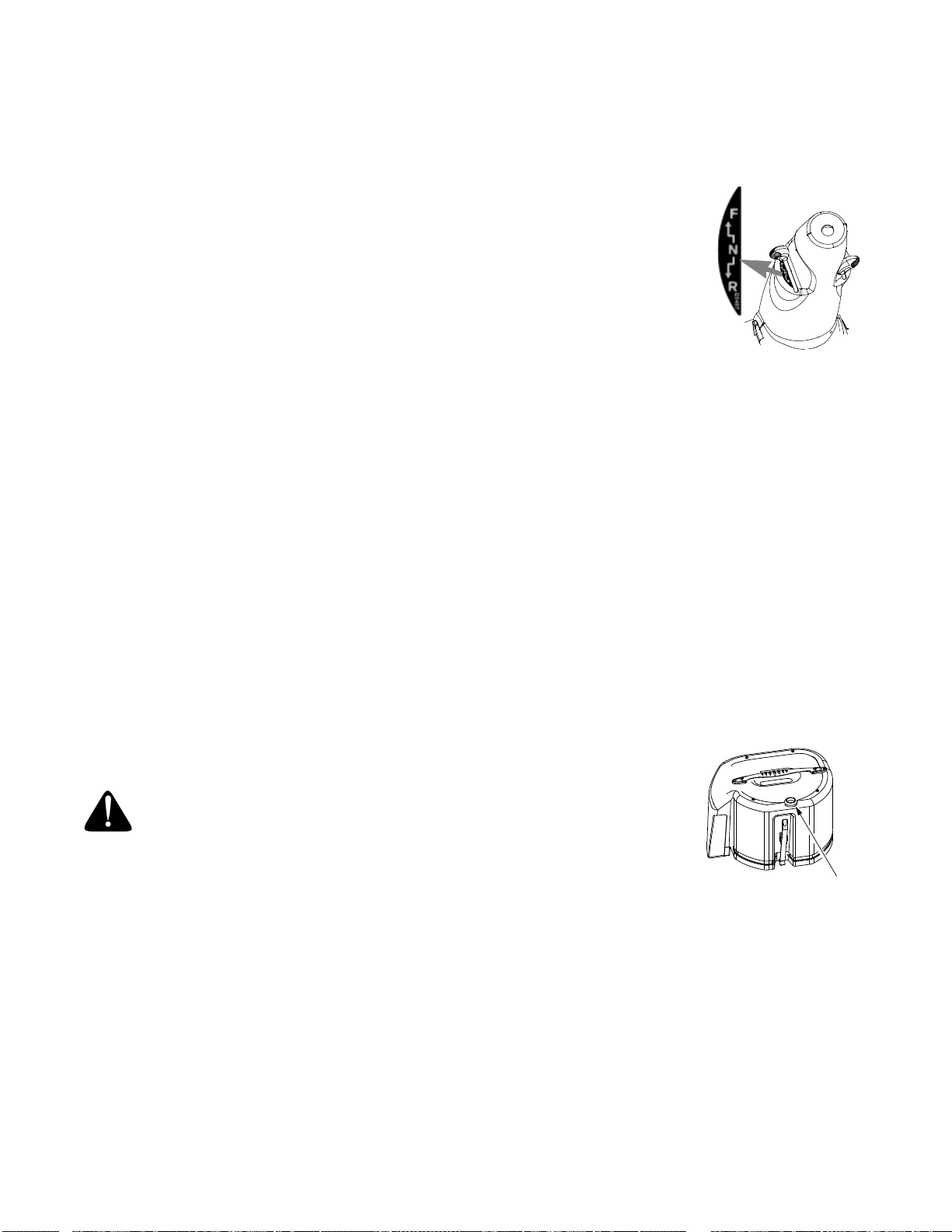

Using Shift Lever
This lever is used to regulate
direction of the riding mower. It
canbe setatforward,neutral,or
reversesettings. These settings
are marked F, N, and R
respectively on the unit.This
unit is designed not to mow
when the shift lever is in R
position.
• Before you move the shift
lever to any of the positions, depress the brake
pedaland stop theunit.Keepyour foot on thebrake
pedal.
• The shift lever is locked at the N position. Move the
lever outwards (left) and slide the lever upward to F
or downward to R position as desired.
NOTE: Look at the rear and make sure the path is free
of obstacles before positioning the shift lever to the
reverse.
• Do not force the shift lever. If it does not shift,
release the brake pedal slightly to line up the
shifting collar in the transmission, then try to move
the shift lever.
Slowly release the brake pedal and take your foot off
the pedal. Always make sure that there is no one in the
way when you run the equipment.
Grass Fill Level Indicator
This indicator was designed
to add convenience to your
riding mower. While the
mower is running, air will flow
through the discharge chute
and into the grass catcher. If
the grass catcher is empty,
air flows through easily
pushing the ball up. If the
grass catcher is full, air does
not flow through it causing the ball to fall. So if you see
the ball in the grass fill level indicator falling down, you
should stop the mower and empty the bag.
WARNING: To avoid the risk of serious
injury, do not operate the riding mower if the
interlock system is malfunctioning.
i20497
Grass Fill Level
Indicator

11
SECTION 5: OPERATING YOUR RIDING MOWER
Using Throttle/Choke Control
Thethrottle/chokecontrolis usedto
increase or decrease the speed of
the engine.The FAST and SLOW
positions are marked with
illustrations of rabbit and turtle
respectively.
• For normal operation and when
using a grass catcher, move
the throttle/choke control to
FAST.
• For maximum charging of the battery and also for a
cooler engine while running, move the throttle/
choke control to FAST.
• For transport and to tow pull-behind attachments,
move the throttle/choke control to SLOW.
NOTE: Do not adjust the governor to increase or
decrease the engine speed. The governor is set at the
factory for maximum engine performance, and should
not be altered.
Using Parking Brake
To engage parking brake
• Completely push the brake pedal down and stop
the unit.
• With your right foot on the brake pedal, move the
shift lever to the neutral position.
• Continuing to hold down the brake pedal with your
right foot, pull up the parking brake knob. Make
sure the parking brake holds the unit.
• Release the brake pedal. Stop the engine and
remove the ignition key. Now your riding mower is
parked.
To release the parking brake
• Depress the brake pedal. The parking brake will be
automatically disengaged.
Before Starting
Filling Up Oil & Gasoline
Refer to the accompanying engine manual for details.
Battery
Ordinarily the battery is charged and ready for use; so
you will not have to charge it before starting. However,
if the battery is put into service for the first time after the
date shown on the side of the battery, you will have to
charge it for a minimum of one hour at 4-6 amps. Refer
to page 18 for instructions on charging the battery.
The battery is located under the hood assembly above
the left rear wheel. Refer to Figure 2 .
Starting Engine
• Attach the wire to the spark plug.
• Depress the brake pedal with your right foot.
• Set throttle/choke control in the CHOKE position
(all the way forward).
• Place the shift lever in the NEUTRAL position.
• Turn the ignition key to the START position. As
soon as the engine starts, let the key return to the
ON position.
• Move throttle/choke control out of CHOKE position
and into FAST throttle position.
NOTE: If engine floods, set the choke to OPEN/RUN
position, place the throttle in FAST and crank until the
engine starts.
Operating the Riding Mower
• Depress the brake pedal so that the parking brake
is disengaged.
• Place the shift lever in either the FORWARD or the
REVERSE position as you desire. Look to the rear
and check before backing up.
• Release the brake pedal.
• Depress the drive pedal.
• To stop, release the drive pedal and depress the
brake pedal.
• Press the bladeengagement pedal downward until
the blades are turning.The blades can be engaged
either while the mower is in motion or while it is
standing.
NOTE: Your riding mower is equipped with a blade lock
to keep the blade engaged without the operator having
to depress the blade pedal continuously. See Figure 7.
•To engage the blade lock: While pressing down
on the blade pedal,push the blade lock down with
your heel. It should click into the “blade engaged”
position. To disengage the blade lock, simply push
down on the blade pedal and release the lock.
Stopping the Riding Mower
• Release blade engagement pedal all the way.
• Release drive pedal and depress brake pedal.
• When the mower comes to a complete stop, place
the shift lever in neutral.
• Engage the parking brake by pulling up on the
parking brake knob.
• Turn ignition key to OFF position and remove key.
Slow
Fast
WARNING: When the blades are engaged,
keep hands and feet away from the discharge
opening, the blades or any part of the deck.

12
NOTE: Do not leave the key in the ON position when
you are not operating the mower. Such action will drain
the battery dead.

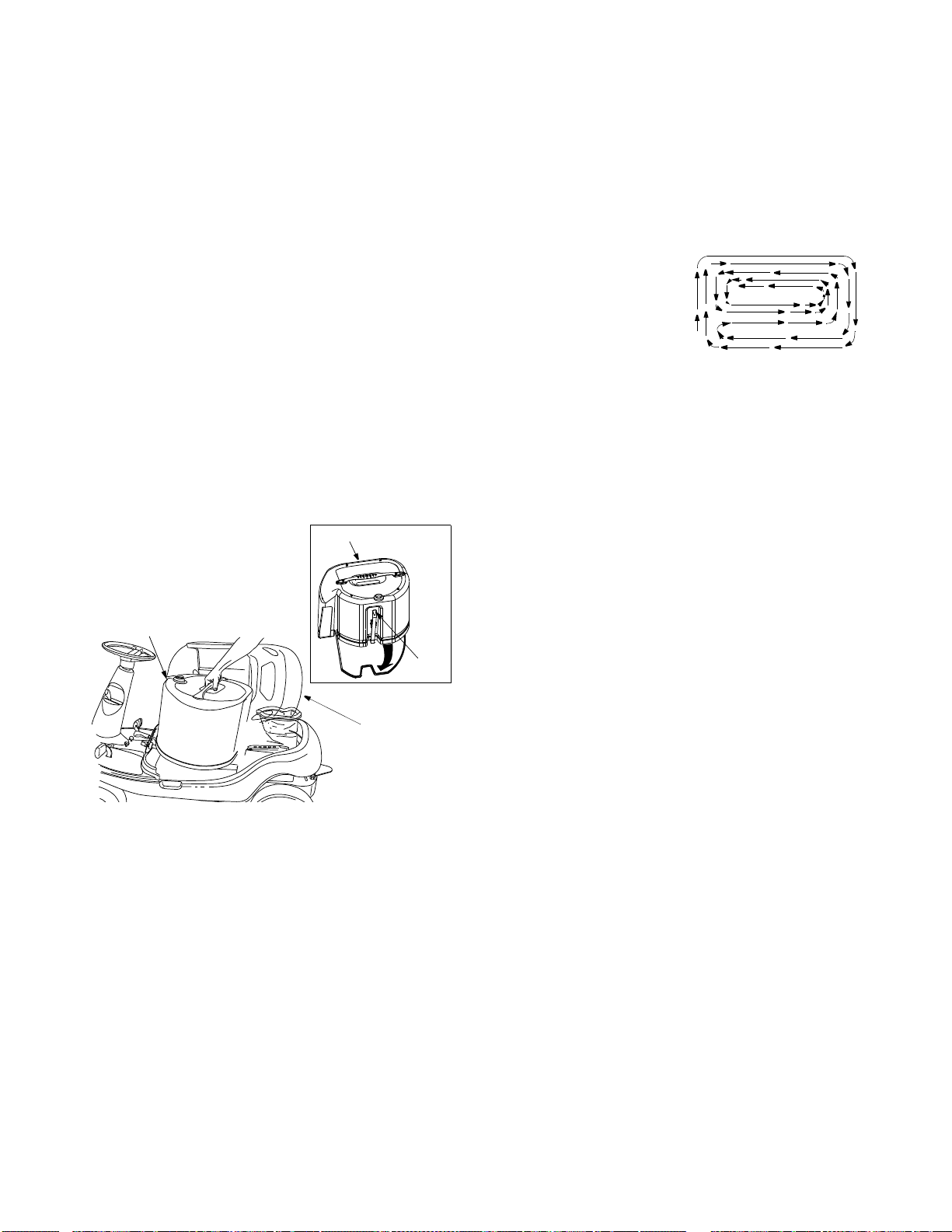

To Empty Grass Catcher
• Stop the mower completely, pull up on the
parking brake knob and take the ignition key out.
Get off the operator’s seat.
• Pivot the hood assembly up. Pull up the
grasscatcher bag by the handle and take it to the
proper disposal site. See Figure 8 .
• Hold the bag away from your body. Push down
on the bag lever and let the bottom section of
the bag fall downwards. The grass clippings
will be disposed of from the bottom. See
Figure 8 .
• Tap the bag on the ground so that the three legs
of the bag press against the ground. The bag
lever should snap close while you push the bag
downwards.
• Replace the bag on to the mower making sure
the bag is placed on the flange on top of the
discharge chute.Pivot the hood assembly down.
Figure 8
Using the Riding Mower
Observe safety rules listed on pages 3-5 of this manual
for safe operation of your mower.
• Before mowing, make sure that the cutting deck is
leveled. For deck adjustment, refer to page 14.
• You can engage the blade by pressing onthe blade
engagement pedal with your left foot while sitting
on the operator’s seat.
• The recommended
mowingpattern is given
here. Mow grass often
and in regular intervals
so that you can cut only
1/3of thegrassbladein
one mowing.
• When mowing an area for the first time, watch out
for objects lying on the grass. If you strike a foreign
object, stop the engine. Remove wire from spark
plug and thoroughly inspect the mower for any
damage. Repair damage before operating it again.
• Avoid scalping the lawn by adjusting the cutting
height upwards and/or sharpening the blades.
• Mow at full throttle. Learn the terrain on which you
are mowing. For best mowing results, mow only
when the grass is dry.
• To empty grass bag, stop the riding mower
completely, engage the parking brake, and turn
the ignition off. This will prevent the hot engine
exhaust gas from browning the grass.
Mulching
• The mulching plug is meant to mulch grass and
recycle clippings into the lawn instead of collecting
in the grasscatcher bag.
• Mulch only when the grass is dry. Mulching wet
grass may damage the underside of the deck
because wet grass tends to stick to it. Clean deck
thoroughly if you mulch wet grass.
• For effective mulching, overlap mowing paths so
that the clippings are distributed evenly.
Bag Handle
here
Push
Grass Catcher
Bag
Hood
Assembly

13
SECTION 6: MAKING ADJUSTMENTS

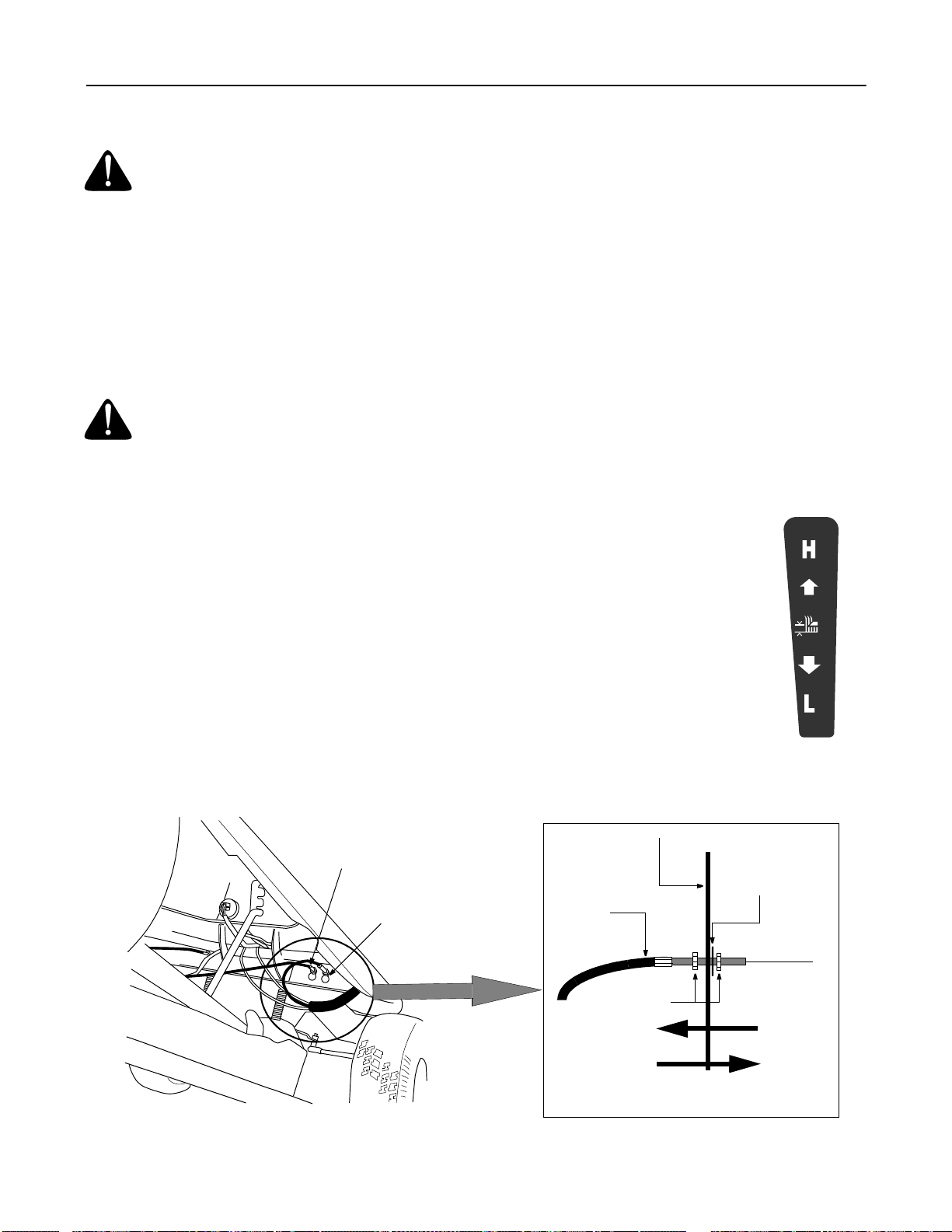

Brake Pedal
During normal operation of the riding mower, the brake
is subject to wear and tear. Check the brake
periodically by carrying out the following test:
• Release the parking brake and place the riding
mower in neutral. Depress the brake pedal and try
to roll the riding mower. The tractor should not
move. If the tractor moves, adjust the brake.
Adjustment to thebrake pedal is made at the cable end.
See Figure 9 .
• Set the parking brake and turn ignition key off.
• Shift the cutting height lever to the lowest position.
• Pivot the hood assembly up and remove the
grasscatcher bag and the side-discharge chute or
the mulching plug from the mower.
• Disconnect wire from the spark plug.
• Locate the brake cable on the right side under the
front housing. See Figure 9 .
• Using a pair of 1/2” wrenches, loosen the jam nuts
and back the cable out to tighten or thread inward
to loosen. See Figure 9 inset.
• Retighten the jam nuts when proper tension is
reached.
• Unlock parking brake and repeat the test described
above. Readjust if necessary.
Drive Pedal
Adjustment to the Drive Pedal is made at the cable end.
See Figure 9 .
• Set the parking brake and turn ignition key off.
• Shift the cutting height lever to the lowest position.
• Pivot the hood assembly up and remove the
grasscatcher bag and the side-discharge chute or
the mulching plug from the mower.
• Disconnect wire from the spark plug.
• Locate the speed control cable under the front
housing. See Figure 9 .
• Loosen the jam nuts and back the cable out to
tighten or thread inward to loosen as shown.
• Retighten the jam nuts when proper tension is
reached.
• Reconnect the spark plug wire and pivot the hood
assembly down.
Cutting Height
The deck cutting height adjustment
leverislocatedon thehood assembly.
A representation of the cutting height
positions are given here.
• Pull the lever out of the slot and
slide it upward or downward to
the desired cutting height.
• Lower the cutting height to mow
close to the ground.
• Raise the deck height to the
highestposition when you rideon
a sidewalk or a road.
• To mow tall or thick grass, move
the cutting height adjustment lever to the highest
position and cut. Then move the lever to a lower
position and cut again.
Figure 9
WARNING: Do not at any time make any
adjustment to the mower without first stopping
engine and disconnecting spark plug wire.
WARNING: Do not adjust the brake while
the engine is running. Be sure to block the
wheels of the riding mower before making any
adjustments on the brake cable.
5
4
3
2
1
Speed Control
Cable
Brake
Cable
Cable*
Jam Nuts
Lock Washer
Frame
Tighten
Loosen
*Same type of adjustment on both cables
(only one shown here)

14
Seat Position
The seat position on the riding mower can be adjusted
to maximize the operator’s convenience.
• Stopthemowercompletelyandengagetheparking
brake. Turn ignition off.
• Pivot the hood assembly up.
• Loosen the four self-tapping screws on the bottom
of the seat.
• Slide the seat forward or backward in the slot, and
position it as desired. Retighten the four screws.
Blade Brake/PTO
The blade engagement pedal should be adjusted so
that if you depress it about 3/4” from the front of the slot,
it should start engaging the deck belt. The PTO (power
take off) switch is located in the blade brake slot on the
left side of the upper frame. See Figure 10 . The brake
engagementpedalneeds to makecontactwiththePTO
switch for the engine to start.
Under normal operation, the blade engagement pedal
should not require frequent adjustment. However,
perform the following test periodically and make sure
that it is in fine working condition.
• Pivot the hood assembly up and check if there is
enough slack on the deck engagement cable.
• Depress the blade engagement pedal (about 3/4
inch) and check if the belt is engaging.
• If the cable is tight or too loose or the belt is not
engaging, adjust the deck engagement cable.
NOTE: The deck engagement cable will be correctly
adjusted when the cable moves approximately 1/2” off
center line in both directions.

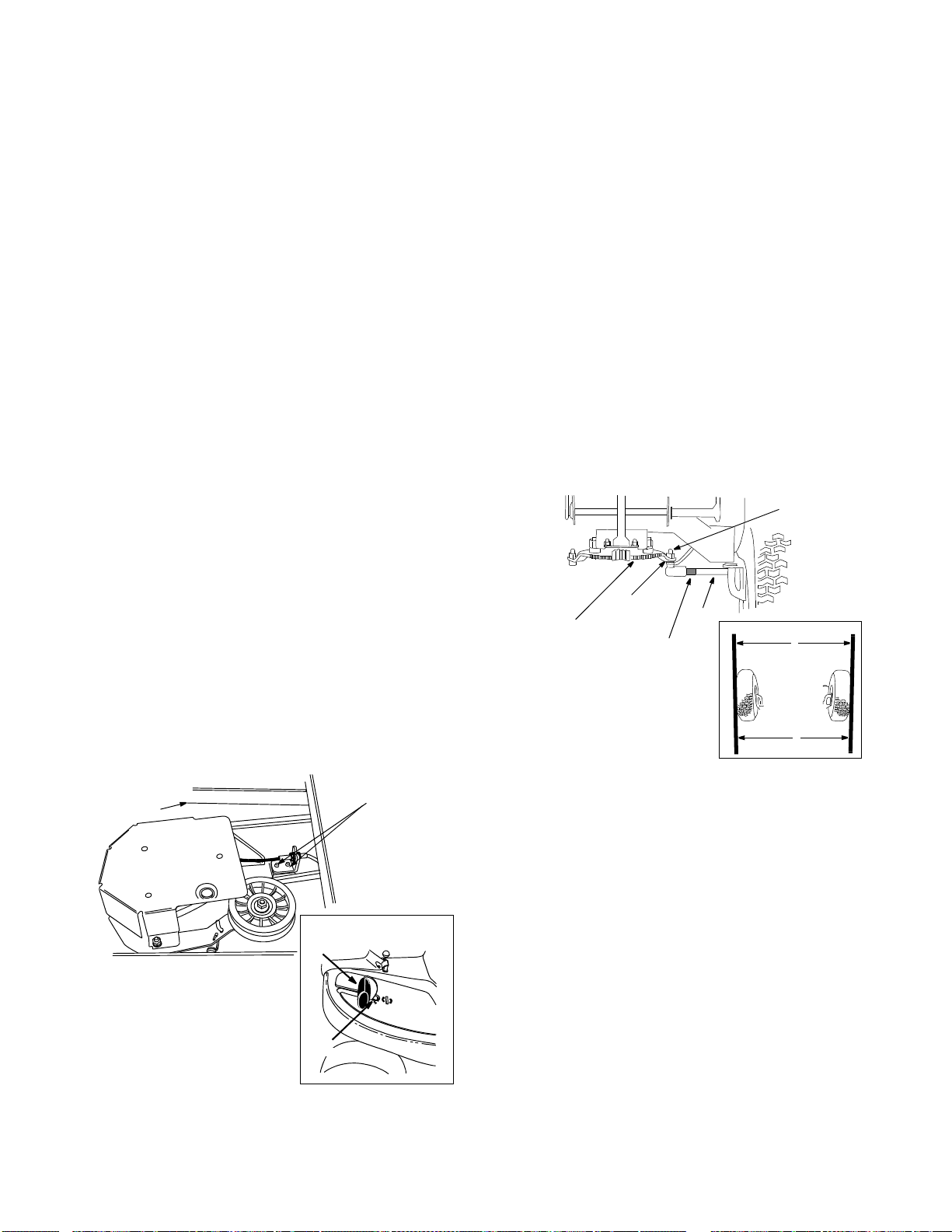

Adjustment to the blade brake will have to be made at
the cable end. See Figure 10.
Figure 10
• If the belt is slipping when you depress the blade
engagement pedal about 3/4”, loosen the two hex
nuts on the cable.See Figure 10.
• If the belt is engaging sooner than when the blade
engagement pedal is 3/4” from the PTO switch,
tighten both hex nuts on the cable. See Figure 10.
• Repeat the test and readjust if needed.
• Pivot the hood assembly back.
Wheel Alignment
Thefrontwheelsshould toe-in1/16-5/16inch.Toadjust
toe-in, follow these steps:
• Remove the 3/8’’ hex nut and lock washer which
hold the ball joint to the steering segment. See
Figure 11.
• Adjust the ball joint in or out until the wheels toe-in
approximately 1/16-5/16" (Dimension ‘‘B’’ should
be approximately 1/16-5/16" less than dimension
‘‘A’’). See Figure 11.
• Replace the ball joint into the steering segment,
and replace the 3/8’’ hex nut and the lock washer.
Figure 11
Adjusting the Deck
There are three tests for checking deck levelling on the
riding mower. The results of each test will determine
what kind of levelling, if at all, the equipment needs.
IMPORTANT: Perform adjustments to the deck ona flat,
level surface. Before continuing with deck adjustment,
check air pressure in all four tires. Recommended air
pressure is 12 psi. Please note that the valve stems on
this riding mower are on the inside of the front wheels
and on the outside of the rear wheels.
Test 1: Checking Rear Deck Height Adjustment
• Lift the hood assembly and remove grass catcher
fromtheridingmower.Placethe deckin thehighest
position.
• Inspect rear of deck.If the deck is contacting the
cable bracket on the front of the transmission, you
will have to adjust the rear deck height.
Deck Hex
Nut
PTO
Switch
Blade Engagement
Pedal
Engagement
Cable
Steering
front
B
1/16-5/16’’ less than A
A
Segment
Washer
Lock Tie
Rod
Ball
Joint
Hex Nut

15
Test 2: Checking Front to Rear Levelling
• Place the deck in the highest position.
• Wearing a pair of heavy work gloves to prevent
injury, rotate the cutting blade so that it is pointed
front to back and parallel to the rider. Depress and
lock the deck engagement pedal.
• Measure the distance from the front and the rear
tips of the blade to the ground.The front should be
approximately 1/4” to 3/8” lower than the rear.
• If the distance is higher, level the deck front to rear.
Test 3: Checking Side to Side Levelling
• Place the deck in the highest position.
• Wearing a pair of heavy work gloves to prevent
injury, rotate the cutting blade so that it is pointed
side to side and perpendicular to the rider. Depress
and lock the deck engagement pedal.
• Measure the distance from the tips of the blade to
the ground. If the two distances are unequal , level
the deck side to side.
Adjusting Rear Deck Height
• Completely loosen, but do not remove, the top hex
nut out of the three hex nuts that hold the hex bolt
and the ferrule on the deck hanger link assembly.

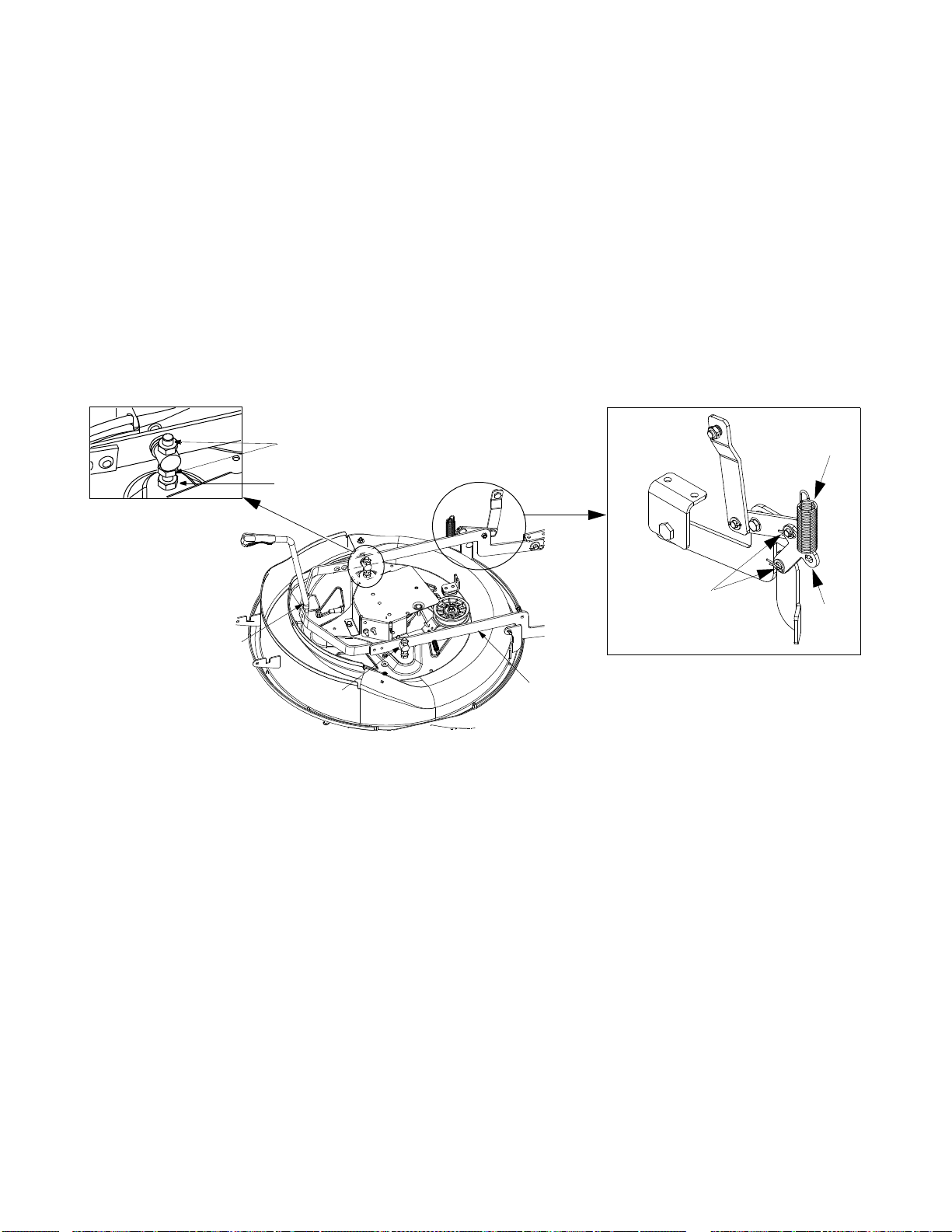

See Figure 12 .
IMPORTANT: Do not try to loosen or tighten bottom nut.
• Thread the middle nutas far down as possible.
• Locate the lower links at the rear of the deck.
Working on one side at a time, disconnect the
helper springs from them.
• Remove each lower link by removing both hair pin
clip and washers.
• Reattach lower links as shown in Figure 12 inset.
Figure 12
Front to Rear Levelling
• Place the deck in the highest position.
• Wearing a pair of heavy work gloves to prevent
injury, rotate the cutting blade so that it is pointed
front to back and parallel to the rider. Depress and
lock the deck engagement pedal.
• Completely loosen, but do not remove, the top hex
nut out of the three hex nuts that hold the hex bolt
and the ferrule on the deck hanger link assembly.
See Figure 12 .
IMPORTANT: Do not try to loosen/ tighten bottom nut.
• Thread the middle nut as far down as possible.
• Keeping an equal number of threads above each of
the nuts, thread the upper nut down until the front
tip of the blade is 1/4” to 3/8” lower than the rear tip
of the blade. Note that threading this nut down will
raise the front of the deck.
• Thread the middle nut up against the base of the
ferrule. See Figure 12 .
• Tighten the upper nut against the top of the ferrule
to lock adjustment.
Side to Side Levelling
• Place the deck in the highest position.
• Wearing heavy work gloves to prevent injury, rotate
the cutting blade so that it is pointed side to side
and perpendicularto the rider. Depress and lock
the deck engagement pedal.
• Loosen the middle hex nut.
• Thread the top hex nutup or down in order to set
both tips of the blade at an equal height from the
ground. Remember to thread the nut down to raise
the deck, and thread up to lower the deck.
• Once the deck is level, thread the middle hex nut to
tighten against the ferrule. Make sure the cut is
even and the lift lever moves to all cutting heights.
Link
Ferrule
Deck
Height
Lever
Hanger
Do not adjust hex nut
Loosen hex nuts
to adjust
Remove Hairpin Clips
and Washers
Helper
Spring
Lower
Link

16
SECTION 7: SERVICING YOUR RIDING MOWER
Fuse Replacement
Thefuseislocatednext to the sparkplugunderthe rear
frame. Fuses seldom fail without a reason. If the fuse
blows, the source problem must be corrected or the
new fuse will blow again.
• Check for loose connections in the fuse holder and
replace holder ifnecessary. A dead short may be in
the cranking or charging circuit where insulation
may have rubbed through and exposed bare wire.
• Replace the wire or repair with electrician’s tape if
the wire strands have not been damaged. Also look
for a wire pinched between body panels, burned by
the exhaust pipe or muffler, or rubbed against a
moving part.
• Stop the riding mower and engage the parking
brake. Remove ignition key.
• Pivot the hood assembly up. Disconnect the spark
plug wire and ground it.
• Pull the fuse out of the lead wire.
• Replace with new automotive fuse.
• Make sure to reconnect the spark plug wire before
pivoting the hood assembly back.
Belt Replacement
There are two drive belts and one deck belt in your
riding mower; follow the description below to identify
the belts.
1. Lower drive belt goes from the variable speed
pulley to the transmission pulley.
2. Upper drive belt goes from the variable speed
pulley to the upper sheave of engine pulley.
3. Deck belt goes from the deck pulley to the
lower sheave in engine pulley.
• Periodicallycheck to seeifthese belts aretooloose
or damaged through wear and tear. If so, replace
with new belt.
Deck Belt
• Engage the parking brake and turn the ignition off.
Pivot the hood assembly up and remove the grass
catcher. Remove the spark plug wire.
• Put the deck at the lowest cutting height by
adjusting the cutting height adjustment lever to the
lowest position.
• Using a 1/2” socket wrench, remove two self-
tapping screws, lock washer and hex nut that hold

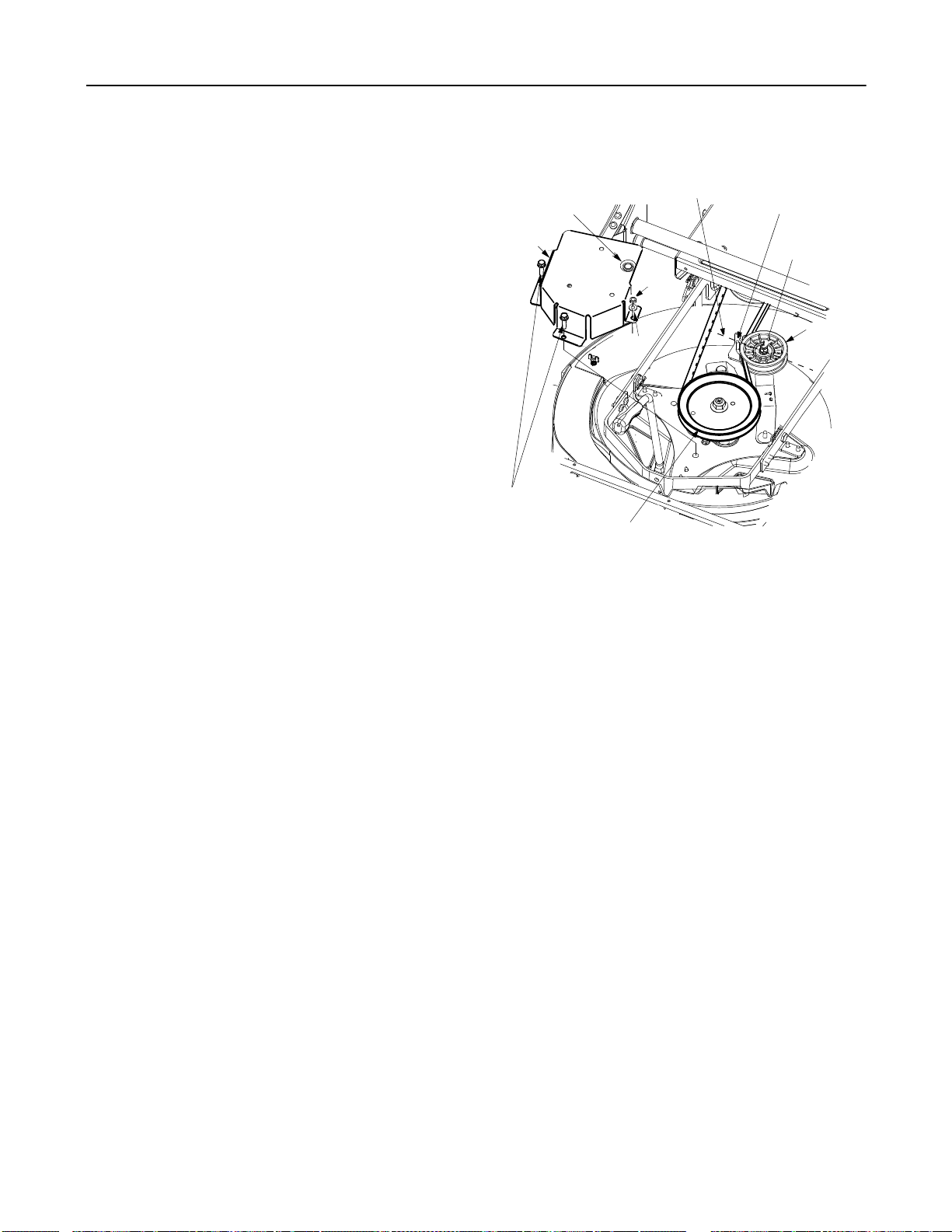

the deck belt cover to the deck. See Figure 13 . For
this, you will have to work from the top left side of
the mower. Remove the belt cover.
• Using a 9/16” wrench, loosen the hex nut on the
idler pulley. See Figure 13.
Figure 13
• Remove belt from around deck pulley, idler pulley,
and the engine pulley.
• Place the new belt around the deck pulley and the
engine pulley making sure thatthe belt is routed
inside the belt keepers. There are two beltkeepers
under the grass catcher, one on the idler and the
other under the deck belt cover. See Figure 13.
• Reinstall deck belt cover and secure with two self-
tapping screws, lock washer and hex nut.
NOTE: Belt keeper “A” must be mounted on the outside
of the belt.
• Make sure to align the belt keeper in line with the
frame. See Figure 13.
NOTE: An imaginary line between the belt keeper and
idler pulley should be parallel to frame. See Figure 13.
• Replace the grass catcher and pivot the hood
assembly back.
Lower Variable Speed Belt
• Remove the rear deck belt guard following first five
steps for deck belt removal. Remove belt from the
engine pulley.
• Pushthe springloadedidler,locatedon the leftside
of the transmission, to the right. Remove belt from
around the idler and then the transmission pulley.
See Figure 14 .
• Using a 9/16” socket, remove bolt, spacer and the
flat washer from the variable speed pulley. See
Figure 14 .
Deck
Deck Belt
Self-Tapping
Screw
Cover
Belt
Pulley
Idler
Pulley
Belt
Hex
Nut
Lock
Hex
Keeper Keeper “A”
Imaginary
Line
Washer
Nut

17
Figure 14
• Drop the pulley down and remove the belt.
• Replace new belt and reassemble.
• Make sure that the belt is routed inside of belt
keeper, and the belt keeper is reassembled in the
same location from where it was removed.
Upper Variable Speed Belt
• Remove the engine pulley using a 5/8” socket
wrench with a 6” extension. The engine pulley is
located in front of the transmission.
• Drop the engine pulley down and remove the belt
from around it.
• Push the idler bracket to the right and remove the
belt. See Figure 14 .
• Replace belt and reassemble.
Battery
The battery is located under the hood assembly. The
positive battery terminal is marked (+);the negative
battery terminal is marked (–).
Safe Handling
• Shield eyes and protect skin and clothing when
handling battery acid (electrolyte) or a battery
containing acid.
• Keepsparks,flame,cigarettesand othersources of
ignition away. Remember that battery contains
explosive gases.
• Work in a well-ventilated area when filling
(activating), charging and using the battery.
• Always keep the rubber boot positioned over the
positive terminal to prevent shorting.
• Connect positive terminal first to prevent sparks
from accidental grounding.
• Do not use the riding mower battery to start other
vehicles.
• Always keep battery cables and terminals clean
and free of corrosive build-up.
• After cleaning, apply a light coat of petroleum jelly
or grease to both terminals.
• If removing the battery for any reason, disconnect
the NEGATIVE (black) wire from its terminal first,
followed by the POSITIVE (red) wire. When re-
installing battery, always connect the POSITIVE
(red) wire to its terminal first, followed by the
NEGATIVE (black) wire.
IMPORTANT: Be certain that wires are connected to the
correct terminals; reversing them could change polarity
and cause damage to the engine’s alternating system.
Connecting Battery Cables
To reconnect battery cables, if the battery was removed
for some reason, follow instructions on page 7.
To jump-start
NOTE: This riding mower is equipped with a remote
battery charging terminal on the solenoid on the right
side of the frame under the hood. Use this terminal only
to jump-start the engine.
Figure 15
Spring
Loaded
Idler
Variable Speed Pulley
Spring
Loaded
Idler
Transmission
Pulley Deck Belt
Engine Pulley
WARNING: Do not short battery terminals
by making a connection between either two
battery posts or between the positive terminal,
marked + on the battery, and the riding mower
frame. Before installing battery, remove metal
bracelets, wristwatch bands, rings etc. from
your person.
WARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds. Wash hands after handling.
Pos. Lead of
Jumper Cable
Neg. Lead of
Jumper Cable
Use this terminal
Throttle
Bracket

18
IMPORTANT: Do not jump-start directly at the battery.
Do not allow positive and negative cable clamps to
touch each other. Do not jump-start a damaged or
frozen battery.
• Pull back the boot from the forward most terminal
connected to the solenoid. See Figure 15.
• Connect the positive (+) lead of the jumpercable to
this terminal. See Figure 15.
• Connect theother end of the positive (+) jumper
cable to the positive (+) post of the good battery.
• Connect one end of the negative (-) jumper cable to
the negative (-) post of the good battery.
• Connect the other end of the negative (-) cable to
the throttle bracket. See Figure 15.
• Start the tractor and leave it running to charge the
battery.
• Disconnect the negative (-) jumper cable from the
tractor.
• Disconnect the other end of the negative (-) jumper
cable from the negative (-) post of the good battery.
• Disconnect the positive (+) jumper cable from the
positive (+) post of the good battery.
• Disconnect the other end of the positive (+) jumper
cable from the solenoid.
• Replace boot over the forward most terminal from
where you removed it in Step 1. See Figure 15.
To charge the battery
If battery is new or if the riding mower has been stored
for an extended period of time, charge the battery for
one hour with a battery charger (output 6 amps) before
using your riding mower. Read safe operating
instructions on battery charger before starting this job.
IMPORTANT: If a charger with 6 amps output is not
available, use a lower output charger for a longer
charging period. However, do not use a charger with
higher than 6 amps output. If a charger is not available,
but the battery is able to start the riding mower, run the
mower for a minimum of one hour of mowing to charge
the battery with the engine’s charging system.
NOTE: Use the remote terminal on the solenoid to
charge the battery. Do not charge at the battery.
• Pull back the boot from the forward most terminal
connected to the solenoid. See Figure 15.
• With the battery charger off, connect the positive
(+) lead of the charger cable to this terminal. See
Figure 15.
• Connect negative (-) lead of the charger cable to
the throttle bracket.
• Turn the battery charger on. Charge the battery
until the indicator on the charger shows full charge.
• Turn battery charger off. Disconnect the negative
charger cable (marked -) from the throttle bracket.
• Disconnect the positive charger cable (marked +)
from the solenoid terminal.
• Replace boot over the forward most terminal (from
where you removed it earlier). See Figure 15.
SECTION 8: MAINTENANCE
General Recommendations
• Always observe safety rules when performing any
maintenance.
• The warranty on this riding mower does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from the
warranty, operator must maintain the riding mower
as instructed in this manual.
Cutting Blade
Removal
• Remove the 5/8’’ hex flange nut which holds the
blade to the blade spindle.
• Remove blade from the spindle. See Figure 16.
Sharpening
• When sharpening the blade, follow the original
angle of grind as aguide. It is extremely important
that each cutting edge receives an equal amount of
grinding to prevent an unbalanced blade. An
unbalanced blade will cause excessive vibration
when rotating athigh speeds, may cause damage
to the mower and/or cause personal injury.
• The blade can be tested for balance by balancing it
on a round shaft screwdriver. Remove metal from
the heavy side until it balances evenly.
Reassembly
• Before reassembling the blade to the unit, lubricate
the spindle with light oil (or engine oil).
• Be sure to properly align “star” fitting on blade with
“star” on spindle.
• When replacing the blade, be sure to install the
bladewiththeside oftheblademarked“Bottom”(or
with part number) facing the ground when the
mower is in the operating position.
WARNING: Always stop engine and
disconnect spark plug wire beforeany
maintenance or adjustments.
WARNING: Protect your hands by wearing
heavy gloves or using a rag to grasp the cutting
blade. Avoid personal injury.

19
• Blade Mounting Torque: 70/90 foot-pounds
maximum.
NOTE: To ensure safe operation, all nuts and bolts
must be checked periodically for correct tightness.
Figure 16
Oil Drain Sleeve
Your riding mower has a plastic oil drain sleeve, packed
with the loose parts, for draining oil from the crankcase.
• To drain the oil, snap small end of the oil drain
sleeve onto oil sump. See Figure 17.
• Remove drain plug and drain oil into a suitable
container.
Figure 17
Engine
Refer to the accompanying engine manual for details.
Cleaning the Riding Mower
• Promptly wipe off any fuel or oil spilled on the
machine with clean cloth.
• Clean the underside of the blade housing after
each mowing. Do not let clippings accumulate
around the bladeand create rust on the deck.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit. These may
cause damage to electrical components, spindles,
pulleys, bearings or the engine. The use of water may
shorten life of equipment and reduce its serviceability.
Lubrication
See Figure 18 for an illustration of the lube points
described below.
Figure 18
Blade Assembly
• Lubricate blade assembly and deck spindle only
while reassembling the blade either after
sharpening or replacement.
Pivot Points
• Lubricate pivot points with light oil once a season.
Steering Shaft and Gear
• Lubricate steering shaft and spline at least once a
season with light oil.
• Lubricate teeth ofthe external steering gears with
automotive multi-purpose grease every 25 hours of
operation or once a season.
Linkage
• Lubricate all deck linkage and height adjustment
linkage with a light oil.
Front Wheels
• Lubricate at least once a season with automotive
multi-purpose grease.
Engine
• Follow engine manual, included with the
equipment, for details.
Spindle
Blade
Flange Nut
Deck
Oil Drain
Sleeve
Lube
Lube
Lube
Lube
Lube

20
SECTION 9: OFF-SEASON STORAGE
If the machine is to be inoperative for a period longer
than 30 days, prepare for storage as follows.
Riding Mower
• Clean the engine and the entire unit thoroughly.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit. These may
cause damage to electrical components, spindles,
pulleys, bearings or the engine. The use of water may
shorten life of equipment and reduce its serviceability.
• Lubricate all pivot points. Wipe the entire
machine with an oiled rag to protect the surfaces.
• Store unit in a clean, dry area. Do not store next
to corrosive materials, such as fertilizer.
• When storing any type of power equipment in an
unventilated or metal storage shed, care should
be taken to rustproof the equipment. Using a light
oil or silicone, coat the equipment, especially any
chains, springs, bearings and cables.
Battery
• Charge battery fully. The battery loses some of
its charge each day when the unit is not used.
NEVER store battery without a full charge.
Recharge battery before returning to service or
every two months, whichever occurs first.
• When storing unit for extended periods,
disconnectbatterycablesandremovethebattery
from the unit.
• Clean dirt and chaff from cylinder, cylinder head
fins, blower housing, rotating screen and muffler
area.
Engine
• Refer to the engine manual for storage
instructions. Make sure to store the engine
properly so that your equipment can work
smoothly afterwards.
SECTION 10: TROUBLE-SHOOTING
Trouble Possible Cause Remedial Action
Excessive vibration 1. Bentor damaged blade
2. Bent blade.
1. Stop engine immediately. Check all
pulleys, blade adapters, keys and bolts for
tightness and spindle damage. Tighten or
replace any damaged parts.
2. Stop engine immediately. Replace
damaged blade. Only use original
equipment blades.
Mower will not
discharge grass or
leaves uncut strips
1. Engine speed low.
2. Speed selection.
3. Cutting height set too low.
4. Blades short or dull.
1. Throttle must be set at full throttle.
2. Use lower ground speed. Slower the
ground speed, better the quality of cut.
3. Raise the deck.
4. Sharpen or replace blades (uncut strip
problem only).
Broken Belt 1. Sudden stop or shock load to belt
2. Incorrect belt used
3. Belt engaged abruptly
4. Defective or damaged belt
1. Inspect rider for cause such as foreign
objectsstuckin between deck andframe or
belt path. Remove obstruction and check
for damage. Replace belt if needed.
2. Replace with proper belt. Check Parts list
in this manual for correct part number.
3. Engage belt slowly by depressing the
blade engagement pedal slowly.
4. Replace with proper belt. Follow
instructions on page 16.
Belt comes off 1. Belt too loose; stretched
2. Broken or weak idler spring
1. Readjust belt. Replace if needed. Follow
instructions for belt replacement on page
16.
2. Replace. Order with correct part number
from Parts List in this manual.
