Multiva FX6000 Repair manual

3049
Operation and maintenance manual  
Seed and fertiliser drill
FX6000
Translation of the original manual

Table of contents
5
5
6
7
8
9
10
10
12
15
18
18
18
19
19
20
21
21
23
24
24
25
25
26
26
28
29
29
29
30
32
32
33
34
34
38
38
38
39
40
40
41
41
42
44
46
46
1. Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1. Purpose of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2. Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3. Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4. Liability terms and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Warranty terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1. Residual risks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2. Symbols used in the operating manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3. Warning labels on the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1. Artemis automation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.1. Control system components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.2. Control system terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.2.1. Operating buttons and connections . . . . . . . . . . . . . . . . . . . .
4.1.2.2. Touch screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.3. User interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.3.1. User interface pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.3.2. Operating the user interface . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2. Blockage control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.1. Components of the control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.2. Control system terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.2.1. Operating buttons and connections . . . . . . . . . . . . . . . . . . . .
4.2.3. User interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.3.1. User interface tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.3.2. Operating the user interface . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Commissioning and basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1. Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.1. Installing the terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.2. Connecting the power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.3. Adjusting the length of the drawbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.4. Adjusting the lengthwise level of the machine . . . . . . . . . . . . . . . . . . . . .
5.1.5. Using the ground support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.6. Adjusting the centre markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2. Connecting to the tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6. Machine adjustment and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1. Feeders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2. Preparations preceding the hopper lling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.1. Adjusting the hopper divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.2. Adjusting the feeder roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.2.1. Adjusting the width of the roller . . . . . . . . . . . . . . . . . . . . . . .
6.2.2.2. Adjusting the feeding volume . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3. Filling the hoppers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4. Calibration test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5. Rendering the machine to the transport position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6. Air ow settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7. Rendering the machine to the operating position . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation and maintenance manual
FX6000 2.00
1 (95)

49
49
50
50
51
52
53
54
54
54
55
60
60
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
67
67
68
69
70
71
71
73
73
73
73
74
74
74
75
77
77
78
80
80
80
6.8. Adjusting the seeding depth of the FX coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9. Adjusting the coulter weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.10. Controlling the seeding depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.11. Securing the position of the centre markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.12. Emptying the hoppers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.13. Disconnecting from the tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.14. Machine storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1. Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.1. Quick instructions, inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.2. Checking bolt tightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.3. Checking tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.4. Checking the clearance of the wheel hub bearings . . . . . . . . . . . . . . . . .
7.1.5. Checking the condition of hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.6. Checking the condition of electric wires . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.7. Inspecting the towing eyelet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.8. Checking the functioning of the wing section locking . . . . . . . . . . . . . .
7.1.9. Inspecting the coulter discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.10. Inspecting the blower hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2. Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.1. Quick instructions, lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.2. Wheel axle bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.3. Wing section cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.4. Wing section hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.5. Wing section locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.6. Lubricating the towing eyelet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.7. Centre markers and centre marker cylinders . . . . . . . . . . . . . . . . . . . . . . .
7.2.8. FX coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.1. Cleaning the hoppers and painted surfaces . . . . . . . . . . . . . . . . . . . . . . . .
7.3.1.1. Cleaning the hoppers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.1.2. Cleaning the paint surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.2. Cleaning the coulter discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.3. Cleaning the feeders and feeder hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4. Wheel hub bearing clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.1. Tightening a bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5. Towing eyelet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1. Replacing the towing eyelet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1.1. Detaching the towing eyelet . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1.2. Installing the towing eyelet . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6. Coulters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1. Replacing a coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1.1. Dismounting a coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1.2. Installing a coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2. Replacing a coulter disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2.1. Detaching a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2.2. Installing the disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.3. Replacing a coulter bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.3.1. Detaching the bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.3.2. Installing the bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation and maintenance manual
2.00 FX6000
2 (95)

81
81
82
82
82
83
84
84
84
85
85
86
87
87
90
96

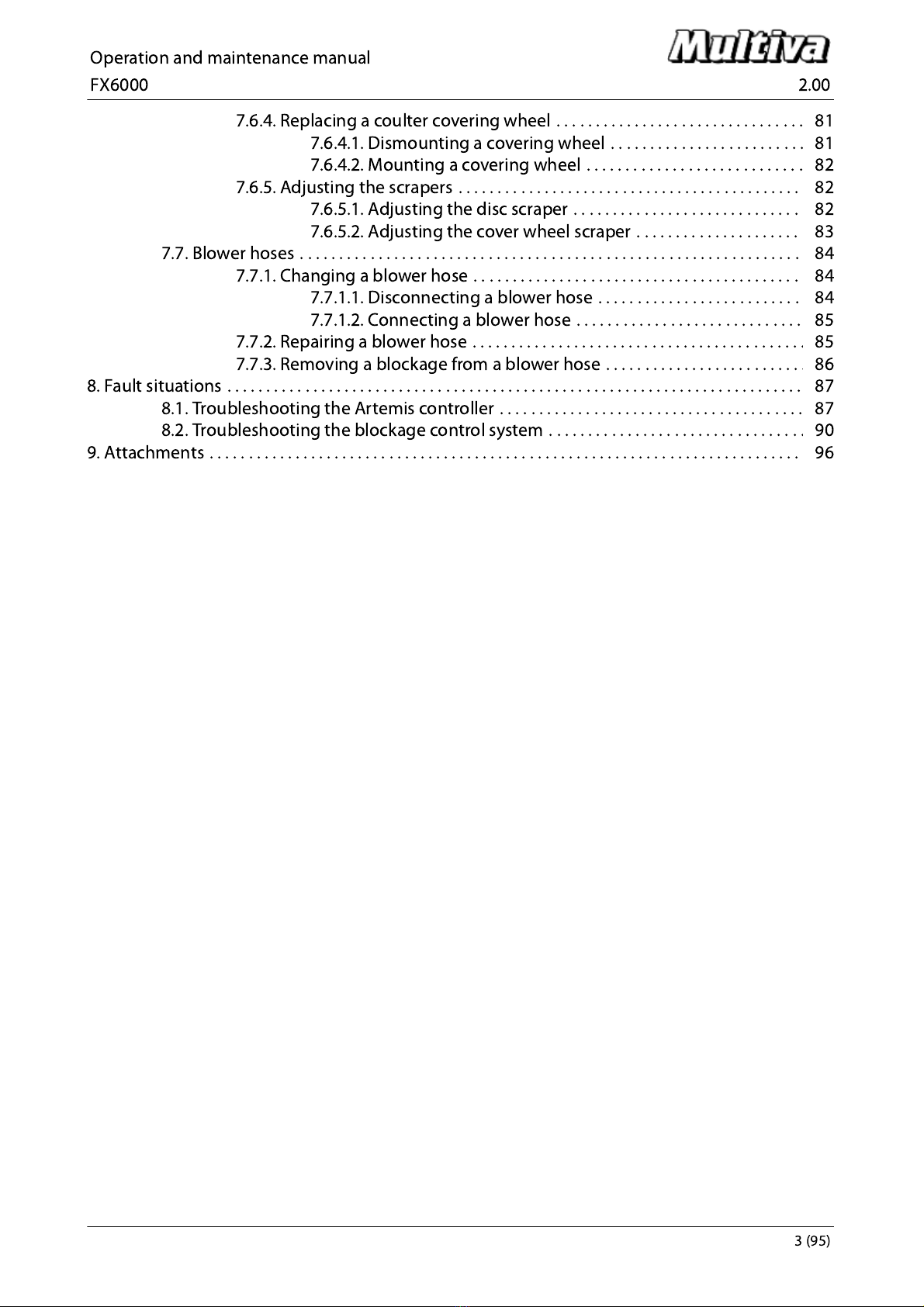

7.6.4. Replacing a coulter covering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.4.1. Dismounting a covering wheel . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.4.2. Mounting a covering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.5. Adjusting the scrapers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.5.1. Adjusting the disc scraper . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.5.2. Adjusting the cover wheel scraper . . . . . . . . . . . . . . . . . . . . .
7.7. Blower hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1. Changing a blower hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1.1. Disconnecting a blower hose . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1.2. Connecting a blower hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.2. Repairing a blower hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.3. Removing a blockage from a blower hose . . . . . . . . . . . . . . . . . . . . . . . . . .
8. Fault situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.1. Troubleshooting the Artemis controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2. Troubleshooting the blockage control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9. Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation and maintenance manual
FX6000 2.00
3 (95)

2870
1. Foreword
Thank you for trusting us by choosing a high-class Multiva Forte FX6000 seed and fertiliser drill.
We hope that you nd the product to meet your requirements and to provide a long-term
service. Please read this manual thoroughly before operating the machine. The inspections and
maintenance procedures described in this manual are vital for the fail-free operation and validity
of warranty of the machine. You must absolutely follow all the instructions, warnings and
prohibitions related to the use of the machine. They are provided to ensure operator safety and a
long service life of the machine.
The FX6000 is an extremely efficient and versatile seed and fertiliser drill, enabling you to seed
directly into stubble, grass or tilled soil.  The machine is equipped with a pneumatic feeder that
ensures even ow of seeds and fertilisers to all seeding coulters. 
1.1. Purpose of the machine
The operator of the seed and fertiliser drill must acquaint themselves with the machine and read
and understand the contents of its operating manual before operating the machine. The seed
and fertiliser drill may only be operated when it is in a awless technical condition. The seed and
fertiliser drill must be used in accordance with regulations, identifying hazards and following the
safety and operating instructions. Original Multiva spare parts and accessories are designed for
this particular seed and fertiliser drill. The manufacturer bears no responsibility for spare parts
and accessories provided by other suppliers.  Using them in certain circumstances may weaken
the machine and compromise personal safety. The machine is intended for sowing seeds and
fertiliser. The construction of the machine allows road transport with the hoppers full. Any use
exceeding this, such as using the machine  for transport, is not considered to be in accordance
with the regulations. Use in accordance with the regulations includes following the operating
instructions and manufacturer's instructions as well as regulations concerning service and
maintenance. Occupational safety regulations concerning agricultural machinery, other rules
and regulations on general safety technology and occupational health as well as traffic rules and
regulations must be followed.
Operation and maintenance manual
2.00 FX6000
4 (95)

2871
1.2. Specifications

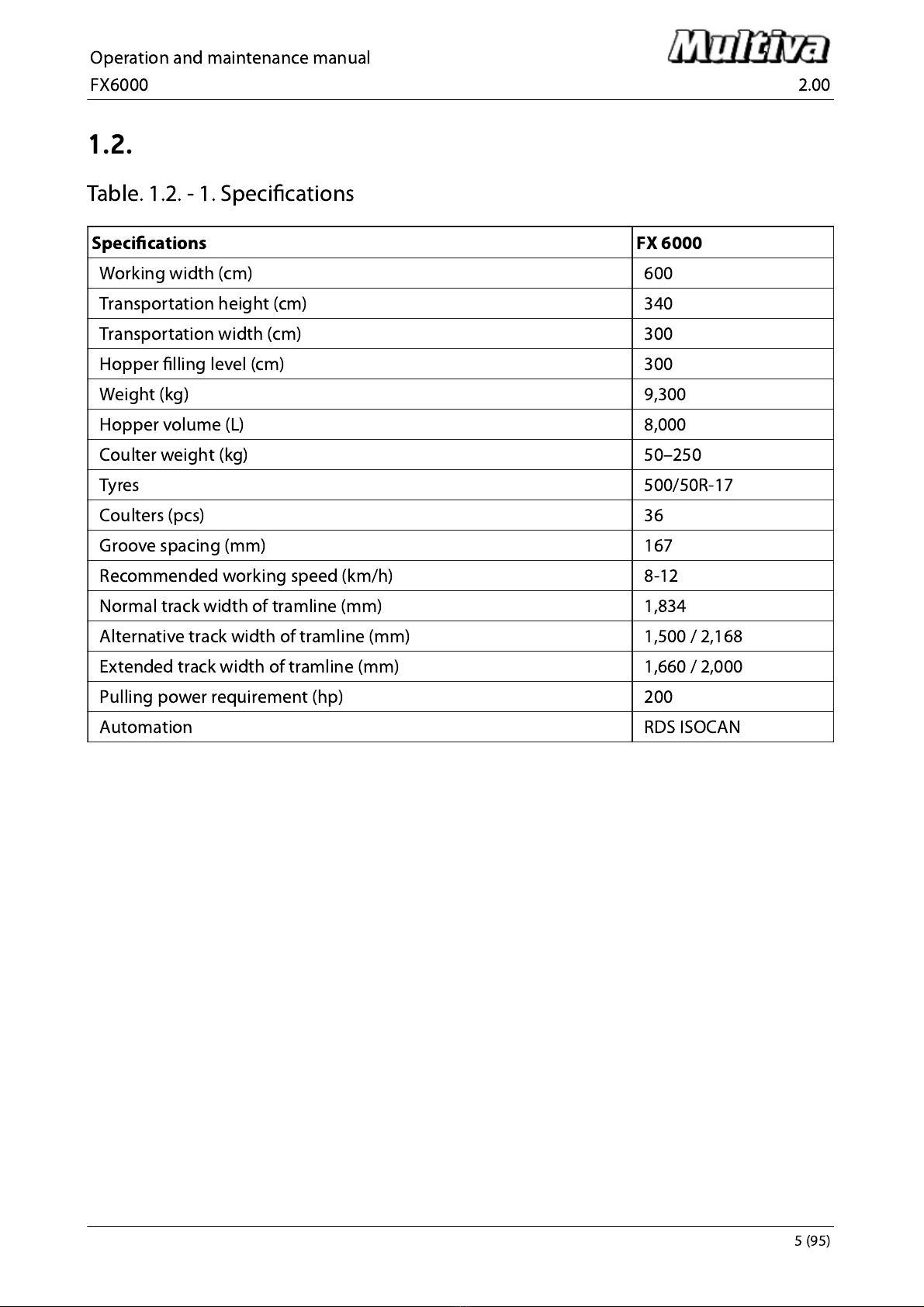

Table. 1.2. - 1. Specications
Specications FX 6000
Working width (cm) 600
Transportation height (cm) 340
Transportation width (cm) 300
Hopper lling level (cm) 300
Weight (kg) 9,300
Hopper volume (L) 8,000
Coulter weight (kg) 50–250
Tyres 500/50R-17
Coulters (pcs) 36
Groove spacing (mm) 167
Recommended working speed (km/h) 8-12
Normal track width of tramline (mm) 1,834
Alternative track width of tramline (mm) 1,500 / 2,168
Extended track width of tramline (mm) 1,660 / 2,000
Pulling power requirement (hp) 200
Automation RDS ISOCAN
Operation and maintenance manual
FX6000 2.00
5 (95)

2872
1.3. Type plate
The type plate is located in the front of the seed and fertiliser drill frame. 
Figure. 1.3. - 1. Location and details of the type plate
Table. 1.3. - 2. Details of the type plate
1. CE marking
2. Machine manufacturer
3.  Machine serial number
4. Machine model
5. Manufacturing year
6. Manufacturer's information
Operation and maintenance manual
2.00 FX6000
6 (95)

2873
1.4. Liability terms and conditions

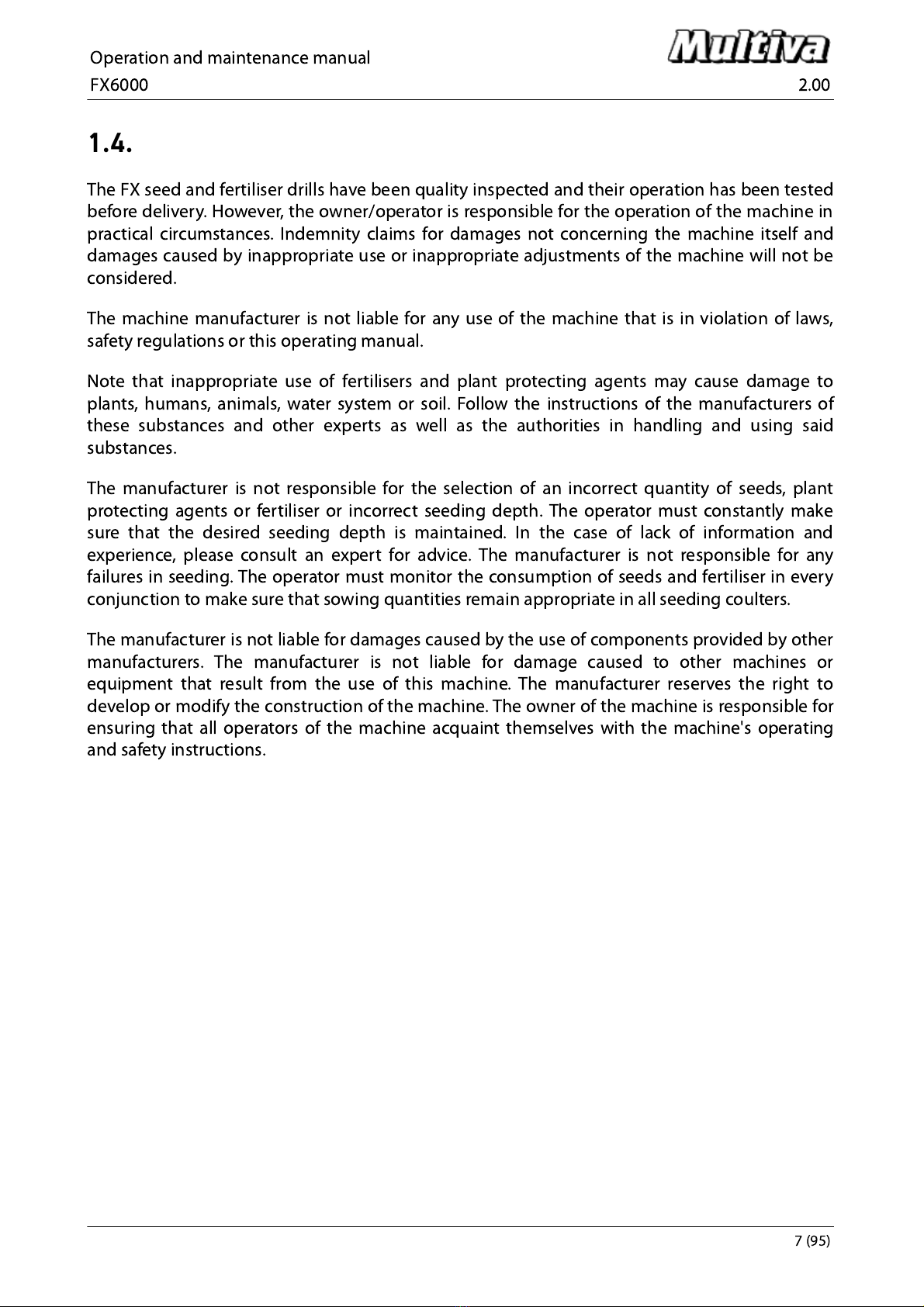

The FX seed and fertiliser drills have been quality inspected and their operation has been tested
before delivery. However, the owner/operator is responsible for the operation of the machine in
practical circumstances. Indemnity claims for damages not concerning the machine itself and
damages caused by inappropriate use or inappropriate adjustments of the machine will not be
considered. 
The machine manufacturer is not liable for any use of the machine that is in violation of laws,
safety regulations or this operating manual.
Note that inappropriate use of fertilisers and plant protecting agents may cause damage to
plants, humans, animals, water system or soil. Follow the instructions of the manufacturers of
these substances and other experts as well as the authorities in handling and using said
substances.
The manufacturer is not responsible for the selection of an incorrect quantity of seeds, plant
protecting agents or fertiliser or incorrect seeding depth. The operator must constantly make
sure that the desired seeding depth is maintained. In the case of lack of information and
experience, please consult an expert for advice. The manufacturer is not responsible for any
failures in seeding. The operator must monitor the consumption of seeds and fertiliser in every
conjunction to make sure that sowing quantities remain appropriate in all seeding coulters.
The manufacturer is not liable for damages caused by the use of components provided by other
manufacturers. The manufacturer is not liable for damage caused to other machines or
equipment that result from the use of this machine.  The manufacturer reserves the right to
develop or modify the construction of the machine. The owner of the machine is responsible for
ensuring that all operators of the machine acquaint themselves with the machine's operating
and safety instructions.
Operation and maintenance manual
FX6000 2.00
7 (95)

2874
2. Warranty terms

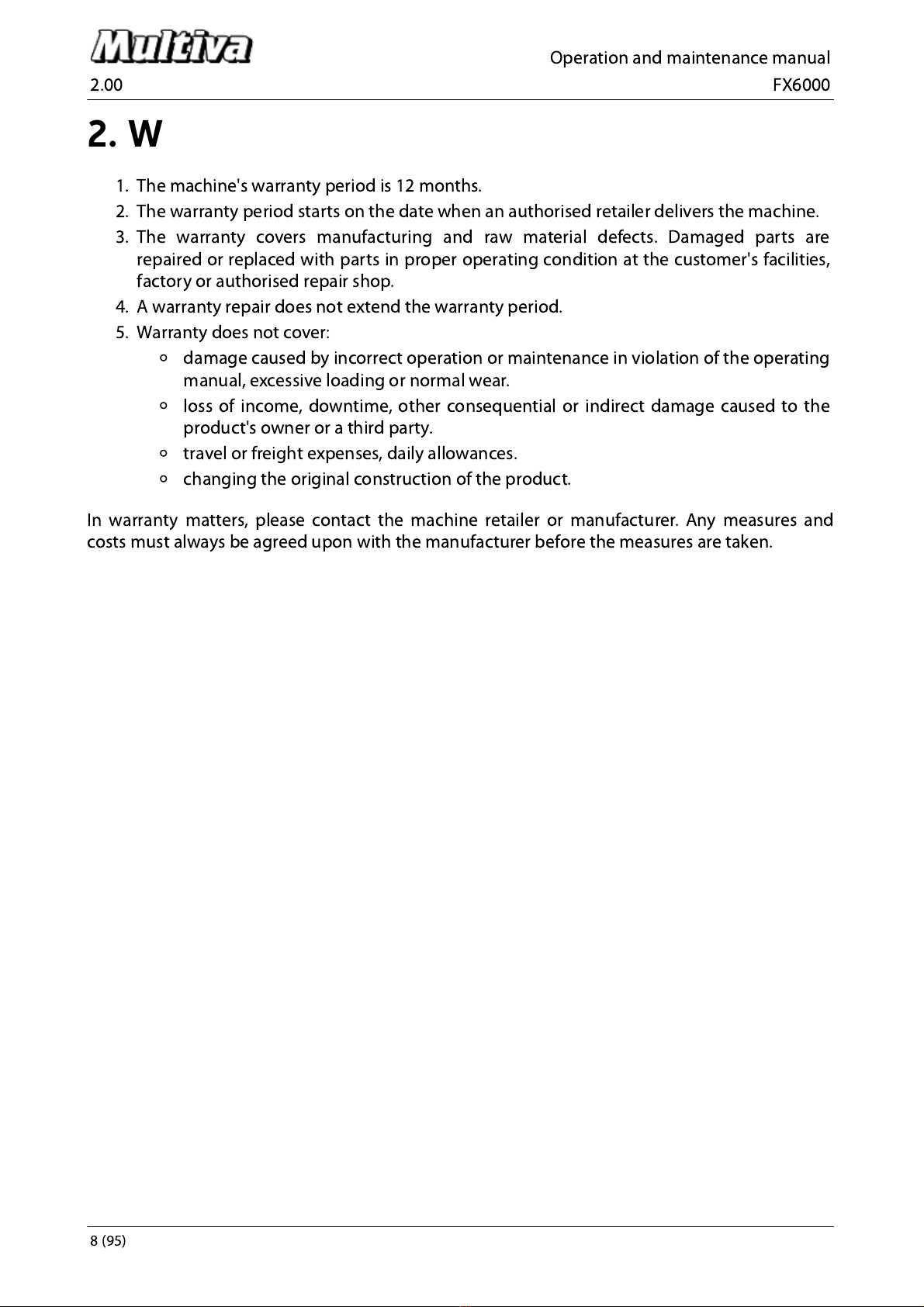

1. The machine's warranty period is 12 months.
2. The warranty period starts on the date when an authorised retailer delivers the machine.
3. The warranty covers manufacturing and raw material defects. Damaged parts are
repaired or replaced with parts in proper operating condition at the customer's facilities,
factory or authorised repair shop. 
4. A warranty repair does not extend the warranty period. 
5. Warranty does not cover:
damage caused by incorrect operation or maintenance in violation of the operating
manual, excessive loading or normal wear.
loss of income, downtime, other consequential or indirect damage caused to the
product's owner or a third party.
travel or freight expenses, daily allowances.
changing the original construction of the product.
In warranty matters, please contact the machine retailer or manufacturer. Any measures and
costs must always be agreed upon with the manufacturer before the measures are taken.
Operation and maintenance manual
2.00 FX6000
8 (95)

2876
2877
3. Safety instructions
3.1. Residual risks

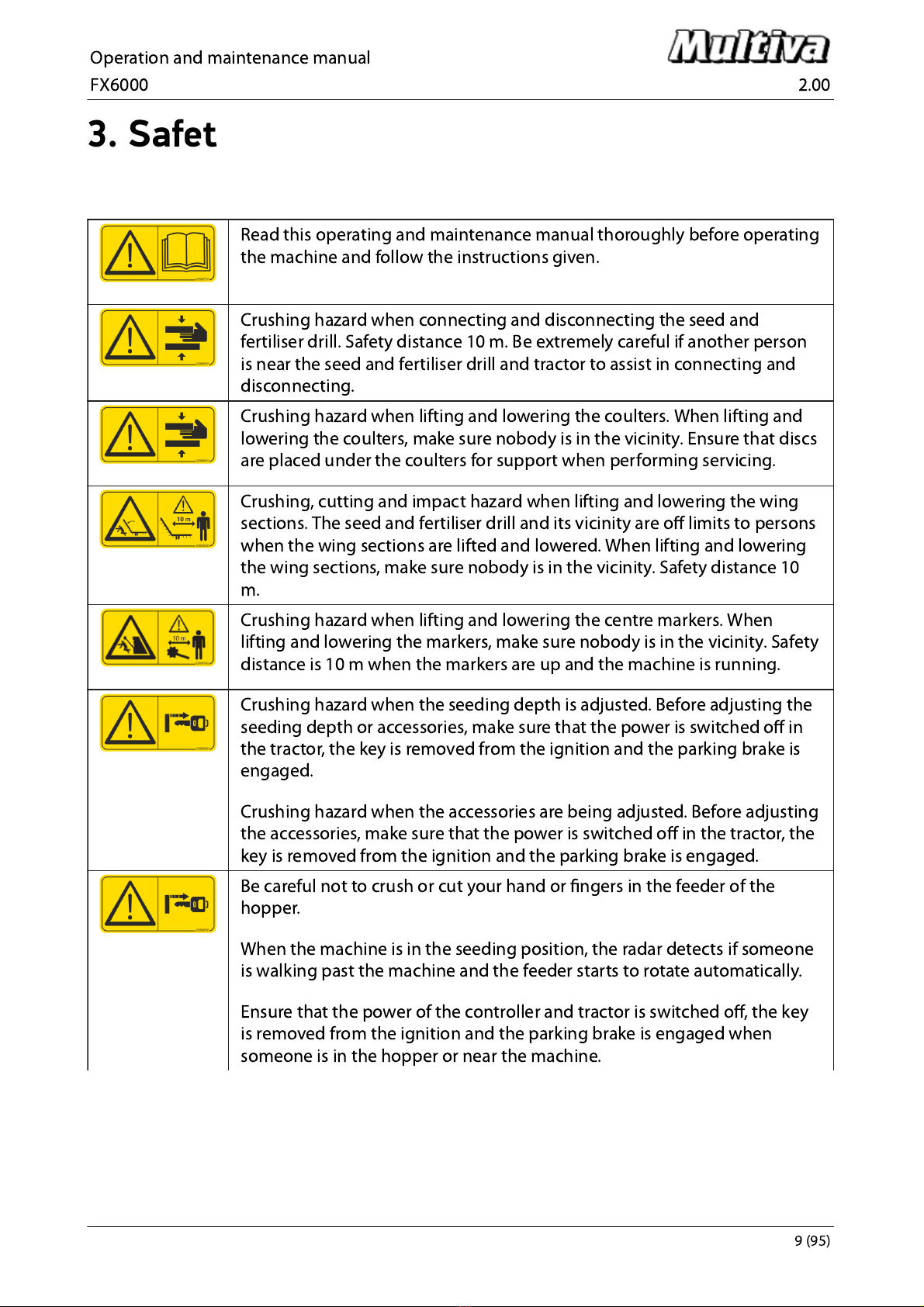

Read this operating and maintenance manual thoroughly before operating
the machine and follow the instructions given. 
Crushing hazard when connecting and disconnecting the seed and
fertiliser drill. Safety distance 10 m. Be extremely careful if another person
is near the seed and fertiliser drill and tractor to assist in connecting and
disconnecting. 
Crushing hazard when lifting and lowering the coulters. When lifting and
lowering the coulters, make sure nobody is in the vicinity. Ensure that discs
are placed under the coulters for support when performing servicing. 
Crushing, cutting and impact hazard when lifting and lowering the wing
sections. The seed and fertiliser drill and its vicinity are off limits to persons
when the wing sections are lifted and lowered. When lifting and lowering
the wing sections, make sure nobody is in the vicinity. Safety distance 10
m. 
Crushing hazard when lifting and lowering the centre markers. When
lifting and lowering the markers, make sure nobody is in the vicinity. Safety
distance is 10 m when the markers are up and the machine is running. 
Crushing hazard when the seeding depth is adjusted. Before adjusting the
seeding depth or accessories, make sure that the power is switched off in
the tractor, the key is removed from the ignition and the parking brake is
engaged. 
Crushing hazard when the accessories are being adjusted. Before adjusting
the accessories, make sure that the power is switched off in the tractor, the
key is removed from the ignition and the parking brake is engaged.
Be careful not to crush or cut your hand or ngers in the feeder of the
hopper.
When the machine is in the seeding position, the radar detects if someone
is walking past the machine and the feeder starts to rotate automatically.
Ensure that the power of the controller and tractor is switched off, the key
is removed from the ignition and the parking brake is engaged when
someone is in the hopper or near the machine. 
Operation and maintenance manual
FX6000 2.00
9 (95)

Pressurised hydraulic hoses may release a lethal jet of liquid. High-pressure
liquid may also cause a crushing, cutting or impact hazard.
The hydraulic system must be depressurised before pressure hoses are
handled, connected or disconnected. Depressurise the hydraulic system
and disconnect the hoses before performing maintenance work.
Never touch the hydraulic cylinders, hoses and hydraulic connectors when
the cylinders are in operation. 
Falling hazard when performing work on the platform. Be careful when
performing work on the platform. 
Falling hazard. The top of the machine is strictly off-limits during transport
and operation. Staying on top of the wheels and sensors is always
prohibited.
Before moving, ensure that the wing sections have settled in the transport
position and locked in place. 
Before performing the calibration test, ensure that the tractor’s parking brake is
engaged and blowers are turned off. 
Before moving, ensure that the tractor’s hitch is properly engaged.
Operate and service the machine only on a level and solid ground. 
Depressurise the hydraulic system, disconnect the hoses and tractor's electrical
connections and let the machine cool off before servicing. 
Avoid breathing the dust released by the seed dressing agent and fertiliser when
lling the hopper. The seed dressing agent causes a serious health risk. Read the
material safety data sheet of the dressing agent and fertiliser and pay attention to
the warnings included. 
Never go under a lifted load when lling the hopper. 
Make sure that nobody is on top of the seed and fertiliser drill or inside the hopper
when lling the hopper. 
Operation and maintenance manual
2.00 FX6000
10 (95)

3427
Switch off the blower before dislodging a blockage from the pipe. 
Wear hearing protection in the vicinity of the machine when the blowers are on. 
Wear protective goggles when dislodging a blockage from the pipe. 
Wear protective gloves when handling oil or grease and when connecting and
disconnecting hydraulic components. Avoid skin contact with oil and grease to
prevent skin irritation and injury.
3.2. Symbols used in the operating manual
DANGER warns of a dangerous situation which may lead to death or serious
physical injury. 
NOTE  warns of a dangerous situation which may lead to damage to the
equipment. 
ADVICE contains useful tips, advice and information in the instructions e.g. on
tightening torques, adjusting values, liquid quantities and special tools. 
DANGER
When connecting and disconnecting hydraulic hoses and electric wires, ensure that the
tractor is turned off and the key is removed from the ignition. 
DANGER
Never adjust or clean a moving seed and fertiliser drill.
DANGER
Never stay on top of the seed and fertiliser drill or within its operating area during
operation. Safety distance 10 m.
Operation and maintenance manual
FX6000 2.00
11 (95)

DANGER
Follow the safety distance when the seed and fertiliser drill is immobile and the
hydraulics are used.  When the seed and fertiliser drill is attached to the tractor, the
vicinity of the seed and fertiliser drill and, in particular, the area under the raised side
sections are off limits. 
DANGER
Inspect the condition of the seed and fertiliser drill at least visually before moving or
operating it. Items to be inspected include tyre pressure, machine cleanliness and the
tightness of the bolts of the towing device. 
DANGER
Before seeding, make sure that the machine is in working order. Make sure that the
hoses are intact and have no leaks. Make sure that the coulters and mechanics are
intact. Specically ensure that all the pins are in place. 
DANGER
When transporting the seed and fertiliser drill on public roads, exercise caution and
observe all road traffic regulations, as well as specic regulations concerning slow-
moving vehicles. 
DANGER
Before moving the tractor, check that the slow-vehicle triangle is visible and tractor
lights are lit and visible. Keep the triangle and lights clean, because they have a
considerable impact on the vehicle's traffic safety. 
DANGER
The transport height of the seed and fertiliser drill should be less than 4 m. 
DANGER
The maximum allowed transportation speed of the seed and fertiliser drill is 40  km/h. 
DANGER
Before starting the sowing, ensure that both side sections are completely lowered so
that the cylinder is fully extended. 
DANGER
When performing servicing and maintenance work, ensure that the side sections are
fully lowered. 
DANGER
When replacing hydraulic system components and conductors, only use spare parts
with sufficient pressure resistance.
DANGER
Never use oil or lubrication grease to clean skin. These substances may contain small
metal particles, which cause irritation of the skin or cuts. Follow the handling
instructions and safety regulations of the lubricant manufacturers. Synthetic oils are
often corrosive and cause strong irritation of the skin. Contact a doctor, if oil or grease
causes injuries. 
DANGER
Never spray water directly on electric equipment. 
Operation and maintenance manual
2.00 FX6000
12 (95)

CAUTION
Use original spare parts of the machine whenever servicing and repairing the seed and
fertiliser drill. Using generic parts invalidates the warranty. 
CAUTION
Collect oil waste and dispose of it appropriately in accordance with national
regulations.
CAUTION
If oil is spilled on the ground, absorb it with absorption material, such as turf, to prevent
the oil spill from spreading. Handle the absorption material in accordance with
regulations. 
CAUTION
Clean the machine whenever you change fertiliser or seed types. 
CAUTION
If the machine will be unused overnight or over a long rain season, empty its fertiliser
hopper in advance and clean the roller grooves of the feeder by adjusting feed quantity
from one extreme position to the other. Otherwise, the fertiliser may dissolve and clog
the feeders. 
CAUTION
Before using a detergent, make sure it is appropriate for washing a seed and fertiliser
drill. Follow the safety and operating instructions of the detergent manufacturer.
Operation and maintenance manual
FX6000 2.00
13 (95)

2879
3.3. Warning labels on the machine

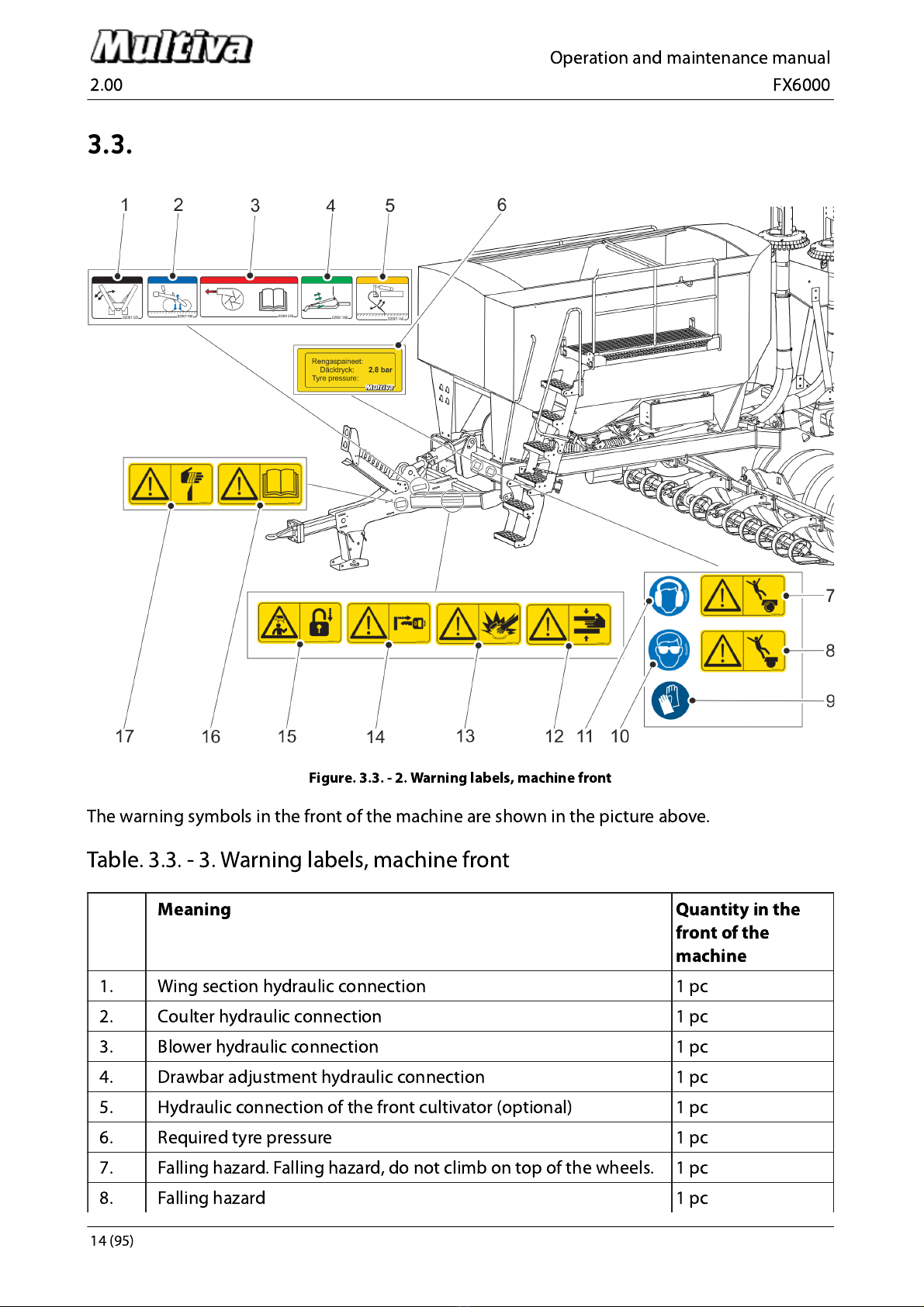

Figure. 3.3. - 2. Warning labels, machine front
The warning symbols in the front of the machine are shown in the picture above. 
Table. 3.3. - 3. Warning labels, machine front
Meaning Quantity in the
front of the
machine
1. Wing section hydraulic connection 1 pc
2. Coulter hydraulic connection 1 pc
3. Blower hydraulic connection 1 pc
4. Drawbar adjustment hydraulic connection 1 pc 
5. Hydraulic connection of the front cultivator (optional) 1 pc
6. Required tyre pressure 1 pc 
7. Falling hazard. Falling hazard, do not climb on top of the wheels.  1 pc 
8. Falling hazard 1 pc
Operation and maintenance manual
2.00 FX6000
14 (95)

9. Wear protective gloves 1 pc 
10. Wear eye protection 1 pc
11. Wear hearing protection 1 pc
12. Crushing hazard 1 pc
13. High-pressure hydraulic hoses 1 pc
14. Make sure that the power is switched off in the tractor, the key is
removed from the ignition and the parking brake is engaged. 1 pc
15. Before moving, ensure that the wing sections have settled in the
transport position and locked in place. 1 pc

16. Read the operation and maintenance manual carefully before
operation 
1 pc
17. Cutting hazard 1 pc

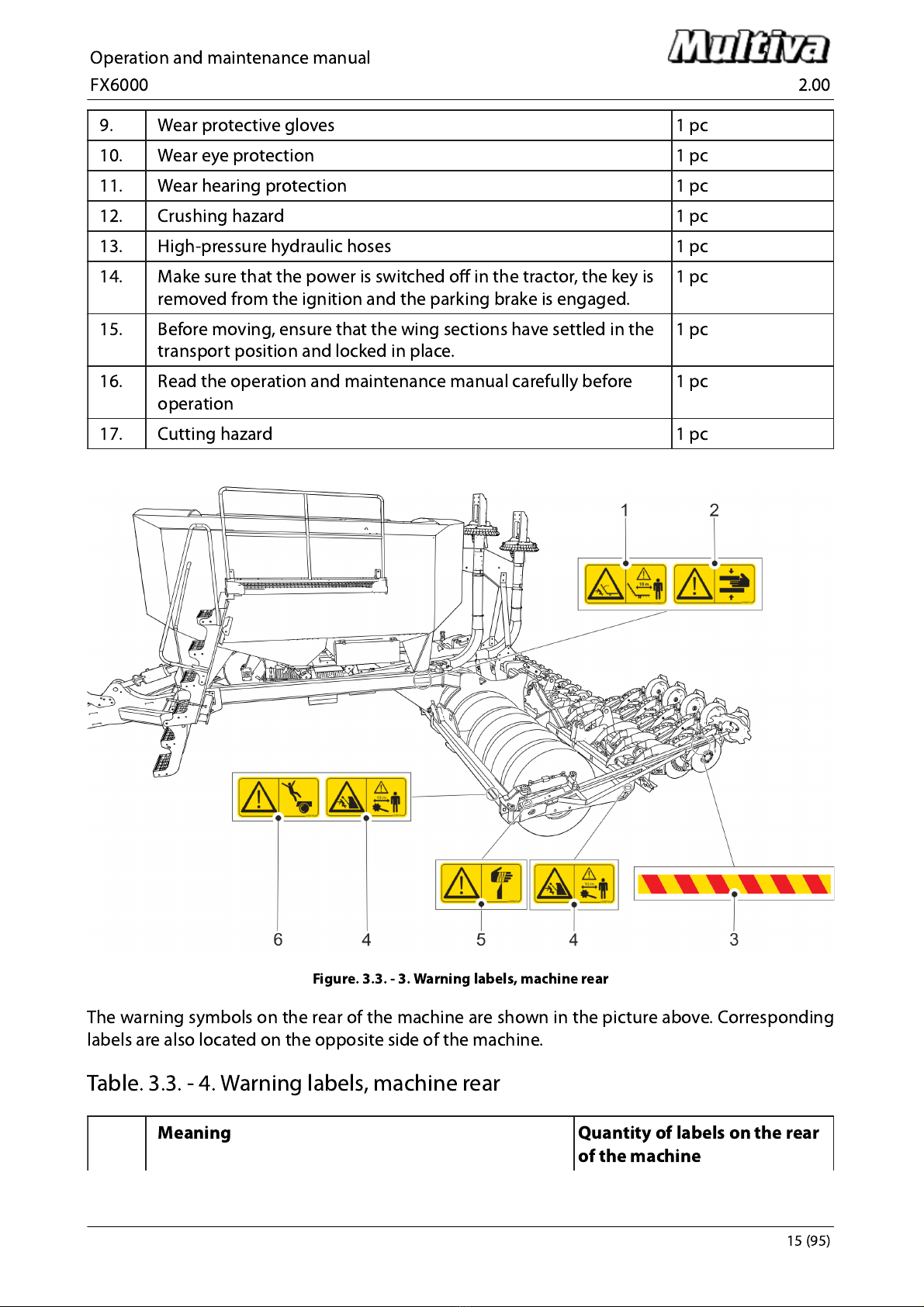

Figure. 3.3. - 3. Warning labels, machine rear
The warning symbols on the rear of the machine are shown in the picture above. Corresponding
labels are also located on the opposite side of the machine. 
Table. 3.3. - 4. Warning labels, machine rear
Meaning Quantity of labels on the rear
of the machine
Operation and maintenance manual
FX6000 2.00
15 (95)

 1. Crushing, cutting and impact hazard when lifting
and lowering a wing section 2 pcs
2. Crushing hazard 2 pcs
3. Marker warning tape 2 pcs
4. Crushing hazard when lifting and lowering the
markers 4 pcs
5. Cutting hazard 2 pcs
6. Falling hazard. Do not climb on top of the wheels.  2 pcs
Operation and maintenance manual
2.00 FX6000
16 (95)

3428
2881
3429
4. Controllers
4.1. Artemis automation system
RDS  Artemis  is an ISOBUS-compliant control and monitoring system for seed and fertiliser drills. The system can be
connected to four different channels. 
4.1.1. Control system components

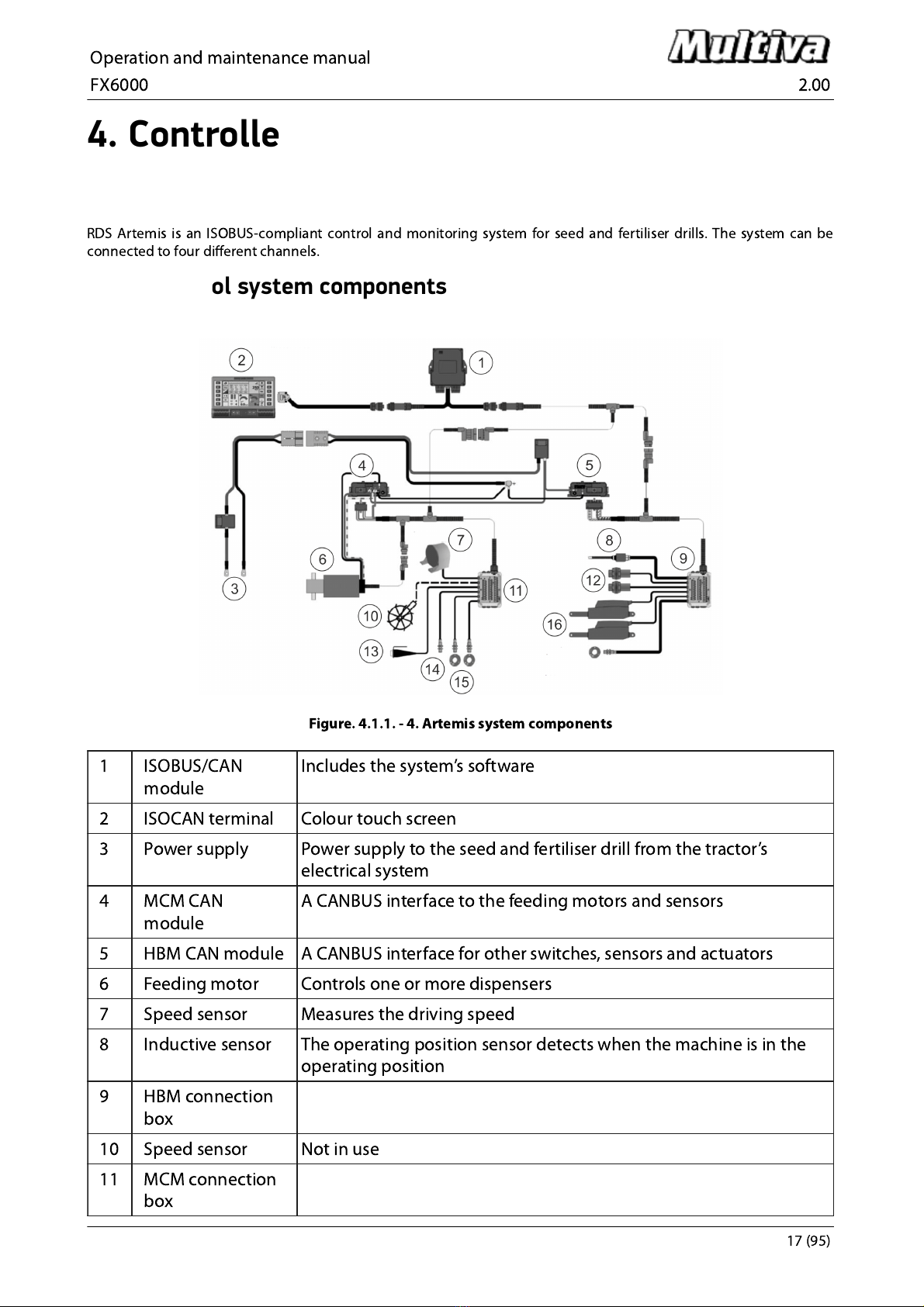

Figure. 4.1.1. - 4. Artemis system components
1 ISOBUS/CAN
module Includes the system’s software
2 ISOCAN terminal Colour touch screen
3 Power supply Power supply to the seed and fertiliser drill from the tractor’s
electrical system
4 MCM CAN
module A CANBUS interface to the feeding motors and sensors
5 HBM CAN module A CANBUS interface for other switches, sensors and actuators
6 Feeding motor Controls one or more dispensers
7 Speed sensor Measures the driving speed
8 Inductive sensor The operating position sensor detects when the machine is in the
operating position
9 HBM connection
box
10 Speed sensor Not in use
11 MCM connection
box
Operation and maintenance manual
FX6000 2.00
17 (95)

3430
3431
12 Capacitive sensor Hopper level guards
13 Calibration test
switch
14 Rotation speed
sensors Motor input
15 Magnetic sensor Blower speed sensor
16 Linear motors Switching off half of the machine; optional
4.1.2. Control system terminal
4.1.2.1. Operating buttons and connections

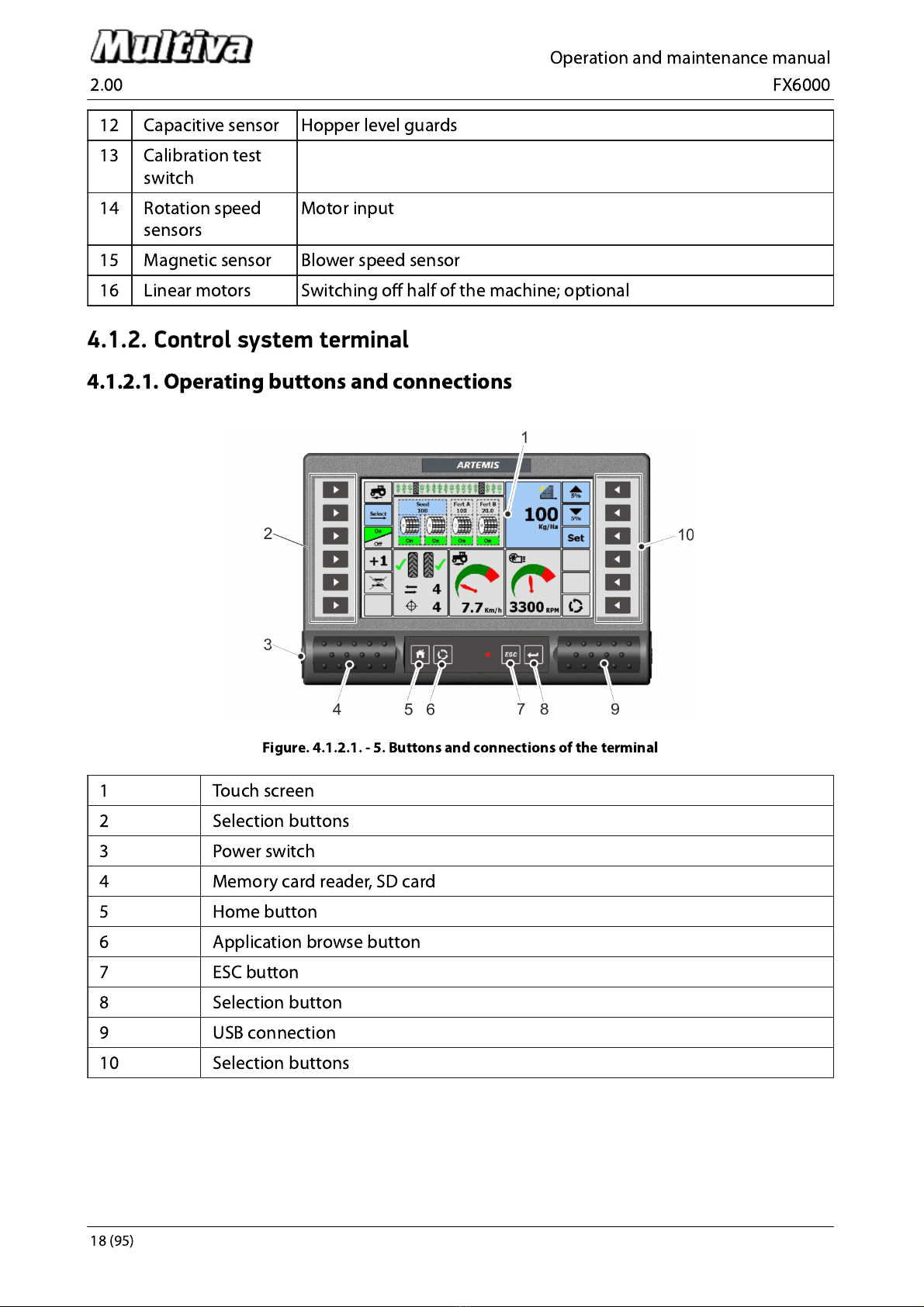

Figure. 4.1.2.1. - 5. Buttons and connections of the terminal
1 Touch screen
2 Selection buttons
3 Power switch
4 Memory card reader, SD card
5 Home button
6 Application browse button
7 ESC button
8 Selection button
9 USB connection
10 Selection buttons
Operation and maintenance manual
2.00 FX6000
18 (95)

3432

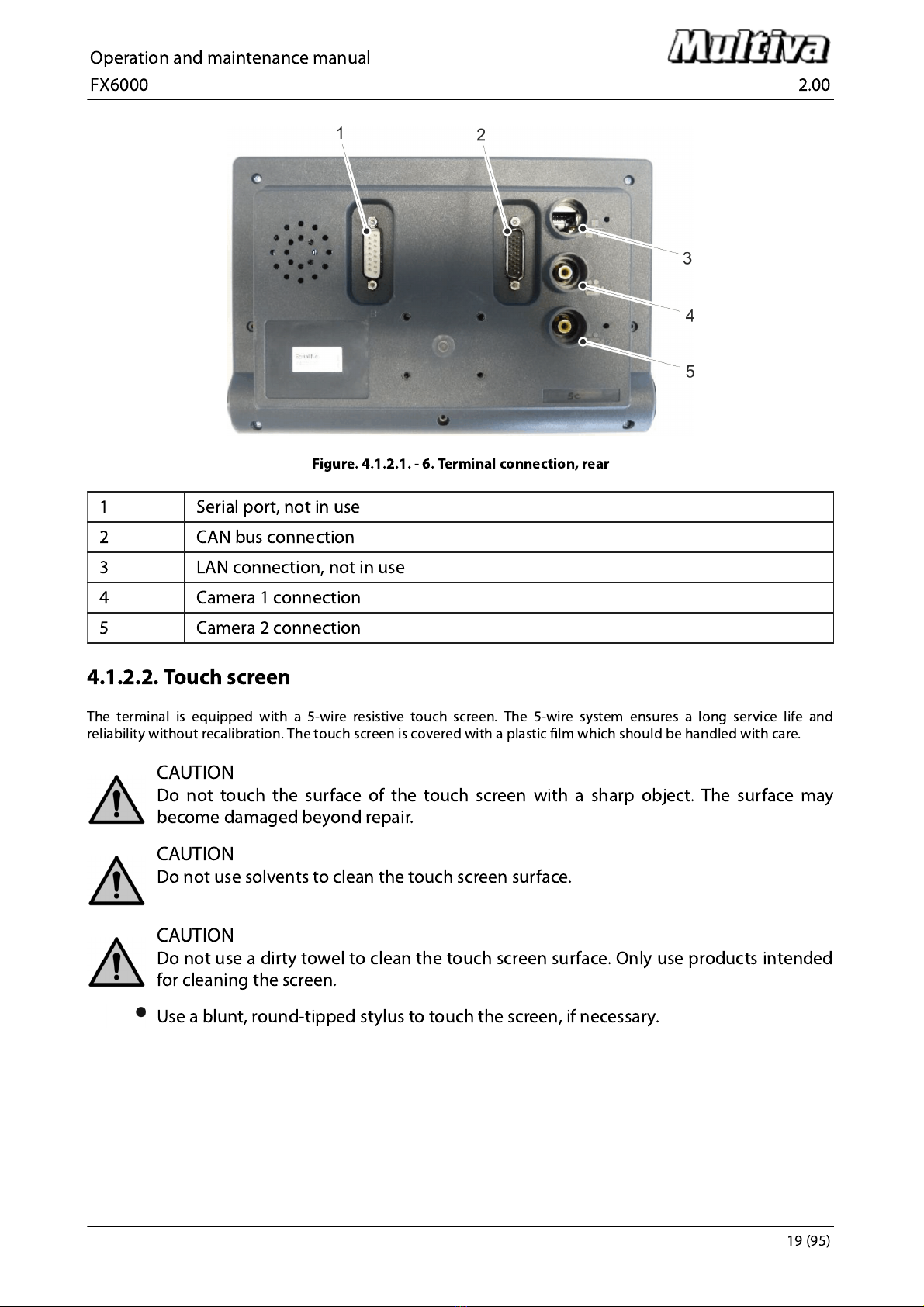

Figure. 4.1.2.1. - 6. Terminal connection, rear
1 Serial port, not in use
2 CAN bus connection
3 LAN connection, not in use
4 Camera 1 connection
5 Camera 2 connection
4.1.2.2. Touch screen
The terminal is equipped with a 5-wire resistive touch screen. The 5-wire system ensures a long service life and
reliability without recalibration. The touch screen is covered with a plastic lm which should be handled with care.
CAUTION
Do not touch the surface of the touch screen with a sharp object. The surface may
become damaged beyond repair.
CAUTION
Do not use solvents to clean the touch screen surface.
CAUTION
Do not use a dirty towel to clean the touch screen surface. Only use products intended
for cleaning the screen.
Use a blunt, round-tipped stylus to touch the screen, if necessary.
Operation and maintenance manual
FX6000 2.00
19 (95)
