New World NWWM814W User manual

User manual
Front loading washing machine
Welcome to Your New washing machine!
Congratulations on your selection of a new New World brand washing machine for your
laundry needs. We are confident you will enjoy the superior performance and reliability.
Please do not hesitate to contact our Customer Service department if you have any questions
or comments with your new washing machine.
Thank you for choosing New World brand washing machine.
Model:
NWWM814W

Contents
1
Safety instruction. 2-3-4-5
Safety instruction
Disposal
Installation. 6-7-8-9-10-11-12
Unpacking,
Carrying the appliance
What’s included
Removing the transport bolts
Choosing the Right Location
Levelling the appliance
Connecting the electricity and water supplies
Technical date

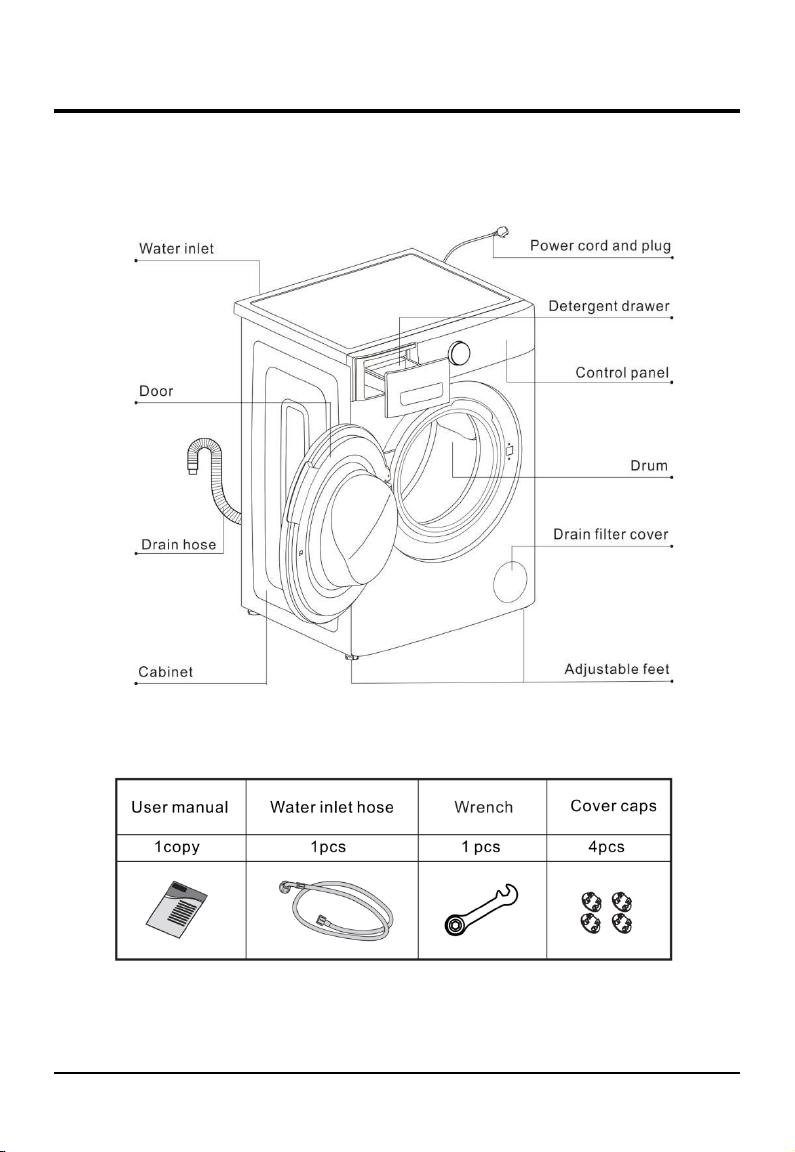

Description of the washing machine. 13-14
Control panel
Display
Preparing and sorting laundry. 15-16
Preparing the laundry
Sorting the laundry according to colour and degree of soiling
Sorting laundry according to their care label specifications
Various cycles and functions. 17-18-19-20
Table of wash cycles
Various cycles
Various functions
How to use the appliance. 21-22-23
Before loading your first load of laundry
Daily use
Preparing the laundry
How to use the washing machine
Care and maintenance. 24-25-26
Cutting off water and electricity supplies
Cleaning the appliance’s exterior
Cleaning the drum
Descaling the washer
Caring for the door and drum of your appliance
Checking the water inlet hose
Cleaning the detergent dispenser
Cleaning the mesh filter in the water supply hose
Cleaning the drain pump
Troubleshooting. 27-28-29
Product fiche. 30-31-32

Safety instruction
2
Before using the washer, read these safety
instructions. Keep them nearby for future reference.
These instructions and the washer itself provide
important safety warnings, to be observed at all
times. The manufacturer declines any liability for
failure to observe these safety instructions, for
inappropriate use of the washer or incorrect setting
of controls.
 Very young children (0-3 years) should be kept
away from the washer. Young children (3-8 years)
should be kept away from the washer unless
continuously supervised. Children from 8 years old
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge can use this washer only if they are
supervised or have been given instructions on safe
use and understand the hazards involved. Children
must not play with the washer. Cleaning and user
maintenance must not be carried out by children
without supervision. Keep all laundry aids (including
detergent, bleach, fabric softener, etc.) out of the
reach of children.
PERMITTED USE
 CAUTION: The washer is not intended to be
operated by means of an external switching device,
such as a timer, or separate remote controlled
system.
 This washer is intended to be used in household
and similar applications such as: staff kitchen areas
in shops, offices and other working environments;
farm houses; by clients in hotels, motels, bed &
breakfast and other residential environments.
 Do not load the washer above the maximum
capacity (kg of dry cloth) indicated in the program
table.
 This washer is not for professional use. Do not use
the washer outdoors.
 Do not use any solvents (e.g. turpentine, benzene),
detergents containing solvents, scouring powder,
glass or general purpose cleaner, or flammable
fluids; do not machine wash fabric that have been
treated with solvents or flammable liquids.
 Do not machine wash fiberglass materials (such
as curtains and windows coverings that use
fiberglass materials). Small particles may remain in
the washer and stick to fabrics in subsequent wash
loads causing skin irritation.
 Fabric softeners, or similar products, should be
used as specified by the fabric softener instructions.
 Remove all objects from packets such as lighters
and matches.
 Make sure there is no water in the drum before
opening the door.
 Never wash the carpet in the washer.
 Keep pets away from the washer.
 Exercise caution when pumping out hot detergent
solution.
 Do not fill water during washing cycle manually.
 Please close the loading door correctly, if it is
difficult to close it, please check if the laundry is
caught in the door.
 Water may reach very high temperatures during
the wash cycle.
 Do not reach into the washer if the wash drum is
moving.
 Do not temper with the controls.
 Never open the door forcibly or use it as a step.
 Do not allow anyone to climb, lean or hang on any
part of the washer including any protruding
components such as the appliance door or a pullout
shelf.

Safety instruction
3
INSTALLATION
 The washer must be handled and installed by two
or more persons – risk of injury. Use protective
gloves to unpack and install – risk of cuts.
 The washer must be installed and operated in a
room with the drain.
 Installation, including water supply (if any) and
electrical connections and repairs must be carried
out by a qualified technician. Keep children away
from the installation site. After unpacking the
washer, make sure that it has not been damaged
during transport. In the event of problems, contact
the dealer or your nearest After-Sales Service. Once
installed, packaging waste (plastic, Styrofoam parts
etc.) must be stored out of reach of children – risk
of suffocation. The washer must be disconnected
from the power supply before any installation
operation – risk of electric shock. During installation,
make sure the washer does not damage the power
cable – risk of fire or electric shock. Only activate
th e was h e r w he n the ins t al l a t i on has
been completed.
 Do not install the washer where it may be exposed
to extreme conditions, such as: poor ventilation,
temperatures below 5℃ or above 35℃.
 Do not expose the washer in the place with
causticity or explosibility gas.(e.g. dust, steam and
gas, etc.)
 Do not install the washer in a bathroom or a room
very wet.
 The washer should not be installed in an outdoor
environment, not even where the area is sheltered,
because it may be very dangerous to leave it
exposed to damp, rain and thunderstorms.
 When installing the washer make sure that the
four feet are stable and resting on the floor,
adjusting them as required, and check that the
appliance is perfectly to level using a spirit level.
 The washer must not be installed behind a
lockable door, a sliding door or a door with a hinge
on the opposite side to that of the washer, in such
way that a full opening of the washer door is
restricted.
 After installation of the washer, wait a few hours
before starting it so that acclimates to the
environmental conditions of the room.
 Make sure that the ventilation openings in the
base of the washer (if available on your model) are
not obstructed by a carpet or other material.
 When moving, do not lift the washer by the knobs
or detergent drawer, without lifting it by the
worktop or top lid; during transport, never rest the
door on the trolley.
 The washer is fitted with transport bolts to
prevent any possible damage to the interior during
transport. Before using the machine, it is imperative
that the transport bolts are removed. After their
removal, cover the openings with the 4 enclosed
plastic caps.
 Connect the water inlet hose(s) to the water
supply in accordance with the regulations of your
local water company.
 Use only the new water inlet hose(s) supplied with
the washer to connect the washer to water supply.
The old water inlet hose(s) should not be reused.
 The supply water pressure must be in the
0.03—1.0 MPa range.

Safety instruction
4
ELECTRICAL WARNING
 It must be possible to disconnect the washer from
the power supply by unplugging it if plug is
accessible, or by a multi-pole switch installed
upstream of the socket in accordance with the
wiring rules and the washer must be earthed in
conformity with national electrical safety standards.
When the washer is installed, the mains
socket must be within easy reach.
 When heating, the maximum current of the
washer is 10A, so please make sure that the power
supply system (voltage, current and the cable) is
applicable to the load of the applied appliance.
 In order to ensure your safety, you must plug the
cable into a socket which connected to earth. And
please check your socket to make sure that it is
connected with reliable earth correctly.
 Do not use extension leads, multiple sockets or
adapters.
The electrical components must not be accessible
to the user after installation.
Do not operate this washer when you are wet or
barefoot.
Do not operate this washer if it has a damaged
power cable or plug, if it is not working properly, or
if it has been damaged or dropped.
 If the supply cord is damaged, it must be replaced
with an identical one by the manufacturer, its
service agent or similarly qualified persons in order
to avoid a hazard – risk of electric shock.
Disconnect the power cord by grasping the plug,
not the cord.
 The washer should not be installed in an outdoor
environment, not even where the area is sheltered,
because it may be very dangerous to leave it
exposed to damp, rain and thunderstorms.
CLEANING AND MAINTENANCE
 WARNING! Ensure that the washer is switched off
and disconnected from the power supply and turn
off the water tap before performing any
maintenance operation; never use steam cleaning
equipment – risk of electric shock.
 Use caution when draining hot water from the
drum such as during pump maintenance or when
using emergency door open procedure.
SERVICE
 Do not repair or replace any part of the washer
unless specifically stated in the user manual. Use
only authorized After-sales Service. Self or
non-professional repair may lead to dangerous
incident resulting in live or health threatening
and/or significant property damage.
 In the event of fault and/or malfunction, turn off
the washer, close the water tap and do not tamper
with the machine. Immediately contact the
Customer Service Centre and only use original spare
parts. Failure to observe these instructions may
jeopardise appliance safety.
 Certain internal parts are intentionally not
grounded and may present a risk of electric shock
only during servicing. Service personnel – Do not
contact the following parts while the appliance is
energized: Control board, heat sink, motor, inlet
valve and pump.
 Always unplug the washer from the power supply
before attempting any service. Disconnect the
power cord by grasping the plug, not the cord.
 Before the washer is removed from service or
discarded, remove the door to prevent children
from playing or hiding inside. Also remove the
power cord/plug.
 WARNING! The company denies all liability if and
when these norms are not respected.

Safety instruction
5
DISPOSAL OF PACKAGE MATERIALS
The packaging material is 100% recyclable and is
marked with the recycle symbol  .
The various parts of packaging must therefore be
disposed of responsibly and in full compliance with
local authority regulations governing waste
disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This washer is manufacture with recyclable or
reusable materials. Dispose of it in accordance with
local waste disposal regulations. For further
information on the treatment, recovery and
recycling of household electrical appliances, contact
your local authority, the collection service for
household waste or the store where you purchased
the appliance. This washer is marked in compliance
with European Directive 2012/19/EU. Waste
Electrical and Electronic Equipment (WEEE). By
ensuring this product is disposed of correctly, you
will help prevent negative consequences for the
environment and human health.
The symbol on the product or on the
accompanying documentation indicates that it
should not be treated as domestic waste but must
be taken to an appropriate collection center for the
recycling of electrical and electronic equipment.

Installation
6
 This instruction manual should be kept in a safe
place for future reference. If the washer is sold,
transferred or moved, make sure that the
instruction manual remains with the machine so
that the new owner is able to familiarize
himself/herself with its operation and features.
 Read these instructions carefully, they contain
vital information relating to the safe installation and
operation of the appliance.
Follow these instructions carefully to ensure proper
installation of your washer and to prevent accidents
when doing laundry.
Unpacking
1. Remove the washer from its packing.
2. To remove the cushion bottom of the packing
materials, do not tip the washer over on its front
side. When you lay the washer down to remove
the carton base, protect the side of the washer
and lay it down carefully. Never lay your washer
on its back or front.
3. Make sure that the washer has not been
damaged during shipping. Make sure you have
received all of the items shown on the next page.
If your washer was damaged during shipping, or
you do not have all of the items. If it has been
damaged, contact the retailer and do not
proceed any further with the installation
process.
 WARNING
Packing materials can be dangerous to children.
Keep all packing material (plastic bags, polystyrene.
etc.) well out of children’s reach.
Carrying the washer
 Don’t do it by yourself alone.
Tilt the washer backward.
One person stands behind
the washer and holds the
protruding part of the top
plate, while the other
person holds the bottom of
the washer in front.
To prevent personal injury or strain, wear protective
gloves whenever lifting or carrying the unit.
When moving the washer, do not allow the front of
the washer to contact the trolley frame.

Installation
7
What’s included
⚫Description of the parts
⚫Accessories

Installation
8
Removing the transport bolts
 CAUTION
DAMAGE TO THE APPLIANCE OR INJURY POSSIBLE
⚫The washer is secured for transport with
transport bolts. Transport bolts that are not
removed can damage the drum during operation
of the washer, the washer will vibrate, and it will
be much noisier during spin cycles if the
transport bolts are not removed before use. Be
sure to remove all 4 transport bolts completely
before first use. Keep the transport bolts. If a
pedestal was purchased with the washer, it must
be installed first, prior to removing the transport
bolts. Please consult the pedestal installation
instructions.
⚫In order to prevent transport damage during later
transport, be sure to re-install the bolts before
transport.
1. Undo the four transport bolts A by the wrench
(supplied) and remove them.
2. Remove the four spacers B. They will fall to the
floor when you tip the machine.
3. Insert the four cover caps C which will find in the
plastic bag containing the accessories.
Keep all the parts in safe place: you will need them
again if the washer needs to be moved to another
location.
NOTE
• Transport the washer for the prevention of
breakage as below:
- The transport bolts are reinstalled.
- The power cord is secured to the back of the
washer.
Choosing the right location
●Locations the appliance is not to be
installed
- In a damp place or where the washer may be
exposed to rain, etc.(As this could cause electric
shock or fire)
- Locations that are uneven, or unstable (As this
could cause vibration and noise).
- In direct sunlight (As this could cause malfunction
or deformation)
- Within, or on top of, unstable surfaces, including
but not limited to benchtops, timber shelving, or
cabinets.
CANTION: Do not install where temperatures
may reach freezing
● Set-in Installation
- Install the washer with easy access to the power
plug and socket.
- Install the washer where there is enough space
around it.
(a) 3cm or more
above
(b) 5cm or more
behind
(c) 2cm or more on
the left side
(d) 2cm or more on
the right side
(e) 64cm or more
CAUTION: Do not let metallic portions of the
washer come into contact with metal sinks or
other appliances.

Installation
9
Leveling the washer
Importance of leveling the washer
The washer uses high spin speeds to remove water
at the end of the wash cycle. It is important that the
washer is level and that the washer feet press with
equal pressure against the floor. This will help
assure the quietest, most vibration-free use of the
washer.
Follow these steps:
1. Install the washer on a level and solid surfaces.
Preferably in a corner of a room.
2. If the floor is uneven (or out of level ) adjust the
washer feet as required to level the washer. Do
not place anything under the washer feet to help
level the washer.
3. Extend the washer feet no more than is
necessary. The more the feet are extended, the
more vibration the washer will experience. Start
with the washer feet turned all the way in and
adjust each foot as necessary.
4. Use a bubble level (no supplied) to check the top
of the washer to make sure it is level side to side
and front to rear.
5. Press down on each corner of the washer top to
make sure the washer doesn’t “wobble”. There
should be no “give” or movement. All the washer
feet should press equally against the floor. This is
just as important as the washer being level to
prevent vibration.
6. When the washer is level and does not wobble,
lock the washer feet in place by tightening the
locknuts against the washer bottom. Be sure to
do this without changing the height of the foot
(hold the foot while tightening the locknut)
Procedure for adjusting the appliance feet:
1. After determining which the washer feet need to
be extended, have someone lift up on the washer
slightly to take pressure off the foot to be
adjusted.
2. Turn the washer foot to extend it downward as
far as necessary to raise the corner of the washer
the correct amount to level the washer.
3. When the height of the foot is correct, use the
wrench (supplied) to tighten the locknut against
the washer bottom. The locknut should be
tighten against the bottom of the washer to lock
the foot in place.

Installation
10
Connection the electricity and water
supplies
Connecting the water inlet hose
1. Connect one end of the water inlet hose to a
cold water tap and tighten by hand (see figure).
Before performing the connection, allow the
water to run freely until it is perfectly clear.
2. Connect the other end of the water inlet hose
to the water inlet valve on the rear of the appliance
and tighten by hand.
3. Turn on the tap slowly and make sure there are
no leaks.
 Do not twist, squash, modify or cut the hose.
 Tighten the end of the hose firmly by hand.
 The supply water pressure must be in the
0.03—1.0MPa range. If the water pressure exceeds
this value, please fit a pressure reducing valve.
 If the hose is not long enough, contact a
specialized shop or an authorized technician.
 Never use second-hand water inlet hose.
 Use the new water inlet hose supplied with the
washer.
Connecting the drain hose
Height of drain point
Height difference between the floor and drainage
point: min. 60cm(24 in.) and max. 100cm(39 in.).
Types of drainage hookups
■ Standpipe
Attach the drain hose to the elbow (no supplied,
available from our Customer Service Department).
Position the elbow on the drain hose 4" from end
of the hose as shown. Insert this section of the drain
hose into the drain pipe. Secure the elbow and
hose with a nylon tie strap or the equivalent to
keep the hose from coming out of the drain pipe
during use.
■ Sink siphon
Secure the drain hose to the sink siphon using a
Ǿ0.9-1.6 in.(20-44mm) hose clip (available from
a hardware store).

Installation
11
 Before connecting the drain hose ensure that
any blanks or removable ends have been taken
off the spigot.
■ Wash Basin
Make sure that:
·There is no stopper in the sink drain.
·The end of the drain hose does touch the
discharge water.
·The sink drain is free flowing and not partially
clogged.
Attach the drain hose securely to the wash basin.
 Do not twist, pull out or bend the drain hose.
 We advise against the use of hose extensions;
in case of absolute need, the extension must have
the same diameter as the original hose and must
not exceed 150cms in length. Ensure that if the
drain hose is pushed into a standpipe, that the
end does not go down more than 15cms (6 inches).
If the hose is pushed down too far, this may cause
the washer to self-syphon ie. continuously empty
as it is filling.
Electric connection
Before plugging the washer into the mains socket,
make sure that:
·The socket is earthed and in compliance with the
applicable law.
·The socket is able to sustain the appliance’s
maximum power load indicated on the Technical
Date Plate fixed on the machine.
·The supply voltage is included within the values
indicated on the Technical Date Plate fixed on the
washer.
·When heating, the maximum current of the
washer is 10A, so please make sure that the
power supply system (voltage, current and the
cable) is applicable to the load of the applied
appliance.
·The socket is compatible with the washer’s plug.
If this is not the case, replace the socket or the
plug by a qualified electrician.
 WARNING----THIS APPLIANCE MUST BE EARTHED.
THE FOLLOWING OPERATIONS SHOULD BE
CARRIED OUT BY A QUALIFIED ELECTRICIAN.
Replace the supply cable:
If the supply cord is damaged, it must be replaced
with an identical one by the manufacturer, its
service agent or similarly qualified persons in order
to avoid a hazard – risk of electric shock.
Disposing of the plug:
Ensure that before disposing of the plug itself, you
make the pins unusable so that it cannot be
accidentally inserted into a socket.
Disposing of the appliance:
When disposing of the washer please remove the
plug by cutting the mains cable as close as possible
to the plug body and dispose of the plug as
described above.
 The washer is not intended to be operated by
means of an external switching device, Such as a
timer, or separate remote controlled system.
 When the washer is installed, the mains socket
must be within easy reach.
 Do not use extension cables, multiple sockets or
adapters.
 To remove the plug from the socket, grasp the
plug firmly and pull it out. Do not pull at the cable.

Installation
12
The electrical components must not be accessible
to the user after installation.
Do not connect the machine to electrical outlets
while your hands are wet or damp.
Do not operate this appliance when you are wet or
barefoot.
Do not operate this appliance if it has a damaged
power cable or plug, if it is not working properly, or
if it has been damaged or dropped.
 WARNING! The company denies all liability if and
when these norms are not respected.
Technical date
Model
NWWM814W
Rated washing capacity (kg)
8.0
Rated voltage
220～240V
Rated frequency
50Hz
Rated power (W)
2000
Washing noise level (dB)
62
Spinning noise level (dB)
76
Spin speed (rpm)
1400
Water pressure (MPa)
0.03 ～ 1.0
Degree of waterproof
IPX4
Net weight (kg)
60
Outer dimension
(WxDxH mm)
600 X 520 X 847

Description of the appliance
13
Control panel
A---WASH CYCLE SELECTOR knob: Used to set the
desired wash cycle (see “Table of wash cycles”).
⚫OFF position : Turn the Linear mark on the
wash cycle selector knob under the symbol “ “ to
switch the machine off. If the machine is switched
off during a wash cycle, this wash cycle will be
cancelled.
B---TEMP. button: Press to change the water
temperature for the current cycle. There are five
temperature values on the display. When a
temperature value is selected, the corresponding
temperature value indicator light illuminated on the
display.
C---SPEED button: Press to change the spinning
speed for the current cycle. There are five spinning
speed values on display. When a spinning speed
value is selected, the corresponding spinning speed
value indicator light illuminated on the display.
·CHILD LOCK function: When the cycle is
running, if you want to activate the control panel
lock, please press and hold the SPEED button for
approximately 3 seconds.
For a detailed description, see→ Various cycles and
functions.
·Cancelling the buzzer:
Press and hold the SPEED button and ONE TOUCH
button together at the same time for at least 3
seconds, you can turn off the buzzer that sounds
during the washing cycle running.
For a detailed description, see→ Various cycles and
functions.
D---STEAM button: Press to set the STEAM wash
cycle.
For a detailed description, see→ Various cycles and
functions.
E---RINSE button: Press to change the rinse count
for the current cycle, the changed rinse count
appears on digital display.
F---DELAY END button: Press to set the wash
cycle end (Delay end) time.
For a detailed description, see→ Various cycles and
functions.
G---ONE TOUCH button: Press to set the ONE
TOUCH wash cycle.
For a detailed description, see→ Various cycles and
functions.
H---START/PAUSE button:
·Long press the button to start a wash cycle.
·Once the cycle has begun, if you want to pause
the wash cycle, please long press the button again.
If the DOOR LOCK indicator is not illuminated, the
door may be opened, you can add or take out
laundry.
To start the wash cycle from the point at which it
was interrupted, press the button again.

Description of the appliance
13
M---Display
1---Temperature indicator
When a program is selected, the default
temperature value of this program will appears on
the display, with the corresponding temperature
indicator light illuminated.
You can change the temperature value by pressing
the TEMP. button. When a temperature value is
selected, the corresponding temperature value
indicator light illuminated on the display. If all
temperature value indicator light are off, it indicated
the washer using only cold water without utilized
the washer’s heater in this program.
2---SPINNING SPEED indicator
When a program is selected, the default spinning
speed value of this program will appears on the
display, with the corresponding spinning speed
indicator light illuminated.
You can change the spinning speed value by
pressing the SPEED button. When a spinning speed
value is selected, the corresponding spinning speed
value indicator light illuminated on the display. If all
spinning speed indicator light are off, it indicate the
washer does not spin after the final drain process in
this program.
3---DOOR LOCK indicator
The lit symbol indicates that the door is
locked. To prevent any damage, wait
until the symbol turns off before opening the door.
To open the door while a cycle is in progress, press
the START/PAUSE button, if the DOOR LOCK
symbol is switched off the door may be opened.
4---CHILD LOCK indicator
The lit symbol indicates the CHILD LOCK
function is activated, the control panel is
locked (apart from the OFF position on the control
panel).
5---DELAY END indicator
The lit symbol indicates the DELAY END
function is activated. The countdown to
the end of the selected wash cycle will appear on
the digital display.
6---ONE TOUCH indicator
The lit symbol indicates the One Touch
wash program is selected. There are three
ways to set the One Touch wash program.
7---RINSE COUNT indicator
When the symbol lit, you can select the
rinse count, the selected rinse count will appear on
the digital display.
8---DIGITAL DISPLAY
1) Wash cycle remaining
time
2) Delay end time
3) DIY time
4) Rinse count
5) Fault code
The display is useful when programming the machine and provides a great deal of information.

Preparing and sorting the laundry
15
Preparing the laundry
Notice: Damage to the washer/fabric
Foreign objects (e.g. coins, paper-clips, needles,
nails) may damage the laundry or components in
the washer.
Therefore, note the following tips when preparing
your laundry:
⚫Remove any loose
items or metal objects,
such as safety pins,
paper clips, etc. from
the laundry.
⚫Brush sand, coins, etc. out of pocket and cuffs.
⚫Close zips and button
up cushion covers,
duvet covers, etc.
⚫Remove curtain runners, or secure them in a net
bag.
⚫Particularly delicate items; such as tights or lace
curtains, or smaller
items, such as tiny
socks or handkerchiefs,
should only be
washed in a net bag or
pillow case.
⚫Some items are best
turned inside out.
These included
knitwear, trousers,
T-shirts and
sweatshirts.
⚫Make sure that the wire-cup bras are machine
washable.
!Make sure that wire-cup bras in a pillow case
which can be securely closed with a zip or button.
If the wire works itself out of the cup it may fall
through the holes of the drum and cause
extensive damage.
Sorting the laundry according to
colour and degree of soiling
Sort laundry items according to color, degree of
soiling and recommended wash temperature range.
⚫Items of clothing can become discoloured.
⚫Never wash new muti-coloured items together
with other items.
⚫Wash white items separately from colored items.
Otherwise, white items may tend to become
grey.
Degree of soiling
⚫Light soiling
No visible soiling or stains, but may have
absorbed some odor. This could include light
weight summer clothes such as T-shirts, shirts, or
blouses worn only once. Also to freshen bed
linen or guest towels
⚫Normal soiling
Visible soiling and/or a few light stains. This could
include clothing such as T-shirts, shirts, or
blouses that nave been sweated in or worn
several times. Also tea towels, hand towels or
bed linen used for up to one week or more.
Curtains without stains that have not been
washed for up to a half year.
⚫Heavy soiling
Visible soiling and stains. This could include
kitchen towels, fabric napkins, baby bibs,
children’s outer clothing or football jerseys and
shirts stained with grass or dirt. It could also
include working clothes such as overalls and
jeans and other clothing worn for outside work
and activities.

Preparing and sorting the laundry
16
Sorting laundry according to their care label specifications
The symbols on labels of your garments will help you in choosing the suitable wash program, the right
temperature, wash cycles, and ironing methods. Don’t forget to give a glance to these useful indications!

Various cycles and functions
17
Table of wash cycle
◼L=gel-/liquid detergent P=Powder detergent O=Optional ---=No
◼If using liquid detergent, it is not recommended to activate the time delay.
◼Please follow the dosage recommendation on the powder or liquid detergent package.
◼We recommend by using:
Laundry powder 20℃ to 80℃
Wool detergent 20℃ to 40℃
Wash cycle
Temp
.
℃
(Max)
Max.Lo
ad (kg)
Description
Kind of detergent
Detergents
softener
Universal
Special
Mix
60
8
For blended fabrics, e.g. cotton, linen
and synthetic fibres.
L / P
---
O
Cotton
60
8
For daily items of cotton, linen and
cotton blends.
L / P
---
O
Anti-allergy
85
3
For clothes that need to remove mites
and allergens.
L / P
---
O
Wool
40
1
For machine washable wool and wool
blend clothes.
---
L / P
O
Baby care
85
5
a cycle designed for dirt typical of
children’s garments in that it effectively
removes any traces of residual
detergent.
L / P
L
O
Shirts
60
3
For shirts and women’s blouses.
L / P
L
O
Bedding
60
6
For large items such as blankets,
curtains and bedspreads.
L / P
---
O
Eco40-60
40
8
Energy efficiency test program.
L / P
---
O
20℃
20
2
For small amount of clothes that are
easy to fade .
L / P
---
O
Quick
Wash
40
1
For small amount or lightly soiled
garments.
L / P
---
O
Underwear
60
5
For underwear.
L / P
L
O
Down
Jacket
40
2
For down jacket which can be washed
by machine.
---
L / P
O
Rinse +Spin
---
8
Combines a rinse and spin for loads
requiring an addational rinse cycle. Also
use for loads that require rinsing only.
---
---
O
Spin
---
8
This cycle uses a spin to shorten drying
times for heavy fabrics or special-care
items washed by hand.
---
---
---
Drum clean
85
---
Clean the drum by removing dirt and
bacteria from the drum. Make sure the
drum is empty.
---
---
---
One-Touch
40
5
Special cycle which can be started
simply by pressing the ONE-TOUCH
button.
L / P
---
O

Various cycles and functions
18
Various cycles
ONE TOUCH wash cycle
ONE TOUCH wash cycle can intelligently detect the
weight of laundry and match different washing time
and temperature to realize intelligent washing.
" " is displayed in the detection stage after
the cycle is started, and the ONE TOUCH wash cycle
can be entered by the following three methods.
⚫When the washer is OFF, press and hold the
ONE-TOUCH button for at least 3 seconds, the
washer will run the M-Smart wash cycle directly,
with ONE-TOUCH indicator light illuminated.
⚫When the washer is ON, press and hold
ONE-TOUCH button for at least 3 seconds, the
washer will run the ONE-TOUCH wash cycle
directly, with ONE-TOUCH indicator light
illuminated.
⚫When the washer is ON, short press the
ONE-TOUCH button, the ONE-TOUCH indicator
light illuminated, and then press the
START/PAUSE button, the washer runs the
ONE-TOUCH wash cycle.
Special wash cycles
Baby care : a cycle designed for dirt typical of
children’s garments in that it effectively removes
any traces of residual detergent.
Down Jacket : a cycle to wash single downs (the
weight of which should not exceed 2.0kg), cushions
or clothes padded with goose down such as puffa
jacket, use this special wash cycle. We recommend
that down are placed in the drum with their edges
folded inwards (see figure) and that no more than
3/4 of the total volume of the drum is used. To
achieve the best results, we recommend that a
liquid detergent is used and placed inside the
detergent dispenser drawer.
Wool : a cycle designed for wool fabrics.
● Before washing, please confirm that the clothes
have the washing label of "machine washable".
● After the procedure is completed, please take out
the clothes quickly, shape and dry them to avoid
deformation caused by being placed in the drum for
too long.
● To prevent clothes from being damaged, the
water temperature should not exceed 40°C .
● For best results and to reduce the damage of
clothes, Please use special detergent for wool and
do not exceed 1.0 kg of laundry.

Various cycles and functions
20
Various functions
Delay end
Press DELAY END button to set the program end
(Delay end) time in one hour increments to a
maximum of 24 h (hours). After selecting the
desired washing program but before pressing the
START/PAUSE button, press the DELAY END
button until the desired time is displayed, e.g. 8h.
NOTICE: The cycle duration is included in the set
Delay End time.
Here is an example of a 1hr: 30 min cycle time and
an 8 h Delay end time.
8 h is displayed and count down (approximately 6 h:
30 min) until the washing cycle begins (at 1hr: 30
min) then the cycle duration 1: 30 is displayed and
began. Total time approximately 8 hours.
The way to cancel Delay End function:
·Turn the wash cycle selector knob to reset the
wash cycle.
NOTICE:
⚫Delay End function cannot be set some wash
cycle.
⚫The end time of the wash cycle may be different
from the actual reservation time depending on
the water supply pressure, drainage, clothing
type, water temperature and other conditions.
Child lock
1. Setting the Child lock function can avoid
children's mis-operation and external interference
to the washing procedure.
2. During operation, long press the SPEED button
for 3 seconds to set or cancel the Child lock
function.
3. After the Child lock function is set, the indicator
light is illuminated, the door cannot be opened,
the control panel is locked and all buttons on
control panel do not respond. You can turn off the
machine by turn the wash cycle selector knob.
4. After the child lock function is set. When the
machine is turned on again, the machine directly
run the program before turning off the machine.
Cancelling the buzzer
Press and hold the SPEED button and ONE
TOUCH button together at the same time for
at least 3 seconds, you can turn off the buzzer that
sounds during the washing cycle running.
⚫To activate the buzzer setting
Do the same operation as you did for cancelling. The
buzzer setting is activated after one beep.
Add clothes during the program is running
When the program is running, long press the
START/PAUSE button to pause the machine,
open the door and add clothes. After the operation
is completed, close the door, long press the
START/PAUSE button again, and the machine
continues to run.
NOTICE:
If the water level or water temperature in the drum
is too high, the door lock indicator light is
illuminated, the door cannot be opened and the
midway clothes filling function cannot be used.
Steam
A cycle designed for cotton clothes that are not easy
to fade.
⚫Steam treatment can reduce the wrinkle of
clothes, make the clothes reach the ideal
humidity level, reach the most relaxed state, and
make ironing easier.
⚫Steam treatment can get rid of the peculiar smell
on clothes
