OPERATING MANUAL
Before attempting to connect or operate this product, please read these instructions
completely
Hyper Dynamic Range
WDS-HDR1527DN
WDS-HDR1527DNP
Day & Night OLPF Removable
DIGITAL COLOR VIDEO CAMERA
ON-SCREEN-DISPLAY, HIGH RESOLUTION, 12V DC / 24V AC
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
AND DO NOT REMOVE COVER OR BACK.
CAUTION:
1.CONNECT 24VAC UL LISTED CLASS 2 POWER SUPPLY.
2. INSTALL CAMERAUNDER UNSTABLE LIGHT SOURCE MAY
CAUSE ABNORMAL FUNCTION.
3. ONLY USE CAMERA UNDER CONDITIONS WHERE
TEMPERATURES ARE BETWEEN -10°C to 50°C.
ATTENTION:
INSTALLATION SHOULD BE MADE BYA QUALIFIED SERVICE
PERSON AND SHOULD CONFORM TO ALL LOCAL CODES

- 2 -
1. General
This color CCD video camera employs a solid-state imaging device with 470 / 410K or
310 / 270K picture elements. This unit is equipped with a newly developed DSP (Digital Signal
Processor) for processing the video signal.
This camera has dynamic range 400:1, surveillance under various critical backlighting
environments are always possible. The camera uses Sony’s new double speed CCD. Its
dynamic range allows processing to be over 52dB.
2. Features
z1/3” SONY Wide Dynamic Double Speed CCD , Super HAD with 470K / 410K (PAL / NTSC) pixels,
10bit A/D Digital Signal Process (DSP)
zHyper Dynamic Range 400:1
zHighest Dynamic Range up to 52dB and real time video output 30 fps
z6 Preset modes and 1 Customized mode setting are available for various environments
zFor subject requiring special protection due to privacy concerns, 8 masks can be shown on the
screen by using OSD Control
zElectronic Frame Integration from 2x ~ 160x sense up
zAdvanced On-Screen Display (OSD) control
zVersatile exposure system WD mode, Flick-less, Normal auto iris
zOutstanding signal to noise ratio better than 50dB
▲IR accuracy: Vivid color performance in the day time and sharp B/W image with no focus shift in the
nighttime
▲Smart Optical Low Pass Filter (OLPF) switching mechanism allows changing between color and
monochrome
▲Enhanced (OLPF) control system (4 modes)
■Automatic
■Manual
■Schedule
■External 1/O
▲Integration GPIO (day/night, IR projector control)
▲On-Screen Display control (OSD)
zRemote control by RS232C
zInternal or Line-lock external Sync
zIsolated switching power 12V DC / 24V AC, AC85 ~ 265 V

- 3 -

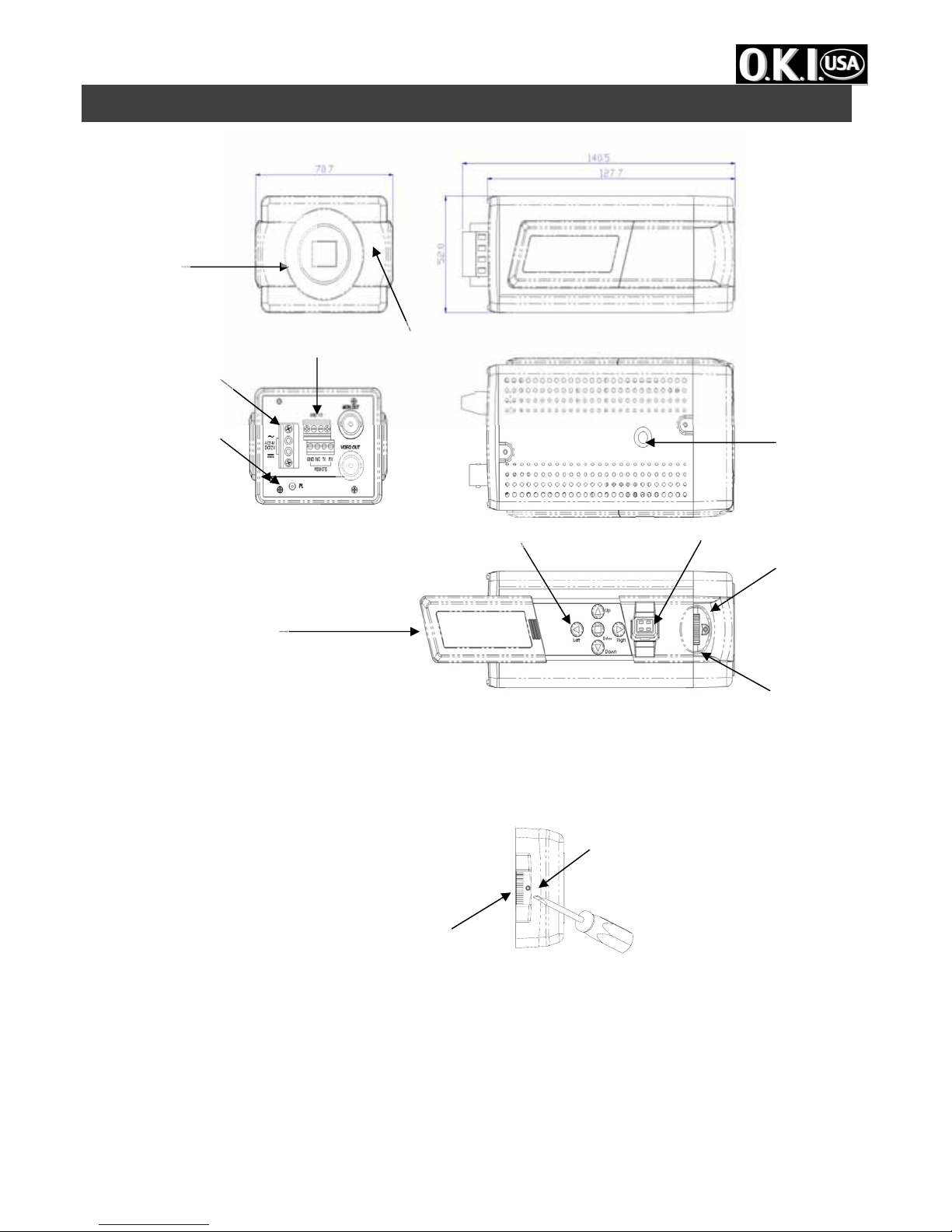

3. Name of Parts and Functions
A. C (CS) mount adapter if a CS mount lens is to be used, remove the C mount ring
B. Holder screw hole
Standard photographic pan-head screw size (1/4” – 20) Flange focal lock screw
C. Flange focal lock screw
D. Flange focal distance adjuster—adjust this ring when back focus adjustment is needed.
E. Auto iris lens connector (MINI JACK)
Use with accompanying auto iris lens control connector plug.
Auto iris lens has built-in EE amp. (VIDEO Type)
Set the lens selector to "VD” position.
Connector cable leads
Back focus
thumbwheel
Thumbwheel locking screw
and provided screwdriver
B
C
I
A
D
E
G
F
K
J
H
12V DC / 24V AC MODEL
L

- 4 -

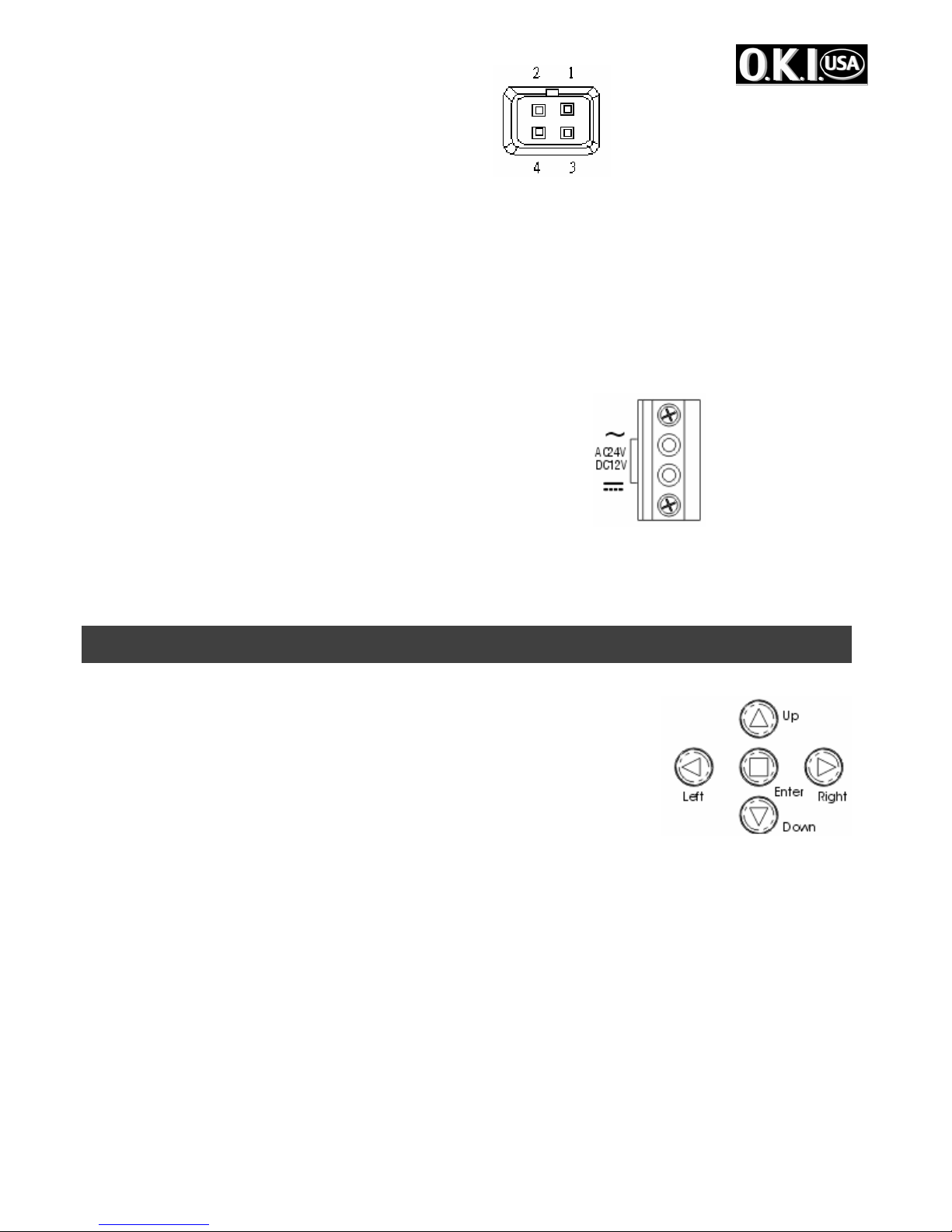

1.Red --- power 3.White --- video
2.NC 4.Black --- shielded
Auto iris lens without EE amp. (DC Type)
Set the lens selector to “DD” position.
Connector cable leads
1. Damping coil (-) 3. Driving coil (+)
2. Damping coil (+) 4. Driving coil (-)
F. Video output terminal (BNC)
This connector is used to connect with VIDEO IN connector of monitor.
G. On-Screen Display keypad
H. Slide out for control panel
I. Power pilot LED
J. 12V DC / 24V AC Block Terminal
This terminal accepts DC 12V (Non-polarity) or 24V AC.
The other model: 85 ~ 265V AC.
K. OSD Remote control connector (MINI JACK)
L. The Device for sensing brightness level (for D/N function).
4. USER OSD SETTING
SETTING SWITCHES AND FUNCTIONS
1.UP button –This button is used to move the cursor upwards. Use
this button to select item.
2.LEFT button –This button is used to move the cursor left. Use to
select or adjust the parameters of the selected item.
3.RIGHT button –This button is used to move the cursor to the right.
Use to select or adjust the parameters of the selected item.
4.DOWN button –This button is used to move the cursor downwards. Use this button to select
item.
5.ENTER button – Press this button to display the setting menu, if the selected item has its own
menu; press this button to enter sub menu.
PC control
For Windows 95/98/ME/2000/XP
1. Insert the floppy into diskette drive
2. Execute OSD_CONT.EXE
3. A keypad icon will be displayed on the screen
4. Use mouse to point the icon for on-screen-display setting
12V DC/24V AC MODEL

- 5 -

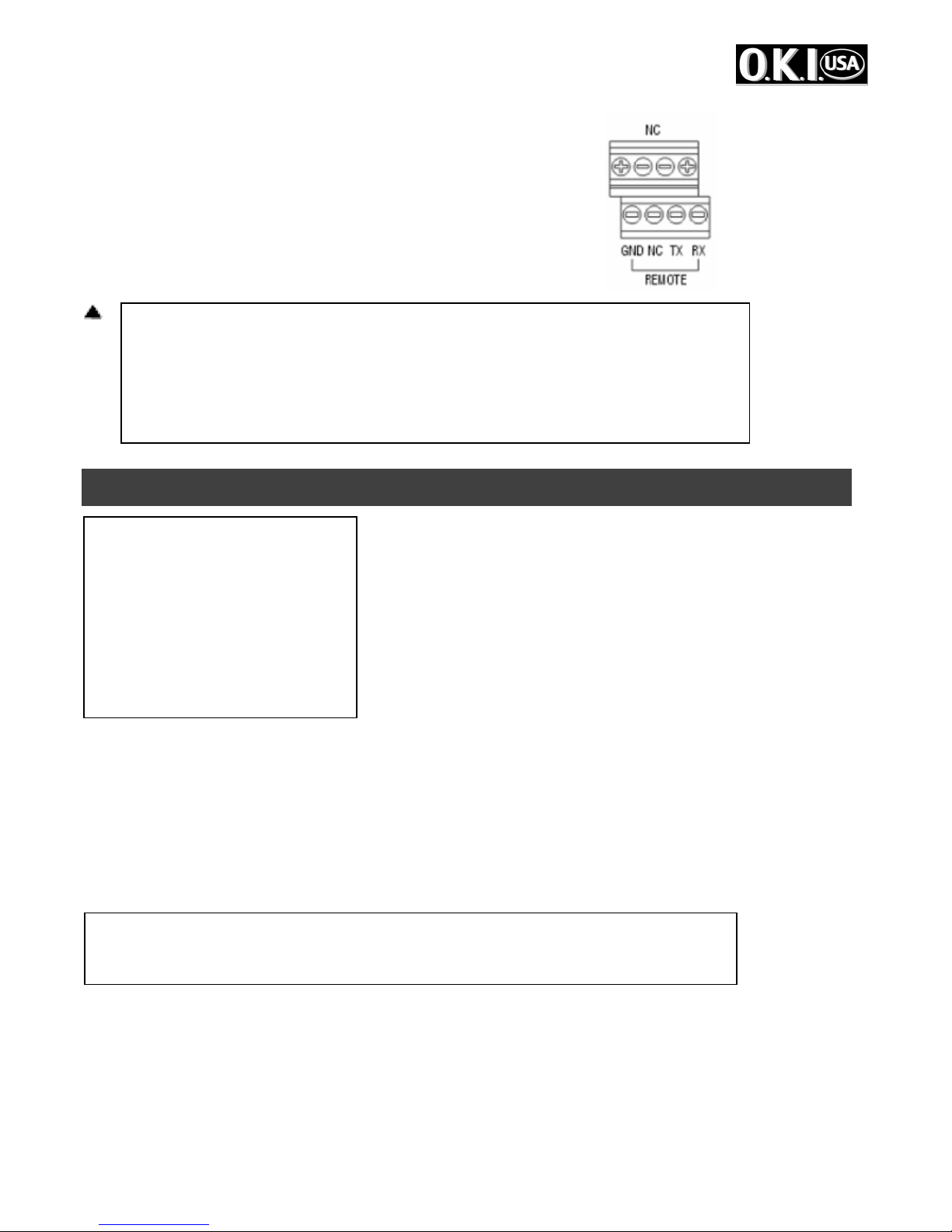

RS-232 Connection Please refer to the Setup option
In the program window (com2 default)
1. RX pin----SD (D-sub 9) pin 3 from PC
2. TX pin----RD (D-sub 9) pin 2 from PC
3. NC
4. GND------GND (D-sub9) pin 5
5. SETTING MENU AND FUNCTIONS
1. Press the ENTER key to enter main menu
2. Press UP/DOWN key to select the item for
adjustments
3. Press ENTER key to enter the sub menu of selected
item
4. Move cursor to END at the bottom of the screen and
press the ENTER to close the setup menu and return
to normal camera operation mode
5. Move cursor to INIT and press ENTER to return all parameters to the factory default settings
(Don’t press INIT unless it is necessary)
6. Move cursor to↑position and press ENTER key for menu position setting
7. Move the cursor to UNLOCK and press the ENTER to LOCK the setup menu
Note: If no button is pressed for 2 minutes while any setting menu displayed, all modified data
will be stored and camera will return to the normal camera picture mode
UNLOCK PASSWORD
Press UP, DOWN, DOWN, RIGHT then ENTER key to unlock the menu.
SETUP MENU
CAMERA ID OFF
SENSE UP OFF
LIGHT CNTL WD MODE
WHITE BAL ATW
PICTURE VIDEO
FOCUS ADJ
MISC
END INIT ↑UNLOCK
1/O port The port can send or received signal by external device.
Select option mode by OSD D/N function
The camera can switch day or night by external device when it select
External mode.
And other mode can send signal to external device. Day (oV0, Night (+5)

- 6 -
SETUP MENU
CAMERA ID OFF
SENSE UP OFF
LIGHT CNTL WD MODE
WHITE BAL ATW
PICTURE VIDEO
MISC
END INIT ↑UNLOCK
6. Setting Procedure
6.1 Camera Identification Setting (CAMERA ID)
Move cursor to CAMERA ID then press ENTER key to enter ID sub menu
Move cursor to the character you wish to enter or modify by pressing UP, DOWN, RIGHT, LEFT
key. After selecting the character, press the ENTER key, to display the selected character on
editing data area.
Repeat the step above until all characters are inputted or edited.
Move cursor to ← → to edit a specific character in editing data area.
Move the cursor to BLANK (between “z” and “,”) character position then press enter to erase
the character previously entered.
Move cursor to POSI, and then press ENTER, the camera ID will
be displayed on screen.
Camera ID can be moved to desire position by pressing UP,
DOWN, RIGHT, LEFT key, and then press ENTER to fix the ID
position and return to previous menu.
6.2 Move cursor to SENSE UP, Press LEFT or RIGHT key to select item,
Mode sequence:
OFF 2X 4X 8X 16X
160 80X 40X 20X
The maximum sense up function for low bright,
It controls and offers the optimal brightness level by
increasing the number of stored fields of the CCD in
response to the brightness level.
This function will start up and control electronic frame integration automatically.
↑
← CAM 001 →
↓
Character Area
CAMERA ID
0 1 2 3 4 5 6 7 8 9 :
A B C D E F G H I J K
L M N O P Q R S T U V
WX Y Z a b c d e f g
h i j k l m n o p q r
s t u v w x y z , .
□□□□□□□□□□□□
RET POSI ←→
Blinking
Editing Data Area
Command area

- 7 -
SETUP MENU
CAMERA ID OFF
SENSE UP OFF
LIGHT CNTL NORMAL
WHITE BAL ATW
PICTURE VIDEO
MISC
END INIT ↑UNLOCK
SETUP MENU
CAMERA ID OFF
SENSE UP OFF
LIGHT CNTL WD MODE
WHITE BAL ATW
PICTURE VIDEO
MISC
END INIT ↑UNLOCK
6.3 Light Control
Move cursor to LIGHT CNTL then press ENTER key to enter sub menu
Press RIGHT or LEFT key to select item, then press ENTER to enter Item sub menu
Mode sequence:
WD MODE NORMAL
6.3.1.1 WD mode setting
Press LEFT or RIGHT key to select item
Mode sequence:
INDOOR1 INDOOR2 INDOOR3 INDOOR4
ENGINEER OUTDOOR2 OUTDOOR1
The WD mode has 6 options:
•INDOOR1: Lobby or similar environments
•INDOOR2: Hallway or similar environments
•INDOOR3~4: Environments with large contrast
•OUTDOOR1: Camera near to the door surveillance for outside or similar environments
•OUTDOOR2: Camera under strong light condition shooting to weak light environments
•ENGINEER: This function is open for Engineer only.
6.3.1.2 FLICKERLESS (NTSC system only, PAL system off):
When the function is set to “ON”, the shutter speed 1/60 sec will
become 1/100 sec to Flickerless. (NTSC system)
6.3.2. NORMAL mode setting
Move cursor to LIGHT CNTL and choose NORMAL then press
ENTER key to enter NORNAL mode sub menu.
WD MENU
MODE INDOOR1
FLICKERLESS OFF
RETURN
Press
ENTER to
sub menu

- 8 -
6.3.2.1 NORMAL mode sub menu
•Type
Move cursor to TYPE and press LEFT or RIGHT to change Auto
Exposure TYPE
•Mode sequence:
AES AUTO IRIS ME
Shutter speed of each mode:
AES mode: 1/50(1/60) to 1/100,000 sec.
AUTO IRIS mode: 1/50(1/60) sec
ME mode: 1/50(1/60) to 1/100,00 sec.
6.3.2.1.1 AUTO IRIS mode sub menu
Press ENTER key, AUTO IRIS menu will be displayed on screen.
Move cursor by UP/DOWN key to select adjustment item.
IRIS LEVEL: Press LEFT or RIGHT to adjust the level for auto-iris lens (for DC type).
Ranging from 0 to 10.
FLICKERLESS (NTSC system only, PAL system off): When function is
set to “ON”, the shutter speed 1/60 sec will become 1/100 sec to
Flickerless. (NTSC system)
6.3.2.1.2 ME mode sub menu
Press ENTER key to NORMAL menu, MANUAL EXPOSURE menu will
be displayed on screen. Move cursor by UP/DOWN key to select
adjustment item.
Shutter Speed: 1/60(1/50), 1/120(1/100), 1/250, 1/500, 1/1,000,
1/2,000, 1/5,000, 1/10,000 sec.
Gain: You can increase or decrease the bright level.
•BLC:
Press LEFT or RIGHT key to turn Back Light Compensation
function ON/OFF
•AGC:
You can increase or decrease the bright level low light condition.
•E-ZOOM
Press ENTER key to display E-ZOOM sub menu.
NORMAL MENU
TYPE AES
BLC OFF
AGC 00
E-ZOOM
RETURN
ME MENU
SHUTSPEED 1/50SEC
GAIN 01
RETURN
NORMAL MENU
TYPE AES
BLC OFF
AGC 00
FLICKERSS OFF
E-ZOOM
RETURN
AUTO IRIS MENU
IRIS LEVEL 05
FLICKLESS OFF
RETURN
PUSH TO LOCK MENU
PTL PUSH
RETURN

- 9 -
SETUP MENU
CAMERA ID OFF
SENSE UP OFF
LIGHT CNTL NORMAL
WHITE BAL ATW
PICTURE VIDEO
MISC
END INIT ↑UNLOCK
MENU WHITE BAL MENU
R GAIN 15
B GAIN 12
RETURN
PRESET MENU
WB FIX INDOOR
3200K
RETURN
6.3.2.1.2 E-ZOOM sub menu
Press LEFT or RIGHT key to change 3 types E-ZOOM,
press ENTER key back to previous menu.
6.4 WHITE BALANCE
Move cursor to WHITE BAL then press ENTER key to enter
sub menu
Item sequence:
ATW→PRESET →MANUAL →PTL Push To Lock →ATW
1. ATW—Auto tracking white balance
2. Preset—fixed color temperature for Indoor →Outdoor→Fluorescent→Indoor
3. PTL—Push to lock white balance
Press ENTER key the camera will process white balance. Character “PTL PUSH” will then
change to “PTL SETTING”, during the process. Please wait until the Character change back to
“PTL PUSH” to exit this menu.
4. Manual—manual white balance
Change the value of R or B gain, to adjust desired white balance
E-ZOOM 01 ←→

- 10 -
6.5 PICTURE CONTROL
Menu item: VIDEO →GAMMA →APERTURE→VIDEO
•Video Menu
1. Brightness level setting
Move cursor to BRIGHT position, while observing the color
video monitor or waveform monitor / oscilloscope, press
LEFT or RIGHT key to adjust the brightness level.
2. Pedestal level setting
Move cursor to PEDESTAL position, while observing the color video monitor or waveform
monitor / oscilloscope, press LEFT or RIGHT key to adjust the pedestal level.
•Aperture Menu
Press LEFT or RIGHT key to adjust aperture correction.
•Gamma Menu
1.There are 7-gamma curves, press LEFT or RIGHT key to adjust
gamma correction.
6.6 Day /Night Control
Move Cursor to D/N CNTL then press ENTER key to enter D/N MENU
SETUPMENU
CAMERA OFF
SENSE UP OFF
LIGHTCNTL NORMAL
WHITEBAL ATW
PICTURE VIDEO
D/N CNTL
FOCUSADJ
MISC
ENDINIT↑UNLOCK
Press RIGHT to LEFT key to select item, then Press ENTER to enter item sub menu
Lux/Delay ÆSCHEDULE ÆEXTERNAL ÆDAY MODE ÆNIGHT MODEÆENGINEER
▲6.6.1 D/N Type
1. LUX/ DELAY MENU
Press RIGHT or LEFT key to set the item.
LUX LEVEL- Sets the color to mono-Chrome switching
level. You can select
LOW LVL, MID LVL, HI LVL.
LUX/DELAYMUNE
LUX LEVEL LOW
DELAYTIME 10SEC
RETURN
VIDEO MENU
BRIGHT 07
PEDESTAL 1.0 IRE
RETURN
APERTURE MENU
APERTURE 01
RETURN
GAMMA MENU
Y GAMMA 02
RETURN
D/N MENU
D/N TYPE LUX/DELAY
D ÆN Mode Normal
RETURN
ENTER

- 11 -
SETUP MENU
CAMERA ID OFF
SENSE UP OFF
LIGHT CNTL NORMAL
WHITE BAL ATW
PICTURE VIDEO
D/N CNTL
FOCUS ADJ
MISC
END INIT ↑UNLOCK
DELAY TIME- Sets the detecting time. The color/ monochrome mode switches if the brightness
level change specified. You can select 10 sec, 30sec or
60sec
2. SCHEDULE (D.N SWITCH TIME)
This function can set the time to change the Day/ Night
mode.
CHOICE D/N TYPE: Press ENTER key to Switch D or N
mode to conform to your setting Time.
¤If NÆD time same with other camera will plus 1 minute by itself.
3. EXTERNAL
This function allow use external device to control camera
switch to Night mode by Hi (+5V) potential or Low (0V)
potential.
¤ Function 1~3 will action when back to first menu
(SETUP MENU)
4. DAY MODE
Switch to DAY mode.
5. NIGHT MODE
Switch to NIGHT mode.
6. ENGINEER MODE
This mode for engineer only.
▲6.62 DÆN MODE
This item will switch to WD mode or Normal Mode when Night Mode.
6.7 FOCUS ADJ
Move cursor to FOCUS ADJ then press ENTER key to enter FOCUS ADJ MENU
This function helps user to adjust suitable position for lens focus.
When Completed the focus adjust press the ENTER key back to Setup Menu.
LUX/DELAYMUNE
LUX LEVEL LOW
DELAYTIME 10SEC
RETURN
EXTERNALDÆN MENU
INPUTSIGNAL HI
RETURE
Please adj focus
Press ENTER to exit
ENTER

- 12 -
6.8 MISC
This function is to adjust the camera’s synchronization and lens applications. Move cursor to
MISC and press ENTER.
1. EXTSYNC
Press LEFT or RIGHT key to select the type of camera’s synchronization, then press ENTER
key to enter external sync phase adjusting menu.
Align sync phase by press LEFT or RIGHT key.
2.AUTOIRIS
Press LEFT or RIGHT key to select the type of Auto-iris lens:
DC lens / Video lens.
3. H/V MIRROR
Press LEFT or RIGHT to Left/right reversal (H) or Top/bottom reversal (V) or rotates the image
180 degrees (H/V).
MISC MENU
EXT SYNC INT
AUTO IRIS DC LENS
H/V MIRROR OFF
MASK
SYSTEM HOUR: 08
MIN: OO
SYSTEM TIME: DISPLAY
RETURN

- 13 -
7. SPECIFICATIONS
Model WDS-HDR1527DN WDS-HDR1527DNP
TV System NTSC PAL
Image Device 1/3" Sony Wide Dynamic Double Speed CCD
Picture Elements 811(H) x 508(V) 795(H) x 596(V)
Scanning System 525 lines 625 lines
Sync System DC Internal / AC Line Lock Sync
Horizontal Resolution Color: 520 TV Lines B/W: 570 TV Lines
Minimum Illumination 0.5Lux @ F1.2 (30 IRE, AGC 36dB)
Aperture Correction V aperture-gain adjustable
Gain AGC 0-36dB
S/N Ratio Better than 50dB
Contrast Level 400:1
Wide Dynamic Range 52dB
Frame Integration 2X~160X
Masking 8 areas ON/OFF, color, position, size adjustable
E-Zoom 3 types E-ZOOM (Normal mode only)
Mirror Horizontal, Vertical, 180°
Auto Exposure System 1. AES Mode (auto): 1/60 -1/100,000sec. 1. AES Mode (auto): 1/50 -1/100,000sec.
Manual Exposure
System Shutter Speed
2. Auto Iris Mode: 1/60sec.
1/60, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/5000, 1/10000 sec.
2. Auto Iris Mode: 1/50sec.
1/50, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/5000, 1/10000 sec.
White Balance ATW: Max 2500°K - 9500°K
Push to Lock: Gain Memory
Preset: Indoor Mode 3200°K, Outdoor Mode 6300°K, Fluorescent Mode 4200°K
Day & Night 1. Auto Detect: D/N switch illumination level, Delay times
2. D/N by Schedule: Day to Night time, Night to Day time
3. D/N by External: Hi (5V DC) or Low (0V DC) switch to Night mode
4. Day Mode; 5. Night Mode
Video Output Signal
Composite (BNC): 1.0 Vp-p at 75Ωloads
Gamma Correction Y gamma curve selectable
OSD Presentable
Function 1. Camera ID: up to 12 characters alphanumeric, position
2. Sense Up: 2X~160X
3. Light Control: WD Mode: 6 preset setting
Normal Mode: AES, Auto Iris, ME, BLC
On/Off, AGC 0~15 (36dB), Flickerless (NTSC only), E-Zoom
4. White Balance: ATW, Preset, Manual, PTL
5. Sync system selection, phase adjustment
6. Picture Brightness, gamma, aperture correction
7. Miscellaneous: Lens select, Iris Level, Mirror, Mask, System Time (hour, minute)
8. OSD Menu Lock
Auto Iris Lens
Accepts video or DC drive iris lens
Lens Mount C & CS Mount
Operating Temperature -10°C to 50°C
Power Source 12V DC / 24V AC
Power Consumption 5.5W (DC type); 5.8W (AC type)
Dimensions (WxHxD) 71x52x128 mm

- 14 -
