Outdoor Furnace Guru Spirit S4868P User manual

1
CONGRATULATIONS ON YOUR INVESTMENT
You have selected one of the simplest yet durably advanced outdoor furnaces on the
market today! The Spirit S4868P has been designed and built to old fashion quality
standards that have resulted in outstanding operating principals and longevity
To ensure that you get the maximum benefits and initiate safe operating principals, we
suggest you get to know your Spirit and read this manual from cover to cover before
operation. Although we have strived to include all possible scenarios for safe opera-
tion and troubleshooting of your furnace , there may arise a circumstance that is not
covered in this manual. NEVER attempt to make changes to the operating system
without authorization if it is not covered in this manual. Doing so could result in death
or injury to yourself or others.
Thank you for choosing The Spirit S4868P Outdoor Wood Burning Furnace.
We Hope you enjoy both the new comfort and savings created by your new Spirit Out-
door Wood Burning Furnace.
Outdoor Furnace Guru, 511 Pine Street, Sparta, WI 54656
Tel. [phone] Fax. [phone]
www.outdoor-furnace-guru.com
Model S4868P

2
SOLID (WOOD) FUEL BOILER
TESTED TO CSA B366.1-1991, UL 726-06
CHAUDIERE COMBUSTIBLE À (BOIS) SOLIDE
TESTÉ CSA B366.1-1991, UL 726-06
Although tested at one time, these units
will not come with a UL certification
sticker!

3
Table of Contents
Congratulations
CSA label
Table of contents
Safety
Specifications
Component Locations
Base Requirements
Installation Requirements & Cautions
Operation Procedures
Cautions
A overview to burning the Spirit way
Filling the furnace with water
Starting a fire in the furnace
Loading the furnace with fuel
The burning cycle
Ash removal
Resetting the computer
Shutting down for the season
Maintenance
Cleaning the blower damper
Troubleshooting chart
Wiring diagrams
Page
1
2
3
4
5
6,7
8
9
10
11
11,12
13,14
15
16
17
18
19
20
21-24
25
26-28
SAVE THESE INSTRUCTIONS

4
!!CAUTION!!
The Spirit Outdoor Wood Furnace should not be used as a stand alone unit. A backup system
should be in place in case of failure.
Burn seasoned firewood only. Green wood does not burn hotter and will cause inefficiency
and problems. NEVER burn other materials such as garbage, tires, engine oil, solvents,
gasoline or any other flammable liquids.
Start your fire with paper and kindling only! NEVER use gasoline, kerosene, charcoal lighter
fluid or any other similar liquid to start or freshen up a fire.
Operate your Spirit Outdoor Wood Burning Furnace at atmospheric pressure only! DO NOT
seal, clamp or tape any caps in place.
NEVER install the Spirit Outdoor Furnace inside another building! The Spirit is designed for
outdoor use only!
Do Not operate the furnace during power failure.
Do Not allow the furnace breath by providing combustion air through an open fire door.
Crack open the fire door slowly when opening to allow combustible gases to escape. Un-
burned gases can ignite and cause serious burns if the door is opened to quickly.
Keep the area 10 feet around your furnace clear of wood, paper and other combustible materi-
als at all times.
Locate your Spirit Outdoor Wood Burning Furnace at least 50 feet from any buildings or struc-
ture. Check with your insurance company for additional requirements regarding the installa-
tion of your Spirit Outdoor Wood Burning Furnace to safe guard your coverage.
Use of a rain cap with spark arrestor is recommended.
Installation is to be done by a qualified installer only.
For additional information on safe burning procedures, request the NATIONAL FIRE
PROTECTION ( Using Coal and Wood Stoves Safely), NFPA No. HS-10-1978. Address is NFPA,
470 Atlantic Ave., Boston, MA 02210.
!
!
!
!
!
!
!
!
!
!
!
!

5
Elite Heat 4868P Specifications
Total Width 50
Base Width 48
Total Length 82
Base Length 68
Height 90
Firebox Length 54
Firebox width 38
Chimney size 8
Wood Length 42
Water Capacity (US gal) 320
Door Size 20 x 20
Weight 2790
Heating Capacity* 1200—7000
Sq. Ft.
All measurements are expressed in inches.
Weights and measures may vary slightly.
*May vary according to home and climate conditions.

6
Furnace component name and locations
1-Float and vent tube
2-Float cap assembly
3-Water level indicator washers
4-Lifting eye
5-Rain cap/spark arrestor
(Not sold with furnace)
6-Insulated stove pipe
(Not sold with furnace)
7-Stove pipe adapter
(Not sold with furnace)
8-8” flue pipe
9-Upper level temperature gauge
1 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
10-Blower shut off switch
11-Door hinges
12-Base lifting and tie down tubes
13-Base
14-Fire door safety latch
15-Fire door handle
16- Fire door latch
17-Fire door shield

7
Furnace component name and locations
Rear Access Area
(Shown with 2 pumps installed)
18
19
20
21
22
23
24
25
26
26
27
18– Computer controller
19– Mini fuse & main shut off switch
20– Blower
21– Blower mounting plate
22– Secondary return
23– pump receptacle box
24– primary return
25– secondary return
26– reservoir drain
27– temperature control probe
28– field wiring junction box
28
Component location and materials may vary by revision.

8

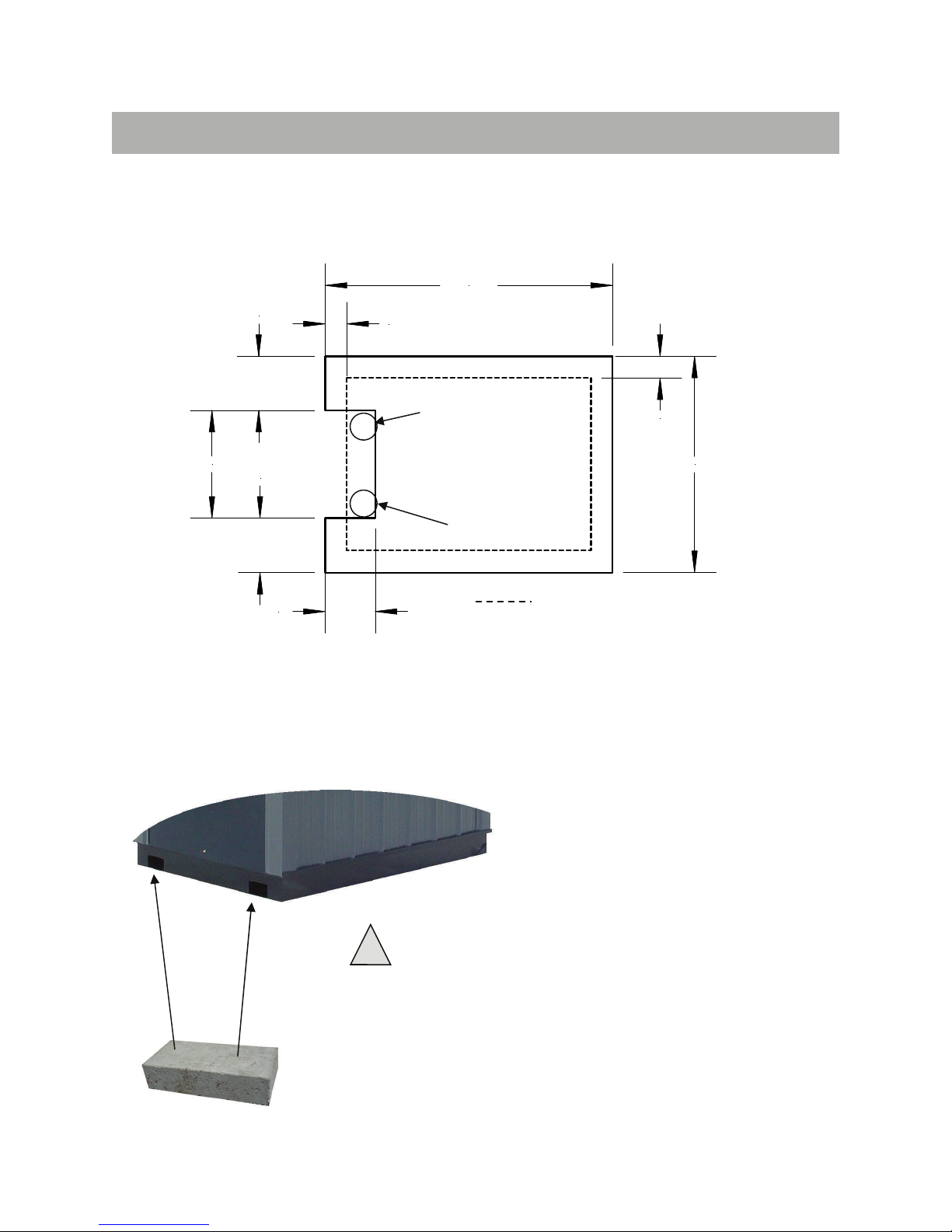

Base Requirements
Minimum Slab Dimensions
Front
Rear
80.00"
60"
30.00"
14"
6"
6"
15"
15"
Represents furnace base
NOTE: When installing one set of lines for service to a single area, the lines
must come in to the unit on the primary side marked A for the furnace to sense
and operate properly. Secondary sets of line must come into the access area in
the area marked B.
A
B
PRIMARY LINES
SECONDARY LINES
When electing to use blocking instead of
a cement slab, support the furnace by
the lift tubes both front and back on either side.
USE SOLID BLOCKING ONLY!
DO NOT USE CINDER BLOCK!
!

9
Installation Requirements & Cautions
Use only chimneys suitable for solid fuel. Contact your dealer for in-
structions if additional chimney is needed . Do not connect to a chimney
flue serving another appliance. Use only non-combustible materials with
adequate support for a base. Maintain the following clearance to combus-
tibles. Sides=36” Front=48” Top=12” Chimney connection=18”
Adhere to minimal clearances or fire may result!
This unit may not be connected to an existing boiler system unless a suit-
able water to water exchanger is used.
This unit shall be installed without interfering with the normal delivery of
heated water from the original boiler.
This unit shall be installed without affecting the operation of electrical and
mechanical safety controls of the original boiler.
Installation of this unit shall provide for a change over from one fuel to an-
other without requiring manual adjustment of any controls or components
other than the thermostats.
Maintain adequate water capacity in this unit to prevent damage in the ad-
vent of a power failure.
Do not change the function of any controls or rewire the original boiler. A
wiring interconnection is permitted. The electrical system of both boilers
must be powered from a singe branch circuit without exception.
The operation of a gas boiler must be verified for acceptable operation be-
fore and after installation of this unit by a gas fitter who is recognized by
the regulatory authority.
Installation should comply with requirements of CAN/CSA-B365, and
changes to the installation should comply with CSA B139 (for oil-fired),
C22.1 (for electric) or CAN/CGA-B149.1 or CAN/CGA-B149.2 (for gas-
fired)
!
SAVE THESE INSTRUCTIONS
Installation with existing boiler

10
Operational Procedures
SAVE THESE INSTRUCTIONS
Burn wood only!
WARNING! Risk of Fire
Do not operate with fueling door open! Keeping the door closed
tightly and seals in good condition is a must for proper operation.
Inspect and clean the flue regularly!
Use only CSA and UL approved double wall, insulated,
stainless steel chimney pipe when additional chimney height is
required. Additional chimney should be braced.
Do not operate during a power failure. Keep doors closed until
power is restored.
Do not store fuel or other combustibles within clearances!
Sides=36” Front=48” Top=12” Chimney connection=18”
Adhere to minimal clearances or fire may result!
OPERATE THE (GAS, OIL, ELECTRIC) BOILER PERIODICALLY TO ENSURE THAT
IT WILL OPERATE SATISFACTORILY WHEN NEEDED.
DO NOT CONNECT TO ANY CHIMNEY OR VENT SERVING A GAS APPLIANCE.

11
Operational Procedures
At fist glance, you will notice that the S4868P firebox is very simple
and similar to other outdoor wood furnace fireboxes on the market.
However, that is where the similarities stop.
The S4868P combustion area has been designed to accept large
wood loads without flooding the combustion chamber with to much fuel
release or to much combustion air. The S4868P regulates the air/fuel
ratio to burn a hotter more efficient fire. We call our burning method the
wick-burn/air-shear design. The result of burning with this method al-
lows the S4868P to burn cleaner, hotter and more efficient than other
more common designs while maintaining a large firebox size. Large
firebox designs are appealing due to ones ability to cut wood larger,
saving valuable time preparing the winters fuel supply. Even though you
may be a veteran wood burner, we recommend that you study the fol-
lowing operational methods and adhere to them closely. Following the
set operational procedures will ensure that your furnace can do the
greatest amount of heating on the least amount of wood, and do it
cleanly.
A overview to burning the Spirit way
Filling the furnace with water
The Model S4868P furnace has a water capacity of approximately
320 gallons. It is recommended that you estimate the filling time before
starting in order to prevent overflow. This can be done by timing how
long it takes to fill a 1 gallon pail.
Example: 1 gallon in 15 seconds
15 seconds x 320 = 4800 seconds
4800 seconds / 60 = 80 minutes
IMPORTANT: It is recommended that a flushing is performed before fill-
ing the unit to remove any foreign materials that may have found their
way into the water reservoir.

12

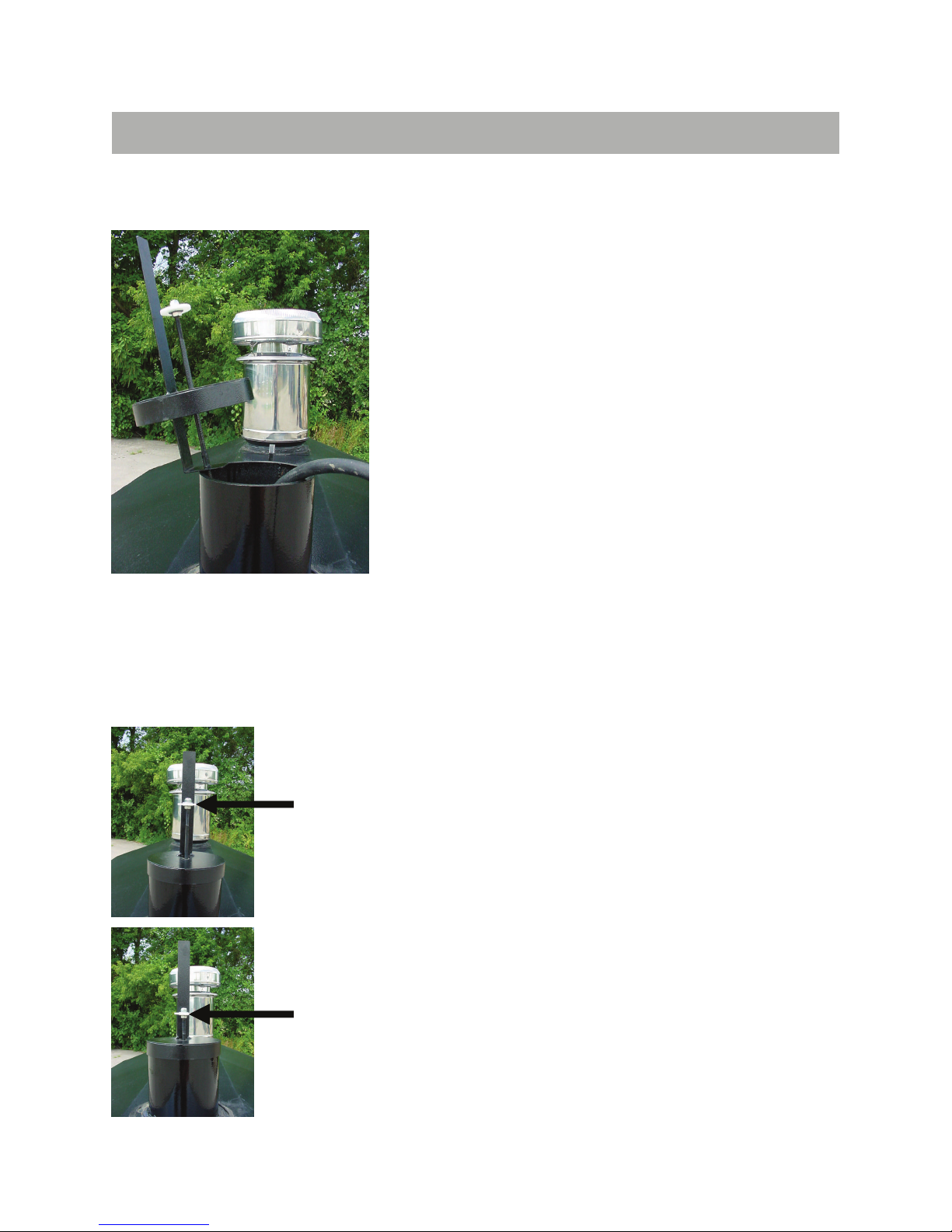

Operational Procedures
Filling the furnace with water
STEP 1 : Remove float cap assembly to one
side of the float and vent tube.
STEP 2 : Insert a garden hose into the float
and vent tube. Be sure that the hose is not
kinked or water flow will be affected, chang-
ing the calculated fill time.
STEP 3 : When the furnace is approximately
1/2 full, add the approved Outdoor Wood
Furnace water treatment.
STEP 4 : Continue to fill until the water level
is approximately 1 inch below the bottom of
the vent tube. This will allow for expansion
of the warming water to the proper water
level when the furnace is fired.
STEP 5 : Open any valves and check all installed plumbing for leaks.
STEP 6 : Apply power to the pumps and allow circulation and mixing to
occur of the treated water
NOTE: If overflow occurs, drain excess water from rear at the reservoir drain
Proper water level is 3-1/2” out of the
Top of the float cap assembly
Water should not be allowed to drop below
2” from the top of float cap assembly.
These Measurements are at operational
temperatures(160-180 deg.)

13
Operational Procedures
Starting a fire in the furnace
STEP 1 : Perform the following pre-firing checks.
 Does the firebox door move freely and seal?
 Does the combustion fan operate?
 Is the furnace water level correct ?
 Is the flue free from obstructions?
 Are there any leaks?
 Is the blower damper flap able to move freely?
 Is the pump circulating properly?
STEP 2 : Place paper or cardboard in firebox
approximately 3/4 the way back.

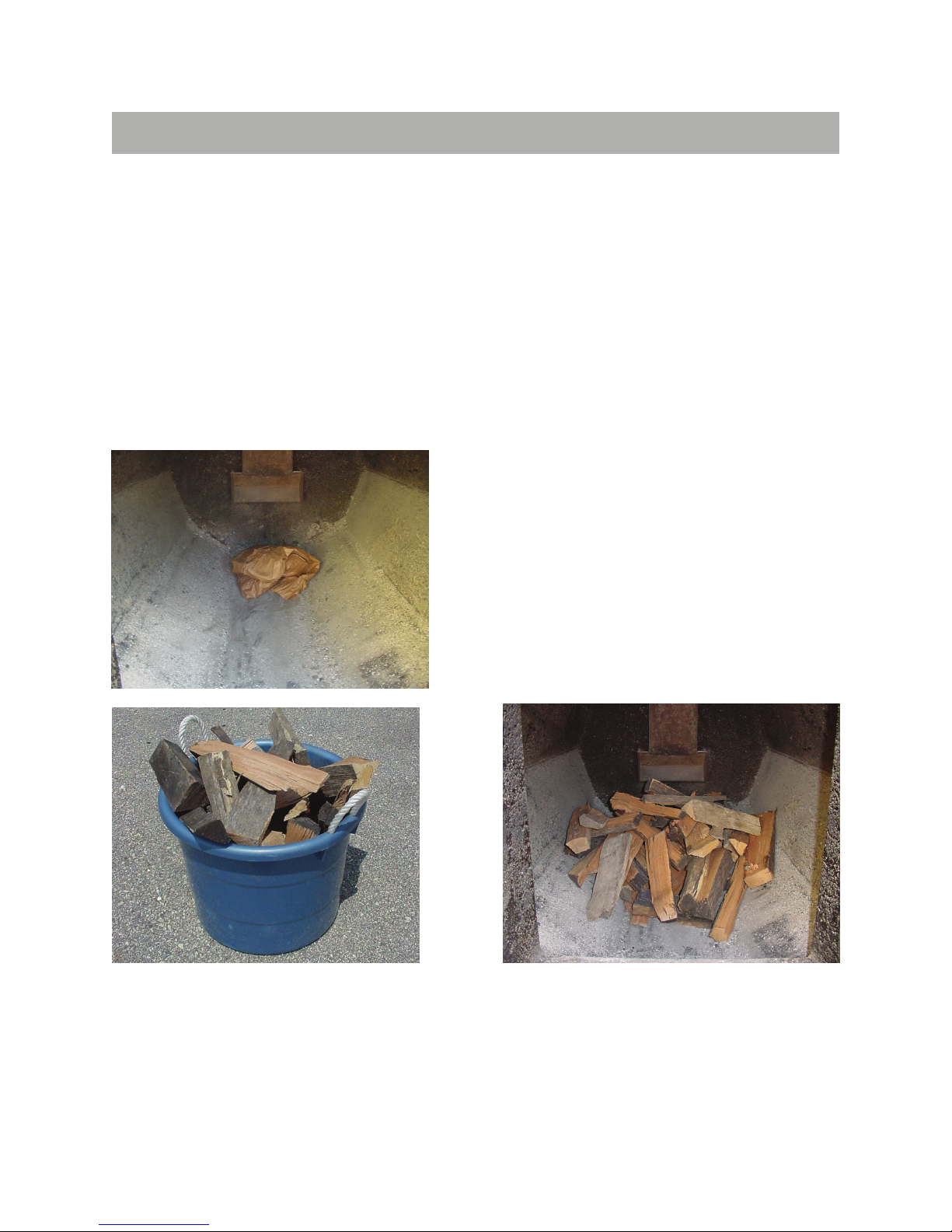

STEP 3 : Place approximately 1 bushel of dry kindling on the front side of the paper
in a loose random fashion as shown.
Always open door slowly!
CAUTION! Hot surfaces.
Keep children away. Do not
touch during operation.
LOAD FUEL CAREFULLY OR DAMAGE MAY RESULT
NOTE: Establish a routine for firing techniques. Check daily for creosote build up un-
til experience shows how often cleaning is necessary. Have a clearly understood
plan to handle a runaway fire.

14
Operational Procedures
Starting a fire in the furnace (continued)
STEP 4 : Make sure the blower switch is in the off position. Light a piece of paper
on fire and throw it to the back of the furnace. Immediately turn the fan switch to the
on position for 3 seconds and then turn off. This ensures that the fire will make con-
tact with your starter fuel. Once the starter fuel has begun to burn, close the door
and immediately turn on the blower switch.
Lighting fire Starter fuel igniting
Fan pushing fire into kindling
(Shown with the door open for instruc-
tional purposes only!)
!
Never lean or reach into the firebox for any reason!
Start your fire with paper and kindling only! NEVER use
gasoline, kerosene, charcoal lighter fluid or any other similar
liquid to start or freshen up a fire!
!
Always open door slowly!
Burn dry seasoned wood only.
Store wood in dry covered area
outside of the require clearances
and out of the way of cleaning
and fueling the furnace. Estab-
lish a safe routine for fuel storage
and loading.

15
Operational Procedures
Loading the furnace with fuel

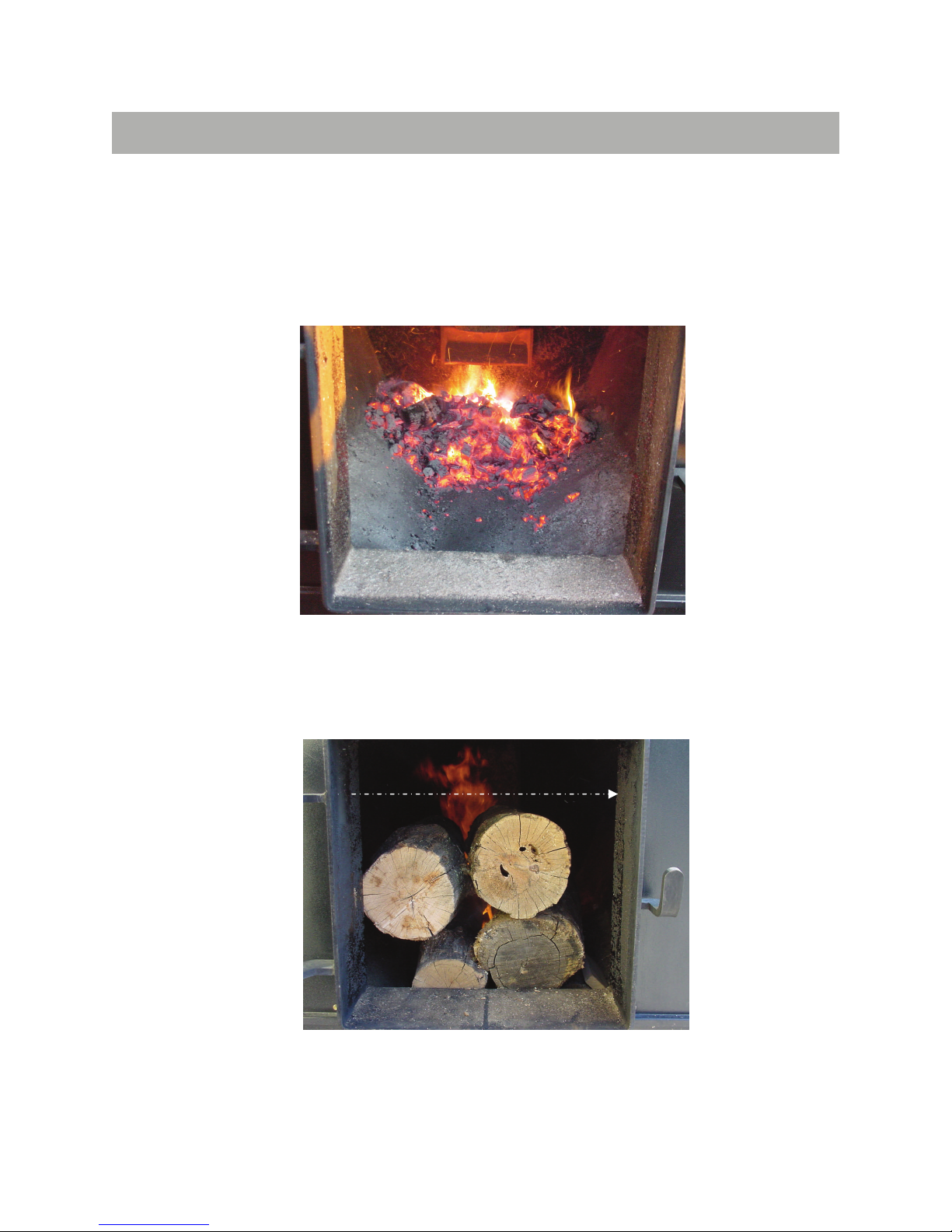

STEP 5 : Allow the kindling to burn down to a coal bed. Turn the blower
switch off and open door slowly. Push the coal bed to the rear 25% of the
firebox with a long handled shovel.
STEP 6 : Load fire wood just in side the door and rank as tightly as pos-
sible. Cut wood no longer than 36 inches. Longer cut wood will tempo-
rarily obstruct air flow and cost efficiency. Do not fill the firebox above
the indicated maximum load line.
STEP 7 : Shut the furnace door and turn the blower switch to the on po-
sition.
Maximum load line
Always open door slowly!
NOTE: If firebox
becomes over-
filled, turn the
blower switch off
and allow the fire
to die down before
removing any fuel.
Remove fuel to
proper contain-
ment for hot fuel.

16
Operational Procedures
The burning cycle
Please learn and follow the cycle of combustion and re-fueling in the
S4868P furnace. Doing so will increase the life of your unit by reduced
emissions, increase efficiency and decrease the amount of ash removal.

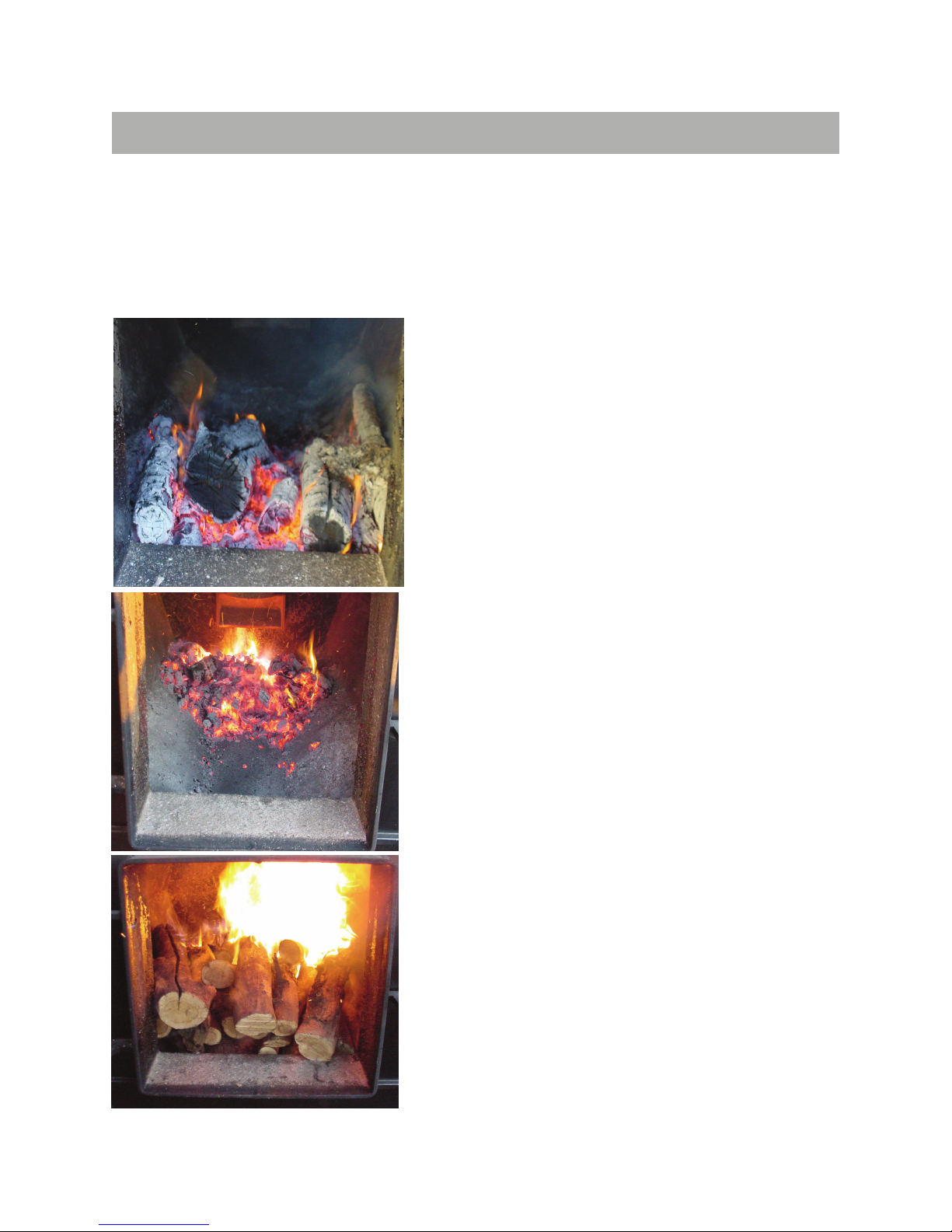

The S4868P furnace burns its fuel charge in a
wick form. This effectively controls the amount of
air and fuel that are allowed to mix, thereby creat-
ing a cleaner burn with hotter firebox tempera-
tures. The greater the difference between the wa-
ter temperature and the firebox temperature, the
more heat transfer power is available. This
equates to quicker recovery times and shorter
burn cycles. Notice to the left how the wood
charge has been consumed from the back to the
front. This is an appropriate amount of coal bed to
start up the next fuel charge.
Carefully push the remaining coal bed from
the previous fuel charge to the rear 1/3 of the fire-
box with a long handled shovel.
NOTE: Be aware that the hotter the fire, the
less creosote that is deposited and that weekly
cleanings may be necessary during mild
weather, even though monthly cleaning may
be enough in the coldest months. A Small in-
tense is preferable to a small smoldering fire
to reduce the amount of creosote deposition.
Load the new fuel charge to the front of the fire-
box no higher than 3/4 up in the door frame. A
partial fuel charge is shown in the picture to the
left for educational purposes. Once you get to
know your furnaces demands, it would be good
practice to only load as much fuel as would be
needed to get you to the next convenient fueling
time.

17
Operational Procedures
Ash removal
Ash removal, when used at maximum capacity, will be at 7 to 10 day
intervals, depending on ash content of the fuel being burned. For most,
ash removal will be at 21 to 30 day intervals. Ash is removed when it
builds up in the rear of the furnace enough that it noticeably affects air
flow. This will be noticed in more emissions (smoke) and longer cycling
times. When the furnace is used at 50% capacity or less, some ash
should be left in the firebox rear to protect your unit from going out on an
extended period of cycling time. The extra ash helps to hold the coals
while combustion air is not present.
The following is the suggested method for ash removal.
Always use a metal container with a lid to hold ash.
!
STEP 1 : Pull or keep a small bed of
coals to the front of the firebox.
STEP 2 : Remove remaining ash using
the rear of the furnace as a back stop.
STEP 3 : Push the coal bed to the rear
of the firebox and reload with fuel.

18
Operational Procedures
Resetting the computer
Your S4868P furnace is equipped with a fail safe in the event that it should drop be-
low normal operating temperatures for a period of time. This would signify that there is
no heat being created in the firebox. The fail safe prevents the cold outside air from
blowing threw the firebox, helping to prevent a possible freeze up or wasting heat.
Follow these steps to reset the computer.
NOTE: All the required operating parameters are pre-set at the fac-
tory. Do Not try to alter these settings. Doing so may cause oper-
ating problems and will not be covered as a warranty item.

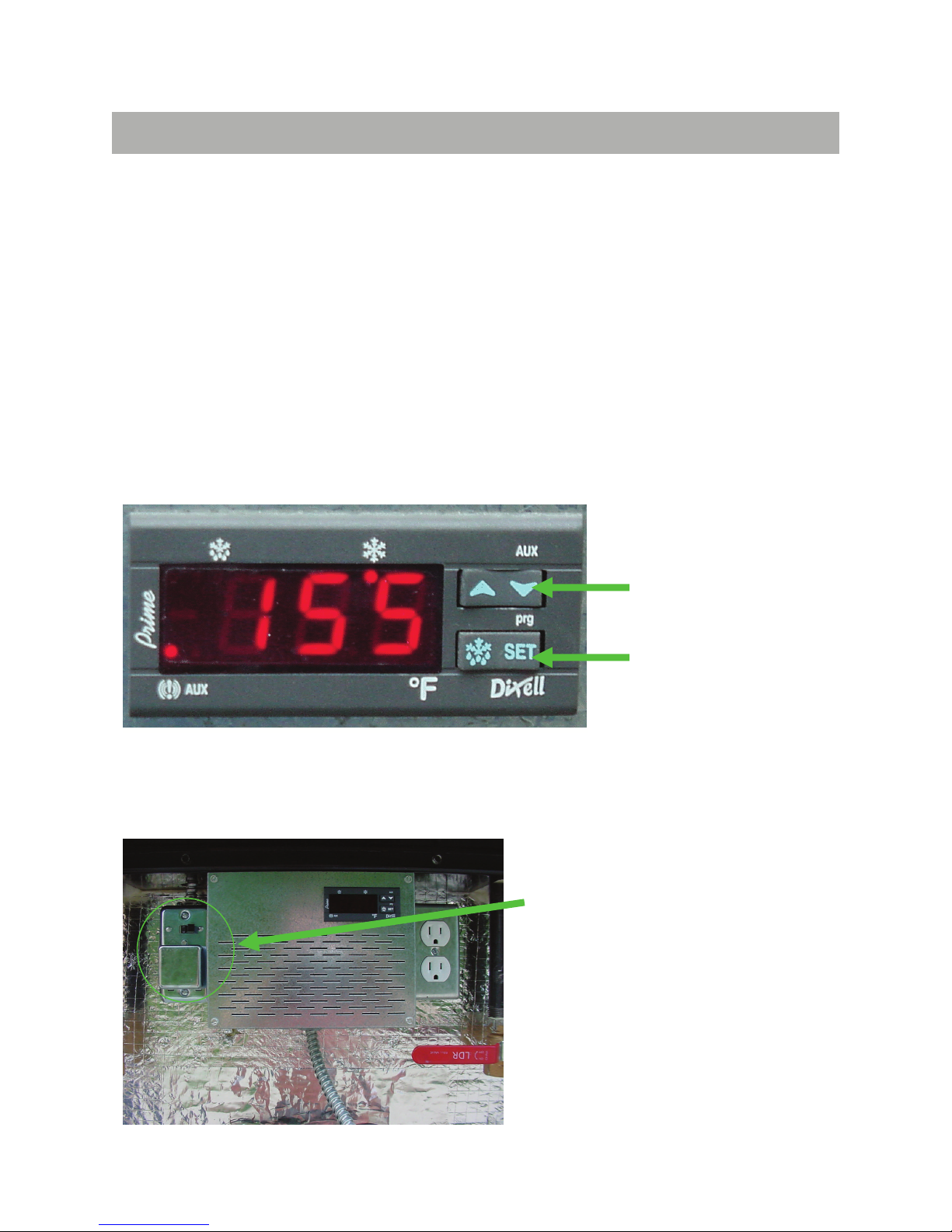

Press and hold these
two buttons (Down
arrow and SET) at the
same time for 1 sec-
ond to reset the com-
puter from a low alarm
(LA flashes intermit-
tently with the current
water temperature).
The blower will start
within 7 seconds.
OR
Disconnecting the power
for a couple of seconds
and turning it back on will
also reset the computer.
Power failures will not
change the settings within
or harm the computer.

19
Operational Procedures
Shutting down for the season
The following procedures should be taken to protect your investment
when not in operation for extended periods of time.
A. Scrape the inside of the firebox and flue clean of creosote and
ash build up and remove.
B. Spray down the inside of the firebox and flue with vegetable oil.
Do not use motor oil.
C. Cap the top of any chimney or the flue to prevent moisture
from entering the firebox.
D. Disconnect the power to the unit.
E. Check all caulk seam and gasket and repair as needed.
F. Make sure the water reservoir is full to prevent corrosion.
G. Draw a cool water sample before shutting down the pumps and
forward to the testing lab in the sample bottle provided with the
approved treatment. Follow the recommendations of the lab
for corrections, if any.
Water conditioning
NOTE: Running your pumps during the off season for a period of 24
hours every other week will help keep pump seals from drying out.
Use only Wood Burning Furnace Water Treatment Part # WT072
from your dealer.
Product of:
CERTIFIED LABORATORIES
A division of NCH Corporation
P.O. Box 2493
Fort Worth, Texas 76113-2493
Cleaning of the flue pipe, chimney and draft inducer is especially important at the end
of the heating season to minimize corrosion during the summer months from accumu-
lated creosote and ash.

20
Maintenance
While in use
1. Periodically inspect vent and
float tube for freeness.
2. Remove ash and scrape firebox
free of build up as needed.
3. Check water level daily.
4. Check door for air tightness.
The door gasket may display
dark hard areas where leaks are
present.
5. Ensure shields and access pan-
els are in place at all times.
6. Watch for damp areas inside the
firebox. This could signify a
leak. Condensation during the
first fire or while burning un-
seasoned wood during warmer
weather may also be present.
Only burn seasoned wood and
clean out damp ashes immedi-
ately.
After use (seasonal)
1. Thoroughly clean the furnace of
any creosote and ash. This is
the easiest to do when the fur-
nace is still warm.
2. Check all parts of the furnace for
any standing moisture.
3. Coat the inside of the firebox and
flue with vegetable oil when
clean and dry. Do not use mo-
tor oil!
4. Be sure the furnace reservoir is
to the maximum fill point.
5. Periodically circulate water dur-
ing the off-season to keep the
treatment mixed thoroughly and
lubricate pumps. Circulate for 24
hours once every other week.
6. Cap chimney or flue to prevent
moisture from entering the fire-
box.
7. If needed, thoroughly clean the
blower and flapper assembly.
Use the following procedure out-
lined on page to check for cor-
rect operation of the flapper as-
sembly.
