panas TX-51P100X User manual

Screen Size: Diagonal: 1296 mm
Height: 780 mm
Width: 1037 mm
Projection Tube:
TVVAB10EHV (B-ASSY)
TVVAG10EHV (G-ASSY)
TVVAR10EHV (R-ASSY)
90°deflection
High Voltage: 34.5 ± 0.5 kV at zero beam current
Audio Output:
Internal Speaker 24 W (10% THD)
Impedance 8Ω
Video/Audio Terminals:
AV1, 2, 3, 4 IN Video 1 Vp-p 75Ω
S-Video Y: 1.0 Vp-p 75Ω
C: 0.3Vp-p 75Ω
Audio Approx. 0.5V 47kΩ
Monitor OUT Video 1Vp-p 75Ω
Audio Approx. 0.5V 1kΩ
Dimensions: Height: 1371 mm
Width: 1095 mm
Depth: 500 mm
Mass: 60.0 kg (Net)
Accessories Supplied:
Remote Controller x 1
“R6” Battery x 2
Design and Specifications are subject to change without notice.
Mass and dimensions shown are aproximate.
Specifications
Power Source:
TX-51P100H/H L /H Q /H Z :AC 220V-240V, 50/60Hz
TX-51P100X: AC 110V-240V, 50/60Hz
Power Consumption:
TX-51P100H/H L /H Q /H Z :265W
TX-51P100X: 270W
0.7W (Stand-by condition)
Aerial Impedance: 75Ωunbalanced, Coaxial type
Tuning System: 21 Systems
Frequency Synthesizer
Auto Search
100(Position)/125(Direct)
Receiving Channels:
VHF Band 2-12 (PAL/ SECAM - B, K1)
0-12 (PAL-B AUST.)
1-9 (PAL-B N.Z.)
1-12 (PAL/SECAM-D)
1-12 (NTSC-M JAPAN)
2-13 (NTSC-M U.S.A.)
UHF Band 21-69 (PAL-G, H, I)
21-69 (SECAM-G, K, K1)
28-69 (PAL-B AUST.)
13-57 (PAL-D, K)
13-62 (NTSC-M Japan)
14-69 (NTSC-M U.S.A.)
CATV S1-S20 (OSCAR)
S21-S41 (HYPER)
1-125 (U.S.A. CATV)
5A, 9A (AUST.)
Z1-Z37 (CHINA)
C13-C49 (JAPAN)
Intermediate Frequency:
Video 38.0 MHz
Sound 31.5 MHz (D, K)/32.0 MHz (I)
32.5 MHz (B, G)/33.5 MHz (M)
Colour 33.57 MHz (PAL)/33.6 MHz (SECAM)
33.75 MHz (SECAM)/34.42 MHz (NTSC)
Receiving Stereo sound system:
NICAM B/G, NICAM I,
NICAM D, A2 (German)
ã 1999 Matsushita Electric Industrial Co.,Ltd.
All right reserved.Unauthorized copying and
distribution is a violation of law. 
ORDER NO.ITD9909030C3
Video Projection System
TX-51P100X
TX-51P100H
TX-51P100H L
TX-51P100H Q
TX-51P100H Z
E3D Chassis
Suffix at the end of the Model No.
(for example: L , Q , Z etc.)
is indicated only in the
Serial Number label at Rear Cover
and Chassis.
Specifications
Power Source:
TX-51P100H/H L /H Q /H Z :AC 220V-240V, 50/60Hz
TX-51P100X: AC 110V-240V, 50/60Hz
Power Consumption:
TX-51P100H/H L /H Q /H Z :265W
TX-51P100X: 270W
0.7W (Stand-by condition)
Aerial Impedance: 75Ωunbalanced, Coaxial type
Tuning System: 21 Systems
Frequency Synthesizer
Auto Search
100(Position)/125(Direct)
Receiving Channels:
VHF Band 2-12 (PAL/ SECAM - B, K1)
0-12 (PAL-B AUST.)
1-9 (PAL-B N.Z.)
1-12 (PAL/SECAM-D)
1-12 (NTSC-M JAPAN)
2-13 (NTSC-M U.S.A.)
UHF Band 21-69 (PAL-G, H, I)
21-69 (SECAM-G, K, K1)
28-69 (PAL-B AUST.)
13-57 (PAL-D, K)
13-62 (NTSC-M Japan)
14-69 (NTSC-M U.S.A.)
CATV S1-S20 (OSCAR)
S21-S41 (HYPER)
1-125 (U.S.A. CATV)
5A, 9A (AUST.)
Z1-Z37 (CHINA)
C13-C49 (JAPAN)
Intermediate Frequency:
Video 38.0 MHz
Sound 31.5 MHz (D, K)/32.0 MHz (I)
32.5 MHz (B, G)/33.5 MHz (M)
Colour 33.57 MHz (PAL)/33.6 MHz (SECAM)
33.75 MHz (SECAM)/34.42 MHz (NTSC)
Receiving Stereo sound system:
NICAM B/G, NICAM I,
NICAM D, A2 (German)
All manuals and user guides at all-guides.com
all-guides.com

- 2 -
Contents
❑Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cover
❑Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
❑Chassis Boards Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
❑Disassembly for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
❑Service Hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
❑CRT Set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
❑Special Servicing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
❑Market Mode Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
❑Service Adjustment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
❑Location of Lead Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
❑Conductor Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
❑Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
❑Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
❑Parts Location & Mechanical Replacement Parts List . . . . . . . . . . . . . . . . . 78
❑Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
All manuals and user guides at all-guides.com

- 3 -
Safety Precautions
General Guide Lines
1. It is advisable to insert an isolation transformer in
the AC supply before servicing a hot chassis.
2. When servicing, observe the original lead dress,
especially the lead dress in the high voltage cir-
cuits.
If a short circuit is found, replace all parts which
have been overheated or damaged by the short
circuit.
3. After servicing, see to it that all the protective
devices such as insulation barriers, insulation
papers, shields, and isolation R-C combinations,
are properly installed.
4. When the receiver is not to be used for a long
period of time, unplug the power cord from the AC
outlet.
5. Potential, as high as 34.5kV, is present when this
monitor is in operation. Operation of the Projection
Monitor without the rear cover involves the danger
of a shock hazard from the power supply. Servicing
should not be attempted by anyone who is not
thoroughly familiar with the precautions necessary
when working on high voltage equipment. Always
discharge the anode of the projection tube to the
Projection Monitor chassis before handling the
tube.
6. After servicing make the following leakage current
checks to prevent the customer from being
exposed to shock hazards.
Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper
between the two prongs on the plug.
2. Turn on the Projection Monitor’s power switch.
3. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the projection monitor,
such as screw heads, connectors, control shafts,
etc. When the exposed metallic part has a return
path to the chassis, the reading should be between
4 MΩand 20 MΩ.
When the exposed metal does not have a return
path to the chassis, the reading must be ∞.
Leakage Current Hot Check (See Fig.1)
1. Plug the AC cord directly into the AC outlet. Do not
use an isolation transformer for this check.
2. Connect a 2kΩ, 10W resistor, in series with an
exposed metallic part on the projection monitor
and an earth such as a water pipe.
3. Use an AC voltmeter, with high impedance type, to
measure the potential across the resistor.
4. Check each exposed metallic part, and measure
the voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat
each of the above measurements.
6. The potential at any point should not exceed 1.0V
rms. In case a measurement is outside of the limits
specified, there is a possibility of a shock hazard,
and the projection monitor should be repaired and
rechecked before it is returned to the customer.
X-Radiation
Warning :
1. The potential sources of X-Radiation in projection
monitor are the High Voltage section and the pro-
jection tube.
2. When using a projection tube test jig for service,
ensure that jig is capable of handling 32.5kV with-
out causing X-Radiation.
Note: It is important use an accurate periodically cali-
brated high voltage meter.
1. Set the brightness to minimum.
2. Set the service switch to the service position.
3. Measure the High Voltage. The meter reading
should indicate 34.5 ( ± 0.5 ) kV. If the meter indi-
cation is out of tolerance, immediate service and
correction is required to prevent the possibility of
premature component failure.
4. To prevent an X-Radiation possibility, it is essential
to use the specified projection tube.
Hot-Check Circuit
Fig. 1
AC Voltmeter
To
Instrument's
Exposed
Metallic Parts 2k , 10W
Water Pipe
( Earth )
All manuals and user guides at all-guides.com

- 4 -
Chassis Board Layout
P
D
FBT
MPU
E
A
G
H
B2
DG
CF
LB
LG
LR
SB
SG
SR
DC
CP W
T
F
TNR
Board-Name Function
A-Board Main
D-Board Main Power
P-Board Line Filter
G-Board Control Panel
E-Board Horizontal Deflection, High Voltage
F-Board Vertical Deflection
CP-Board Converter Output
DC-Board Digital Converter
W-Board White Balance
LR-Board CRT Drive (R)
LG-Board CRT Drive (G)
LB-Board CRT Drive (B)
SG-Board VM Output (G)
SR-Board VM Output (R)
SB-Board VM Output (B)
DG1-Board Digital Core
H-Board Rear terminal
T-Board Text
B2-Board VIF/SIF
CF-Board Interface correction
All manuals and user guides at all-guides.com

- 5 -
Disassembly for Service

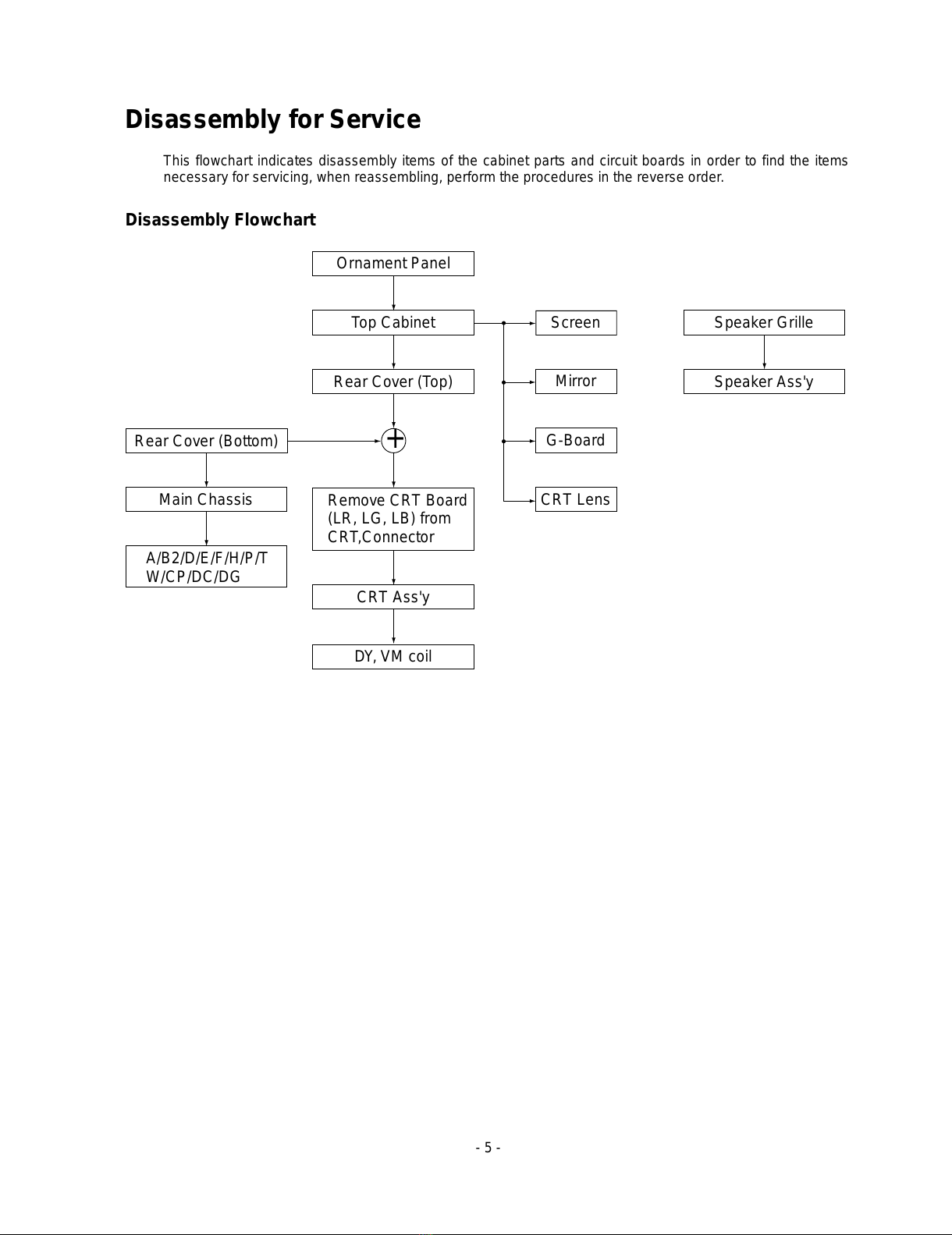

Disassembly Flowchart
This flowchart indicates disassembly items of the cabinet parts and circuit boards in order to find the items
necessary for servicing, when reassembling, perform the procedures in the reverse order.
Top Cabinet Screen
Rear Cover (Bottom)
Rear Cover (Top)
Speaker Grille
Speaker Ass'y
Ornament Panel
CRT Ass'y
DY, VM coil
Remove CRT Board
(LR, LG, LB) from
CRT,Connector
Main Chassis
A/B2/D/E/F/H/P/T
W/CP/DC/DG
+
Mirror
G-Board
CRT Lens
All manuals and user guides at all-guides.com

- 6 -
Ornament Panel
1. The Ornament Panel is secured by (3) striker pins.
Grip the Ornament Panel at the side corner pull to
remove.
Cabinet ( Top )
1. Remove (11) Screws
Speaker Grille
1. Remove (2) screws.
Speaker Ass’s
1. Remove (10) screws.
Ornament Panel
(11) Screws
Top Cabinet
(11) Screws
(2) Screws
Speaker Grille
(10) Screws
Note: Board ground wires may have to be disconnected to disassemble some boards. All ground wires must be
reconnected using jumper leads if necessary before power is applied to Receiver for service.
All manuals and user guides at all-guides.com
all-guides.com

- 7 -

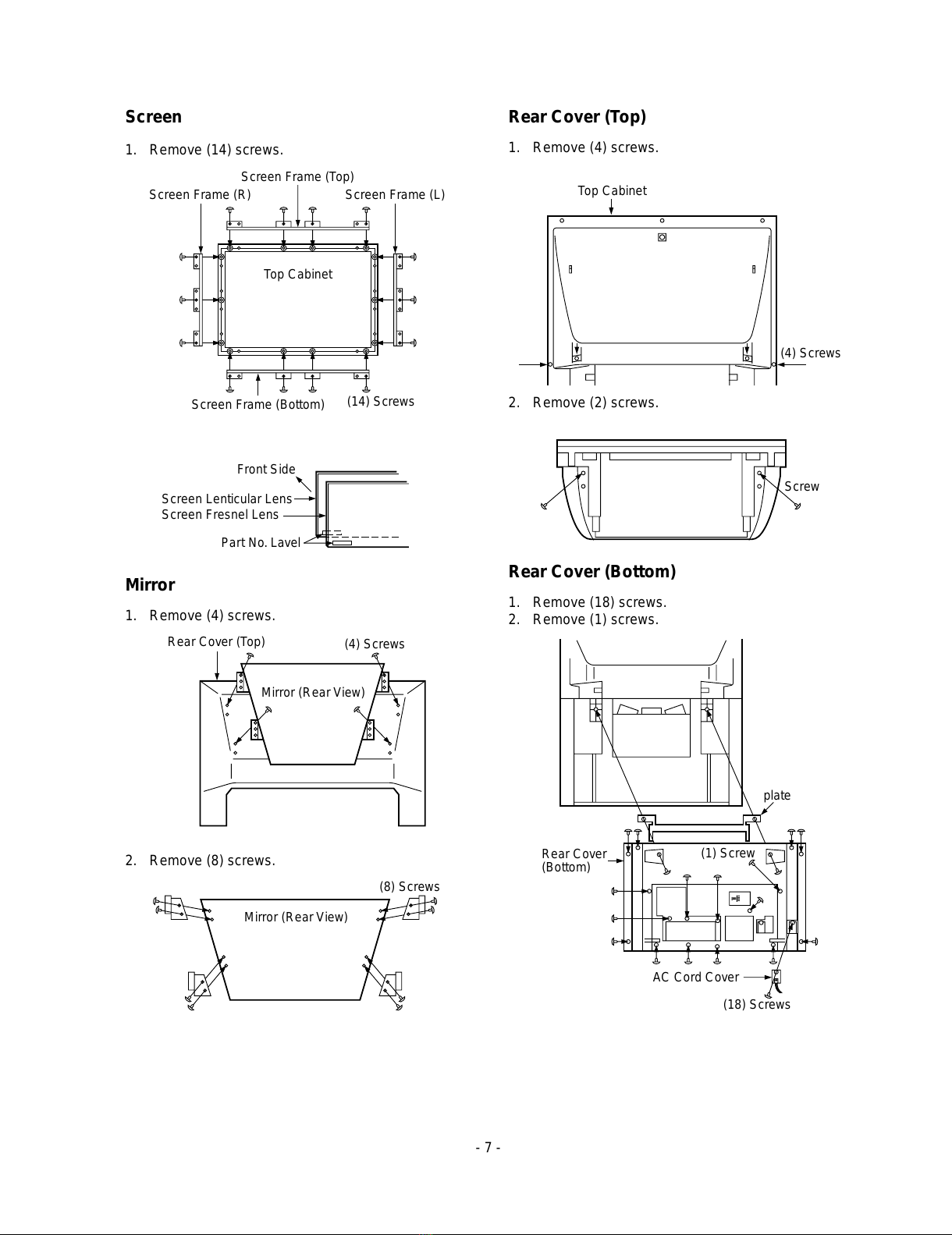

Screen
1. Remove (14) screws.
Mirror
1. Remove (4) screws.
2. Remove (8) screws.
Rear Cover (Top)
1. Remove (4) screws.
2. Remove (2) screws.
Rear Cover (Bottom)
1. Remove (18) screws.
2. Remove (1) screws.
Screen Frame (R) Screen Frame (L)
Top Cabinet
Screen Frame (Top)
Screen Frame (Bottom) (14) Screws
Screen Lenticular Lens
Screen Fresnel Lens
Front Side
Part No. Lavel
Mirror (Rear View)
(4) Screws
Rear Cover (Top)
Mirror (Rear View)
(8) Screws
(4) Screws
Top Cabinet
Screw
(18) Screws
AC Cord Cover
(1) Screw
plate
Rear Cover
(Bottom)
All manuals and user guides at all-guides.com

- 8 -
Service Hints
Service position for Main chassis
1. Remove the Rear Cover (Bottom) by removing
(19) screws around its perimeter.
2. Remove lead wires and bundles from holders as
necessary.
3. Pull out main chassis and stand it.
Service Position for D/F/W/T/CF/DC
B2-Board
1. Remove the each circuit board from A or E-Board.
2. Connect extension cables between individual cir-
cuit board and A or E-Board.
Note: Extension cable kit is supplied as service fix-
tures and tools. ( Part No. TZS709010 )
Service Position for CP, DC-Board
1. Remove the Rear Cover (Bottom) by removing
(19) screws around its perimeter.
2. Remove (1) screws secured the CP and DC
Board.
3. Pull out the CP and DC Board.
Service Position for P-Board
1. Remove the Rear Cover (Bottom) by removing
(19) screws around its perimeter.
2. Remove (1) screws secured the P Board.
3. Pull out the P Board.
Service Position for G-Board
1. Remove the Top Cabinet Ass’y.
2. Remove G-Board by removing (3) screws.
AE
Main chasisis
A
ED
CF
W
F
T
DC B2
CP-Board
DC-Board
P-Board
G-Board
(3) Screws
All manuals and user guides at all-guides.com

- 9 -

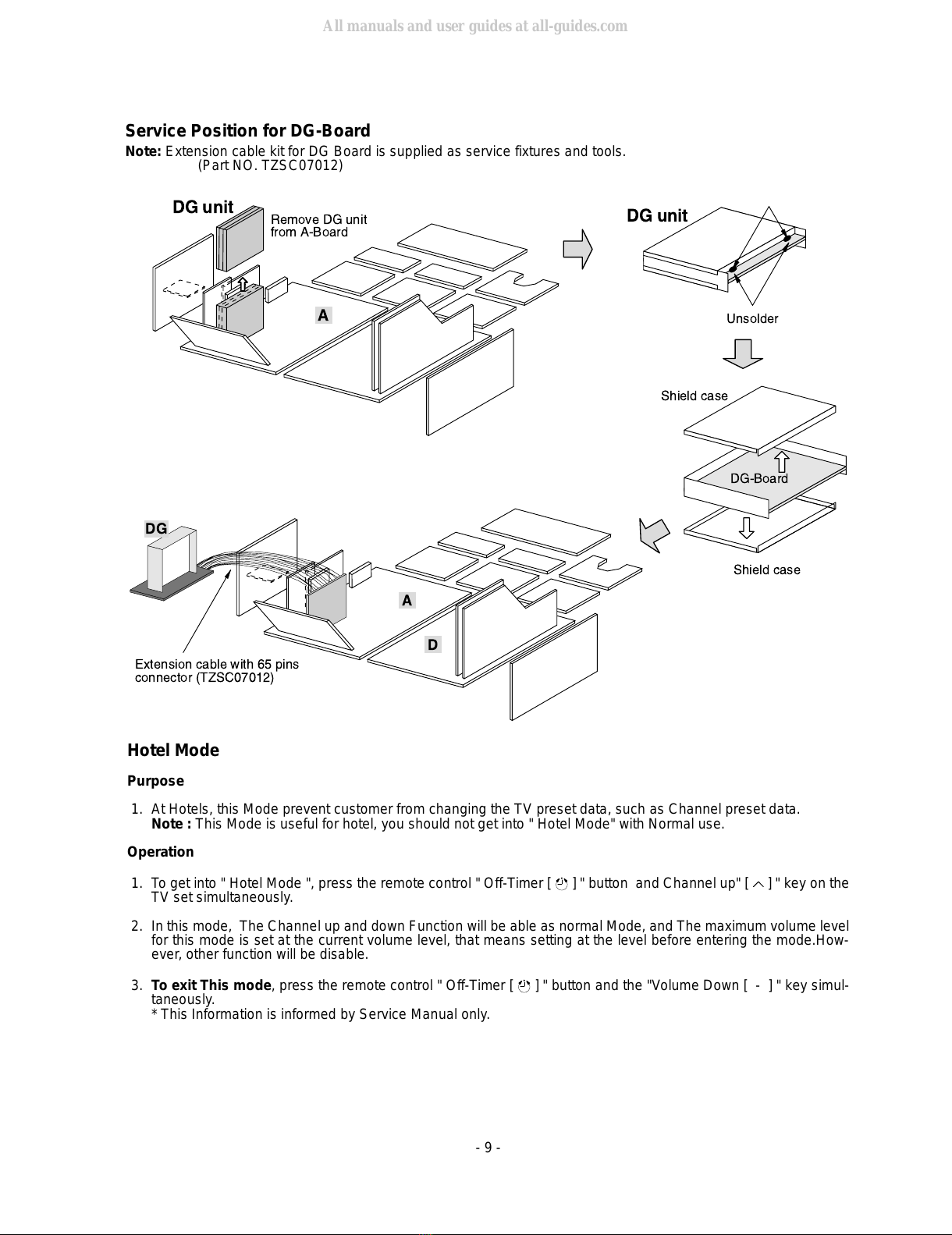

Service Position for DG-Board
Note: Extension cable kit for DG Board is supplied as service fixtures and tools.
(Part NO. TZSC07012)
DG unit
Remove DG unit
from A-Board
DG unit
Shield case
Shield case
DG-Board
Unsolder
A
Extension cable with 65 pins
connector (TZSC07012)
A
D
DG
Hotel Mode
Purpose
1. At Hotels, this Mode prevent customer from changing the TV preset data, such as Channel preset data.
Note : This Mode is useful for hotel, you should not get into " Hotel Mode" with Normal use.
Operation
1. To get into " Hotel Mode ", press the remote control " Off-Timer [ ] " button and Channel up" [ ] " key on the
TV set simultaneously.
2. In this mode, The Channel up and down Function will be able as normal Mode, and The maximum volume level
for this mode is set at the current volume level, that means setting at the level before entering the mode.How-
ever, other function will be disable.
3. To exit This mode, press the remote control " Off-Timer [ ] " button and the "Volume Down [ - ] " key simul-
taneously.
* This Information is informed by Service Manual only.
All manuals and user guides at all-guides.com

- 10 -

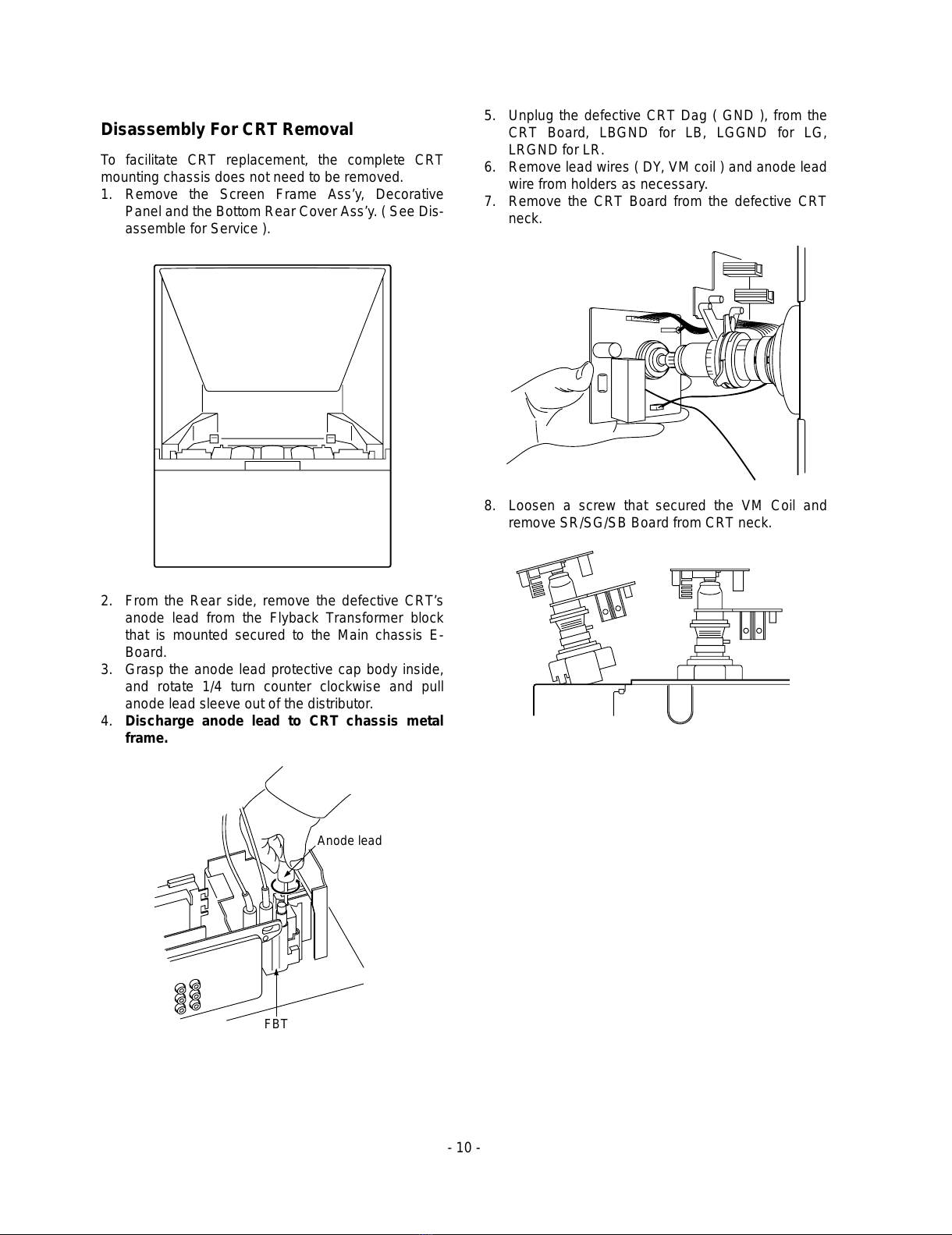

Disassembly For CRT Removal
To facilitate CRT replacement, the complete CRT
mounting chassis does not need to be removed.
1. Remove the Screen Frame Ass’y, Decorative
Panel and the Bottom Rear Cover Ass’y. ( See Dis-
assemble for Service ).
2. From the Rear side, remove the defective CRT’s
anode lead from the Flyback Transformer block
that is mounted secured to the Main chassis E-
Board.
3. Grasp the anode lead protective cap body inside,
and rotate 1/4 turn counter clockwise and pull
anode lead sleeve out of the distributor.
4. Discharge anode lead to CRT chassis metal
frame.
5. Unplug the defective CRT Dag ( GND ), from the
CRT Board, LBGND for LB, LGGND for LG,
LRGND for LR.
6. Remove lead wires ( DY, VM coil ) and anode lead
wire from holders as necessary.
7. Remove the CRT Board from the defective CRT
neck.
8. Loosen a screw that secured the VM Coil and
remove SR/SG/SB Board from CRT neck.
FBT
Anode lead
All manuals and user guides at all-guides.com

- 11 -

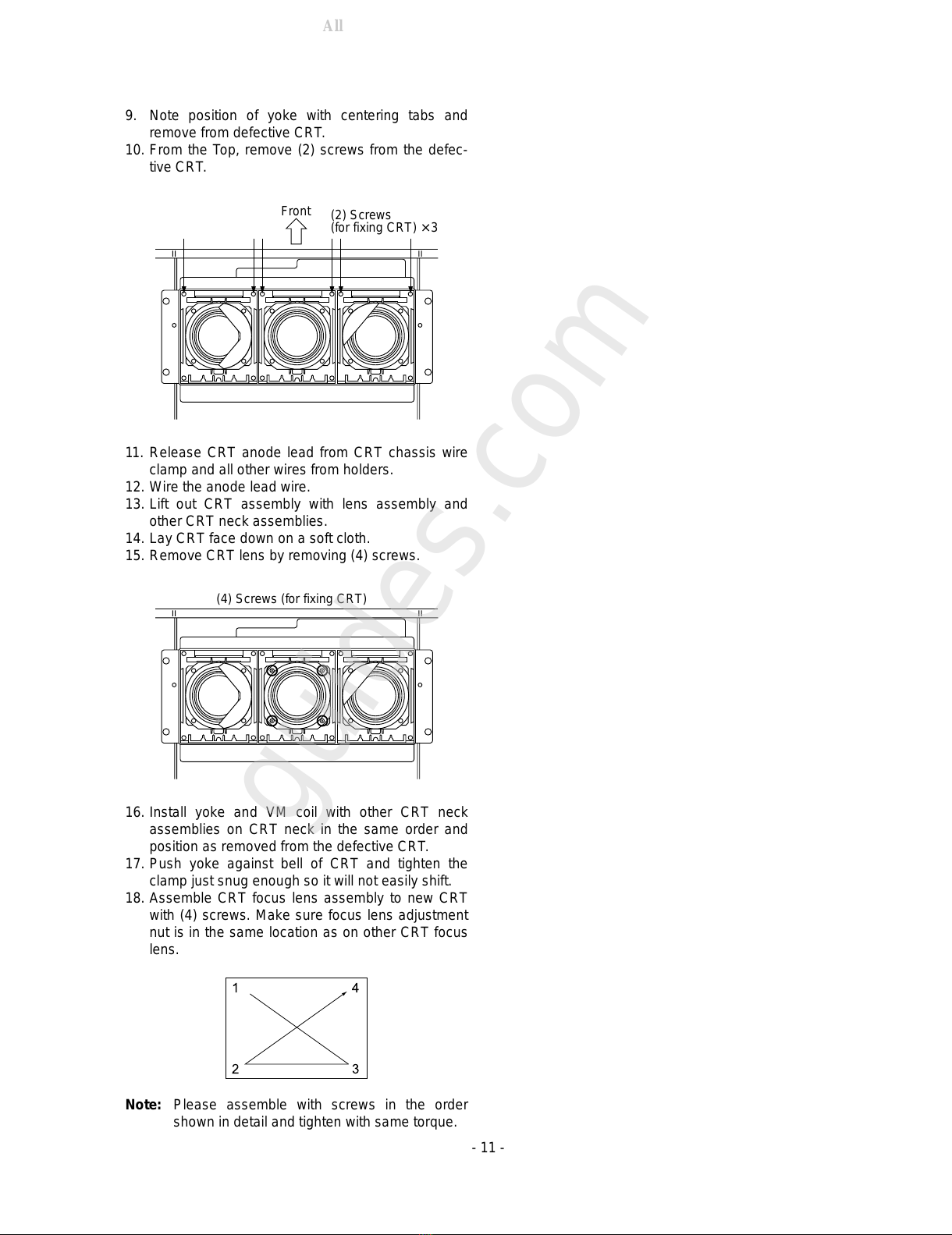

9. Note position of yoke with centering tabs and
remove from defective CRT.
10. From the Top, remove (2) screws from the defec-
tive CRT.
11. Release CRT anode lead from CRT chassis wire
clamp and all other wires from holders.
12. Wire the anode lead wire.
13. Lift out CRT assembly with lens assembly and
other CRT neck assemblies.
14. Lay CRT face down on a soft cloth.
15. Remove CRT lens by removing (4) screws.
16. Install yoke and VM coil with other CRT neck
assemblies on CRT neck in the same order and
position as removed from the defective CRT.
17. Push yoke against bell of CRT and tighten the
clamp just snug enough so it will not easily shift.
18. Assemble CRT focus lens assembly to new CRT
with (4) screws. Make sure focus lens adjustment
nut is in the same location as on other CRT focus
lens.
Note: Please assemble with screws in the order
shown in detail and tighten with same torque.
(2) Screws
(for fixing CRT) ×3
Front
(4) Screws (for fixing CRT)
14
23
All manuals and user guides at all-guides.com
all-guides.com

- 12 -
CRT Set Up
Caution: Insure yoke plugs on the A-Board are
reconnected before turning the Receiver
ON to prevent damage to the horizontal
output transistor and/or CRTs.
Dynamic Focus Adjustment
1. Focus adjustments should be performed after 1
hour of aging.
2. Use oscilloscope with 100 : 1 probe.
3. Apply monoscope pattern.
4. Adjust the Red, Blue and Green focus VR on the
focus block for best focus of overall picture of each
CRT. (Fig. 2)
5. Connect the scope probe to TPF1, GND to TPF2.
Scope set at 20V/div & 5m sec./dev.
6. Adjust R741 VR so that waveform (A) is 380V ±
20V. (Fig. 3)
7. Adjust R726 VR so that waveform (B) is 580V ±
30V. (Fig. 3)
11. Proceed with Focus Adjustments.
Focus - Electrical Adjustment
1. Receive a monoscope pattern.
2. Cover the Red and Blue CRT, projecting Green
only.
The electrical focus controls are located on the
front. Adjust the Green Focus VR for best focus of
overall picture. (Fig. 2)
3. Repeat for Red focus VR while projecting Red
only.
4. Repeat for Blue. (Best focus at bottom left corner
of screen)
Focus - Optical Lens ADjustment
Note: This adjustment normally should not require
resetting unless the lens has been replaced or
adjustment has changed.
1. Optical focus adjustment is located on the top of
each CRT lens system. Loosen the adjustment
knurls locking knob. (Fig. 4)
2. Turn the Receiver ON apply and view a mono-
scope pattern.
3. Adjust each lens focus for best focus while viewing
each CRT.
4. Cover the Red and Blue CRT, projecting green
only.Rotate the Green lens for best focus around
screen center area.
5. Do the same for the Red focus lens while project-
ing Red only.
6. Repeat for Blue.
+++
+++ BGR
BGR
Screen adj.VR (3)
Focus adj.VR (3)
Focus Pack
Fig. 2
0
(B)
(A)
Fig. 3
Adjustment knurled
locking knobs
BGR
Optical lens focus adjustment
Fig. 4
(Rear view)
All manuals and user guides at all-guides.com

- 13 -
Centering magnet
W1W2
W1=17.5mm ± 2.5mm
W2=40.0mm ± 2.5mm
DY
RGB
Space : A 2.5mm
A
A
A
A
Center line of Center Mark
Center line of Center Mark
ExpandExpand
Center Mark Center Mark
Centering Magnet Adjustment
1. Receive a monoscope pattern.
2. Confirm that static convergence data (MARKET MODE CHK5) for R,G and B is 0.
3. Set that Point convergence data (MARKET MODE CHK5) is clear (no correction).
4. Set that V-Center data (MARKET MODE CHK5) is [60].
5. Set that H-Center data (MARKET MODE CHK5) is [35].
6. Set that H-Parallel data (MARKET MODE CHK5) is [32].
Procedure:
1. Cover the Red, Blue CRT lens, projecting Green only.
2. Adjust green horizontal deflection coil if the projected green horizontal line does
not line up with the screen horizontal center line.
3. Cover the Green, Red CRT lens, projecting Blue only.
4. Repeat step 2. for blue.
5. Cover the Green, Blue CRT lens, projecting Red only.
6. Repeat step 2. for red.
7. Cover the Red, Blue CRT lens, projecting Green only.
8. Adjust green centering magnets until the center of the monoscope pattern line
up with the screen center line.
9. Cover the Green, Red CRT lens, projecting Blue only.
10. Adjust blue centering magnets to position the center of the blue raster
W2=40.0mm±2.5mm away from the center of the green raster.
11. Cover the Green, Blue CRT lens, projecting Red only.
12. Adjust red centering magnets to position the center of the red raster
W1=17.5mm±2.5mm away from the center of the green raster.
All manuals and user guides at all-guides.com

- 14 -

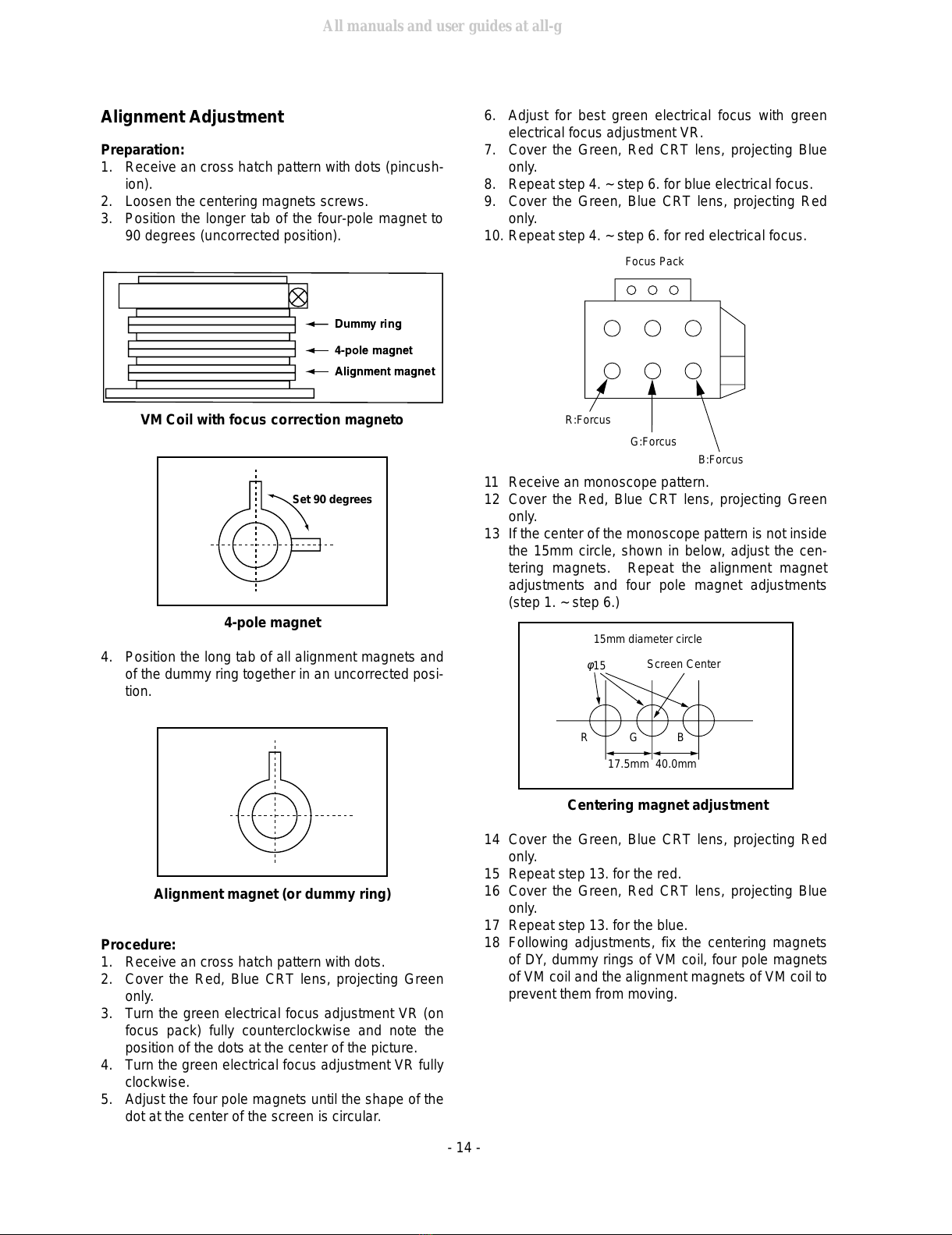

Alignment Adjustment
Preparation:
1. Receive an cross hatch pattern with dots (pincush-
ion).
2. Loosen the centering magnets screws.
3. Position the longer tab of the four-pole magnet to
90 degrees (uncorrected position).
VM Coil with focus correction magneto
4-pole magnet
4. Position the long tab of all alignment magnets and
of the dummy ring together in an uncorrected posi-
tion.
Alignment magnet (or dummy ring)
Procedure:
1. Receive an cross hatch pattern with dots.
2. Cover the Red, Blue CRT lens, projecting Green
only.
3. Turn the green electrical focus adjustment VR (on
focus pack) fully counterclockwise and note the
position of the dots at the center of the picture.
4. Turn the green electrical focus adjustment VR fully
clockwise.
5. Adjust the four pole magnets until the shape of the
dot at the center of the screen is circular.
6. Adjust for best green electrical focus with green
electrical focus adjustment VR.
7. Cover the Green, Red CRT lens, projecting Blue
only.
8. Repeat step 4. ~ step 6. for blue electrical focus.
9. Cover the Green, Blue CRT lens, projecting Red
only.
10. Repeat step 4. ~ step 6. for red electrical focus.
11 Receive an monoscope pattern.
12 Cover the Red, Blue CRT lens, projecting Green
only.
13 If the center of the monoscope pattern is not inside
the 15mm circle, shown in below, adjust the cen-
tering magnets. Repeat the alignment magnet
adjustments and four pole magnet adjustments
(step 1. ~ step 6.)
Centering magnet adjustment
14 Cover the Green, Blue CRT lens, projecting Red
only.
15 Repeat step 13. for the red.
16 Cover the Green, Red CRT lens, projecting Blue
only.
17 Repeat step 13. for the blue.
18 Following adjustments, fix the centering magnets
of DY, dummy rings of VM coil, four pole magnets
of VM coil and the alignment magnets of VM coil to
prevent them from moving.
Dummy ring
4-pole magnet
Alignment magnet
Set 90 degrees
Focus Pack
R:Forcus
G:Forcus B:Forcus
Screen Center
φ
15
17.5mm 40.0mm
RGB
15mm diameter circle
All manuals and user guides at all-guides.com

- 15 -
Preparation:
1. Set
X-ray protector adjustment VR, R581 (on E-
Board) fully counterclockwise.
2. Set
EHT adjustment VR, R598 (on E-Board) fully
counterclockwise.
3. Connect the positive lead (+) of a DVM to TPE1
and the negative lead (-) to TPE2 (on E-Board).
4. Connect a high voltage meter between anode and
ground.
5. Set the TV to MARKET MODE (CHK3)
EHT PROTECT............ON
Procedure:
1. Receive a monoscope pattern.
2. Adjust
EHT adjustment VR, R598, until the high
voltage meter measures 34.5kV ± 0.5kV.
3. Adjust Sub Contrast or Sub Bright or Screen VR
until the DVM (ABL current) measures 1400 ±
30µA.
4. Repeat step 2. ~ step 3. until the voltages mea-
sured are as specified.
5. Slowly turn the
X-ray protector adjustment VR,
R581 clockwise until the On Screen Display (OSD)
is just RED.
6. Turn the EHT adjustment VR, R598 fully counter-
clockwise.
7. Slowly turn the EHT adjustment VR, R598, clock-
wise and confirm that the X-ray protector operates
when the high voltage reaches 34.5kV ± 0.5kV.
8. Confirm that DVM (ABL current) measures 1400 ±
30µA when the X-ray protector operates.
9. If the measurements in step 7. ~ step 8. do not
confirm, repeat step 2. ~ step 9.
10. Turn power off.
11. Fill sleeves with silicone and carefully place over
VR R598 & VR R581. (See Figure A.) Avoid acci-
dental changing the setting while placing the
sleeve over VRs.
Figure A. Sealing of HV resistor
Note: Allow approximately 5 minutes for silicone to
harden before turning the PTV on.
Sillicone
Sleeve
Variable
Resistor
PC Board
X-ray Protection and High Voltage Adjustment
All manuals and user guides at all-guides.com

- 16 -

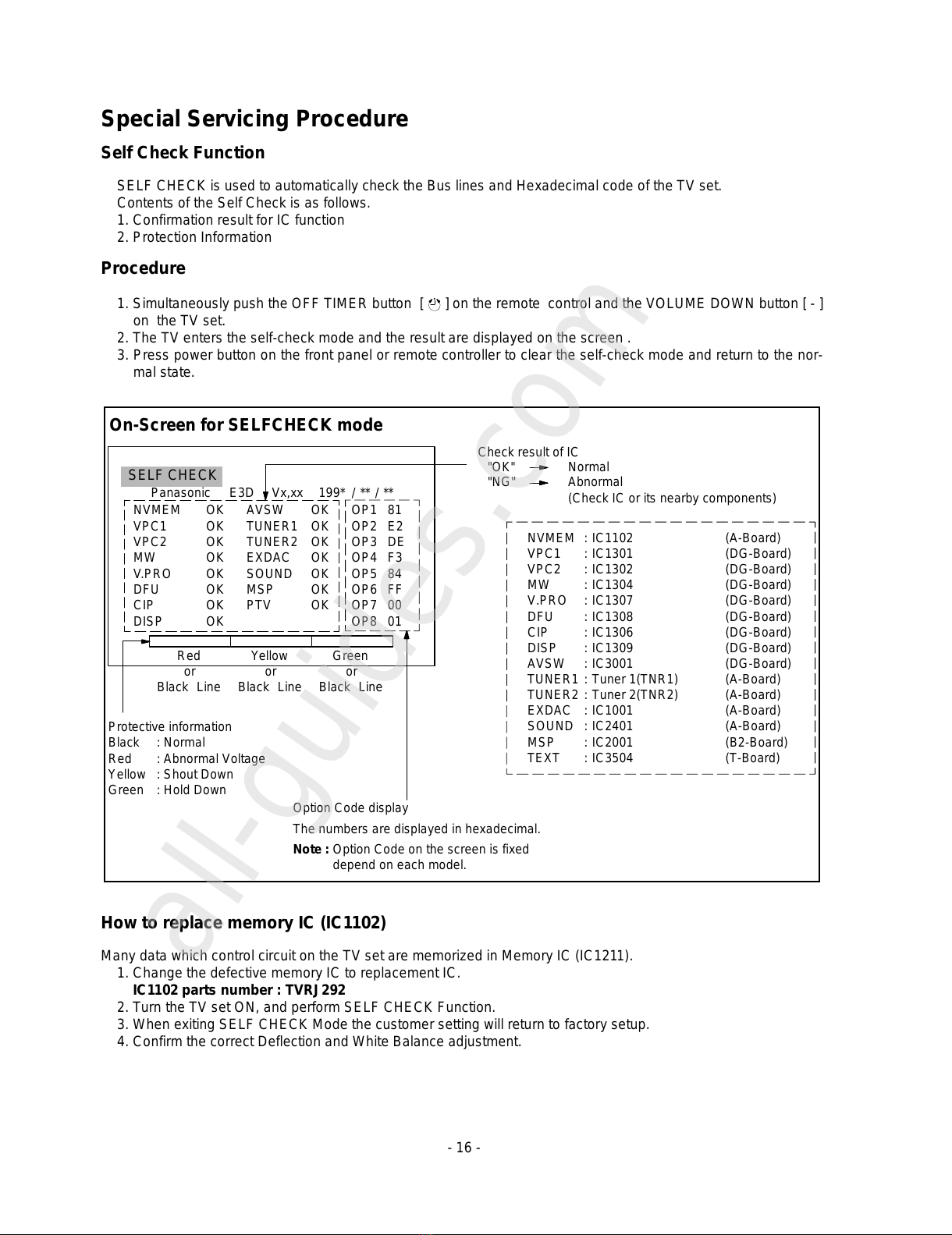

Special Servicing Procedure
Self Check Function
SELF CHECK is used to automatically check the Bus lines and Hexadecimal code of the TV set.
Contents of the Self Check is as follows.
1. Confirmation result for IC function
2. Protection Information
Procedure
1. Simultaneously push the OFF TIMER button [ ] on the remote control and the VOLUME DOWN button [ - ]
on the TV set.
2. The TV enters the self-check mode and the result are displayed on the screen .
3. Press power button on the front panel or remote controller to clear the self-check mode and return to the nor-
mal state.
How to replace memory IC (IC1102)
Many data which control circuit on the TV set are memorized in Memory IC (IC1211).
1. Change the defective memory IC to replacement IC.
IC1102 parts number : TVRJ292
2. Turn the TV set ON, and perform SELF CHECK Function.
3. When exiting SELF CHECK Mode the customer setting will return to factory setup.
4. Confirm the correct Deflection and White Balance adjustment.
"OK" Normal
"NG" Abnormal
SELF CHECK
Check result of IC
On-Screen for SELFCHECK mode
(Check IC or its nearby components)
Protective information
Black : Normal
Red : Abnormal Voltage
Yellow : Shout Down
Green : Hold Down
Panasonic E3D Vx,xx 199* / ** / **
NVMEM OK AVSW OK OP1 81
VPC1 OK TUNER1 OK OP2 E2
VPC2 OK TUNER2 OK OP3 DE
MW OK EXDAC OK OP4 F3
V.PRO OK SOUND OK OP5 84
DFU OK MSP OK OP6 FF
CIP OK PTV OK OP7 00
DISP OK OP8 01
Red
or
Black Line
Yellow
or
Black Line
Green
or
Black Line
Option Code display
The numbers are displayed in hexadecimal.
Note : Option Code on the screen is fixed
depend on each model.
NVMEM : IC1102 (A-Board)
VPC1 : IC1301 (DG-Board)
VPC2 : IC1302 (DG-Board)
MW : IC1304 (DG-Board)
V.PRO : IC1307 (DG-Board)
DFU : IC1308 (DG-Board)
CIP : IC1306 (DG-Board)
DISP : IC1309 (DG-Board)
AVSW : IC3001 (DG-Board)
TUNER1 : Tuner 1(TNR1) (A-Board)
TUNER2 : Tuner 2(TNR2) (A-Board)
EXDAC : IC1001 (A-Board)
SOUND : IC2401 (A-Board)
MSP : IC2001 (B2-Board)
TEXT : IC3504 (T-Board)
All manuals and user guides at all-guides.com
all-guides.com

- 17 -
Market Mode Function
Outline : MPU controls the functions switching for each ICs through IIC bus in E3D chassis. The following setting
and adjustment can be adjusted by remote control in Market Mode.
1. Option Code Setting Mode (CHK 1)
If the memory IC ( IC1102 ) is replaced, optional code should be re-memorized. Option code can be changed by pressing Volume
"+" or "-" button. To memorize, press " 0 " of 10 key button.
CHK5
PTV
ADJUSTMENT
CHK1
ADJUSTMENT
DEFELECTION
ADJUSTMENT
NORMAL MODE MARKET MODE
Exit : Turn the power
off
OPTION
CHK2
CHK6 CHK4
PIP
ADJUSTMENT
WHITE
BALANCE
ADJUSTMENT
CHK3
1. Selection of Market Mode
Adjust VOLUME "zero" and set OFF TIMER Button [ ] (turn on the off timer).
Then, simultaneously press the RECALL[ ] Button on the remote control and the VOLUME DOWN button[-]
on the TV set.
2. Selection of CHK Mode
Cursor moves each CHK mode by pressing " " or " " of
10 key button on the remote control. 2
2
2
2 2
2
1
1 21
11
1 1
OPTION
OP1 81
OP2 E2
OP3 DE
OP4 F3
OP5 84
OP6 FF
OP7 73
OP8 02
OPTION SETTING
CHK 1
To memorize,
press "0" of
10 key button.
CHK1 OPTION
OP1 81
OP2 E2
OP3 DE
OP4 F3
OP5 84
OP6 FF
OP7 73
OP8 02
OP1 31
OP2 E2
OP3 DE
OP4 F3
OP5 84
OP6 FF
OP7 73
OP8 02
OPTION
For TX-51P100H
TX-51P100HL
TX-51P100HQ
TX-51P100HZ For TX-51P100X
All manuals and user guides at all-guides.com

- 18 -

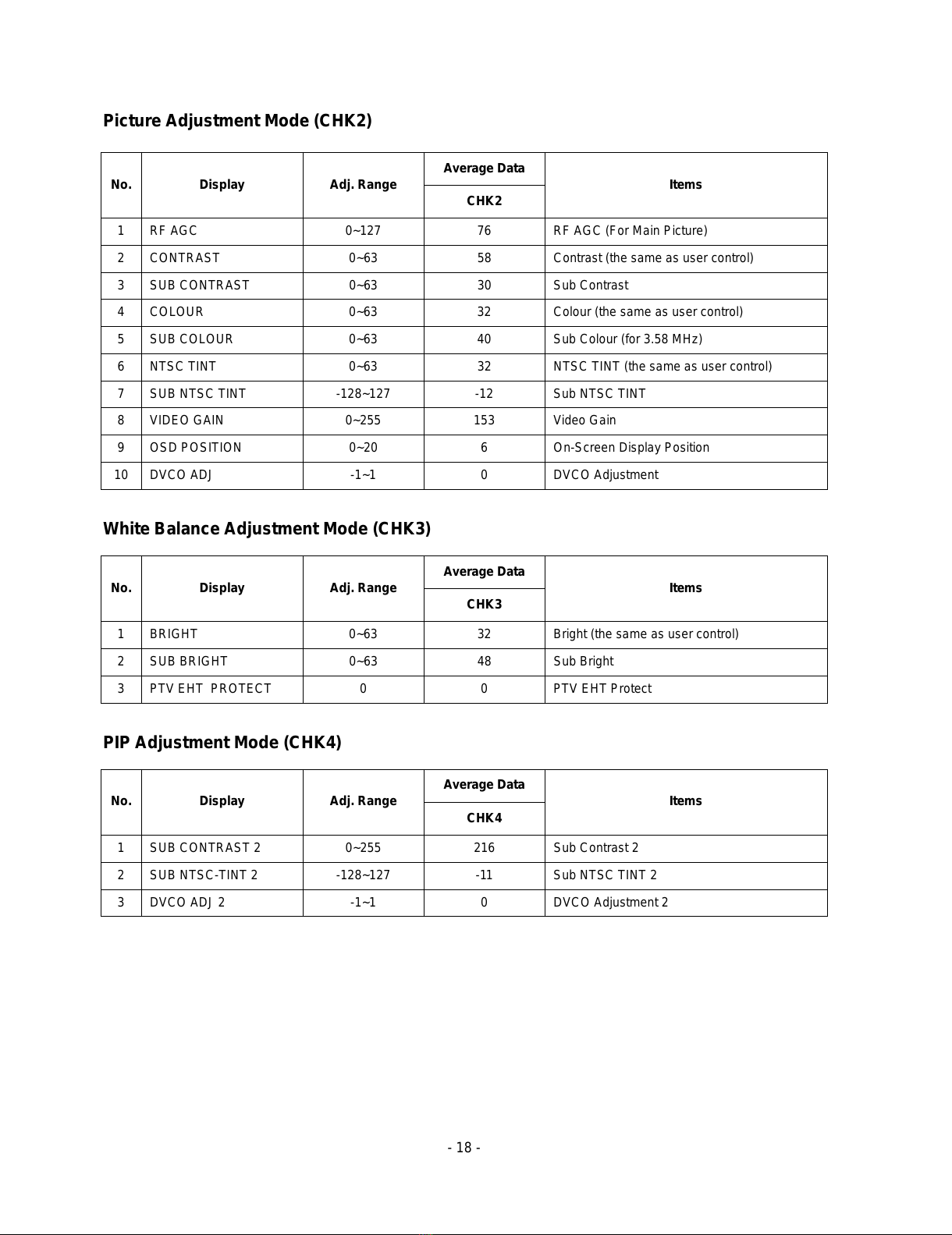

Picture Adjustment Mode (CHK2)
No. Display Adj. Range Average Data Items
CHK2
1 RF AGC 0~127 76 RF AGC (For Main Picture)
2 CONTRAST 0~63 58 Contrast (the same as user control)
3 SUB CONTRAST 0~63 30 Sub Contrast
4 COLOUR 0~63 32 Colour (the same as user control)
5 SUB COLOUR 0~63 40 Sub Colour (for 3.58 MHz)
6 NTSC TINT 0~63 32 NTSC TINT (the same as user control)
7 SUB NTSC TINT -128~127 -12 Sub NTSC TINT
8 VIDEO GAIN 0~255 153 Video Gain
9 OSD POSITION 0~20 6 On-Screen Display Position
10 DVCO ADJ -1~1 0 DVCO Adjustment
White Balance Adjustment Mode (CHK3)
No. Display Adj. Range Average Data Items
CHK3
1 BRIGHT 0~63 32 Bright (the same as user control)
2 SUB BRIGHT 0~63 48 Sub Bright
3 PTV EHT PROTECT 0 0 PTV EHT Protect
PIP Adjustment Mode (CHK4)
No. Display Adj. Range Average Data Items
CHK4
1 SUB CONTRAST 2 0~255 216 Sub Contrast 2
2 SUB NTSC-TINT 2 -128~127 -11 Sub NTSC TINT 2
3 DVCO ADJ 2 -1~1 0 DVCO Adjustment 2
All manuals and user guides at all-guides.com

- 19 -
Deflection Adjustment Mode (CHK5)
No. Display Adj. Range Average Data Items
CHK5
1 100Hz H-WIDTH 0~63 36 Horizontal Width (50Hz)
2 100Hz EW-PARABOLA 0~63 40 EW-Parabola (50Hz)
3 100Hz EW-CORNER 0~63 9 EW-Corner (50Hz)
4 100Hz V-HEIGHT 0~63 54 Vertical Height (50Hz)
5 100Hz V-S-CORRECT 0~63 4 Vertical Scurve Correction (50Hz)
6 100Hz H-CENTER 0~63 35 Horizontal Center (50Hz)
7 100Hz V-CENTER 0~63 37 Vertical Center (50Hz)
8 100Hz TRAPEZOID 0~63 27 Trapezoid (50Hz)
9 100Hz H-PARARELL 0~63 32 Horizontal Parallel (50Hz)
10 PTV S CONVERGENCE ----- ----- Into Static Convergence
PTV Adjustment Mode (CHK6)
No. Display Adj. Range Average Data Items
CHK6
1 PTV G-GAIN 0~255 192 PTV Green Gain
2 PTV R-GAIN 0~255 125 PTV Red Gain
3 PTV B-GAMMA ST1 0~255 152 PTV Blue Gamma ST1
4 PTV B-GAMMA-GAIN 0~255 76 PTV Blue Gamma Gain
5 PTV B-GAIN 0~255 65 PTV Blue Gain
6 PTV R-CUTOFF 0~255 98 PTV Red Cutoff
7 PTV G-CUTOFF 0~255 128 PTV Green Cutoff
8 PTV B-CUTOFF 0~255 163 PTV Blue Cutoff
9 PTV B-LIMIT 0~255 154 PTV Blue Limit
All manuals and user guides at all-guides.com

- 20 -
Service Adjustment Procedures
Item/preparation Adjustment Procedure
+B Voltage Confirmation
1. Operate the set.
2. Set controls:
Bright..........................minimum
Contrast......................minimum
Volume
........................ minimum
Confirm the following voltages.
1. Pin 1 of connector D3 : 207.0±3.0V
2. Pin 4 of connector D12 : 130.0±2.0V
3. Pin 8 of connector D12 : 26.0±2.0V
4. Pin 1 of connector D13 : 15.5±1.5V
5. Pin 5 of connector D13 : 15.5±1.5V
6. Pin 1 of connector D11 : 9.0±1.5V
7. Pin 7 of connector D3 : 6.4±0.24V
8. Pin 8 of connector D13 : -15.5±1.5V
9. Pin 3 of connector D3 : 12.0±0.5V
10. Pin 1 of connector D14 : 40.0±2.0V (open)
: 32.0±2.0V (short)
11. Pin 8 of connector D11
: 6.5±1V
12. TPCP1 : 22±2V
13. TPCP2 : -22±2V
14. TPCP3 : 14±1.5V
15. TPCP4 : -14±1.5V
RF AGC (Main picture) (MARKET MODE CHK2)
1. Receive a colour bar pattern.
2. Set the input level to
TX-51P100X/H/HQ/HZ : 62dB (+1/-2 dB)
TX-51P100HL : 59dB (+1/-2 dB)
(75Ωopened)
3. Connect an oscilloscope to TPA1 with DC mode.
1. Set the TV to MARKET MODE [CHK2 mode].
2. Adjust RF AGC Control so that the voltage at TPA1 becomes 6.2 ±
0.5V.
3. Increase the input level by 2dB and confirm that the voltage
changes.
RF AGC 2 (Sub picture)
1. Receive a colour bar pattern.
2. Set the input level to
TX-51P100X/H/HQ/HZ : 70dB (+1/-2 dB)
TX-51P100HL : 67dB (+1/-2 dB)
(75Ωopened)
3. Connect an oscilloscope to TPA8 with DC mode.
1. Adjust TNR002 so that the volt-
age at TPA8 becomes 6.2 ±
0.5V.
2. Increase the input level by 2dB
and confirm that the voltage
changes.
PAL Colour Output
1. Receive PAL colour bar pattern.
2. Connect an oscilloscope to TPA14 (A-Board).
3. Connect a 22kΩjumper between TPA50 and TPA51 (A-
Board).
4. Set controls:
Picture menu..........DYNAMIC NORMAL
P.AI........................OFF
PWL.......................OFF
1. Adjust Sub Colour control.
A=2.4 ± 0.05
NTSC Colour Output
1. Apply 3.58MHz NTSC Rainbow pattern.
2. Connect an oscilloscope to TPA13 (A-Board).
3. Connect a 22 kΩjumper between TPA50 and TPA51 (A-
Board).
4. Set controls :
Picture menu..........DYNAMIC NORMAL
P.AI.........................OFF
PWL........................OFF
1. Confirm that the waveform:
A=1.9 ± 0.2Vp-p
SECAM Colour Output
1. Receive SECAM colour bar pattern.
2. Connect an oscilloscope to TPA14(A-Board).
3. Connect a 22kΩjumper between TPA50 and TPA51(A-Board).
4. Set controls :
Picture menu..........DYNAMIC NORMAL
P.AI.........................OFF
PWL........................OFF
1. Confirm that the waveform:
A=2.0 ± 0.2Vp-p
Adjust
TNR002
(Top View)
A=2.40 ± 0.05
12345678910
A=1.9 ± 0.2Vp-p
A=2.0 ± 0.2Vp-p
All manuals and user guides at all-guides.com
