Panasonic Viera tc-l32u22x User manual

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in

the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid

in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Web Site: http://panasonic.net/

©Panasonic Corporation 2010 Printed in U.S.A.

M0110-0

This product has a fluorescent lamp that contains mercury.

Disposal may be regulated in your community due to environmental

considerations. For disposal or recycling information, please contact your

local authorities, or the Electronic Industries Alliance:

http://www.eiae.org.

Operating Instructions

32”/37”/42” Class 1080p LCD HDTV

(31.5/37.0/42.0 inches measured diagonally)

TQB2AC0003

Model No.

TC-L32U22X

TC-L37U22X

TC-L42U22X

English Thank you for purchasing this Panasonic product.

Please read these instructions before operating your set and retain them for future

reference. The images shown in this manual are for illustrative purposes only.

Quick Start Guide

See page 7-14

Viewing Advanced FAQs, etc.

Quick Start

Guide

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trademarks

of HDMI Licensing LLC in the United

States and other countries.

VIERA Link™ is a trademark of

Panasonic Corporation. SDHC Logo is a trademark of

SD-3C, LLC.

HDAVI Control™ is a trademark of

Panasonic Corporation.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

●Watching TV················································· 15

●Using VIERA TOOLS ··································· 17

●Viewing with VIERA IMAGE VIEWER·········· 18

●Watching Videos and DVDs························· 20

●Displaying PC Screen on TV························22

●How to Use Menu Functions

(picture, sound quality, etc.) ························· 23

●VIERA LinkTM “HDAVI ControlTM” ·················· 26

●Lock ····························································· 32

●Editing and Setting Channels·······················34

●Closed Caption ············································ 36

●Input Labels ················································· 37

●Using Timer·················································· 38

●Recommended AV Connections ·················· 39

●Ratings List for Lock ····································40

●Technical Information ··································· 41

●Care and Cleaning ······································· 45

●FAQ······························································ 46

●Specifications ··············································· 48

Enjoy your TV!

Basic Features

Advanced Features

FAQs, etc.

●Safety Precautions ········································· 4

Please read before using the unit

●Accessories/Optional Accessory ···················· 7

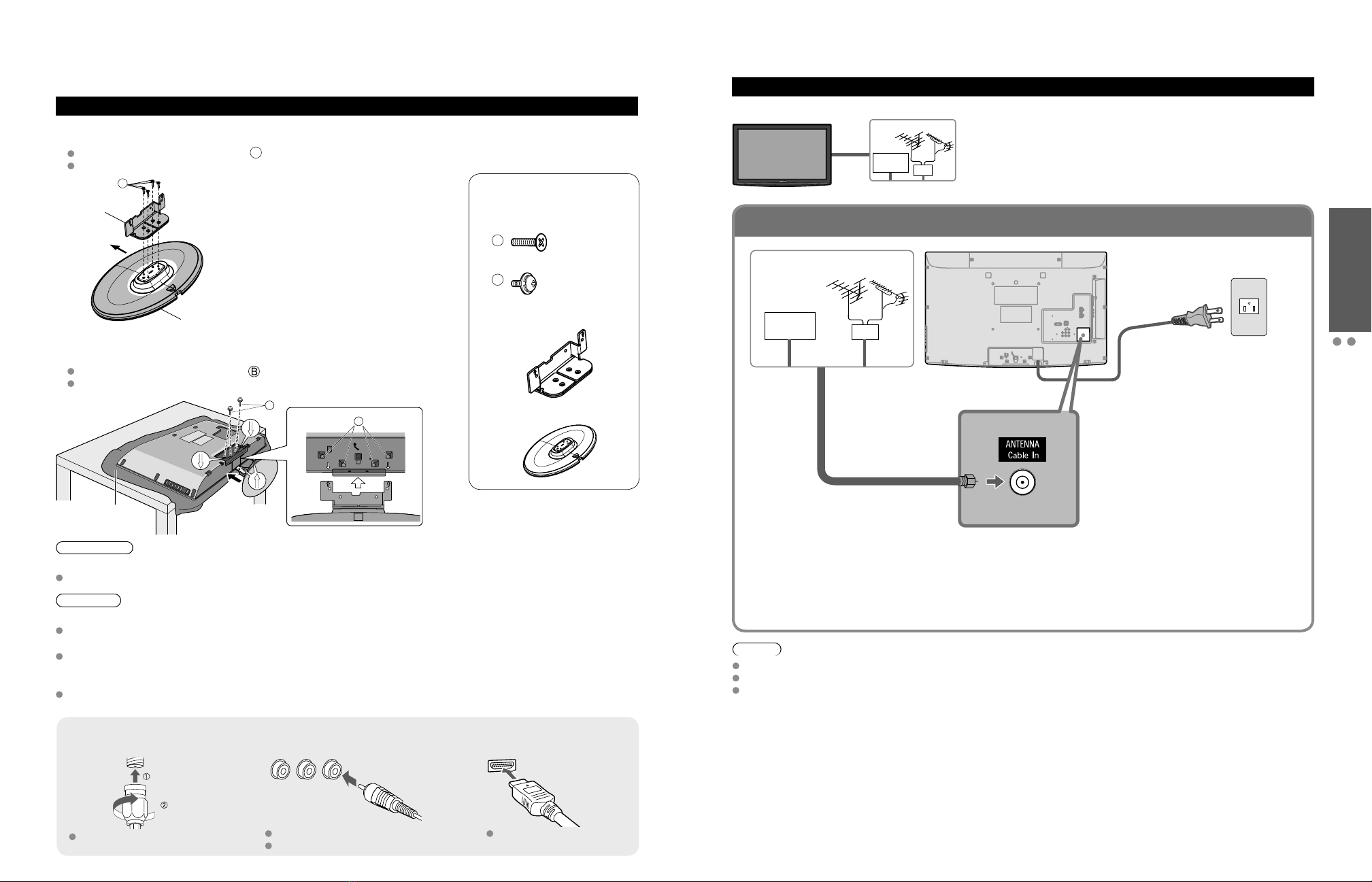

●Basic Connection ··········································· 9

●Identifying Controls ······································ 11

●First Time Setup ··········································· 12

Quick Start Guide

Contents

Experience an amazing level of

multimedia excitement

Enjoy rich multimedia

Amplifier

Home theater system

VCR

DVD recorder/

Blu-ray Disc recorder DVD player/

Blu-ray Disc player

SD memory card

Personal computer

Camcorder

Set Top Box

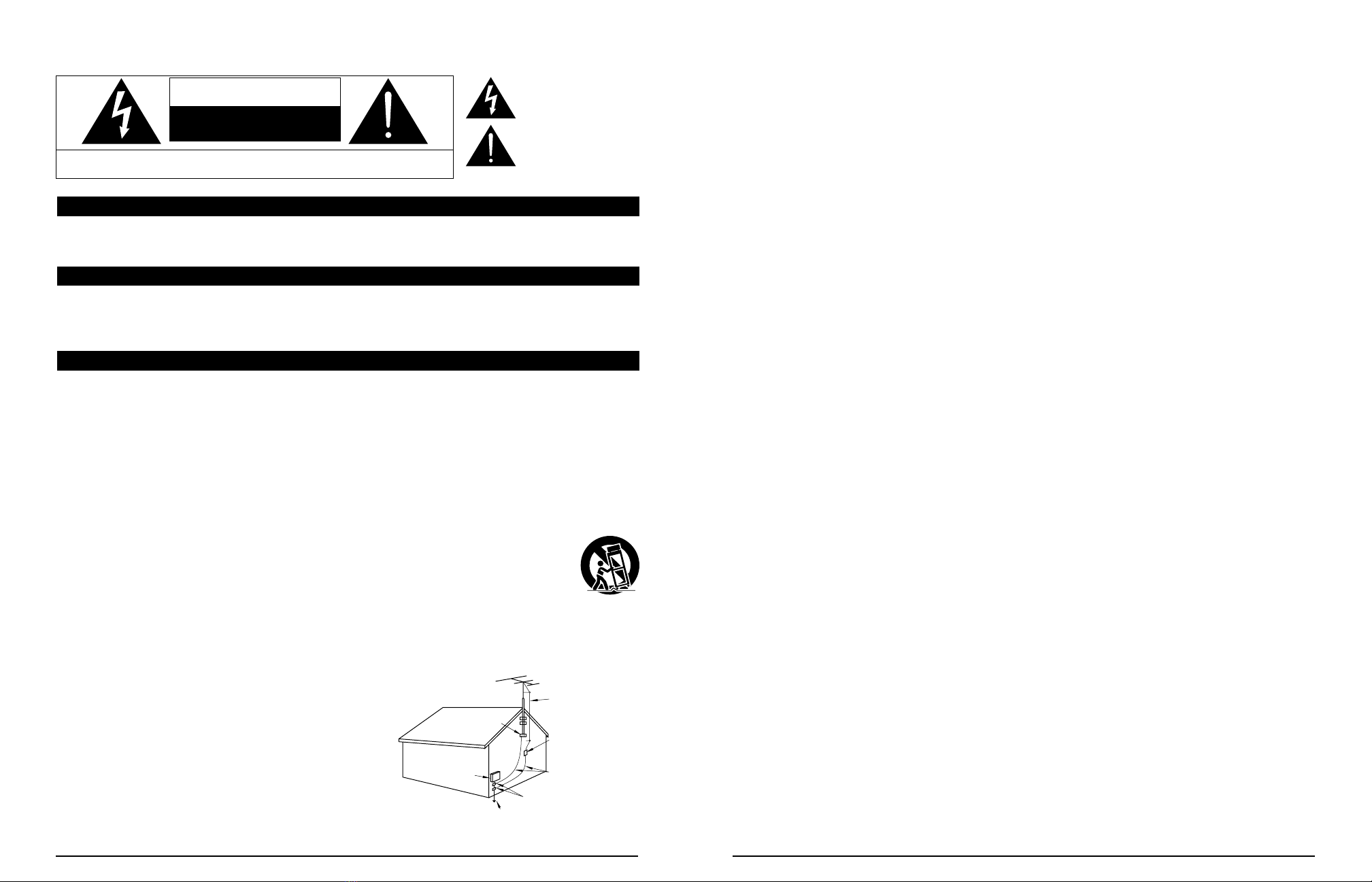

ANTENNA

LEAD-IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING

CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

ELECTRIC

SERVICE

EQUIPMENT

GROUND CLAMP

EXAMPLE OF ANTENNA

GROUNDING AS PER

(NEC) NATIONAL

ELECTRICAL

CODE

Safety Precautions

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as

close to the point of cable entry as practical.

Secure Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD

TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space

from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface.

This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider

than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied

to your home consult your television dealer or local power

company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet

slots as they may touch dangerous voltage points or short out

parts that could result in a fire or electric shock. Never spill liquid

of any kind on the LCD TV.

18) If an outside antenna is connected to the television equipment,

be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges.

In the U.S. Section 810-21 of the National Electrical Code

provides information with respect to proper grounding of the mast

and supporting structure, grounding of the lead-in wire to an

antenna discharge unit, size of grounding conductors, location of

antenna discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead

within a triangle is intended to tell the

user that parts inside the product are a

risk of electric shock to persons.

The exclamation point within a

triangle is intended to tell the

user that important operating and

servicing instructions are in the

papers with the appliance.

19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits,

or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be

taken to keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the LCD TV.

c. If the LCD TV has been exposed to rain or water.

d. If the LCD TV does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the

LCD TV to normal operation.

e. If the LCD TV has been dropped or the cabinet has been damaged.

f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

21)

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that

have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING.

DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET

(INCLUDING ON SHELVES ABOVE, ETC.).

23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL

PARTS AWAY FROM YOUNG CHILDREN.

DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS

AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,

CREATING THE POTENTIAL RISK OF SUFFOCATION.

24) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves

as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power.

Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet

in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when

left unused for a long period of time (for example, when on vacation).

25) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

26) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

27) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME

OR EQUIVALENT TYPE.

28) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation)

• Wall-hanging bracket: TY-WK3L2RW

Always be sure to ask a qualified technician to carry out set-up.

6 7

Quick Start

Guide Accessories/Optional Accessory

Optional Accessory

Wall-hanging bracket

TY-WK3L2RW

WARNING

Please contact your nearest Panasonic dealer to purchase the recommended

wall-hanging bracket. For additional details, please refer to the wall-hanging

bracket installation manual.

Back of the TV

Holes for wall-hanging bracket

installation

Screw for fixing the TV onto the

wall-hanging bracket

(not supplied with the TV)

(View from the side)

7.9 ”

(200 mm)

7.9 ”

(200 mm)

Customers assumes liability if mounting the unit themselves or if a Panasonic bracket is not used. Any damage resulting

from not having a professional installer mount your unit will void your warranty.

Always be sure to ask a qualified technician to perform any necessary set-up. Incorrect fitting may cause equipment to

fall, resulting in injury and product damage.

Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off

high heat. Doing so may warp or damage plastic cabinet parts.

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall

before hanging bracket.

When using an angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting cables

so that they do not to press against the wall when the TV is tilted forward.

For safety reasons, remove units no longer being used from their wall-mounted locations.

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control

Transmitter

N2QAYB000485

Batteries for the

Remote Control

Transmitter (2)

AA Battery

Operating Instructions

Quick setup guide

(For viewing programming)

Warranty Card (Mexico)

Installing the remote’s batteries

Open

Hook

Note the correct polarity

(+ or -).

Caution

Incorrect installation may cause

battery leakage and corrosion,

resulting in damage to the remote

control.

•

Do not mix old and new batteries.

•

Do not mix different battery types (such

as alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd)

batteries.

Do not burn or break batteries.

Pedestal

TBL3AX0005 or TBL3AX0010 (TC-L32U22X)

TBL2AX0029 (TC-L37U22X)

TBL2AX0031 (TC-L42U22X)

How to assemble (p. 8)

Depth of screw:

Minimum: 0.39” (10.0 mm)

Maximum: 0.47” (12.0 mm) (32”/37”)

1.57” (40.0 mm) (42”)

This product incorporates the following software:

(1) software developed independently by or for Panasonic Corporation,

(2) software owned by a third party and licensed to Panasonic Corporation,

(3) software licensed under the GNU General Public License, Version 2 (GPL v2),

(4) software licensed under the GNU LESSER General Public License (LGPL) and/or,

(5) open source software other than software licensed under the GPL and/or LGPL

For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the case may be at

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and

http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, software categorized as (3) or (4) is copyrighted by several

individuals and/or entities. Please refer to the copyright notice of those individuals at

http://www.am-linux.jp/dl/DTV10UT/.

GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT ANY WARRANTY,

EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE.

For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the address provided

below, for a charge of no more than our cost of physically performing source code distribution, a complete machine-readable

copy of the corresponding source code covered under GPL v2/LGPL.

Contact Information

[email protected]

Source code is also freely available to you and any other member of the public via our website below.

http://www.am-linux.jp/dl/DTV10UT/

Quick Start

Guide

Basic Connection (Antenna + TV)

Accessories/Optional Accessory

To connect the antenna terminal

Accessories

Assembly screws

(4 of each)

M4 × 16

M4 × 12

Bracket (1)

Base (1)

■Assembling the pedestal

Fix securely with assembly screws

. (Total 4 screws)

Tighten screws firmly.

Bracket

Front

Base

(Image: TBL2AX0029)

■Set-up

Fix securely with assembly screws . (Total 4 screws)

Tighten screws firmly.

Foam mat or thick

soft cloth

WARNING

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any other TV and displays.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong

enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Antenna terminal Pin terminals HDMI terminal

greenbluered

green

Firmly tighten by hand. Match colors of plugs and terminals.

Insert firmly.

Reference of connection

Attaching the pedestal to TV

Basic Connection

Note

Not all cables and external equipment shown in this book are supplied with the TV.

For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

ATSC is not available except in U.S.A., Canada, and/or Mexico.

Example Connecting Antenna (To watch TV)

Cable TV

VHF/UHF Antenna

TV VHF/UHF Antenna

• NTSC (National Television System Committee):

Conventional broadcasting

• ATSC (Advanced Television Systems Committee):

Digital TV Standards include digital high-definition television (HDTV),

standard-definition television (SDTV), data broadcasting, multi-

channel surround-sound audio and interactive television.

Cable

• You need to subscribe to a cable TV service to enjoy viewing their programming.

• You can enjoy high-definition programming by subscribing to a high-definition cable service.

The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 10)

• To view high-definition programming select the correct video input. (p. 20)

Power Cord

(Connect after all the

other connections.)

Back of the TV

Cable TV

AC 110-127 V

60 Hz

VHF/

UHF A

ntenna

Accessories/Optional Accessory

(Continued)

Quick Start

Guide

Identifying Controls

Basic Connection (AV cable connections)

To use HDMI terminals

HDMI

AV OUT

e.g. Blu-ray Disc

player

AV Equipment

Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.

The HDMI connection is required for a 1080p signal.

For “VIERA LinkTM connections”, please refer to p. 27.

To use COMPONENT terminals

COMPONENT

VIDEO OUT

AUDIO

OUT

white

red

green

blue

red

whit

gre

blu

white

red

green

blue

red

e.g. Blu-ray Disc

player

AV Equipment

High-Definition

Standard-Definition

To use COMPOSITE terminals

COMPOSITE

OUT

yel

hit

ellow

ite

red

yellow

white

red

e.g. DVD Recorder

AV Equipment

e.g. VCR

Note

For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

AV cable connections

Identifying Controls

C.A.T.S (Contrast Automatic Tracking System)

Power indicator

(on: red, off: no light)

Note

The TV consumes a small amount of electric energy even when turned off.

Do not place any objects between the TV remote control sensor and remote control.

TV controls/indicators

Changes the input mode

Chooses menu and submenu entries.

Volume up/down

Selects channels in sequence

Front of the TV

POWER button

Menu navigations

Remote control

Basic Connection (Continued)

Switches TV On or Off (Standby)

Changes the input mode (p. 20)

Displays Main Menu (p. 23)

Displays Sub Menu (p. 15, 25)

Colored buttons

(used for various functions)

(for example, p. 14, 18, 31)

Volume up/down

Sound mute On/Off

Changes aspect ratio (p. 16, 41)

Switches to previously viewed channel

or input modes

External equipment operations

(p. 31)

Closed Caption On/Off (p. 15)

Selects Audio Mode for TV viewing (p. 15)

Exits from menu screen

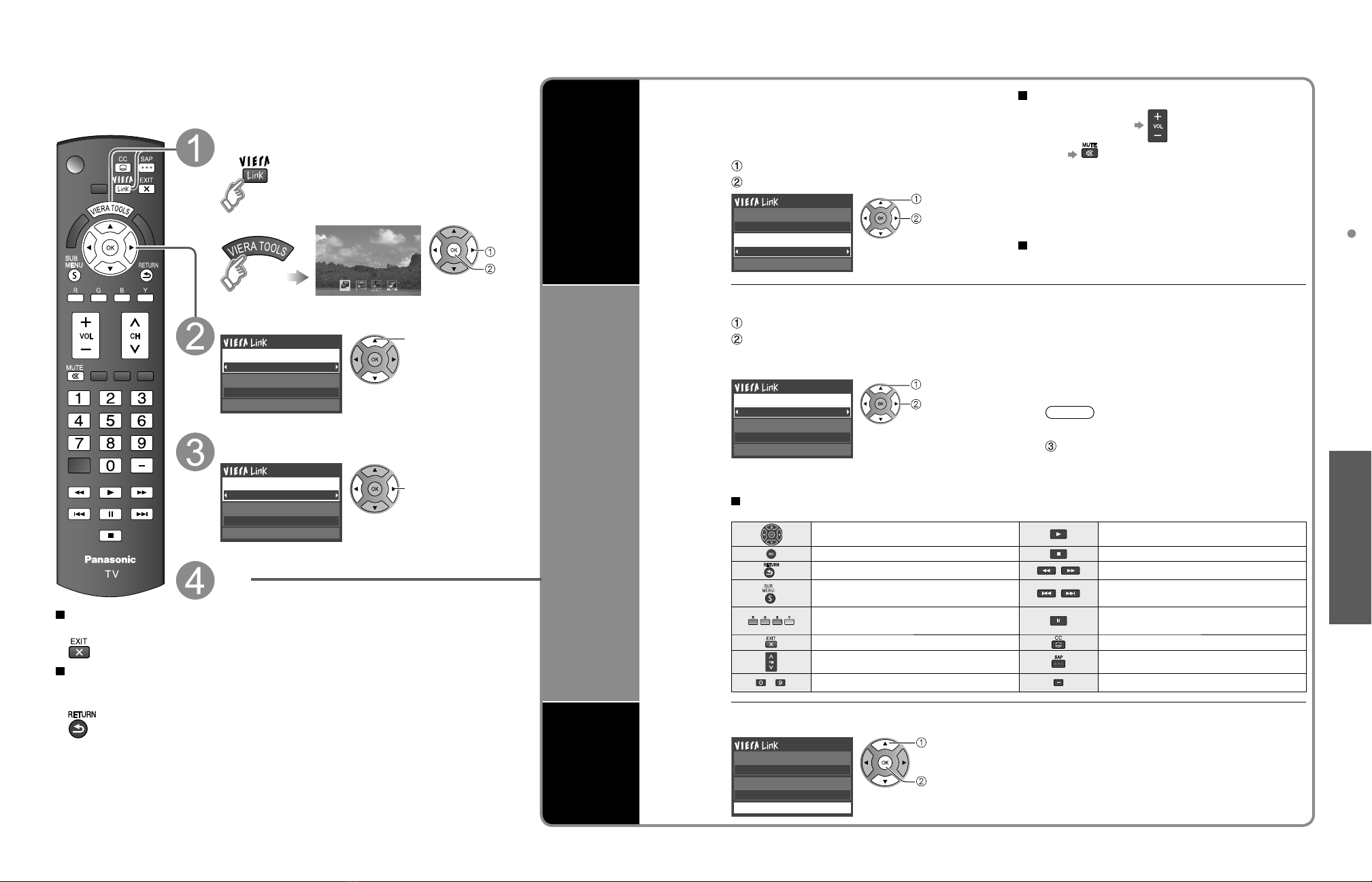

VIERA Link menu (p. 30-31)

Display VIERA TOOLS (p. 17)

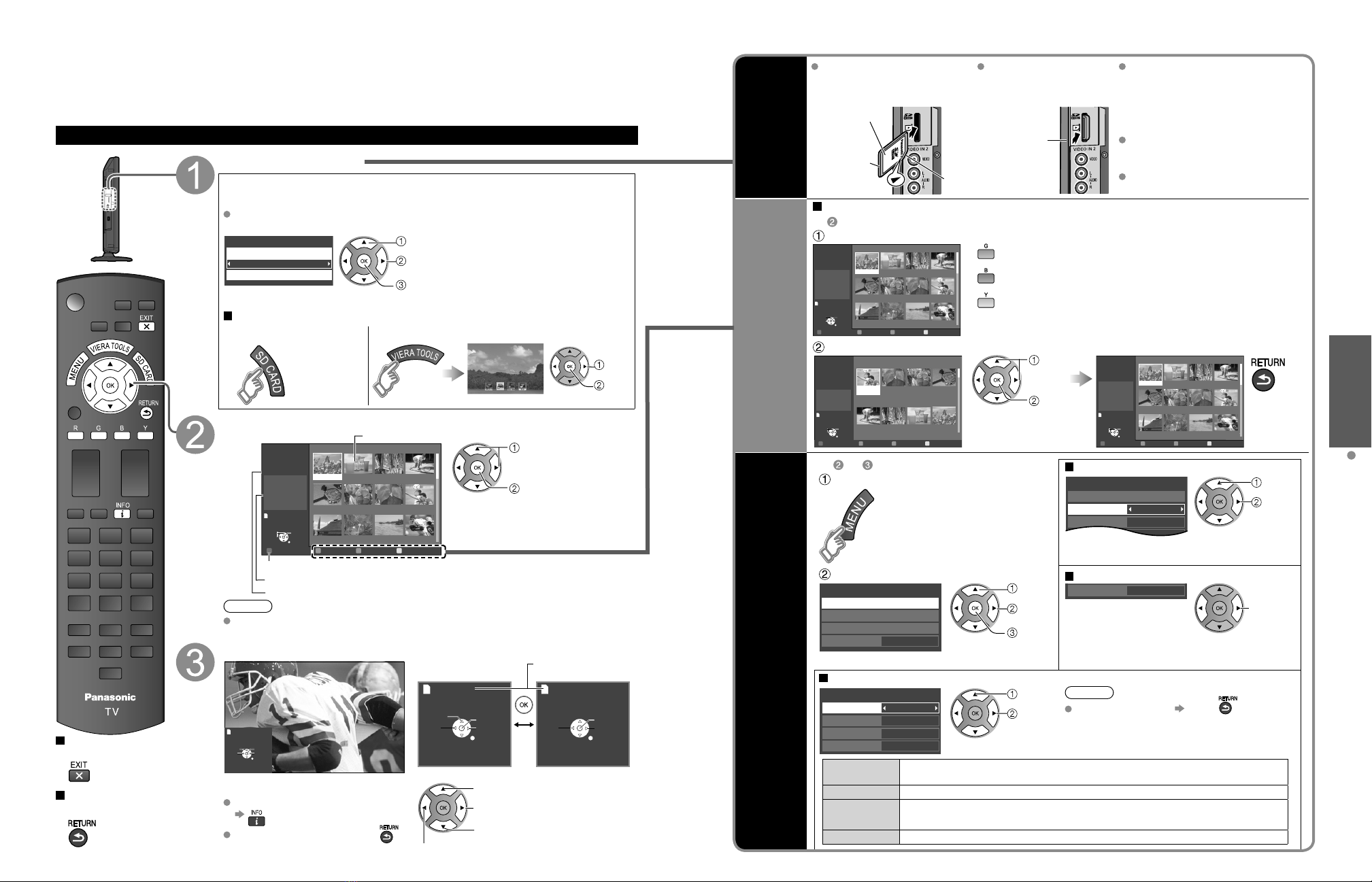

Viewing from SD Card (p. 18-19)

Selects/OK/Change

Returns to previous menu

Channel up/down

Displays or removes the channel

banner (p. 16)

Operates the Favorite channel list

function (p. 16)

Numeric keypad to select any channel

(p. 15) or press to enter alphanumeric

input in menus

(p. 14, 20, 22, 30, 32, 34, 37, 38)

Use for digital channels. (p. 15)

Remote control sensor

within about 23 feet

(7 meters) in front of the

TV set

Quick Start

Guide

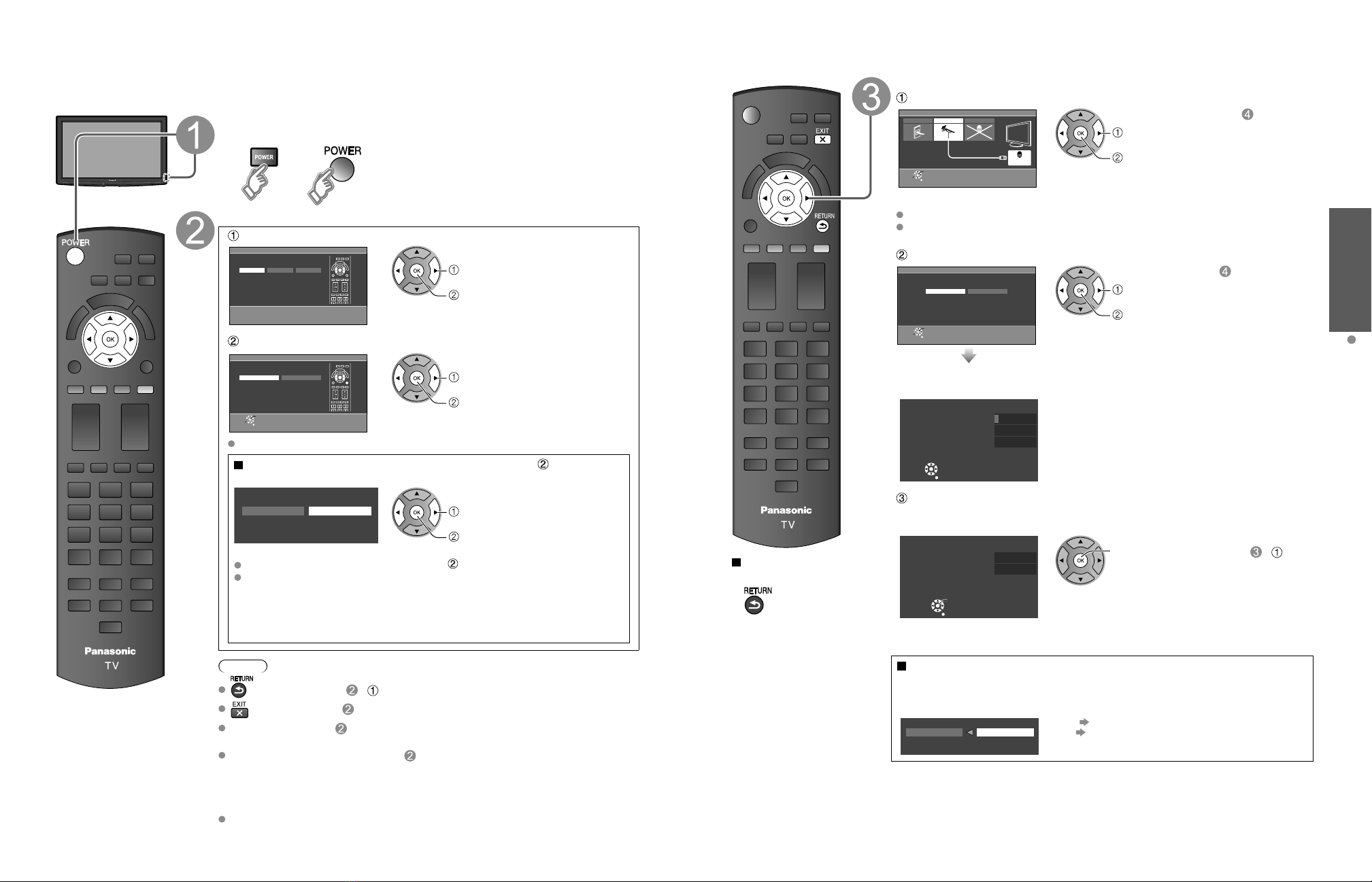

First Time Setup

Turn the TV On with the POWER button

(TV) (Remote)

Configure your viewing mode

Select your language

Language / Idioma / Langue

English Español Français

select

Select your viewing mode (Be sure to select “Home use”)

Set viewing mode Step 2 of 6

Please select your viewing environment.

Select “Home Use” when using this TV in your

home.

Home Use Store Demonstration

RETURN

Select

select

Please confirm your selection (Home Use) before pressing OK button.

If you select “Store Demonstration” by mistake in ,

confirmation screen will be displayed.

You are selecting the store demonstration mode.

If you select “Yes”, the picture mode will regularly reset

to “Vivid” and a Picture Refresh message will be displayed on the

screen.

Yes

select

Select “No” and return to previous screen .

If you select “Yes”, Screen enters the store demonstration mode.

To display the “Set viewing mode” screen again as shown above and select

“Home Use”, do one of the following:

• Press and hold down the side POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug it again.

Note

is not available on - .

is not available on .

When you have used

to turn the TV off, the next time you turn the TV on the

“Language” settings will be displayed.

If you use any other step other than

to turn the TV off, or if you used the EXIT

button to quit before completing the settings, the next time you turn the TV on “First

time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can reset the settings using “First time setup”. (p. 25)

To change the setting (Language, ANT/Cable setup, Input labels, Clock) later, go to

the Menu screen (p. 25)

Press to return to

the previous screen

Auto channel setup (ANT/Cable setup)

Select the connected Antenna in terminal

ANT/Cable setup Step 3 of 6

Select “Not used” when viewing TV via

Satellite receiver or Cable box. Note: Select

“Cable” when viewing via Cable DTA Box.

Cable Antenna Not used

ANTENNA

Cable In

ANTENNA

Cable In

RETURN

Select

select

Not used: Go to

(Label inputs)

Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.

Typical when a Cable/Satellite box is connected to a TV input.

Prevents accidental tuning to an unavailable signal.

Select “Start”

Auto program Step 4 of 6

Start scanning for channels via the TV’s

built-in tuner. Select “Skip” when viewing TV

channels via Satellite receiver or Cable box.

Start Skip

RETURN

Select

select

Skip: Go to

(Label inputs)

Start scanning the channels

(Available channels are automatically set.)

Auto program

Progress

Number of analog channels

Number of digital channels

Press RETURN to quit

RETURN

Complete the Auto program setup

Completion message is displayed when the Auto program scan is successfully

completed.

Auto program

Auto program completed.

Press OK to continue.

Number of analog channels

Number of digital channels

RETURN

If there is no available

channel, return to -

(ANT/ Cable setup).

“Not used” will be selected.

First time setup screen is displayed only when the TV is turned on for the first time after the power cord is

inserted into a wall outlet and when “Auto power on” (p. 25) is set to “No”.

Operation of the EXIT button during “First time setup”

Press the button once to display confirmation screen. Press again to close

confirmation screen.

[EXIT confirmation screen]

Are you sure you want to exit the First Time Setup?

To repeat the First Time Setup, select

“First time setup” in the Setup Menu.

Yes No

Yes Exit “First time setup”

No Return to the original screen.

Quick Start

Guide

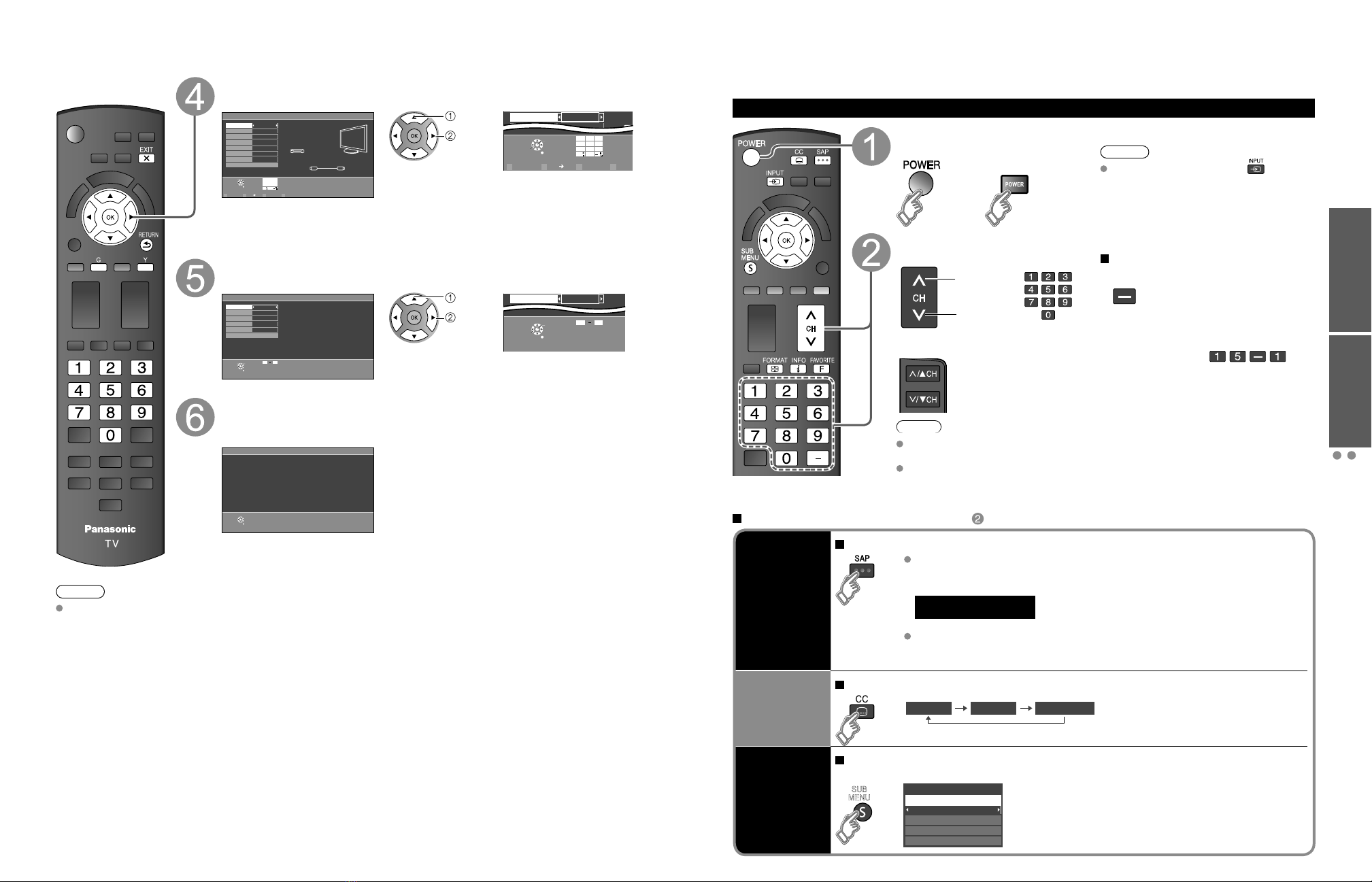

Viewing Watching TV

First Time Setup

Watching TV

Turn power on

(TV)

(Remote) Note

If the mode is not TV, press and

select TV. (p. 20)

Select a channel number

down

(Remote) To directly enter the digital

channel number

When tuning to a digital channel,

press the button to enter the

minor number in a compound

channel number.

example: CH15-1:

(TV)

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal

reception between cable TV and antenna. (p. 13, 35)

The channel number and volume level remain the same even after the TV is turned

off.

Listen

with SAP

(Secondary

Audio

Program)

Select Audio mode for watching TV

Digital mode

Press SAP to select next audio track (if available) when receiving a digital

channel.

Audio track 1 of 2

(English)

Analog mode

Press SAP to select the desired audio mode.

• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)

Closed

caption

Switches the Closed caption mode On or Off

Closed caption Off Closed caption On muteClosed caption On

Display the

SUB MENU

Press SUB MENU to show the sub menu screen (p. 25)

This menu consists of shortcuts to convenient functions.

SUB

All

Setup SUB MENU

Edit CH caption

Signal meter

Set favorite

Channel surf mode

Basic connection (p. 9-10)

To watch TV and other functions

Other Useful Functions (Operate after )

Note

About broadcasting

systems

Analog (NTSC):

Conventional

broadcasting

Digital (ATSC):

New

programming

that allows

you to view

more channels

featuring

high-quality video

and sound

Select the Input labels (Label inputs)

Select NEXT then press OK to go to next step.

Label inputs Step 5 of 6

Press RIGHT to select a label for each input.

Example: DVD, Blu-ray, etc. or “Not used”.

Press OK to customize the label.

Edit

Blu-ray, DVD ...

HDMI HDMI

RETURN

Change

Select

HDMI 3

Component

Video 1

Video 2

HDMI 1

HDMI 2

ABC Deleteabc

R G B Y

1@.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

select

set or

RETURN

Select

ABC Deleteabc

R G B Y

1 @.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

Blu-r

Video 2

Follow the instructions on

screen to complete the

following operations.

Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/

VCR/CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA

CTR/MEDIA EXT/OTHER

Adjust the Clock (Set clock)

Select NEXT then press OK to go to next step.

Step 6 of 6

Edit

RETURN

Change

Select 09

Set clock

Day

Hour

Minute

Year

Month

Current year.

select

set

RETURN

Select

Minute

Follow the instructions on

screen to complete the

following operations.

Complete the First time setup

Completion message is displayed when you successfully completed the First

time setup.

RETURN

Setup is complete. Enjoy your

Panasonic VIERA TV.

Press OK to exit.

First Time Setup (Continued)

Viewing

Using VIERA TOOLS

Watching TV

Information

recall

Displays or removes the channel banner

15-2 12:30 PM

THE NEWS

CC SAP

TV-G 1080i Standard 4:3

ABC-HD

Channel

Station

identifier

SAP

indication

Signal

resolution

Rating level


mode

Sleep timer

remaining time

Aspect ratio

Closed caption

Clock

Change

aspect

ratio

Press FORMAT to cycle through the aspect modes (p. 41)

• 480i, 480p: FULL/JUST/4:3/ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

Call up

a favorite

channel

FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune screen.

Select the desired broadcast station with the cursor or use number buttons. (see

below)

Set the Favorite Feature

1Display the SUB MENU.

SUB

2Select “Set favorite”

All

Setup SUB MENU

Edit CH caption

Signal meter

Set favorite

Channel surf mode

select

3Set the displayed channel

Set favorite 1/3

26-1

select

the list

number

save the displayed

channel

select the list number

(to save the channel

without pressing OK)

Delete a favorite channel

Set favorite 1/3

26-1

select

delete

(while holding down)

Watching TV (Continued)

Use the Favorite Feature

1Display “Favorite channels”

2Select the channel

Favorite channels

1/3

26-1

select

3Set Favorite channel

Favorite channels

1/3

26-1

To change the page

Press repeatedly to change between

pages(1/3, 2/3, 3/3 or exit)

Changes the page forward/backward

Favorite Feature

Using VIERA TOOLS

Press to exit from

a menu screen

Press to return

to the previous

screen

Display VIERA TOOLS

Select the item

VIERA Link

select

Set each item

VIERA Link

VIERA Link (p.30-31)

Slideshow

Slideshow (p. 18-19)

Photo viewer

Photo viewer (p. 18-19)

Eco mode

ECO/energy saving (p. 25)

VIERA TOOLS is the easy way to access frequently-used menu items. They are displayed as shortcut icons

on the TV screen.

Unlike a conventional menu, you can enjoy using, playing or setting a function quickly.

Viewing

Viewing with VIERA IMAGE VIEWER

The VIERA Image Viewer is a function that lets you easily view still images on a VIERA television by simply inserting an

SD card into the VIERA SD card slot.

(Media other than SD Cards will not work.)

Press to exit from

a menu screen

Press to return to

the previous screen

Insert the SD card

* This setting will be skipped next time unless you select “Set later”.

Set “Image viewer settings” and select “Play image viewer now”

“Image viewer settings” will be displayed automatically each time an SD card is

inserted for the first time.

Set later

Image viewer settings

Image viewer auto play

Play image viewer now

select

change

set

Slideshow:

A Slideshow will start

automatically next time.

Thumbnail:

The Photo viewer menu will be

displayed automatically next time.

Set later: “Image viewer settings” menu

will be displayed repeatedly.

Off:

The data can be played manually.

Manual operation (“Image viewer auto play” is “Off”)

Display “Photo viewer”

Start the Slideshow

select

Slideshow

Select the data to be viewed

Slideshow Folders

R Y

Sort by month

Sort by date

Select

RETURN

Name

Pana0001

Date

03/04/2010

Size

1029×1200

Photo viewer

All photos

Total 238

Pana0001 Pana0002 Pana0003 Pana0004

Pana0005 Pana0006 Pana0007 Pana0008

Pana0009 Pana0010 Pana0011 Pana0012

select

view

Thumbnail view

To launch Slideshow

Selected picture information is displayed.

Total number of images.

Note

Depending on the JPEG format, “Information” contents may not be displayed

correctly. Refer to p. 42 (Data format for SD card browsing) for details.

View

Rotate

Prev.

RETURN

Play

Accessing

Displays one at a time

To display/hide the Navigation area

Return to the Thumbnail view

Accessing

Prev.

Rotate

RETURN

Accessing

Pause

Prev.

RETURN

Play

Navigation area Present status

(While reading the data)

Single photo view Slideshow

Rotate 90 degrees (counter-clockwise)

To next photo

Rotate 90 degrees (clockwise)

To previous photo

Photo viewer

SD Card

Insert the card Remove the card

Compliant card type (maximum

capacity): SDHC Card (32 GB),

microSDHC Card (16 GB), SD Card

(2 GB), miniSD Card (2 GB), microSD

Card (2 GB) (requiring microSDHC Card/

miniSD Card/microSD Card adapter)

If a microSDHC Card, miniSD Card

or microSD Card is used, insert /

remove it together with the adapter.

For cautions and details on SD

Cards (p. 42)

Gently insert the SD Card label

surface facing front.

Label surface

Push until a

click is heard

Cutout

Press in lightly

on SD Card,

then release.

Sort

To sort by Folder, month or date

Select the sort type

Slideshow Folders

R Y

Sort by month

Sort by date

Select

RETURN

Name

Pana0001

Date

03/04/2010

Size

1029×1200

Photo viewer

All photos

Total 238

Pana0001 Pana0002 Pana0003 Pana0004

Pana0005 Pana0006 Pana0007 Pana0008

Pana0009 Pana0010 Pana0011 Pana0012

Folders (ascending order of numeric/alphabetical)

Sort by month (ascending order of the month)

Sort by date (ascending order of the date )

Select the directory.

Accessing

Slideshow

R YG B

Select

RETURN

09/23/2009

28 photos

09/28/2009

58 photos

10/10/2009

3 photos

11/20/2009

8 photos

12/25/2009

24 photos

01/01/2010

10 photos

02/15/2010

16 photos

03/04/2010

32 photos

Date

09/23/2009

Number of photos

28 photos

Photo viewer

All photos

Sort by date

Accessing

Slideshow

R YG B

Select

RETURN

Name

Pana0001

Date

09/23/2009

Size

1029×1200

Photo viewer

All photos

09/23/2009

Total 28

Pana0001 Pana0002 Pana0003 Pana0004

Pana0011 Pana0012 Pana0013 Pana0014

Pana0055 Pana0056 Pana0057 Pana0058

select

OK Return to

screen


settings

In or Adjust the picture/Audio

Display “Photo settings”

example :Picture menu

Picture menu/Audio menu (p. 24)

Vivid

Picture 1/2

Picture mode

Contrast

Back light

Reset to defaults

Select

Adjust

Select the item Set the Soundtrack

Off

Photo settings


Audio

Slideshow settings

Soundtrack

select

change

Off

Soundtrack

change

Select the music from 5 types.

(Off/Music 1/Music 2/Music 3/Music 4/Music 5)

Slideshow settings

Fast

Off

Sepia

Slideshow settings

Display interval

Repeat playback

Transition effect

Photo effect

Select

Adjust

Note

To stop in mid-cycle Press

Display interval

You can set how many seconds each image is displayed in the Slideshow

mode. (Short/Fast/Normal/Slow/Very slow)

Repeat playback

Turn the slideshow Repeat function on or off (Off/On).

Transition effect

Select the transition effect (Off /Wipe ↓/Wipe ↑/Wipe →/Wipe ←/Comb ↑↓

/Comb →←/Dissolve/Checker wipe/Random/Array/Collage)

Photo effect Select the conversion effect (Off/Sepia/Gray scale)

Viewing

Watching Videos and DVDs

VIERA LinkTM Setting

If you connect equipment that has the “HDAVI Control” function to the TV using an HDMI cable,

you will find it easier to use. Please refer to p. 26-31. Before using these functions, you need to

set “VIERA Link” setting to “On” as shown below.

Press to exit from

a menu screen

Press to return to

the previous screen

Display the menu

Select “Setup”

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Setup 2/2

Advanced setup

First time setup

About

Reset to defaults

VIERA Link settings

ECO / energy saving

select

Select “VIERA Link settings”

SetupMenu 2/2

Advanced setup

Repeat 1st time setup

VIERA Link settings

ECO / energy saving

select

Select “VIERA Link”

Yes

Quick start

No (stay on)

Enables or disables interoperability of

“HDAVI Control” compliant HDMI devices.

VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

Select “On”

(default is On) change

Now you can set each “VIERA Link” function according to your preference

(p. 28-31).

Note

If no HDMI equipment is connected or standard HDMI equipment (non- “VIERA

Link”) is used, set it to “Off”.

For more details on the external equipment’s connections, please refer to the

operating manuals for the equipment.

If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV screen.

Input Select

You can select the external equipment to access.

To return to TV

With the connected equipment turned On

Display the Input select menu

Select the input mode

Input select

Component

HDMI 1

HDMI 2

HDMI 3

Video 1

Video 2

AUX

DVD

(example)

select

enter

Press the corresponding NUMBER

button on the remote control to

select the input of your choice.

Select the input of your choice,

then press OK.

During the selection, if no action

is taken for several seconds, the

“Input select” menu disappears.

HDMI 1

DVD

Terminal

(example)

Label

The terminal and label of the

connected equipment are

displayed.

To label each of the inputs,

please refer to p. 37.

Note

The input label will be displayed on the “Input select” screen if the Input label is set

on p. 37.

For more details on “Input labels”, refer to p. 37.

Operate the connected equipment using the remote

control supplied with the equipment

Note

For details, see the manual for the connected equipment.

Watching Videos and DVDs

Advanced

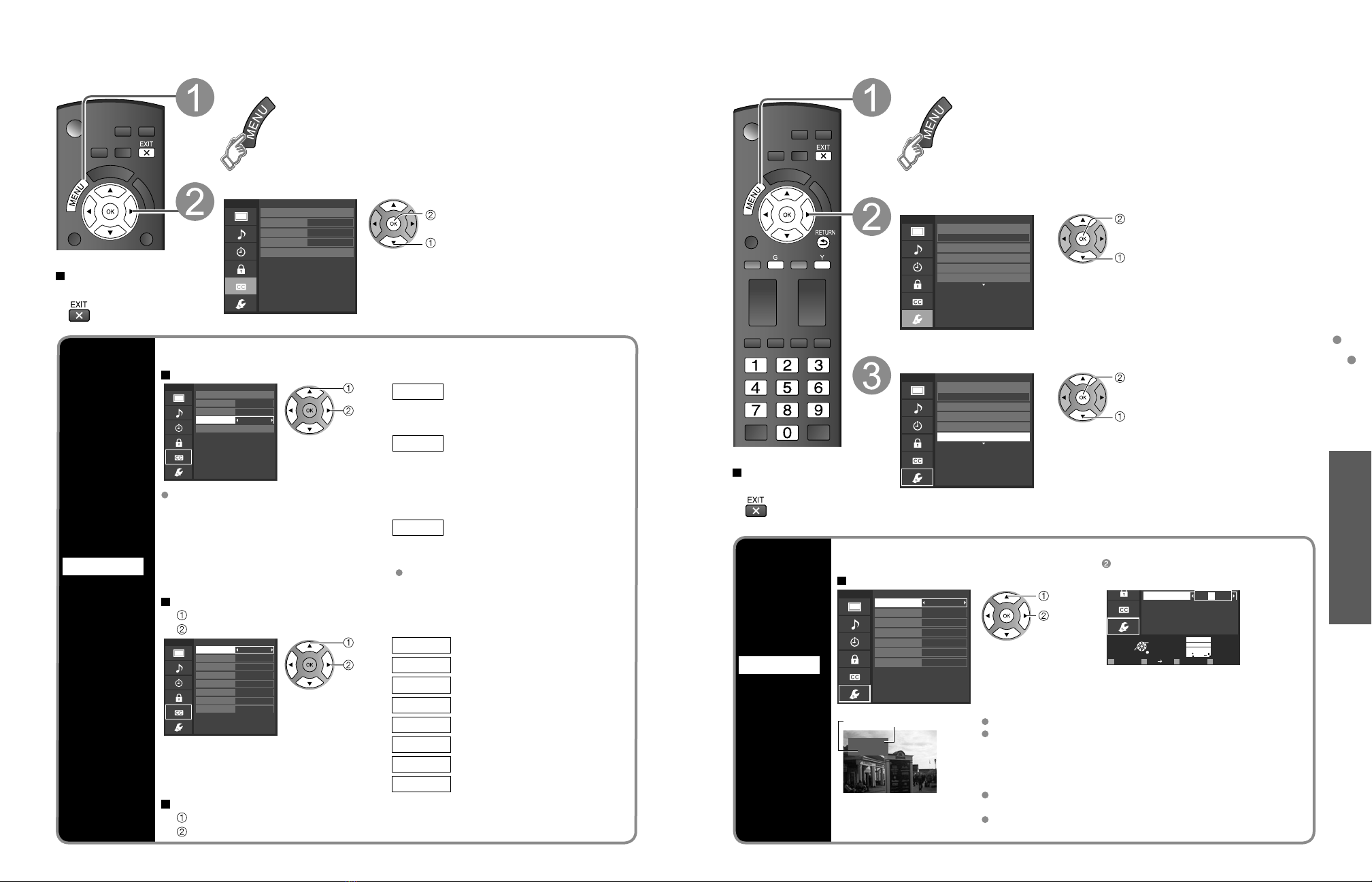

How to Use Menu Functions

Displaying PC Screen on TV Viewing

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy

watching TV best suited for you.

Press to exit from

a menu screen

Press to return

to the previous

screen

Display the menu

Shows the functions that can be adjusted.

Some functions will be disabled depending on

the type of input signal.

Edit

RETURN

ABC Deleteabc

R G B Y

1@.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

Change

Select

Select or enter the name of the device

connected to the HDMI 1 terminal.

Input labels

HDMI 2

HDMI 3

Video 1

Video 2

HDMI 1

Component

Menu structure Menu bar

Press OK to move to the Menu items.

Menu items

Press OK to proceed to next screen if

available.

Help information

Operation guide

(example: Input labels)

Select the menu

Custom

Picture 1/2

Picture mode

Back light

Contrast

Reset to defaults

select

Select the item

Custom

Resets all picture adjustments to factory

default settings except for “Advanced

picture”.

Picture 1/2

Brightness

Color

Tint

Sharpness

Picture mode

Back light

Contrast

Reset to defaults

(example: Picture menu)

select

Adjust or select

Vivid

Selects from preset picture modes.

Picture 1/2

Brightness

Color

Tint

Sharpness

Picture mode

Back light

Contrast

Reset to defaults

(example: Picture menu)

adjust

select

Displaying PC Screen on TV

The screen of the PC connected to the unit can be displayed on the TV.

You can also listen to PC sound with the audio cable connected. To connect PC (p. 39)

PC menu setting (change as desired)

Making settings “How to Use Menu Functions” to (p. 23)

Menu Item Adjustments/Configurations (options)


adjustments

Reset to defaults

Resets PC adjust. Confirmation screen is displayed. Select “Yes” and press OK to reset.

Sync

H & V

: The H and V sync signals are input from the HD/VD connector. (p. 45)

On green: Uses a synchronized signal on the Video G signal, which is input from the

G connector. (p. 45)

Dot clock Alleviates the problem if a picture appears to be vertically-striped, flickers partially or is blurred.

H-position

Adjusts the horizontal position.

V-position

Adjusts the vertical position.

Clock phase

Alleviates the problem if the whole picture appears to flicker or is blurred.

First adjust the Dot Clock to get the best possible picture, then adjust the

Clock Phase so that a clear picture appears.

Note

It may not be possible to display a clear picture due to poor input signals.

Input

resolution

Switches to wide display.

Input signal switched from 640×480 to 852×480

Input signal switched from 1024×768 to 1280×768 or 1366×768

H-frequency

V-frequency

Displays the H (Horizontal)/V (Vertical) frequencies.

Display range

Horizontal: 15 - 110 kHz

Vertical: 48 - 120 Hz

Audio menu (p. 24)

Display the Input select menu

Input select

Component

HDMI 2

HDMI 3

Video 1

Video 2

AUX

HDMI 1 DVD

(example)

Select “PC”

Displays

PC screen

Corresponding signals

(p. 44)

To return to TV /

Advanced

How to Use Menu Functions

(picture, sound quality, etc.)

(Continued)

Menu list

Menu Item Adjustments/Configurations (alternatives)

Setup

Channel surf mode

Sets the mode to select the channel with the Channel up/down button.

(All/Favorite/Digital only/Analog only)

•

Favorite: Only channels registered as FAVORITE. (p. 16)

Language Selects the screen menu language.

Clock Adjusts the clock. (p. 14)

ANT/Cable setup Sets channels. (p. 13)

Input labels Selects the terminal and label of the external equipment. (p. 37)

VIERA Link settings

VIERA Link

Controls the equipment connected to HDMI terminals (Off/On) (p. 28)

•

“Power off link”, “Power on link”, “Energy saving mode”, “Unselected device energy save”

and “Default speakers” cannot be selected if “Off” is set.

Power on link Sets “Power on link” of the HDMI connected equipment (No/Yes) (p. 28)

Power off link Sets “Power off link” of the HDMI connected equipment (No/Yes) (p. 28)

Energy saving

mode Sets “Energy saving mode” of the HDMI connected equipment. (Quick start/Save) (p. 28)

Unselected

device energy

save

Sets “Unselected device energy save” of the HDMI connected equipment. (p. 28)

(No (stay on)/Yes (with prompt)/Yes (no prompt))

Default speakers Selects the default speakers (TV/Theater) (p. 28)

ECO/energy saving

Power save Reduces screen brightness to lower power consumption. Eye-friendly for viewing in a dark

room. (Standard/Saving)

No signal for 10

minutes

To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION

continue for more than 10 minutes. (Stay on/Power TV off)

Note

•

Not in use when “Auto power on”, “On/Off Timer” or “Lock” is set, or while “SD mode” or

“Digital Channel” is selected.

•

“No signal for 10 minutes was activated” will be displayed for about 10 seconds when

the TV is turned on for the first time after the power was turned off by “No signal for 10

minutes”.

•

The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes

prior to the shut-off.

No activity for 3

hours

To conserve energy, the TV automatically turns off when no operation of remote and side

panel key continues for more than 3 hours. (Stay on/Power TV off)

Note

•

Not in use when “Auto power on” or “On/Off Timer” is set, or while “PC input” is selected.

•

“No activity for 3 hours was activated” will be displayed for about 10 seconds when the TV

is turned on for the first time after the power was turned off by “No activity for 3 hours”.

•

The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes

prior to the shut-off.

Advanced

setup

Auto power on

Turns TV On automatically when the cable box or a connected device is turned On (No/Yes)

TV AC cord must be plugged into this device. TV comes on every time the power is restored.

•

The “Sleep” timer, “On / Off timer”, and “First time setup” will not function if “Auto power on” is set.

(p. 38)

Image viewer

auto play

Set “Thumbnail” or “Slideshow” to play back SD cards automatically.

(Slideshow/Thumbnail/Set later/Off)

First time setup

Restart first time setup from “Language” setting. (p. 12)

About Displays TV version and software license.

Reset to defaults Performing Reset will clear all items set with Setup, such as channel settings.

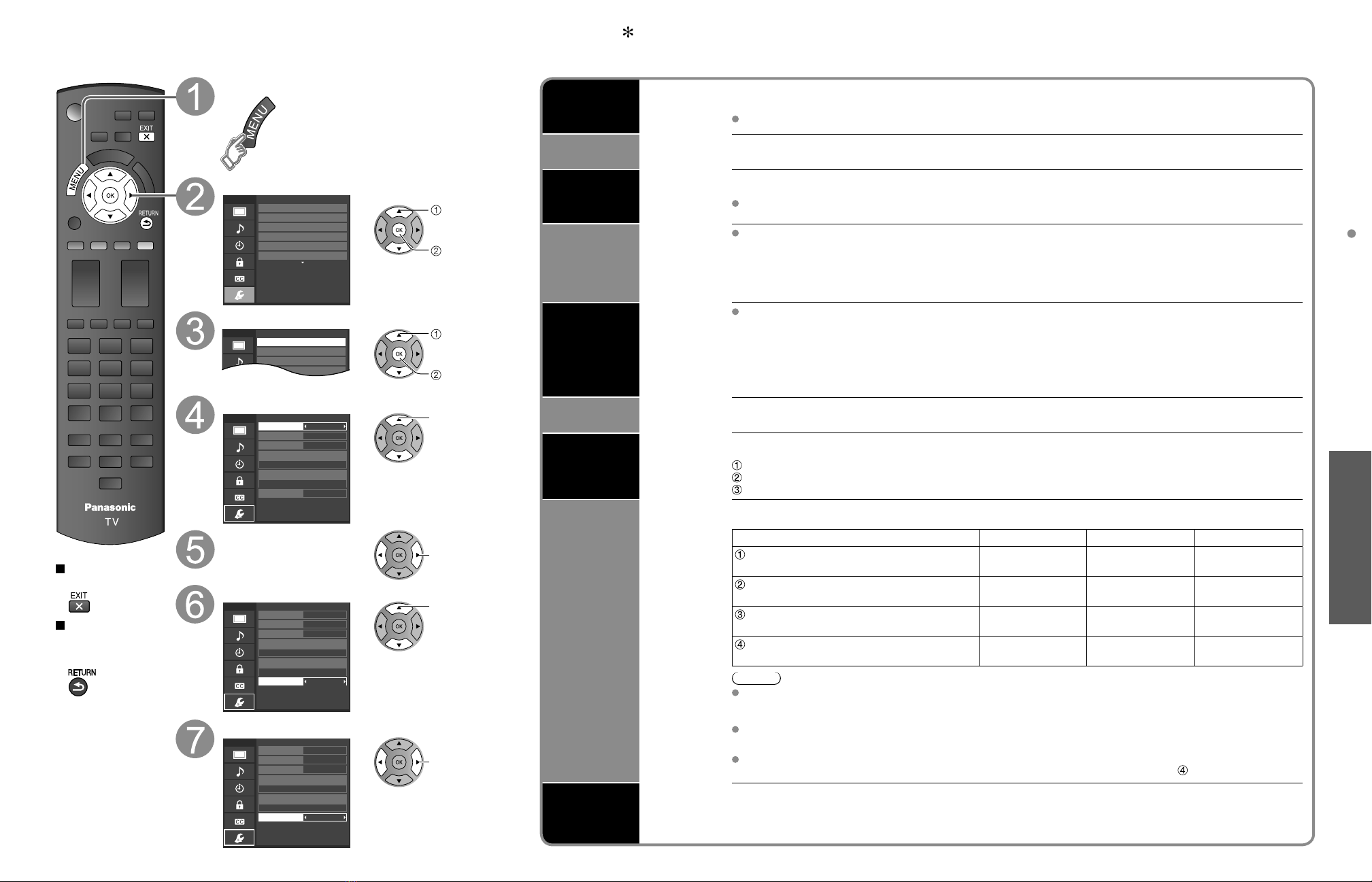

Sub menu list

Menu Item Adjustments/Configurations (alternatives)

Setup

SUB MENU

Channel surf mode Sets the mode to select the channel with Channel up/down button.

(All/Favorite/Digital only/Analog only)

Set favorite Sets favorite channels. (p. 16)

Edit CH caption Changes the station identifier. (p. 35)

Signal meter Checks the signal strength if interference or freezing occurs on a digital image.

How to Use Menu Functions

Menu list

Menu Item Adjustments/Configurations (alternatives)


Reset to defaults* Resets all picture adjustments to factory default settings except for “Advanced picture”.

Picture mode Basic picture mode (Vivid/Standard/Cinema/Custom) (p. 43)

Back light Adjusts the luminance of the back light.

Contrast, Brightness,

Color, Tint, Sharpness

Adjusts color, brightness, etc. for each picture mode to suit your taste

•

Display range

Contrast/Brightness/Color/Sharpness:0 - 100

Tint: -50 - +50

Color temp. Selects a choice of Cool (blue), Normal, or Warm (red) color. (Cool/Normal/Warm)

A.I. picture Controls dark areas without affecting the black level or brightness in the overall picture

(Off/On)

C.A.T.S. Adjusts the brightness and gradation according to the ambient lighting condition. (Off/On)

Video NR Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On)

Aspect adjustments

Screen format Changes the format (aspect ratio). (FULL/H-FILL/JUST/4:3/ZOOM)

Lets you choose the aspect depending on the format of received signal. (p. 41)

HD size

Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition

signal. (Size 1/Size 2)

Select “Size 1” if noise is generated on the edges of the screen.

•

Size 1: Selected item for “HD size”. Scanning 95 %

•

Size 2: Selected item for “HD size”. Scanning 100 %

H size

Adjusts the horizontal display range to reduce noise of both side edges of an image. (Size 1/Size 2)

Size 2: Adjusts the image size according to the aspect mode for to reduce noise. (p. 44)

Zoom

adjustments Adjusts vertical alignment and size when aspect setting is “ZOOM”

PC adjustments Sets PC display (p. 22)

Advanced picture

3D Y/C filter Minimizes noise and cross-color in the picture. (Off/On)

Color matrix

Selects image resolution of component-connected devices (SD/HD)

•

SD: Standard Definition HD: High Definition

•

Only used with 480p video signal.

MPEG NR Reduces noise of specific digital signals of DVD, STB, etc. (Off/On)

Black level Selects Dark or Light. Valid only for external input signals. (Dark/Light)

3:2 pulldown Adjusts the picture recorded in 24 fps for optimum quality. (Off/On/Auto)

Audio

Reset to defaults* Resets Bass, Treble, and Balance adjustments to factory default settings.

Bass Increases or decreases the bass response.

Treble Increases or decreases the treble response.

Balance Emphasizes the left / right speaker volume.

Advanced audio

Surround Enhances audio response when listening to stereo. (Off/On)

Volume leveler Minimizes volume disparity after switching to external inputs.

TV speakers Switches to “Off” when using external speakers (Off/On)

•

“Surround” and “Volume leveler” do not work if “Off” is selected.

HDMI 1 in

HDMI 2 in

HDMI 3 in

The default setting is “Digital” for the HDMI connection. (Digital input signal)

Select audio input terminal when DVI cable is connected. (Analog audio input signal)

(Digital/Component/Video 1/Video 2)

Timer

Sleep, Timer 1-5 The TV can automatically turn On/Off at the designated date and time

Lock Locks the channels and programs. (p. 32)

Closed

caption

Closed caption Displays subtitles (Closed caption). (p. 36)

In the AV mode, the Audio and Setup menus give fewer options.

* Confirmation screen is displayed. Select “Yes” and press OK to reset.

Advanced

VIERA LinkTM “HDAVI ControlTM”

VIERA LinkTM Connections

Follow the connection diagrams below for HDAVI control

of a single piece of AV equipment such as a DVD recorder

(DIGA), Home theater system.

Refer to page 28-31 for Setup Menu settings and additional

control information.

•Optional HDMI and/or optical cables are not included.

If connection (or setting) of equipment compatible with

HDAVI control is changed, switch the power of this unit

Off and On again while the power of all equipment is On

(so that the unit can correctly recognize the connected

equipment) and check that the DVD recorder (DIGA), Home

theater system playback operate.

Note

HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3, set the input mode to HDMI 2/HDMI 3 (p. 20) initially before connecting to HDMI

2/HDMI 3. After connection, confirm the HDMI control functions (p. 28-31).

Connecting this unit to the DVD recorder (DIGA), Home

theater system

For DVD recorder (DIGA): Connect with HDMI cable

For Home theater system

Connect with the HDMI and audio cables.

If audio cable is not connected, you cannot listen to the TV program

through the theater system.

* No optical cable is necessary for the equipment that has “HDAVI control 5”

and is connected with an HDMI cable (HDMI 1 only).

Connecting this unit to a DVD

recorder (DIGA) and AV amp

When using a “VIERA Link” audio-

video amplifier and a compatible DVD

recorder (DIGA) use a daisy chain

connection as shown below.

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).

Setting of this unit after connection

After making connections as shown above, set “VIERA Link” (under “VIERA Link settings”) to “On” using the Setup

menu. (p. 21, 28-29).

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit,

the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

For details about HDMI cables for connecting a Panasonic HD camcorder, read the manual for the equipment.

VIERA LinkTM “HDAVI ControlTM”

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.

Enjoy additional HDMI Inter-Operability with Panasonic products which have the “HDAVI Control” function.

This TV supports “HDAVI Control 5” function.

Connections to the equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI

cables allow you to interface with them automatically.

Equipment with the “HDAVI Control” function enables the following operations:

Version Operations

HDAVI Control or later • Automatic Input Switching (p. 29)

• Power on link (p. 29)

• Power off link (p. 29)

• Default speakers (p. 29)

• One-touch theater playback (p. 29)

• Speaker control (p. 31)

HDAVI Control 2 or later • VIERA Link control only with the TV’s remote control (p. 31)

• Unselected device energy save (for available equipment only) (p. 29)

HDAVI Control 3 or later • Provides setting information (p. 29)

• Automatic lip-sync function (p. 29)

HDAVI Control 4 or later • Energy saving mode (with Quick Start mode) (p. 29)

HDAVI Control 5 • Audio Return Channel

Audio Return Channel (ARC) is function to be able to send digital sound signals

via an HDMI cable.

For the first time/When adding new equipment, reconnecting equipment or changing the setup

after the connection, turn the equipment on and then switch the TV on. Set the input mode to

HDMI1, HDMI2 or HDMI3 (p. 20), and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known

as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its

operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable. Recommended part number:

RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)

* For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

HDMI cable

HDMI

(AV OUT)

HDMI

(AV OUT)

Home Theater

Systems with VIERA

Link function

HDMI

(AV OUT)

AV amp with

VIERA Link function

DVD recorder (DIGA)

with VIERA Link

function

HD Camcorder

with VIERA Link

function

HDMI

(AV IN)

Digital Audio out

HDMI

(AV OUT)

DVD recorder (DIGA)

with VIERA Link

function

Back of the TV

or or

*or

HDMI

(AV OUT)

LUMIX

with VIERA

Link function

Advanced

VIERA LinkTM “HDAVI ControlTM”

Automatic

Input

Switching

When using Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to the

appropriate input, when playback begins on one of those devices.

For a Home theater system, the speakers automatically switch to the theater system.

Power on

link

When “Yes” is selected (p. 25), TV is turned on automatically and switches to the appropriate HDMI input whenever a

VIERA Link compatible equipment is initially turned on and the Play mode is selected.

Power off

link

When “Yes” is selected (p. 25) and the TV is turned off, all connected VIERA Link compatible equipment is also

automatically turned off.

A Panasonic DVD Recorder will not turn off if it is still in rec mode.

Caution: The TV remains on even if the VIERA Link compatible equipment is turned off.

Energy

saving mode

(for “HDAVI Control

4 or later” (with

Quick Start mode))

Condition

Power off link: Yes; Energy saving mode: Quick start

The equipment has “HDAVI Control 4 or later (with Quick Start mode)” connected with an HDMI cable.

When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO standby mode* automatically

under above conditions.

* Minimum power consumption of standby condition for the equipment.

Unselected

device

energy save

(for “HDAVI

Control 2 or

later”)

Condition

Unselected device energy save: Yes

The equipment has “HDAVI Control 2 or later” (for available equipment only) connected with an HDMI cable.

[ Examples of timing for operation ]

• When the input is switched from the HDMI.

• When the “Speaker output” is changed from “Home theater” to “TV”.

The connected VIERA Link compatible equipment will be turned off automatically when not in use.

Default

speakers

“TV” is the default setting. To set the Home Theater system as Default speakers, change the Default speakers setting

from “TV” to “Theater”. Sound will be output from the Home Theater whenever the TV is powered on.

One-touch

theater

playback

If the “ONE TOUCH PLAY” key is pressed on the remote control for a Panasonic Home Theater system, the following

sequence of operations is performed automatically.

Home Theater power switches On, and playback begins.

TV power switches On, and the playback screen is displayed.

Audio is muted on the TV and switches to the theater system.

Provides

setting

information

(for “HDAVI

Control 3 or

later”)

The following information about the TV settings can be transmitted to each piece of an equipment (Recorder/Home

theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with HDMI cable.

Transmittable data Recorder Home theater Player

On Screen Display Language setting

(English/Español/Français) ○○○

Panel Aspect Ratio

(16:9 fixed) ○○○

Closed caption information

(Mode/CC type/Digital setting) ○--- ---

Channel information

(Input signal/Channel list/Caption information) ○--- ---

Note

There is a possibility that all the GUI language information might be set from the equipment that has an HDMI CEC

function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for

each piece of equipment, the setting may or may not be applied.

For more details on the external equipment’s operation, please refer to the operating manuals for the equipment.

[For Recorder]

You cannot operate other functions while transmitting TV’s information above except Power On/Off key operation.

When you turn off this unit, the transmission will be interrupted (only when you are transmitting Channel information).

Automatic lip-

sync function

(for “HDAVI Control

3 or later”)

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or

Amplifier.

(Continued)

VIERA LinkTM “HDAVI ControlTM”

Press to exit from

a menu screen

Press to return

to the previous

screen

Display the menu

Select “Setup”

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Setup 2/2

Advanced setup

First time setup

About

Reset to defaults

VIERA Link settings

ECO / energy saving

select

Select “VIERA Link settings”

SetupMenu 2/2

Advanced setup

Repeat 1st time setup

VIERA Link settings

ECO / energy saving

select

Select “VIERA Link”

Yes

Quick start

No (stay on)

Enables or disables interoperability of

“HDAVI Control” compliant HDMI devices.

VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

Select “On”

(default is On) change

Select settings

Yes

Quick start

No (stay on)

Selects either the TV’s speakers or external

home theater as default audio output.

VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

select

Set

Yes

Theater

Quick start

No (stay on)

Selects either the TV’s speakers or external

home theater as default audio output.

VIERA Link settings

VIERA Link

Power on link

Power off link

Default speakers

Energy saving mode

Unselected device energy save

change

Advanced

VIERA LinkTM “HDAVI ControlTM”

Speaker

control

You can select the Home theater or TV speakers for audio

output.

Control the theater speakers with the TV’s remote control.

This function is available only when a Panasonic Amplifier

or Player theater is connected.

Home theater: Adjustment for the equipment

Volume up / down

Mute

• The sound of the TV is muted.

• When the equipment is turned off, the TV speakers

take over.

• Selecting “Home theater” turns the equipment on

automatically if it is in standby mode.

TV: The TV speakers are on.

Select “Speaker output”

Select “Home theater” or “TV”

Recorder

Back to TV

VIERA Link control

Speaker output

select

change

VIERA Link

control

only with the

TV’s remote

control

(for “HDAVI

Control 2 or

later”)

In the VIERA Link menu, you can select an HDMI connected equipment and access it quickly. Continue using your TV’s

remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control”

Select the equipment you want to access

(Recorder/Home theater/Player/Camcorder/LUMIX/

Digital camera)

•If there is more than one equipment item, a

number after the name indicates the number of

items. (e.g. Recorder 1/Recorder 2/Recorder 3...)

•The number of equipment items that can be

connected is three for recorders, and a total of

three for Home theater/Player/Camcorder/LUMIX/

Digital camera.

Note

•There is a limit to the number of HDMI connectors.

Recorder

VIERA Link control

Speaker output

Back to TV

select

change

You can select available items only. Operate the equipment with the TV’s

remote control, pointing it at the TV

•To operate the equipment, read the manual of the

equipment.

Available TV’s remote control buttons

Whether an operation is available differs depending on the connected equipment.

Move the cursor/Select Play

Set/Access Stop

Return to previous menu Reverse/Forward

SUB

Display the functions

menu on the equipment Skip Reverse/Forward

Available when the purpose of the keys

is displayed on screen Pause

Exit Closed caption

Channel Up/Down SAP (Select Audio Mode)

0-9 Select digital subchannel

Back to TV

Returns the input selection of the device selected with the VIERA Link Control to the TV input.

Select “Back to TV”

Recorder

VIERA Link control

Speaker output

Back to TV

select

(Continued)

VIERA LinkTM “HDAVI ControlTM”

You can enjoy more convenient operation with the “HDAVI Control” function in the “VIERA Link”

menu.

For more details on the “HDAVI Control” function, refer to p. 26

Press to exit from

a menu screen

Press to return

to the previous

screen

Display the VIERA Link menu

VIERA Link

select

Select the item

Recorder

VIERA Link control

Speaker output

Back to TV

select

Select

Home theater

VIERA Link control

Speaker output

Back to TV

change

Set

Advanced

Lock

You can lock specified channels or shows to prevent children from watching objectionable content.

Press to exit from

a menu screen

Caution

Make a note of your

password in case

you forget it. (If you

have forgotten your

password, consult

your local dealer.)

Note

When you select a

locked channel,

a message will be

displayed that allows

you to view the

channel if you input

your password.

Display the menu

Select “Lock”

Blocks access, with password protection,

to channels, programs or inputs.

Password

Enter password.

- - - -

select

You will be asked to enter your password

each time you display the Lock menu.

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or

change rating settings.

Menu Password

Enter password.

* * * -

If it is your first time entering the password, enter the

password twice in order to register it.

Select the Lock mode

Off

Lock

Mode

Channel

Game

Change password

Program

set

select

Off:

Unlocks all the lock settings of “Channel”, “Game” and “Program”.

All: Locks all the inputs regardless of the lock settings of

“Channel”, “Game” and “Program”.

Custom:

Locks specified inputs of “Channel”, ”Game” and “Program”.

Select the item

Custom

Off

Lock

Mode

Channel

Game

Change password

Program

select

“Channel”, ”Game” and “Program” are not accessible unless

“Custom” is selected in “Mode”.

Set set Note

This television is designed to support the “Downloadable U.S. Region Rating System” when available.

(Available only in U.S.A.)

The Off rating is independent of other ratings.

When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also

be blocked.

To select the channel or the rating of the program to lock

Channel lock

Select up to 7 (1-7) channels to block. These channels will be blocked regardless of the program rating.

Select “Mode” and set to “Custom”

Select a channel to lock

Selects the lock mode.

Custom

Channel lock

Mode

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

Channel 7

select

set

To lock/unlock all channels:

Select “Mode” and set to “All” or “Off”.

All: Locks all channels

Off: Unlocks all channels

Game lock

Locks Channel 3, Channel 4, and external inputs.

Select “Game” in

and set to “On”

select

set

On: Locks

Off: Unlocks

Program

lock

To set a rating level

“V-chip” technology enables restricted shows to lock

according to TV ratings.

Select the rating to lock

select

Select “Mode” and set to “On”

Off

Program lock

Mode

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.

set

select

Example of “MPAA” (U.S. movie ratings)

NR No rating

G General Audience: All ages admitted

PG Parental Guidance Suggested

PG-

Parents Strongly Cautioned:

Inappropriate for children under 13

RRestricted: Under 17 requires

accompanying parent or adult guardian

NC-

17 No one 17 and under admitted

X Adults only

To get more information (p. 40)

Select the rating category you wish to follow

Off

Program lock

Mode

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.

select

MPAA: U.S. movie ratings

U.S.TV: U.S. TV program ratings

C.E.L.R.:Canadian English ratings

C.F.L.R.: Canadian French ratings

Change

password

To change the password

In , select “Change password” and press OK

Input the new 4-digit password twice

Off

Lock

Mode

Channel

Game

Change password

Program

Menu Change password

Enter new password.

- - - -

Advanced

Editing and Setting Channels

Auto

program

Set

automatically

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select “Cable” or “Antenna”

Or select “Not used” (p. 13).

Select “Auto program”

Cable

ANT/Cable setup

ANT in

Auto program

Manual program

Signal meter

select

Select a scanning mode (p. 13)

Menu Auto program

All channels

Analog only

Digital only

select

Settings are made automatically

After the scanning is completed, select “Apply”.

(see below ).

All previously saved channels are erased.

Manual

program

Set

manually

Use this procedure when changing the channel setup or

changing the channel display.

Also, use this to add or skip channels from the channel list

manually.

You can select a channel tuning mode (Digital only/Analog

only) in “Channel surf mode”(p. 25)

Edit

Caption

---

80-101

Edit CH caption

Caption

Channel

RETURN

DeleteABC →abc

R G B Y

Select

@D A

change

set

Caption

Select or edit the station identifier.

(maximum 7 characters available)

Favorite

Set favorite 1/3

26-1

select

set

Set favorite

Select the number

Add

Press OK to select “Yes (add)” or “No (skip)”

Move the cursor to a channel number

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

Channel

select

Press OK to tune

to the channel

Select “Apply”

program

CancelApply

Caption Favorite Add

...

... Yes

select

Select “Edit”

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

4 ...

... Yes

5 ...

... Yes

Channel

select

Select the item to edit

R G B Y

Select

RETURN

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

4 ...

... Yes

5 ...

... Yes

6 ...

... Yes

7 ...

... Yes

8 ...

... Yes

9 ...

... Yes

Channel

Prev.page Next page

Caption

Favorite

Add

Proceed to

Go back to the previous

page

select the i

tem

to edit (Caption/

Favorite/Add)

•

Caption:

Changes the station identifier

•

Favorite:

Registers channels to the

Favorite List

•

Add:

Adds or skips channels

To cancel the Edit

Manual program

Edit CancelApply

Caption Favorite Add

2 ...

... Yes

3 ...

... Yes

4 ...

... Yes

5 ...

... Yes

Channel

select

Changes will be lost. Continue?

Yes No

(returns to “ANT/

Cable setup”)

select “Yes”

Signal

meter

Check signal

strength

Check the signal strength if interference is found or freezing occurs on a digital image.

Selects which channel to be tested for signal

strength.

Signal meter

Channel

Signal strength

Current 86%

Peak level 98%

change

channel

Signal intensity

If the signal is weak, check the antenna.

If no problem is found, consult your local dealer.

Note

Not available if “Cable” is selected in “ANT in” (see above).

Available only for digital antenna channels.

If “Lock” (p. 32) is activated and “ANT/Cable setup” is selected, “Enter password.” will be displayed.

Editing and Setting Channels

The current channel settings can be changed according to your needs and reception

conditions.

Press to exit from

a menu screen

Display the menu

Select “Setup”

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode

select

Select “ANT/Cable setup”

Scans for Antenna or Cable channels.

Specify when using Cable or Satellite box.

Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode

select

Select the function

Automatically searches and saves available

channels to memory.

Cable

ANT/Cable setup

ANT in

Auto program

Manual program

Signal meter

select

Set

To reset the settings of the Setup menu

Select “Reset to defaults” in the Setup menu ( ) and

press OK

Input your 4-digit password with number buttons

Select “YES” on the confirmation screen and press OK

Advanced

Input Labels

Closed Caption

Input Labels

Input labels

Display

labels of

Connected

devices

Devices connected to external input terminals can be labeled for easier identification during the

input selection. (In selecting the input mode from p. 20 )

Select the terminal and label of the external equipment

Select or enter the name of the device

connected to the HDMI 1 terminal.

Input labels

Component

Video 1

Video 2

HDMI 2

HDMI 3

HDMI 1

select

set or

Select

RETURN

ABC Deleteabc

Select if a computer is connected to the

TV’s PC input.

R G B Y

1@.

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

0- ,

LAST

HDMI 3

PC @A D

Follow the instructions on screen to

complete the following operations.

Video 1

VCR

Label Terminal

[example]

Terminals: HDMI 1-3/Component/Video 1-2/PC

Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME

THTR/GAME/COMPUTER/VCR/CABLE/SATELLITE/

DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA

CTR/MEDIA EXT/OTHER

For the PC terminal, only “Not used” is available.

If “Not used” is selected, the INPUT button press will skip its

input.

Each selected label will be displayed on the “Input select”

screen. (p. 20)

Press to exit from

a menu screen

Display the menu

Select “Setup”

Adjusts Surf mode, Language, Clock,

Channels, Inputs, and other settings.

Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode

select

Select “Input labels”

Customize TV inputs with the names of your

connected devices. For easier input

selections.

Setup 1/2

Clock

ANT/Cable setup

Input labels

Language

All

Channel surf mode

select

Closed Caption

Closed caption

Display

Closed

caption

The television includes a built-in decoder that is capable of providing a text display of the audio. The

program being viewed must be transmitting the Closed Caption (CC) information. (p. 41)

Select the item and set

Selects style and language for displaying

digital Closed Caption.

Primary

CC1

Closed caption

Digital

Mode

Analog

Digital setting

Reset to defaults

select

set

Mode On: To display Closed captions.

CC on mute

:To display Closed captions

when the audio is muted.

(when not using, select “Off”).

Analog (Choose the Closed caption service

of Analog broadcasting.)

CC1-4: Information related to pictures

(Appears at the bottom of the screen)

T1-4: Textual information

(Appears over the entire screen)

Digital (The Digital Closed caption menu lets

you configure the way you choose to

view the digital captioning.)

Select the setting.

“Primary”, “Second.”, “Service 3”, “Service 4”,

“Service 5”, “Service 6”

The settings in “Analog” or “Digital”

depend on the broadcaster.

To make more in-depth display settings in digital programs

Select “Digital setting” and press OK

Select the item and set

Selects the text size.

Small

Default

None

Solid

Black

Solid

Black

Digital setting

Size

Foreground

Font

Style

Fore. opacity

Background

Back. opacity

Outline

select

set

Size Text size

Font Text font

Style Text style (Raised, Depressed, etc.)

Foreground

Color of text

Fore. opacity

Opacity of text

Background

Color of text box

Back. opacity

Opacity of text box

Outline Outline color of text (Identify the

setting options on the screen.)

To reset the settings

Select “Reset to defaults”. Confirmation screen is displayed.

Select “Yes” and press OK.

Press to exit from

a menu screen

Display the menu

Select “Closed caption”

Display broadcast TV’s Closed Caption (CC)

text when available.

Primary

CC1

Closed caption

Digital

Mode

Analog

Digital setting

Reset to defaults

select

Advanced

Recommended AV Connections

Using Timer

The TV can automatically turn On/Off at the designated date and time.

The Clock must be set before On time/Off time settings. (p. 14)

The “Sleep” timer and “On / Off timer” will not work if the “Auto power on” (p. 25) is set.

Press to exit from

a menu screen

Press to return to

the previous screen

Note

The TV automatically

turns Off after 90

minutes when turned

On by the Timer.

This operation will be

cancelled if the Off

time is selected or if a

key is pressed.

Display the menu

Select “Timer”

Set the TV to turn on or off automatically at

the designated date and time.

Timer

Sleep

Timer 1

Timer 2

Timer 3

Timer 4

Timer 5

select

Select the timer to set

Turns the TV off after selected time.

Timer

Sleep

Timer 1

Timer 2

Timer 3

Timer 4

Timer 5

select

Turns Off automatically

Sleep

Turns On/Off automatically

(5 timers can be set.)

Timer 1

Timer 5

Set the timer

To set “Sleep” (Off Timer)

Set to shut the unit off after a pre-selected amount of time.

Sleep

Sleep (minutes)

set

0/15/30/60/90 (minutes)

To set “Timer 1-5” (On/Off Timer)

Select the item and set

Sets the time when the TV turns on. The TV

will turn off after 90 minutes or as specified.

Off

4/18[SUN]

--:--

Timer 1

Timer set

Inputs

Channel

Day

On time

Off time

select

set

Sets the time when the TV turns on. The TV

will turn off after 90 minutes or as specified.

4/18[SUN]

--:--

Day

On time

Off time

LAST

AM/PM

Clear

RETURN

Select

SUN/MON/TUE/WED/THU/FRI/SAT

(displays the nearest future date)

MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/

Every TUE/Every WED/Every THU/Every FRI/ Every SAT

Select the channel

Channel

Select the day

Day

The time to turn On

On time

The time to turn Off

Off time

Select the inputs

Inputs

Timer setting (Off/On)

Timer set

Recommended AV Connections

These diagrams show our recommendations on how to connect the TV unit to your various equipment.

For other connections, consult the instructions for each piece of equipment and its specifications.

* Please see p. 24 for the setup when using an external analog audio cable with an HDMI to DVI cable.

AC 110-127 V 60 Hz

AC Cord

(Connect after all the

other connections are

complete.)

Back of the TV

Cable Box

Cable TV

■

To watch DVDs

DVD Player/

Blu-ray Disc player/

Set Top Box

Optical

digital

audio cable ■

DVD Recorder/

VCR

■

To listen to the TV

through speakers

Amplifier

OPTICAL

Connect with

HDMI-DVI

Conversion

cable +

Audio cable*

HDMI cable

■

Audio

cable

Audio

cable

■

To watch

camcorder images

Camcorder

VCR

DVD Player

(For HDMI

connection,

HDMI compatible

equipment only.

For connection

using an HDMI-DVI

Conversion cable,

see HDMI 1 or HDMI

2 connection on this

page.)

Conversion

adapter

(if necessary)

RGB PC

cable

This manual suits for next models

Table of contents

Panasonic Viera TC-L32U22X User manual
