Panasonic Wj-nd300 administrator console User manual

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

ALARM

SUSPENDED ERROR TIMERREC

OPERATE

1-LINK/ACT-2

HDD1 HDD2 HDD3

ESC

PULL

NetworkDiscRecorder

WJ-ND

300

SET

HDD4

Network Disk Recorder

Installation Guide

Model No. WJ-ND300

The serial number of this product may be found on the sur-

face of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

NOTE: This equipment has been tested and found to com-

ply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference

when the equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

FCC Caution: To assure continued compliance, (example -

use only shielded interface cables when connecting to com-

puter or peripheral devices). Any changes or modifications

not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate this equip-

ment.

For U.S.A

This Class A digital apparatus complies with Canadian

ICES-003.

For Canada

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient magni-

tude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and mainte-

nance (servicing) instructions in the litera-

ture accompanying the appliance.

Power disconnection. Unit with or without

ON-OFF switches have power supplied to

the unit whenever the power cord is inserted

into the power source; however, the unit is

operational only when the ON-OFF switch is

in the ON position. The power cord is the

main power disconnect for all units.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SA 1965

SA 1966

ENGLISH VERSION

WARNING:

• This apparatus must be earthed.

• To prevent fire or electric shock hazard, do not expose this apparatus to rain or moisture.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed

on the apparatus.

• All work related to the installation of this apparatus shall be made by qualified service personnel or system installers.

Caution:

Before attempting to operate this product, please read the

label on the rear of the unit.

LIMITATION OF LIABILITY

THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WAR-

RANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO, THE IMPLIED WAR-

RANTIES OF MERCHANTABILITY, FITNESS FOR ANY PAR-

TICULAR PURPOSE, OR NON-INFRINGEMENT OF THE

THIRD PARTY’S RIGHT.

DISCLAIMER OF WARRANTY

IN NO EVENT SHALL MATSUSHITA ELECTRIC INDUSTRI-

AL CO., LTD. BE LIABLE TO ANY PARTY OR ANY PER-

SON, EXCEPT FOR REPLACEMENT OR REASONABLE

MAINTENANCE OF THE PRODUCT, FOR THE CASES,

INCLUDING BUT NOT LIMITED TO BELOW:

(1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIM-

ITATION, DIRECT OR INDIRECT, SPECIAL, CONSE-

QUENTIAL OR EXEMPLARY, ARISING OUT OF OR

RELATING TO THE PRODUCT;

(2) PERSONAL INJURY OR ANY DAMAGE CAUSED BY

INAPPROPRIATE USE OR NEGLIGENT OPERATION

OF THE USER;

(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFI-

CATION OF THE PRODUCT BY THE USER;

(4) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE,

OR LOSS OR DAMAGE, ARISING OUT OF THE SYS-

TEM COMBINED BY THE DEVICES OF THIRD PARTY.

(5) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT

BY ANY PERSON OR ORGANIZATION BEING A PHO-

TOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY

WITH THE RESULT OF THAT SURVEILLANCE-CAMER-

A’S PICTURE, INCLUDING SAVED DATA, FOR SOME

REASON, BECOMES PUBLIC OR IS USED FOR THE

PURPOSE OTHER THAN SURVEILLANCE.

THIS PUBLICATION COULD INCLUDE TECHNICAL INAC-

CURACIES OR TYPOGRAPHICAL ERRORS. CHANGES

ARE ADDED TO THE INFORMATION HEREIN, AT ANY

TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION

AND/OR THE CORRESPONDING PRODUCT (S).

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider

than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

S3125A

CONTENTS

LIMITATION OF LIABILITY ........................................................................................................................ 3

DISCLAIMER OF WARRANTY .................................................................................................................. 3

IMPORTANT SAFETY INSTRUCTIONS ................................................................................................... 4

PRECAUTIONS .......................................................................................................................................... 6

TRADEMARKS AND REGISTERED TRADEMARKS ................................................................................ 8

ABOUT THESE OPERATING INSTRUCTIONS ........................................................................................ 8

PREFACE ................................................................................................................................................... 9

FEATURES ................................................................................................................................................ 9

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ................................................................. 10

■Front View ............................................................................................................................................ 10

■Rear View .............................................................................................................................................. 11

RACK MOUNTING ..................................................................................................................................... 12

CONNECTIONS ......................................................................................................................................... 13

Connection Type ...................................................................................................................................... 13

Connection between cameras and PCs ................................................................................................... 14

Connecting with Extension Unit ............................................................................................................... 16

■How to Use the Terminals of the ALARM/CONTROL Connector ......................................................... 18

■How to Use the Terminals of the ALARM Connector ........................................................................... 22

HOW TO REPLACE HARD DISK DRIVES ................................................................................................24

TURN ON/OFF THE POWER OF THE UNIT ............................................................................................. 27

Turn on the Power of the Unit .................................................................................................................. 27

Turn off the Power of the Unit .................................................................................................................. 27

OPERATION USING THE BUTTONS ON THE FRONT PANEL ............................................................... 28

Check the Network Settings ..................................................................................................................... 29

Set the Network Settings .......................................................................................................................... 30

Key Lock Settings .................................................................................................................................... 31

Set the HDD Mode ................................................................................................................................... 31

Set the HDD Safety Mode ........................................................................................................................ 33

Reboot the Unit Manually ......................................................................................................................... 34

TROUBLESHOOTING ............................................................................................................................... 35

SPECIFICATION ........................................................................................................................................ 37

STANDARD ACCESSORIES ..................................................................................................................... 37

PRECAUTIONS

• Refer all work related to the installation of this prod-

uct to qualified service personnel or system

installers.

• Do not operate the unit beyond their its specified

temperature, humidity, or power source ratings.

Use the unit at temperatures between +5 °C - +45 °C

(41 °F - 113 °F) and where the humidity is below 85 %.

The input power source for this unit is 120 V AC 60 Hz.

Performance and lifetime of hard disk drives are easily

affected by heat (used at high temperature) character-

istically. It is recommended to use this unit at tempera-

tures between +20 °C - +30 °C (68 °F - 86 °F).

• POWER switch

The POWER switch is located on the rear of the unit.

Even though the POWER switch is set to "OFF", the

power supply will not be cut. To cut the power supply,

unplug the power plug of the unit from the AC outlet.

When using the power supply control unit, turn off the

power of the power supply control unit.

• Built-in backup battery

Before the first use, charge the built-in backup battery

(lithium battery) by turning on the power for 48 hours or

more.

If it is not charged enough, in a case where the power

goes down, the internal clock may keep bad time or the

operative condition may be different to that before the

electric power failure.

The built-in battery life is approximately 5 years as an

indication of replacement. (This is just an indication of

replacement. We are not providing any guarantee of the

built-in battery lifetime. Replacement cost of the built-in

battery is not covered by the warranty even if it needs

to be done within the warranty period.) Ask the shop

where you purchased the unit when replacement of the

battery is required.

• Built-in hard disk drives

Hard disk drives are vulnerable to vibration. Handle

them with care.

It is possible to damage them if they are moved while

their motors are still running. Do not move them just

after turning their power on or off (for around 30 sec-

onds).

When hard disk drive trouble occurs, replace it immedi-

ately. Consult your dealer for servicing.

When replacing the hard disk drives, take notice of the

following.

• Protect the hard disk drives from static electricity.

• Do not stack them, or keep them upright.

• Do not use an electric screwdriver to fix them.

(Tightening torque: Approx. 0.49 N · m (5 kgf · cm))

• Avoid rapid changes of the temperature/humidity to

prevent condensation. (Acceptable change: within

15 °C/h (59 °F/h))

• Heat dissipation

Refer to the following to prevent fire and malfunction of

the unit.

• Do not block the ventilation openings in the cover to

prevent the unit from overheating. Maintain the unit

periodically to prevent dust from blocking openings.

• Clear a space of more than 5 cm from both sides,

the top, and the rear of the unit.

• The cooling fan is perishable. Contact your dealer

for servicing.

• Grounding

Confirm that the wire is connected from the SIGNAL

GND terminal to earth ground.

A grounding connection must be made before connect-

ing the power plug of the unit to the main power supply.

When disconnecting the grounding wire, make sure that

the power plug of the unit is disconnected from the

main power supply.

• Avoid placing the unit near noise sources

If the unit is placed near noise sources such as fluores-

cent lamps, noises may be produced. In this case,

rewire avoiding the noise sources, or move the unit to

the place far from them.

• Places to avoid

Do not place the unit in the following places:

• Places exposed to direct sunlight

• Places subject to having strong vibration or impact

• Near magnetic field sources such as a television or

speakers

• Place where condensation forms easily, where tem-

perature changes greatly, humid places

• Steamy and oily places such as kitchens

• Places which are not level

• Cleaning

Turn the power off when cleaning the unit. Otherwise it

may cause injuries.

Do not use strong or abrasive detergents when clean-

ing the unit body.

Use a dry cloth to clean the unit when it is dirty.

When the dirt is hard to remove, use a mild detergent

and wipe gently.

• Indication label

Refer to the indication label placed on the surface of

the unit as to the indications of equipment classification

and power source, etc.

• Handle the unit with care.

Do not strike or shake, as this may damage the unit.

• Do not strike or give a strong shock to the unit.

It may cause damage or allow water to enter the unit.

• Place the unit horizontally on a level surface.

Do not place the unit in an upright position. When

stacking multiple units, clear a space of more than 5 cm

from both sides, the top, the bottom and the rear of the

units.

• Avoid placing receptacles that contain liquids such

as water near the unit.

If liquid spills onto the unit, it may cause fire or an elec-

tric shock.

• Prevent condensation from forming on the surface

of the hard disk.

If this happens, do not turn on the power of the recorder

and leave the recorder for around 2 hours.

Wait until the dew evaporates in any of the following

cases:

• The recorder is placed in an extremely humid

place.

• The recorder is placed in a room where a heater

has just been turned on.

• The recorder is moved from an air-conditioned

room to a humid and high-temperature room.

• When the unit has not been used for a certain period,

turn on the power of the unit (approximately once a

week), and perform recording/playback to prevent

interferences with functions.

• We recommend that you make a note of your settings

and save them. This will help when you are required to

change the system configuration, or when unexpected

trouble or failure occurs.

• Distributing, copying, disassembling, reverse compil-

ing, reverse engineering, and also exporting in violation

of export laws of the software provided with this prod-

uct, is expressly prohibited.

• Adobe, Adobe logos, and Acrobat are registered trademarks of Adobe Systems Incorporated in the U.S. and/or other

countries.

• Microsoft, Windows and Windows XP are registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

• Other names of companies and products contained in these operating instructions may be trademarks or registered trade-

marks of their respective owners.

TRADEMARKS AND REGISTERED TRADEMARKS

There are 3 sets of operating instructions for the WJ-ND300 as follows.

• Installation Guide (book, these operating instructions)

•Operating Instructions (PDF)

•Setup Instructions (PDF)

The "Installation Guide" contains descriptions of how to install/connect this unit, and descriptions of how to operate this unit

with the buttons on the front panel.

Refer to the "Operating Instructions" on the provided CD-ROM for descriptions of how to operate this unit from a PC.

Refer to the "Setup Instructions" on the provided CD-ROM for descriptions of how to perform the required settings and how to

connect to other devices.

Adobe®Reader is required to read the "Operating Instructions" and the "Setup Instructions" on the provided CD-ROM. When

the Adobe®Reader is not installed on the PC, download the latest Adobe®Reader from the Adobe web site and install it.

"WJ-ND300" or "ND300" shown in the illustrations used in these operating instructions indicate this unit or the WJ-ND300 series.

ABOUT THESE OPERATING INSTRUCTIONS

PREFACE

The Network Disk Recorders WJ-ND300 is designed for use within a surveillance system.

The network disk recorder is a recording device using a hard disk drive to record pictures of network cameras instead of using

videotapes so that pictures recorded by repeated overwriting will not experience deterioration of the recorded picture quality.

Up to 32 cameras can be connected to the WJ-ND300 via a network and it is possible to record their camera pictures. It is

possible to perform the settings or operate the unit using a web browser installed on a PC when this unit is connected to a net-

work.

FEATURES

Various Recording Functions

• Multi-Recording

It is possible to perform multiple recordings using a sin-

gle digital disk recorder even if the operating environ-

ments are different, for example, recording pictures of

cameras in different places with different recording

rates.

• Schedule recording

It is possible to perform recording automatically at a

scheduled time on a designated day of the week. It is

also possible to apply different recording settings, such

as the recording rate, by the schedule time.

• Emergency Recording

In the case of an emergency, emergency recordings

will be given a higher priority than other recording

modes by operating an external switch.

• External Timer Recording

It is possible to perform recording automatically using

an external timer.

• Event Recording

At an event occurrence, such as when an alarm signal

is supplied, the recording rate can be changed.

Downloading/Transmitting Images

It is possible to download (save) the currently displayed

image in the web browser window onto the hard disk of a

PC. By establishing an FTP server, it is possible to transmit

images to a designated FTP server. When an event occurs,

it is possible to transmit images from the camera installed in

the place where the event occurred.

Security Function and Reliability

• Authentication function (registration of ID and pass-

word) allows users access to a predetermined selection

of the available functions. Up to 32 users can be regis-

tered.

• If a hard disk crashes, the RAID 5 function (*1) prevents

any data loss.

*1: To use the RAID 5 function, an optional extension

unit is required.

Host Authentication

It is possible to restrict devices from operating this unit if

their IP addresses are not registered.

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

ALARM

SUSPEND

OPERATE

ERROR TIMER REC 1-LINK/ACT-2

HDD1 HDD2 HDD3 HDD4

ESC SET

PULL

Network Disk Recorder

WJ-ND

Network Disk Recorder

WJ-ND

qwe r t y u io!

qOperate Indicator (OPERATE)

Lights up when the power is turned on.

wAlarm Suspension Indicator (ALARM SUSPEND)

Lights up when the alarm suspension mode is selected.

Refer to the Operating Instructions about the alarm sus-

pension mode.

eAlarm Indicator (ALARM)

Blinks when an alarm occurs.

The blinking indicator will go off when the alarm is reset.

rError indicator (ERROR)

Blinks orange when an error occurs that will not keep

the unit from running. (e.g. thermal error, cooling fan

malfunction, etc.)

Blinks red when an error occurs that may cause the

system to go down.

Refer to the Operating Instructions about error/ warn-

ings.

tTimer Indicator (TIMER)

Lights up when the schedule recording is set, and

blinks while the schedule recording is being performed.

yRecording Indicator (REC)

Lights up when recording is being performed.

uCamera Link Indicator (LINK/ACT1)

Lights green when the communication between a cam-

era and the unit is established.

Blinks green when receiving data from a camera.

iPC Link Indicator (LINK/ACT2)

Lights green when the communication between a PC

and the unit is established.

Blinks green when receiving data from a PC.

■Front View

oHDD Access Indicators (HDD1/HDD2/HDD3/HDD4)

Indicates the statuses of the hard disks.

Blinks green when the hard disk is accessed respec-

tively.

When using the RAID 5 function (*1), these indicators

will display the statuses as follows when an error

occurs.

Lights red: Indicates that the respective hard disk is

the first drive that had an error.

Blinks red: Indicates that the respective hard disk is

the second drive that had an error.

Lights red and orange alternately: Indicates that the

respective hard disk is currently being recovered in

the RAID 5 mode (*1).

*1: The RAID 5 function/mode is available only when an

optional RAID card is installed and configured.

Refer to the dealer for details.

Note: Basically, each indicator will indicate the status of

the respective hard disk (HDD1/HDD2/HDD3/

HDD4). However, all indicators will indicate the

same status when a system error occurs.

Important: When the indicator lights red, replace the

respective hard disk immediately.

If 2 HDD access indicators or more light/blink red, it

may be impossible to recover data on the respec-

tive hard disks.

Refer to page 24 for descriptions of how to replace

the hard disk.

!0 LCD

Indicates the status of the unit (error status, etc.) or the

name of the functions available using the buttons on the

front panel of the unit.

!1 Arrow Buttons (C, D, A, B)

Use these buttons to move the cursor or to enter values

on the LCD.

!2 Escape Button (ESC)

Use this button to display the previously displayed item

on the LCD.

!3 Set Button (SET)

Use this button to determine the edited settings item on

the LCD.

!4 Maintenance Port

Use this port to connect directly with a PC and perform

maintenance operations.

■Rear View

yAlarm/Control Connector (ALARM/CONTROL)

Connect a control switch with this D-sub 25-pin connec-

tor when controlling this unit using an external device,

or when controlling an alarm device such as a buzzer

or a lamp.

uPower Switch (POWER)

Turns the power of this unit on and off.

iSignal Ground Terminal (SIGNAL GND)

oPower Cord Inlet (AC IN)

Connect the power cord to this inlet.

10/100BASE-T

EXT STORAGE SERIAL

CAMERA

SIGNAL GND

POWER

AC IN

ALARM/CONTROL

ALARM

qwe

r t y u i

qExternal Storage Connector (EXT STORAGE)

Connect an optional extension unit (WJ-HDE300 series)

with this port.

wClient PC Port (PC, 10/100BASE-T, 2)

Connect this unit to a network compatible with 10BASE-

T or 100BASE-Tx to connect a PC via a network.

eCamera Port (CAMERA, 10/100BASE-T, 1)

Connect this unit to a network compatible with 10BASE-

T or 100BASE-Tx to connect to cameras via a network.

rSerial Connector (SERIAL, D-sub 9-pin, Female)

(For servicing purpose only)

tAlarm Connector (ALARM, D-sub 25-pin, Female)

Connect an external device such as a sensor or a door

switch with this D-sub 25-pin connector.

RACK MOUNTING

Important:

When installing the unit in the rack without turning the power of the unit off, activate the HDD safety mode. (Refer to page

31 for further information.)

The unit can be installed in the following racks.

• Standard rack: WU-RS71 (Panasonic, up to 29 U (units))

• Long rack: WU-RL76 (Panasonic, up to 41 U (units))

• Racks equivalent to EIA standard: Type 19" EIA standard (depth: more than 450 mm (17-11/16"))

Important

• When using a rack other than one of Panasonic, optional mounting screws (W2-MSS/5008) or 4 screws (M5x12) are neces-

sary. When screwing a provided tapping screw into threaded screw hole, thread ridge of the screw hole may be damaged.

• Do not install the unit above an appliance which generates heat such a power amplifier. When installing the unit below a

heat-generating appliance, install it below the appliance with a space equivalent to about 1 unit (44 mm) separating them.

• Keep the temperature in the rack below +45 °C (113 °F). It is recommended to install cooling fans or equivalent equipment

to keep the temperature in the rack below +30° C (86 °F).

1. Remove the four rubber feet from the bottom of the unit

using a flathead screwdriver.

2. Place the provided rack mounting brackets on both

sides of the unit and tighten with the four provided

screws.

3. Install the unit with the rack mounting brackets in the

rack by using four rack mounting screws (tapping,

nominal diameter: 5).

Remove the rubber feet.

Mounting screws for rack mounting brackets

(accessories)

Rack mounting brackets (accessories)

Rack mounting screws

For our rack: Nominal diameter 5, tapping (accessory)

For other rack: W2-MSS/5008 (sold separately)

or M5 x 12 (sold separately)

CONNECTIONS

The following are descriptions of how to connect the unit with PCs, cameras and an optional extension unit.

Required devices and cables vary depending on how to connect them. Before starting the connections, check the required

devices and cables for your environment.

The connection should be done in the following order:

PC →Cameras →Extension unit

Connection Type

Mode B

(Direct connection example: When using hubs)

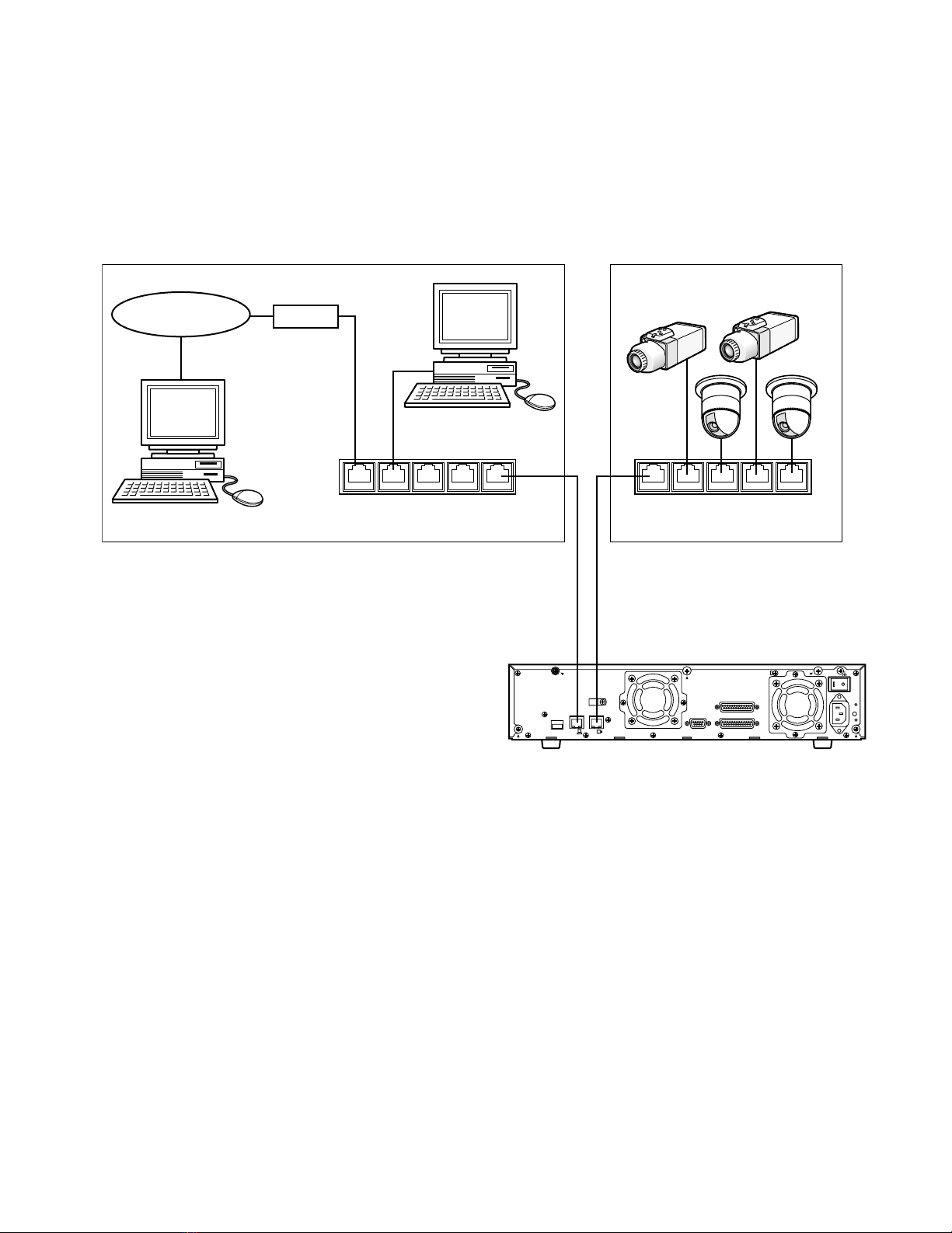

Connect cameras and PCs using the CAMERA port and the client PC port on the rear of the unit respectively as shown in the

illustration below.

Images (video signals) from cameras will be supplied (input) to the CAMERA port, and the supplied images will be transmitted

(output) to PCs.

Important: Do not connect PCs to a network to which the CAMERA port is connecting. Otherwise, transmission efficiency may

be down.

Do not connect any camera to a network to which the client PC port is connecting for the same reason.

EXT STORAGE SERIAL

CAMERA

SIGNAL GND

POWER

AC IN

ALARM/CONTROL

ALARM

10/100BASE-T

PCPC

HUB

Network A

HUB

Network Camera

LAN Cable

(Not provided: 10BASE-T/100BASE-Tx, Category 5, Straight)

This Unit

Network B

SDII

day/night

Connection between cameras and PCs

When connecting the unit and PCs through a hub, use a LAN cable to connect between the unit and a hub.

Cameras should also be connected through a hub using LAN cables.

Important: When connecting the unit and a PC directly without using a hub, connect them using a cross LAN cable.

Connection Example

EXT STORAGE SERIAL

CAMERA

SIGNAL GND

POWER

AC IN

ALARM/CONTROL

ALARM

10/100BASE-T

HUB HUB

Network Cameras

LAN Cable

(Not provided: 10BASE-T/100BASE-Tx,

Category 5, Straight)

This Unit

Internet

ADSL Line

ADSL Router

EXT STORAGE SERIAL

CAMERA

SIGNAL GND

POWER

AC IN

ALARM/CONTROL

ALARM

10/100BASE-T

First Unit

PC PC

HUB

LAN Cable (Not provided: 10BASE-T/100BASE-Tx,

Category 5, Straight)

Network Cameras

EXT STORAGE SERIAL

CAMERA

SIGNAL GND

POWER

AC IN

ALARM/CONTROL

ALARM

10/100BASE-T

Second Unit

HUB

Network Cameras

Connecting with Extension Unit

Up to 6 extension units can be connected with a single network disk recorder.

Use the dedicated cable to connect between the external storage (EXT STORAGE) connector on the rear of the unit and an

extension unit.

Important:

• Use only the dedicated cable provided with an optional extension unit when connecting the unit and an extension unit.

• Fix the cables with this cable clamp to prevent disconnection or unstable connections that may cause recording failures or

an unstable system.

AC IN

SIGNAL GND

EXT STORAGE SERIAL

CAMERA

SIGNAL GND

POWER

AC IN

ALARM/CONTROL

ALARM

IN OUT

EXT

POWER

10/100BASE-T

IN OUT

EXT

This unit

Dedicated Cable (Standard accessory of an extension unit)

Extension Unit (WJ-HDE300 Series)

Cable Clamp

Fixing screw

* Remove this screw

from the unit and fix

the cables with the

cable clamp using

the screw removed

from the unit.

Fixing screw

* Remove this screw from

the unit and fix the cables

with the cable clamp using

the screw removed from

the unit.

How to fix the cable clamp

10/100BASE-T

EXT STORAGE

CAMERA

When connecting two extension units or more, connect them as follows. Up to 6 extension units can be connected to a single

unit. When connecting the units newly, observe the following important notice. Refer also to the operating instructions of the

extension unit.

Important:

• When connecting extension units, connect them as shown in the illustration below. When connected in a different way, the

unit numbers may not be distributed correctly. In this case, the units may not be recognized correctly.

Example: When installing 5 extension units, connect the unit of unit number 1 first, and then connect the other unit in the

order of the unit number. When adding an extension unit, connect the unit of unit number 6 as described in the illustra-

tion.

• After running the system with the extension units, do not change the connection such as exchanging the unit numbers

between the units. Otherwise, the unit numbers may not be distributed correctly and the units may not be recognized cor-

rectly.

POWER

AC IN

SIGNAL GND

IN OUT

EXT

POWER

AC IN

SIGNAL GND

IN OUT

EXT

POWER

AC IN

SIGNAL GND

IN OUT

EXT

POWER

AC IN

SIGNAL GND

IN OUT

EXT

POWER

AC IN

SIGNAL GND

IN OUT

EXT

POWER

AC IN

SIGNAL GND

IN OUT

EXT

POWER

AC IN

SIGNAL GND

IN OUT

EXT

Network disk recorder

Connection cable

(Attached to the extension unit)

Connection cable

(Attached to the extension unit)

Connection cable

(Attached to the extension unit)

WJ-HDE300 Unit number 1

WJ-HDE300 Unit number 2 WJ-HDE300 Unit number 3

WJ-HDE300 Unit number 4 WJ-HDE300 Unit number 5 WJ-HDE300 Unit number 6

■ How to Use the Terminals of the ALARM/CONTROL Connector

These terminals are used for emergency recording, auto time adjustment, taking measures against power outages, and when

installing a buzzer, a lamp, or similar alarm device.

The terminal pin array and connections are shown below. The connector used should be compatible with the pin configuration.

Pin Configuration

The pin array is different from other disk recorders. Make sure that

the connection is correct referring to the following.

Pin No.

Signal

Alarm output 8

Operation

Alarm signal output at an event occurrence Open collector output

24 V max., 100 mA

Starting emergency recording signal input

Generation of signal output for disk space alarm-

ing of the copy/event recording area

Open collector output

24 V max., 100 mA

Remarks

wAlarm output 9

eAlarm output 10

rAlarm output 11

tAlarm output 12

yAlarm output 13

uAlarm output 14

iAlarm output 15

oAlarm output 16

!0 Network error output

Signal output upon detection of a broken Ethernet

link

Signal output upon DHCP IP address expiration

Open collector output

24 V max., 100 mA

!1 Alarm reset input

!2 Emergency recording

input

!3, !4 Earth (Grounding)

Alarm output for available

disk space of the copy/-

event recording area

Signal output upon detection of a HDD error

!6 HDD error output

Signal output upon detection of a camera error

!7 Camera error output

Signal output upon detection of a unit error

!8 Error output

Signal output upon completion of outage pro-

cessing

High (+5 V - +12 V,

6.3 mA max.)

!9 Outage processing end

output

The time of this unit is adjusted to the preset time

according to the signal input. This signal output is

then generated for the setting time of this unit.

Time of all other units is adjusted to the setting

time of this unit.

52 kΩ5 V pull-up,

–100 mA/make contact

@0 Time adjustment I/O

@1 NC

The state of alarm suspension is assumed

according to the signal input.

@2 Alarm suspension input

Start of outage processing according to the sig-

nal input.

Non-voltage make contact input

–100 mA, 5 V pull-up

@3 Outage detection input

Changeover to the external recording mode

@4 External recording mode

changeover

Canceling the alarm display Non-voltage make contact input

–100 mA, 5 V pull-up

+5 V output +5 V output 200 mA max.

q!3

@5 !4

ALARM/CONTROL

●Connection for emergency recording

When the external switch is turned ON, emergency recording will be started.

Recording time and recording rate for emergency recording differ according to the settings of "Emergency REC" of

"Recording" on the SETUP MENU. (Refer to the Setup Instructions (PDF).)

●Connection for external recording changeover

When the external switch is turned ON, the recording program changeover is affected for recording.

The recording program can be set by selecting "EXT" for "Time Table" of "Schedule" on the SETUP MENU. (Refer to the Setup

Instructions (PDF).)

●Connection for the Auto Adjust Time function

• When "Auto Adjust Time" of "System" on the SETUP MENU is set to "MASTER"

"Time Adjust Output" becomes available and the clock of this unit can be applied to other units.

Terminal block of other units

(Time adjust output)

(Earth)

ALARM/CONTROL

Earth

Sensor input

Alarm input

Alarm reset input

Series recording input

Time adjust input

Earth

Alarm output

Alarm reset output

Alarm recording

During recording

Disk

Buzzer output

System error output

Temperature error output

Time adjust output

Series recording output

!3 @0

Front LED

monitor

output

ALARM/CONTROL

(Earth)

(Emergency record input)

External switch

!3 !2

External switch

ALARM/CONTROL

(Earth)

!3 @4

(External recording mode)

• When "Auto Adjust Time" of "System" on the SETUP MENU is set to "SLAVE"

"Time Adjust Input" becomes available. When a signal output from other equipment is supplied to the time adjust I/O terminals

between 00 minutes 00 seconds and 14 minutes 59 seconds every hour or between 45 minutes 00 seconds and 59 minutes 59

seconds every hour, the clock will be set to "00 minutes 00 seconds" of the closest hour.

Example:

Signal is supplied at 2:50:00 (hour:minute:second)pm →Set at 3:00:00 pm

Signal input supplied at 3:14:45 pm →Set at 3:00:00 pm

Signal is supplied at 3:20:00 pm →Time will not be adjusted.

Important:

• When “SLAVE" is selected, the auto time adjustment function works differently depending on the recording status as fol-

lows:

*1: When event recording is performed on any camera channel

When no recording is being performed

When manual recording is being performed

When schedule recording is being performed

The clock will be adjusted.

When event recording is being performed *1

When emergency recording is being performed

The clock will not be adjusted.

ALARM/CONTROL

Terminal block of other units

Earth

Sensor input

Alarm input

Alarm reset input

Series recording input

Time adjust input

Earth

Alarm output

Alarm reset output

Alarm recording

During recording

Disk

Buzzer output

System error output

Temperature error output

Time adjust output

Series recording output

Front LED

monitor

output

(Time adjust input)

(Earth)

!3 @0

Other manuals for WJ-ND300 Administrator Console

Table of contents

Panasonic WJ-ND300 Administrator Console User manual
