Panasonic Wx-lt350 User manual

Before attempting to connect or operate this product, please read these

instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

Operating Instructions

Infrared Wireless Microphone

Model No. WX-LT350

WX-LT350E

WX-LT350

CHG

PWR

BATT

The model number and serial number of this

product may be found on the surface of the unit.

You should note the model number and serial

number of this unit in the space provided and

retain this book as a permanent record of your

purchase to aid identification in the event of

theft.

Model No.

Serial No.

NOTE: This equipment has been tested and

found to comply with the limits for a Class A digi-

tal device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the instruc-

tion manual, may cause harmful interference to

radio communications.

Operation of this equipment in a residential area

is likely to cause harmful interference in which

case the user will be required to correct the inter-

ference at his own expense.

FCC Caution: To assure continued compliance,

(example - use only shielded interface cables

when connecting to computer or peripheral

devices). Any changes or modifications not

expressly approved by the party responsible for

compliance could void the user's authority to

operate this equipment.

For U.S.A

This Class A digital apparatus complies with

Canadian ICES-003.

For Canada

We declare under our sole responsibility that the product

to which this declaration relates is in conformity with the

standards or other normative documents following the

provisions of Directives 2006/95/EC and 2004/108/EC.

Nosotros declaramos bajo nuestra única responsa-

bilidad que el producto a que hace referencia esta

declaración está conforme con las normas u otros

documentos normativos siguiendo las estipulaciones de

las directivas 2006/95/CE y 2004/108/CE.

Noi dichiariamo sotto nostra esclusiva responsabilità

che il prodotto a cui si riferisce la presente dichiarazione

risulta conforme ai seguenti standard o altri documenti

normativi conformi alle disposizioni delle direttive

2006/95/CE e 2004/108/CE.

Wij verklaren als enige aansprakelijke, dat het product

waarop deze verklaring betrekking heeft, voldoet aan de

volgende normen of andere normatieve documenten,

overeenkomstig de bepalingen van Richtlijnen 2006/

95/EC en 2004/108/EC.

Vi erklærer os eneansvarlige for, at dette produkt, som

denne deklaration omhandler, er i overensstemmelse

med standarder eller andre normative dokumenter i

følge bestemmelserne i direktivene 2006/95/EC og

2004/108/EC.

Vi deklarerar härmed värt fulla ansvar för att den

produkt till vilken denna deklaration hänvisar är i

överensstämmelse med standarddokument, eller andra

normativa dokument som framstölls i direktiv nr.

2006/95/EC och 2004/108/EC.

Ilmoitamme yksinomaisella vastuullamme, että tuote,

jota tämä ilmoitus koskee, noudattaa seuraavia

standardeja tai muita ohjeellisia asiakirjoja, jotka

noudattavat direktiivien 2006/95/EC ja 2004/108/EC

säädöksiä.

Vi erklærer oss alene ansvarlige for at produktet som

denne erklæringen gjelder for, er i overensstemmelse

med følgende normer eller andre normgivende

dokumenter som følger bestemmelsene i direktivene

2006/95/EC og 2004/108/EC.

Wir erklären in alleiniger Verantwortung, daß das

Produkt, auf das sich diese Erklärung bezieht, mit der

folgenden Normen oder normativen Dokumenten über-

einstimmt. Gemäß den Bestimmungen der Richtlinie

2006/95/EC und 2004/108/EC.

Nous déclarons sous notre seule responsabilité que le

produit auquel se référe cette déclaration est conforme

aux normes ou autres documents normatifs conformé-

ment aux dispositions de la directive 2006/95/CE et

2004/108/CE.

A nickel metal hydride battery that is

recyclable powers the product you have

purchased. Please call 1-800-8-BAT-

TERY for information on how to recycle

this battery.

Limitation of liability

THIS PUBLICATION IS PROVIDED "AS IS"

WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING

BUT NOT LIMITED TO, THE IMPLIED WAR-

RANTIES OF MERCHANTABILITY, FITNESS

FOR ANY PARTICULAR PURPOSE, OR

NON-INFRINGEMENT OF THE THIRD PAR-

TYS RIGHT.

THIS PUBLICATION COULD INCLUDE

TECHNICAL INACCURACIES OR TYPO-

GRAPHICAL ERRORS.

CHANGES ARE ADDED TO THE INFORMA-

TION HEREIN, AT ANY TIME, FOR THE

IMPROVEMENTS OF THIS PUBLICATION

AND/OR THE CORRESPONDING PRODUCT

(S).

Disclaimer of warranty

IN NO EVENT SHALL Panasonic Corporation

BE LIABLE TO ANY PARTY OR ANY PER-

SON, EXCEPT FOR REPLACEMENT OR

REASONABLE MAINTENANCE OF THE

PRODUCT, FOR THE CASES, INCLUDING

BUT NOT LIMITED TO BELOW:

(1) ANY DAMAGE AND LOSS, INCLUDING

WITHOUT LIMITATION, DIRECT OR

INDIRECT, SPECIAL, CONSEQUENTIAL

OR EXEMPLARY, ARISING OUT OF OR

RELATING TO THE PRODUCT;

(2) PERSONAL INJURY OR ANY DAMAGE

CAUSED BY INAPPROPRIATE USE OR

NEGLIGENT OPERATION OF THE USER;

(3) UNAUTHORIZED DISASSEMBLE,

REPAIR OR MODIFICATION OF THE

PRODUCT BY THE USER;

(4) ANY PROBLEM, CONSEQUENTIAL

INCONVENIENCE, OR LOSS OR DAM-

AGE, ARISING OUT OF THE SYSTEM

COMBINED BY THE DEVICES OF THIRD

PARTY.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

Precautions

Do not charge batteries other than our

nickel metal hydride batteries.

Failure to observe this may cause battery

fluid leakage, overheating, or explosion.

To charge batteries other than our batteries,

use a dedicated charger.

Do not attempt to recharge, disassemble

or short-circuit dry cells.

An exploding battery or leaking battery fluid

may result in fire, injury and burns.

Turn off the power supply when inside an

aircraft.

The product might interfere with operational

safety of the aircraft.

Do not attempt to disassemble or short-

circuit rechargeable batteries.

An exploding battery or leaking battery fluid

may result in fire, injury and burns.

Avoid placing the product in unstable con-

ditions.

Failure to do so may cause injury.

Stop operation immediately when some-

thing is wrong with the product.

When smoke goes up from the product or the

smell of smoke comes from the product, con-

tinued use will result in fire.

Immediately remove the battery and the bat-

tery charger, and contact your dealer.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

S3125A

Do not assign more than one transmitter

to the same channel.

The noise generated when the power switch

of the product is turned on may cause dam-

age to the speaker, and an excessively loud

volume that may damage listeners’ ears.

Do not swing the product around on its

strap.

The strap might come off, resulting in person-

al injury or damage to the product.

Insert the battery with correct polarity

(+, –).

If reversed, the battery may explode or bat-

tery fluid leak out, resulting in fire, injury or

soiling.

Do not use NiCd batteries.

These could cause internal damage, result-

ing in a fire.

[Precautions for use]

• Operating temperature:

5 °C - 35 °C {41 °F - 95 °F}

When calculating the battery life, note

that temperatures below 10 °C {50 °F}

shorten the battery duration.

• Do not disassemble the product or touch

internal parts.

• Battery power is slightly consumed even

when the power of this product is OFF. If

the battery is left unused, that may result

in liquid leakage. To prevent this, remove

the battery from the product when

unused for a long time.

• Exercise care when using the product in

high places.

If it falls down, it may cause personal

injury or suffer damage.

• Do not use or leave the battery in places

where it will be exposed to high tempera-

tures, such as in strong direct sunlight, in

a sun-heated car, by the fire, or in front of

a stove.

• Do not touch the battery poles or con-

tacts inside the battery cover with dirty

hands. Otherwise poor contact or noise

may result. If dirty, wipe off with a dry soft

cloth.

The contacts inside the battery cover

tend to get dirty. Clean them regularly

(about once a month) with ethyl alcohol.

Do not use solvents, such as benzine or

thinner, or a metal polish. Otherwise the

contacts may become deformed or dis-

colored, or the brass plating may come

off.

• Do not use a deteriorated or short-circuit-

ed battery. A battery in this condition

may leak fluid, overheat and cause dam-

age.

• The product is not made to drip-proof

specification.

Do not use the product with the wet

hands in a place where it is directly

exposed to water.

• Do not cover the infrared emitter with

hands, clothes, or labels, etc. Otherwise

the sound will be blocked or interrupted.

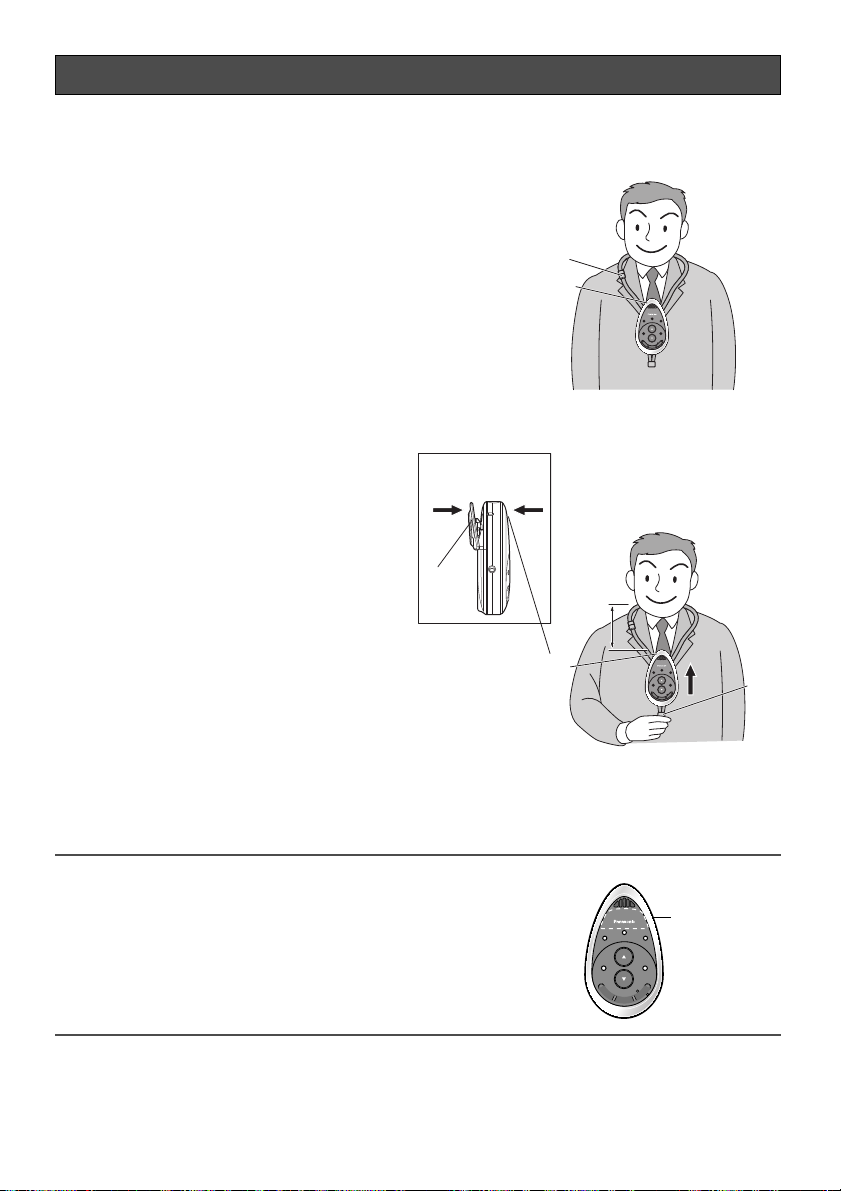

• Do not swing the product around on the

neck strap. To prevent strangling, the

closure of the strap provided for hanging

the product around the neck is designed

to give way under pressure. If swung

around on the neck strap, the closure will

open and the product will fly away,

resulting in personal injury or damage to

the product.

• Maintain a distance of 50 cm {19-11/16"}

between infrared wireless microphones

and a distance of 2 m {7'} or more

between the infrared wireless micro-

phone and the infrared sensor.

Radio frequencies may cause interfer-

ence.

• The product is designed for indoor use.

• Use the product in a location where it is

relatively shielded from noise produced

by rotating machinery, transformers or

the ignition system or automobiles.

• Do not place the product on top of heat-

generating equipment, such as powered

amplifiers, video monitors or measuring

instruments, and do not leave it in a

closed car in hot summer. When storing

the product, do so in a dry place.

CONTENTS

Limitation of liability .................................................................................................................... 3

Disclaimer of warranty ................................................................................................................ 3

Important Safety Instructions ..................................................................................................... 3

Precautions ................................................................................................................................ 4

Preface ....................................................................................................................................... 7

Caution about interception of transmission ................................................................................ 7

Major operating controls and their functions .............................................................................. 8

Channel setting .......................................................................................................................... 11

Inserting a battery ...................................................................................................................... 13

Fitting the microphone ................................................................................................................ 14

Using the microphone ................................................................................................................ 15

Adjusting the volume .................................................................................................................. 16

Muting ........................................................................................................................................ 18

Connecting an external microphone .......................................................................................... 19

Connecting an external device ...................................................................................................20

Replacing a battery .................................................................................................................... 21

Charging a rechargeable battery ................................................................................................22

Replacing the neck strap ............................................................................................................ 24

Troubleshooting ......................................................................................................................... 25

Specifications ............................................................................................................................. 30

• Walls or people located between the

infrared wireless microphone and the

infrared sensor will block infrared radia-

tion, so that no sound will be heard.

• The product is high-precision adjusted;

exposing it to strong impact or dropping

it on the floor may change its characteris-

tics. Handle the product with due care.

Do not expose the product to shock or

impact as this will cause the audio output

of the infrared receiver to give off noise

on impact.

Product care

• Clean the power source with a dry cloth.

• Do not clean with volatile liquids such as

benzine and thinner.

• When using a chemical cloth for clean-

ing, observe the cautions provided with

that product.

Useful hints

• Noise prevention

Turn off the power of this product, and

turn down the volume of a powered

amplifier, mixer, etc. before replacing,

removing or inserting the battery, as this

might produce a large noise from these

devices.

• For a clear sound without noise content,

use the product at a distance of up to

8 m {26'} from the infrared sensor. When

you get a lot of noise, use the product as

close as possible to the infrared sensor,

within a range of 2 m to 8 m {7' - 26'}.

Using the product within a distance of

2 m {7'} from the infrared sensor may

cause crossover to unused channels and

interference.

• Volume control

When the volume control from this prod-

uct goes wrong, move closer to the

infrared sensor or change positions and

then try again to adjust the volume.

Preface

The product is a pendant type PLL infrared wireless microphone.

It can be used in combination with the following infrared products (hereinafter, receiver). (as of

June 2009)

U.S. and Canadian fields: Infrared Receiver (WX-LR100), Infrared Receiver/Amplifier (WX-

LA20, WX-LA50), Infrared Wireless Powered Speaker (WX-LP100)

European and Asian fields: Infrared Receiver (WX-LR100/A, WX-LR100/B), Infrared Receiver/

Amplifier (WX-LA20, WX-LA50), Infrared Wireless Powered Speaker (WX-LP100)

• The use of a PLL synthesized system allows selecting one out of four available frequencies

(1 of 4 channels).

• The transmitting channel is changed by operating a channel selector.

• The product can derive its power supply from a rechargeable battery (AA size), a dry cell

(AA/LR6 size) or a charger (option). (☞page 30)

• Connection of the charger (WX-LZ150) to this product allows our nickel metal hydride bat-

tery to be charged.

• Connecting an external microphone or any other external sound source to the product’s

microphone input terminal or external input terminal will allow you to transmit audio to the

receiver.

• The audio level (volume) output to the receiver can be adjusted on the microphone.

Caution about interception of transmission

This product is a wireless system using infrared, and the transmission and reception of audio

signals are possible within the range that the infrared can reach.

If any third party is within the range of the infrared, the audio signals can reach anywhere

unless there are obstacles (such as walls). Therefore, if there is no action taken to prevent

interception, malicious third parties may listen to content by intercepting the infrared

intentionally.

In order to handle this problem, you may set up infrared shielding materials such as shade cur-

tains to close the transmitting and receiving range to reduce the interception.

We would like you to fully understand the risks of using this product without taking precautions

for interception, and we recommend you take your own preventative measures.

If interception occurs due to negligence or the specifications of the infrared wireless, we shall

not take any responsibility for the damages that are caused thereby.

Major operating controls and their functions

WX-LT350

CHG

PWR

BATT

!0!1!2

MIC IN

3.3V IN AUDIO IN

(inside the battery cover)

Battery cover removed

Rear view

qMicrophone opening

This opening picks up the speaker’s

voice.

wInfrared emitter

Emits infrared light and transmits audio

signals.

Do not cover the infrared emitter with

hands, clothes, or labels, etc.

eMicrophone selection indicator (blue)

[OWN]

Lights when [OWN] (audio from q, u, or

!4) is selected for adjusting the volume.

(☞page 16, 17)

Blinking indicates that the microphone is

muted. (☞page 18)

rMicrophone selection indicator (blue)

[OTHER]

[OTHER] microphone refers to other

microphone receiving audio at the same

receiver. Lights when the [OTHER]

microphone is selected for adjusting the

volume. (☞page 16, 17)

tLine selection indicator (blue) [LINE]

[LINE] refers to external devices con-

nected to the line input terminal of the

receiver. Lights when [LINE] is selected

for adjusting the volume. (☞page 16, 17)

The line volume adjusting function is

available with the infrared receiver/ampli-

fier (WX-LA50) and the infrared wireless

powered speaker (WX-LP100). (as of

June 2009)

yVolume control buttons [D/C]

Adjust the volume of [OWN], [OTHER]

and [LINE]. (Adjustment range: +6 dB to

–16 dB, in 2-dB steps) Adjust when any

one of the indicators in eto tis on.

Pressing the [D] button will increase the

volume.

Pressing the [C] button will decrease the

volume.

Keeping the buttons pressed will contin-

uous increase/decrease the volume.

(☞page 16, 17)

uExternal input terminal [AUDIO IN]

(side)

Transmits the audio from a connected

external device to the receiver.

When an external device is connected to

this terminal, audio from the q

Microphone opening and !4 Microphone

input terminal is muted. (☞page 20)

iCharge indicator (red) [CHG]

Indicates the charging status. (☞page

22)

ON: Charging.

OFF: Charging completed, or no battery

installed.

Blinking: A dry cell or deteriorated

rechargeable battery is installed.

oDC input terminal [3.3V IN] (side)

Used to connect the charger (WX-LZ150)

for charging the battery installed in the

microphone and to supply power to the

microphone. (☞page 22, 23)

!0 Function button [F]

Pressing this button will activate two pre-

viously set functions. (☞page 11, 12)

Enabled only when used in combination

with a receiver that supports this feature.

(Unreleased as of June 2009)

!1 [PWR/MUTE] button

Pressing this button will turn the micro-

phone power [ON/OFF]. To turn "ON",

press it for 1 second or more, to turn

"OFF", press it for 2 seconds or more.

While the power is on, pressing this but-

ton short once will mute the microphone,

and pressing this button again will can-

cel muting. (☞page 15, 18)

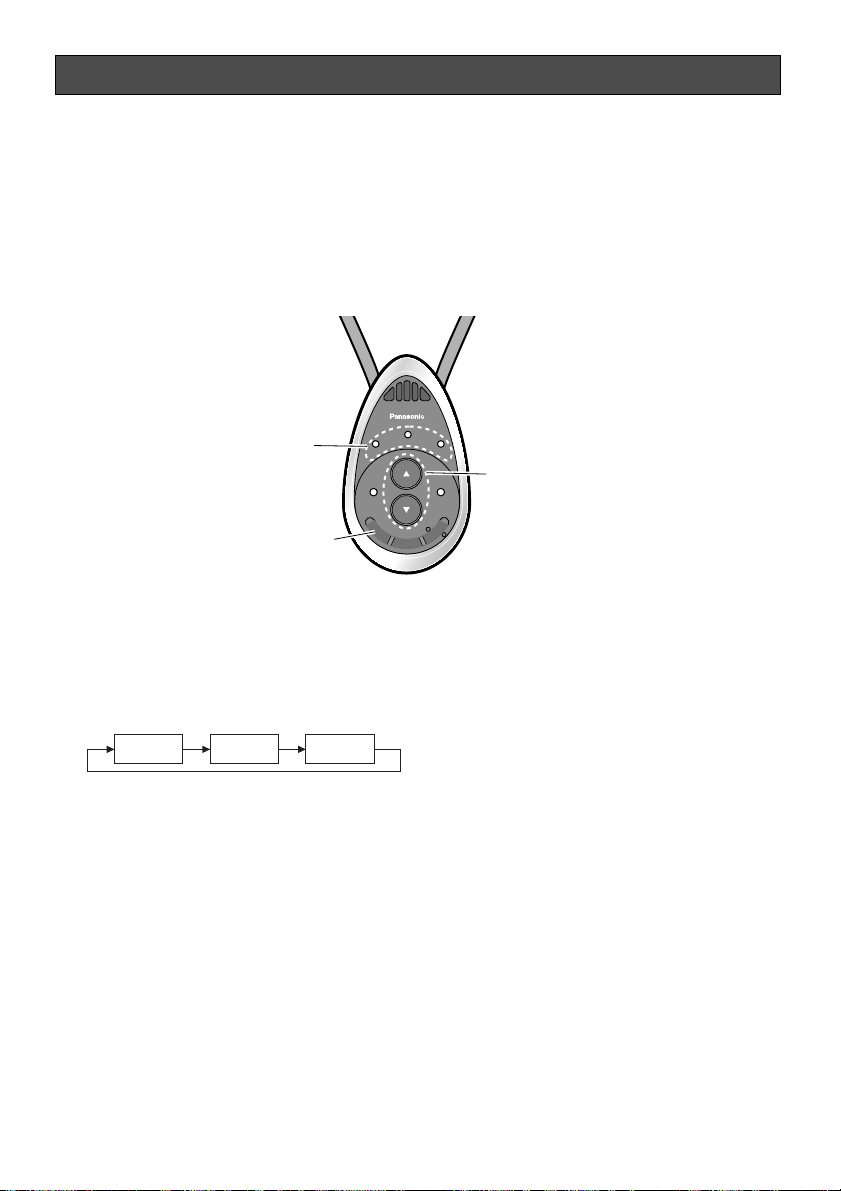

!2 Selector button [SELECT]

Selects the target for volume control.

Each time the button is pressed, the

selection indicator changes as follows:

[OWN] →[OTHER] →[LINE] →[OWN].

(☞page 16)

!3 Battery indicator [BATT]

Indicates the status of the microphone

power supply and the battery condition

as follows:

Green light: Power is turned "ON".

Orange light: Power is turned “ON”, but

battery is nearing its end.

Red light: Battery is depleted.

Charge the battery or install a new

one.

Light off: Power is turned "OFF".

Blinking (green, orange or red):

Channel setting error. (☞page 11,

12)

!4 Microphone input terminal [MIC IN]

(side)

Transmits the audio from a connected

external microphone to the receiver.

When an external microphone is con-

nected to this terminal, the audio from

the q Microphone opening is muted.

(☞page 19)

!5 Neck strap

For hanging the microphone around the

neck. (☞page 14, 24)

!6 Clip (rear)

For adjusting the neck strap to an appro-

priate length. The clip can be attached to

the speaker’s clothes. (☞page 14, 24)

!7 Battery cover (rear)

The battery cover can be removed by

pulling in the direction of the arrow.

!8 Battery slot (inside the battery cover)

Install one AA size nickel metal hydride

rechargeable battery or one AA/LR6 size

alkaline dry cell, paying attention to the

polarity marks (+, –) inside the battery

cover. (☞page 13, 21)

!9 Channel select switch (inside the bat-

tery cover)

Selects the microphone transmitting

channels and the functions assigned to

!0 Function button. (☞page 11, 12)

Note:

• Use the specified charger (WX-LZ150)

for charging nickel metal hydride batter-

ies. Charging takes up to 8 hours, but the

charging time varies depending on bat-

tery type and status of use.

Channel setting

Set the infrared transmitting channel of the microphone. Set the channels to match the receiv-

ing channels of the infrared receiver, infrared receiver/amplifier, and infrared wireless powered

speaker used. For details refer to the operating instructions of the receiver.

Note that the channel setup of the microphone differs depending on the infrared receiver,

infrared receiver/amplifier, and infrared wireless powered speaker used.

• For WX-LR100/A, WX-LA20, WX-LA50, WX-LP100

CH1: 2.30 MHz

CH2: 2.80 MHz

• For WX-LR100, WX-LR100/B

CH3: 3.20 MHz

CH4: 3.80 MHz

Important:

• Channels can be set up with the power of the microphone turned on, but to prevent noise it

is recommended to turn down the volume of the powered amplifier, mixer, etc.

1Remove the battery cover of the

microphone.

Pull the battery cover in the arrow direc-

tion while pressing the Aportion with

both right and left thumbs to remove the

cover.

2Set the transmitting channels and

assign functions to the function but-

ton.

To set the transmitting channels and

assign functions to the function button,

use the small channel setting screwdriv-

er (accessory) to turn the channel select

switch until it clicks in place.

The positions of the channel select

switch correspond to the following chan-

nels/functions.

Channel select switch

Battery cover

• When set to a position other than 1 to 4, the battery indicator will blink.

• Default setting: Function 1-1

Note:

Set the transmitting channels (CH1 - CH4) to match the receiver used, disregarding

Functions 1 and 2. Functions 1 and 2 assigned by the channel select switch are still dis-

abled at this point in time (receiver compatible with these functions unreleased as of June

2009). The following occurrences are not considered as malfunction:

• When setting the channel select switch to [Function 1 (1 - 4)] and pressing the function but-

ton, all of the [OWN], [OTHER] and [LINE] selection indicators light up once.

• When setting the channel select switch to [Function 2 (1 - 4)] and pressing the function but-

ton for 2 seconds or more,

• [OWN], [OTHER] and [LINE] selection indicators: all lit

• Volume control/Muting: disabled

• External input terminal: disabled

• Microphone input terminal: enabled

• Audio input from the microphone opening: enabled (when not using the microphone

input terminal)

To restore to the original status, turn the power of the microphone [OFF/ON].

Receiver

Position

Function 1

[F1]

Function 2

[F2]

WX-LR100/A, WX-LA20,

WX-LA50, WX-LP100

WX-LR100,

WX-LR100/B

Channel Frequency Channel Frequency

––

CH3 3.20 MHz

CH4 3.80 MHz

––

CH3 3.20 MHz

CH4 3.80 MHz

CH1

CH2

–

CH1

CH2

–

2.30 MHz

2.80 MHz

–

2.30 MHz

2.80 MHz

–

Inserting a battery

• Carefully read the "Precautions" and proceed accordingly.

• To insert a battery, turn off the power of the microphone, and make sure that the micro-

phone is not connected to the charger.

• To replace a battery, refer to "Replacing a battery". (☞page 21).

Note:

• Do not touch the battery poles with hands. Otherwise poor contact or noise may result. If

dirty, wipe off with a dry soft cloth.

1Confirm that the battery indicator is off.

2Remove the battery cover.

Pull the battery cover in the arrow direction while pressing the Aportion with both right and

left thumbs to remove the cover.

3Install a battery.

When installing the battery, check the polarity.

If using a rechargeable battery, install one AA size nickel metal hydride battery, if using a

dry cell, install one AA/LR6 size alkaline dry cell, paying attention to the polarity marks (+,

–) of the battery slot.

4Attach the battery cover.

Push up the battery cover to the direction of the arrow in the figure, and fit it to its original

position.

WX-LT350

CHG

BATT

PWR

Battery indicator

Rear view

Battery cover

Fitting the microphone

1Hang the microphone around the neck

of the speaker.

Widen the looped part of the strap above

the microphone and hang it around the

speaker’s neck, with the front of the

microphone facing outward as shown in

the illustration at right.

2Adjust the position of the microphone.

While holding the lower end of the neck

strap with one hand and opening the clip

at the rear of the microphone with the

other, pull up the microphone to the level

of the speaker’s chest.

Adjust so that the distance between the

speaker’s mouth and the microphone

opening is approx. 15 cm {5-15/16"} as

shown in the illustration at right.

Let go of the clip in the desired position.

If bothered by the sound of the microphone rubbing against your clothes, fix the clip at the rear

of the microphone to your shirt pocket or placket.

Note:

• The infrared emitter is located only on the microphone

front. To prevent the sound from blocked or interrupted, do

not cover the infrared emitter with hands, clothes, or labels,

etc.

• The neck strap is provided with a safety closure to prevent

strangling. It is not meant to fit the microphone.

• To remove, reverse the above procedure.

Microphone opening

WX-LT350

CHG

PWR

BATT

Closure

15 cm

{5-15/16"}

Microphone opening

Hold

Side view

WX-LT350

CHG

PWR

BATT

Clip

MIC IN

Infrared emitter

WX-LT350

CHG

PWR

BATT

When fitting, removing, or adjusting the position of the microphone, turn off the power of the

microphone, and make sure that the microphone is not connected to the charger.

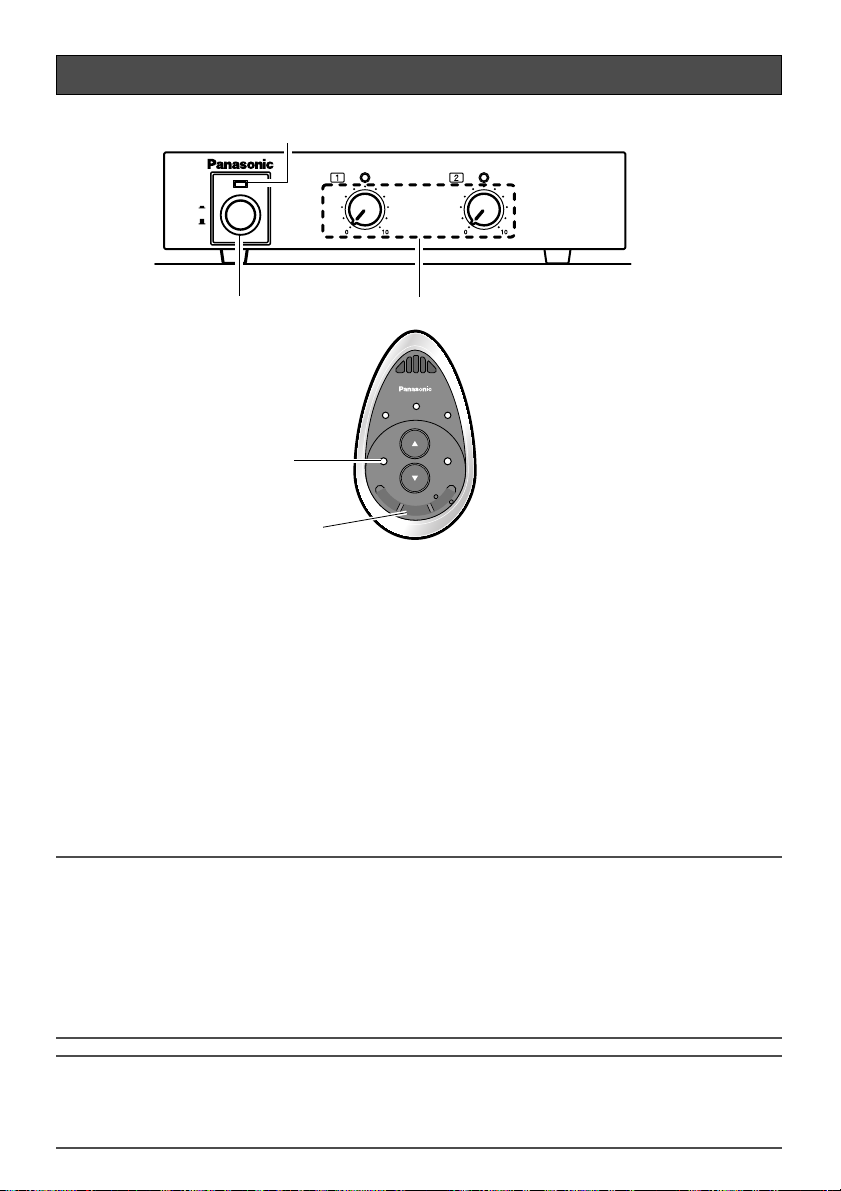

Using the microphone

1Turn on the power by pressing the power switch of the receiver.

The power indicator of the receiver lights green.

2To turn on the microphone, press its [PWR/MUTE] button for 1 second or more.

The battery indicator of the microphone lights green or orange. To turn off the power, press

the button for 2 seconds or more. The battery indicator of the microphone turns off.

3Adjust the volume.

Adjust the volume of the receiver with the audio volume controls. After adjusting the volume

level at the infrared receiver and any connected external devices, the speaker can make

fine adjustments, such as level differences. (☞page 16, 17)

Turn off the power of the microphone and the infrared receiver after use.

Important:

• Do not assign more than one infrared wireless microphone to the same channel.

The noise may cause damage to the speaker, and an excessively loud volume may dam-

age your ears when the power switch of the microphone is turned on.

• While using the microphone, do not take the microphone close to the wireless powered

speaker (WX-LP100) (such as when adjusting the volume controls of the powered speak-

er).

Loud noises such as feedback may damage your hearing.

Note:

• Also read the operating instructions of the infrared receiver (WX-LR100, WX-LR100/A, WX-

LR100/B), the infrared receiver/amplifier (WX-LA20, WX-LA50), and the infrared wireless

powered speaker (WX-LP100).

OFF

POWER

IR SIGNAL IR SIGNAL

Infrared Receiver WX–LR100/A

Power indicator

Power switch

1Audio volume controls

Infrared receiver

* The illustration shows

model WX-LR100/A.

WX-LT350

CHG

BATT

PWR

Battery indicator

[PWR/MUTE] button

Adjusting the volume

The microphone can control the volume of audio signals that are output from the infrared

receiver (WX-LR100, WX-LR100/A, WX-LR100/B), the infrared receiver/amplifier (WX-LA20, WX-

LA50), and the infrared wireless powered speaker (WX-LP100), and the volume of audio sig-

nals input to the line input terminal of the infrared receiver/amplifier (WX-LA50) and the infrared

wireless powered speaker (WX-LP100) (as of June 2009).

After adjusting the volume level at the infrared receiver and any connected external devices,

the speaker can make fine adjustments, such as level differences, by performing the following

operations on the microphone.

1Press the selector button

When the selector button is pressed for the first time after turning on the power, the [OWN]

selection indicator lights, and after that the selection indicator for the preceding selection

([OWN], [OTHER], [LINE]) will light. Then press the selector button repeatedly to select the

desired selection. The selection indicators light in the following order:

* The selection indicator lights for 5 seconds. If no operation takes place within this period,

the indicator turns off automatically.

2Press the volume button [D/C]

While the selection indicator for the selection made in 1 is lit, either press the volume button

or keep it pressed.

Pressing the volume button [D] will increase the volume, pressing [C] will decrease it. The

adjustment range is +6 dB to –16 dB, and every pressing corresponds to a change of

2 dB.

The selection indicator goes off 5 seconds after the volume button was pressed for the last

time.

• When [OWN] is lit

Adjust the audio volume of this microphone (input from the microphone opening, exter-

nal input and microphone input).

* Adjustment is not possible while muted ([OWN] selection indicator is blinking).

WX-LT350

CHG

PWR

BATT

Selector button

Selection indicator

Volume button

OTHER LINEOWN

• When [OTHER] is lit

Adjust the volume of another microphone (Refer to the table in this page.)

• When [LINE] is lit

Adjust the volume of the external device (CD player or MD player) that is connected to

the line input connector of the receiver that receives the audio from the microphone.

The line volume adjusting function is available with the infrared receiver/amplifier (WX-

LA50) and the infrared wireless powered speaker (WX-LP100). (as of June 2009)

Note:

• The adjusted volume can be reset by turning off the power switch of the receiver.

It is not reset by turning off the power of the microphone.

• While the microphone is muted, volume control of the [OWN] microphone is disabled but

enabled for [OTHER] and [LINE]. (☞page 18)

• The table below shows the relation between the [OWN] and [OTHER] infrared wireless

microphones targeted for volume control.

WX-LT350 CH1

CH2

CH3

CH4

Receiving

channels

Transmitting

channels

WX-LR100/A, WX-LA20,

WX-LA50, WX-LP100

WX-LR100,

WX-LR100/B

CH1

OWN

OTHER

–

OTHER

OWN

–

CH2 CH3

–

OWN

OTHER

CH4

–

OTHER

OWN

• The volume control function may become disabled under certain circumstances.

(☞page 12)

If you want to temporarily stop the audio transmitted from this microphone to the receiver for

one reason or another, without turning off the microphone, you can temporarily mute the audio

signals.

1Press the [PWR/MUTE] button.

When pressing the[PWR/MUTE] button once, the [OWN] selection indicator starts blinking

and the audio transmitted from the microphone to the receiver is muted. While muting is

activated, audio input of the [OWN] microphone (audio input from microphone opening,

external input and microphone input terminal) is muted. To cancel muting, press the

[PWR/MUTE] button again.

Note:

• After muting is maintained for approx. 5 minutes, the microphone is turned off automatical-

ly.

• In the muted state, volume control of the [OWN] microphone is disabled, but [OTHER] and

[LINE] are enabled.

• The muting operation may become disabled under certain circumstances. (☞page 12)

Muting

WX-LT350

CHG

PWR

BATT

[OWN] selection indicator

1[PWR/MUTE] button

This function allows you to use an external microphone instead of the microphone opening of

this microphone. Connect an external microphone (for example, an electret condenser micro-

phone) to the microphone input terminal of the microphone, and transmit the audio to the

receiver.

1Turn off the power of the microphone.

2Using the ø3.5 mini-plug, connect the external microphone (for example, a commer-

cially available electret condenser microphone) to the microphone input terminal.

3Turn on the power of the microphone.

Important:

• Do not connect external devices (CD players or MD players) to the microphone input termi-

nal. Loud noises may damage your hearing. When an external device is mistakenly con-

nected, turn off the power of the microphone and the external device, disconnect the plug,

and connect the device to external input terminal.

Note:

• Once the ø3.5 mini-plug is plugged into the microphone input terminal, priority is given to

this audio transmission from an external microphone and the audio from the microphone

opening will not be transmitted.

• The microphone input terminal of the microphone is a monaural terminal. If a stereo exter-

nal microphone is plugged into the microphone input terminal, either the right or the left

channel audio will be transmitted.

• When fine-tuning the volume of external microphone using this microphone, select [OWN]

by pressing the selector button. For fine tuning, refer to "Adjusting the volume" (☞page 16,

17).

• Use a unidirectional microphone. The use of an omnidirectional microphone may cause

feedback.

• In addition to this manual, refer to the operating instructions of the external microphone to

be connected.

Connecting an external microphone

WX-LT350

BATT

CHG

PWR

ø3.5 mini-plug

1, 3 [PWR/MUTE] button

Microphone input terminal

Electret condenser microphone

(commercially available)

You can connect an external device (for example, a portable CD player) to the external input

terminal and transmit the audio to the receiver.

1Turn off the power of the microphone and the external device.

2Connect an external device.

Use a ø3.5 stereo mini-plug to connect the external device (for example, a portable CD

player) to the external input terminal.

3Turn on the power of the external device (for example, a portable CD player).

4Turn on the power of the microphone.

5Adjust the volume.

Adjust the audio volume of the external device.

Note:

• Once a ø3.5 stereo mini-plug is plugged into the external input terminal, priority is given to

this input and the audio from the microphone opening and the microphone input terminal

will not be transmitted.

• If an external microphone is mistakenly connected to the external input terminal, the audio

of the external microphone will not be transmitted. Turn off the power of the microphone,

disconnect the plug, and connect the external microphone to microphone input terminal.

• If the audio of the external device is stereo, stereo signals will be mixed.

• When fine-tuning the volume of external device using this microphone, select [OWN] by

pressing the selector button. For fine tuning, refer to "Adjusting the volume" (☞page 16,

17).

• In addition to this manual, refer to the operating instructions of the device to be connected.

Connecting an external device

CHG

WX-LT350

BATT

PWR

1, 4

Portable CD player (commercially available)

ø3.5 stereo mini-plug

External input terminal

[PWR/MUTE] button

This manual suits for next models
