Philps PowerPro Aqua FC6404/01/F/A User manual

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
ServiceManual
Philips Consumer Lifestyle
PowerPro Aqua
FC6404/01/F/A
FC6404/31/F/A
19/01 Version 1.7
Product information
Safety
•This product meets the requirements regarding
interference suppression on radio and TV.
•After the product has been repaired, it should function
properly and has to meet the safety standards as
officially laid down at this moment.
Technical information
•Colour : Electric Aqua metallic
Performance
•Battery type : Li-Ion
•Battery voltage : 18 V
•Charging time : 5 hour(s)
•Mopping element : Unique mopping
system
•Runtime : 40 minute(s)
•Surface coverage per tank : 50 m2
•Sound power level : 83 dB
Usability
•Clean water tank capacity : 0.2 l (max)
•Detergents that can be used : Clear detergent or
just water
Filtration
•Dust capacity : 0.6 l
•Exhaust filter : Microfilter
•Filter system : 3-stage cyclonic action
Nozzles and accessories
•Accessories included : Crevice tool,
2 microfiber pads
•Standard nozzle : TriActive Turbo Nozzle
Sustainability
•Packaging : > 90% recycled materials
•User manual : 100% recycled paper
Weight and dimensions
•Dimensions of product : 250 x 180 x 1160 mm
(L x W x H)
•Weight of product : 3.2 kg
Optional (accessories)
•FC8016/01 : 4322 004 27471 4x Soft MicroPad
•FC8063/01 : 4322 004 94312 2x Pad
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
2-11
Disassembly- and Reassembly advice
•The Mop assy can easily be clicked on the nozzle (magnetic points) and removed as shown below.
23
4 5 6
1
•To remove the Mop assy:
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
3-11
Disassembly- and Reassembly advice

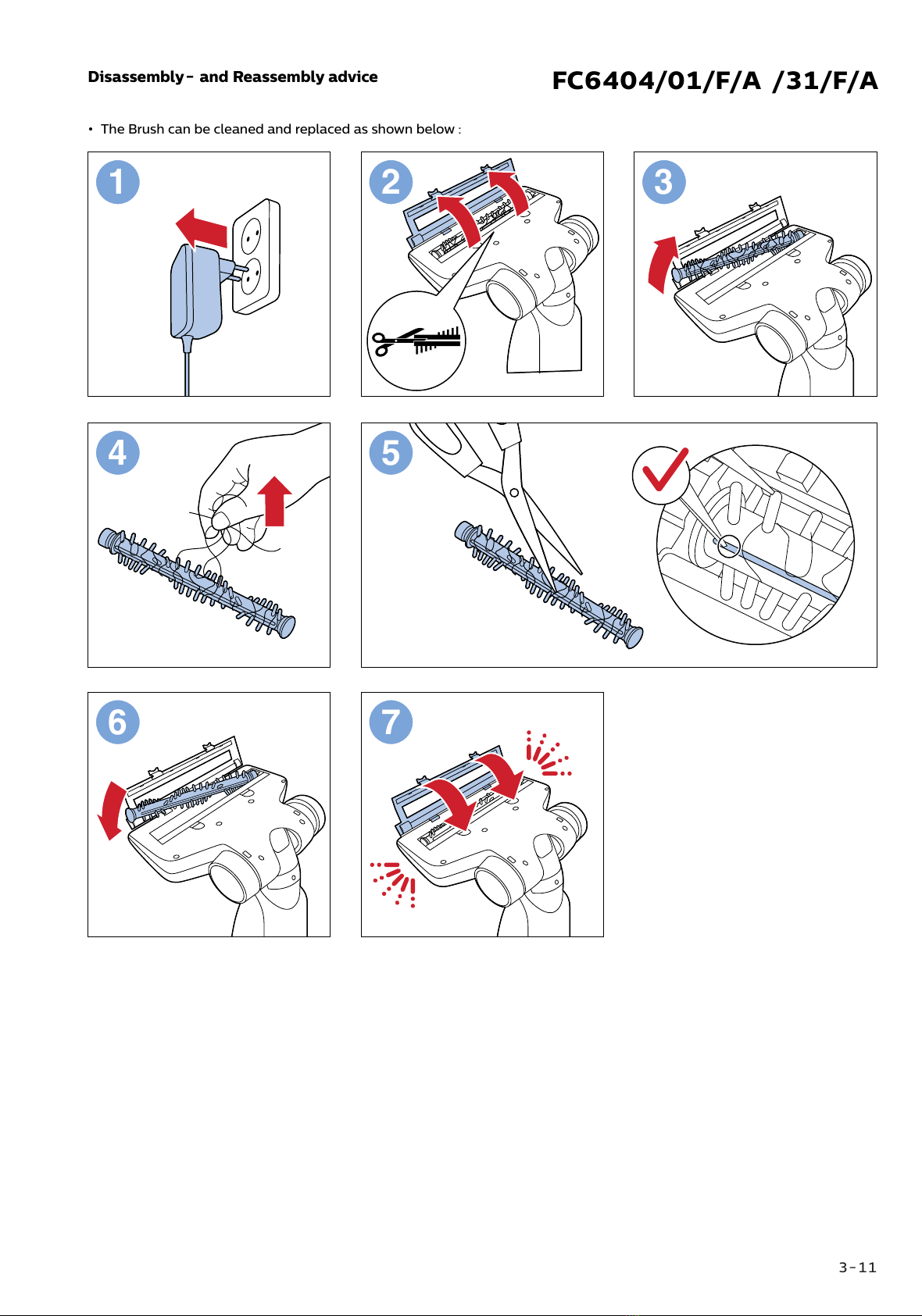

•The Brush can be cleaned and replaced as shown below :
1 2 3
4 5
67
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
4-11
Repair instruction
Status LEDs:
Charging:
Blinking red = charge
Blinking orange = charge
Blinking green = charge
Solid green = fully charged.
LED behavior during charging:
The rst LED is ashing red: when charge reaches >10% changes color to ashing orange: when charge reaches >30% to
solid green LED and the second green LED starts blinking: until bar is fully green = fully charged.
On use:
All 3 green LEDs = full battery
Two green LEDs = 50%
One orange LED = 20-30%
One red LED = 10% or less.
5 hrs.
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
5-11
Hand
Unit
Stick
Unit
M
Low/
High
On/Off Brush
Motor
M
On/Off Suction
Motor
LED
Charging and
Discharging
Adaptor
Input
100-240V AC
DC Jack
Fuse
Batteries
NTC
Parts list
Circuit diagram
Pos Service code Description Remark
1 4322 006 26611 Adaptor F 18 V Li-Ion Euro plug
4322 006 26621 Adaptor F 18 V Li-Ion KR plug
3000 015 74791 Adaptor F 18 V Li-Ion TW plug
2 4322 004 94361 Freudenberg lter
3 3000 015 74681 Cycloon assy F Deep Turquoise 61264
4 4322 005 38591 Dust separator assy F
5 3000 015 74751 Dustbin assy F
6 3000 015 74811 Combined acc. Hawaii 80231
7 4322 004 27111 Flamingo brush
8 3000 015 74821 Wall mount assy with packing Deep Black 80231
9 9965 100 78578 Set of 2 small rollerwheels
10 9965 100 78579 Fixation bolt
11 3000 034 46941* LG HD1 Battery pack 18 V Li-Ion (Duo)
12 3000 034 46981* PCBA LG HD1 18 V Li-Ion (Duo)
13 4322 006 95131 Motor Assy with packing 18 & 25 V
14 9965 100 79457 Set of 2 big wheels incl. circlips
15 4322 005 38621 Water dispencer 30 F Deep Turquoise 61264 Europe
4322 005 38661 Water dispencer 24 F D. Yellow 000076 KR, TW
16 4322 004 94312 Pad Europe
4322 004 27471 Soft Micro pad KR, TW
17 4322 005 38641 Mop assy F
* In case of repair of one of the components PCBA and Battery should be replaced both together.
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
6-11
2
5
3
4
6
10
8
1
Exploded view
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
7-11
16
15
17
Exploded view
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
8-11
X
11
4x
2x
13
12
Z
Z
W
W
Y
X
Y
V
V

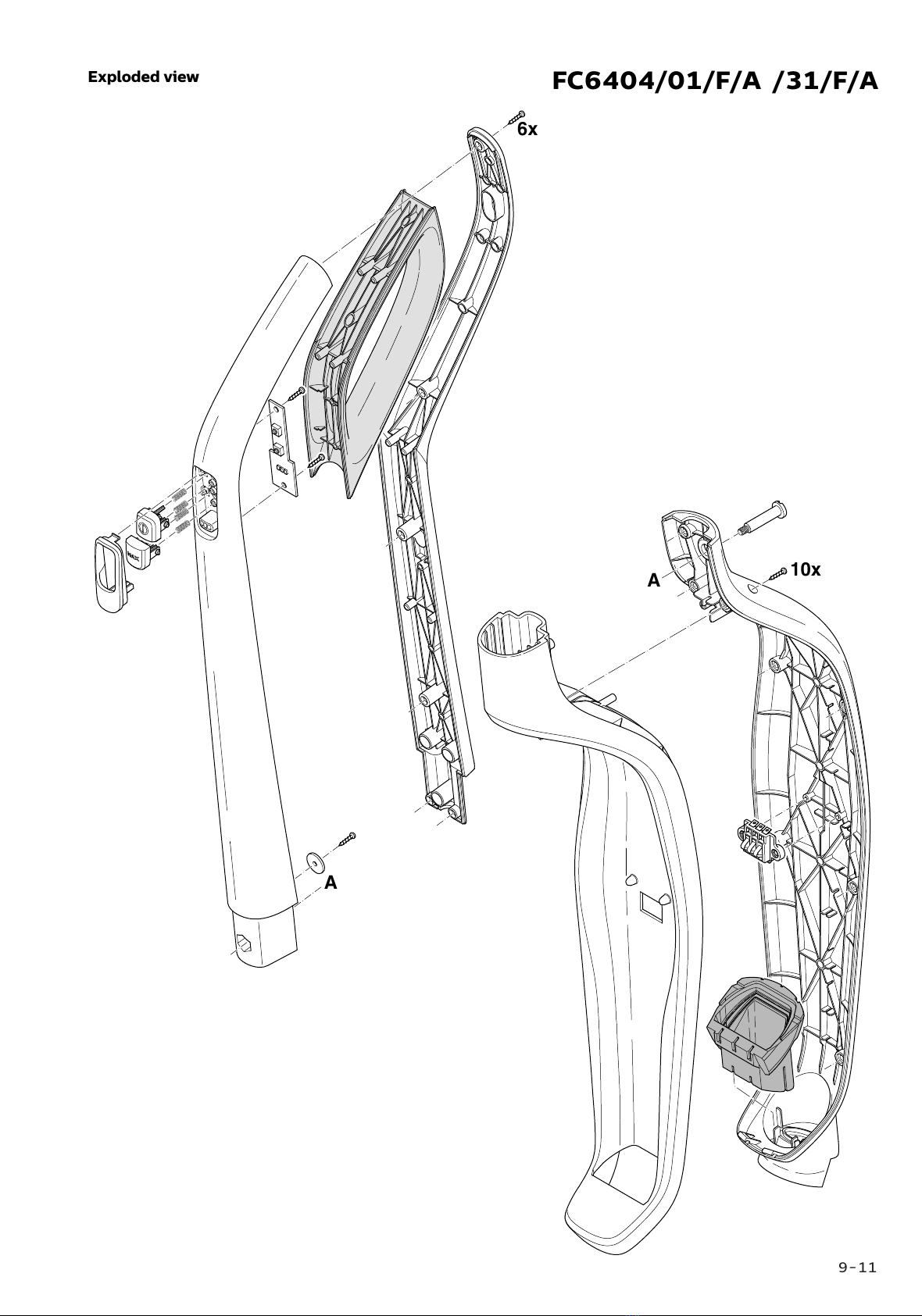

Exploded view
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
9-11
10x
6x
A
A
Exploded view
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
10-11
3x
6x
2x
3x
7
14
14
9
Exploded view
All manuals and user guides at all-guides.com

FC6404/01/F/A /31/F/A
11-11

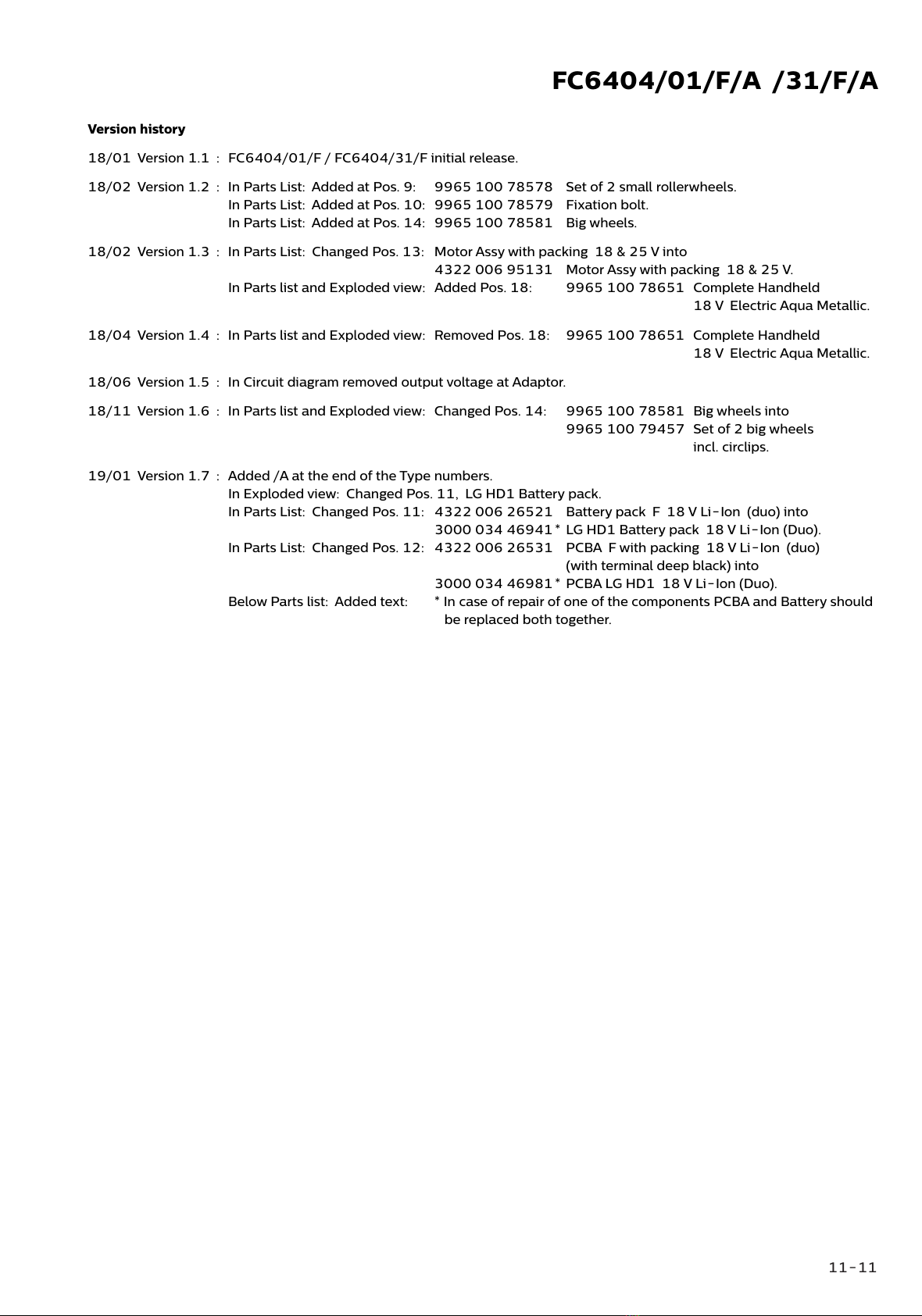

Version history
18/01 Version 1.1 : FC6404/01/F / FC6404/31/F initial release.
18/02 Version 1.2 : In Parts List: Added at Pos. 9: 9965 100 78578 Set of 2 small rollerwheels.
In Parts List: Added at Pos. 10: 9965 100 78579 Fixation bolt.
In Parts List: Added at Pos. 14: 9965 100 78581 Big wheels.
18/02 Version 1.3 : In Parts List: Changed Pos. 13: Motor Assy with packing 18 & 25 V into
4322 006 95131 Motor Assy with packing 18 & 25 V.
In Parts list and Exploded view: Added Pos. 18: 9965 100 78651 Complete Handheld
18 V Electric Aqua Metallic.
18/04 Version 1.4 : In Parts list and Exploded view: Removed Pos. 18: 9965 100 78651 Complete Handheld
18 V Electric Aqua Metallic.
18/06 Version 1.5 : In Circuit diagram removed output voltage at Adaptor.
18/11 Version 1.6 : In Parts list and Exploded view: Changed Pos. 14: 9965 100 78581 Big wheels into
9965 100 79457 Set of 2 big wheels
incl. circlips.
19/01 Version 1.7 : Added /A at the end of the Type numbers.
In Exploded view: Changed Pos. 11, LG HD1 Battery pack.
In Parts List: Changed Pos. 11: 4322 006 26521 Battery pack F 18 V Li-Ion (duo) into
3000 034 46941 * LG HD1 Battery pack 18 V Li-Ion (Duo).
In Parts List: Changed Pos. 12: 4322 006 26531 PCBA F with packing 18 V Li-Ion (duo)
(with terminal deep black) into
3000 034 46981 * PCBA LG HD1 18 V Li-Ion (Duo).
Below Parts list: Added text: * In case of repair of one of the components PCBA and Battery should
be replaced both together.
All manuals and user guides at all-guides.com
