Phonetone PTE-L70A User manual
1/8
PTE-L70A
Cell Phone Signal Booster
User Manual
2/8
SAFETY WARNINGS
W ARN I N G:
Th is e qu ipm ent shou ld be inst alle d a nd op er at e d w it h m in im u m
dist an ce 2 0 cm be t w e en t he r a dia t or & your body.
FCC Cautions:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instruction
for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other
Antenna or transmitter.
SAFTY WARNING:
End users must follow the specific operating instruction for satisfying RF exposure
compliance.
Do not remove the covers during working.
Do not try to repair or replace any components inside of the equipment. Alteration
or abuse of the equipment or other components will void this product’s warranty,
and could be dangerous to the user.

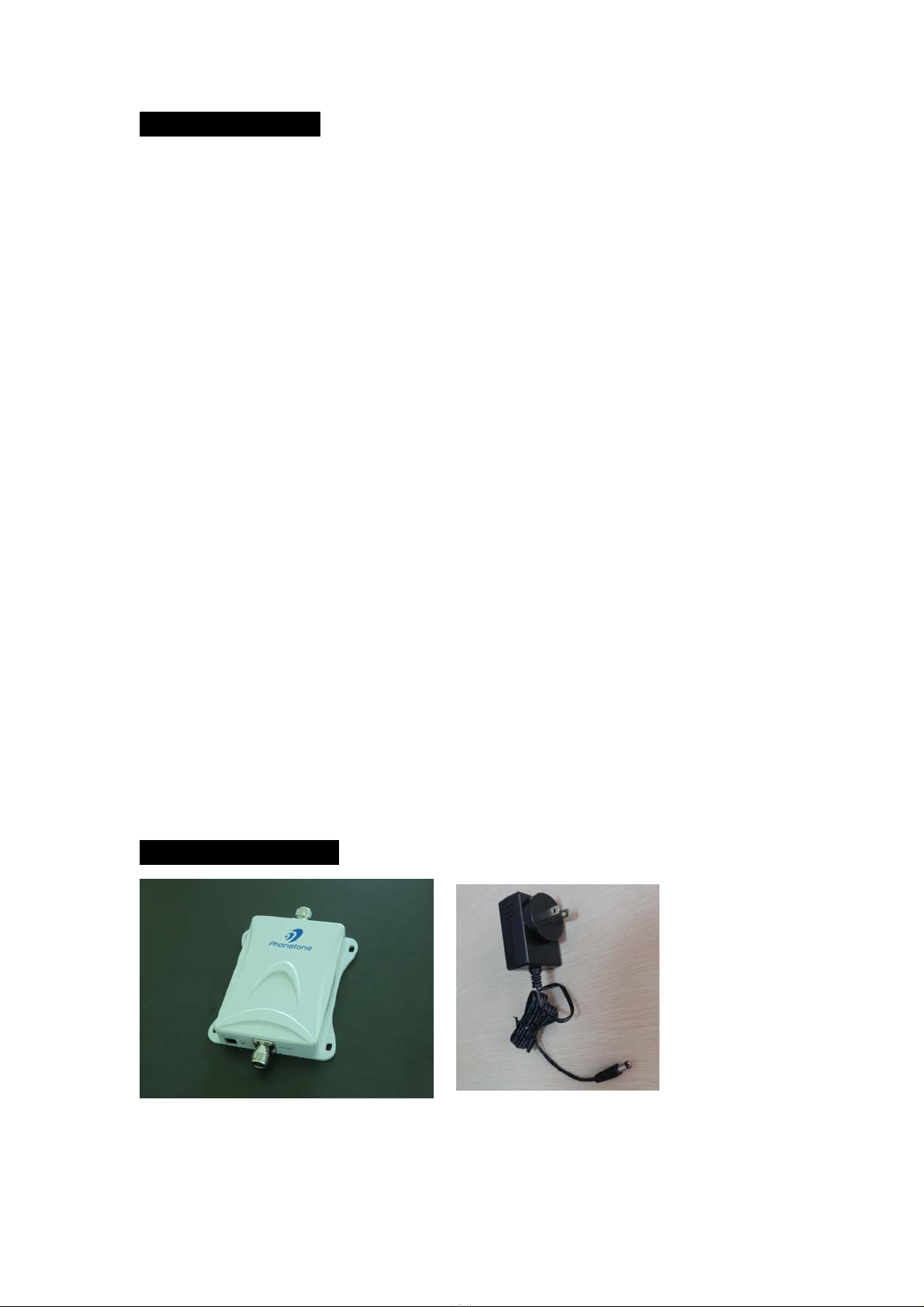

PACKAGE CONTENTS
1 2
1. 1Pcs PTE- L70A Booster with N Female connectors.
2. AC/DC Power Adaptor.
This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
3/8
3. Screws Mounting Kits.
4. User manual (this document).
Antennas and Cables:
In order to use the Booster, you still need the corresponding indoor antenna 1pcs,
outdoor antenna 1pcs, outdoor cable 1pcs and indoor cable 1pcs.
Antennas and cables kitting information are as follows
Name Model Gain/Loss
Indoor Antenna Rubber Antenna PTE-RB-800-2100 3dbi @698-746MHz
Ceiling Antenna PTE-CI-800-2500 3dbi @698-746MHz
Indoor Panel Antenna PTE-PN-800-2500 7dbi @698-746MHz
Outdoor Antenna Yiga Antenna PTE-YG-800/1900 8dbi @698-746MHz
LPDA Antenna PTE-LO-700-2500 9dbi @698-746MHz
Indoor Cable 5 meters RG58 Coaxial
cable with N male
connector
PTE-50-3-5NB 1.4db @698-746MHz
Outdoor Cable 10 meters RG58 Coaxial
cable with N male
connector
PTE-50-3-10NB 2.8db @698-746MHz
Warning：Unauthorized antennas，cables and/or coupling devices are prohibited by
FCC rules. Please contact FCC for details：1-888-CALL-FCC
INSTALLATION INSTRUCTIONS
1Installation of Outdoor Antenna
The booster’s main function is to improve weak RF signals of an area. A simple formula:
Input power+ Gain= Output power. The signal strength from the outdoor antenna directly
affects the efficiency of the indoor coverage. It is very important to choose the outdoor
antenna location in order to get the best signals.
4/8
Testing the signal strength received from outdoor antenna mounted in site by
mobile phone:
Please select the top of building to install the outdoor antenna if total floors are less
than 7 floors, and shall try your best to select places like balcony or platform lower
than 7th floor for outdoor antenna if the buildings are over 7 floors, because the
mobile signals are clean at less than 7th floor.
The mobile phone shall display full bar signals in location where the outdoor
antenna is installed
The phone calls or data transmission shall be smooth and stable by 3 times testing
in location where the outdoor antenna is to be installed
As shown from the above illustration, testing the signals from A to E, and select a
best place that displays full bar signals to install the outdoor antenna.
Selecting the installation direction of outdoor antenna.
The outdoor antenna shall point to the direction of the tower, and it would be much
better to keep line of sight.
Please select the opposite directions for outdoor antenna and indoor antenna. If
outdoor and indoor antennas have to be installed in the same direction, please
install them only after the signal quality is tested and the self-oscillation is avoided.
If the directional antenna is selected, the main directional angle should point to the
tower antenna.
If the performance is poor due to weak signals or poor phone call quality, please
adjust the direction of outdoor antenna or change its position in order to obtain the
best calling effect.
The wide band booster supports all mobile operators or different mobile systems,
so please adjust the outdoor antenna direction to have balance between signals of
different mobile operators or various mobile systems.
Connect the outdoor antenna to the booster connector marked OUTDOOR with 10
meters RG58 Coaxial cable with N male connector
Important : Outdoor antenna installation ---Notes:
In order to avoid interference, please note that the outdoor antenna should be far
away from the following objects of metal, high-voltage line, RF antenna and
high-voltage transformer.
Booster is a two-way signal Booster. So proper isolation between outdoor antenna
and indoor antenna is necessary in order to avoid self-oscillation.
The minimum distance between outdoor antenna and indoor antenna shall be more
than 10 meters; again the direction of outdoor and indoor antennas shall be opposite.
As shown in the below illustration, the booster the downlink signal rfrom the tower
5/8
and send to the indoor antenna hereafter. If the distance between outdoor antenna
and indoor antenna is less than the required distance, the amplified signal Rwill go
back from indoor antenna to outdoor antenna. So it will lead to self-oscillation and
reduce the coverage area, also the bad calling quality could happen at the same time,
and the worse is that the mobile network could be influenced badly and the operators
will finally come to shut off the booster system.
If isolation can’t be achieved by the limited distance, the roof of the building or any
other barriers can be used in between to increase isolation.
Fix the donor antenna after selecting the best position, and adjust slightly its height
or angles in order to get the signals with suitable input power level and calling
quality.
2Installation of Indoor Antenna
Proper antennas shall be selected according to the site conditions and the
requirement.
Omni antenna (Indoor ceiling omni antenna or whip antenna), is suitable to be
installed in the center and radiate all directions.
It is better to use a directional panel antenna when the coverage shape is long and
narrow (corridors, long row of houses in two sides, tunnels or elevators or rural open
space).
Connect the indoor antenna to the booster connector marked INDOOR with 5 meters
RG58 Coaxial cable with N male connector
6/8
3Booster Installation
it is suggested that the booster is installed in a cool，dry and ventilated room without
erosive gas and smoke.
Connect power adaptor to the booster，connect The other end of power adaptor to the
power outlet.
WARNING:
The input voltage for the booster is +5V DC. DO NOT use this Booster with a regular
power supply that NOT +5V . otherwise, it will be damaged and the user may also be
injured.
TROUBLESHOOTING AND SUPPORT
Problem Resolution
LED is not light 1.Find an alternate power adaptor and try again.
2.Check the power outlet, the power adapter plug maybe is poor
connected.
3.If the problem is still not solved, please contact our company support
Booster has no
effect
1. Check whether the direction of the booster is worng connected.
2. Make a call to your mobile phone operator to determine if the
frequency band is correct.
3. Check whether the indoor and outdoor antenna is installed correctly
4. At the location where the outdoor is installed, if your mobile phone is
able to receive a stable 3 bars cell phone signal, If not, find a location
where the mobile phone can receive a better signal to install the outdoor
antenna.
5. Whether or not your house is a metal roof. If so, you will need to set
up your outdoor antenna at least 3 meters above the roof.
Booster has
effect ,but the
effect is not ideal
Check if your outdoor signal is very weak. If you can only receive one or
two bars cell phone signal in the outdoor.
If so, contact our customer service and ask to replace the booster or
antenna with a higher gain alternative.
sunlight or in an ar
Do not place the equipment in directThe booster just can be used for industry.
ea that has abrupt temperature and humidity changes .
7/8
After installing
booster, mobile
phone can
receive full
signal, but can
not normally
make a call
It Usually means that the booster is self-oscillated, please make the
distance between the indoor and outdoor antenna as far as possible, it is
better to use a wall or metal to Separate the indoor antenna and the out
door antenna.
During using your Booster, if the Booster interferes with your radio or other electronic
device, move the Booster further away from those devices, you might be able to solve it
yourself.
If necessary，please contact your local dealer or send e-mail to our support team by the
following methods:
E-mail: support@phonetone-tech.com
If you want to know about PHONETONE Company and products for more information,
please visit at: www.phonetone-tech.com
Industrial booster warning label:
WARRANTY
Warranty information applicable to your Booster
Warranty Period: 2 year.
Type of Warranty Service: Customer Replaceable Unit and Customer Carry-In or
Mail-In Service.
PHONETONE Company is not responsible for Shipping Cost.
For Warranty service consult the telephone list at www.phonetone-tech.com/contact us.
What this Warranty Covers
PHONETONE warrants that each Machine 1) is free from defects in materials and
workmanship and 2) conforms to PHONETONE's Official Published Specifications which
are available on request.
The warranty period for the Machine starts on the original date of installation. The date
on your invoice or sales receipt is the date of installation unless PHONETONE or your
8/8
reseller informs you.
This warranty does not cover the following:
Failure resulting from misuse, accident, modification, unsuitable physical or operating
environment, or improper maintenance by you;
The warranty is voided by removal or alteration of identification labels on the Machine or
its parts.
Copyright Information
© 2016 Copyright PHONETONE Technology (Shenzhen) Co., Ltd.
The information contained in this document is subject to change without notice.
Edition 21, 9/2016
