What’s included
Digital Video Creator 150
Hardware
DVC 150 Power Adapter
Studio QuickStart CD DVC 150 Stand
Product Registration
Technical Support Information Kit
RCA Video Cable
RCA Audio Cable
S-Video Cable
USB Cable

2Dazzle Digital Video Creator 150
English
Install DVC 150
The provided software must be installed before connecting the DVC 150 to
your computer’s USB port.
1. Insert the Software Installation CD.
2. Follow the On-Screen Instructions as prompted to install the Software.
Important: After installing the software, restart your computer before
connecting the hardware.
3. Connect the Digital Video Creator 150 to the computer’s USB port.
USB Port
USB Port
USB Cable

Quickstart Guide 3
English

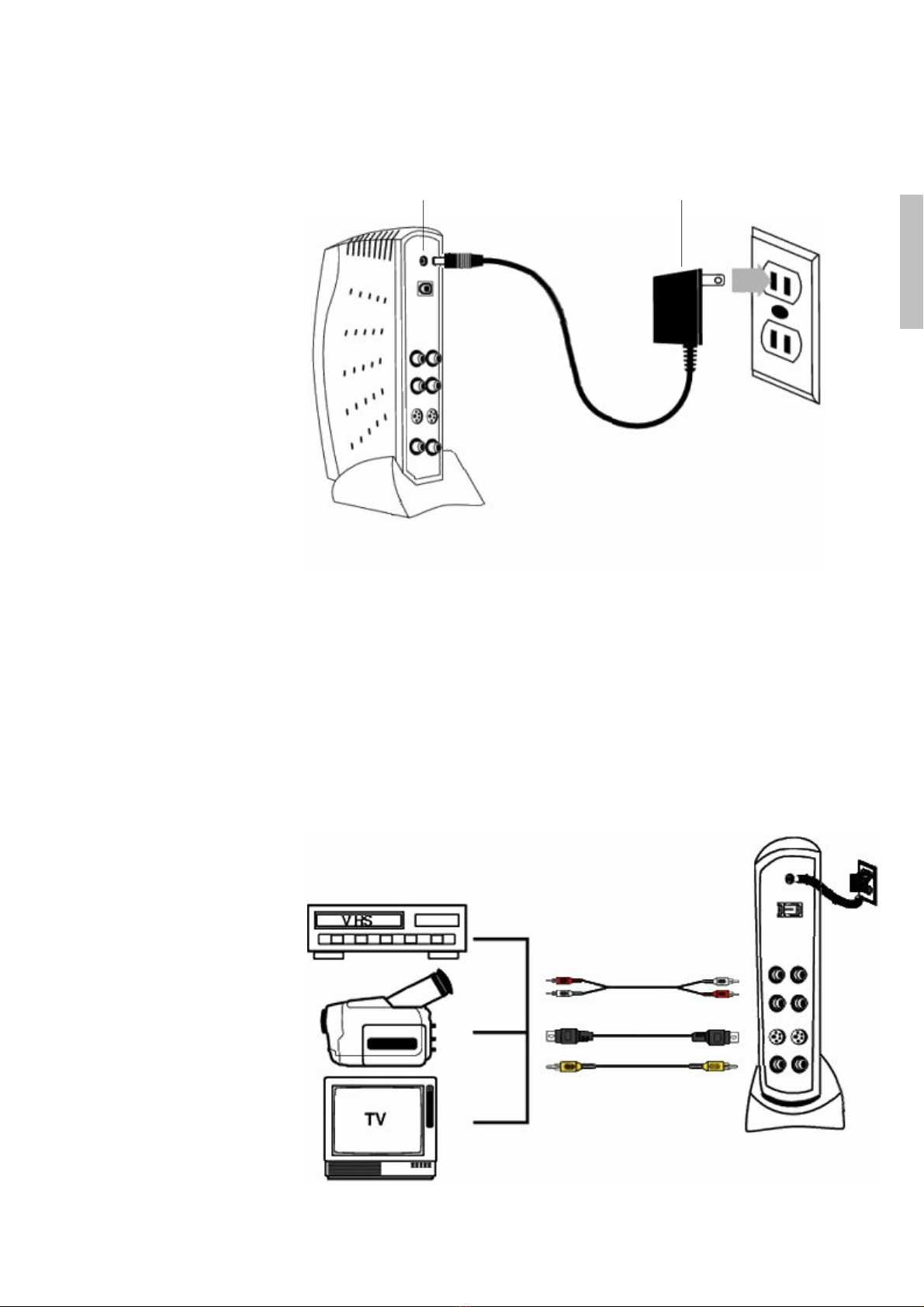

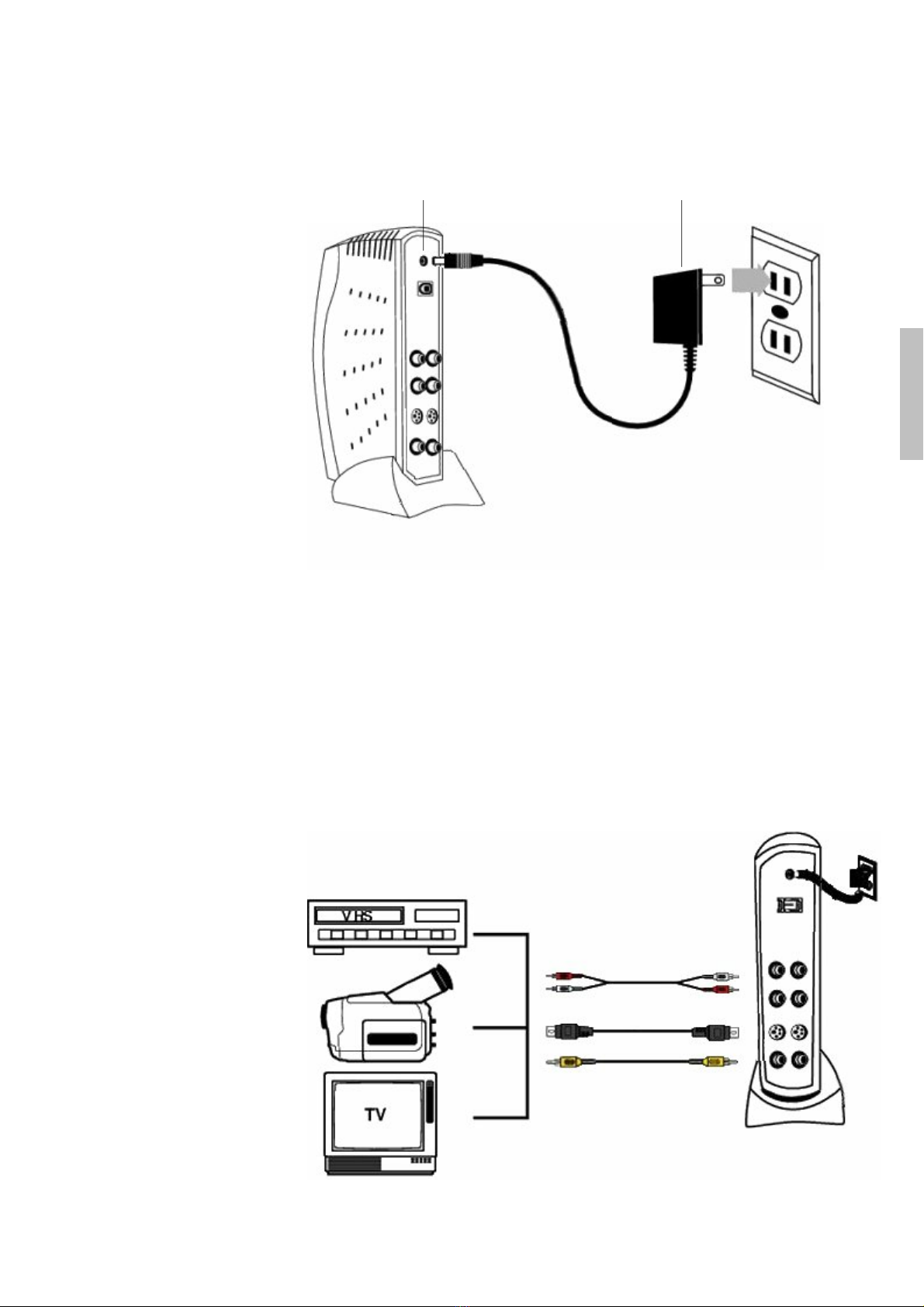

4. Connect the DVC 150 Power Adapter.
Power AdapterPower Connector
5. If the Windows Add New Hardware dialog box appears, follow the
on-screen prompts.
You are now ready to capture video with Studio QuickStart Software.
6. To capture video, connect the audio and video cables from the Out
connectors on the camcorder, VCR, or TV to the corresponding In
connectors at the back of the DVC 150.
Out Audio In
Out RCA Video In
Out S-Video In
or

4Dazzle Digital Video Creator 150
English
7. To output video, connect the audio and video cables from the Out
connectors at the back of the DVC 150 to the corresponding In
connectors on the camcorder, VCR, or TV.
If your system is currently set up for video input, disconnect the audio and
video cables from the DVC 150 and the camcorder, VCR, or TV. You’ll
need to use the cables to connect video output.
or
Out Audio In
Out S-Video In
Out RCA Video In
