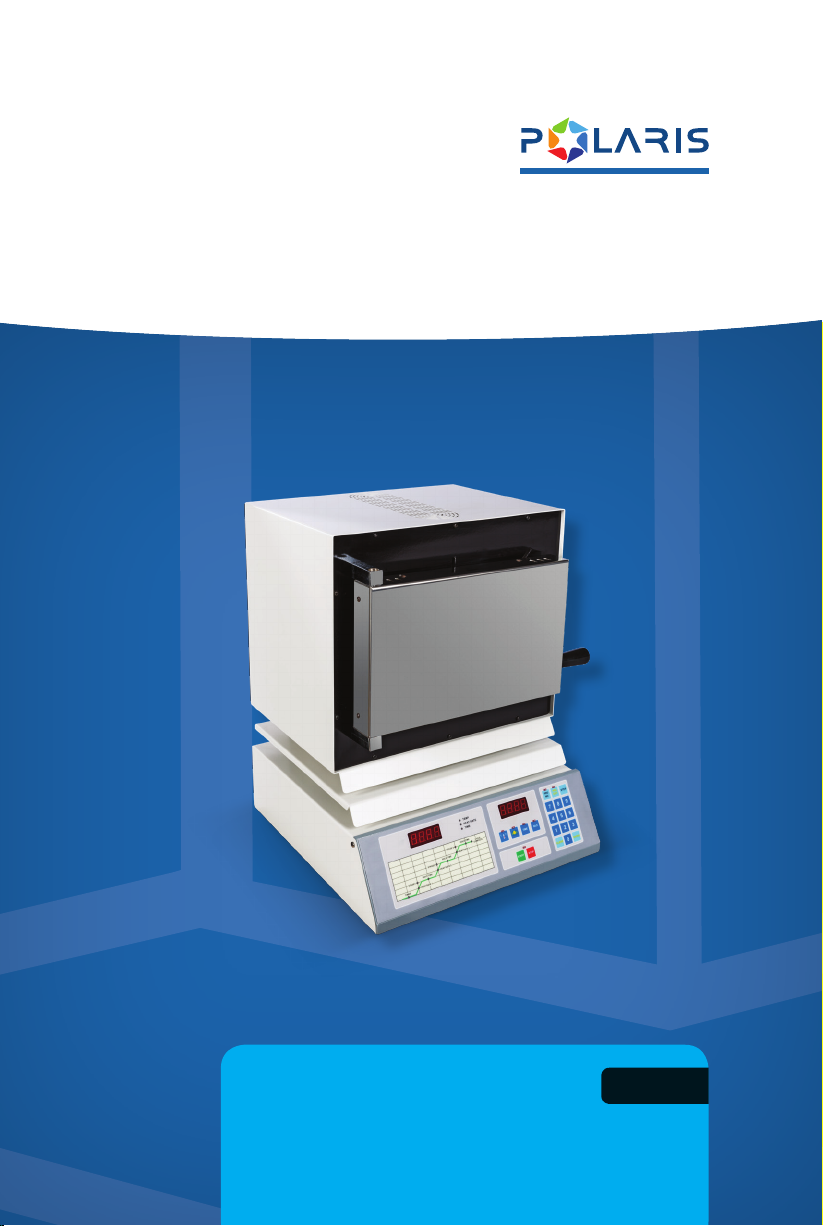

Polaris SUNNY THERM User manual

Instruction Manual
Pre-heating Furnace SUNNY THERM

2

1
Sunny Therm Pre-heating Furnace
Section 1- Introduction
(1-1) How to use the manual 4
(1-2) Terminology and signs 5
Section 2- General information
(2-1) Company’s liabilities 7
(2-2) Guarantee 7
Section 3- Device introduction
(3-1) Main parts 10
(3-2) Panel Description 11
Section 4- Technical features 13
Section 5- Transportation and installation 13
Section 6- Device applications
(6-1) 10 main program planning of furnace 20
(6-2) Idle program 22
(6-3) Errors and warning of device 23
(6-4) Authorized range of parameters 24
Section 7- Safety 26
Section 8- Maintenance
(8-1) Clean-up 28
(8-2) Periodical maintenance 28
(8-3) Technical points of maintenance 29
Contents

2
Dear Customer
We thank you for your selectivity and trust in purchasing
domestically produced products, and we are pleased that after
continuous efforts, we have been able to manufacture
Sunny therm device and put it at your disposal.
This product has been designed by our technical and
engineering team of experienced and committed people in the
elds of mechanical, electronics and computer engineering, and
by utilizing updated technology and building upon 25 years of
experience in manufacturing dental equipment, this product has
reached production of export index quality.
In designing the product, three principles of accuracy, reliability
and safety performance and also user friendly have been
considered, so in order to correctly and completely utilize
product features, we ask you to read the instruction manual
carefully and if you have any questions or you need more
information, contact the after-sales unit.
The instruction manual is a comprehensive reference for the
efcient and safe use of the product. Following the instructions
of this manual has a great role in reducing consumable costs,
avoiding risks and ultimately increasing product life. The
instruction manual should always be kept near the product and
the user should periodically read it.
Please impart us with your constructive guidance, so that we
can benet from your comments, recommendations, and gain
knowledge about your needs.
We hope that you will nd using Sunny Therm to be an enjoyable
and successful experience,
Polaris Engineering and Manufacturing

Introduction
Sunny Therm

4
Introduction
(1-1) How to use the manual
This manual presents the instructions about use, installation,
and maintenance of Sunny Therme made by Polaris Co. It
should be noted that:
•The product should be used according to the instructions of
this manual. Thus, all parts of it should be read carefully before
starting and installing the tool. Special attention should be paid
to the highlighted parts. (see section 2-1).
•Observing the instructions of the manual assures the health
and safe operation of the tool.
•Manual is an integral part of the product. Thus, it should
always come with the product and should be used optimally
as a reference for use during the operation of the product. It
should be available even during the sale of the product, or
even when it is not used.
•In case of losing or damaging the manual, get a replacement
one from the after-sales service department of Polaris.
The following are explained in detail in this manual:
•Installation and start-up of the product
•Operation details of the product and its parts
•Maintenance program
•Primary safety and preventive details

5
Sunny Therm Pre-heating Furnace
(1-2) Terminology and signs
Knowledge of signs meanings is of great importance. A list of
signs has been introduced in the following for initial recognition
and reference to them if necessary.
Danger!
Indicates compulsory warnings.
Warning!
Indicates functional recommendations.
Forbidden!
Indicates forbidden activities.
Caution!
Refers to user instructions of the tool.

General Information
Sunny Therm

7
Sunny Therm Pre-heating Furnace
(2-1) Company liabilities
(2-2) Guarantee
Polaris Co. is not liable for any problem involving the following:
Failure to follow the instructions of this manual (incorrect use
of the product), repair by an unauthorized person and part
replacement without coordination with the after-sales service
department, failure due to power uctuations.
Guarantee of this product includes repairs, supply, and
replacement. If used appropriately, the guarantee of Polaris Co
will cover all main parts of the device for 18 month.
Following cases and parts are not covered by
guarantee:
•power uctuations
•incorrect transportation of device
•inappropriate and frequent use of device despite
having obvious aws
•not observing the maintenance instructions
•installation by unauthorized persons
•any repair or replacement by unauthorized persons.
• power cable
• power and keyboar buttons
Commutation fees of company representatives to install
or repair during guarantee period will be received from
buyer at site.
User is a representative from the buyer and the necessary
instructions should be conveyed to him by the installation team.
Generally, activities of a user consist of the following: working
with the device according to user manuals, maintenance, and
periodic inspections, registration and recording incorrect
functions and notifying the after the sales unit.

8
Before completing the installation and ensuring the
accuracy of productive components, the device is not
ready to use.
It is strongly recommended that operator should be
relatively dominant to the content of this manual. The cas-
es of incorrect function in the device operation should
be recorded and the after-sales department be notied
by operator.
•Authorized representatives of Polaris Co.
These persons are endorsed by the company to work on the
device under any operational circumstances. They are also
authorized to do any electrical and mechanical adjustment/
repair, maintenance program and authorized parts replacement.
General Information

Device Introduction
Sunny Therm

10
Device Introduction
Preheating furnace is useful for all of the thermal operations on
dental molded gypsum including removable prosthesis (cobalt
chromium) and xed prosthesis (porcelain), also in the other
laboratory and industrial uses (other than dentistry) are applied.
This electric furnace which is able to be planned and comput-
erized control is used in order to plan controllable thermal cy-
cles in thermal speed and adjustable temperature maintenance
time and to prevent any unscientic function.
In many cases, it can be seen that after the completion of the
work, plaster mold cracked or its precision has been missed.
This is due to the lack of accurate and programmable furnace
so that thermal shocks hit the mold. By using cylinder furnace,
the size and shape of the mold will not be changed either.
Advantages of the device:
1Programmable system and controllable with computer
2Controlling of temperature, time and speed of heating in 3 steps
3High speed and precision
4Setting the machine and the program will be performed in idle
time (programming the timer and performing the program
after 100 hours)
5Equipped with a warning system and technical
violation detector
6Equipped with an alarm system in different stages of
performance during programing
7Having10 memories for planning and implementing thermal
cycles. The information of the system would not be missed
in case of a power failure and power outages.
8Showing of working stages with digital display and thermal
curves
9Potential for quick and easy service

11
Sunny Therm Pre-heating Furnace
monitor to show the number
of programs or the name of
side programs,type of error
and different conditions of the
furnace
(3-1) Main parts description
(3-2) Introducing the main components of the
instrument panel
(3-2-1) display panel:
This is the most important part of the device for planning.
(3.2.2) the thermal graph:
Temperature Graph contains 10 parameters as follow:
1Timer: This parameter determines the time of starting the
furnace after nishing the intended time of the program from
the start which is adjustable in minutes and seconds.
2Heat Rate1: This parameter shows the warming speed
from the initial
temperature to Temp1 (It means that the furnace tempera-
ture will be increased at a rate of several degrees in °C or F
in minute.) So that whenever the number becomes larger, the
temperature speed will be faster.
3Temp 1: Adjustable and programmable temperature for the
rst stage of heating or the nal tempreture which is dened
according to different materials of different companies.
4Hold Time 1: The stop duration at temp1 which is
adjustable in minutes and seconds.
cover
monitor to show the
amount,tempreture,time and
speed
Planning page
graph of program
execution ON/OFF Keys

12
5Heat Rate2: This parameter is the heat increase rate of
the furnace temperature from Temp1 to Temp2.
6Temp 2: the programmable temperature for the second
stage of heating
7Hold Time 2: The stop duration at temp2
8Heat Rate3: This parameter is the heat increase rate of the
furnace from Temp2 to Temp3.
9Temp 3: the programmable temperature for the third stage
of heating
10 Hold Time 3: Duration of a stop at temp3
(3.2.3) function keys:
POWER: To connect and disconnect the electric current.
(besides the device)
ON / Off: The ON key is to turn on and the Off key is to turn off
the device.
C / F: To convert temperatures from Celsius to Fahrenheit
and vice versa.
PROGRAM NUMBER: To select the program number
from 0 to 9.
PROGRAM EDIT: To view the parameters of the pro-
gram and to change and modify them.
CLEAR: To erase the wrong values that they have been
entered by mistake and to be used to turn off the alarm.
Key numbers: These keys are used to enter numbers
and the parameter values.
PRG
NO
PRG
EDIT
CLEAR
5

13
Sunny Therm Pre-heating Furnace
ENTER: To record the entered numbers and parameter of
the programs.
TIME: To display the remaining time.
IDLE: To select the IDLE program. IDLE program is an ad-
justable program that is congured for pre-heating the
furnace.
TONE: To enable and disable the key sounds.
(3-2-4) Device Monitors:
Graphical Monitors: Actually, this curve is a thermal graph at
three stages. The process of planning and executing a thermal
cycle (heat functions) is shown on the monitor (by LED lights).
Digital Monitors: digital monitors on the left are to display the
values of temperature, time and speed of warming.And the
right monitor is to display the status of the furnace, the number
of programs, types of errors or defects (alarms).
TIME
ENTER
IDLE
TONE

Technical Features
Sunny Therm

15
Sunny Therm Pre-heating Furnace
Technical specications of the device
Dimensions of the Device:
Cylinder Furnace I
Cylinder Furnace II
445 mm (width) * 375 mm (Depth)* 490mm(height)
475 mm (width) * 425 mm (Depth)* 540 mm(height)
Chamber dimensions:
Cylinder Furnace I
Cylinder Furnace II
162 mm (width) * 164 mm (Depth)* 102 mm(height)
178 mm (width) * 225 mm (Depth)* 115 mm(height)
Maximum Temperature: 1150  C (2100 F)
Net Weights:
Cylinder Furnace I
Cylinder Furnace II
25 Kg
36 Kg
Cylinder Numbers:
Cylinder Furnace I
Cylinder Furnace II
4
6
Maximum power
consumption:
1800 W (Sunny therm I)
2000 W (sunny therm II)
Functional Voltage 210-240 VAC 50/60 Hertz
Technical Features

Transportation and
installation
Sunny Therm

17
Sunny Therm Pre-heating Furnace
Upon receiving the product, make sure it is intact. If there is any
damage or shortage of parts, inform Polaris Company and its
carrier.
It is recommended that the original box is kept because it is
needed for transporting the furnace safely. Also the box
ensures the claim that a safe box has been used during
transporting which prevents damage to the device.
Installation and Set up the Device
1Take out the device carefully from its package. To do this,
all of the surrounding protectors (EPS) are removed. Then,
bring it out by taking the “bottom” of the furnace.Put it on
the quite stable, at and standard laboratory table. It is bet-
ter to be a minimum 20 cm of empty space around the
furnace. Note that the base or the surface of the table should
not be made of metal.
If the base of the table is made of metal and in contact with
the ground, There will be a risk of electric shock. So make
sure your furnace is placed on a wooden or berglass table
one or make sure that the earth wire is connected to the
installation area.
2Make sure of the resistance of the surface below the device
against the heat. The surfaces sensitive to heat may lose
their color by heat.
3when there is not earth well, the earth wire of the
device can be connected to the nearest heater tube (if
it is made of metal) or water tube (if it is made of metal).
4Keep the device away from direct sunlight.
5Do not put objects or ammable substances next to the
device.

18
6While the device is working, do not put any object on the
ring chamber.
7Put the device in an appropriate place in order to prevent
any problem in turning on and off the device.
8The device is designed for indoor usage.
9The permissible environmental conditions: temperature 15-
40° C (59° F to 104° F), with a maximum rate of 75%
humidity.
