Power blade Vs500 User manual

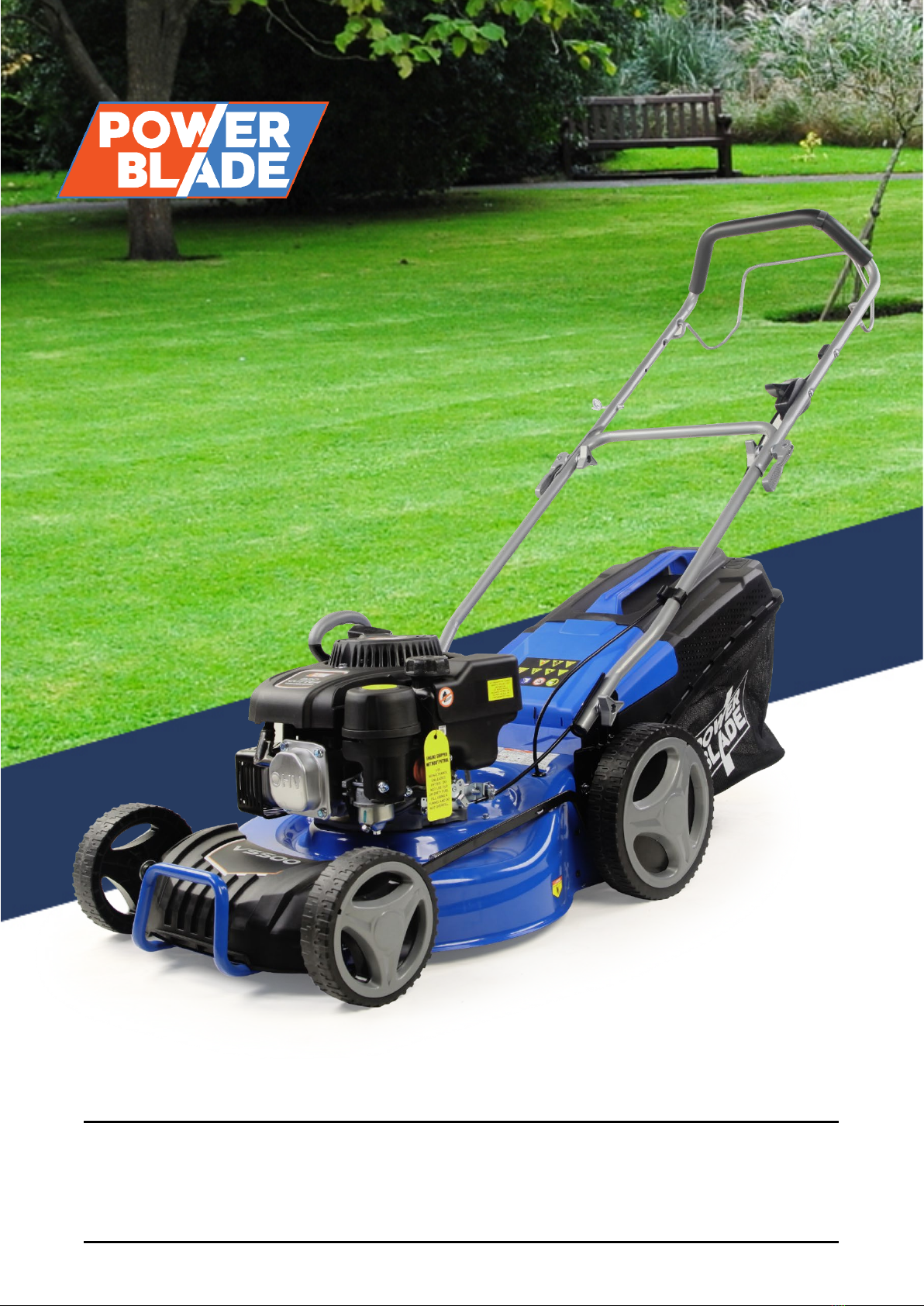

18” Self-Propelled

Petrol Lawn Mower

VS500

User Manual

[Revision 3.0 February 2020]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is

essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the

product warranty.

18" Self-Propelled Petrol Lawn Mower – VS500

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

•Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

•Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

•Keep clear of moving parts.

•Equipment may be a potential source of

electric shock or injury if misused.

•Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

•Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•Work areas should be clean and well it.

•Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

•If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

•Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

•Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

•This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

•Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

•Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

•Do NOT smoke near fuel or when

refuelling.

•Always shut off the engine before

refuelling.

•Do NOT refuel a hot engine.

•Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

•Always refuel in well ventilated areas.

•Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

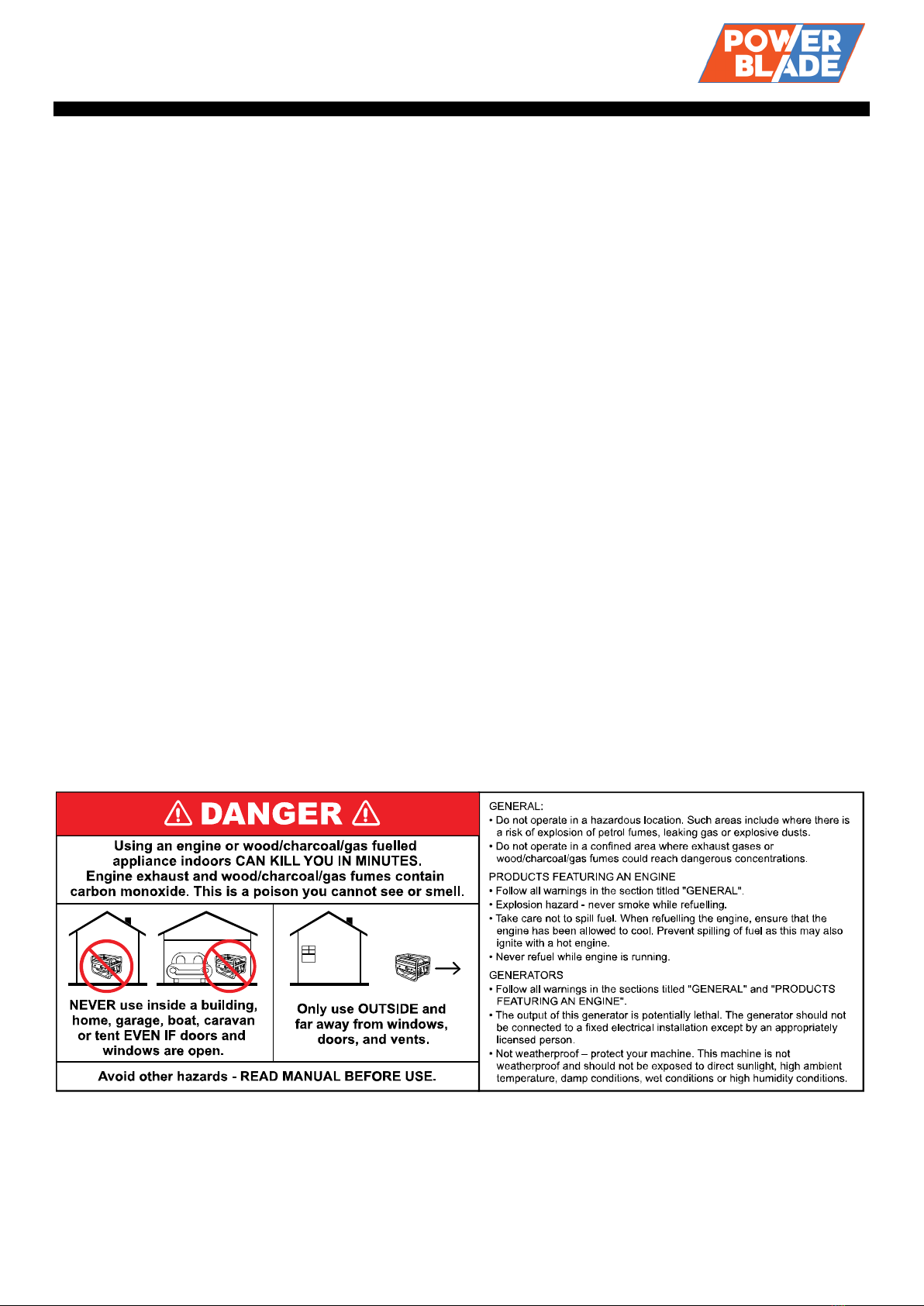

General Carbon-Monoxide Safety

•Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

•Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

•The equipment is designed for domestic

use only.

•Handle the equipment safely and carefully.

•Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

•Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

•Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

•Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

•Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

•Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

•The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

•Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

•For specific equipment safety use and care,

see Equipment Safety.

18" Self-Propelled Petrol Lawn Mower – VS500

General Electrical Safety

•Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

•Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

•When wiring electrically powered

equipment, follow all electrical and safety

codes.

•Wherever possible, use a residual current

device (RCD).

•High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

•Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

•Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

•Do NOT use electrical equipment in wet

conditions or in damp locations.

•Do NOT use electrical cords to lift, move or

carry equipment.

•Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

•Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

•Do NOT attempt any maintenance or repair

work not described in this manual.

•After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

•Do NOT adjust while the equipment is

running.

•Perform service related activities in suitable

conditions, such as a workshop.

•Replace worn, damaged or missing

warning/safety labels immediately.

Lawn Mower General Safety

•Always use the lawnmower with the grass catcher or/ and the deflector in position.

•Stop the engine before emptying the grass catcher or before you change the cutting height.

•While the engine is running, never introduce your hands or feet under the lawnmower or under the grass ejection area. Fig. E.

•Before mowing, remove all foreign objects from the lawn, which maybe thrown by the machine. Fig. F.

•Keep children and other people and domestic animals at a safe distance when the lawnmower is in use.

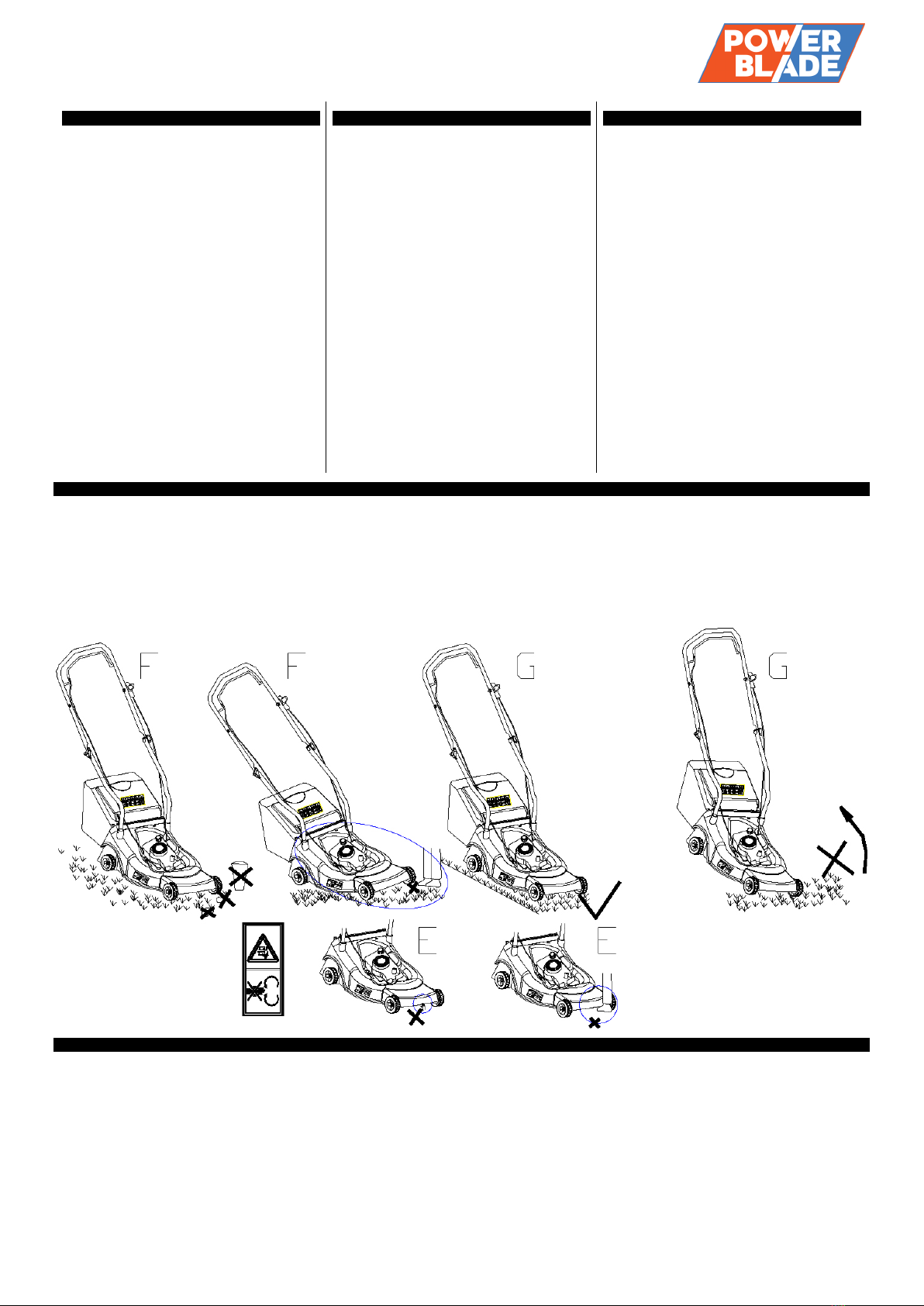

•Never lift the mower while starting the engine. Fig. G.

General Conditions of Use

•This machine is to be used exclusively for cutting natural grass. Never use the mower for other purposes. Any other utilization can involve danger

for your safety and can involve damage to the mower.

•Persons under 16 years of age and persons who are not familiar with the user instructions must not use the mower.

•The user is responsible of the safety of other people in the working area. Keep children and domestic animals at a safe distance while the mower

is in use.

•Before mowing, remove all foreign object from the lawn which may be thrown by the machine, stay alert for any foreign objects which may have

been missed.

18" Self-Propelled Petrol Lawn Mower – VS500

Safe Usage Instructions

•Check that all nuts, bolts and screws are well tightened.

•Before mowing, place the grass catcher in its position.

•Before mowing, make sure that the blade and the blade fixing screw are securely fastened. When cutting edges require resharpening, this must

be done evenly on both sides so as to prevent any imbalance. If the blade is damaged, it must be replaced.

•When mowing, always wear a long trousers and tough footwear.

•Do not run the engine in an enclosed and/or poorly ventilated area. Engine exhaust contains carbon monoxide, which is dangerous for your

health.

•Work only when there is sufficient light.

•Do not use the lawn mower when it is raining or when the grass is wet.

•Particular precautions must be taken while mowing on slopes or downing stretches. Mow across the face of slopes, never down or up.

•Turn off the engine if you must leave the lawn mower unattended, displace the lawn mower or incline it.

•Never lift the rear of the mower while starting the engine and never place your hands and feet underneath the deck or into the rear discharge

chute while the engine is running.

•Never change in any way the rated speed of the engine.

•On the self-propelled mowers, disconnect the self-propelled system before starting the engine.

•Never lift or carry the mower while the engine is running.

•Stop the engine and remove the spark plug cover in these cases:

•Before any operation, under the deck or the grass rear discharge chute.

•Before any maintenance, repairing or checking operations.

•Before carrying, lifting or removing the mower.

•If you leave the mower unattended or changing the cutting height.

•To remove and emptying the grass catcher.

•After hitting a foreign object, stop the engine and check thoroughly the mower in order to see if it is damage. Bring the mower in an agreed

service station to do the repairing if necessary. WARNING: After you stopped the engine, the blade is still in motion during a few

seconds.

•If the mower vibrates in an abnormal way, find the reasons why, and take your mower to an authorised service station.

•Check regularly that bolts, nuts and screw are secularly tightening for a safe use of the mower.

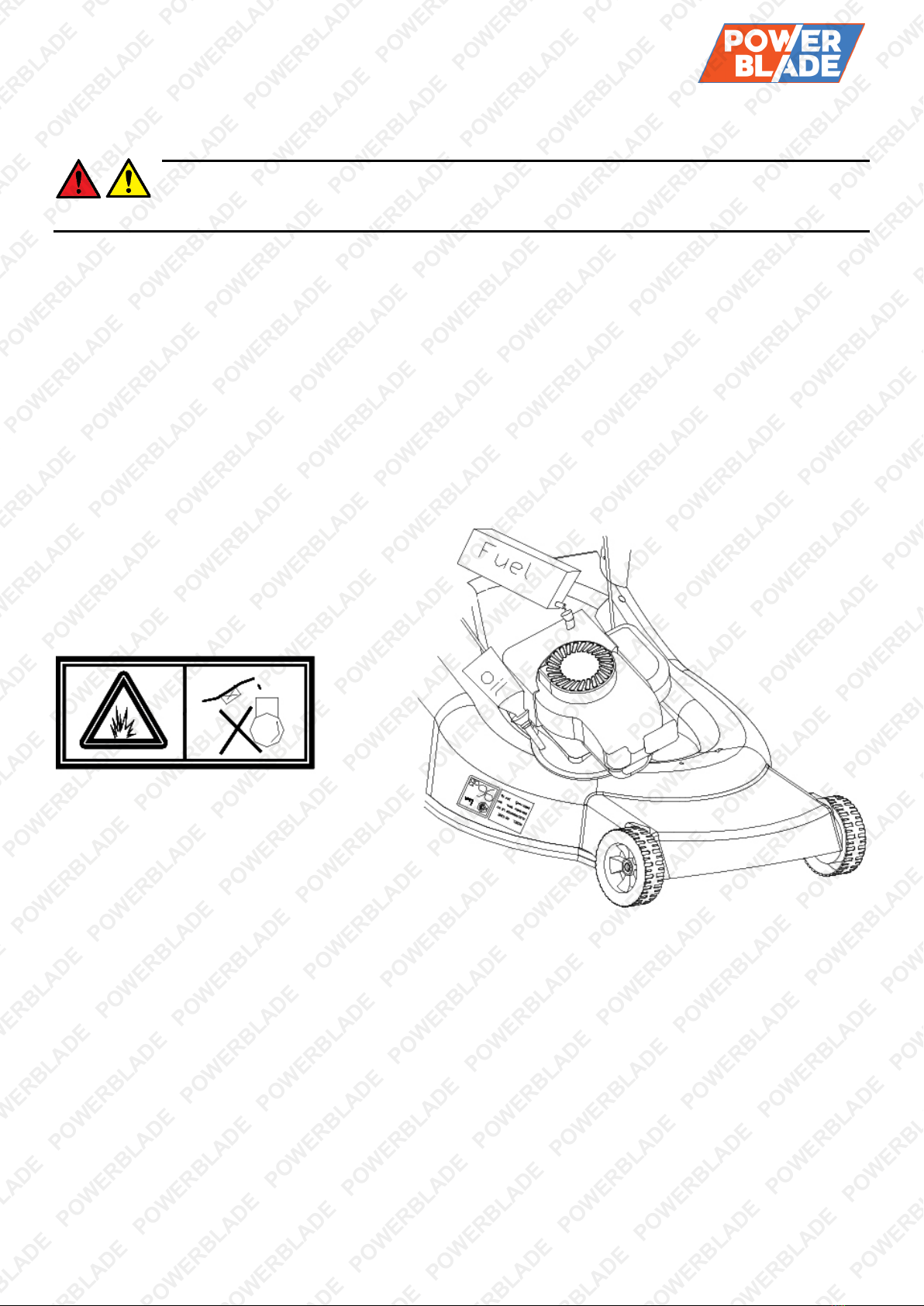

•WARNING: GASOLINE IS HIGHLY INFLAMMABLE.

•Keep gasoline in a jerry can specially made for this purpose.

•Fill up the tank with a funnel, do the operation outside. Do not smoke. Do not use mobile phone.

•Fill up with gasoline and oil before staring the engine. Never open the cap of the fuel tank to add gasoline while the engine is running or still

hot.

•Do not start the engine if there is some gasoline spread around, take the mower away from the one where gasoline have been split and avoid

any contact from a hot source as long as the split gasoline is completely evaporated.

•Tighten the fuel tank cap and close tightly the jerry can cap.

18" Self-Propelled Petrol Lawn Mower – VS500

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

18" Self-Propelled Petrol Lawn Mower – VS500

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

18" Self-Propelled Petrol Lawn Mower – VS500

Table of Contents

Safety .............................................................................................................................................................2

Safety Symbols...........................................................................................................................................................5

Parts Identification .......................................................................................................................................8

Assembly.......................................................................................................................................................9

Grass Catcher Assembly............................................................................................................................................9

Handle Assembly........................................................................................................................................................9

Cutting Height Adjustments ......................................................................................................................................10

Operation.....................................................................................................................................................11

Starting the Engine ...................................................................................................................................................11

Speed Control...........................................................................................................................................................12

Stopping the Engine .................................................................................................................................................12

Important Primer Bulb Information............................................................................................................................12

Mowing Tips..............................................................................................................................................................13

Using the Self-Propelled Function ............................................................................................................................13

Maintenance and Storage ..........................................................................................................................14

Blade Maintenance...................................................................................................................................................15

Troubleshooting .........................................................................................................................................16

Specifications .............................................................................................................................................17

18" Self-Propelled Petrol Lawn Mower – VS500

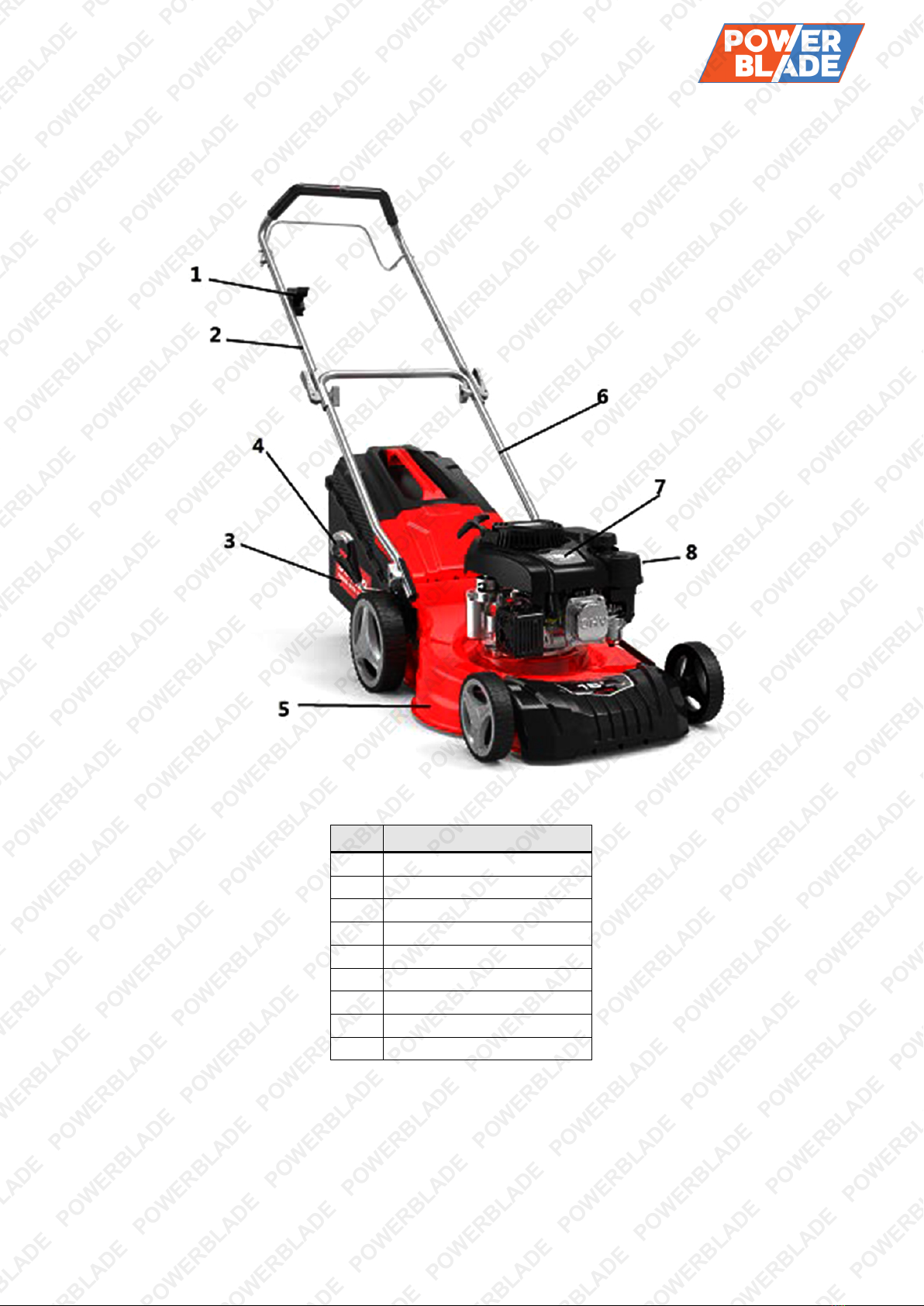

Parts Identification

Colours and appearance may vary

No. Name

1

Throttle control

2

Upper handle

3

Grass catcher

4 Height adjusting lever

5

Deck

6 Lower handle

7 Engine

8

Priming bulb

9

Drive lever

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

Assembly

Grass Catcher Assembly

Clip the plastic clips over the metal frame. Make sure that these clips are fully secured to the metal frame.

Handle Assembly

It is necessary to attach both the lower handle and handlebars.

1. To attach the lower handles, first remove the two lower handlebar locking knobs. Place the lower handle in

position by aligning the two lower handle ends on the outer side of the metal mounting plates located at the

back of the mower deck.

2. Once in position, insert the bolt on each side through the mounting plate and then through the lower handle

(1).

NOTE: There is a notch on the metal bar where the bolt head will sit securely once fastened).

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

3. Once the bolts are loosely in position, fit the plastic tube spacer so the curved section of the spacer wraps

around the handle tube. Then attach the lower handlebar locking knobs (2) on the outer side of the lower

handles and secure until tight.

4. To attach the upper handlebar, first remove the two handlebar locking knobs.

5. Position the handlebar over the lower handles just below the lower handlebar, aligning the holes in the upper

handle with those in the lower handles. Insert the two locking knob bolts through the lower handle, then

through the upper handle holes.

6. Once the bolts are loosely in position fit the plastic tube spacer so the curved section of the spacer wraps

around the upper handle tube. Then attach the handlebar locking knobs on the outer side of the upper

handle and secure until tight.

Cutting Height Adjustments

WARNING: Stop the engine and unplug the spark plug before any repairs or maintenance

operations. The mower has one lever to easily adjust the cutting height.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

Operation

WARNING! • The blade begins to rotate as soon as the engine has been started. • Do not

operate the machine in enclosed or poorly ventilated areas as the exhaust gas contains toxic

substances. • Keep hands, feet, hair and clothing away from all moving parts of the machine. • The exhaust and

other parts of the machine will become hot during use. • Make sure that the blade is securely fastened before

starting the engine. • To start the engine, make sure that the spark plug boot is located on the plug and the

machine is filled with sufficient oil and petrol.

WARNING! Engine delivered without oil: add 0.4liter of oil before starting the engine.

Please note: Before using the mower, you must apply air filter oil to the foam air filter element. This

prevents dust ingress into the motor, thus preventing potential engine damage or failure. This should

also be done after cleaning the air filter.

Starting the Engine

NOTE: • Before starting the mower check the oil and fuel levels. Warranty will be void if the engine

becomes faulty due to insufficient oil and fuel levels. • Ensure the mower is set to the highest height

setting so the blades are not resting deep into the grass.

1. Move the throttle lever to the START/RUN position.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

2. Depress the priming bulb fully 2-3 times.

3. Pull the recoil starter lightly until you feel resistance then pull quickly until the engine starts. Do not pull the

cord with a jerk or release it until fully rewound.

Speed Control

The speed of this motor is preset at the factory and will automatically maintain the motor speed during operation.

There is NO speed adjustment on the Start and stop lever. The lever is just to run or stop the motor.

Stopping the Engine

To stop the engine, push the throttle lever right back to the OFF position.

Important Primer Bulb Information

The Primer bulb pump is designed to deliver fuel directly into the engine for easy start. Follow these guidelines

and you should have trouble free starting.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

•For first starting at the beginning of the mower session, Pump the primer 2 – 3 times. DO NOT EXCEED 3

PUMPS.

•To restart a cold engine i.e. after the engine has started and run for just a short time, you will only need to

pump the bulb once. DO NOT EXCEED 2 PUMPS.

•To restart a hot engine, you will not need to pump the primer at all.

NOTE. If you over pump the engine, it will not start. DO NOT re-pump the engine primer.

•Continue to pull the recoil starter and after a number of pulls the engine will start mowing uneven or rough

ground. Keep a firm grip on the handlebar at all times, always walk, never run with the mower.

Mowing Tips

•The speed of the motor is governed to a pre-factory set speed and the motor will try and maintain this speed

during use. If the speed of the engine slows, this could indicate the mower is being overloaded, by trying to

cut too much grass or the catcher may be full. Try mowing a narrower strip, mowing slower, raising the

cutting height or emptying the catcher.

•Before mowing, always check and clear the grassy area of all foreign objects, especially solid ones semi-

concealed in the ground such as rocks, stumps and garden stakes.

•Sharp blades cut cleanly and efficiently; if the blade is dull, it will tear the grass. This will result in the ends

turning brown. When the blades no longer cut cleanly, either sharpen them or replace them.

•To safely operate the mower, ensure all four wheels are on the ground and be careful not to lose your

footing or control of the mower. Be very careful when mowing uneven or rough ground. Keep a firm grip on

the handlebar at all times, always walk, never run with the mower.

•For healthy growth, grass should not be cut too short. The grass will remain healthier, greener and require

less watering.

•Vary your cutting pattern from week to week, this will help to prevent matting and graining of the grass.

Using the Self-Propelled Function

This unit equipped with a self-propelled system. If you press the drive lever (clutch lever), the clutch for the drive

will be closed and the lawnmower will start to move with the engine running.

To stop the moving lawnmower, just simply release the drive lever.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

Maintenance and Storage

WARNING! Before performing any maintenance or cleaning work, switch OFF the engine

and wait until the blade has come to a stop. Unplug the spark plug before an repairing or

maintenance operations.

•Make sure that all nuts, bolts and screws are kept well tightened to keep the lawnmower in a safe operating

condition.

•Never store the lawnmower with a tank with gasoline in an enclosed area where gasoline fumes could reach

a strong heat source or a flame. Allow the engine to cool down before you store your lawnmower in any

storage place.

•In order to reduce any risk of fire, clean the lawnmower and in particularly the engine, the muffler, the fuel

tank. Suppress all grass traces or leaves or excess of grease.

•Check frequently the condition of the deflector and the grass catcher, replace them if they are damaged.

•In case of drain oil of the tank before winter, do this operation outside.

•Wear thick gloves for the mounting and the sharpening of the blade. Be sure that the blade is always well

balance.

•For four strokes engines, read carefully the maintenance engine manual. Check regularly the oil level and

add some oil or replace it if necessary.

•Frequently check the lawnmower and ensure that all grass deposits are removed from beneath the deck.

•Lubricate regularly the wheel axle and the bearings with grease.

•Check often the blade, in order to obtain a clean work, the blade should always be sharp and well balance.

•At regularly intervals check the tightening of all bolts and screws. Wear off or badly tightening nuts and bolts

can involve some important damages to the engine or the frame.

•If the blade hits violently an obstacle, stop the lawnmower and bring it to agreed service station.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

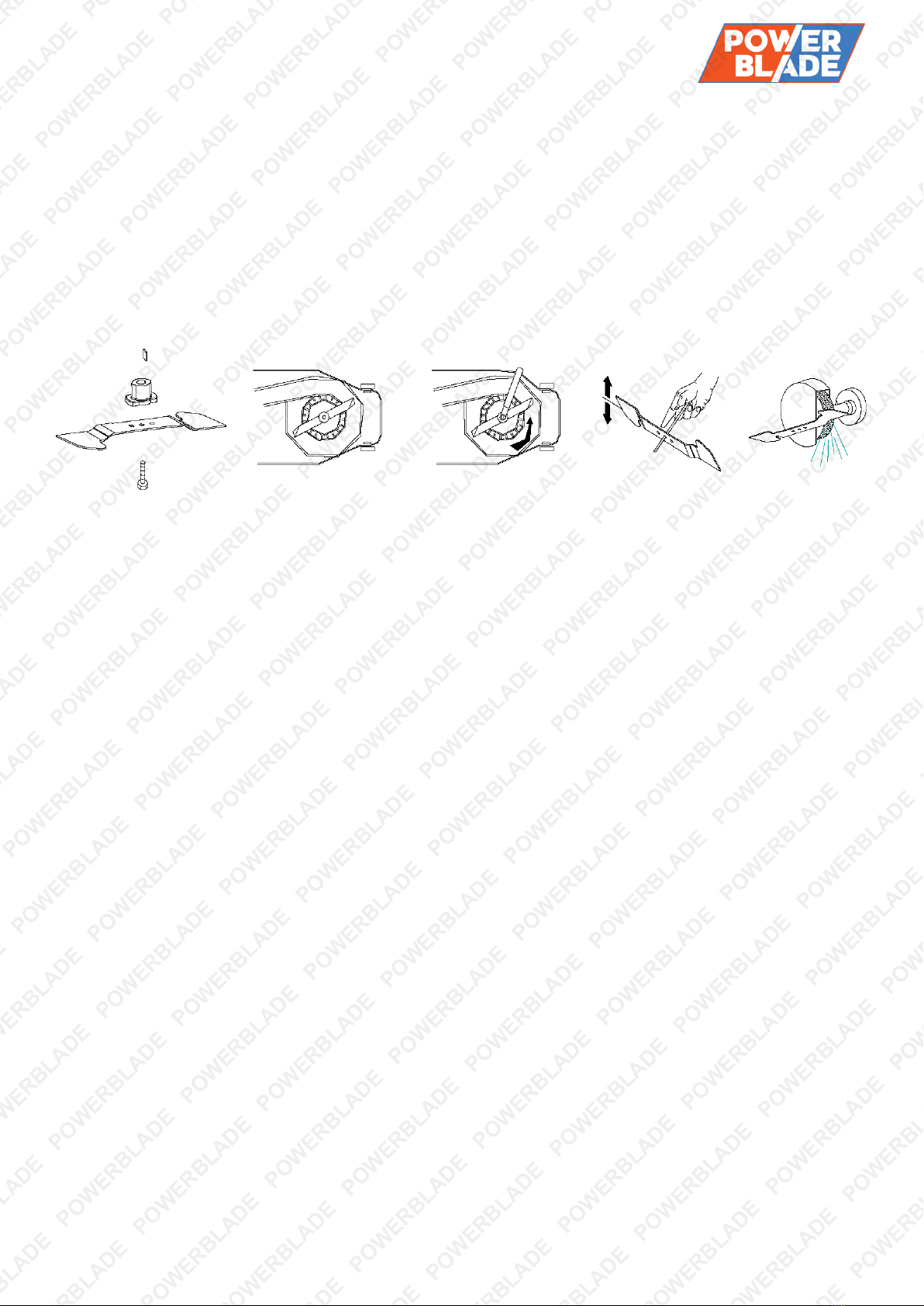

Blade Maintenance

The blade is made of pressed steel, in order to obtain a clean work, sharpen the blade frequently, around every

25hours of work. Be sure that the blade is always well balance, introduce a small iron axle (φ2 or φ3 mm) in the

central hole of the blade, it should stay horizontal. If the blade does not stay horizontal, balance it by taking off

some metal on the side, which is down. USE ONLY BLADES SUPPLIED BY THE MANUFACTURER.

To remove the blade, loosen the screw, check the blade support and change all spare parts if they are worn out

or damaged.

When reassembling the blade, make sure that the cutting edges face in the direction of the engine rotation. The

blade screw must be torque to 3.7 K • gm (37Nm) with a dynamometric tool.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

Troubleshooting

WARNING! Before performing any maintenance or cleaning work, switch off the engine and wait

until the blade has come to a stop.

CAUTION! • Improper repairs can result in the product functioning unsafely. This endangers yourself

and your environment. • Faults which cannot be rectified with the aid of following table may be rectified

by a specialist company only (customer service centre). • Please be aware that any improper repairs will

also invalidate the warranty and additional costs may be incurred. • Use only genuine spare parts. Only these

spare parts are designed and suitable for the product. The use of other spare parts not only voids the warranty,

you can also endanger yourself and your environment.

Fault/Malfunction Cause Remedy

Loud while running, machine vibrates

heavily

Screws are loose Check screws

Blade fasteners are loose Check blade fasteners

Blade is unbalanced Replace blade

Engine does not start

Spark plug is defective Replace spark plug

Cutting blade worn or damaged Replace blade

Fuel tank is empty Refill with fuel

Engine may be flooded Remove plug and dry

Engine runs unsteadily

Air filter is soiled Clean the air filter

Spark plug is soiled Clean the spark plug

Uneven mowing results

Blade is blunt Sharpen the blade

Cutting height is too low Set correct height

Grass catcher is not filled sufficiently

Blade is worn Replace the blade

Grass catcher is clogged Empty the grass catcher

Lawn / Grass is wet Allow the lawn to dry

Discharge channel/housing

blocked

Clear the discharge

channel/housing

Underside of the mower deck

clogged

Clean the underside of the mower

deck

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

18" Self-Propelled Petrol Lawn Mower – VS500

Specifications

Engine Type 4 Stroke

Displacement 175cc

Cutting Width 18 inches

Deck Steel

Cutting Height 25-75mm

Wheels Front 7”, Rear 10”

Adjustment System Central, 7 Positions

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety

Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.

Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.

Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.

Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.

The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.

This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.

If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Power Blade VS500 User manual
