Before installing your Single Stereo Ceiling Speaker, you
should consider its placement carefully, taking into account
the location of electrical, plumbing and other xtures. Contact
your Dealer for assistance if you are unsure of the best location
for your particular listening environment.
Placement In Ceiling: When placing your speaker into the
ceiling, it should ideally be located above the primary
listening area.
If the speaker is positioned far away from the primary
listening area, simply adjust the pivoting tweeters so they are
pointed towards it. Note: To avoid possible damage to the pivot-
ing tweeters, read the section entitled “SPEAKER ADJUSTMENTS”
in this manual prior to performing the tweeter adjustment.
In a very large room with high ceilings, it may be necessary to
place additional speakers throughout the room. Contact your
Procient Audio Systems Dealer for assistance.
New Construction - Unnished Ceilings
A Pre-Construction Bracket, available from your Dealer, may
be installed prior to drywall application across joists (up to
24" on-center) where a speaker will be located. After the hole
is cut and the drywall is installed, the speaker is then easily
installed following the instructions for mounting in “Finished
Ceilings” below. Note: If the speaker is to be mounted more than
24" on-center, a special “Extra Long Wing” is available from
your Dealer.
Finished Ceilings
Prior to the actual installation of the speaker, it will be neces-
sary to run cables to the speaker location. See your Dealer for
more information about cable installation. After the cable has
been properly installed, you are ready to mount the speaker.
Following the simple steps listed below will result in a profes-
sional looking installation:
1. Determine the best area to mount your speaker. This area
of the ceiling should be free of obstructions such as electri-
cal conduit, HVAC ducts, or water lines. This can best be
determined by noting the placement of xtures and gaining
access to an attic or crawl space for further analysis of the
location of such obstacles.
2. Find the joists nearest the desired speaker mounting
location. We highly recommend using a good stud-nder
tool for this procedure. If you are lining up the speaker to
some other object or molding in the room, make sure you
consider the size of the bae, which extends beyond the
mounting hole.
3. Mark the hole. A template for setting the hole is provided in
the box. Position the template in the desired position and
pencil an outline on the ceiling.
4. Cutting the hole. CAUTION: This is the most important part
of the entire installation. If you are not certain whether any
obstructions exist behind the desired mounting area, you
should start by cutting a small hole in the center of your
penciled mounting hole with a drywall saw, cutting at a 45°
angle towards the inside of the hole. (See Diagram 1) Cutting
the small hole at this angle will make drywall repair much
easier, using the piece cut out. Once you have determined
that there aren’t any obstructions in your desired mounting
location, start cutting the nished hole at a 90° angle to the
ceiling surface.
5. Add insulation. If the area in the ceiling is not already
insulated, add an adequate amount of insulation material to
loosely cover the back of the speaker. If the insulation mate-
rial used is faced with foil or paper, position the foil or paper
away from the speaker.
CAUTION: Speaker components can get hot while playing
music at moderate to high volume levels. There should be
nothing at all touching the speaker. Material in proximity to
the back of the speaker must have at a minimum 1" or 26mm
clearance for non-ammable materials and more for am-
mable materials like plastic vapor barriers.
SPEAKER PLACEMENT
MOUNTING SURFACE PREPARATION
Single Stereo Ceiling Speakers
C825TT • C625TT
OWNER’S MANUAL

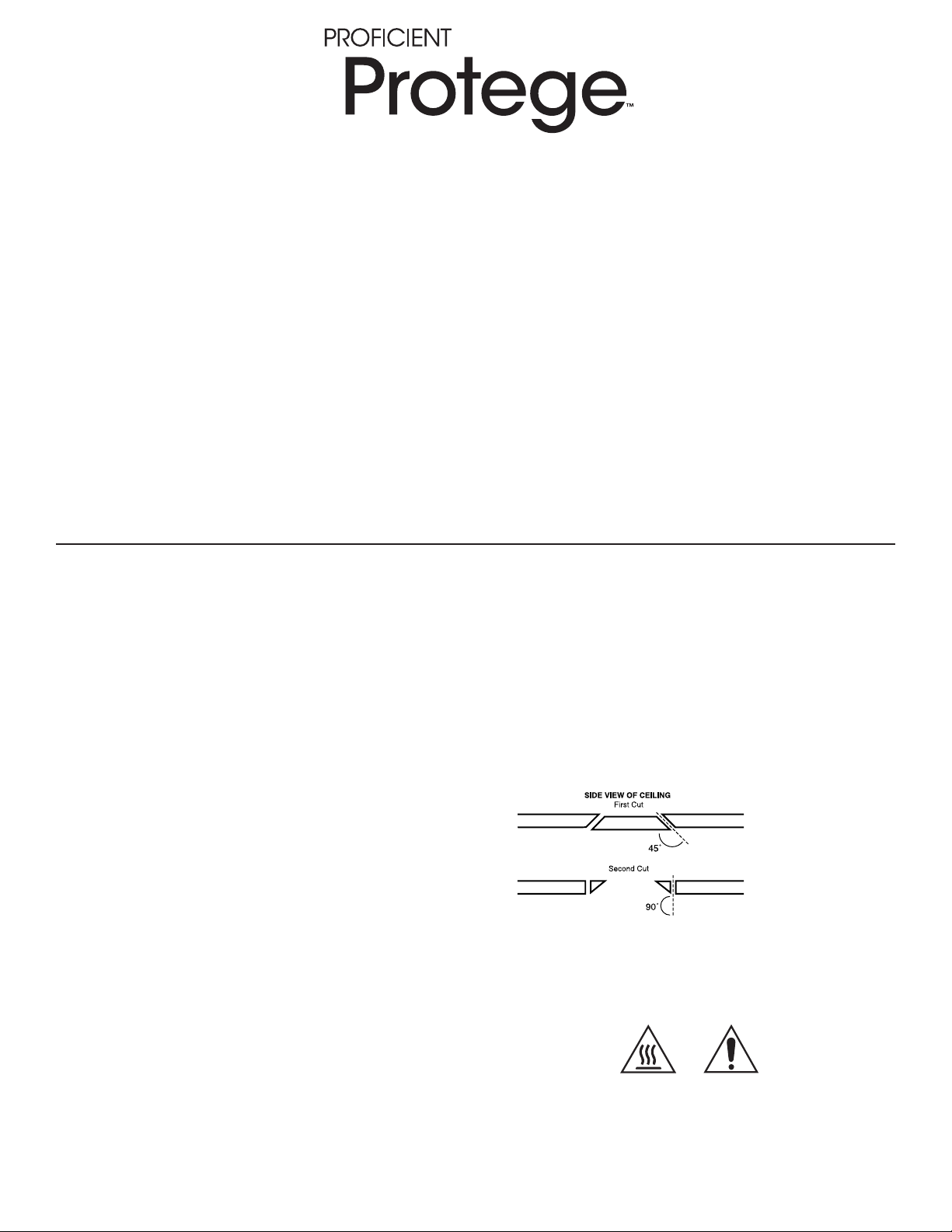

Diagram 1:
Ceiling Cut Out
2
Diagram 3:
Mounting Feet
Diagram 2:
Correct Polarity
SPEAKER INSTALLATION
Speaker
The Single Stereo Ceiling Speaker comes from the factory with
the tweeter facing straight out from the bae. This will result
in the overall smoothest response. However, depending on
your particular primary listening area, room acoustics, ceiling
height, or personal preference, you may nd the sound more
pleasing by pointing the tweeters in a particular direction. If
additional treble is desired in the primary listening area, point
the tweeter towards that area; and if less treble is required,
point the tweeter away. Push gently at the edge of the tweeter
to point it in the desired direction. (See Diagram 3)
NOTE: The tweeters on the C625TT do not pivot.
CAUTION: Avoid touching metal dome tweeters, as damage
may occur (C825TT).
Tweeter Adjustment (C825TT):
The switch labeled TREBLE allows for 3dB of treble adjustment.
Your speakers were shipped with the treble switch in the “–”
position, providing the most linear frequency response. If you
desire more treble, move the switch to the “+” position, and the
tweeter will play 3dB higher. To return to the neutral setting,
push the switch back to the “–” position. (See Diagram 4)
Woofer Adjustment (C825TT):
The switch labeled BASS allows for 3dB of bass adjustment.
Your speakers were shipped with the bass set to “–”. This set-
ting provides the attest bass frequency response. If you desire
more bass, push the switch to the “+” position and the bass
will play 3dB higher. To return to the neutral setting, push the
switch back to the “–” position. (See Diagram 4)
SPEAKER ADJUSTMENTS
Push Tweeter Here
T
R
E
B
L
E
B
A
S
S
T
R
E
B
L
E
B
A
S
S
Bass Adjustment Switch
Treble Adjustment Switch
Diagram 3:
Tweeter
Diagram 4:
Adjustment Switches
The unique integral four-foot mounting system incorporated into each
Single Stereo Ceiling Speaker allows for a quick installation by following
these easy steps:
1. Remove the grille from the speaker baffle.
2. Attach the speaker cable (observing the proper polarity with your
amplier, + to + and – to –). Either channel may be attached to either
terminal set, however, be sure that polarity (+ and -) is correct on each
channel or the performance of the speaker will be seriously aected, as
one channel will cancel out the other. (See Diagram 2)
3. Make sure the mounting feet are turned inward to clear the open-
ing, and insert the speaker into the ceiling. Position the speaker into
the hole. Note: The speaker is designed to ex and conform to any small
imperfections in the ceiling’s surface.
Tighten the four screws on the front of the bae only enough to make
the speaker become snug against the ceiling. As you tighten the screws,
the feet will automatically ip into an outward position (See Diagram 3),
thereby clamping the drywall between the feet and the speaker.
CAUTION: Over-tightening may warp the bae, crack the ceiling or
cause diculty in aligning the grille.
4. Reattach the grille onto the speaker bae.
Features and specications are subject to change without notice.
3
We recommend painting your grille prior to installation. If you
decide to paint it in the future, it's best to remove the grille by
simply detaching it from the speaker. Do not paint the grille
while it's installed on the speaker.
Before painting, be sure to remove the cloth material from
beneath the grille. Once painted, place the cloth back to its
position beneath the grille.
When painting, be careful not to clog the holes of the grille.
The sound of the speaker will be dramatically reduced if the
perforations in the grille are covered in paint.
Procient recommends only light spray painting using ve
parts thinning agent to one part paint.
PAINTING THE GRILLE
SPEAKER SPECIFICATIONS
C825TT C625TT
8" Dual Voice Coil Graphite Cone 6½" Dual Voice Coil Polypropylene Cone
Two 1" Pivoting Aluminum Dome Two ½" Hard Dome
+3dB Bass & Treble –
150 Watts 75 Watts
28Hz - 22kHz 36Hz - 20kHz
8 8
92dB 1W/1m 92dB 1W/1m
Thin-Bezel held by Neo-Magnets Thin-Bezel held by Neo-Magnets
11⁄" x 4¼" 9¼" x 3⁄"
9¾" 8¼"
Woofer:
Tweeters:
Contour Switches
Power Handling:
Frequency Response:
Impedance:
Sensitivity:
Grille:
Diameter x Depth:
Ceiling Cut Out:
5919 Sea Otter Place, Suite 100 • Carlsbad, CA 92010
800.472.5555 • Fax 707.283.5901 • proficientaudio.com
©2019 Nortek Security & Control, LLC. All Rights Reserved.
Proficient® is a registered trademark of Nortek Security & Control, LLC.
Procient Audio Systems (“Procient”) warrants to the original retail pur-
chaser only (“you”) that this product will be free from defects in materials and
workmanship for a period of ten years (the “Warranty Period”), subject to the
limitations and exclusions set out in this Limited Warranty. This warranty is not
transferable to subsequent owners of the product. If you discover a defect in
material or workmanship within the Warranty Period, you can obtain warranty
service by contacting Procient during the Warranty Period at 800.472.5555 or
techsupport@procientaudio.com or by sending the product to Core Brands
at 12471 E. Riverside Drive, Eastvale, CA 91752 or to the dealer from whom
you purchased the product. Defective products must be shipped, prepaid
and insured, together with proof of purchase. Warranty service requests made
without proof of date of purchase will be denied. Freight collect shipments
will be refused. It is preferable to ship this product in the original shipping
container to lessen the chance of transit damage. In any case, the risk of loss or
damage in transit is to be borne by the purchaser.
If, upon examination by Procient or its authorized dealer, it is determined that
the unit is in fact defective, Procient will, at its option:
• Repair or replace the product at no additional charge; or
• If the model is no longer available and can not be repaired eectively, replace
the unit with a current model of equal or greater value. In some cases where
a new model is substituted, a modication to the mounting surface may be
required. If mounting surface modication is required, Procient assumes no
responsibility or liability for such modication.
Procient will bear the cost of returning the repaired or replaced product to
you, freight prepaid. All replaced parts and product become the property of
Procient Audio Systems. The foregoing is your sole and exclusive remedy for
breach of warranty. If the product is not found to be defective, Procient will
contact you to arrange for return of the product to you, at your expense.
EXCLUSIONS:
• This Warranty does not include service or parts to repair damage caused by
accident, disaster, misuse, abuse, negligence, inadequate packing or shipping
procedures, commercial use, voltage inputs in excess of the rated maximum
of the unit, or service, repair or modication of the product by unauthorized
dealers. This Warranty also excludes normal cosmetic deterioration caused by
environmental conditions.
• This Warranty will be void if:
• the Serial Number on the product has been removed, tampered with or defaced.
• the product was not purchased from an authorized dealer.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
EXPRESSED AND IMPLIED WARRANTIES. PROFICIENT EXPRESSLY DISCLAIMS
ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. In no event will Procient be liable for any incidental
or consequential damages arising out of the use or inability to use the product,
even if Procient has been advised of the possibility of such damages, or for any
claim by any other party. Notwithstanding the above, if you qualify as a“con-
sumer” under the Magnuson-Moss Warranty Act, then you may be entitled to any
implied warranties allowed by law for the Warranty Period. Further, some states
do not allow limitations on how long an implied Limited Warranty lasts or allow
the exclusion or limitation of consequential damages, so such limitations may not
apply to you.
ATTENTION TO OUR VALUED CONSUMERS:
To insure that consumers obtain quality pre-sale and after-sale support and
service, Procient products are sold exclusively through authorized dealers.
Procient products are not sold online by Procient or its authorized dealers,
and this warranty is VOID if the products have been purchased from any internet
reseller. To determine if your Procient reseller is authorized, please call Procient
at 800.472.5555 or go to procientaudio.com.
LIMITED TEN-YEAR WARRANTY
For technical inquires, please call 800.472.5555 or e-mail us at techsupport@procientaudio.com. We are available to assist you
every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
9901321 (Rev A)
This manual suits for next models
1
Other Proficient Protege Speakers manuals
