Pyle SPORTS PSHTCM88 User manual

Digital Night Vision Viewer with
Camera, Video and Playback
PSHTCM88
www.pyleaudio.com
Instruction Manual
Digital Night Vision Viewer
Operating Manual
Model：PSHTCM88
【Contents】
Introduction················ 3
Operating Hints················ 4
Components Introduction················ 5
Operating Instructions················ 7
Battery Installation············ 7
Power On················ 8
Power Off················ 8
Scenery Observation············ 9
Brightness Adjustment········ 10
Photo Shooting················ 13
Playback················ 14
Video Shooting················ 16
Monitors Connection············ 17
PCs Connection··············· 17
Auto Power Off··············· 17
Power management··················· 18
Basic Parameters··················· 19
Configuration Standard················· 21
Operating Environment and Announcements····· 22
Contents
PSHTCM88
1
Contents
PSHTCM88
2

【Name】Digital Night Vision Viewer
【Model】PSHTCM88
【Features】
●It is a night vision viewer which can be used to
observe objects in the dark and low light situation.
Two lighting modes are available to use. The
viewing distance in the low light environment will
be at infinity, 700 feet, viewing distance in the dark
environment.
●Easy to exchange data with other instruments，
having USB, AV OUT and DC IN sockets.
●It can be used normally in the day or night, with
photo shooting, video shooting, playback and other
functions. 5X Optical Zoom and 8X digital Zoom.
●It is the best auxiliary tool of extending human’s
visual senses.
【Operating Hints】
●It is a night vision viewer which can be used to
observe objects in the dark and low light situation. Two
lighting modes are available to use.
●It is suitable to use in full dark environment.
●Turn the auxiliary light on to observe the objects
when it works in the dark situation. Adjusting the
brightness by the distance of the objects. CCD is utilized
in this viewer. If there is any light resource existing, the
auxiliary light cannot be turned on, please adjust the
focal distance only to get the sharp image of objects.
●Operating time: 1 hour under auxiliary light mode;
1.5 hours without using auxiliary light mode.

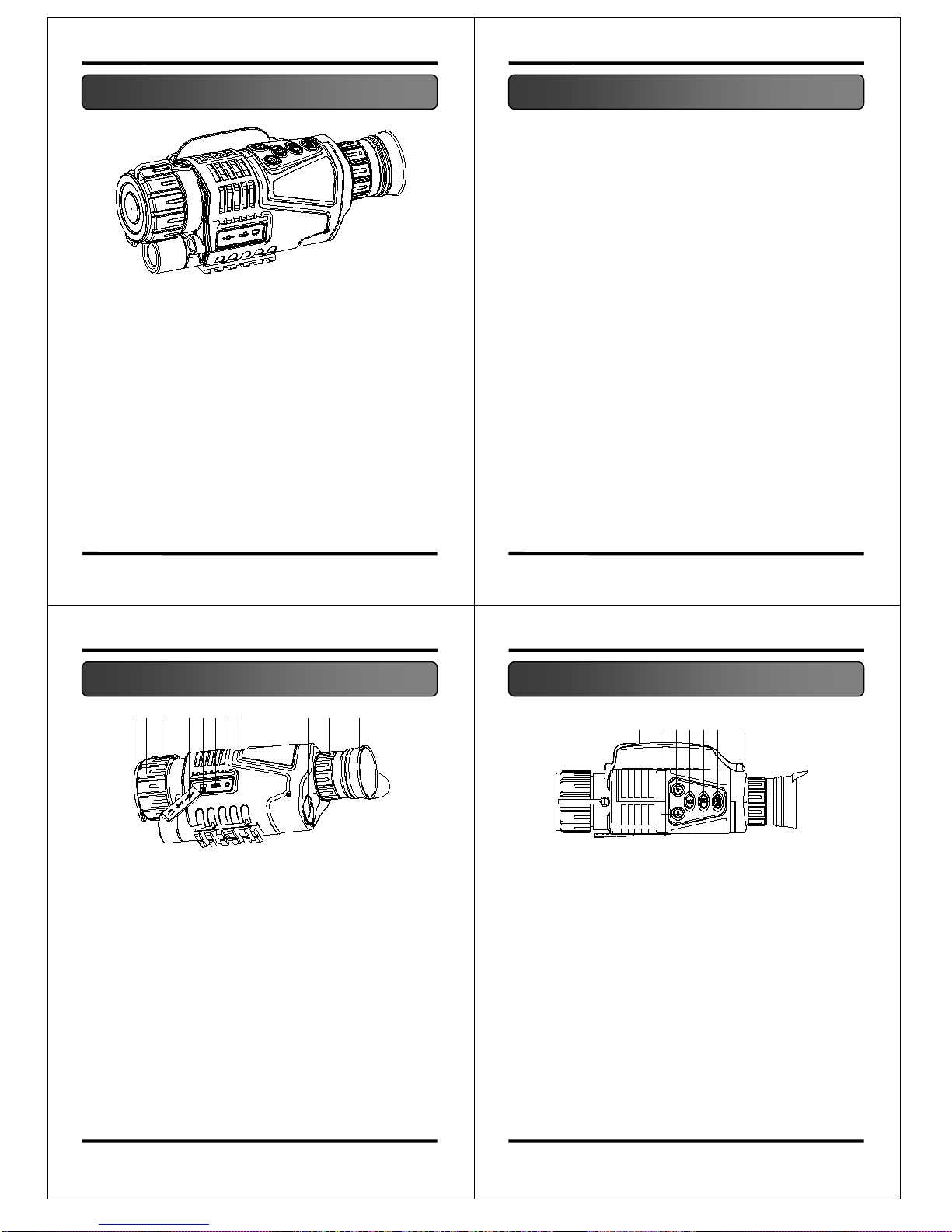

1 2 3 45678 9 10 11
1 - Objective Cover
2 - Objective Focusing Wheel
3 - High Beam Light
4 - Socket Door
5 - DC 5V
6 - USB2.0
7 - Video/Audio Output Connector
8 - Tripod Receptacle
9 - Battery Cover
10 - Diopter Ring
11 - Eyecup
12 13 14 15 16 17 18
12 - Hand Grip Strap
13 - Up
14 - Down
15- Functions(for photos shooting, video shooting and
playback)
16 -Auxiliary Lighting/Brightness Adjustment
17 - POWER/FUNCTION
18 - Diopter Dial
Introduction
PSHTCM88
3
Operating Hints
PSHTCM88
4
Components Introduction
PSHTCM88
5
Components Introduction
PSHTCM88
6

【
Battery Installation
】
●Turn the battery cover
down ；insert one battery
correctly
(note the negative electrodes face down) insert and turn
the cover back into position. Turn the viewer on, the
screen will light up if the battery is installed correctly.
Otherwise, please reinstall the battery again or tighten the
cover again.
【
Announcements
】
Ensure the model of battery is correct;
Ensure the electric Volts and Amps match;
Pay attention to the anode and the cathode of the
battery.
【
Power On
】
●Take the objective
cover down.
●Long press #19 for
3 seconds to light
screen up，observing
from Eyecup #11，if
the screen is lit up and icons have been shown
normally, the viewer could be used then
●Icons Instructions：
1Battery
2Images Size
3Current Mode: Photo Shooting Mode
4Internal Memory Check
●The Observing (Photo Shooting) Mode is available
to use after the startup.
【
Power Off
】
●In any mode, long press #17 for 3 seconds to turn
it off.
【
Scenery Observation
】
●Take the objective cover down, observing the
screen from eyecup #11.
1. Adjust the diopter ring #10 until to get the sharp
images
2. Adjust the objective focusing wheel #2 to make the
images to be sharpest and easy to observe then.
●Automatic fine-tuning control of display brightness
could be operated by Viewer.
●Digital zoom could be realized by pressing #13
and #14 ranged at 1x to 8x.
●If the environment is light enough, turn the
auxiliary light off to save the power. On the
contrary, please turn the auxiliary light on to get
the sharpest image to observe
●Otherwise, please turn the auxiliary light on.
【
Announcements
】
Don’t block the light resource.
【BrightnessAdjustment】
In the observing mode,
press #16.
Enter the menu of
brightness adjustment. Just as the
screen showed, the number after
“Bright” means the current
brightness index.
Press #15 to heighten the index and #16 to lower
it. 9 means the highest brightness of display. The index
ranged at 1 to 9, 9 means the brightest index.
【High Beam Adjustment】
In the observing mode, press
#16 twice to enter the high beam
adjustment menu.
The screen will be just as the
picture showed.
The index of LAMP shows the
intensity of auxiliary light.
SD
Br i ght : 7
LAMP 0
*
Operating Instructions
PSHTCM88
7
Operating Instructions
PSHTCM88
8
Operating Instructions
PSHTCM88
9
Operating Instructions
PSHTCM88
10
Brightness Adjustment
High BeamAdjustment
03727
SD
1 2 3 4
03727
SD
Br i ght : 7
POWLED 0
L ED: OFF
*

Press UP #14, DOWN #15，the high beam will be
changed ranged at 0 to 9(9-highest, 0-off).
When the high beam function is opened, the menu
is exited, LAMP shows on the screen will be flickering.
【
Announcements
】
On any mode above, the menu will disappear and
return to observing (photo shooting) mode if there is no
operation within 8 seconds.
Please turn the auxiliary light off if you will not be
using it to save the battery.
【
Photo Shooting
】
Enter the observing
mode automatically after
the viewer is turned on
and in this mode, you
can take the pictures of
the scenery.
Icons Instructions：
1Battery
2Images Size
3Current Mode: Photo Shooting Mode
4Internal Memory Check
press #17 to shoot a photo and the photo will be
saved automatically in the internal memory.
The image size is based on the surplus capacity of
internal memory.
【
Playback
】
In the Observing
(Shooting) mode, press
#15 to enter the
Playback function.
Icons
Instructions(photo)：
1. Battery
2. The serial number
3. Playback mode
4. Internal Memory Check
Icons Instructions(video)：
1. Battery
2. Date
3. Timecounting
4. Current serial No.
5. Playback Mode
6. Video Playback
Mode
7. VGAVideo Format
8. Internal Memory Check
0027 SD
1 2 3 4
Operating Instructions
PSHTCM88
11
Operating Instructions
PSHTCM88
12
Operating Instructions
PSHTCM88
13
03727
SD
1 2 3 4
Operating Instructions
PSHTCM88
14
0027
SD
1346
00: 02: 25
2012.02.02 09:12:22
VGA
2578
Photos Playback
Video Playback

In the playback mode, press #13 and #14 to view the
photos and videos. The playback order is based on
the shooting mode.
To identify photos and videos and it will be entered
different menus automatically.
In the video playback mode, press#17 to start the
video and press again to stop it.
【
Video Shooting
】
In the observing mode, press #17 twice to enter the
video shooting mode.
Icons Instructions：
1. Battery
2. Timing
3. Video Shooting
4. Internal Memory Check
Press #17 to start video shooting.
The video will be saved in memory automatically.
The video size is based on the surplus capacity
internal memory.
【
Monitor Connection
】
Connect monitor to video Output Interface.
Long press #15 for 3 seconds to switch the display
on the screen of external monitor.
【
PCs Connection
】
The viewer is equipped with USB2.0 interface.
The PC can identify and detect the internal memory
automatically and transfer images.
The battery can be charged by connection of USB.
【
Auto Power Off
】
The viewer will be turned off if there is not any
operation within 3 minutes except in video shooting
and playback mode.

【
Battery Application
】
Model: 16340，650mAh，3.7V。
Please ensure the battery should be charged 10 hours
to make it works best in the first time.
【
External Power
】
Plug the DC IN 5V in.
The viewer will work continuasly and won’t be
powered off automatically.
The viewer could be charged when the external
power connected.
【
Announcements
】
The battery of viewer is in the state of charging when it is
connected to your PC.
Operating Instructions
PSHTCM88
15
Operating Instructions
PSHTCM88
16
12:02:02
SD
1 2 3 4
2012.02.02 09:12:22
Operating Instructions
PSHTCM88
17
Power Management
PSHTCM88
18
Video Shooting

【
Basic Parameters
】
Type Items Index
Optical
Performance
Magnification 5
Dimension of
Objectives φ40mm
Field of View 5°x3.75°
The Range of
Ocular Adjustment
±0.6
Observing
Distance(Low
Light
Environment)
6ft～∞
Observing
Distance(Full
Dark Environment)
～700ft
Power
Voltage 3.7V DC
Replaceable
Battery
Rechargeable
Battery
Charging
Source 5.0V/2A Adapter
Other
Measurement（L
×W×H）200ⅹ86ⅹ56 mm
Weight 14 oz.
【
Configuration Standard
】
Items Amount
video cable 1
USB cable 1
Pouch 1
External power adapter 1
Operating Manual 1
Hand grip Strap 1
battery 1
Cloths 1
【
Operating Environment andAnnouncements
】
The viewer should be kept in the soft pouch.
Operating temperature ranged at 20~104*F. Relative
humidity is 80%.
In order to avoid the unit getting wet and mildew,
please keep it in the clear and dry environment.
Avoid direct impacts, excessive pressure and solar
radiation please.
When image vibration or jitter happens or the LCD
will not be light up, please charge the battery
immediately.
Blow away the dusts before wiping the optical
surface.
If the viewer won’t be used for a long time, please charge
the battery occasionally to avoid long term damage.
Basic Parameters
P1-0540
19
Basic Parameters
P1-0540
20
Configuration Standard
PSHTCM88
21
