Pyle PTVDLED33 User manual

32’’HDDLEDTV
Flat Screen TV with DVD Combo with Built-in Full Range Stereo Speakers
and Full Function Remote Control
PTVDLED33
NTSC, ATSC

www.PyleUSA.com 2
CONTENTS
SAFETY INFORMATION
PRODUCT INTRODUCTION
CONNECTIONS
REMOTE CONTROL
SETUP WIZARD
SELECT INPUT SOURCE
MAIN MENU
PICTURE MENU
SOUND MENU
TIME MENU
SETUP MENU
CLOSE CAPTION
LOCK MENU
CHANNEL MENU
PC MENU
DVD OPERATION
SPECIFICATION
3
5
6
7
8
9
9
10
11
13
14
15
16
18
19
20
24

www.PyleUSA.com 3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS- READ CAREFULLY BEFORE USE.
Take note of the following safety information which appears on the back of the TV.
KEEP THESE INSTRUCTIONS
• Do not use this TV near water.
• Clean only with a slightly damp cloth.
• Do not block any ventilation openings.
• Install in accordance with the supplied Quick Start Guide and this User Guide.
• Protect the power chord from being walked on or pinched, particularly at plugs,and the point where it
exits from the TV.
• Do not allow the power chord to overhang the edge of a table.
• Unplug this TV during lightening storms or when unused for long periods oftime.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS TV TO RAIN OR
MOISTURE. THE TV MUST NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV.
NOTE: No naked ames such as candles should be placed on the TV.
CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS.
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that there are important operating maintenance instructions
in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric shock is
present within this unit.

www.PyleUSA.com 4
SAFETY INFORMATION
This unit has been produced according to aII current safety regulations.The following safety tips
should safeguard users against careless use and the dangers.
• Although this appliance has been carefully manufactured and rigorously checked prior leaving the
factory, as with all electrical appliances it is possible for problems to develop. If you notice smoke, an
excessive build up of heat or any other unexpected phenomena, you should disconnect the plug from
the mains power socket immediately.
• Ensure that the unit is suciently ventilated! Never place next to or underneath curtains!
• The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall
remain readily operable.
• This set should only be connected to a mains power supply which matches that stated on the Iabel on
the rear of theTV- do not attempt to connect it to any other type of supply.
• The socket -outlet must be installed near the equipment and easily accessible.
• To prevent overload, don't share the same mains supply socket with too many other items of equipment.
• Apparatus with Class 1 construction shall be connected to a mains socket outlet with a protective
earthing connection.
• Keep away from rodents. Rodents enjoy biting into electric exes.
• Always hold the plug when pulling out the plug from the mains supply socket.
Do not pull on the ex, the ex can become overloaded and cause short circuit.
• Set up the unit so that no one is able to trip over the ex.
• Do not place heavy items on the ex,which may damage it.
• Take note that the ex cannot be reached and pulled by young children to avoid injury.
• Do not set up the unit near to heat sources.
The casing and the ex could be damaged by the impact of heat.
• The screen is made of plastic and can break if damage is done.
Be careful when collecting sharp edged plastic splinters to avoid injury.
• Avoid placing the unit on any surface that may be subject to vibrations or shocks.
• To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial.
Caution: Do not touch the aerial (RF) connector.
• When you leave your home for a long period of time, unplug the AC power cable for safety reasons.
• The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to
prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators.
Do not place in direct sunshine. When placing on a shelf leave 5cm (2") free space around the whole unit.
• Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms,
steamy kitchens or near swimming pools.
• Do not use this unit when moisture condensation may occur.
• Any repairs must be carried out by qualied personnel only.
• Do not open this unit. A non- expert attempting to repair the unit could be dangerous and potentially
cause a re hazard.
• Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains
power supply, then consult a qualied service person before attempting to use the unit again.

www.PyleUSA.com 5
• Do NOT remove the safety covers. There are no useable or serviceable parts inside. You may invalidate
the warranty. Qualied personnel must only service this apparatus.
• Do NOT tap or shake the screen, you may damage the internal circuits. Take good care of the remote
control, do not drop.
• Never place hot objects or open ame sources on or close to the TV.
• High temperatures can melt plastic and lead to res.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based uids. For stubborn stains, you
may use a damp cloth with dilute detergent.
HEADPHONE WARNING
Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level
when listening through headphones, particularly for lengthy listening periods.
WHERE TO INSTALL
Locate the television away from direct sunlight and strong lights, soft indirect lighting is recommended
for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.
Place the TV on a sturdy platform of which the surface should be at and steady.
This will prevent it from falling over. Make sure the television is located in a position where it cannot be
pushed or hit by objects, as pressure will break or damage the screen, and so that small objects cannot be
inserted into the ventilation slots or openings in the cabinet.
Product Introduction
Front View
LED Indicator Remote Control Window (keep clear)

www.PyleUSA.com 6
The functions of the TV buttons are described below.
POWER:Turn on/o the TV set.

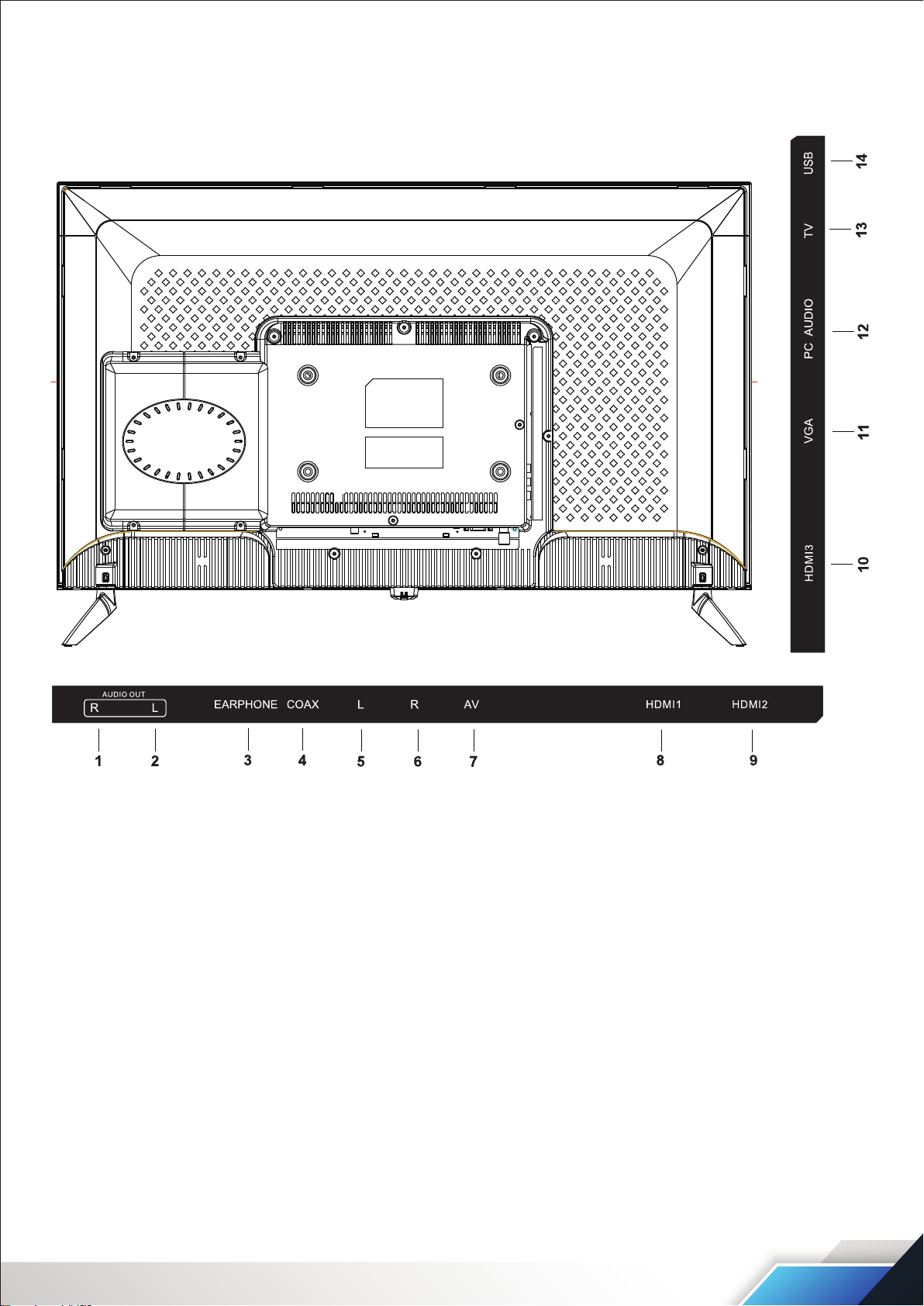

CONNECTIONS
1/2. Audio output to connect power amplier stereo equipment.
3. Connect a stereo headphone (3.5mm) for private listening.
4. Connect an optional coaxial digital cable through a compatible
5. Connect an optional coaxial digital cable through a compatible amp/receiver to enjoy superior
audio sound.
5/6/7. Connect to an AV device that features component video and audio output jacks.
8/9/10. Connect it to the HDMI of DVD or other equipment.
11. Connect an optional VGA cable from your personal computer.
12. Connect an optional 3.5mm audio cable for sound when using VGA.
13. Connect antenna or cable for television reception.
14. For service technician use only.

www.PyleUSA.com 7

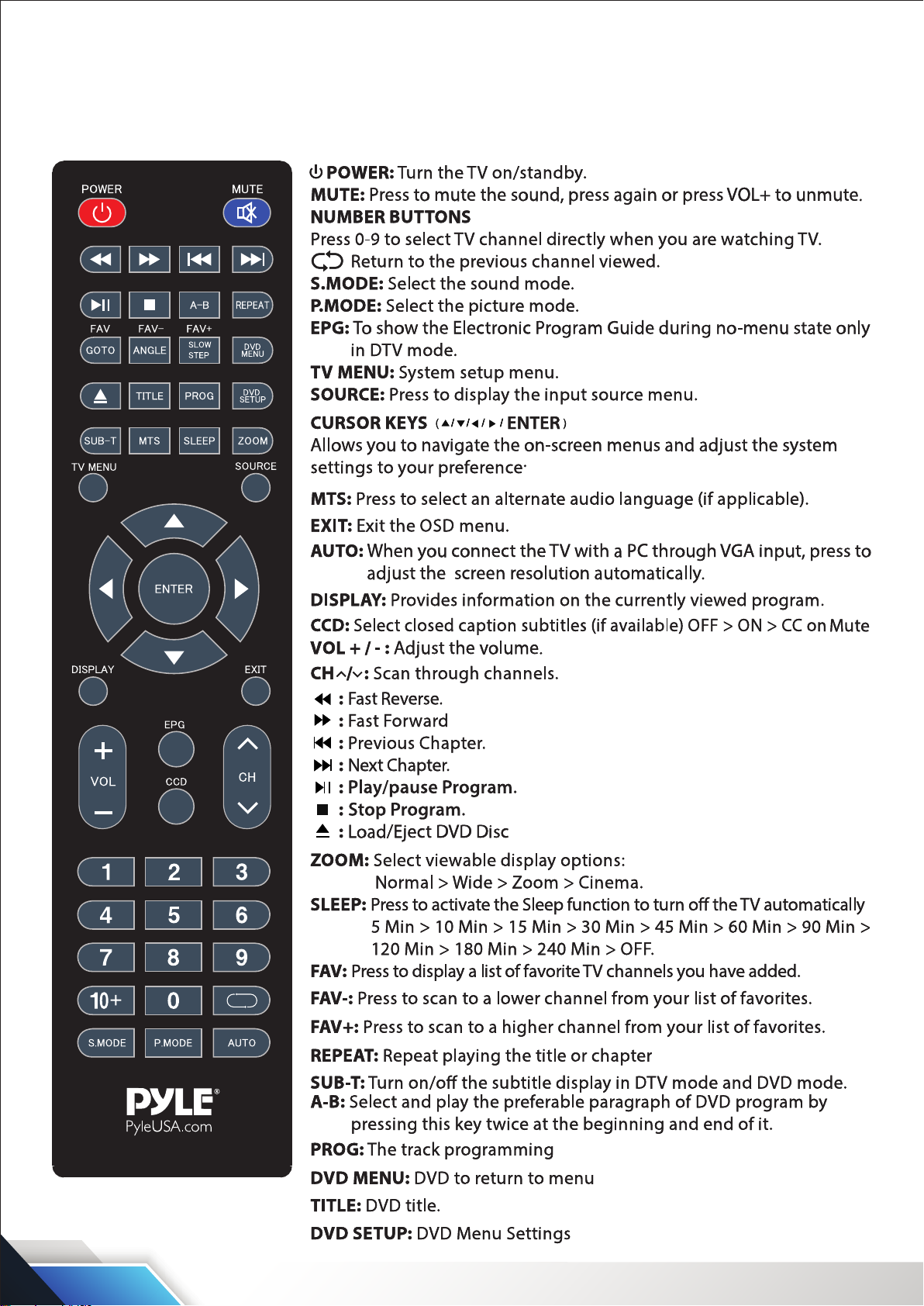

REMOTE CONTROL
The remote control is using Infra-Red (IR). Point it towards the front of the LED TV.
The remote control may not work correctly if it is operated out of range or out of angle.

www.PyleUSA.com 8
SET UP WIZARD
STEP 1: Choosing your Picture mode
Use the arrow buttons to select Home Mode standard. Press the ENTER button to complete the step.
STEP 2:
Use the arrow buttons to select Menu Language.
Use the arrow buttons to select English-Francais-Espanol.
Use the arrow buttons to select AIr/Cable.
Select Cable, then press the button to select Cable System. Then press the button to select
Auto-STD-IRC-HRC.

www.PyleUSA.com 9
AUTO SCAN
Press ENTER/ button to start auto scan.
SELECT INPUT SOURCE
MAIN MENU
Press MENU to display the main menu or return to the previous menu or close the main menu.
Press to highlight the desired menu icon, and press ENTER to select.
Press SOURCE button to display the input source list;
Press or SOURCE button to select the input source;
Press ENTER button to enter the input source;
Press EXIT button to quit.

www.PyleUSA.com 10
MAIN MENU OPERATION
Picture Menu
Press MENU to enter the main menu. Press button to select. Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Picture Mode/Brightness/Contrast/Color/Tint/Sharpness/
Color Temperature/Blue Screen.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
PICTURE MENU
Adjust picture mode to change picture appearance.
Press button to select (Standard/Dynamic/Mild/Energy saving/User).
Note: The brightness, contrast, color, tint and sharpness are only available in User mode, you can adjust as
you like.
Standard: Produces a highly dened image in a normally lit room.
Dynamic: Produces a highly dened image in a brightly lit room.
Soft: Produces a highly dened image in a soft lit room.
User: Select to customize picture settings.
Energysaving: Produses a highly dened image in a Energy saving lit room.
[Brightness]
Adjust the visual perception output of the entire picture, it will eect the luminousness of the picture.
Press button to adjust.
[Contrast]
Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
Press button to adjust.

www.PyleUSA.com 11
[Color]
Adjust the saturation of the color based on your own like. Press button to adjust.
[Tint]
Adjust the hue (Red, Green, Blue) of the picture. Press button to adjust.
[Sharpness]
Adjust the peaking in the detail of the picture. Press button to adjust.
[Color Temperature]
Increase or reduce warm color of the picture personally (red), and the cool color personally (blue)
according to your like.
Normal: The most balanced setting
Warm: Increase the red color for the white.
Cool: Increase the blue tone for the white.
Blue Screen
Press button to select (o/on).
SOUND MENU
Press MENU to enter the main menu, Press button to select.
Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Soundmode/Bass/Treble/Balance/Surround sound/Auto Volume/
SPDIF type/Accessibility/TV Speaker.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
SOUND MODE
Select a sound mode to achieve ideal sound.
Press button to select (Standard/Music/Movie/Sports/User).
Note: The bass and treble are only available in User mode, you can adjust as you like.

Adjust Accessibility settings ress ENTER / button to enter.
www.PyleUSA.com 12
Standard: Produces a balanced sound in all environments.
Music: Preserves the original sound. Good for musical programs.
Movie: Enhances treble and bass for a rich sound experience.
Sports: Enhances vocals for TV audio.
User: Select to customize audio settings.
BASS: Adjust the bass eect. Increases or decreases lower-pitched sounds. Press button to adjust.
TREBLE: Adjust the treble eect. Increases or decreases high-pitched sounds. Press button to adjust.
BALANCE: Adjust the balance between left and right speakers to adapt to your listening position.
Press button to adjust.
SPDIF Type:
Accessibility:
Voice Guide
Press ）
Volume
Press the sserP.emuloVotnottub button to select (Middle-Strong-weak)
Speed
Press the button to speed. Press button to select (Middle-Strong-weak).
Pitch
sserP.hctiPotnottubehtsserP button to select (Middle-Strong-weak).
TV Speaker:
p
is used

TIME MENU
Press MENU to enter the main menu, Press button to select.
Press ENTER / to enter.
Press MENU again to exit or back to parent menu
Press button to select among Sleep Timer/Time Zone/Daylight Saving Time/Time Format/Auto Clock/
Clock.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
SLEEP TIMER
Set a timer for the TV to turn o automatically.
Press button to select (O / 5min/10min /15min/ 30min / 60min / 90min / 120min/180min/240min).
TIME ZONE
Select your time zone.
Press button to select (Eastern/Central/Mountain/Pacic/Alaska/Hawaii/Samoa/Newfoundland/Atlantic).
DAYLIGHT SAVING TIME
Set the daylight saving time for your area. Press button to select (On/O ).
TIME FORMAT
Select your time format.
Press button to select (12-hour/24-hour).
AUTO CLOCK
Use to synchronize the display automatically. It is only available in DTV.
Press button to select (On/O ).
www.PyleUSA.com 13

www.PyleUSA.com 14
SETUP MENU
Press MENU to enter the main menu, Press button to select.
Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Menu Language / Transparent / Zoom Mode/Noise Reduction/
Advanced/Source Label/Closed Caption/DLC/Setup Wizard/Overscan/HDMI CEC/Restore Default/OSD
Timeout.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
MENU LANGUAGE
Select an OSD menu language can be displayed. Default English is selected as menu language.
Press button to select language (English / Français / Español).
TRANSPARENT
Adjust the transparency of the OSD (on screen display) menu.
Press button to select (ON/OFF).
ZOOM MODE
Adjust how the picture lls the screen.
Normal Automatically adjust Aspect Ratio based on TV size and TV program.
Wide Use to watch wide screen (16:9) content.
Zoom Expands image to ll screen. Top and bottom maybe cut o.
Cinema Stretches image at edges but keeps a clear image in the center.

www.PyleUSA.com 15
Source Label: Create labels for the devices connected to your TV. Press ENTER / button to enter.
CLOSED CAPTION
Adjust Closed Captioning settings.Only available under TV and AV source.
CC MODE: Turn Closed Captioning on/o. Press button to select (Of/On/CC On Mute).
Basic Selection: Set Closed Captioning for standard (analog) program.
Press button to select (CC1/CC2/CC3/CC4/TEXT1/TEXT2/TEXT3/TEXT4).
Advanced: Set Closed Captioning for digital program.
Press button to select (Of/Service 1/Service 2/Service 3/Service 4/Service 5/Service 6).
OPTION: Adjust the digital Closed Captioning setting. Press button to enter.
MODE: Set the look of digital Closed Captioning. Automatic uses broadcaster's style.
Press button to select (Default/Custom).
FONT STYLE: Select from 8 font styles.
Press button to select (Default/Font 0/Font 1/Font 2/Font 3/Font 4/Font 5/Font 6/Font 7).
FONT SIZE: Adjust the size of the digital Closed Captioning font.
Press button to select (Default/Normal/Large/Small).
FONT EDGE STYLE: Adjust the edge of the digital Closed Captioning box.
Press button to select (Default/None/Raised/Depressed/Uniform/Left Shadow/Right Shadow).
FONT EDGE COLOR: Adjust the color of the digital Closed Captioning box.
Press button to select (Default/Black/White/Red/Green/Blue/Yellow/Magenta/Cyan).
FG COLOR: Adjust the color of the digital Closed Captioning font.
Press button to select (Default/White/Red/Green/Blue/Yellow/Magenta/Cyan).
BG COLOR: Adjust the digital Closed Captioning background color.
Press button to select (Default/Black/Red/Green/Blue/Yellow/Magenta/Cyan).
FG OPACITY: Adjust the transparency of the digital Closed Captioning font.
Press button to select (Default/Solid/Flashing/Translucent/Transparency).
BG OPACITY: Adjust the digital Closed Captioning background transparency.
Press button to select (Default/Solid/Flashing/Translucent/Transparency).
DLC: Automatically adjust picture detail and brightness. Press button to select (O/On).
Setup Wizard: Set the rst time installation.
Overscan: Press button to select (On/O ).
It is only available to enter 1080i/720p/1080p in DTV/Component/HDMI. Default is On.
It is xed set to be On in ATV/AV. It is xed set to be O in PC.
HDMI CEC: Press the button to highlight CEC, then press the ENTER / button to enter.
Restore Default: Change power on options or reset TV to factory default. Press ENTER / button to enter.
OSD TIME OUT: Adjust the duration of the OSD (on screen display) menu.
Press button to select (5 Sec.1, 5 Sec., 30 Sec., 45 Sec., 60 Sec.)

www.PyleUSA.com 16
LOCK MENU
Press MENU to enter the main menu, Press button to select. Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Set Password/System Lock/Input Block/US/Canada/RRT Setting/
Reset RRT/Clear LOCK.
Press ENTER / to enter. Press button to adjust.
Press MENU again or back to parent menu.
Enter your 4-digital password. Default password is 0000, if you forgot your password, please call the
service center.
Set Password
Enter a new 4-digital password then re-enter it to conrm. Press button to enter.
SYSTEM LOCK
Lock or unlock the buttons on the TV. Press button to select (O/On).
INPUT BLOCK
Block or unblock the input sources. Press button to enter. Press button to select (Unblock/Block).

www.PyleUSA.com 17
US RATING: Restrict movie and TV programs by US Ratings. Only available when "System Lock" is "ON".
Press button to enter.
CANADA RATING: Restrict movie and TV programs by Canadian Ratings. Only available when "System
Lock" is "ON". Press button to enter.
RRT SETTING: Display an advance V-Chip rating table for digital channels.
The item is available only When current stream has downloadable rating data.
RESET RRT: Reset the RRT to default. The item is available only when current stream has downloadable
rating data
US RATING: For the United States, the rating setting basically include the following options: TV, MPAA.
TV: The TV rating compose of two aspects: age-based and content-based.
Note: The content ratings will increase depending on the level of the age-based rating.
For example, a program with a TV-PG V (violence) rating may contain moderate violence, while a TV-14 V
(violence) rating may contain intense violence. So locking a higher level option will automatically cause
locking the options that has more sensitive level.

www.PyleUSA.com 18
CHANNEL MENU
Favorite/Channel List

www.PyleUSA.com 19
PC MENU
Advanced.
SOURC E
