Quell Q9CO5 User manual

CO Alarm Model Number (Located on the back of alarm):
CO Alarm Assembly Number (Located on back of alarm):
Date of Manufacture (Located on back of alarm):
Date of Purchase:
Where Purchased:
Battery Operated
Carbon Monoxide
Alarm
User’s Guide
For questions concerning your Carbon Monoxide Alarm,
please call Chubb Fire & Security on 1800 654 435
Please have the following information ready when calling:
P/N: 130905
820-1384-AU REV B
THIS OWNER’S MANUAL SHOULD BE READ, IN FULL AND RETAINED FOR
THE LIFE OF THE PRODUCT. IT SHOULD ALSO BE PASSED ON TO ANY
SUBSEQUENT OWNER.
Model Q9CO5
EN50291:2001
KM 98848
2525-7205-01
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Contents
CONTENTS OF THIS MANUAL
CARBON MONOXIDE OVERVIEW.................................................3
ALARM / DANGER LEVELS........................................................4-5
QUELL PRODUCT VIEW & QUICK SET-UP..................................6-7
INSTALLATION INSTRUCTIONS................................................8-10
FEATURES AND OPERATION..................................................11-12
BATTERY INSTALLATION........................................................13-14
WHAT TO DO IF THE ALARM SOUNDS......................................15
CARING FOR YOUR QUELL CO ALARM......................................16
PRODUCT SPECIFICATIONS.........................................................17
WARRANTY & CONTACT DETAILS..............................................18
Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with Local Waste Management Authority or council
for recycling advice.
2
WARNING: THIS CARBON MONOXIDE ALARM IS NOT A SUBSTITUTE FOR INSTALLING
AND MAINTAINING AN APPROPRIATE NUMBER OF SMOKE ALARMS IN YOUR HOME.
THIS ALARM WILL NOT SENSE SMOKE, FIRE, OR ANY POISONOUS GAS OTHER THAN
CARBON MONOXIDE. FOR THIS REASON YOU MUST INSTALL SMOKE ALARMS TO
PROVIDE EARLY WARNING OF FIRE AND TO PROTECT YOU AND YOUR FAMILY FROM
FIRE AND ITS RELATED HAZARDS.
WARNING: THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR RESIDEN-
TIAL AREAS. IT IS NOT DESIGNED TO MEASURE COMPLIANCE WITH COMMERCIAL
AND INDUSTRIAL STANDARDS. THIS ALARM IS NOT SUITABLE FOR INSTALLATION IN
HAZARDOUS LOCATIONS . INDIVIDUALS WITH MEDICAL PROBLEMS MAY CONSIDER
USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND VISUAL SIGNALS FOR CAR-
BON MONOXIDE CONCENTRATIONS UNDER 30 PPM.
IMPORTANT: THIS CARBON MONOXIDE ALARM IS DESIGNED TO DETECT CARBON
MONOXIDE FROM ANY SOURCE OF COMBUSTION INCLUDING IMPROPER OR MAL-
FUNCTIONING APPLIANCES. THE INSTALLATION OF THIS DEVICE SHOULD NOT BE
USED AS A SUBSTITUTE FOR PROPER INSTALLATION, USE AND MAINTENANCE OF
FUEL BURNING APPLIANCES INCLUDING APPROPRIATE VENTILATION AND EXHAUST
SYSTEMS
WARNING: THIS ALARM WILL NOT WORK WITHOUT POWER. THIS ALARM
REQUIRES A CONTINUOUS SUPPLY OF POWER.
WARNING: THIS UNIT IS NOT A SMOKE ALARM. IT WILL NOT SENSE SMOKE . FOR
EARLY WARNING OF FIRE YOU MUST INSTALL SMOKE ALARMS.
IMPORTANT: IF ANY FAULT SIGNALS OCCUR, CONTACT THE MANUFACTURER OR
SUPPLIER AND DO NOT CONTINUE USING THE ALARM
Thank you for the purchase of your new Quell carbon monoxide alarm.
If you have any questions about the operation or setup of your CO
alarm, feel free to call us on 1800 654 435
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Carbon Monoxide Overview
Your new Quell Carbon Monoxide (CO) Alarm is a sophisticated instru-
ment that has been carefully designed and tested to detect CO build up
in a residential environment. Your alarm is for use specifically in the
home.
CO cannot be seen, smelled or tasted and can be fatal. The build up of
CO in the blood is called the carboxyhemoglobin level and interferes
with the body’s ability to supply itself with oxygen. Depending on the
concentration, carbon monoxide can kill in minutes.
The most common sources of CO are malfunctioning, or misuse of, gas
appliances used for heating and cooking, vehicles engines, electric gen-
erators, blocked chimneys or flues, portable fuel burning heaters, fire-
places, fuel powered tools and operating a grill in an enclosed space.
Indications of CO poisoning include symptoms similar to the flu, but
with no fever. Other symptoms include dizziness, fatigue, weakness,
headache, nausea, vomiting, sleepiness and confusion. Everyone is sus-
ceptible to the danger of CO, but unborn babies, small children, preg-
nant women, senior citizens and people with heart or respiratory prob-
lems may experience symptoms sooner.
Your new Quell CO alarm has a five year warranty (excluding batteries).
Please take a few minutes to thoroughly read the user’s guide and famil-
iarise yourself and your family with its operation. Your Quell CO alarm
was designed to detect carbon monoxide gas from ANY source of com-
bustion. It is NOT designed to detect smoke, fire or any other gases. If
you have any questions please call us on 1800 654 435.
This manual and the products described are copyrighted, with all rights
reserved. Under these copyright laws, no part of this manual may be
copied for use without the written consent of Quell.
If you require further information, contact our Consumer Hotline.
3
Manufactured in China for:
Chubb Fire & Security Pty Ltd
149-155 Milton Street,
Ashfield NSW 2131
Telephone: [phone]
Website www.quell.com.au
Website www.quell.co.nz
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Caution: This CO alarm will only indicate the presence
of CO at the sensor. CO may be present in other areas.
Familiarisation with the effects of each level is important.
The symptoms described above are related to carbon
monoxide poisoning and should be discussed with ALL
members of the household.
Exposure to high levels of carbon monoxide can be fatal or
cause permanent damage and disabilities.
If you experience any symptoms of carbon monoxide poi-
soning, consult your doctor immediately! CO poisoning can
be determined by a simple blood test called a carboxy-
haemoglobin test. Severe cases may require treatment in a
hyperbaric chamber. Remember, young children and
household pets may be the first effected.
If you have additional questions please call
Chubb on 1800 654 435
Common Mild Exposure Symptoms:
Slight headache, nausea, vomiting, fatigue (“flu-like” symptoms).
Common Medium Exposure Symptoms:
Throbbing headache, drowsiness, confusion, fast heart rate.
Common Extreme Exposure Symptoms:
Convulsions, unconsciousness, heart and lung failure. It can cause
brain damage and death. Many cases of reported CARBON MONOXIDE
POISONING indicate that while victims are aware they are not well,
they become so disoriented they are unable to save themselves by
either exiting the building or calling for assistance. Also young children
and
household pets may be the first affected.
Alarm/Danger Levels
4
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Because carbon monoxide is a cumulative poison, long-term expo-
sures to low levels may cause symptoms, as well as short-term
exposures to high levels. This Quell unit has a time-weighted
alarm - the higher the level of carbon monoxide present, the sooner
the alarm will be triggered.
This CO alarm can only warn you of the presence of CO. It does
not prevent CO from occurring, nor can it solve an existing CO
problem. If your unit has alarmed and you’ve provided ventila-
tion by leaving your windows and doors open, the CO buildup
may have dissipated by the time help responds. Although your
problem may appear to be temporarily solved, it’s crucial that the
source of the CO is determined and that the appropriate repairs
are made.
Gas appliances should be checked for safety once a year by a
qualified appliance technician.
THIS CO ALARM MEETS THE FOLLOWING ALARM TIME / CONCENTRATIONS
REQUIREMENTS:
At 30 PPM, the unit cannot alarm in less than 120 minutes
At 50 PPM, the unit must alarm within 60-90 minutes
At 100 PPM, the unit must alarm within 10-40 minutes
At 300 PPM, the unit must alarm within 3 minutes
WARNING
This product is intended for use in ordinary indoor locations of
family living units. It is not designed to measure compliance with
safety and health regulations or industrial standards.
This device is designed to protect individuals from acute effects
of carbon monoxide exposure. It may not fully safeguard individ-
uals with specific medical conditions. If in doubt, consult a med-
ical practitioner. Individuals with medical problems may consider
using warning devices, which provide audible and visual signals for
carbon monoxide concentrations under 30 ppm.
5
Alarm/Danger Levels
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

CARBON MONOXIDE ALARM
C
A
U
T
I
O
N
:
D
O
N
O
T
P
A
I
N
T
,
A
D
D
I
T
I
O
N
A
L
M
A
R
K
I
N
G
O
N
B
A
C
K
Test/
Reset
Operate Alarm
Move to
Fresh Air
Model No. Q9CO5
KM 98848
EN 50291:2001
9CO5 non-digital model
Quell Product View
6
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Quick Set Up
NOTE: This CO alarm must be installed by a competent person.

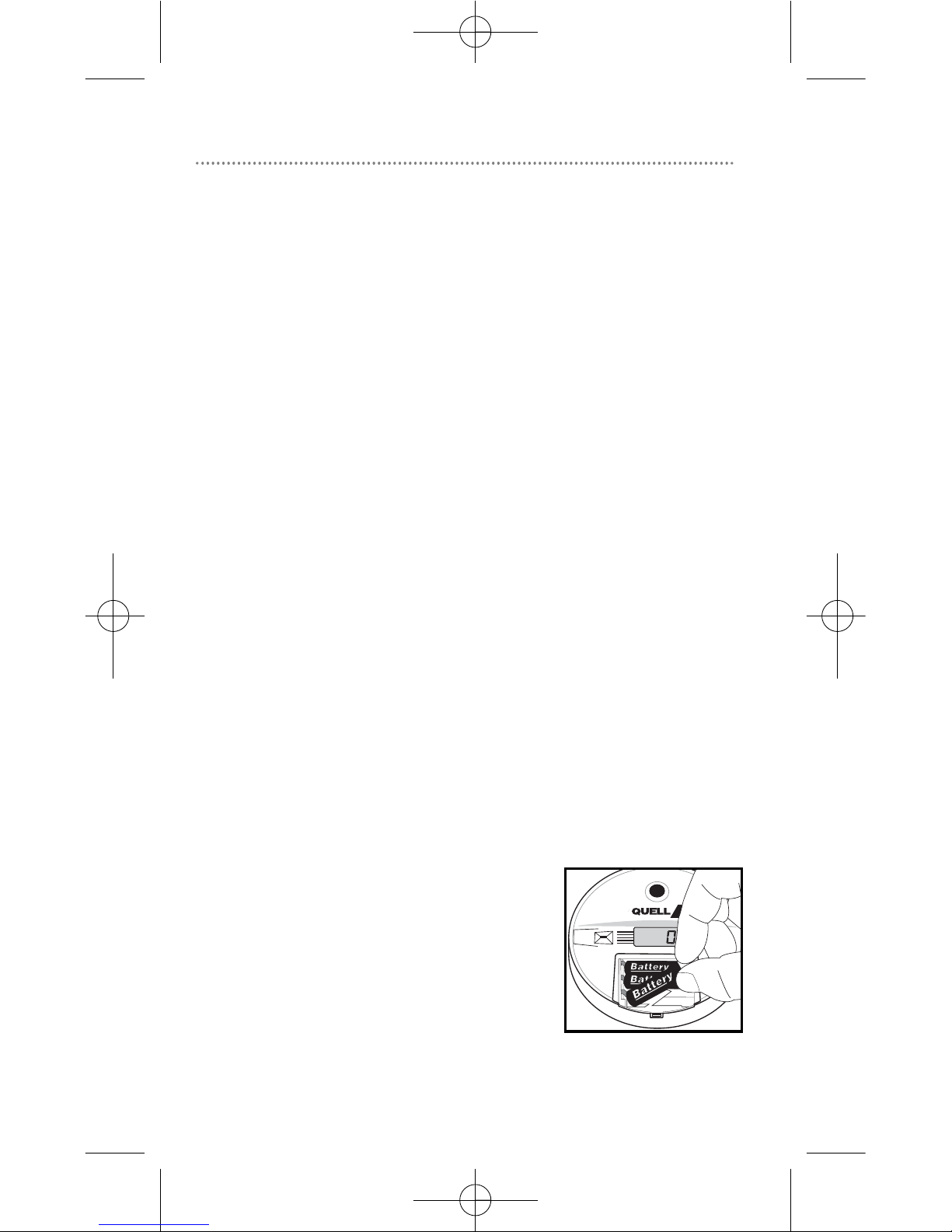

Remove the three enclosed AA batteries and install them into
the battery well. Carefully place the red battery warning flags into
the battery well. Observe the battery polarity markings at the bot-
tom of the battery well. After approximately 30 seconds, your CO
alarm will begin monitoring for CO.
Your Quell CO Alarm is now operational.
Test the unit:
* Test the unit - To test, press and release the test/reset button,
you should hear one short beep - followed by 5 seconds of
silence - followed by a continuous alarm with a corresponding
red LED flash.
IMPORTANT
A small screwdriver or similar tool may be required when open-
ing the battery compartment cover. This should be levered from
the lip at the bottom of the cover.
The cover is designed this way to discourage the removal of
batteries, or tampering, by young children.

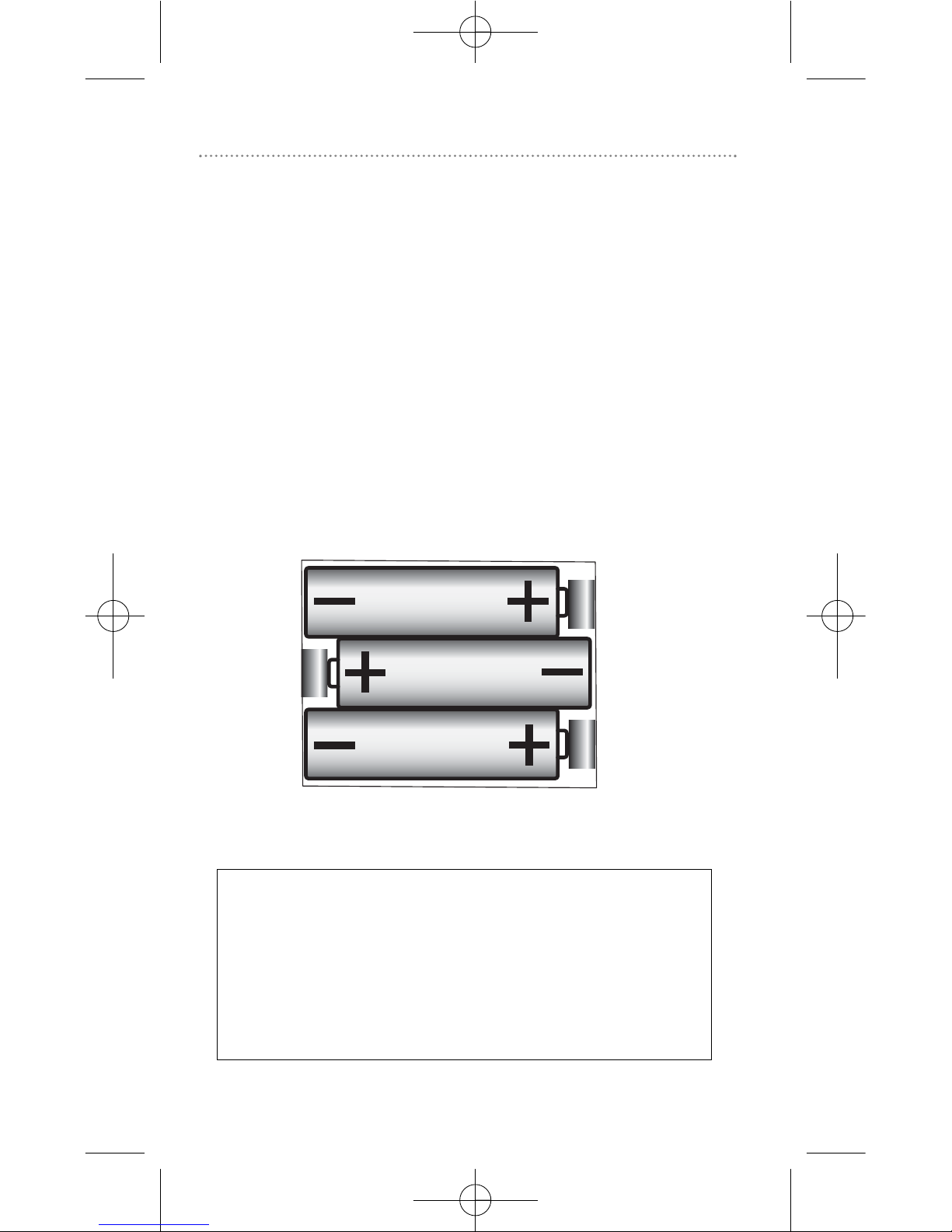

BATTERY POLARITY
7
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

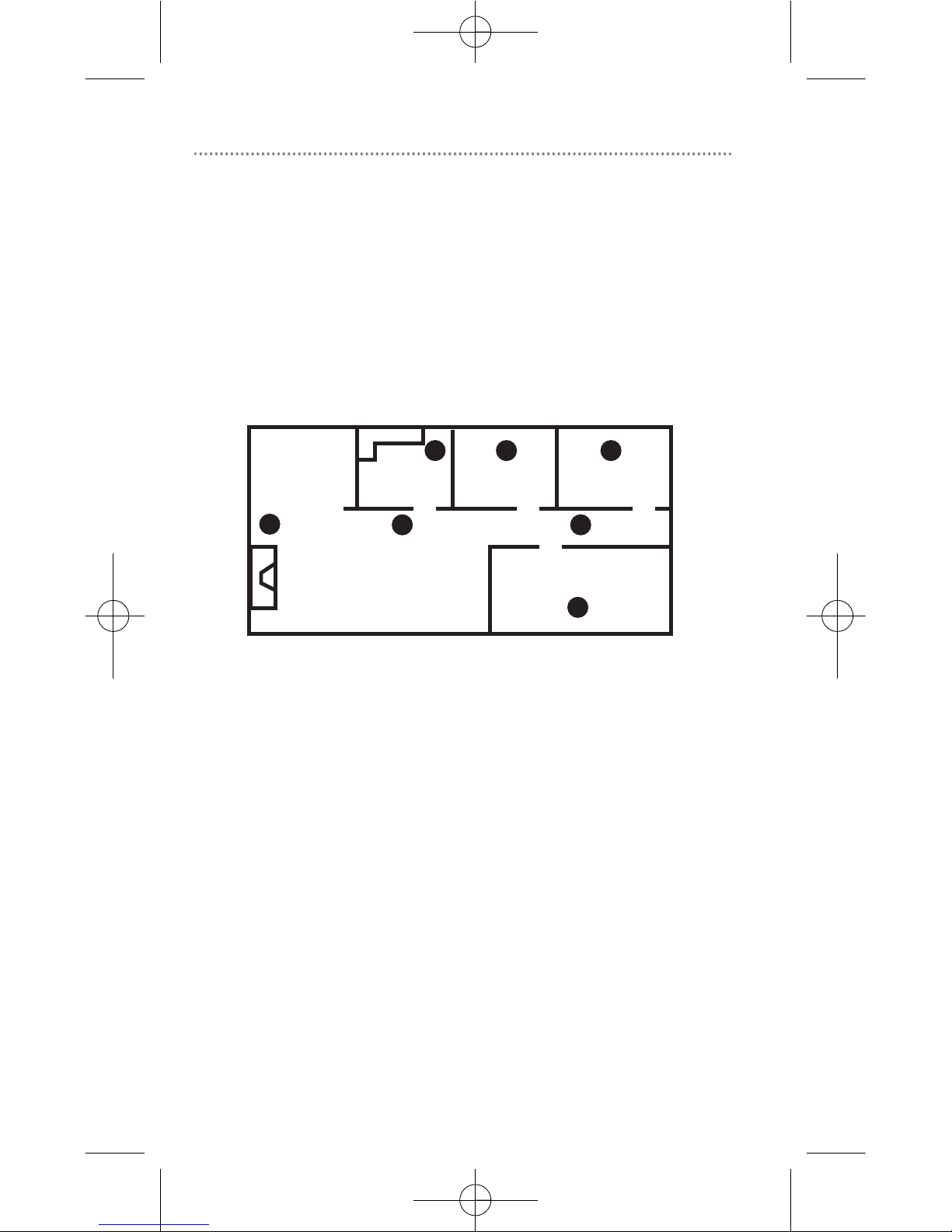

DINING KITCHEN BEDROOM BEDROOM
BEDROOMLIVING ROOM
Installation Instructions
Installation Location
When choosing your installation locations, make sure you can hear the
alarm from all sleeping areas. If you install only one carbon monoxide
alarm in your home, install the alarm near the bedrooms.
If you have only one alarm, place it near sleeping areas.
Recommended Locations
Upper Levels of the Home
8
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

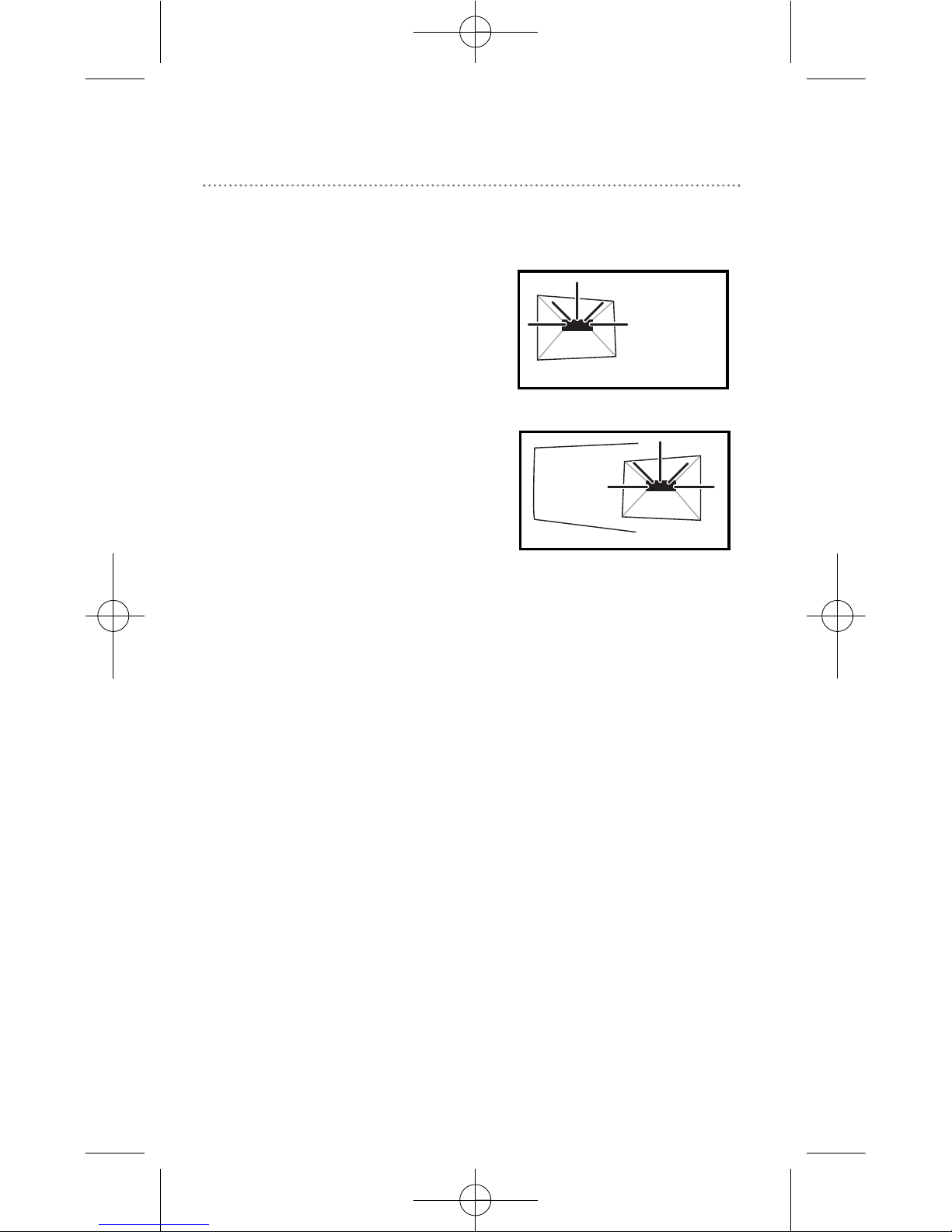

Where To Install Your Quell CO Alarm
The following suggestions are intended to help you with the
placement and installation of your Quell CO Alarm.
• Place out of the reach of children. Under no circumstance should chil-
dren be allowed to handle or install the CO alarm.
• Install in a bedroom or hallway located close to the sleeping area. Take
special care to verify the alarm can be heard in sleeping areas.
• It is recommended that a CO alarm be installed on each level of a multi-
level home.
• Locate at least [but no closer than] 2 metres away from all fuel burning
appliances.
• Placing at eye level allows for optimum monitoring of the red and green
indicator lights, or, as a guide, 1.5 metres from the floor.
• Ensure that all vents of the unit are unobstructed.
• Do not install in dead air spaces such as peaks of vaulted ceilings, or
gabled roofs.
• Do not install in turbulent air from ceiling fans.
• Do not place near fresh air vents or close to doors and windows that
open to the outside.
• Keep the CO alarm away from excessively dusty, dirty, or greasy areas
such as kitchens, garages and utility rooms. Dust, grease and household
chemicals can affect the sensor.
• Keep out of damp and humid areas such as the bathroom. Avoid spray-
ing aerosols near the CO alarm.
• Do not install in areas where the temperature is below 40˚F (4.4˚C) or
hotter than 100˚F (37.8˚C).
• Do not place behind curtains or furniture. CO must be able to reach the
sensor for the unit to accurately detect carbon monoxide. NEVER place
the CO alarm flat on a table top or similar surface.
• Be aware that certain conditions can result in transient CO situations,
such as:
1) Excessive spillage or reverse venting of fuel burning appliances caused
by outdoor ambient conditions, such as:
i) Wind direction and/or velocity, including high gusts of wind. Heavy air
in the vent pipes (cold/humid air with extended periods between cycles).
ii) negative pressure differential resulting from the use of exhaust fans.
iii) Simultaneous operation of several fuel burning appliances compet-
ing for limited internal air.
iv) Vent pipe connections vibrating loose from clothes dryers or water
heaters.
Installation Instructions
9
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

v) Obstructions in or unconventional vent pipe designs which can
amplify the above situations.
2) Extended operation of unvented fuel burning devices (cooker, oven, fire-
place, etc.).
3) Temperature inversions which can trap exhaust near the ground.
4) Car idling in open or closed garage, or near the home.
Mounting
1. Mark the location of two holes on the
wall spaced 60.3 mm apart(see Figure 1 ).
2. Insert the two screws provided until
the screw heads are approximately
3.2 mm from the wall. (If mounting in
plaster board or drywall, drill a 5mm
hole in the wall and use the plastic
anchors provided.)
3. Hook the Quell CO Alarm unit over the
screws and onto the keyholes in the back of the unit.
Seven years after initial power up, this unit will "chirp" every 30
seconds to indicate that it is time to replace the alarm. After
seven years the device may no longer detect carbon monoxide
accurately and should be replaced immediately. To help identify
the date to replace the unit, a label has been affixed to the side of
the alarm. Write the “Replace By” date (7years from power up)
in permanent marker on the label.
NOTE: Your 9CO5 CO alarm is not designed for portability.
Wall Mounting Template
If you are going to mount your Quell CO Alarm to the wall, you
may use this template for exact placement of the two wall mount
screws provided.
Installation Instructions
10
60.3mm
Figure 1
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Features and Operation of Digital Display and
Non-digital Display Models
Test/Reset Button
The test/reset button is used to test the unit’s electronics and to
reset the unit during alarm.
Test the unit:
• Test the unit - To test, press and release the test/reset but-
ton, you should hear one short beep - followed by 5 seconds of
silence – followed by a continuous alarm with a corresponding
red LED flash.
Familiarise yourself and family members with the alarm pattern.
Test the unit weekly! If at any time your unit does not perform as
described replace it immediately.
Due to the loudness of the alarm we suggest you place your fingers
over the sounder opening when testing your Quell CO Alarm.
Reset
If the alarm is sounding, pressing the test/reset button will terminate
the alarm. If the CO condition that caused the alert in the first
place continues, the alarm will reactivate. Reactivation times
depend on the amount of CO that caused the CO alarm to initially
alarm and the amount of CO present after resetting the alarm .
If this happens follow What To Do If The Alarm Sounds on pages
17-19
WARNING: Tampering with your alarm may cause a malfunction.
Please follow manufacturer’s instructions at all times.
11
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Features and Operation of Digital Display and
Non-Digital Display Models
Lights
Red Alarm Indicator Light
If stated levels of carbon monoxide
are detected by your Quell alarm, the
red alarm LED will flash on and off
continuously and a loud (85 decibel)
alarm will sound.
Green Operate Light
The green light flashing every 30 sec-
onds indicates the unit is functioning
properly. The green light will flash
before a CO reading is taken and when
any button is pressed. If the unit chirps once every 30 seconds,
observe the unit for the following:
A chirp every 30 seconds, with a green LED flash followed by a
red LED flash, indicates the batteries are low. Follow the battery
installation/replacement instructions.
A chirp every 30 seconds, with a red flash and no green LED
flash indicates a unit error.
If the unit does not respond, call Chubb on 1800 654 435.
Alarm
MOVE TO
FRESH AIR
TEST
RESET
Operate
12
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Battery Installation/Replacement
Installation/Replacement
Since batteries are not installed in the unit at the factory, you will need to
install them.
Your Quell unit will continue to remind you to change the batteries for up
to seven days after low batteries are detected.
WARNING: Your Quell CO alarm will not be operational and will not moni-
tor for CO levels without the installation of three charged AA batteries.
Your Quell CO alarm monitors for battery failure such as bad or corroded
connections, sudden battery failure and other causes. If the alarm senses
any form of battery failure, the unit will start chirping an audible alarm
every 30 seconds, the green and red alarm light will flash. The battery
error warning will continue until new batteries are placed in the unit, or
until the remaining batteries become completely exhausted.
Three AA batteries have been included with your purchase. When replac-
ing the batteries, we recommend use of the following battery types:
• Duracell MN1500 or MX1500 • Energizer E91
Under normal operating conditions, the batteries will last a minimum of
one year. These batteries can be purchased at your local retailer.
Note: Constant exposure to high or low humidity may reduce
battery efficiency.
Battery Replacement/Installation Instructions
To install or replace the batteries in your Quell unit please perform
the following steps:
1. Gently lift open the battery cover to
expose the battery compartment.
Note: You will require a small screw
driver or similar tool for this proce-
dure.
2. Remove the old batteries and properly
dispose of them as recommended by
the battery manufacturer.
CARBON MONOXIDE ALARM
TEST
RESET
Operate Alarm
MOVETO
FRESHAIR
13
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Battery Installation/Replacement
3. Reinstall the new batteries. Be careful to seat the red
battery warning flags in the recess of the battery well.
Also, note the polarity illustration in the bottom of the
battery compartment. If applicable, the unit will chirp and
display for approximately one minute and return to normal
operation.
4. Gently close the cover. The cover of your CO alarm will
NOT close if all three AA batteries are not properly
installed.
NOTE: Ensure that you observe the correct battery polarities
required during battery installation. Incorrect battery inser-
tion will make your CO alarm inoperable.
Battery Polarity
14
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

What to do When the Alarm Sounds
▲
!
WARNING: Actuation of your CO
Alarm indicates the presence of Carbon
Monoxide (CO) which can KILL YOU.
When the CO alarm senses a dangerous level of CO, the unit will emit a
loud alarm pattern.
If the alarm sounds:
1) Operate the test/reset button - to silence alarm;
2) Call your Emergency Services (Fire Brigade or 000)
3) Immediately move to fresh air outdoors. Do a head count to
check that all persons are accounted for. Do not re-enter the
premises until the premises has been aired out, and your
alarm stops sounding.
4) After following steps 1-3, if your alarm reactivates within a
24 hour period, repeat steps 1-3 and call a qualified
appliance technician to investigate for sources of CO from
fuel burning equipment and appliances and inspect for
proper operation of this equipment. If problems are
identified during this inspection, have the equipment
serviced immediately. Note any combustion equipment not
inspected by the technician refer to the manufacturer's
instructions or contact the manufacturer directly for
information about CO safety and this equipment. Make sure
that motor vehicles are not or have not been operating in an
integral garage or one that is adjacent to the residence.
W
H
A
T
T
O
D
O
15
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Caring for your Quell Battery Powered CO
Alarm
To keep your CO alarm in good working order, please
follow these simple steps:
•Verify unit alarm, lights and battery operation by pushing
the test button once a week.
•Vacuum the CO alarm cover with a soft brush attachment
once a month to remove accumulated dust.
•Instruct children never to play with the CO alarm. Warn
children of the dangers of carbon monoxide poisoning.
•Never use detergents or other solvents to clean the CO alarm.
•Avoid spraying air freshener, hair spray, paint or other
aerosols near the CO alarm.
•Do not paint the CO alarm. Paint will seal the vents and
interfere with the sensor ability to detect CO.
Move the CO alarm and place in another location prior to per-
forming any of the following:
•Staining or stripping wood floors or furniture
•Painting
•Wall papering
•Using adhesives
Storing the unit in a plastic bag during the above projects will
protect the sensor from permanent damage.
WARNING: As soon as possible, place the CO alarm back in its
proper location to assure protection from Carbon Monoxide poi-
soning.
Accommodation spaces should be well ventilated when household
cleaning supplies or similar contaminants are used.
The following substances can affect the sensor and may cause false
readings:
Methane, propane, iso-butane, iso-propanol, ethylene, benzene,
toluene, ethyl acetate, hydrogen sulfide, sulfur dioxides, alcohol
based products, paints, thinners, solvents, adhesives, hair sprays,
after shaves, perfumes, and some cleaning agents.
16
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

Product Specifications
17
POWER:Three AA batteries (supplied)
SENSOR:Electrochemical carbon monoxide sensor
ACCURACY:Depending on the ambient condition (temperature,
humidity) and the condition of the sensor, the
alarm readings may vary. The digital reading toler-
ances are: Ambient: 27°C +/-12°C(80°F +/-10°F),
atmospheric pressure +/-10%, 40%+/-3% relative
humidity.
READING TOLERANCE (OF DISPLAY READING)
0-999ppm +20% +15ppm
TEMPERATURE:Operating range 4.4°C (40 ° F) to
37.8°C (100°F)
ALARM:85+ dB at 10' @ 3.4 ± 0.5 KHz pulsing alarm
SIZE AND WEIGHT:140 mm diameter x 35.5 mm depth/0.30 kg.
with batteries
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P

18
WARRANTY & CONTACT DETAILS
Chubb Fire & Security Pty Ltd ACN 000 067 541
149-155 Milton Street, Ashfield NSW 2131 Australia
Telephone: [phone]
Website: www.quell.com.au
Chubb New Zealand Limited
3 Fisher Crescent, Mt Wellington , Auckland, New Zealand
Telephone: [phone]
Website: www.quell.co.nz
FIVE YEAR LIMITED WARRANTY
Chubb warrants to the original consumer purchaser that each new CO
Alarm will be free from defects in material and workmanship under normal
use for a period of 5 years from the date of purchase. Chubb agrees to
replace any defective CO Alarm upon presentation of the proof of
purchase. This warranty does not apply where damage to the CO
Alarm is caused by accidents, misuse, abuse or lack of reasonable care.
THE PURCHASER'S ATTENTION IS DRAWN TO THE APPLICABLE
AUSTRALIAN CONSUMER LAW PROVISIONS UNDER THE
COMPETITION AND CONSUMER ACT 2010. Our goods come with guar-
antees that cannot be excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and for com-
pensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure.
Subject to these non-excludable laws, Chubb will not be liable for any
injury to persons or damage to property or for any special or indirect or
consequential loss or damage whatsoever and whether as a result of
negligence or fault on the part of Chubb or its servants, agents, suppliers
and contractors or otherwise arising out of or resulting from, whether
directly or indirectly, the use, installation or maintenance of the CO
Alarm. Any implied warranties or representations are excluded unless
expressly given by Chubb. The AA batteries included with this CO Alarm
is excluded from the Chubb 5 year limited warranty.
WHEN INSTALLING THIS ALARM FOR USE BY OTHERS, PLEASE
LEAVE THIS MANUAL OR A COPY WITH THE END USER.
EN50291:2001
KM 98848
A UTC Fire & Security Company
2525-7205-01(820-1384-AU B).qxd:_ 2011.5.10 4:38 PM P
