Rato RBLM40 User manual

RATO LITHIUM-ION CORDLESS LAWN MOVER
RBLM40
Owner’s Manual
Read all safety rules and instructions carefully before operating this tool

Original instructions
CONTENTS
Contents ..................................................................................................................................................................................2
Symbols ...................................................................................................................................................................................3
Safety information..................................................................................................................................................................4
Know your Lawn mower ........................................................................................................................................................9
Assembly Instruction.............................................................................................................................................................10
Operation your lawn mower................................................................................................................................................. 15
Maintenance..........................................................................................................................................................................17
Service……………………………………………………………………………………………………………………………………………………………..….……20
Troubleshooting.....................................................................................................................................................................21
Technical data........................................................................................................................................................................22
EC- Declaration of Conformity.............................................................................................................................................. 23
2-English

Original instructions
SYMBOLS
Warning!
Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the
instructions safe for later use!
Explanation of symbols on the machine
General hazard safety alert.
Read instruction manual.
Pay attention that bystanders are not injured through foreign objects thrown from the machine.
Warning: Keep a safe distance from the machine when operating.
Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.
Switch off and remove isolator key before adjusting, cleaning and before leaving the product
unattended for any period.
Wait until all machine components have completely stopped before touching them. The blades
continue to rotate after the machine is switched off, a rotating blade can cause injury.
Do not use the machine in the rain or leave it outdoors when it is raining.
Beware electric shock hazard.
Only use the battery charger indoors.
Battery charger contains a safety transformer.
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer for recycling advice.
Noise emission to the environment according to the European Community’s Directive
The machine’s emission is specified in the Technical data chapter and on the label.
3-English

Original instructions
SAFETY INFORMATION
GENERAL SAFETY RULES
READ ALL INSTRUCTIONS CAREFULLY
W A R N I N G
This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the
personal safety and/or property of the operator and others. Read and understand all instructions in this manual
before attempting to operate the mower. Failure to comply with these instructions may result in personal injury.
D A N G E R
This mower was built to be operated according to the rules for safe operation that are contained in this manual. As
with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
mower is capable of amputating body parts and throwing objects. Failure to observe the following safety rules could
result in serious injury or death.
W A R N I N G
Basic safety precautions should always be followed when using electric lawn mowers, in order to reduce the risk of
fire, electric shock, and personal injury.
W A R N I N G
Use of this mower should be restricted to individuals who have read and understood and will follow the warnings and
instructions that are printed in this manual and on the mower.
WARNING
Do not continue to press the On/Off switch after the garden product has been automatically switched off.
The battery can be damaged.
•Carefully read all instructions on the mower and in the manual before attempting to assemble and operate the
mower. Keep this manual in a safe place for future reference, and consult it regularly.
•Become familiar with all controls and their proper operation. Know how to stop the mower and how to disengage
the power in an emergency.
•In order to avoid contact with the blade or injury caused by a thrown object, stay in the operating zone behind the
handles, and keep children and bystanders at least 50’ (15 m) away from the mower while it is in operation. Stop the
motor immediately if someone enters the mowing area.
•Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire, bones, toys, and other
objects that could be tripped over or thrown by the blade. Thrown objects can cause serious personal injury.
•Plan your mowing pattern in such a way as to avoid discharging material toward roads, sidewalks, bystanders, etc.
Do not discharge material against a wall or obstruction. Doing so may cause the discharged material to ricochet back
toward the operator.
•Always wear proper eye protection that complies with standard ANSI Z87.1 or EN 166 in order to protect your eyes
while operating or performing any adjustment or repair. Thrown objects that ricochet can cause serious eye injury.
•Always wear a face mask or a dust mask when operating the mower in a dusty environment.
•Dress properly. Do not wear loose clothing or jewelry that can get caught in moving parts. The wearing of protective
gloves and safety footwear is recommended.
•Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) that will be used
to charge the lawn mower battery. Outlets with built-in GFCI protection are available, and may be used as an added
safety measure.
•Many injuries occur as a result of the mower being pulled over the operator’s foot during a fall caused by slipping or
tripping. Do not operate this mower in bare feet, or while wearing sandals or lightweight (e.g., canvas) shoes. Do not
4-English

Original instructions
SAFETY INFORMATION
hold on to the mower if you are falling. Release the handle immediately.
•Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or an
obstruction, first look down and behind in order to avoid tripping, and then follow these steps:
•Step back from the mower in order to fully extend your arms.
•Be sure that you are well balanced.
•Pull the mower back slowly.
•Do not use the mower for any job except that for which it is intended. Do not force the mower.
•Do not operate the mower while under the influence of alcohol or drugs.
•Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing. Use common sense.
•Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade can amputate hands
and feet.
•Do not attempt to adjust the wheels or the cutting height while the motor is running.
•Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.
•Mow only in daylight or in good artificial light. Do not rush a mowing job.
•Stop the blade when crossing gravel driveways, walkways, or roads.
•If the mower starts to vibrate excessively, stop the motor and check for the cause immediately. Vibration is
generally a warning of trouble.
•Stop the motor and wait until the blade comes to a complete stop before removing the grass catcher or unclogging
the chute. The cutting blade will continue to rotate for a few seconds after the motor is shut off. Do not place any
part of your body in the blade area until you are sure that the blade has stopped rotating.
•Never operate mower without a proper trail shield, discharge cover, grass catcher, switch control, or other safety
device in place and in working order. Do not operate the mower with damaged safety devices. Doing so can result in
injury.
•Don’t force lawn mower. It will do the job better and safer at the rate for which it was designed.
•Store idle lawn mower indoors. When not in use, lawn mower should be stored in an indoor dry and look-up place,
out of reach of children.
•Maintain lawn mower. Keep cutting edger sharp and clean for best and safety performance.
•If lawn mower strikes a foreign objects follow these steps:
•Stop lawn mower, release the switch.
•Remove the key and battery.
•Inspect for damage.
•Repair any damage before restarting and operating the lawn mower.
•Do not charge lawn mower in rain or in wet location.
•Remove or disconnect battery before servicing, cleaning or removing material from lawn mower.
Working on banks can be dangerous.
–Do not mow on excessively steep slopes.
–Always be sure of your footing on slopes or wet grass.
–Mow across the face of slopes –never up and down.
–Exercise extreme caution when changing direction on slopes.
Use extreme caution when stepping back or pulling the machine towards you.
Never mow by pulling the mower towards you.
Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when
transporting the machine to and from the area to be mowed.
Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in
5-English

Original instructions
SAFETY INFORMATION
long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the
operator. Always ensure that both hands are in the operating position before returning the machine to the ground.
Switch on the motor according to the instructions with feet well away from rotating parts. Do not put hands or
feet near or under rotating parts.
Always stand clear of the discharge zone when operating the machine.
Never pick up or carry the machine while the motor is running.
Do not modify this product.
Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
Regularly inspect the supply cable and any extension cables. Do not connect damaged cables to the supply or touch
a damaged cable before it is disconnected from the supply. A damaged cable can lead to contact with live parts.
Beware electric shock hazard.
Leaf Collect
The leaf collect blade has been designed to allow you to pick up autumn leaves from your lawn. In order for
this functionality to work within optimal parameters, please note the following:
–only collect leaves with the machine set at 70 mm cutting high
–collect leaves from your lawn only
–before collecting leaves inspect the area where the machine is to be used and keep people, pets, glass
structures and cars away from use
Remove the isolator key:
–Whenever you leave the machine.
–before clearing a blockage,
–before checking, cleaning or working on the machine,
–after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
–if the machine starts to vibrate abnormally (check immediately).
CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the presence of children.
•Keep children out of the mowing area and under the watchful care of a responsible adult.
•Do not allow children under the age of 14 to operate this mower. Children who are 14 years of age and older
must read and understand the operating instructions and safety rules in this manual, and must be trained and
supervised by a parent.
•Stay alert, and turn the mower off if a child or any other person enters the mowing area.
•Look behind and down for small children before and while moving backwards.
•Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure
your view of a child who may run into the path of the mower.
BATTERY & CHARGER
C A U T I O N
USE ONLY TOPSUN APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE
MOWER. Use with TOPSUN 40V battery.
BATTERY SAFETY RULES
•Battery tools do not have to be plugged into an electrical outlet; Therefore, they are always in operating condition.
Be aware of possible hazards when not using your battery tool or when changing accessories. Following this rule will
reduce the risk of electric shock, fire, or serious personal injury.
•Do not place battery tools or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
6-English

Original instructions
SAFETY INFORMATION
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a
sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
•Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal
injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals.
If exposed, flush with water immediately. Do not charge battery tool in a damp or wet location. Following this rule will
reduce the risk of electric shock.
•For best results, your battery tool should be charged in a location where the temperature is more than 45°F but less than
104°F. To reduce the risk of serious personal injury, do not store outside or in vehicles.
•Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin,
wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes,
then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
•When battery pack is not in use, keep it away from other metal objects like: Paper clips, coins, keys, nails, screws, or other
small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may
cause sparks, burns, or a fire.
•Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in
use. Removing battery pack will prevent accidental starting that could cause serious personal injury.
• Always remove battery pack before storing the device. When battery becomes fully charged, unplug the charger from the
power supply and remove the battery pack from the charger.
•Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to
do so could result in objects being thrown into your eyes and other possible serious injuries.
•Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids,
gasoline, petroleum-based products, or any solvents to clean battery pack.
•When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could
increase internal cell pressure and rupture the discharge battery (ies) . ( Applies to products employing more than one
separately replaceable primary battery. )
• When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of
batteries can result in leakage or explosion. ( Applies to product employing more than one separately replaceable primary
battery.)
PROPER CARE FOR BATTERY
Off-season storage
To obtain the longest possible battery life, we suggest the following:
•Remove the battery pack from the charger once it is fully charged and ready for
use. For battery pack storage longer than 30 days:
•Store the battery pack where the temperature is below 80°F and away from moisture.
•Store battery packs in a 30%-50% charged condition.
•Every two months of storage, charge the pack as normal.
CHARGER SAFETY RULES
•Charge the mower battery in a dry area that is protected from the weather. Do not expose the mower or the
charger to rain. Do not charge the battery in a wet location. Operate the battery charger in temperatures between
41°F and 104°F(5-40℃). In order to reduce the risk of electric shock, use only the charger that is provided by the
manufacturer to charge the battery.
•DO NOT ABUSE THE CHARGE CORD. Never carry the charger by the cord. Do not disconnect the charger from the
outlet or from the mower by pulling the charger cord.
7-English

Original instructions
SAFETY INFORMATION
•Do not use a damaged charger. Replace the charger cords or the charger immediately.
•Keep the mower and the charger away from water, heat sources (radiators, heaters, stoves, etc.), flames, and
chemicals.
•Make sure the battery pack is secured in the charger before beginning operation.
•The battery pack will become slightly warm to the touch while charging. This is normal and does not indicate a
problem.
•Do not place the charger and battery pack in an area of extreme heat or cold. They will work best at normal room
temperature.
•When batteries become fully charged, unplug the charger from the power supply and remove the battery pack.
WARNING
Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals
known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
•Lead from lead-based paints,
•Crystalline silica from bricks and cement and other masonry products, and
•Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to these chemical: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic
particles.
8-English

Original instructions

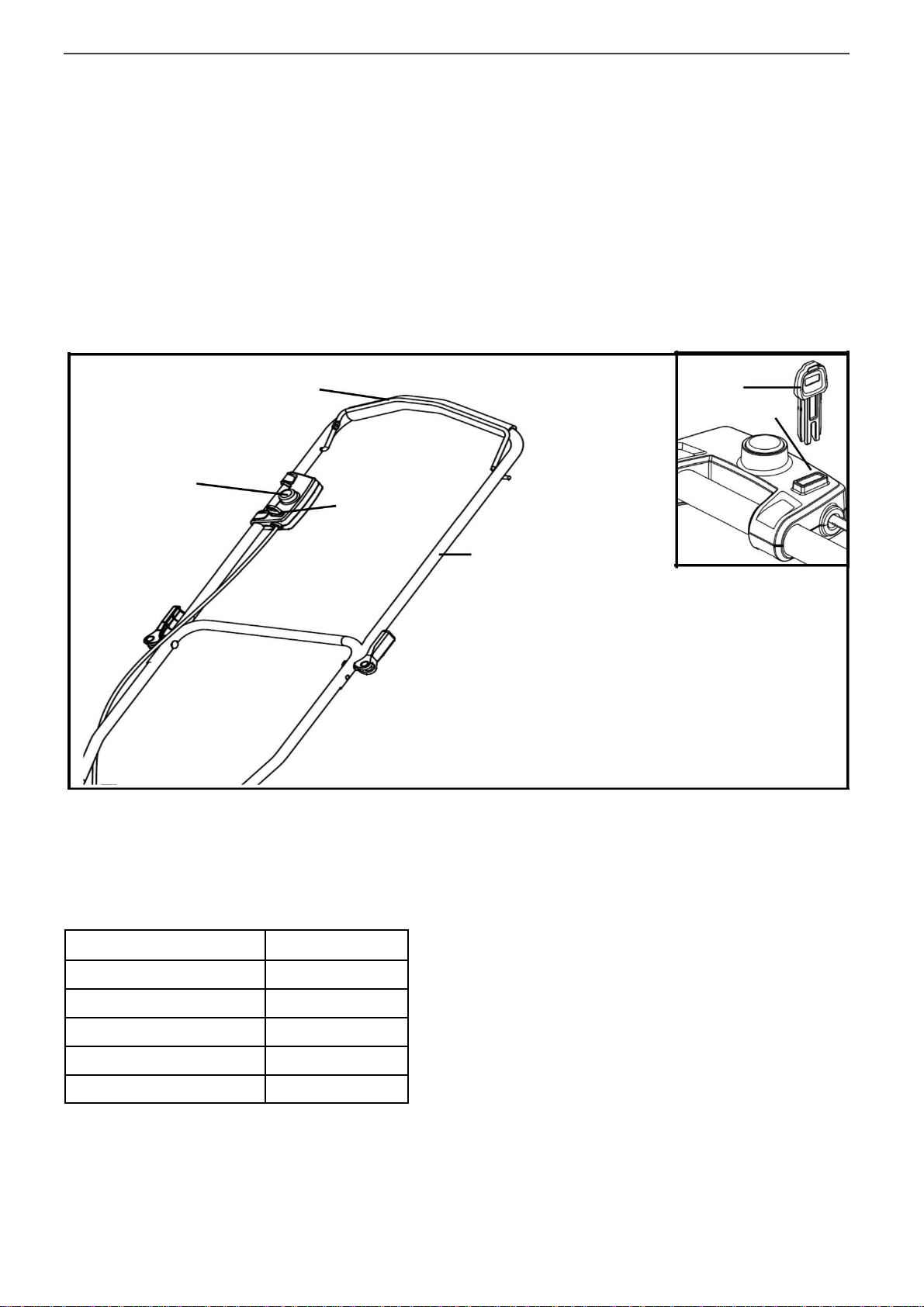

KNOW YOUR LAWN MOWER
Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Figure 1
to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this
manual for future reference
BAIL
START
BUTTON
KEY HOLE
MOTOR/BLADE
CONTROL ASSEMBLY
UPPER HANDLE
KEY
START BUTTON
KEY
UPPER HANDLE LOCK
LOWER HANDLE
GRASS CATCHER BAG
BATTERY DOOR
WIRE FIXED BUCKLE
LOWER HANDLE LOCK
HEIGHT ADJUSTMENT LEVER
Fig.1
9-English

Original instructions
ASSEMBLY INSTRUCTIONS
UNPACKING
•Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list
are included.
•Inspect the product carefully to make sure no breakage or damage occurred during shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Using a product with
damaged or missing parts could result in serious personal injury
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this product. Any such
alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal
injury
WARNING
Do not insert key until assembly is complete and you are ready to mow. Failure to comply could result in accidental
starting and possible serious personal injury
WARNING
To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the
product when assembling parts.
WARNING
Never operate the mower without the proper safety devices in place and working. Never operate the mower with
damaged safety devices. Operation of this product with damaged or missing parts could result in serious personal
injury.

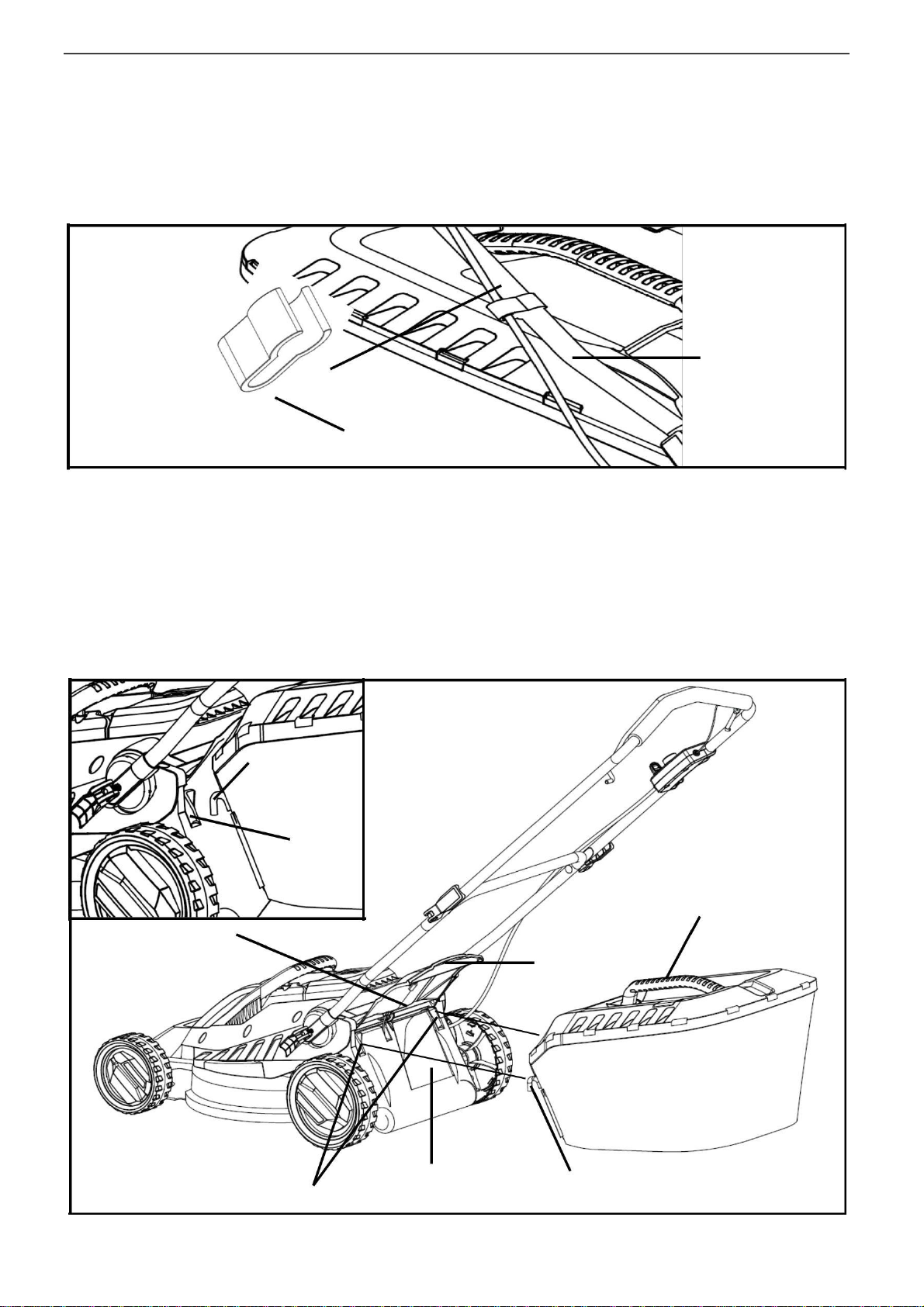

UNFOLDING AND ADJUSTING HANDLE ASSEMBLY (See Figure 2-3)
To raise handle assembly:
•Open the lower handle locks.
•Pull up and back on the lower handle until it is aligned with the slot between the handle locks and the mower
housing.
NOTE: If the lower handle is difficult to move, turn the lower handle locks counterclockwise to free the handle.
• To secure the lower handle in place, close the lower handle locks.
NOTE: If the lower handle is loose or does not seat completely in the slot, turn the lower handle locks clockwise
to secure the handle.
•Open the upper handle locks.
•Pull up and back on the upper handle to raise it into operating position. Make sure that the lower handle is seated
in the grooves at the bottom of the upper handle.
•To secure the upper handle in place, close the upper handle locks.
NOTE: If the upper handle is loose or separated from the lower handle, tighten the knobs on the upper handle locks by
turning them clockwise.
10-English
