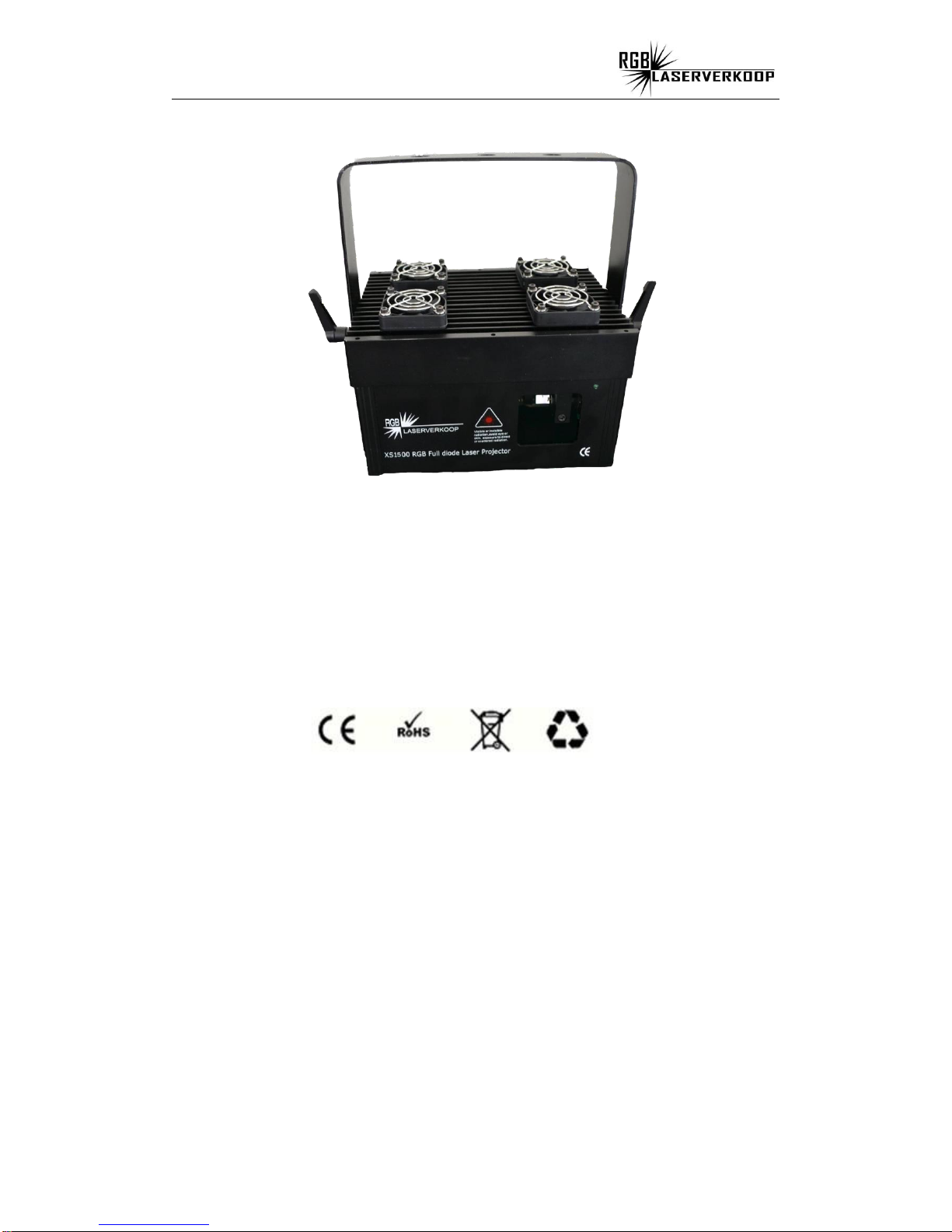

This product manual contains important information about the safe installation and use of this
product.Please read and follow these instruction carefully and keep this manual in a safe place for future
reference.
Security Warning
When unpacking and before disposing of the carton, check if there is any transportation
damage before using the product.Should there be any damage caused by
transportation,consult your dealer and do not use the apparatus.
This equipment is not waterproof, keep it from rain, moisture and liquids.
Do not install the product or project the beam onto inflammable surfaces. Minimum
distance is 5 M.
The product is only intended for installation, operation and maintenance by
qualified personnel.
Product should install in a cool place. Keep away from the wall 50cm
Avoid direct exposure to the light from the lamp.The light is harmful to eyes
Keep the optical system clean.Do not touch the laser reflect lens with bare hands.Do

User Manual for XS1500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 2 -
not use any alcohol liquid or any other liquit to clean the optical system.Use medicinal
absorbent cotton to clean it.
Please do not attempt to dismantle and/or modify the product inner
structure.Otherwise,would not provide 1 year of free warranty.
Electrical connection must only be carried out by qualified personnel.
Before installation,ensure that the voltage and frequency of power supply match the
power requirement of the product.
It is essential that each product is correctly earthed and that electrical installation
conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never
let the power-cord come into contact with other cables.Only handle the power-cord
by the plug.Never pull out the plug by tugging the power-cord
There is no user serviceable parts inside the product,do not open the housing and
never operate the product with the cover removed.
If you have any questions,don't hesitate to consult our dealer or manufacturer.
XS1500 laser projector adopts embedded technology which enable laser
moving,scaling,rotating,turn spin and gradually draw,animation,text,broken pen,wave
laser effect can be achieved easily.
Unique functions as following:
1. Through DMX-512 Controller,you can select auto or sound control mode or to play
built-in laser effects.
2.Through menu to set up scanner speed,laser color,X opposition,Y opposition
3.Unique sound control technology.Laser effect can response according to sound rhythm.
The second channel for three colors instructions :
The second channel for seven colors instruction :
Blank and Laser
off
0~5
Laser off
6~15
Red
16~25
Green
26~35
Yellow
36~105
single color(random ), values 105 is the fastest speed
106~175
3 color(random ), values 175 is the fastest speed
176~245
Flow color, values 245 is the fastest speed
246~255
default color

User Manual for XS1500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 3 -
Product technical parameters
Item NO: XS1500
1.Voltage:AC90~240V 50~60HZ±10%
2.Power consumption:80W
3.Laser source:Solid semi-conductor laser diode.
4.Laser power /wavelength: 1x 450mW Red (638nm)
1x 120 mW Green (520nm )
1 x 1000mW Blue (445nm )
5.Colors:RGB full color
6.Modulating signal: 0~20K Analogue
7.Laser Patterns:256 pieces built-in laser patterns
8.DMX Channel:12CH
9.Scanner system:20kpps
10.Control signal:DMX-512 international standard signal
11.Control mode:Music,auto,master-slave and DMX-512l,ILDA Control
12.Cooling system:fan
13.Operation environement :Indoor
14.Operation temperature:-10°C～40°C
15. Net Weight :3.5 kg
16.Dimension Size : 250 x 150 x 152 mm
Blank /laser off
0~5
Laser off
6~10
White
11~15
Red
16~20
Yellow
21~25
Green
26~30
Cyan
31~35
Blue
36~40
Violet
41~110
single color(random ), values 110 is the fastest speed
111~180
7 color(random ), values 180 is the fastest speed
181~250
Flow color, values 250 is the fastest speed
251~255
default color

User Manual for XS1500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 4 -
The Second channel for single color instruction :
DMX Channel Chart 12 CHS :
Channel
DMX 512 Figure
Control Function
1.Mode Select
0~49
Music Trigger
0--49
Music trigger
50--99
Auto trigger（Beam）
100--149
Auto trigger（Pattern）
160--199
Manual mode，Music trigger
200--255
Auto mode
2. Blank /Laser off
0--255
Single color (laser off-No blank- Flow blank-Strobe blank-- Default color---
0--255
3color (laser off—red—green--yellow--Default color—single color(random )—3
color(random)-Flow blank-default color)
3 . Pattern select
0--255
Max 256 pieces Patterns
4 X-axis
movement
0--127
Manual movement
128--191
Auto Move Down, The moving speed of the plunger proportional to the value
192--255
Auto Move Up, The moving speed of the plunger proportional to the value
5..Y-axis
Movement
0--127
Manual movement
128--191
Auto Move Right, The moving speed of the plunger proportional to the value
192--255
Auto Move Left, The moving speed of the plunger proportional to the value
6 X- axis rotation
0--127
Manual movement

User Manual for XS1500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 5 -
Product packing list
These items are packed together with the lighting fixture. Upon unpack,please check：
Laser light X 1 Set
Power cable X 1 Pcs
Product manual X 1 Pcs
DMX Connection method

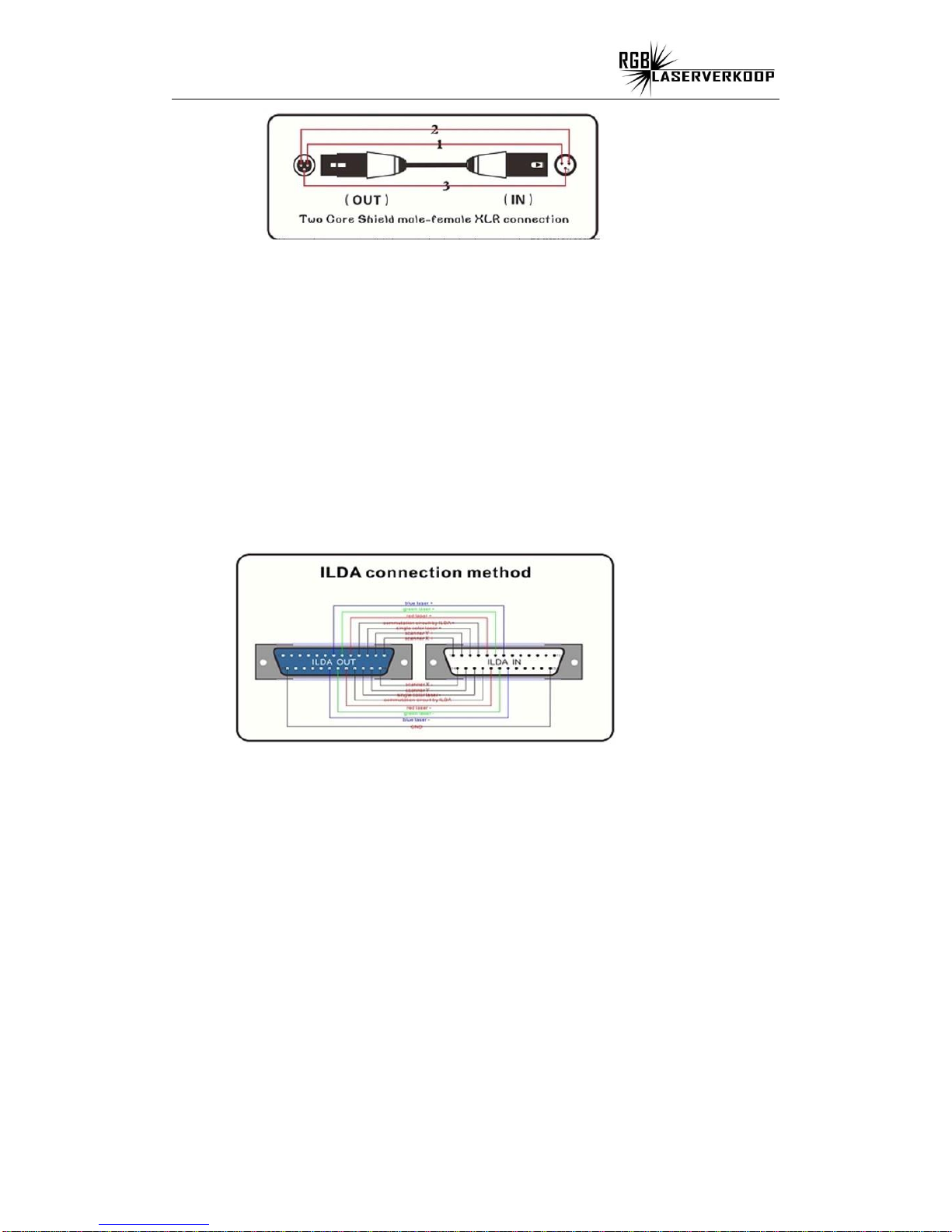

DMX control signal connection must be made with a two core-screened cable,with each core
having at least a 0.5mm diameter.Please use the product's signal cable OUT and IN as
connection.The signal OUT and IN cables connection shown as above picture.
Note:Please do not connect the signal cable OUT and IN in other way except above shown.
128--255
Auto rotate, The speed of the plunger proportional to the value
7.Y- axis rotation
0--127
Manual movement
128--255
Auto rotate, The speed of the plunger proportional to the value
8 .Pattern rotation
0--127
Manual movement
128--191
Clockwise motion, The speed of the plunger proportional to the value
192--255
Counterclockwise motion, The speed of the plunger proportional to the value
9 .Zoom
0--85
Pattern from small to larger, The speed of the plunger proportional to the value
86--170
Pattern from larger to small , The speed of the plunger proportional to the value
171--255
Auto loop zoom, The speed of the plunger proportional to the value
10 .Pattern size
0--255
0—Default size,1-- Minimum size,255-- Maximum size
11.Dot display
0--255
Dot not display,1—Dot Minimum brightness display
255—Dot Maximum brightness display
12.Slow draw
0--127
Auto Slow draw 1, The speed of the plunger proportional to the value
128--255
Auto Slow draw 2, The speed of the plunger proportional to the value
Blank/Laser off
0~15
laser off
16~25
no blank
26~135
Color flow effect, values 135 is the fastest flow speed
136~245
Strobe effect, values 245 is the fastest speed
246~255
default blank

User Manual for XS1500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 6 -

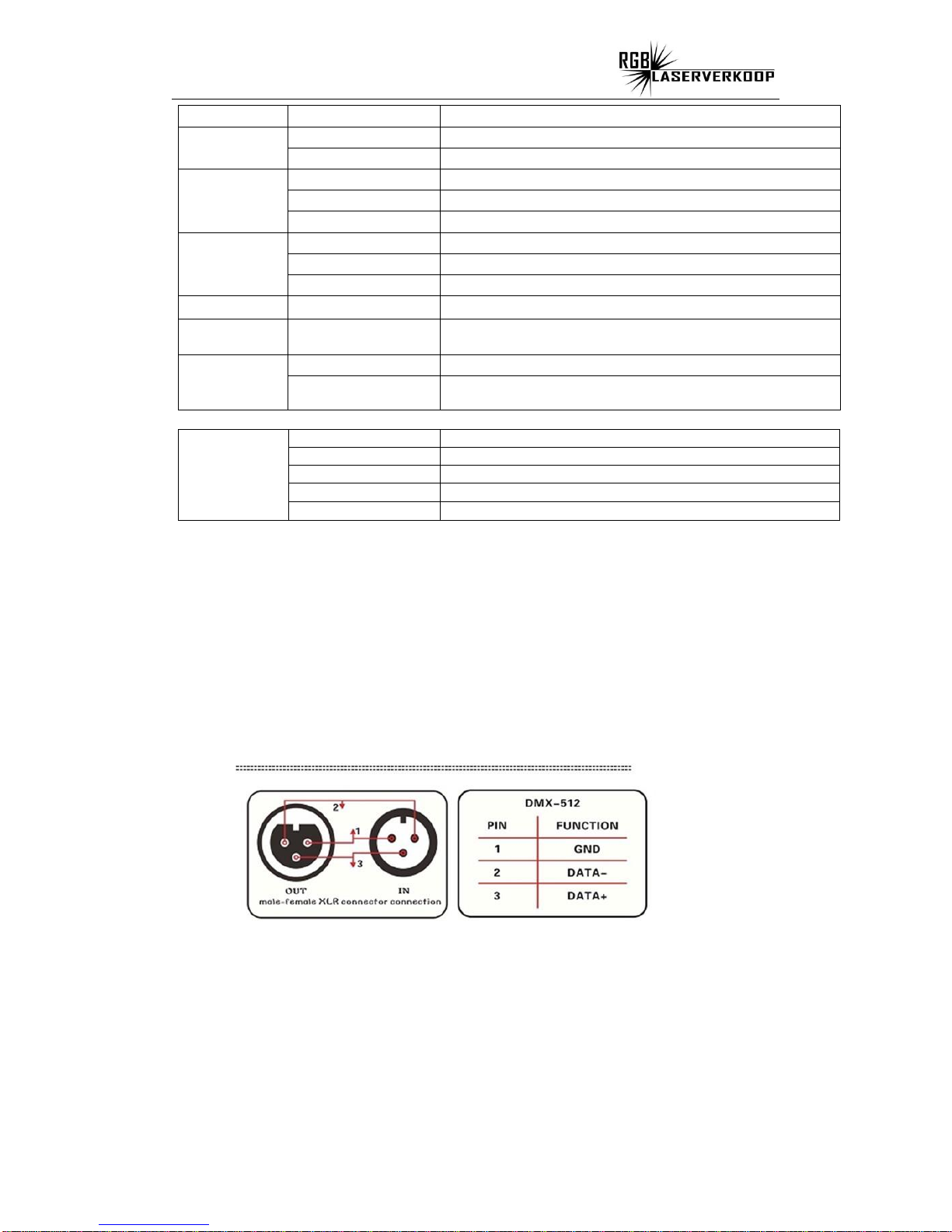

This product accepts digital control signals in protocol DMX512(1990).The amount of
lighting fixtures connected in parallel is no more than 32.Connect the DMX
controller's Output to the first lighting fixture's Input cable with a 2 core XLR signal cable(Shown as
above ),connect the first lighting fixture's Output cable to the second lighting fixture's Input cable
and connect the rest light fixtures in the same way.Eventually,connect the last lighting
fixture's Output cable to a DMX terminator
Under DMX-512 signal control mode,the last lighting fixture's DMX Output must be connected with a
DMX terminator.This prevents electrical noise from disturbing and corrupting the DMX control
signals.The DMX terminator is simply an XLR connector with a 120(ohm ) resistor connected
across pins 2 and 3,which is then plugged into the output socket on the last projector in the
chain.Then connections are illustrated above.
ILDA control signal connection method:
Connection built through product male/female DB 25 degree socket.Like above
picture. In addition to the above connections, ILDA signal cannot be connected in any other way.
ILDA control mode
Connect ILDA signal,the lighting fixtures will automatically switchover to ILDA
working mode.This lighting fixtures' ILDA signal cable connection way is compliant to
international standard.
DMX Channel Chart :

User Manual for XS1500
RGBLASER VERKOOP
Lierderholthuisweg 27
8144 RG Lierderholthuis
The Netherlands / Holland
- 7 -
DIP switch: Address 1-10 Pin
Maintenance
To prolong the life of the product,it is very important to do maintenance work.The
environment is hash outdoors,or if the product is idle for a long time,damp,smoke or
particularly dirty surroundings can cause greater accumulation of dirt on its cover and
housing.So it should be cleaned to maintain an optimum light output and at the same time to
prevent it from corrupted by acid gas.
Friendly notice:Do not use any organic solvent,e.g.alcohol to clean housing of
the apparatus.
Troubleshooting
Note: This product is under warranty for 1 year(From the date of delivery), 1
years after can provide paid maintenance services.But if it is because of natural
disasters or user's operation not according to manual.We won't provide warranty.
1 ~ 10
Function
0,0,0,0,0,0,0,0,0,0
Sound Mode
1,0,0,0,0,0,0,0,0,0
Auto Mode
0,0,1,0,0,0,0,0,0,0
Slave Mode
1,1,0,0,0,0,0,0,0,0
Graphic Mode
x,x,x,x,x,x,x,x,x,1
DMX 512 Control
Problems
Action
The product doesn't
switch on
Power connection is not correct.Re-connect the power.
Power supply is damaged or abnormal.Call a qualified personnel to
fix it.
Connection of control board is not correct.Call a qualified personnel
to fix it.
The product can turn
on,but no light coming out.
Control mode is wrongly setting up.Resetting it according to
instruction book
Control section is damaged.Call a qualified personnel to fix it.
The beam appears dim
The product is too hot.Take ventilation measures to make it cool.
