Rollei RVS1500 User manual

RVS2000_EN_CD__cover 04.9.21, 8:58 AM7

IMPORTANT
For your assistance in reporting the loss or
theft of your Projector, please record the
Model and Serial Number located on the
bottom of the projector and retain this
information. Before recycling the packag-
ing, please be sure that you have checked
the contents of the carton thoroughly
against the list of “Supplied accessories”
on page 11.
Model No.:
Serial No.:
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporat-
ing a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362
fuse marked or and of the same rating as above, which is also indicated on the pin
face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse
cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug
supplied, cut off the mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immedi-
ately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket
outlet, as a serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the
coloured markings identifying the terminals in your plug proceed as follows:
•The wire which is coloured green-and-yellow must be connected to the terminal in the
plug which is marked by the letter E or by the safety earth symbol or coloured green or
green-and-yellow.
•The wire which is coloured blue must be connected to the terminal which is marked with
the letter N or coloured black.
•The wire which is coloured brown must be connected to the terminal which is marked with
the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
RVS2000_EN_CD_a 04.9.21, 8:37 AM2

RVS2000_EN_CD_a 04.9.21, 8:37 AM3

The supplied CD-ROM contains operation instructions in English, German, French,
Spanish, Italian, Dutch and Japanese. Carefully read through the operation instructions
before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch,
Spanisch, Italienisch, Niederländisch und Japanisch. Bitte lesen Sie die Bedienungsanleitung
vor der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand,
français, espagnol, italien, néerlandais et japonais. Veuillez lire attentivement ces
instructions avant de faire fonctionner le projecteur.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán,
francés, español, italiano, holandés y japonés. Lea cuidadosamente las instrucciones de
operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese,
spagnolo, italiano, olandese e giapponese. Leggere attentamente le istruzioni per l’uso
prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Spaans,
Italiaans, Nederlands en Japans. Lees de handleiding zorgvuldig door voor u de
projector in gebruik neemt.
RVS2000_EN_CD_a 04.9.21, 8:37 AM4

1
Before using the projector, please read this operation manual carefully.
WARNING: High brightness light source. Do not stare into the beam of light, or view
directly. Be especially careful that children do not stare directly into the
beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture.
The lightning flash with arrowhead sym-
bol, within an equilateral triangle, is in-
tended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product’s enclosure that may
be of sufficient magnitude to constitute
a risk or electric shock to persons.
The exclamation point within a triangle
is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the product.
Introduction ENGLISH
See bottom of projector.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector enters
standby mode. During normal operation, when putting the projector into standby mode always
use the ON/STANDBY button on the projector or on the remote control. Ensure the cooling fan has
stopped before disconnecting the power cord.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING
THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.
WARNING:
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
CAUTION ON LITHIUM BATTERY (for Remote Control unit)
If a battery is reversed (positive end where the negative end belongs and vice versa), it can
overheat and rupture. This has happened when young children install batteries backwards.
Warn children
not to take out batteries or install them. Parents should install the lithium
battery in the remote control.
RVS2000_EN_CD_b 04.9.21, 8:42 AM1

2
Caution Concerning Lamp Replacement
See “Replacing the Lamp”on page 55.
LAMP REPLACEMENT WARNING:
TURN OFF THE LAMP AND DISCONNECT POWER CORD
BEFORE OPENING THIS COVER.
HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE
REPLACING THE LAMP. REPLACE WITH SAME ROLLEI LAMP
UNIT MODEL “RVSLAMP1” ONLY.
ETEINDRE LA LAMPE ET DEBRANCHER LE CORDON
D’ALIMENTATION AVANT D’OUVRIR LE COUVERCLE.
L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD,
ATTENDRE 1 HEURE AVANT DE PROCEDER AU
REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR
UNE LAMPE ROLLEI DE MODÈLE “RVSLAMP1”.
HIGH PRESSURE LAMP:
RISK OF EXPLOSION. POTENTIAL HAZARD OF GLASS
PARTICLES IF LAMP HAS RUPTURED.
HANDLE WITH CARE. SEE OPERATION MANUAL.
LAMPE A HAUTE PRESSION:
RISQUE D’EXPLOSION.
DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS
D’ECLATEMENT DE LA LAMPE. A MANIPULER AVEC
PRECAUTION. SE REPORTER AU MODE D’EMPLOI.
AVERTISSEMENT-REPARATEUR:
SE PROTEGER LES YEUX ET LA PEAU DES RADIATIONS
LORS DES REPARATIONS.
SERVICEMAN-WARNING:
USE RADIATION EYE AND SKIN PROTECTION DURING
SERVICING.
AVERTISSEMENT CONCERNANT LE
REMPLACEMENT DE LA LAMPE:
This Rollei projector uses a DMD panel. This very sophisticated panel contains 786,432
(RVS2000) / 480,000 (RVS1500) pixels micromirrors. As with any high technology electronic
equipment such as large screen TVs, video systems and video cameras, there are certain
acceptable tolerances that the equipment must conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots
on the picture screen. This will not affect the picture quality or the life expectancy of the unit.
RVS2000_EN_CD_b 04.9.21, 8:42 AM2

3
36
Using the Menu Screen
Menu Selections (Adjustments)
The menu can be operated to achieve two functions, adjustment and setting. (For setting the menu
items, see pages 38 and 39.)
Example: Adjusting “Bright”.
•This operation can also be performed by using the buttons on the projector.
Press BMENU.
•The “Picture”menu screen for the se-
lected input mode is displayed.
MOUSE/Adjustment
button (P/R/O/Q)
Example: “Picture”screen menu for INPUT 1
(RGB) mode
Press Qor Oto display the other
menu screen.
•The selected menu item is highlighted.
1
2
ENTER button
RETURN button
Menu item
Picture Mode
Contrast 0
0
0
0
K7500
SCR - ADJ PRJ - ADJ Help
Bright
Red
Blue
CLR Temp
Bright Boost
sRGB
Off
Standard
Off
Reset
SEL./ADJ. ENTER END
MENU/HELP
button
Operating with the projector
When “PRJ - ADJ”- “Guide LEDs”is set to “On”, the buttons used for menu adjustment on the
projector light up.
Example: When W, Yand the MENU/HELP button light up on the projector, you can use those
buttons for operation.
Adjustment buttons (W/Y/V/X)
MENU/HELP button
ENTER button
How to Read this Operation Manual
■The specifications of the RVS2000 are slightly different from those of the RVS1500, however,
you can connect and operate both models in the same manner. This operation manual uses the
RVS1500 for the purpose of explanation.
•In this operation manual, the illustration and the screen display are simplified for explanation, and
may differ slightly from actual display.
Info ........Indicates safeguards for using the projector.
For Future Reference
Buttons used in
this operation
On-screen
display
Button used in
this step
Note.........Indicates additional information for setting up and operating the
projector.
IndexMaintenance Troubleshooting
P. 65P. 5 2 PP. 60 and 61
RVS2000_EN_CD_b 04.9.21, 8:43 AM3

4
Contents
Preparing
Introduction
How to Read this Operation Manual .... 3
Contents ............................................... 4
IMPORTANT SAFEGUARDS ............... 6
How to Access the PDF Operation
Manuals ............................................ 10
Accessories ........................................ 11
Part Names and Functions ................. 12
Inserting the Lithium Battery ................ 14
Usable Range ...................................... 15
Quick Start
Quick Start .......................................... 16
Using
Basic Operation
Turning the Projector On/Off .............. 26
Turning the Projector on ....................... 26
Turning the Power off (Putting the
Projector into Standby Mode) ........... 26
Image Projection ................................. 27
About the Setup Guide ........................ 27
Adjusting the Projected Image ............ 27
Switching the Input Mode .................... 29
Adjusting the Volume ........................... 29
Displaying the Black Screen and Turning
off the Sound Temporarily ................. 29
Resize Mode ......................................... 30
Useful Features
Adjusting/Operating with the
Remote Control ................................ 32
Auto Sync (Auto Sync Adjustment) ..... 32
Freezing a Moving Image .................... 32
Selecting the Picture Mode .................. 32
Using Mouse Function ......................... 33
Menu Items ......................................... 34
Using the Menu Screen ...................... 36
Menu Selections (Adjustments) ........... 36
Menu Selections (Settings) .................. 38
Setup
Setting up the Projector ...................... 18
Setting up the Projector ....................... 18
Standard Setup (Front Projection) ....... 18
Projecting a Reversed Image .............. 18
Screen Size and Projection Distance
(RVS2000) .......................................... 19
Screen Size and Projection Distance
(RVS1500) .......................................... 20
Connections
Connections ........................................ 21
Samples of Cables for Connection ..... 22
Connecting to a Computer ................. 23
Connecting to Video Equipment ......... 24
Connecting the Power Cord ............... 25
Picture Adjustment (“Picture”menu) .. 40
Selecting the Picture mode .................. 40
Adjusting the Image ............................. 40
Adjusting the Color Temperature ......... 41
Emphasizing the Contrast .................... 41
Progressive ........................................... 42
sRGB Setting ........................................ 42
Adjusting the Projected Image
(“SCR - ADJ”menu) ......................... 43
Setting the Resize Mode ...................... 43
Adjusting the Image Position ............... 43
Keystone Correction ............................ 44
Setting On-screen Display ................... 44
Selecting the Background Image ........ 45
Setting the Setup Guide ....................... 45
Reversing/Inverting Projected
Images ............................................... 46
Selecting the On-screen Display
Language ........................................... 46
Setting the Projector Function
(“PRJ - ADJ”menu) .......................... 47
Eco/Quiet Mode ................................... 47
Auto Search Function ........................... 47
Auto Power Off Function ...................... 48
Setting the Guide LEDs ........................ 48
System Lock Function .......................... 49
Setting/Changing the keycode ............ 49
Setting the Confirmation Sound ........... 50
Checking the Lamp Life Status ........... 50
Troubleshooting with “Help”menu ...... 51
Displaying “Help”menu screen .......... 51
RVS2000_EN_CD_b 04.9.21, 8:43 AM4

5
Reference
Appendix
Maintenance ....................................... 52
Maintenance Indicators ...................... 53
Regarding the Lamp ........................... 55
Lamp ..................................................... 55
Caution Concerning the Lamp ............ 55
Replacing the Lamp ............................. 55
Removing and Installing
the Lamp Unit .................................... 56
Resetting the Lamp Timer .................... 57
Connecting Pin Assignments ............. 58
Computer Compatibility Chart ............ 59
Troubleshooting .................................. 60
For Rollei Assistance .......................... 62
Specifications ..................................... 63
Dimensions ......................................... 64
Index ................................................... 65
RVS2000_EN_CD_b 04.9.21, 8:43 AM5

6
1. Read Instructions
All the safety and operating instructions should
be read before the product is operated.
2. Retain Instructions
The safety and operating instructions should be
retained for future reference.
3. Heed Warnings
All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be
followed.
5. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example,
near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a
swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may
fall, causing serious injury to a child or adult, and
serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with
the product. Any mounting of the product should
follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the
manufacturer.
9. Transportation
A product and cart
combination should be
moved with care. Quick
stops, excessive force,
and uneven surfaces may
cause the product and cart
combination to overturn.
IMPORTANT SAFEGUARDS
10. Ventilation
Slots and openings in the cabinet are provided
for ventilation to ensure reliable operation of the
product and to protect it from overheating, and
these openings must not be blocked or covered.
The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar
surface. This product should not be placed in a
built-in installation such as a bookcase or rack
unless proper ventilation is provided or the
manufacturer’s instructions have been adhered
to.
11. Power Sources
This product should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your home, consult your product dealer
or local power company. For products intended
to operate from battery power, or other sources,
refer to the operating instructions.
12. Grounding or Polarization
This product is provided with one of the following
types of plugs. If the plug should fail to fit into the
power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with
a grounding terminal.
This plug will only fit into a grounding type
power outlet.
13. Power-Cord Protection
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from
the product.
14. Lightning
For added protection for this product during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from
the wall outlet and disconnect the cable system.
This will prevent damage to the product due to
lightning and power-line surges.
CAUTION: Please read all of these instructions before you operate this product
and save these instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered
and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN
POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the
safeguards incorporated in this product, observe the following basic rules for its installation,
use and servicing.
RVS2000_EN_CD_b 04.9.21, 8:43 AM6

7
15. Overloading
Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can
result in a risk of fire or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short-out parts that could result
in a fire or electric shock. Never spill liquid of any
kind on the product.
17. Servicing
Do not attempt to service this product yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled, or objects have fallen
into the product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the
operating instructions, as an improper
adjustment of other controls may result in
damage and will often require extensive work
by a qualified technician to restore the product
to normal operation.
e. If the product has been dropped or damaged
in any way.
f. When the product exhibits a distinct change
in performance, this indicates a need for
service.
•DLP\(Digital Light Processing) and DMD\(Digital Micromirror Device) are trademarks
of Texas Instruments, Inc.
•Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States and/or other countries.
•PC/AT is a registered trademark of International Business Machines Corporation in the
United States.
•Adobe Reader is a trademark of Adobe Systems Incorporated.
•Macintosh is a registered trademark of Apple Computer, Inc. in the United States and/or
other countries.
•All other company or product names are trademarks or registered trademarks of their
respective companies.
•Some IC chips in this product include confidential and/or trade secret property belonging
to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute,
reverse engineer, reverse assemble or discompile the contents thereof.
19. Replacement Parts
When replacement parts are required, be sure
the service technician has used replacement
parts specified by the manufacturer or have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this
product, ask the service technician to perform
safety checks to determine that the product is in
proper operating condition.
21. Heat
This product should be situated away from heat
sources such as radiators, heat registers, stoves,
or other products (including amplifiers) that
produce heat.
RVS2000_EN_CD_b 04.9.21, 8:43 AM7

8
Be sure to read the following safeguards when setting
up your projector.
Caution concerning the lamp unit
■Potential hazard of glass par-
ticles if lamp ruptures.In case
of lamp rupture, contact your
nearest Rollei Authorized
Projector Dealer or Service
Center for a replacement.
See “Replacing the Lamp”on
page 55.
Caution concerning the setup of the pro-
jector
■For minimal servicing and to maintain high
image quality, Rollei recommends that this
projector be installed in an area free from hu-
midity, dust and cigarette smoke. When the
projector is subjected to these environments,
the vents and lens must be cleaned more of-
ten. As long as the projector is regularly
cleaned, use in these environments will not
reduce the overall operation life of the unit.
Internal cleaning should only be performed
by a Rollei Authorized Projector Dealer or Ser-
vice Center.
Do not set up the projector in places ex-
posed to direct sunlight or bright light.
■Position the screen so that it is not in direct
sunlight or room light. Light falling directly on
the screen washes out the colors, making
viewing difficult. Close the curtains and dim
the lights when setting up the screen in a
sunny or bright room.
Caution regarding placing of the projec-
tor.
■Place the projector on a level site within the
adjustment range of the adjustment foot.
Do not turn the projector upside down
immediately after putting into standby
mode.
■This may cause burns due to rise in tempera-
ture of the lamp unit cover.
Warning about placing the projector in
a high position
■When placing the projector in a high position,
be sure to secure it carefully to avoid per-
sonal injury caused by the projector falling
down.
Do not subject the projector to hard im-
pact and/or vibration.
■Take care with the lens so as not to hit or
damage the surface of the lens.
Rest your eyes occasionally.
■Continuously watching the screen for long
hours will cause eye strain. Be sure to occa-
sionally rest your eyes.
Avoid locations with extremes of tem-
perature.
■The operating temperature of the projector is
from 41°F to 95°F (+5°C to +35°C).
■The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
Do not block the exhaust and intake
vents.
■Allow at least 11 13/16 inches (30 cm) of space
between the exhaust vent and the nearest
wall or obstruction.
■Be sure that the intake vent and the exhaust
vent are not obstructed.
■If the cooling fan becomes obstructed, a pro-
tection circuit will automatically put the pro-
jector into standby mode to prevent overheat
damage. This does not indicate a malfunc-
tion. (See pages 53 and 54.) Remove the pro-
jector power cord from the wall outlet and wait
at least 10 minutes. Place the projector where
the intake and exhaust vents are not blocked,
plug the power cord back in and turn on the
projector. This will return the projector to the
normal operating condition.
■When turning off the projector, the cooling fan
runs to decrease the internal temperature for
a while. Unplug the power cord after the cool-
ing fan stops.The period the cooling fan runs
will vary, depending on the circumstances and
the internal temperature.
RVSLAMP1
RVS2000_EN_CD_b 04.9.21, 8:43 AM8

9
Caution regarding transportation of the
projector
■When transporting the projector, be sure not
to subject it to hard impact and/or vibration,
as this can result in damage.Take extra care
with the lens. Before moving the projector,
be sure to unplug the power cord from the
wall outlet, and disconnect any other cables
connected to it.
■Do not carry the projector by holding the lens.
■When transporting the projector, be sure to
place the projector in the supplied soft case.
(See page 11.)
Other connected equipment
■When connecting a computer or other audio-
visual equipment to the projector, make the
connections AFTER unplugging the power
cord of the projector from the AC outlet and
turning off the equipment to be connected.
■Please read the operation manuals of the pro-
jector and the equipment to be connected for
instructions on how to make the connections.
Using the projector in other countries
■The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, be sure
to use an appropriate power cord for the coun-
try you are in.
Temperature monitor function
■ If the projector starts to overheat due to setup
problems or blockage of the air vents, “ ” and
“ ” will illuminate in the lower left corner
of the picture. If the temperature continues to
rise, the lamp will turn off, the temperature warn-
ing indicator on the projector will blink, and af-
ter a 90-second cooling-off period the projector
will enter standby mode. Refer to “Maintenance
Indicators”on page 53 for details.
Info
•The cooling fan regulates the internal tem-
perature, and its performance is automatically
controlled. The sound of the fan may change
during projector operation due to changes in
the fan speed.This does not indicate malfunc-
tion.
•Do not unplug the power cord during projec-
tion or cooling fan operation. This can cause
damage due to rise in internal temperature,
as the cooling fan also stops.
RVS2000_EN_CD_b 04.9.21, 8:43 AM9

10
PDF operation manuals in several languages are included in the CD-ROM,
so that you can work with the projector, even if you do not have this manual.
To utilize these manuals, you need to install Adobe Reader on your com-
puter (Windows or Macintosh).
Please download Adobe Reader from the Internet (http://www.adobe.com).
Accessing the PDF Manuals
For Windows:
1Insert the CD-ROM in the CD-ROM
drive.
2Double click the “My Computer”icon.
3Double click the “CD-ROM”drive.
4Double click the language (name of the
folder) that you want to view.
5Double click the “RVS”pdf file to access
the projector manuals.
•If the desired pdf file cannot be opened by double clicking the mouse, start Adobe
Reader first, then specify the desired file using the “File”, “Open”menu.
For Macintosh:
1Insert the CD-ROM in the CD-ROM
drive.
2Double click the “CD-ROM”icon.
3Double click the language (name of the
folder) that you want to view.
4Double click the “RVS”pdf file to access
the projector manuals.
How to Access the PDF Operation Manuals
Note
RVS2000_EN_CD_b 04.9.21, 8:43 AM10

11
Accessories
Remote control
Lithium battery
(CR2025) RGB/USB cable
(6'(1.8 m))
Soft case
• Projector manual CD-ROM
• Operation manual (this manual)
Optional accessory
■Lamp unit RVSLAMP1
Supplied accessories
Power cord
(6'(1.8 m))
• This optional accessory may not be available depending on the region. Please check with your
nearest Rollei Authorized Projector Dealer or Service Center.
Note
Cable tieK2
• For the RGB/USB
cable
• For the power cord
Carrying the Projector
Using the Soft Case
Tying the Cables
Power cord RGB/USB cable
• You cannot store the supplied
cables within the soft case. When
transporting the projector, pre-
pare a bag for these cables.
Note
• Be sure the projector has cooled down sufficiently before
placing it in the case.
• This soft case is only for storing and carrying the projector.
• Shipping the projector in the soft case as a parcel may cause
damage to the projector. If you send the projector in the carry-
ing case as a parcel, be sure to place it in a sturdy case and
with enough shock absorbing material to avoid any damage.
Info
Tie the cable using the supplied
cable ties.
RVS2000_EN_CD_c 04.9.21, 8:44 AM11

12
36
36
54 54
36
51
29
28
28
27
15
27
26
54
29
Top View
ON/STANDBY button
For turning the power
on and putting the
projector into standby
mode.
Lamp indicator Temperature warning
indicator
Adjustment buttons
(W/Y/V/X)
For selecting menu
items.
Volume buttons (V/X)
For adjusting the
speaker sound level.
ENTER button
For setting items
selected or adjusted
on the menu.
MENU/HELP button
For displaying
adjustment and
setting screens, and
help screen.
Front View
Focus ring
For adjusting the
focus.
Zoom knob
For enlarging/
reducing the
picture.
INPUT button (W/Y)
For switching input mode
1, 2 or 3.
Remote control sensor
HEIGHT ADJUST
button
Numbers in Zrefer to the main pages in this operation manual where the topic
is explained.

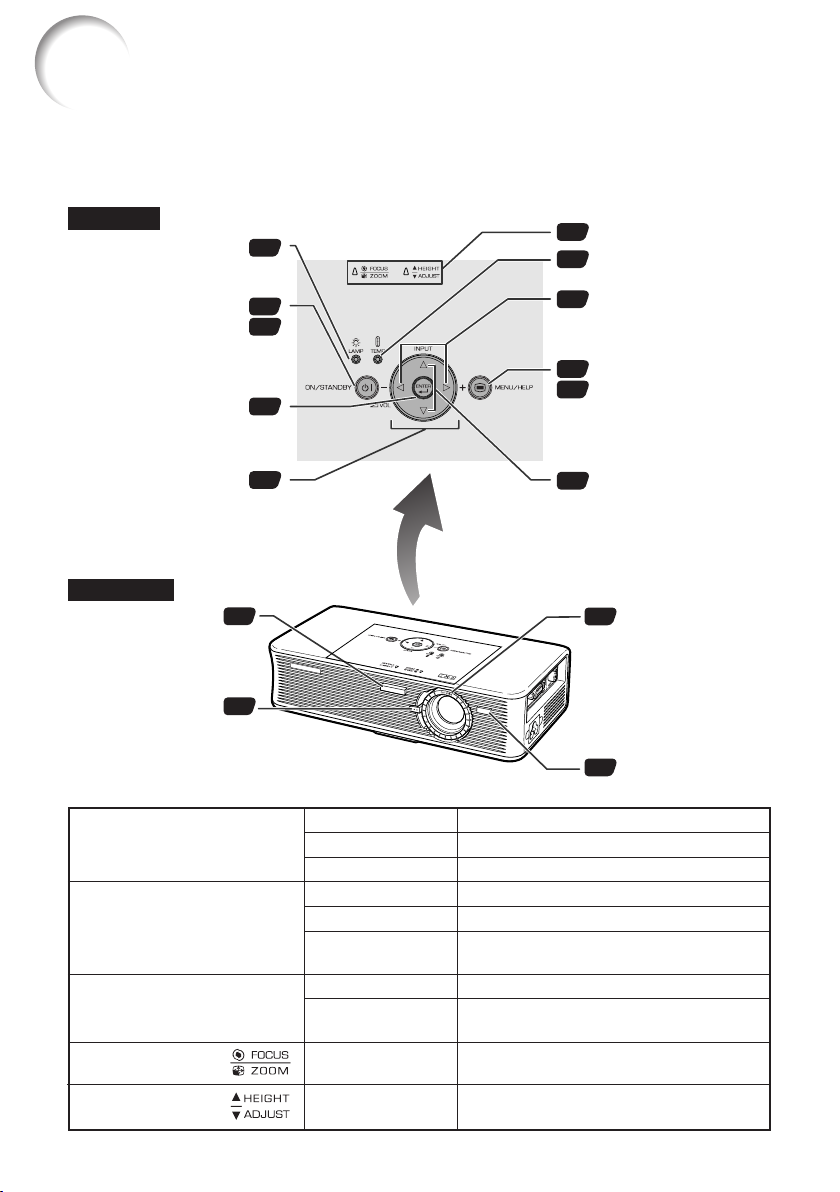

Part Names and Functions
Projector
Lamp indicator
Red on
ON/STANDBY button
Indicators on the Projector
Green on
Normal (Standby)
Normal (Power on)
Green on
Green blinks
Normal
The lamp is warming up or shutting down.
Temperature warning
indicator
Off
Red on
Normal
The internal temperature is abnormally
high. (See page 54.)
HEIGHT ADJUST
indicator
Orange blinks
FOCUS/ZOOM
indicator
Orange blinks
“1 FOCUS” or “3 ZOOM” is highlighted on
the Setup Guide. (See page 27.)
“2 HEIGHT ADJUST” is highlighted on the
Setup Guide. (See page 27.)
Red blinks Abnormal (See page 54.)
Red on The lamp is shut down abnormally or
requires to be changed. (See page 54.)
Setup Guide indicators
RVS2000_EN_CD_c 04.9.21, 8:44 AM12

13
33
52
15
23
23
24
25
24
25
25
28
52
Numbers in Zrefer to the main pages in this operation manual where the topic
is explained.
Terminals
Side View
Refer to “INPUT Terminals and Connectable Main Equipment” on page 21.
INPUT 1 terminal
Terminal for computer
RGB and component
signals.
AUDIO INPUT
terminal
INPUT 2 terminal
Terminal for connect-
ing video equipment
with an S-video
terminal.
INPUT 3 terminal
Terminal for connect-
ing video equipment.
Intake vent
Rear adjust-
ment foot
Kensington
Security
Standard
connector
AC socket
Connect the
supplied Power
cord.
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
USB terminal
Terminal connecting
with the USB
terminal on the
computer for using
the supplied remote
control as the
computer mouse.
Remote control
sensor
Exhaust vent
RVS2000_EN_CD_c 04.9.21, 8:44 AM13

14
Inserting the Lithium Battery
Insert the battery holder into the remote control.
Insert the supplied lithium battery (CR2025).
• Insert the lithium battery with the + side of the battery facing the
+ mark of the battery holder.
Pull the battery holder.
While pressing the tab (1), pull the battery holder
(2).
1
2
3
29
32
30
32
29
33
29
26 36
33
33
51
36
36
36
32
Part Names and Functions (Continued)
MOUSE/Adjustment
buttons (P/R/O/Q)
• For moving the computer
cursor when connecting
the projector USB terminal
to the computer with RGB/
USB cable.
• For selecting menu items.
L CLICK/ENTER button
• For the Left click when
connecting the projector
USB terminal to the
computer with RGB/USB
cable.
• For setting items selected
or adjusted on the menu.
AV MUTE button
For temporarily display-
ing the black screen and
turning off the sound.
RESIZE button
For switching the
screen size (NORMAL,
BORDER, etc.).
FREEZE button
For freezing images.
INPUT 1, 2, and 3
buttons
For switching to the
respective input
modes.
Volume buttons
For adjusting the
speaker sound level.
AUTO SYNC button
For automatically
adjusting images when
connected to a com-
puter.
R CLICK/RETURN button
• For the Right click when
connecting the projector
USB terminal to the
computer with RGB/USB
cable.
• For undoing an operation
or returning to the previous
display.
MENU/HELP button
For displaying adjustment
and setting screens, and
help screen.
ON/STANDBY button
For turning the power
on and putting the
projector into standby
mode.
Numbers in Zrefer to the main pages in this operation manual where the topic is explained.
PICTURE MODE
button
For switching the
picture mode.
• All the buttons on the remote control, except
the MOUSE/Adjustment button, are made of
luminous rubber, that is visible in the dark. (The
luminous light weakens over time.)
Note
4
+ mark
RVS2000_EN_CD_d 04.9.21, 8:45 AM14

15
Notes the Use of the Lithium Battery
• The signal from the remote control can be re-
flected off a screen for easy operation. How-
ever, the effective distance of the signal may
differ depending on the screen material.
When using the remote control
• Be sure not to drop, expose to moisture or
high temperature.
• The remote control may malfunction under a
fluorescent lamp. In this case, move the pro-
jector away from the fluorescent lamp.

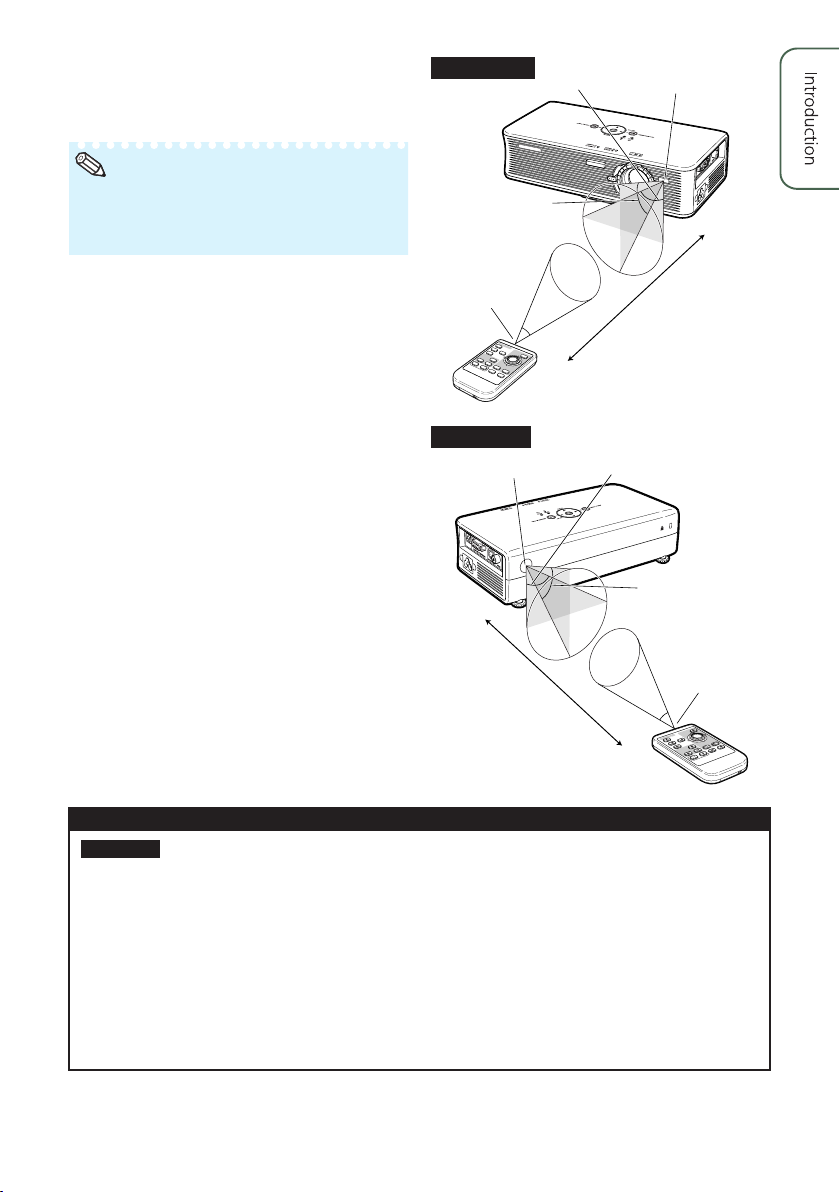

Usable Range
The remote control can be used to control the
projector within the ranges shown in the illustra-
tion.
Remote control sensor
Remote
control signal
transmitters
Remote control
13n(4 m)
30°
30°
30°
Note
Replacement of lithium battery
• Replace with a new battery (CR2025) if remote control operation often fails.
• When disposing the battery, follow the recycling or disposal regulations in your community.
CAUTION The battery used in this device may present a risk of fire of chemical burn if mis-
treated. Do not recharge, disassemble, heat above 212°F (100°C) , or incinerate. Replace bat-
tery with the type CR2025 only. Use of another battery may present a risk of fire or explosion.
Dispose of used battery promptly. Keep away from children. Do not disassemble and do not
dispose of in fire.
• See page 2for caution on the lithium battery.
• Do not short-circuit, recharge, disassemble, or heat the lithium battery.
• Should the lithium battery leak, wipe the battery compartment clean, and then insert a new
battery.
Front view
Rear view
Remote control sensor
Remote control
signal
transmitters
13n(4 m)
30°
30°
30°
RVS2000_EN_CD_d 04.9.21, 8:45 AM15

16

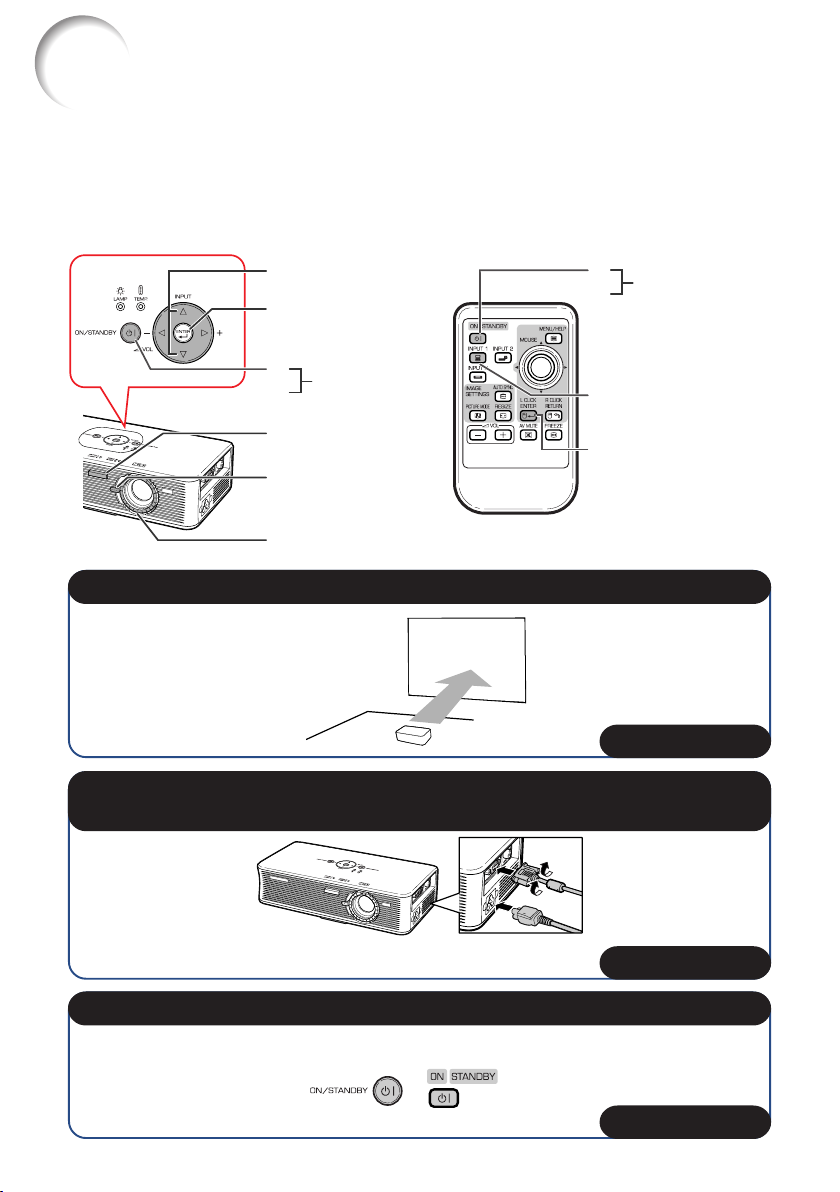

1. Place the projector facing a wall or a screen
Quick Start
This section shows the basic operation (projector connecting with the computer). For details, see
the page described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
When connecting equipment other than the computer, see
pages 24 and 25.
3. Press the ON/STANDBY button to turn the projector on
2. Connect the projector to the computer and plug the power cord
into the AC socket of the projector
On the projector On the remote control
INPUT 1 button
INPUT button
ON/STANDBY
button
HEIGHT
ADJUST button
Focus ring
Zoom knob
ON/STANDBY
button
_P. 18
_PP. 21–25
_P. 26
ENTER button
ENTER button
5
4
3
6
4
4
4
3
6
5
4
RVS2000_EN_CD_e 04.9.21, 8:46 AM16
