S.E.A. Group RESCUE Intellitech DeconFilter Pro S User manual
Installation, user instructions and service
DeconFilter™ Pro S – Manual
2
Content
2 General Description and Safety 4
2.1 To the user 4
2.2 Safety regulations 4
2.3 Limited Warranty 4
2.4 Limitation of Liability 5
3 Technical data 5
3.1 Installation drawing 6
3.1 Installation drawing – Wall Mount 6
4 Installation 7
4.1 Mounting the filter rack 7
4.2 Pressure gauge 9
4.3 Tank installation 9
4.4 Filter cartridge installation 13
5 Operation 13
6 Service & Maintenence 14
6.1 Filter change interval 14
6.2 Replacement Cartridges 15
6.3 Replacement of Filter Cartridges 15
6.4 Cleaning 15
7 Spare parts list 17
4
2 General Description and Safety
2 General Description and Safety
2.1 To the user
The DeconFilter™ Pro S is designed with the express purpose of being used together with the Solo Rescue®
Decon Washer and shall not be used in any other context. It serves the purpose of filtering the contaminated
wash water from the Solo Rescue before flushing it out the drain.
This manual is your guide to the correct use of the DeconFilter™ Pro S.
RESCUE Intellitech recommends that you study the manual thoroughly to be sure that the filter system is used
correctly and safely.
Ensure that the manual is always available throughout the service life of the filter system.
RESCUE Intellitech disclaims any and all liability for any damages or injury to persons, property or otherwise
resulting from misuse or failure to follow instructions found in this Manual, failure to wear hand and face
protection when changing filter cartridges, and or replacing filters with cartridges that are not supplied by
RESCUE Intellitech or their appointed representatives.
2.2 Safety regulations
Scalding risk. The DeconFilter™ Pro S may contain hot, contaminated water. It may contain hazardous toxic
chemicals and carcinogens.
During filter changes and while performing service and maintenance...:
•...always wear eye protection
•...always wear protective gloves
•...always make sure the filter system is powered o by disconnecting the DeconFilter™ Pro S from the
electrical socket.
•...all use of the connected Solo Rescue®Decon Washers is prohibited.
2.3 Limited Warranty
RESCUE Intellitech warrants and represents that all of its products are free of defects in materials or
workmanship for a period of twelve (12) months from the date of delivery, subject to normal wear and tear and
provided that the relevant DeconFilter™ Pro S has been used in accordance with the instructions, manuals and
guidelines provided by RESCUE Intellitech (as amended from time to time).
In the event that a DeconFilter™ Pro S delivered by RESCUE Intellitech would not meet the requirements
under said limited warranty (that is, there would be a defect in materials or workmanship as shown within
a period of twelve months from the date of delivery), RESCUE Intellitech shall at its own cost and expense
either (i) redeliver the relevant DeconFilter™ Pro S (upon receipt of the defective product from the dealer and
confirmation of the defect) or (ii) remedy the relevant defect. RESCUE Intellitech shall, at its own discretion,
choose either one of remedy (i) or (ii).
Except for the limited warranty expressly stated above, neither RESCUE Intellitech nor any of its
representatives or aliates make any express or implied representation or warranty or condition with respect
to any DeconFilter™ Pro S or any other products delivered. RESCUE Intellitech disclaims any and all other
representations, warranties and conditions in any form whatsoever, whether express or implied, including
5
2 General Description and Safety
without limitation, the implied warranties of merchantability, title and/or fitness for a particular purpose.
The express limited warranty above is ONLY valid if the DeconFilter™ Pro S is installed by an authorized
representative of RESCUE Intellitech. If a DeconFilter™ Pro S would be installed, repaired or otherwise
modified by someone other than an authorized representative of RESCUE Intellitech, the limited warranty shall
immediately lapse.
2.4 Limitation of Liability
In no event shall RESCUE Intellitech, or any of its representatives or aliates, whether in contract, tort or
otherwise, be responsible or liable for any consequential, indirect, incidental, special, exemplary, or punitive
damages arising out of or in connection with the delivery of any DeconFilter™ Pro S products, or the use
thereof, regardless of (a) whether such damages were foreseeable, or (b) whether or not RESCUE Intellitech
was advised of the possibility of such damages.
Except for obligations to make payment under this agreement, each party’s aggregate liability arising out of or
related to this agreement, whether arising out of or related to breach of contract, tort (including negligence) or
otherwise, shall not exceed the total amount paid under this agreement during the 12-month period preceding
the event giving rise to the claim.
The limitations of liability set out herein shall not apply with respect to damages arising out of grossly negligent
acts or omissions or wilful misconduct or misuse.
3 Technical data
Dimensions H x W x D 1800 x 300 x 750 mm (71’’ x 12’ ’x 30’’)
Weight (empty) 70 kg (154 lbs)
Filer tank volume 130 liters (34 gallons)
Power supply EU: 5 m (16 ft) cable with Schuko plug included. Other regions: Please contact your local dealer
Rated Voltage 220–240 VAC single phase
Fuse 10 A
Frequency 50 Hz
Rated Power 0,55 kW (0.7 hp)
Drain hose connection 19 mm (3/4”), 6m (19 ft) hose included
Minimum drain capacity min. 35 l/min (9 gallons/min)
Drain outlet height on wall max. 1,5 m (5 ft)
Filtration technology Multi stage custom filtration including lint filter, particle filters and active carbon filter
Pump Stainless steel, high temp, handle solids up to 10 mm (0.4’’).
Capacity Up to 3 Solo Rescue Decon Washers
Options Wall mount accessory
Filter change recommendation Every three months, or according to pressure indicator. More often depending on application.
6
3 Technical data

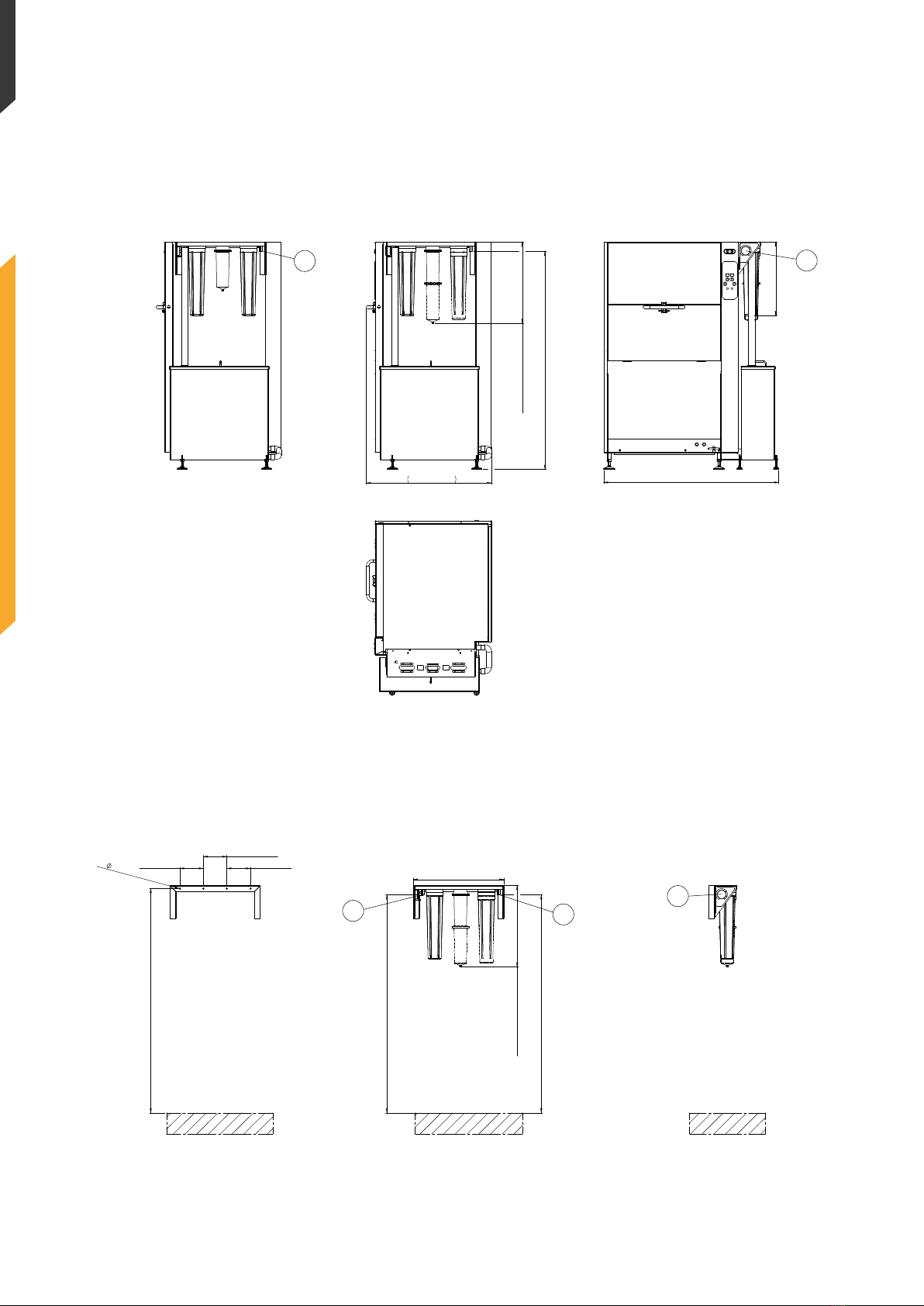

3.1 Installation drawing
A. Drain outlet/hose connection B. Pressure gauge
3.1 Installation drawing – Wall Mount
A. Inlet B. Drain outlet/hose connection C. Pressure gauge
565 mm / 22,3"
1340 mm / 52,8"
1/2
Checked By
and it is to be returned promtly upon request to GR ANULDISK AB.
This drawing contains confidential information and is the property
of GRANULDISK A B whithout whose permission it m ay not be
2021-10-19
Date
A2
Checked Date
1:10
0
Edition
Designed by Scale
Drawing number
Filter_Install
Sheet
copied, shown or handed to a third party or otherwise used,
GIS number
A2
Status Projection method
Additional Information
Outlet, depends on setting of machine feet
1670 mm / 65,8"
Decon washer max
955 mm / 37,6"
625 mm / 24,6"
Free space for filter exchange
695 - 1715 mm
27,4" - 67,5"
A2
Projection method
Checked DateChecked By Scale
Date
This drawing contains confidential information and is the property
and it is to be returned promtly upon request to GR ANULDISK AB.
of GRANULDISK A B whithout whose permission it m ay not be
Filter_Install
2021-10-19
1:10
0
Edition
Designed by Status
Drawing number
copied, shown or handed to a third party or otherwise used,
Sheet
2/2
GIS number
A2
Additional Information
Mounting of wall bracket
- Floor Level -
180 mm / 7"
180 mm / 7"
180 mm / 7"
4x 8 mm/ 0,32"
650 - 1670 mm
Not lower than drain
690 mm / 27,2"
Inlet (Dep. on mounting height)
Outlet (Dep. on mounting height)
25,6" - 65,8"
650 - 1670 mm
25,6" - 65,8"
625 mm / 24,6"
Free space for filter exchange
C
B
A
A
B
7
4 Installation
4 Installation
4.1 Mounting the filter rack
For filters mounted on the Solo Rescue –
go to section 4.1.1
For wall mounted filters – go to section 4.1.2
(Option, accessory needed)
4.1.1 Mounted on the Solo Rescue®
NOTE: Not applicable for Solo Rescue® 32-series,
use wall mount accessory instead. See section 4.1.2.
1. Unscrew the bolt holding the top cover on the
right side of the Solo Rescue® (Fig. 1)
2. Position the filter rack pins in the holes as
displayed in (Fig. 2)
3. Fasten the previously unscrewed bolt to fix the
filter rack on the Solo Rescue® (Fig. 3)
Figure 1
Figure 2
Figure 3
8
4 Installation
4.1.2 Mounted on the wall
Use wall mount accessory article number 27305.
IMPORTANT NOTE: Use suitable fastening (screws
and plugs) based on the construction of the wall
(not included in kit). Filter racks in operation weigh
approximately 30 kg (66 Ibs).
1. Remove the filter rack securing bolts (Fig. 4).
2. Make sure the wall mount is level. If drilling is
needed, make sure to mark where as displayed
in Fig. 5.
3. Fasten the wall mount on the wall using four
screws in the holes as displayed in Fig. 5.
3. Position the filter rack pins in the holes (Fig. 6).
4. Fasten the previously unscrewed rack securing
bolts to fix the filter rack on the wall mount (Fig. 7).
Figure 4
Figure 5
Figure 6
Figure 7
9
4 Installation
4.2 Pressure gauge
Without removing the pressure gauge from its
position, gently pierce a small hole in the rubber
cap on the top. (Fig. 8 & 9).
Figure 8
Figure 9
4.3 Tank installation
1. On the right hand side of the Solo Resce®,
loosen the nuts on the levelling feet and
position the tank. Fixate it by tightening the nuts
again (Fig. 10).
2. Make sure the tank is in level by adjusting its
feet (Fig. 11).
Continues on next page –>
Figure 10
Figure 11
10
4 Installation
Figure 12
Figure 13
Figure 14
3. Once it is level, tighten the nuts on the tank feet
(Fig. 12).
4. Connect the included drain pipe connections
between the Solo Rescue® drain outlet and the
tank inlet (Fig. 13).
5. Place the provided submersible pump in the
tank and make sure the arrows on the anti-
rotation plate points to the front of the tank
(Fig. 14)
Continues on next page –>
11
4 Installation
Figure 15 Figure 16
Figure 17
Figure 18

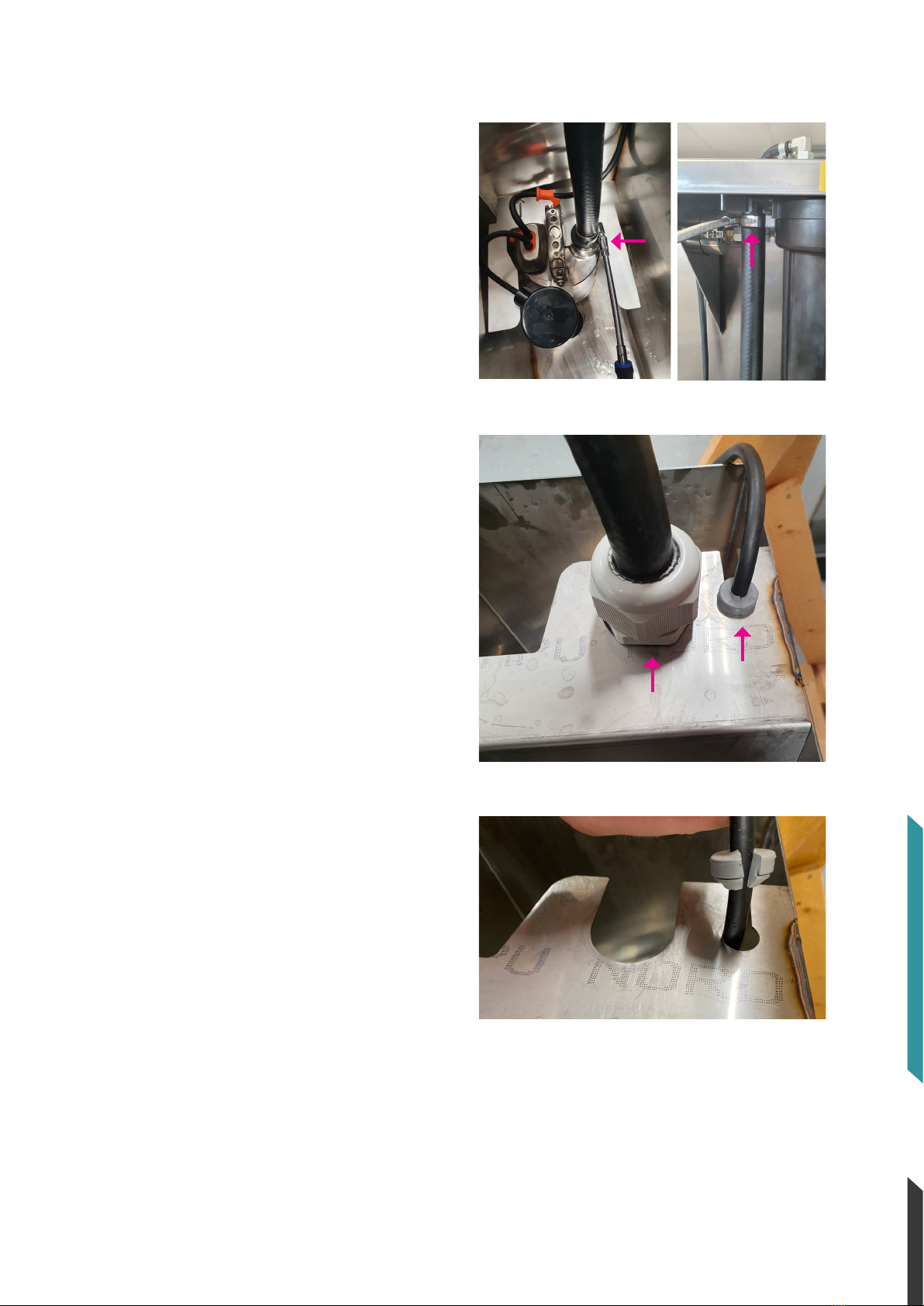

6. Cut the provided hose to suitable length from
pump outlet to filter inlet at filter housing #1 (Fig.
15 & 16).
7. Connect the hose to the pump outlet and
secure it with one of the provided hose clamps
(Fig. 15).
8. Pull the hose through the cable gland and
secure it to the tank using the locknut (Fig. 17).
9. Secure the power cable with the rubber
grommet (Fig. 17 & 18)
Continues on next page –>
12
4 Installation
10. Connect the hose to the inlet of filter housing #1
secure it with one of the provided hose clamps
(Fig. 19)
11. Use the remaining hose to connect the filter
system to the drain on site. Cut to suitable
length if needed. Connect the hose to the outlet
of filter housing #3 and secure it with one of the
provided hose clamps (Fig. 20).
12. Connect the other end of the hose to the drain/
floor drain according to local regulations.
Figure 19
Figure 20
Figure 21
IMPORTANT NOTES:
•Never use a drain hose longer than 6 m (18 ft).
•Height of wall mounted drain outlet must never
exceed 1,5 m/5 ft from the floor.
• Avoid sharp bends or blocking’s as it may limit
the output flow and cause a raised pressure in
the system.
13. Install lint filter with the sheet metal lip towards
the pump. Slide it down until it comes to a stop
(Fig. 21).
13
5 Operation
Figure 22

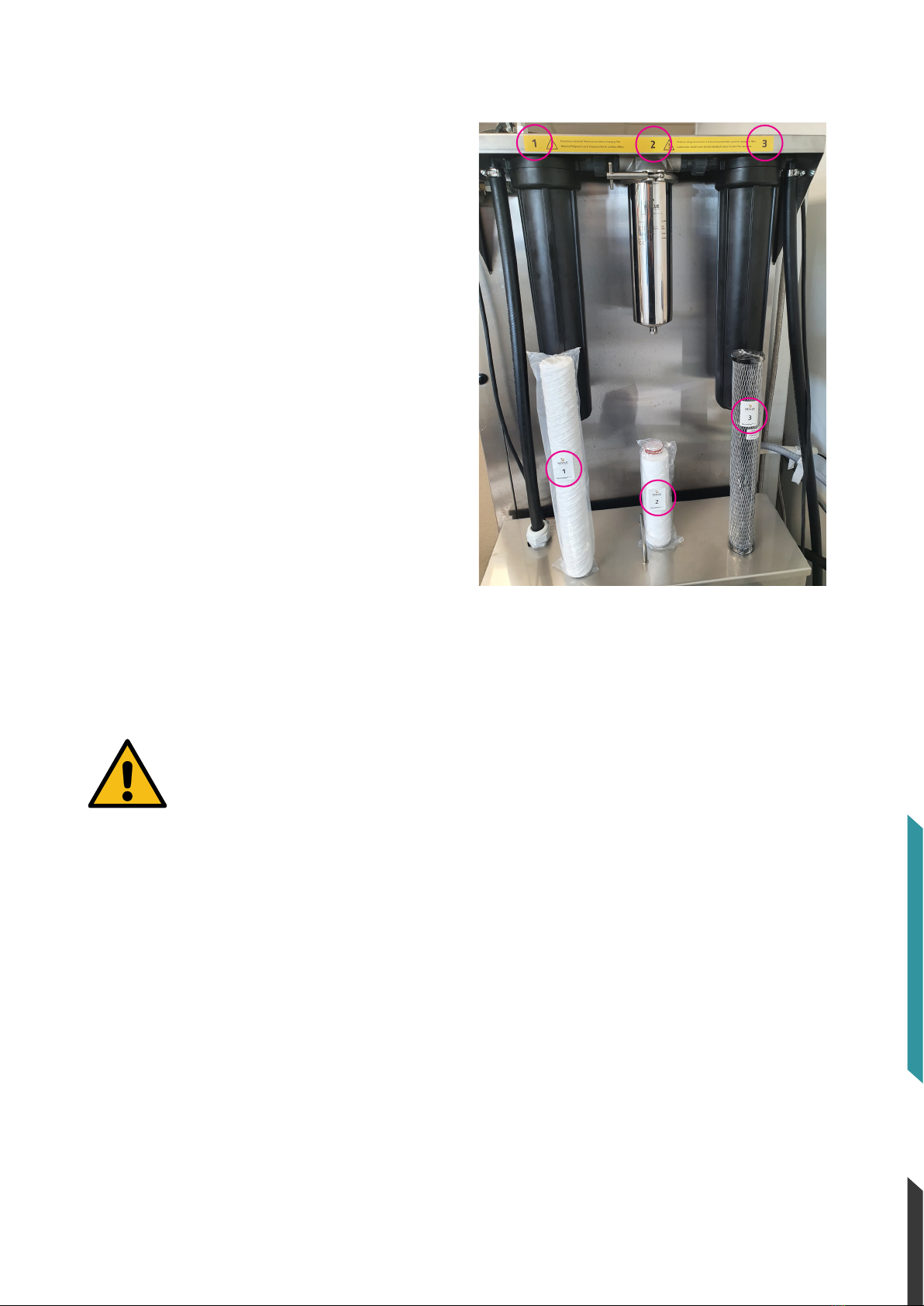

4.4 Filter cartridge installation
1. Unscrew the filter sumps and fit the filter
cartridges in their correct positions as
displayed in Fig. 22. Each filter housing and
corresponding filter cartridge is marked
with identical numbers to indicate its correct
position.
2. Remove the transparent wrapping on each
cartridge before it is mounted.
3. Filter cartridge #1 and #3 is mounted in the
center of the bottom of their corresponding
sumps. The sumps are then mounted to the
filter housing head by gently pushing the sump
upwards while rotating it clockwise.
4. When the cartridge is correctly mounted,
tighten the sump with a gentle twist.
5. To fit filter cartridge #2, use some water to
lubricate the O-rings on the top of the cartridge
and push it by hand all the way to the top of
the center socket of the #2 filter housing head.
Mount the sump with the clamp and tighten it by
hand.
NOTE: Filter break in – it takes a couple of water
changes from the Solo Rescue before the new filter
cartridges reaches their full filtering performance.
5 Operation
The DeconFilter™ Pro S is designed and built to be
connected at all time and it operates without human
interaction. It is advised to frequently keep an eye
on the system pressure gauge while draining your
Solo Rescue Decon Washers to make sure it is
running correctly.
Once the filter tank gets filled up with water from
IMPORTANT NOTE: If the filter cartridges are
incorrectly mounted or mounted in the wrong place,
it will have a negative impact on the performance of
the filter system.
the connected Solo Rescue Decon Washers, a
built-in float switch automatically starts the pump,
transferring the water from the tank through the filter
cartridges and eventually out into the drain. Once
the tank is emptied the pump will automatically
come to a stop.
14
6 Service & Maintenence
6 Service & Maintenence
IMPORTANT NOTES: The DeconFilter™ Pro S may
contain hot, contaminated water. It may contain
hazardous toxic chemicals and carcinogens.
Never user other filter cartridges than the
RESCUE Intellitech Replacement Cartridges
together with the DeconFilter™ Pro S.
During filter changes and while performing service
and maintenance...:
•...always wear eye protection
•...always wear protective gloves
•...always make sure the filter system is
powered o by disconnecting the
DeconFilter™ Pro S from the electrical socket.
•...it is strongly recommended to clean the tank
and pump inlet.
•...all use of the connected Solo Rescue®
Decon Washers is prohibited.
6.1 Filter change interval
Every three months, or according to pressure
indicator. More often depending on application.
6.1.1 Service Indicator
Monitor the System Pressure gauge (Fig. 23)
on the front panel when the pump is running.
It indicates when it is time for filter change and
overall maintenance.
It is recommended to change filters when the
pressure reaches the yellow area.
At the red area the filter cartridges MUST be replaced.
Figure 23
15
6 Service & Maintenence
Figure 24
Figure 25
6.2 Replacement Cartridges
Replacement cartridges are provided by RESCUE
Intellitech dealers only. Contact your local dealer for
more information.
6.3 Replacement of Filter Cartridges
1. Disconnect the power to the submersible pump
by disconnecting the DeconFilter™ Pro S from
the electrical socket.
2. Equalize the pressure in the filters by pushing
the red button on the top of filter housing #3
(Fig. 24).
3. Remove the tank lid to allow water spill to go
into the tank.
4. Unscrew the filter sumps and dispose the filter
cartridges according to local regulations for
hazardous materials.
CAUTION: Scalding risk – hot water.
5. Clean the insides of the filter sumps and install
new filter cartridges according to section 4.4
Filter cartridge installation.
6. Connect the power to the submersible pump.
6.4 Cleaning
6.4 Cleaning the tank.
1. Make sure the tank is empty.
2. Disconnect the power to the submersible pump
by disconnecting the DeconFilter™ Pro S from
the electrical socket.
3. Remove the lint filter and disconnect the hose
from the pump outlet.
4. Remove the submersible pump from the tank
(Fig. 25).
5. Remove all lint and sludge inside the tank and
rinse with tap water.
16
6 Service & Maintenence

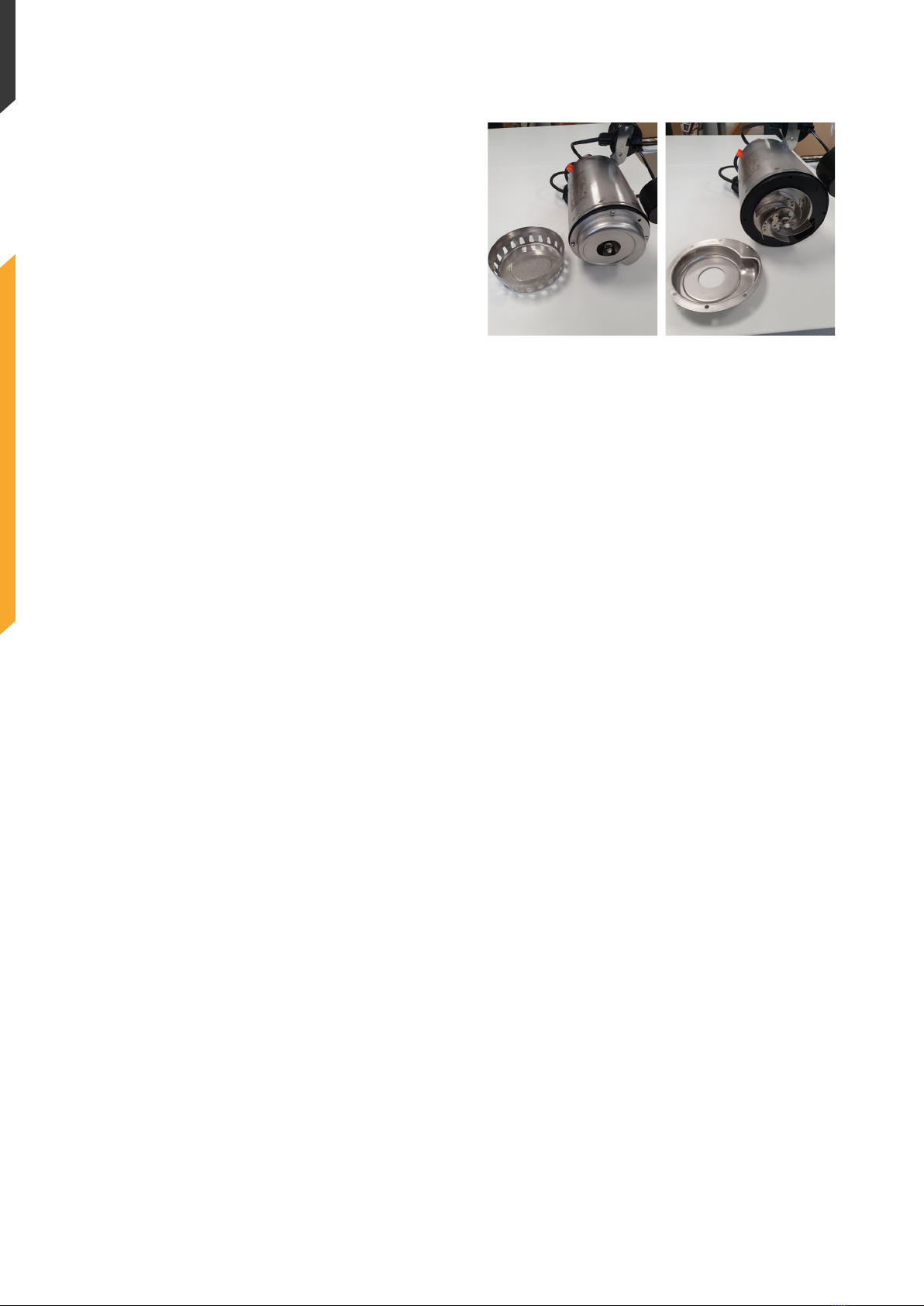

6.5 Cleaning pump intake (every 12 months)
1. Pull o the intake cage from the housing and
remove the impeller cover by loosening all six
Phillips head screws.
2. Clean and rinse the intake cage, impeller and
the impeller cover with clean water (Fig. 26 & 27).
CAUTION: Do not rest the pump on the impeller.
3. Reassemble the impeller cover and push the
intake cage back in place.
4. Install pump and lint filter by reversing the
disassembly steps.
NOTE: There are no parts inside the pump housing
which require additional maintenance.
Figure 26 Figure 27
17
7 Spare parts list
7 Spare parts list
Item Denomination Part Number
1Pump complete 90041
2Manometer 28078
3Filter housing #1 complete 90042
4Filter housing #2 complete 90043
5Filter housing #3 complete 90044
6Pump restrictor 27454
7Lint filter 27128
8O-ring kit for Filter Housing 1–3 90051
1
7
8
2
3
6
5
4
Version 2021:1 |RESCUE Intellitech reserves the right to make technical changes to the product. |No responsibility will be
accepted for any printing errors.
We take decontamination seriously. You should too!
Research and statistics all tell us the same story. Today’s firefighters are being exposed
to dangerous toxic chemicals that cause long term health problems, and even deaths.
Unfortunately, fires will keep occurring and firefighters will always have to be ready when
that happens. Their job is to protect us, and we have made it our mission to help protect
them. Reducing the amount of toxic chemicals and carcinogens that firefighters are exposed
to on a daily basis is one of several critical aspects of ensuring a safe work environment and
firefighters’ long-term health. With the Solo Rescue® Decon Washer, your fire department
can reduce toxic chemicals and carcinogens in a quick, easy and safe way. By adding our
DeconFilter™ Pro S to that process, you will also reduce the number of toxins you flush down
the drain and prevent them from spreading further.
SAFETY EQUIPMENT AUSTRALIA
35/1 Jubilee Avenue
WARRIEWOOD 2102
Private Bag 1001
MONA VALE 2103
Tel: 02 9910 7500 Free
Call: 1800 655 129
Fax: 02 9979 5364
E-mail: [email protected]
Website: www.sea.com.au
Table of contents
