Seura 10 User manual

10.5 | 19.5 | 27.5
USER MANUAL
Television Mirror
TV SIZES 10"19"27"
www.seura.com

2 3
Thank you for selecting a Séura Television Mirror.
This product has been inspected and packaged carefully before shipment.
Please read this guide before beginning installation.
Please keep this manual for future reference.
Information in this manual is subject to change without prior notice.
FCC Information
This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
There is no guarantee that interference will not occur in a particular installation. If this equipment causes unacceptable interference to
radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
 •Reorientorrelocatethereceivingantenna.
 •Increasetheseparationbetweentheequipmentandreceiver.
 •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
Consult the dealer or an experienced Radio/TV technician for additional help.
WARNINGS
To reduce the risk of re, electrical shock and other injuries, keep these safety precautions in mind when
installing, using, and maintaining your Television Mirror. The socket-outlet should be installed near the
equipment and be easily accessible. The TV should be connected to a grounded GFCI protected main socket
outlet.
WARNING: If you manipulate against the recommended usage, serious injury or death to user may result.
To protect against electric shock, do not immerse the power cord, power
plug, or product in water or other liquid.
Do not overload AC outlets or extension cords. Overloading can cause
re or electric shock.
Close adult supervision is necessary when any product is used by or near
children.
Do not operate any product with a damaged cord or plug or operate it
after the appliance malfunctions or has been damaged in any manner.
Do not use the product close to any heat sources such as radiators, heat
registers, stoves, or other products that produce heat.
Do not let the power cord come in contact with hot surfaces.
If you notice any smoke or scorched smell near the product, unplug
power cord and refer to qualied personnel for service and/or repair.
Do not use or place any combustible or ammable substances near the
product.
To electrically disconnect the product, turn OFF the product, then remove
the electrical power plug from the outlet.
Do not place heavy articles on or step on the product.
Do not place the product on an unstable cart, stand, tripod or table.
Do not use this product for other than intended use.
This Séura product is only intended for use indoors.
This product is not waterproof. Do not immerse this product in water and/
or expose to dripping or splashing water.
For added safety during a lighting storm, or when this product is left
unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna.
Specications of this product are subject to unannounced changes; this manual may thus not reect the current technical status.
Before Installation
When installing and during use of this product, basic safety precautions should always be followed to reduce the risk of re, electric shock and/
or injury to persons including the following:
•Inspectthedesiredlocationforinstallationandbeawareofallelectricalwiringpathways,waterpipes,gaslines,orotherpotentially
hazardous conditions that may exist to protect from accidental damage during creation of on-site conditions.
•Ensureallrequiredelectricalspecicationsareadheredtoandhavebeeninstalledbytheappropriateindividualsandarecodeapproved.
•Ensureallframingrequirements,ifneeded,havebeencompletedtobuildingcodeandposenostructuralissues.
•ItisREQUIREDthatthisproductispluggedintoanelectricaloutletprotectedbyaGroundFaultCircuitInterrupter(GFCI)toprotectagainst
electric shock, re, and/or injury. Failure to do so will void any warranty for this product.
•Onlyqualiedindividualsshouldattempttoservicetheproduct.Removingcoverscanexposeyoutohighvoltageandotherdangerous
conditions.
•Toprotectagainstelectricshock,donotimmersethepowercord,powerplug,orproductinwaterorotherliquid.
•DonotoverloadACoutletsorextensioncords.Overloadingcancausereorelectricshock.
•Closeadultsupervisionisnecessarywhenanyproductisusedbyornearchildren.
•Donotoperateanyproductwithadamagedcordorplugoroperateitaftertheappliancemalfunctionsorhasbeendamagedinanymanner.
•Donotletthepowercordcomeincontactwithhotsurfaces.
•Toelectricallydisconnecttheproduct,turnOFFtheproduct,thenremovetheelectricalpowerplugfromtheoutlet.
•Donotusethisproductforotherthanintendeduse.
•ThisSéuraproductisonlyintendedforuseindoors.
•ThisSéuraproductisnotwaterproof.Donotimmersethisproductinwaterand/orexposetodrippingorsplashingwaterasthiscouldcause
an electrical hazard.
•Retainthismanualinasafeplaceforfuturereference.
Warnings:
Do not handle or remove your Television Mirror from the packaging until it is ready to be installed.
To avoid damage to the Television Mirror, only transport it in a vertical position. Transporting the product
horizontally may permanently warp the mirror.
Itishighlyrecommendedthatatleastthree(3)personsassistintheinstallationoftheTelevisionMirror.
Mirror suction cups are not recommended for use in the installation of your Television Mirror.
WARNING: READ ALL INSTRUCTIONS AND REVIEW ALL DRAWING SHEETS
BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS PRODUCT.

4 5
The environment in which the Television Mirror is installed will affect the product performance. The key factors to consider for proper installation are
surroundingsandambientlight.UsethefollowingguidelinestomaximizetheperformanceoftheSéuraproduct:
Type of Lighting
Avoid direct natural sunlight and excessive uorescent lighting. These conditions will diminish the television brightness and hinder its performance.
Light Direction
Avoid directing light toward the mirror. Position lights such that they illuminate objects in the room, not the mirror itself. For example, lights on the
wall next to the mirror are more favorable than lighting located on the ceiling in the center of the room.
Background Colors
Sidewalls and furnishings that are dark, uniform, and non-reective will provide better performance of the display. Bright colors, patterns, and
contrasting colors will minimize the quality of the display.
DO use ambient
or indirect lighting
that illuminates
the room, not the
Television Mirror.
DO NOT position
lighting directly
on the Television
Mirror. This will
wash out the
picture and hinder
the product’s
performance.
DO DO
DO NOT DO NOT
Lighting and Performance
BEFORE USE
Lighting and TV Performance ......................................................................................................5
Care and Maintenance................................................................................................................. 5
INSTALLATION AND SETUP
Display Requirements .................................................................................................................. 6
Setup ...........................................................................................................................................7

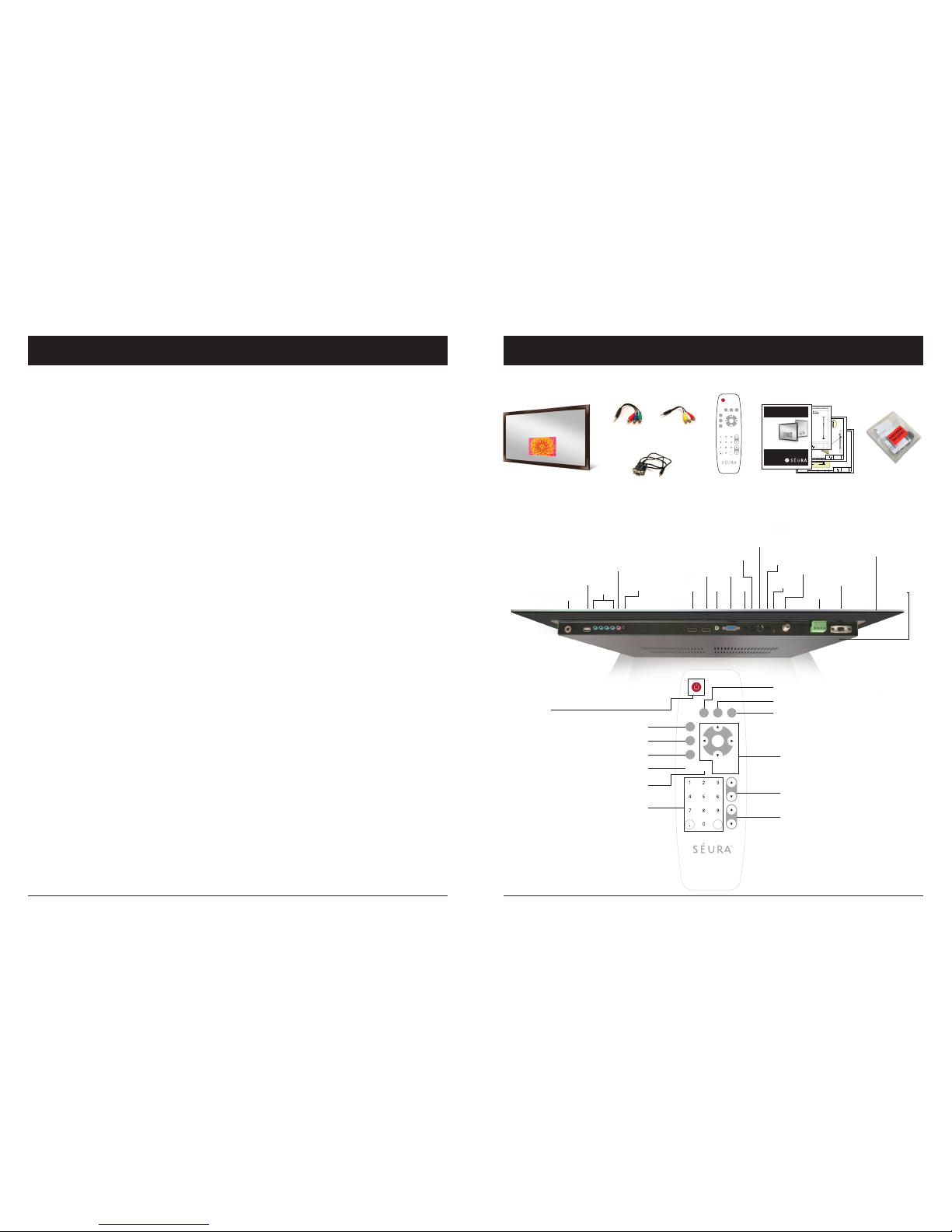

Input/Output Overview ...................................................................................................... 7
Remote Control Functions................................................................................................. 7
Installation ....................................................................................................................................8
Making Connections .................................................................................................................... 9
MENUS AND SETTINGS

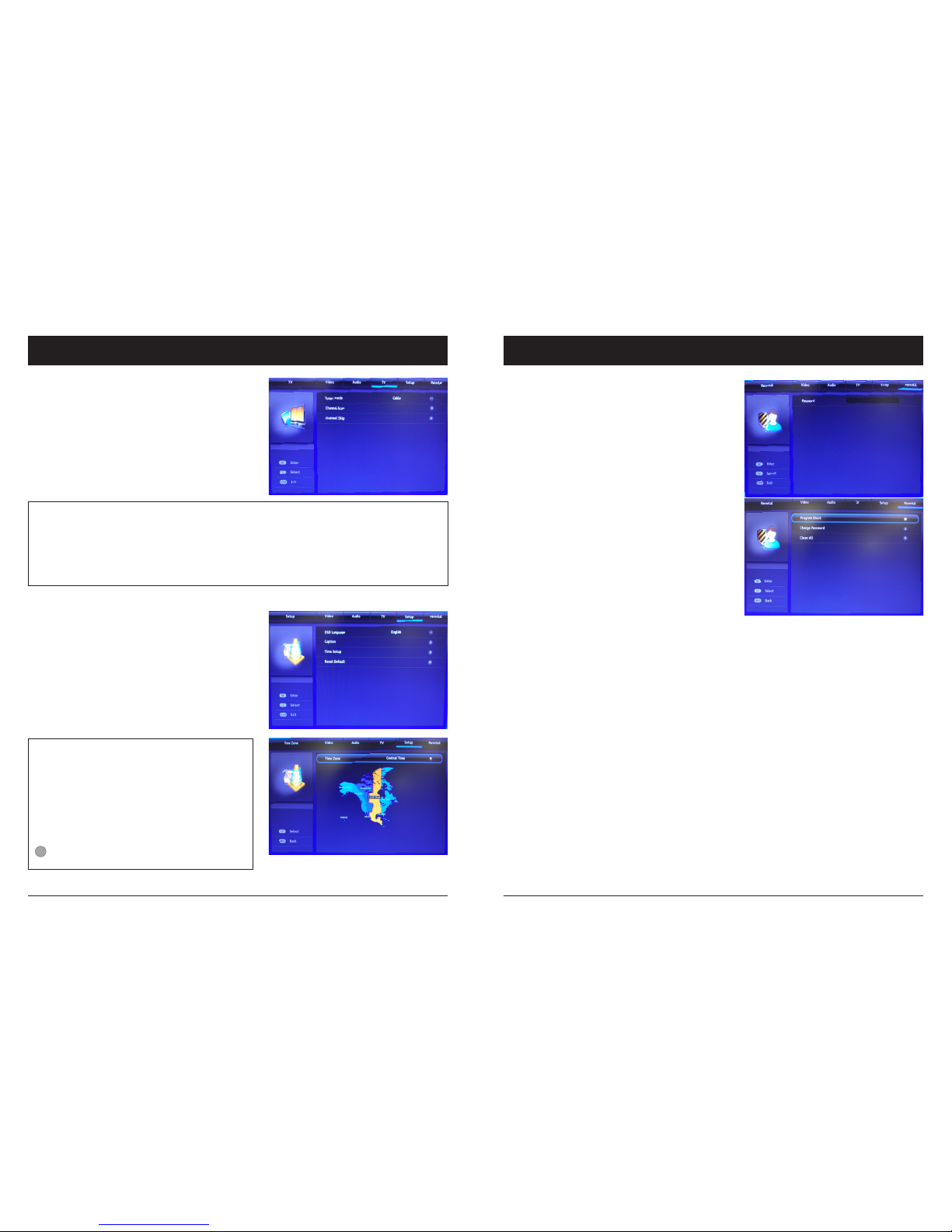

OnScreenDisplayMenu(OSD)................................................................................................. 10
Input Source Selection...............................................................................................................10
Video Settings ............................................................................................................................ 10
Advanced Video Settings...........................................................................................................11
Audio Settings............................................................................................................................11
TV Settings................................................................................................................................. 12
Setup Menu................................................................................................................................ 12
Parental Menu ............................................................................................................................ 13
INTEGRATION AND CONTROL
RS-232SettingsandCommandTable.......................................................................................14
IR Commands ............................................................................................................................ 15
TROUBLESHOOTING AND TECHNICAL DETAILS
Troubleshooting.......................................................................................................................... 16
Technical Features ..................................................................................................................... 16
Ports and Media Support...........................................................................................................17
Ports ................................................................................................................................17
Special Features .............................................................................................................. 17
 USBMediaSupport.........................................................................................................17
Warranty.....................................................................................................................................18
Contents
Care and Maintenance
Our patented mirror technology has been developed to completely protect the mirror surface and allow easy maintenance. Please follow the
guidelines listed for proper mirror care and cleaning:
•Theglasssurfacecanbecleanedwithanyconventionalnon-ammoniatedglasscleaner.Careshouldbetakentouseonlyasoftlint-freecloth.
Apply all cleaners directly to the cloth and not the mirror surface. Never saturate the mirror surface as residual cleaner may seep behind the mirror.
•Stubbornspotscanberemovedwithsolventssuchasmineralspirits,de-naturedalcohol,andacetone.Immediatelyremovesolventanddirt
residues per the prescribed methods above with a compatible glass cleaner or water.
DO use shades
or window
treatments to block
outdoor light that
would interfere
with picture
performance.
DO NOT position
the product
opposite bright,
untreated windows.
Natural lighting
will interfere
with picture
performance.

6 7
22" WALL OPENING
26"
WALL OPENING
24"
36"
71
2
"
21
2
"
1" 1"
5"
35
1
2
"
16" CENTERED
UNIT
OUTLINE
A/V & POWER
CONNECTIONS

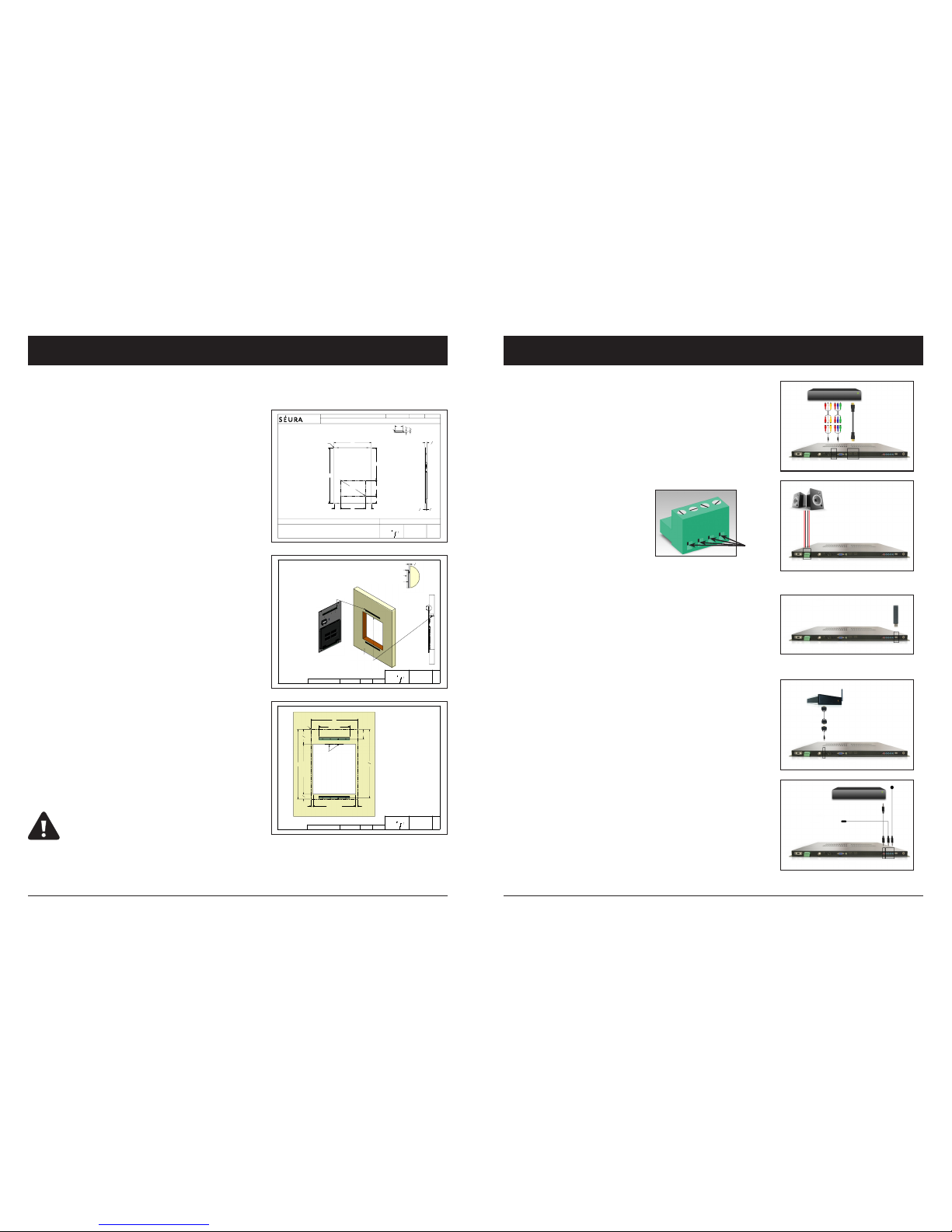

WALL BRACKET INSTALLATION
Verify all on-site conditions. •
Reference the dimensions from this •
sheet to properly locate the
interlocking brackets on the
mounting surface.
Use the supplied hardware and •
instructions to securely fasten the
loose interlocking brackets to the
mounting surface.
If applicable, connect all A/V and •
power cords and confirm unit is
operating properly.
Hang unit onto mounting surface •
and ensure the interlocking
brackets are securely engaged.
Note:
When possible, it is recommended •
to secure the supplied hardware
into the framing members of the
mounting surface.
However, due to desired placement •
of the unit, it may not be possible
to use the framing members for
mounting.
In this case, secure the supplied •
toggle bolts to minimum ½-inch
thick drywall.
Directions for installing the toggle •
bolts are included in the fastener
packet.
SHEET
3
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
Date Created
so0195R
Sales Order / Inv. Number
S-R-2436-19.5UB-E2-NI
Item Revised Date
B
1
4
" VENT GAP
MIRROR SURFACE
INTERFACE PLATE
MIRROR-POLISHED STAINLESS
STEEL GLASS-MOUNTING CLIPS
DETAIL B
SCALE 1:3
MOUNTING
SURFACE
INTERLOCKING
WALL BRACKETS
A/V & POWER
CONNECTIONS
19-inch High-Definition LCD
Screen Size (Diagonal): 19-inch
Format: 16:9
Brightness: 700 cd/m2
Viewing Angle: 170° Horizontal/Vertical
Contrast: 4000:1
Response Time: 6ms
Native Resolution: 1920 X 1080
Backlight: LED
Menu Languages: English, French, Spanish
Tuner:
ATV: NTSC
Digital: ATSC/QAM
Video:
75 Ohm Coaxial Antenna X 1
Composite Video, Audio L, Audio R (RCA plugs) X 1
Component YPbPr (RCA plugs) X 1
VGA 15-pin D-sub Female X 1
HDMI Type A X 2
USB Type A X 1
S-Video Mini 4-Pin DIN X 1
Audio:
Amplified Internal Speakers: 2 X 5W
Amplified Output for External Speakers: 2 X 5W
Amplified Output: Terminal Block
Constant Line Output: 3.5mm Jack X 2
Control:
RS232 9-pin DB9 Female X 1
IR IN: 3.5mm Jack X 1
IR OUT: 3.5mm Jack X 4
Power:
Input: 110-240 VAC, 50-60Hz, 1.5A
Type A NEMA Plug
Requires GFCI Protected Outlet
SHEET
2
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
Date Created
so0195R
Sales Order / Inv. Number
S-R-2436-19.5UB-E2-NI
Item Revised Date
Steel Glass-Mounting Clip
Mirror-Polished Stainless
SCALE 1 : 2
MIRROR CLIP DETAIL
16
3
"
16
1
1"
"
36"
24"
10"
5"
4" 4" 16"
21"
19" LCD
VIEWABLE
SCREEN
1" LIFT-OFF CLEARANCE REQUIRED
11
16
"
3
4
"
1
7
16
"
Sales Order / Inv. Number
Item and Description
Revised Date Reseller
SHEET 1
SIGNATURE
AND DATE
REQUIRED
DATE:
SIGNATURE:
NOTE: PLEASE SIGN AND DATE THIS PAGE BEFORE RETURNING TO SEURA. ONLY THIS PAGE NEEDS TO BE
RETURNED. BY RETURNING THIS SHEET, YOU ARE AGREEING TO ALL DIMENSIONS SHOWN ON ALL DRAWING
SHEETS. FOR CUSTOM UNITS, WE WILL NOT START THE BUILD PROCESS WITHOUT AN AUTHORIZED SIGNATURE.
FOR DRAWINGS THAT REQUIRE REVISIONS: SEND THE REVISIONS TO SEURA ON THE ORIGINAL DRAWINGS.
DO NOT SIGN UNTIL ALL REQUIRED DIMENSIONS ARE VERIFIED AND ACCEPTED.
AFTER THE DRAWINGS ARE UPDATED, A REVISED DRAWING PACKAGE WILL BE RE-SENT FOR SIGNATURE.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
www.seura.com
1.800.95.SEURA
PH. 920.857.9069
FAX [phone]
Date Created
so0195R
S-R-2436-19.5UB-E2-NI
24" (W) x 36" (H) Recessed TV Mirror with Ultra-Bright 19" TV and Enhanced Glass
Display Requirements
Operation and Storage Requirements
The ambient temperature for operating the device is between 41 to 122 degrees Fahrenheit. Do not install the device in the proximity of heat sources,
such as heating pipes, heaters, furnaces or other devices that radiate heat. Mount the device in such a way that it is protected against moisture.
Trouble free operation is ensured up to 75% air humidity. To prevent re or electric shock, never allow liquids to enter the unit. The product must be
stored in dry and well-ventilated rooms, without extreme temperature uctuations. Heat sources and aggressive active substances may not be stored
intheproximityofthedevice.Therequiredstoragetemperatureis32°F-140°Fatanairhumidityof5-85%RHnon-condensing.Thedevicemustbe
stored in the complete packaging, as delivered.
Installation Environment
Avoid direct light or sun exposure, direct proximity to heat sources, outdoor installation. The product is specically designed for indoor use only. There
is the danger of re and of electric shock and damage to the device if it is operated outdoors. Do not place any heat sources such as radiators and
heat registers, etc. near the monitor. To reduce eye strain, avoid installing the Séura Television Mirror against a bright background such as a window.
Position the monitor at the height of your eye level. Position the monitor directly in front of you at a comfortable viewing distance.
Installation
Havethisproductinstalledbyqualiedpersonnelonly.UsethemountingsystemswhicharespeciedorrecommendedbySéura.Installtheproduct
in a way that it is xed properly and take care that children are not exposed to danger. Please take extra care during installation, avoid impacts. Before
cabling your monitor, check that the power is off. To avoid any possibility of electric shock, always connect your equipment to properly grounded
outlets.Useofpowercordsoradaptersotherthanthoseprovidedmaycausereormalfunction.Placethisproductasclosetothepowersocketas
possible.Leaveenoughspacetoinsertandremovethepowerplugondemand.Evenifyouswitchofftheproductwithyourremotecontrol,poweris
not cut off unless the power cord is unplugged.
The device may only be operated with the provided power adapter. The rated voltage is indicated on the product label. The device is factory-set to
theoptimaloperatingvoltage(seeTechnicalSpecication).Useonlypowercordsandplugsthataresuitableforyourlocalelectricaloutlets.Install
thepowercordsinsuchawaythatitdoesnotobstructanyone.Ensurefurthermorethatthecableisnotclampedandthatitcannotbepulledout
accidentally from the power adapter. Do not install the power cords in the proximity of heating elements and never place heavy items on the cable or
power adapter. Do not modify or arbitrarily repair the power cords.
CAUTION
Donotuseanypowercordsoradaptersotherthanthoseprovidedwiththisproduct!Useofpowercordsoradaptersotherthanthoseprovided
with this product may cause re, electric shock or malfunction. If several kinds of power cords are provided with this product, use the one that ts
your power socket. Do not let the adapter hang down while using. Do not cover or wrap the adapter. Leave space around the adapter to prevent
overheating. The individual components can be destroyed, if the polarity is reversed or an incorrect connection is used. A goodwill replacement is not
possible in such cases, since each device is submitted to meticulous quality inspections prior to shipping. The connecting plugs must be attached in
such a way that the connector is held rmly. Have trained technical personnel install the electrical facilities necessary for mounting. The power adapter
must be installed in ventilated areas due to heat emission. Connect the power cord to a grounded outlet. Never cut or damage the power cord.
Please disconnect the device from the power adapter in the following cases:
1. The device is out of use for a lengthy period.
2. The device malfunctions or displays other unusual features, necessitating maintenance work.
3.Duringathunderstorm.
Please plan the positioning of the power adapter and the source cables before proceeding with the structural measures and positioning of the Séura
Television Mirror. Observe the protection zones when placing the power adapter! For in-wall applications please bear in mind that the power adapter
has to be placed beyond the inset due to heat emission. Optional 50’ adapter extension cables may be purchased from Séura.
NOTE
The power adapter should be adequately secured to prevent it from becoming unstable and/or falling. Make sure the power source circuits are properly
grounded.Usethesuppliedpowercordinordertoconnectittothepowersource.Ifyourinstallationrequiresadifferentpowercord,besuretousean
ofcially approved power cord displaying the mark of the safety agency that denes the regulations for power cords in your country. Please consider
that the AC outlet for the power adapter is placed within reach of the Séura Television Mirror and should be easily accessible in case it needs to be
powered off.
Installtheunitinadryenvironmentwheretheoperatingambienttemperaturewillnotexceed40°C/104°F.Also,don’tpositionthepoweradapteron
topoftheSéuramonitorsysteminordertopreventthermaloverload.Ensurethatyourinstallationcomplieswithyournationalandlocalsafetyrules.
Any servicing, adjustment, maintenance or repair must be performed only by service-trained personnel.
Ensurethepoweradapterisinstalledinanaccessiblelocation,toaccessiteasilyincaseofadefect.Ifyouchoosetoplacethepoweradapterina
separate space, take care that ventilation is present, because the power adapters need convection cooling for stable working conditions.
When placing the power adapter in a fully enclosed space, make sure the air ow around the sides and top of the power adapter is not restricted.
According to a common rule of thumb please calculate the length of the power adapter plus an additional gap of at least 100mm all around for DC 12V
power adapters and 200mm for DC 24V power adapters.
Setup
Before using the device please check the following contents of the box for completeness:
10.5 | 19.5 | 27.5
USER MANUAL
Television Mirror
TV SIZES 10 "19"27"
www.seura.com
Television Mirror Manual and Custom Drawing
Package
Waterproof
IR Remote
Control
RS-232
Adapter
Composite
Adapter
YPbPr
Adaper
Mounting
Hardware
2010Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
Input/Output Overview 19” TV Shown
Remote Functions
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
Power On / Off
Menu Controls
Press “Menu” to launch On Screen Display menu
Usearrowsand“Ok”tonavigatemenuandmake
selections
Press “exit” to close the On Screen Display menu
“Mute” turns on or off all audio output
“Sleep” designates power off after a specied time
“Zoom” congures ratio and appearance of picture
“Input” designates displaying content source
“Display” displays input and resolution information
UseVolumearrowstoincreaseordecrease
volume level
UseChannelarrowstoincreaseordecrease
channel selection
“Guide”displaysavailableEPG(Electronic
ProgramGuide)whenusingtunerinput
“CC” turns on/off subtitles
“Last” recalls last channel viewed
Numerical selection for channels and settings
Mirror
TV Chassis
Internal/External
Speaker Selector
RS232
Input
S-Video
RF Coaxial
Antenna
USB
IR Input
Audio Line
Out
VGA
Input
HDMI 1
Input
HDMI 2
Input
Power Adapter
Input Speaker Out
Audio
Line
Out
PC
Audio In
Composite
YPbPr
IR Output
TOP VIEW

8 9
Installation
Refer to the included custom drawing package for specic dimensions
and instructions for your custom product.
1. Verify that the wall is prepared appropriately. If the product is an in-
wall, or “Recessed” conguration, verify the dimensions of the rough
opening.
2. Install mounting brackets according to the dimensions and instructions
shownon“Sheet3”oftheincludeddrawingpackage.Ensuremounting
brackets are securely fastened using wood framing members where
possible.
NOTE: Take care when moving the product. Always transport the product
with at least two people.
WARNING: Always transport the product in a vertical position. Moving
the product in an unsupported horizontal position may result in product
ex or damage.
3.Connectpowersuppliesandaudio/videocomponents.
 •Testingallelectricalandelectronicdevicestoverifyproper
integration and functionality before securely mounting it to the wall
is strongly recommended.
4. Position Television Mirror close to wall surface and securely engage
mounting brackets.
 •Allowfora¼"ventilationgapforproperairowandheattransfer.
5. Check to ensure the Television Mirror is fully engaged and secure to the
mounting brackets.
6. Reference the appropriate electronics manual for Television Mirror
operating instructions.
NOTE:
All Séura drawing packages indicate generalized nominal residential wood framing construction, and are not indicative of any particular building
code. It is the installers responsibility that all electrical, audio/visual, and framing construction are code compliant to the municipality in which the
product is being installed. Modications made to Séura recommendations are at the sole discretion of the installer and release Séura of all liability.
Connecting Video
The Television Mirror features one Component, one Composite, one VGA, and two
HDMI inputs. We recommend using the HDMI inputs for best video and sound quality.
Connecting Audio
Two passive loudspeakers can be connected to the
speaker output socket with speaker cables. Observe
thepolarity(+and-)oftheconnectionstoavoid
phaseerrors(=incorrectstereoplayback).
Switch the audio selector switch on the TV to
External.
Warning: When changing the audio from
internal to external speakers, power-off the unit
completely.
Connecting a USB Media Source
ConnectanexternalUSBmediasourcetotheUSBsockettodisplayphotos,play
music or install a software update.
InordertohaveaccesstotheUSBportafterinstallationwerecommendinstallinga
USBextensioncable.
Connecting a Home Automation System
WiththeRS-232interface(9pind-subminiatureconnectorfemale)youcanconnect
a serial cable for communication with a home automation system, PC, etc. The baud
rate is 115200.
Connecting an external IR-transmitter and Receiver
With the IR input interface, you can connect an external IR receiver to the Séura
TelevisionMirror.Withthe(4)IRoutputterminals,youcanloopthroughtheIRsignal
from the remote control to an external device with a corresponding IR input or via an
IR emitter diode afxed in front of the IR receiver eye.
Making Connections
Speaker
Wire Input
-
-
-
-
+
+
+
+
R
R
L
L
EuroblockConnector
22" WALL OPENING
26"
WALL OPENING
24"
36"
71
2
"
21
2
"
1" 1"
5"
35
1
2
"
16" CENTERED
UNIT
OUTLINE
A/V & POWER
CONNECTIONS
WALL BRACKET INSTALLATION
Verify all on-site conditions. •
Reference the dimensions from this •
sheet to properly locate the
interlocking brackets on the
mounting surface.
Use the supplied hardware and •
instructions to securely fasten the
loose interlocking brackets to the
mounting surface.
If applicable, connect all A/V and •
power cords and confirm unit is
operating properly.
Hang unit onto mounting surface •
and ensure the interlocking
brackets are securely engaged.
Note:
When possible, it is recommended •
to secure the supplied hardware
into the framing members of the
mounting surface.
However, due to desired placement •
of the unit, it may not be possible
to use the framing members for
mounting.
In this case, secure the supplied •
toggle bolts to minimum ½-inch
thick drywall.
Directions for installing the toggle •
bolts are included in the fastener
packet.
SHEET
3
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
Date Created
so0195R
Sales Order / Inv. Number
S-R-2436-19.5UB-E2-NI
Item Revised Date
B
1
4
" VENT GAP
MIRROR SURFACE
INTERFACE PLATE
MIRROR-POLISHED STAINLESS
STEEL GLASS-MOUNTING CLIPS
DETAIL B
SCALE 1:3
MOUNTING
SURFACE
INTERLOCKING
WALL BRACKETS
A/V & POWER
CONNECTIONS
19-inch High-Definition LCD
Screen Size (Diagonal): 19-inch
Format: 16:9
Brightness: 700 cd/m2
Viewing Angle: 170° Horizontal/Vertical
Contrast: 4000:1
Response Time: 6ms
Native Resolution: 1920 X 1080
Backlight: LED
Menu Languages: English, French, Spanish
Tuner:
ATV: NTSC
Digital: ATSC/QAM
Video:
75 Ohm Coaxial Antenna X 1
Composite Video, Audio L, Audio R (RCA plugs) X 1
Component YPbPr (RCA plugs) X 1
VGA 15-pin D-sub Female X 1
HDMI Type A X 2
USB Type A X 1
S-Video Mini 4-Pin DIN X 1
Audio:
Amplified Internal Speakers: 2 X 5W
Amplified Output for External Speakers: 2 X 5W
Amplified Output: Terminal Block
Constant Line Output: 3.5mm Jack X 2
Control:
RS232 9-pin DB9 Female X 1
IR IN: 3.5mm Jack X 1
IR OUT: 3.5mm Jack X 4
Power:
Input: 110-240 VAC, 50-60Hz, 1.5A
Type A NEMA Plug
Requires GFCI Protected Outlet
SHEET
2
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
Date Created
so0195R
Sales Order / Inv. Number
S-R-2436-19.5UB-E2-NI
Item Revised Date
Steel Glass-Mounting Clip
Mirror-Polished Stainless
SCALE 1 : 2
MIRROR CLIP DETAIL
16
3
"
16
1
1"
"
36"
24"
10"
5"
4" 4" 16"
21"
19" LCD
VIEWABLE
SCREEN
1" LIFT-OFF CLEARANCE REQUIRED
11
16
"
3
4
"
1
7
16
"
Sales Order / Inv. Number
Item and Description
Revised Date Reseller
SHEET 1
SIGNATURE
AND DATE
REQUIRED
DATE:
SIGNATURE:
NOTE: PLEASE SIGN AND DATE THIS PAGE BEFORE RETURNING TO SEURA. ONLY THIS PAGE NEEDS TO BE
RETURNED. BY RETURNING THIS SHEET, YOU ARE AGREEING TO ALL DIMENSIONS SHOWN ON ALL DRAWING
SHEETS. FOR CUSTOM UNITS, WE WILL NOT START THE BUILD PROCESS WITHOUT AN AUTHORIZED SIGNATURE.
FOR DRAWINGS THAT REQUIRE REVISIONS: SEND THE REVISIONS TO SEURA ON THE ORIGINAL DRAWINGS.
DO NOT SIGN UNTIL ALL REQUIRED DIMENSIONS ARE VERIFIED AND ACCEPTED.
AFTER THE DRAWINGS ARE UPDATED, A REVISED DRAWING PACKAGE WILL BE RE-SENT FOR SIGNATURE.
DIMENSIONS ARE IN INCHES
TOLERANCES
FRACTIONAL 1/8 [3mm]
ANGULAR: MACH 1.0
ANGULAR: BEND 1.0
TWO PLACE DECIMAL .03 [.8mm]
THREE PLACE DECIMAL .015 [.4mm]
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DOCUMENT IS THE SOLE
PROPERTY OF THE MANUFACTURER.
ANY REPRODUCTION IN PART, OR AS
A WHOLE, WITHOUT THE WRITTEN
PERMISSION OF MANUFACTURER, IS
PROHIBITED.
www.seura.com
1.800.95.SEURA
PH. 920.857.9069
FAX [phone]
Date Created
so0195R
S-R-2436-19.5UB-E2-NI
24" (W) x 36" (H) Recessed TV Mirror with Ultra-Bright 19" TV and Enhanced Glass

10 11
On Screen Display Menu (OSD)
Intheonscreendisplaymenu(OSD)youcanadaptthecharacteristicsofyourdisplaybasedonpersonalpreferences.
OSD menus include Video, Audio, TV, Setup, and Parental.
1. Press on your remote control to open the OSD menu.
2. Navigate within the OSD with
3.Changesettingswith
4. Go back one step with
5. Conrm selection with
6. Press to exit the OSD menu.
Input Source Selection
In the Input Source menu, you may select from the available input sources.
1. Press to power the Television Mirror on
2. Press to display the Input Source list
3.PressoruntilthedesiredInputSourceishighlighted.
4. Press to conrm selection of the chosen input and clear the Input Source
list from the screen or press again to switch through the signal inputs.
5. Press to close the Input Source list without selecting an alternative source.
Video Settings
The Video Settings menu offers options to enhance and rene the image
characteristics of your Séura Television Mirror. These settings are based on
ambient conditions of illumination and personal preferences.
Adjustment options include:
Picture Mode
Brightness
Contrast
Saturation
Hue
Sharpness
Back Light
Advanced Video
Reset Picture Mode
Advanced Video Settings
The Advanced Video Settings menu offers further options to rene the image
characteristics of your Séura Television Mirror.
Adjustment options include:
DNR
MPEG NR
Adaptive Luma Control
Flesh Tone
DI Film Mode
Blue Stretch
Game Mode
Blue Mute
Gamma
Color Temperature
PICTURE MODE
Within the Picture Mode menu you can customize the image display according to your preferences.
Your options: Home, Vivid, User, Cinema, Sport
The Home setting is recommended for most viewing environments. Select the User Mode to adjust your preferred settings manually.
COLOR TEMPERATURE
Within the Color Temperature menu you can customize the Color
Temperature of the picture according to your preferences.
Your options: Standard, Warm, User, Cool
On Screen Display Menu (OSD)
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit
OSD (cont.)
Audio Settings
The Audio Settings menu offers options to enhance and rene the sound
characteristics of your Séura Television Mirror based on personal preferences.
Adjustment options include:
Balance
Bass
Treble
Sound Surround
Sound Mode
MTS
Audio Language
SPDIF Type

12 13
OSD (cont.)
TUNER MODE
Select the option for obtaining television programming: Cable, Antenna
CHANNEL SCAN
Select Channel Scan to begin automatic scanning of channels. This process takes a few minutes and depends on program availability.
CHANNEL SKIP
Designate preferences for skipping channels.
TIME SETUP
Options within the Time Setup selection include Time Zone, Time, and
Sleep Timer.
TIME ZONE
The local time zone may be selected using the graphical map of North
America
SLEEP TIMER
Within the Sleep Timer menu you can determine a timespan after which
the Séura Television Mirror will turn off automatically.
Your options: Off, 10, 20, 30, 40, 50, 60, 90, 120 minutes
The Sleep Timer can also be activated and deactivated directly with
on the remote control.
Setup Menu
The Setup Menu offers options to determine fundamental settings of your
Séura Television Mirror based on personal preferences.
Adjustment options include:
Parental Menu
The Parental Menu offers options to restrict program viewing based on
various national rating systems.
To access the menu, enter the 4-digit Password using the keypad on the
remote. The factory default password is “0000”.
Adjustment options include:
OSD (cont.)
OSD Language
Caption
Time Setup
Reset Default
Program Block
Change Password
Clean All (or reset settings)
TV Settings
The TV Settings menu offers options to set up and adjust preferences using the
built-in television tuner.
Adjustment options include:
Tuner Mode
Channel Scan
Channel Skip
2010 Remote Redesign
Final
waterproof
last
ok
enter
channel
volume
cc
guide
mute
sleep
zoom
input display menu exit

14 15
RS-232 Control
Current Models: 19.5 Hydra, 27.5 Hydra, 10.5 TV Mirror, 19.5 TV Mirror, 27.5 TV Mirror
LegacyModel:10.3TVMirror,19.4Hydra,10.4TVMirror,19.4TVMirror
Settings Table
Baud Rate 115200 bps
Data Length 8 bits
Parity Bit None
Stop Bit 1 bit
Flow Control None
Command Table
IR Commands
Remote Hexadecimal Codes
Power Toggle
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 0047 000A 001F 000A 0047 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0718 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 001F 000A 001F 000A 0047 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06A0
Menu
0000 006B 0000 0020 000A 0048 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 001F
000A 001F 000A 0047 000A 001F 000A 0768 000A 0048 000A 001F 000A 001F
000A 001F 000A 001F 000A 0048 000A 0048 000A 0048 000A 0048 000A 0048
000A 001F 000A 0048 000A 0048 000A 001F 000A 0048 000A 0654
Source
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 0047
000A 001F 000A 0047 000A 001F 000A 06C8 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F
000A 0047 000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 06F2
Display
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 001F 000A 0047 000A 0047 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 06D4 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 001F 000A
001F 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06C7
Exit
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 001F 000A 001F 000A 0047 000A 0047 000A 0047
000A 0047 000A 0047 000A 001F 000A 0685 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 0047 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 071A
Up
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 001F 000A 0047
000A 001F 000A 0047 000A 001F 000A 06C8 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047
000A 001F 000A 0047 000A 001F 000A 0047 000A 001F 000A 0047 000A 06F6
Down
0000 006B 0000 0020 000A 0048 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 0048 000A 001F 000A 0048
000A 001F 000A 0048 000A 001F 000A 0718 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 0047 000A 0047 000A 001F 000A 001F
000A 0048 000A 001F 000A 0047 000A 001F 000A 0047 000A 06A4
Left
0000 006B 0000 0020 000A 0048 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 0048 000A 001F 000A 0048
000A 001F 000A 0048 000A 001F 000A 0718 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 0047 000A 0047 000A 001F 000A 001F
000A 0048 000A 001F 000A 0047 000A 001F 000A 0047 000A 06A4
Right
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 0047 000A 001F 000A 0047 000A 0047 000A 0047
000A 0047 000A 0047 000A 001F 000A 06A0 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 001F 000A 0047 000A
001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 071B
Enter
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0048 000A 0047 000A 001F 000A 0048 000A 0048 000A 0047
000A 0048 000A 0048 000A 001F 000A 0678 000A 0048 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0048 000A 001F
000A001F000A001F000A001F000A001F000A0047000A074E
Sleep
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0047 000A 0047 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 06FC 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 001F 000A
001F 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 059B
Zoom
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 001F
000A 0048 000A 0048 000A 001F 000A 0740 000A 0048 000A 001F 000A 001F
000A 001F 000A 001F 000A 0048 000A 0048 000A 0047 000A 0048 000A 0047
000A 001F 000A 0048 000A 001F 000A 001F 000A 0047 000A 068B
EPG
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 001F
000A 001F 000A 0047 000A 001F 000A 06C8 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A
0047000A001F000A0047000A0047000A001F000A0047000A06EE
Mute
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 06D4 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A
001F 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06C9
ch+
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 001F 000A 001F 000A 001F 000A 0048 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0740 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 0047 000A 0047 000A 001F
000A0047000A0047000A0047000A001F000A0047000A067E
ch-
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 001F 000A 0048 000A 001F 000A 001F
000A 001F 000A 0048 000A 001F 000A 0740 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0048 000A 001F 000A 0048 000A 0048 000A 001F
000A0047000A0048000A0048000A001F000A0047000A0683
vol+
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0740 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 0047 000A 001F 000A 0047 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 067C
vol-
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 001F 000A 0047 000A 001F 000A 0047 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0718 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06A8
1
0000 006C 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 074A 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 0047 000A 0047
000A 0047 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 0652
2
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0768 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 0047 000A 0047
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 0651
3
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F
000A001F000A0047000A001F000A0723000A0047000A001F000A001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 0047 000A 0047
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 067D
4
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0768 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 0047 000A 001F 000A 0047 000A 0047
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 054F
5
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0740 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 0047
000A0047000A0047000A0047000A001F000A0047000A067E
6
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0718 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 0047
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06A7
7
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0718 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 0047
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06A6
8
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0768 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 0048 000A 0047 000A 001F 000A 0047
000A 0047 000A 0048 000A 0047 000A 001F 000A 0048 000A 065B
9
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 001F 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0740 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 001F 000A 0047 000A 0047 000A 001F 000A 0047
000A0047000A0047000A0047000A001F000A0047000A067E
0
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 0740 000A 0047 000A 001F 000A 001F
000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 001F 000A 0047
000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 0678
. (Dot)
0000 006C 0000 0020 000A 0046 000A 001E 000B 001E 000A 001E 000B
0047 000A 001E 000B 0046 000A 001E 000B 0046 000A 0046 000A 0046
000B001E000A 001E 000B0046000B 001D 000B 06A5000B0046 000B
001E 000A 001E 000A 001E 000A 0046 000B 0046 000A 001E 000B 0046
000A 001F 000A 001E 000A 001E 000A 0046 000A 0046 000A 001E 000A
0045 000A 0696
Enter
0000 006B 0000 0020 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F
000A 0047 000A 0047 000A 001F 000A 0047 000A 001F 000A 001F 000A 001F
000A 001F 000A 0047 000A 001F 000A 06FC 000A 0047 000A 001F 000A
001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 001F
000A 0047 000A 0047 000A 0047 000A 0047 000A 001F 000A 0047 000A 06A1
Discrete Remote Hexadecimal Codes
Power On(only)
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 0047
000a 001e 000a 0047 000a 001e 000a 0047 000a 001e 000a 001e 000a 0047
000a 001e 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 0047 000a 0047 000a 001e 000a 0047 000a 001e 000a 0047
000a 0047 000a 001e 000a 0047 000a 001e 000a 0047 000a 068b
Power Off(only)
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 0047
000a 0047 000a 0047 000a 001e 000a 0047 000a 001e 000a 001e 000a 0047
000a 001e 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 0047 000a 001e 000a 001e 000a 0047 000a 001e 000a 0047
000a 0047 000a 001e 000a 0047 000a 001e 000a 0047 000a 068b
AV (INPUT 1)
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 001e
000a 001e 000a 0047 000a 001e 000a 001e 000a 0047 000a 0047 000a 001e
000a 001e 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 001e 000a 0047 000a 001e 000a 0047 000a 0047 000a 001e
000a 001e 000a 0047 000a 0047 000a 001e 000a 0047 000a 068b
S-VIDEO (INPUT 2)
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 001e
000a 0047 000a 0047 000a 001e 000a 001e 000a 0047 000a 0047 000a 001e
000a 001e 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 001e 000a 001e 000a 001e 000a 0047 000a 0047 000a 001e
000a 001e 000a 0047 000a 0047 000a 001e 000a 0047 000a 068b
COMPONENT (INPUT 3)
0000 006d 0000 0020 000a 001e 000a 0047 000a 0047 000a 0047 000a 0047
000a 0047 000a 0047 000a 001e 000a 001e 000a 001e 000a 001e 000a 001e
000a 0047 000a 0047 000a 001e 000a 068b 000a 001e 000a 0047 000a 0047
000a 0047 000a 0047 000a 001e 000a 001e 000a 0047 000a 0047 000a 0047
000a 0047 000a 0047 000a 001e 000a 001e 000a 0047 000a 068b
VGA (INPUT 4)
0000 006d 0000 0020 000a 001e 000a 0047 000a 0047 000a 0047 000a 0047
000a 0047 000a 001e 000a 001e 000a 001e 000a 001e 000a 001e 000a 001e
000a 0047 000a 0047 000a 001e 000a 068b 000a 001e 000a 0047 000a 0047
000a 0047 000a 0047 000a 001e 000a 0047 000a 0047 000a 0047 000a 0047
000a 0047 000a 0047 000a 001e 000a 001e 000a 0047 000a 068b
HDMI (INPUT 5)
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 001e
000a 0047 000a 0047 000a 001e 000a 001e 000a 0047 000a 001e 000a 0047
000a 0047 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 001e 000a 001e 000a 001e 000a 0047 000a 0047 000a 001e
000a 0047 000a 001e 000a 001e 000a 001e 000a 0047 000a 068b
HDMI 2
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 001e
000a 0047 000a 001e 000a 0047 000a 0047 000a 001e 000a 001e 000a 0047
000a 0047 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 001e 000a 001e 000a 0047 000a 001e 000a 001e 000a 0047
000a 0047 000a 001e 000a 001e 000a 001e 000a 0047 000a 068b
ANT
0000 006d 0000 0020 000a 0047 000a 001e 000a 001e 000a 001e 000a 001e
000a 0047 000a 001e 000a 001e 000a 0047 000a 001e 000a 0047 000a 001e
000a 0047 000a 0047 000a 001e 000a 068b 000a 0047 000a 001e 000a 001e
000a 001e 000a 001e 000a 001e 000a 0047 000a 0047 000a 001e 000a 0047
000a 001e 000a 0047 000a 001e 000a 001e 000a 0047 000a 068b
Download these codes at http://www.seura.com/download-center
12345678
Power
P O W R 0 PowerOff(sendsTVintoStandby)
P O W R 1 Power On
R S P W 0 obsolete
R S P W 1 obsolete
Input
I T G D X toggle the input source
I T V D 0 set the input source to TV, channel is set to the last channel tuned
I A V D 1 setstheinputsourcetoAV(compositevideo)
I A V D 2 sets the input source to S-Video
I A V D 3sets the input source to Component Video
I A V D 4 setstheinputsourcetoVGA(PCInput)
I A V D 5 sets the input source to HDMI 1
I A V D 6 sets the input source to HDMI 2
I A V D 7 setstheinputsourcetoUSB
Volume
V O L M sets the volume level
*shaded characters may be any number from 0 to 99
Zoom
W I D E1 toggles the view mode
W I D E2 setstheviewmodetosidebar(AVinputwith4:3signal)
W I D E 3 setstheviewmodetozoom(AVinputwith4:3signal)
W I D E4 setstheviewmodetostretch(AVinputwith4:3signal)
W I D E5 setstheviewmodetonormal(PCinput)
W I D E6 setstheviewmodetozoom(PCinput)
W I D E7 setstheviewmodetostretch(PCinput)
W I D E8 sets the view mode to dot-by-dot
W I D E9 sets the view mode to full screen
Mute
MUTE1 mutes the audio
MUTE2 turns off mute
Sleep Timer
O F T M 0 disables the sleep timer
O F T M 1 TVturnsoffin30minutes
O F T M 2 TV turns off in 60 minutes
O F T M 3TV turns off in 90 minutes
O F T M 4 TV turns off in 120 minutes
Channel
D A 2 P sets ATSC tuner to a specic over the air channel, XX-YY or XX.YY is entered as XXYY
D C 2 Usets cable tuner to a channel
CHUP X channel up
C H D W X channel down

16 17
If the product is not working properly, please check the following troubleshooting hints before you contact customer service:
Symptoms Possible Solution
Blank screen
CheckthestatusLED.IfthestatusLEDisred,theTelevisionMirrorisinstandbyandthemonitorisblack,thisisnormal.
IfthestatusLEDisgreenandthemonitorisblack,theTelevisionMirrormightperformaninputscanwithnoavailable
signal. Please check if an input source is available and that the port of the device has been connected correctly in the
Service Settings/ Input Ports menu. Press “Menu” on your remote control: you should see the OSD menu. Check your
settings for miscongurations and adjust accordingly. Alternatively, perform a factory reset to restore the Television Mirror
to its default settings. If the problem still exists contact customer service.
Color defects Check that the signal cable connector is properly connected and that the connection pins are not bent or damaged.
The image is
unsatisfactory
Adjust the picture characteristics as described in the above-mentioned section “Video Settings”. Image is not stable
Check that the display resolution and frequency from your media source is compatible with the Television Mirror.
Error message:
“No Signal”
Check that the connected media sources are switched on. Check that the signal cable connector is properly connected
and that the connection pins are not bent or damaged. Press “Menu” on your remote control: you should see the OSD
menu. Check your settings for miscongurations and adjust accordingly. Alternatively, perform a factory reset to restore
the Television Mirror to its default settings. If the problem still exists contact customer service.
Low or no sound
Press“VolumeUp”and/or“VolumeDown”onyourremotecontrolandchecktheaudioconnectioncable(s).Makesure
that the Volume Limit setting in the Service Settings menu has been set to an audible value.
Ensurethatthespeakerselectorswitchontheuntiliscorrectlyswitchedtodesignateinternalorexternalspeakers.
Remote control
doesn’t work
PressabuttonontheremotecontrolandcheckthatthestatusLEDoftheTelevisionMirrorashesbriey.Ifitdoesn´t,
replace the batteries of the remote control.
NOTE: If the above troubleshooting hints do not help you to find a solution, please contact Séura.
Features 10" 19" 27"
Display Backlight TFTThinFilmTransistor|LEDBacklight
Active Screen Area W x H 18.03"x12.56" 21.54"x18.23" 26.73"x22.64"
Diagonal 10" 19" 27.2"
Picture Format 16:10 16:10 16:9
Physical Resolution 1440 x 900 1440 x 900 1920 x 1080
Viewing Angle
Horizontal
Typical(Total)178°
(Left:89°/Right:89°)
Vertical
Typical(Total)178°
(Up:89°/Down:89°)
Horizontal
Typical(Total)178°
(Left:89°/Right:89°)
Vertical
Typical(Total)178°
(Up:89°/Down:89°)
Horizontal
Typical(Total)176°
(Left:88°/Right:88°)
Vertical
Typical(Total)176°
(Up:88°/Down:88°)
Brightness 450 cd/m2 700 cd/m2 700 cd/m2
Contrast Typical 4000:1 Typical 4000:1 Typical 5000:1
Response Time 8ms 6.5ms 6ms
Power Consumption DC 19V
10W/.083A
DC 19V
40W/.333A
DC 19V
50W / .417A
Operating
Temperature 32°to122°Fahrenheit
Humidity 20 - 80% RH, Non-Condensing
Certication CE,FCC
NOTE: Above specification may be changed without prior notification for quality improvement.
Troubleshooting
Technical Features
Ports
Special Features
USB Media Support
NOTE: Above specification may be changed without prior notification for quality improvement.
Input Ports LINEAudioINPUT 1 x mini jack and adapter cable: RCA terminal, white, red, yellow
Component Input 1 x mini jack and adapter cable: RCA terminal, red, green, blue
HDMI™Input 2 x HDMI™terminal
USB 1xUSBterminal
RS232 1xminijackandadaptercable:D-SUB9pinfemale
IRInput(Infrared) 1xminijack3.5mm
S-Video 1 x 4-pin mini DIN
PC Audio In 1xminijack3.5mm
Output Ports Speaker Output 1 x Phoenix clip 4pin
IR Output 4xminijack3.5mm
Audio Line Out 2xminijack3.5mm
Video HDMI™480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Component(YPbPr/YCbCr) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Audio Output Speaker Output 2 x 5W RMS @ 8Ω per channel
Multimedia Player USB
Software Update USB
Signal Scan Yes
RS-232 Yes
Noise Reduction 3D
USB Media Support File Extension Video Audio
Movie .avi DivX,XviD,MPEG-4 MP3,WMA,AAC
.mpg MPEG-1,MPEG-2
.dat MPEG-1
.mov / .mkv H.264
Music .mp3 -- MP3
.wma -- WMA
.m4a / .aac -- AAC
Photo .jpg / .jpeg Progressive JPG
BaselineJPEG
.bmp BMP
.png Non-Interlaced
Interlaced
Ports and Media Support

18 19
Product Limited Warranty
IfaSéura,Inc.(“Séura”)product(the“Product”)failstoworkoroperateproperlybecauseofadefectinmaterialsorworkmanship,Séurawill,forthelengthoftheperiod
indicatedbelow(startingonthedateoftheProduct’spurchasereceiptfortheProduct),atitsoption,either(a)repairtheProductwithneworrefurbishedparts,including
Séura’slaborifapplicable;or(b)replacetheProductwithaneworrefurbishedproduct.ThedecisiontorepairorreplacetheProductshallbeinSéura’ssolediscretion.
Séura warrants Lighted MirrorswithrespecttoSéura’sLaborforthree(3)years;Mirror,Glass,Structure,Frame,andAssemblyforthree(3)years;Electricalforthree(3)
years. Lamps are not warranted.
Séura warrants TV MirrorswithrespecttoSéura’sLaborforthree(3)years;Mirror,Glass,Structure,Frame,andAssemblyforthree(3)years;TVincludingremoteandpower
supplyforone(1)year.
Séura warrants Lighted Mirror TVswithrespecttoSéura’sLaborforthree(3)years;Mirror,Glass,Structure,Frame,andAssemblyforthree(3)years;TVincludingremote
andpowersupplyforone(1)year;ElectricalexcludingTVforthree(3)years.Lampsarenotwarranted.
Séura warrants Hydra Waterproof TVswithrespecttoSéura’sLaborforthree(3)years;Mirror,Glass,Structure,Frame,andAssemblyforthree(3)years;TVincluding
remoteandpowersupplyforone(1)year.
Séura warrants Storm Outdoor TVswithrespecttoSéura’sLaborfortwo(2)years;Glass,Structure,Frame,andAssemblyfortwo(2)years;TVincludingremoteandpower
supplyforone(1)year.
This Limited Warranty extends only to the original purchaser of a Product and only covers a Product purchased new. Séura reserves the right to require any warranty
claimant to produce the original purchase receipt or other original purchase date proof as may be reasonably required by Séura to verify the Product’s warranty eligibility.
1. Exceptions to Warranty: Séura does not warrant the Products against defects arising out of, related to, or caused by, whether totally or partially, and whether directly or
indirectly, any of the following:
A. Cleaning and maintenance of, or failing to properly clean and maintain, any Product, part or component of a Product, including, but not limited to, lters, front
bezel, and other Product areas or components;
 B.AProduct’sextendeduse,includingparticularly,commercialapplications,whereaProductisoperatingonaveragemorethansix(6)hoursperdayona
permanent or extended periodic basis;
 C.Circumstances,damage(includingconcealeddamage)orotherconditionsoccurringduringshipmentofaProductoratanytimeafteraProductleaves
Séura’s facility;
D. Circumstances, damage or other conditions occurring during unpacking and/or removal of a Product from its original packaging, including the removal of
protective material;
 E.Circumstances,damageorotherconditionsoccurringduringtransportoftheProducttoorfromSéurabeforeorafterauthorizedservice.Productsmustbe
packed properly using original packaging or Séura replacement or pre-authorized packaging. Customer assumes all risk, while in transit to or from Séura, and
shall be responsible for any costs incurred in transporting the Product.
F. Improper, incorrect, or insufcient AC supply voltage to a Product;
G. Alterations, modications or changes to a Product without Séura’s prior written authorization;
H. The incorporation of a Product into or within a product of a third party, without Séura’s prior written authorization;
I. A Product’s misuse, neglect use, abuse, or improper operation, including the failure to follow a Product’s normal and ordinary operating instructions;
J. The effects of re, ood, lightning, electrical surges, water and other liquid inltration, smoke, and other substances not intended to come into contact with a
Product, including any such substances contact with a Product as the result of acts of God;
K. The improper or faulty installation, setup, or adjustment of a Product;
L. A Product’s repair, attempted repair, or total or partial disassembly by any party other than a Séura authorized service representative;
M. When the product occurs with pixel errors within the specied and permitted area. For more information about this, inquire directly with Seura regarding the
Seura Pixel Policy.
N. Corrosion that does not affect the performance of a Product or the reasonable cosmetic appearance of a Product; and
O. Scratches or other paint or nish damage to a Product that lead to or are caused by, in part or in total, corrosion.
2. Warranty Disqualifiers. This Limited Warranty does not apply, and Séura makes no warranties or representations, with respect to any Product being free from defects in
materials or workmanship if the Product was purchased from a seller who is not authorized, by Séura, to sell Séura products, is owned by or is in possession of an individual
or entity who is not the original purchaser of the Product, or if the Product’s original Séura serial number has been removed, defaced, replaced, or otherwise tampered with
in any manner.
3. Limitation of Liability. THESPECIFICTERMSOFTHISLIMITEDWARRANTYAREINLIEUOFALLOTHERWARRANTIES,ORAL,EXPRESSEDORIMPLIED,
INCLUDING,BUTNOTLIMITEDTO,ANYIMPLIEDWARRANTIESOFFITNESSFORAPARTICULARPURPOSEORUSE.SÉURAWILLNOTBELIABLEFORANYLOSS,
DAMAGEORLIABILITYORANYDIRECT,INCIDENTAL,ORCONSEQUENTIALDAMAGESRESULTINGFROMTHEUSEORMISUSEOFAPRODUCT,ORARISING
OUTOFANYBREACH,BYTHEPURCHASEROFAPRODUCT,OFTHISLIMITEDWARRANTY.SOMESTATESDONOTALLOWTHEEXCLUSIONORLIMITATIONOF
INCIDENTALORCONSEQUENTIALDAMAGES,ORLIMITATIONSONHOWLONGANIMPLIEDLIMITEDWARRANTYLASTS,SOTHEEXCLUSIONSMAYNOTAPPLYTO
APARTICULARPURCHASER.NOTWITHSTANDINGANYTHINGCONTAINEDINTHISLIMITEDWARRANTYTOTHECONTRARY,SÉURA’SMAXIMUMLIABILITYTOA
PURCHASERRELATEDTOANYWARRANTYCLAIMORALLEGATIONOFADEFECTWITHRESPECTTOAPRODUCTSHALLNOTEXCEEDTHETHENCURRENTSÉURA
WHOLESALEPRICEOFTHESPECIFICPRODUCTFROMWHICHTHEWARRANTYCLAIMDERIVES.
NOTICEOFANYWARRANTYCLAIMMUSTBERECEIVEDBYSÉURA,INWRITING,PRIORTOTHEEXPIRATIONOFTHEAPPLICABLEWARRANTYPERIODSETFORTH
ABOVE.THEPRODUCTWARRANTYAPPLIESONLYFORTHEPERIODSSETFORTHABOVE.
4. Warranty Procedure. Prior to returning any Product to Séura, a warranty claimant must contact Séura at 920- 857-9069 to obtain a return goods authorization
(RGA)numberand,ifapplicable,specicreturnandshippinginstructions.AProductwillonlybeacceptedforwarrantyclaimsifreturnedandshippedto
Séura in the Product’s original packaging materials. If original packaging is not available, please contact Séura to receive authorized replacement packaging.
Packagesnotbearingtheissuedreturnedgoodsauthorization(RGA)numberwillnotbeacceptedbySéuraandwillbereturnedtosender.Inadditionto
the Product, the package must include the warranty claimant’s original sales receipt for the purchase of the Product. All Product returns shall be received
by Séura, at 1230 Ontario Road; Green Bay, WI 54311 with freight prepaid by the warranty claimant. Séura shall not be responsible for, and the warranty
claimant assumes and retains all such responsibility, any damage or loss to or of the Product during shipment to Séura as the result of a warranty claim.
5. Exclusive Remedy. This Limited Warranty sets forth the exclusive remedies of a warranty claimant with respect to allegations of a defective Product.
Notes

© Séura 2013
All Rights Reserved
6-10-13
Séura, Inc.
1230 Ontario Road
Green Bay, WI 54311
800.95.SEURA
t: 920.857.9069
f : 9 2 0 . 8 5 7. 9 4 9 0
8 0 0 . 9 5 7. 3 8 7 2
www.seura.com
