Signature Kitchen Suite SKSDW2401S User manual

ENGLISH ESPAÑOL FRANÇAIS
www.signaturekitchensuite.com
MFL69261725
Rev.02_110818 Copyright © 2018 SIGNATURE KITCHEN SUITE. All Rights Reserved.
Read this owner's manual thoroughly before operating the appliance and
keep it handy for reference at all times.
SKSDW2401S
OWNER’S MANUAL
DISHWASHER

2
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 SAFETY INSTRUCTIONS
4 IMPORTANT SAFETY INSTRUCTIONS
9 PRODUCT OVERVIEW
9 Exterior Parts
10 Interior Parts
10 Accessories
11 INSTALLATION
11 Installation Parts and Tools
12 Installation Overview
12 Product Dimensions
12 Product Specifications
13 Preparing Cabinet Opening
14 Preparing Water and Electrical Connections
15 Preparing Dishwasher
16 Attaching Installation Brackets
17 Sliding Dishwasher into Cabinet Opening
19 Connecting Water Supply Line and Power
21 Connecting Drain Hose
23 Leveling Dishwasher
24 Securing Dishwasher to Cabinet Opening
25 Final Installation Check
27 OPERATION
27 Using the Appliance
28 Control Panel
30 Cycles
31 Options
32 Cycle/Option Guide
33 Loading the Dishwasher
33 Loading the Lower Rack
35 Loading the Silverware Basket
36 Loading the Upper Rack
39 Loading the Cutlery Rack
41 Adding Cleaning Agents
43 SMART FUNCTIONS
43 The SIGNATURE KITCHEN SUITE Application
46 Smart Diagnosis™ Function
47 MAINTENANCE
47 Cleaning the Exterior
47 Cleaning the Interior
47 Seasonal Maintenance and Storage
48 Clogged Drain Air Gap or In-Sink Disposal
49 Cleaning the Filters
50 Cleaning the Spray Arms
51 TROUBLESHOOTING
51 FAQs: Frequently Asked Questions
54 Before Calling for Service
58 LIMITED WARRANTY
58 FOR USA
60 FOR CANADA
62 Warranty Exceptions (U.S and Canada)

3PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
QuadWash™ System
Multi-Motion lower spray arm shoots water in various directions and at optimized intensities to reach every area
of the tub. This system provides more powerful and complete cleaning coverage.
Inverter Direct Drive Motor
SIGNATURE KITCHEN SUITE experience in motor technology results in extraordinary functionality, with
advanced features like the Dual Zone option, whisper-quiet operation, energy efficiency, and durability.
The simple design and high build quality of the motor make it so reliable that it's covered for 10 years under the
warranty.
EasyRack Plus
This easy-to-use system of adjustable tines and rack height provides more flexibility and versatility when
loading dishes of various shapes and sizes.
Hybrid Drying System
This efficient drying system does not use a heating element during the drying process resulting in superior
energy efficiency and gentle care for dishes.
Signature Kitchen Suite Application
Download the smart phone app to set options, self-diagnose and troubleshoot problems with the appliance,
and other useful features. This function uses Wi-Fi.
PowerSteam™ Technology
Tiny drops of purified water coat the surfaces of every dish from the steam that fills the tub, resulting in
sparkling clean dishes.

4SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock, scalding or injury
to persons when using this product, follow basic precautions, including the
following:
INSTALLATION
xConnect to a properly rated, protected, and sized power circuit to avoid electrical overload.
xTo reduce the risk of severe injury or death, follow all installation instructions.
xThe appliance must be installed and electrically grounded by qualified service personnel in accordance with
local codes.
xDisconnect the power supply line, house fuse or circuit breaker before installing or servicing the appliance.
xWhen moving or installing the product in a different location, call qualified service personnel for installation
and service.
xKeep packing materials out of the reach of children. Packaging material can be dangerous for children.
There is a risk of suffocation.
xMoving or installation of the appliance requires two or more people.
xThis appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or aircraft.

5SAFETY INSTRUCTIONS
ENGLISH
xStore and install the appliance where it will not be exposed to temperatures below freezing or exposed to
outdoor weather conditions.
xThis appliance must be positioned near to an electrical power supply.
xDo not, under any circumstances, cut or remove the ground from the power supply line.
xWhen installing or moving the appliance, be careful not to pinch, crush, or damage the power supply line.
xDo not install the appliance in humid spaces.
xDestroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children might
use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers.
xNever attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged power supply line.
xAdhere to all industry recommended safety procedures including the use of long sleeved gloves and safety
glasses.
xThe installer must ensure that the dishwasher is completely enclosed at the time of installation.
xUse new hoses when connecting the appliance to the water supply. Do not reuse old hoses.
xAfter installing, check the hose connection for leaks.
xDo not damage or place heavy items on the power supply line of the appliance.
OPERATION
xRepair or immediately replace all power supply lines that have become frayed or otherwise damaged. Do
not use a power supply line that shows cracks or abrasion damage along its length or at either end.
xIf you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it
immediately, and contact an SIGNATURE KITCHEN SUITE customer information center.
xNever unplug the appliance by pulling on the power supply line.
xDo not use an extension cable or adapter with this appliance.
xDo not grasp the power supply line or touch the appliance controls with wet hands.
xDo not modify or extend the power cable.
xIf the product has been submerged, contact an SIGNATURE KITCHEN SUITE customer information center
for instructions before resuming use.
xDo not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
xKeep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.),
gasoline, chemicals and other flammable vapors and liquids.
xThis appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
xIf the electrical supply line is damaged, it must only be replaced by the manufacturer or its service agent or
a similar qualified person in order to avoid a hazard.
xDo not abuse, sit on, or stand on the door of the appliance.
xRead all instructions before using the appliance and save these instructions.
xUse this appliance only for its intended purpose.

6SAFETY INSTRUCTIONS
xDo not allow children to play on, in or with the appliance. Close supervision of children is necessary when
the appliance is used near children.
xDo not tamper with controls.
xIn the event of a gas leak (propane gas, LP gas, etc.) do not operate this or any other appliance. Open a
window or door to ventilate the area immediately.
xUnder certain conditions, hydrogen gas may be produced in a hot-water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for
such a period, before using the appliance turn on all hot water faucets and let the water flow from each for
several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or
use an open flame during this time.
xFix the drain hose securely in place.
xUse only detergents or wetting agents recommended for use in a dishwasher and keep them out of the
reach of children.
xDo not let children eat detergent or dishwasher rinse agent.
xWhen loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
xDo not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not
so marked, check the manufacturer’s recommendations.
xDo not touch the HEATING ELEMENT during or immediately after use.
xDo not operate your dishwasher unless all ENCLOSURE panels are properly in place.
xDo not abuse, sit on, or stand on the door or dish rack of the dishwasher.
xDo not install or store the dishwasher where it will be exposed to weather conditions.
xAfter cleaning the dishes, turn off the faucet. Turn on the faucet again and check the connection status of
water supply hose before cleaning.
xDo not open the door while operating. For safety reasons, the drain pump operates if the door is opened,
resulting in a longer cycle time.
xBe careful not to catch your hand when closing the door of the product.
xDo not plug the dishwasher into a damaged outlet.
xDo not install or keep the dishwasher near electrical components or exposed flames.
xDo not wash dishes exposed to gasoline, solvents or other flammable materials.
xWhen cleaning, do not spray water on the product directly.
xDo not press buttons with a sharp object such as an awl or pin.
xDo not use solvent-based detergent.
xDo not come into contact with the steam outlet.
xSmall parts, such as rack clips and filter retaining posts can be a choke hazard to small children if removed
from the dishwasher. Keep out of reach of small children.

7SAFETY INSTRUCTIONS
ENGLISH
MAINTENANCE
xDo not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified
service personnel unless specifically recommended in this Owner’s Manual. Use only authorized factory
parts.
xDo not disassemble or repair the appliance by yourself.
xRemove any dust or foreign matter from the power supply line.
xDisconnect this appliance from the power supply before cleaning and attempting any user maintenance.
Turning the controls to the OFF position does not disconnect this appliance from the power supply.
xRemove the door before the appliance is removed from service or discarded to avoid the danger of children
or small animals getting trapped inside.
xUnplug the appliance before cleaning to avoid the risk of electric shock.
xBefore discarding the appliance, cut off the power supply line and destroy the appliance's control panel.
GROUNDING INSTRUCTIONS
xFor a permanently connected dishwasher: This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead to the appliance.
xConnect the ground wire to the green ground connector in the terminal box.
TIP OVER HAZARD
xDo not use the dishwasher until completely installed.
xDo not push down on the open dishwasher door.
xFailure to follow these instructions may result in serious injury or cuts.
SAVE THESE INSTRUCTIONS

8SAFETY INSTRUCTIONS
CAUTION
To reduce the risk of minor injury to persons, malfunction, or damage to the
product or property when using this product, follow basic precautions, including
the following:
INSTALLATION
xInstall the product on a firm and level floor.
xThis dishwasher must be connected to a hot water supply with a temperature range between 120 °F (49 °C)
and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time. The
temperature should not exceed 149°F (65 °C) to prevent damage to dishes.
xDo not put the drain hose under the dishwasher during installation.
OPERATION
xDo not place objects on top of the appliance.
xTurn off the water faucets and unplug the appliance if the appliance is to be left for an extended period of
time, such as during vacations.
xDo not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the
appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.
xDo not touch draining water which may be hot.
xIf the drain hose and the water supply hose are frozen in winter, defrost before using the appliance.
xDo not put hands, feet, or metal objects below or behind the appliance.
xDo not put the drain hose under the dishwasher during installation.

9PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW

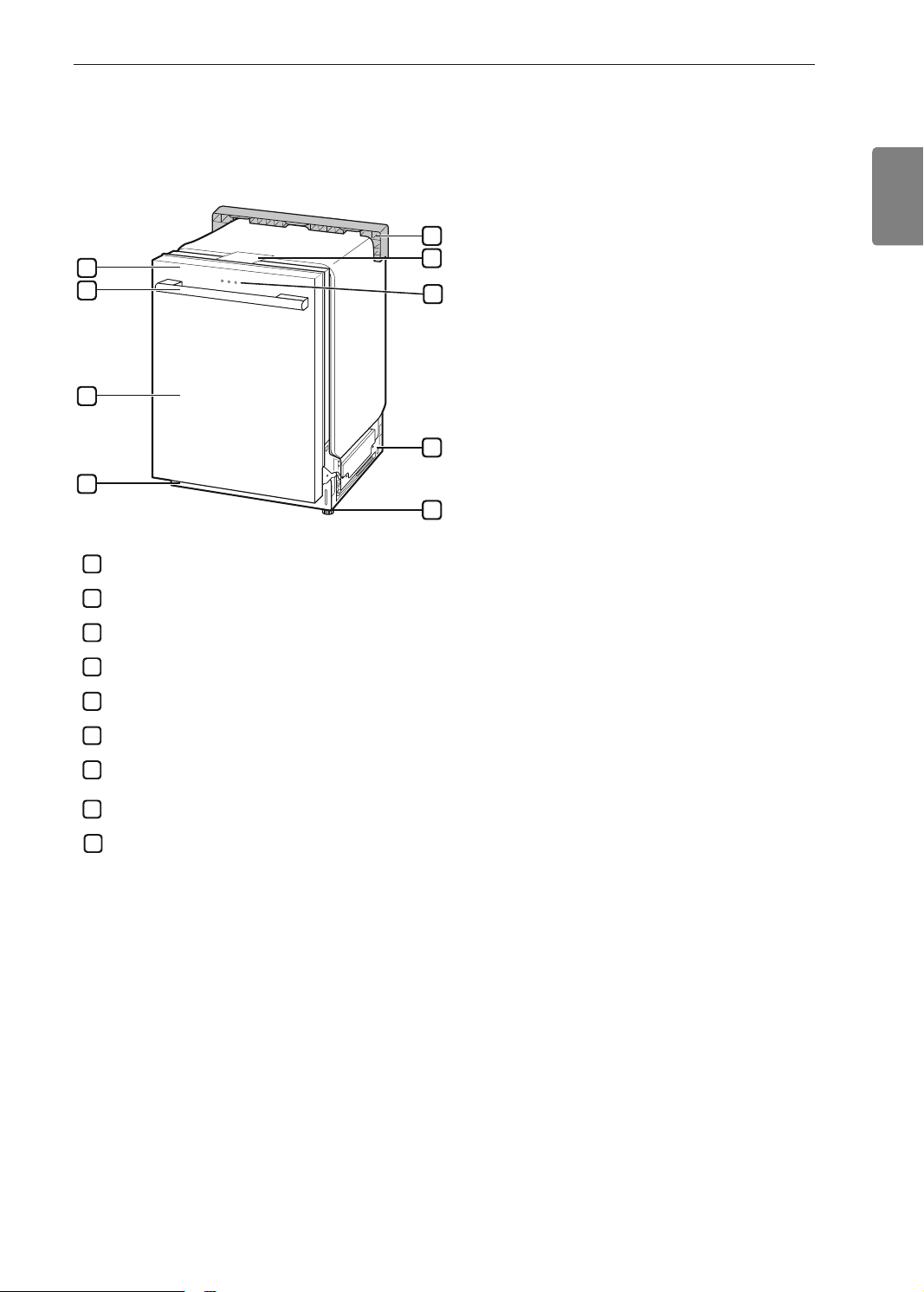

Exterior Parts
3
4
8
1
5
9
27
6
1
Control Panel
2
Door Handle
3
Front Cover
4
Lower Cover
5
Shipping Brace
6
Safety Cover
7
SignaLight™
8
Base
9
Leveling Feet
NOTE
xDo not remove the safety cover at any time.
SignaLight™(Front Display)
The top-control models have 3 indicator LEDs centered at the top of the front cover.
xRed : Error (See the Error Codes in Troubleshooting section.)
xWhite (steady): Normal operation.
xWhite (blinking): Cycle has been paused. (After four minutes in pause mode, the machine turns off.)
xGreen: Cycle finished normally.
The default “ON” setting keeps the green light on until the door is opened.
If the setting is changed to “OFF”, the green light turns off after 90 seconds.
To change the setting, turn the power on and press and hold the High Temp button for 3 seconds
until “ON” or “OFF” appears in the display. The setting is stored until you change it.

10 PRODUCT OVERVIEW

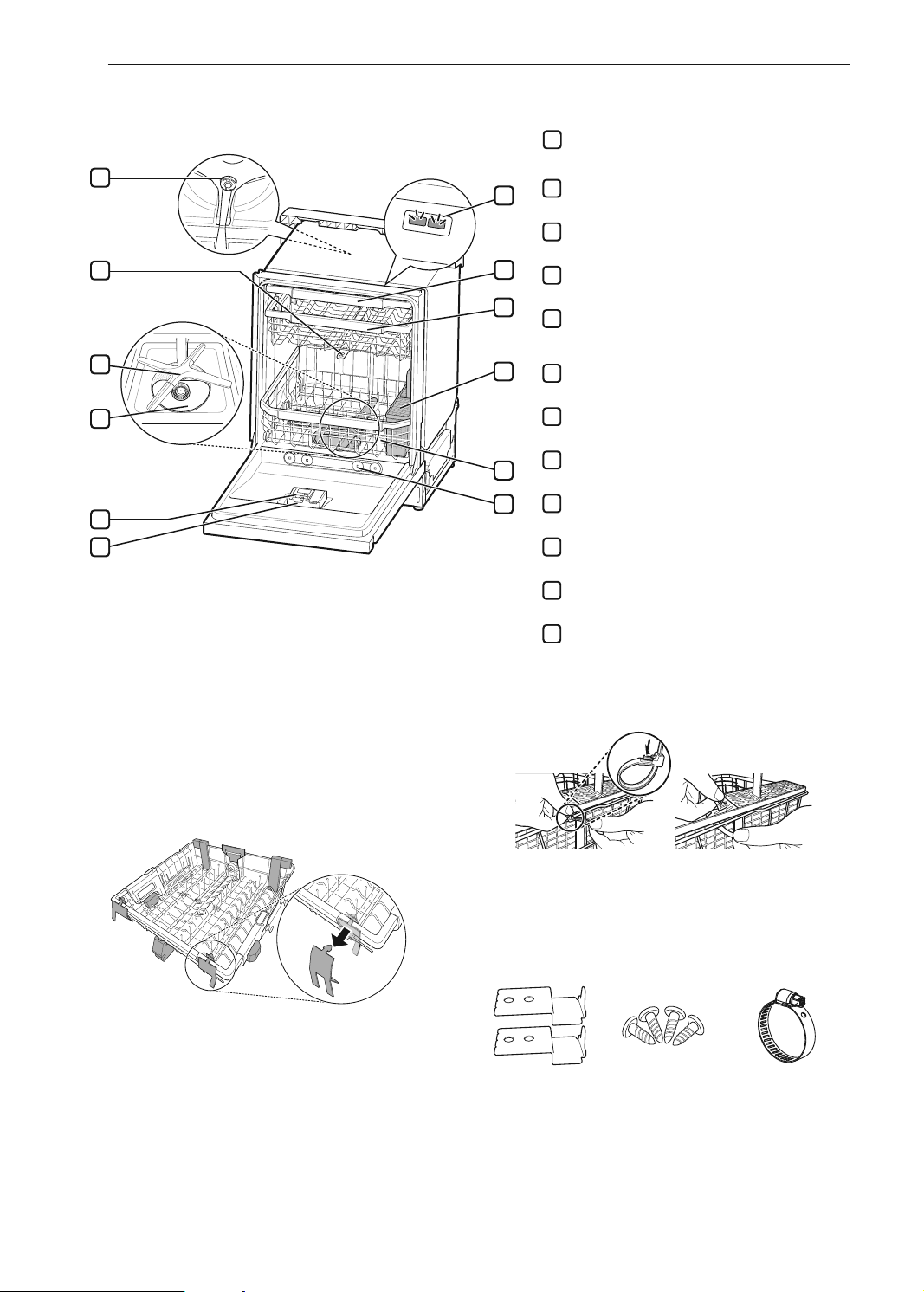

Interior Parts
10
6
11
12
5
9
28
1
3
4
7
NOTE
xThe silverware basket ships installed at the back
of the bottom rack. For best performance, install it
along the right side as shown in the Interior Parts
section.
xRemove all packing materials from the exterior
and interior of the dishwasher before installing the
appliance.
2
3
xPress the tab to remove the cable tie by hand.
Cutting the tie with a knife or scissors may damage
the rack or the silverware basket.
Accessories
Included Accessories
Installation
brackets
(2ea)
Wood screws
(4ea) Hose clamp (1ea)
1
Top Wash Impeller
2
Upper Spray Arm
3
Lower Spray Arm
4
Filtration System
5
Detergent and Rinse Aid
Dispenser
6
Drying Vent Cover
7
Tub Light
8
Cutlery Rack
9
Upper Rack
10
Silverware Basket
11
Lower Rack
12
Steam nozzle

11INSTALLATION
ENGLISH
INSTALLATION
Installation Parts and Tools
Parts Not Provided
Electrical cable Water supply tube Fittings for tube Coupler Teflon™ tape
Air gap Wire nuts for
16-gauge wiring Hose clamp Ǭ8/DSSURYHG strain relief Electrical tape
Tools Needed
Flat-blade
screwdriver Phillips screwdriver Hole saw min. 2½" bit Electrical drill Gloves
Safety glasses Adjustable wrench Tape measure Utility knife Level
Tubing cutter Nipper Pliers Wire stripper ¼" Square
drive wrench

12 INSTALLATION
Installation Overview
Preparing Cabinet Opening
Preparing Electrical Wiring
Preparing Water Supply Connection
Preparing the Dishwasher
Removing Lower Cover
Sliding the Dishwasher into Cabinet
Leveling the Dishwasher
Securing the Dishwasher to Countertop
Connecting the Drain Hose
Connecting Water Supply
Connecting Power
Final Check
Product Dimensions
Back view Side view
33 /16"
(846 mm)
5
23 /4" (603 mm)
3
4/2"
(115 mm)
1
33 /8"
(854 mm)
5
2 /16" (75 mm)
15
20 /16" (512 mm)
3
24 /8" (625 mm)
5
4 /4" (120 mm)
3
9 /8"
(238 mm)
3 4 /16"
(119 mm)
5/4"
(134 mm)
11
1
4/2"
(115 mm)
1
26 /8 - 26 /16" (676 - 681 mm)
513
Water supply hose, drain hose and electric cable should be passed
through this area.
NOTE
xFor easiest installation, see marked areas above for water and electrical clearances in base of dishwasher.
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirement 120 V, 60 Hz AC only, minimum 15 A circuit breaker
Water pressure 20 - 80 psi (140 - 550 kPa)
Dimensions 23 3/4"(W) X 24 5/8"(D) X 33 5/8"(H)
603 mm(W) X 625 mm(D) X 854 mm(H)
Inlet water temperature 120 °F (49 °C) minimum, 149 °F (65 °C) maximum
Net weight 97 lb (44 kg)

13INSTALLATION
ENGLISH
Preparing Cabinet Opening
This dishwasher is designed to fit a standard
dishwasher opening. An opening may be needed
on both sides to route plumbing and electrical
connections.
xTo ensure proper drainage, install the dishwasher
no more than 12 ft. (3.65 m) from the sink.
xThe location must have sufficient space for the
dishwasher door to open easily and provide at
least 0.1” (2 mm) between the dishwasher and the
cabinet sides.
xIf installing the dishwasher in a corner, leave a
minimum of 2” (50 mm) between the dishwasher
and the adjacent wall.
xThe adjacent wall must be free of obstructions.
xFor flush installations only, you may remove the
cabinet brace inside the cabinet.
1Select a location as close to the sink as
possible for easy connections to water supply
line, drain hose and electrical connection.
22
22
2To allow for proper clearance of plumbing and
electrical, use the template included with the
literature to determine the clearance on the
side of the cabinet where the cabinet meets
the back wall. Using a 2 1/2” diameter hole saw,
drill a hole in the target area as shown on the
template.
3.5 ''
2.5
''
4
''
WARNING
xInstallation damage is not covered by the
warranty, and leaks caused by improper
installation may result in property damage.
xDo not use existing holes unless they are in the
target area.
xFailure to properly locate the hole for the water
and drain lines may prevent the dishwasher
from installing flush with the cabinets and could
result in kinked, pinched, crushed, stressed or
damaged lines.

14 INSTALLATION
Preparing Water and
Electrical Connections
There are 2 channels in the bottom of the dishwasher
for routing the water and electrical connections. As
shown in the bottom view below, channel is for the
water supply line, and channel is for the electrical
cable.
1Turn off the house water supply and the circuit
breaker or dedicated power before connecting
the dishwasher.
2Run the water supply line along the floor 6 1/2 –
7 3/4” (165–197 mm) from the left side of the
opening and tape it in place in front of the
opening.
3Run the electrical cable along the floor
14–16” (356–406 mm) from the water supply line
and tape it in place.
• The electrical outlet must be within 4 ft. (1.22
m) of either side of the dishwasher.
• The best location for the electrical conduit is
on the right side of the back wall. Re-route
the electrical cable before installation if the
electrical conduit pipe is longer than 3” (76
mm) and is centered on the back wall.
WARNING
Water Connection
xDo not reuse an old hose. Use only a new
hose when installing the dishwasher. The old
hose could leak or burst causing flooding and
property damage. Contact an SIGNATURE
KITCHEN SUITE Customer Information Center
for assistance in buying a new hose.
Electrical Connection
xUse a time-delay fuse or circuit breaker.
xOperate this appliance with the correct voltage
as shown in this manual and on the rating plate.
xThe wiring must be grounded properly. If in
doubt, have it checked by a qualified electrician.
xConnect the appliance using 3-wires, including a
ground wire.
xThe appliance and outlet must be positioned so
that the plug is easily accessible.
xDo not use an extension cable or adapter with
this dishwasher.
xDo not overload the outlet with more than one
appliance.

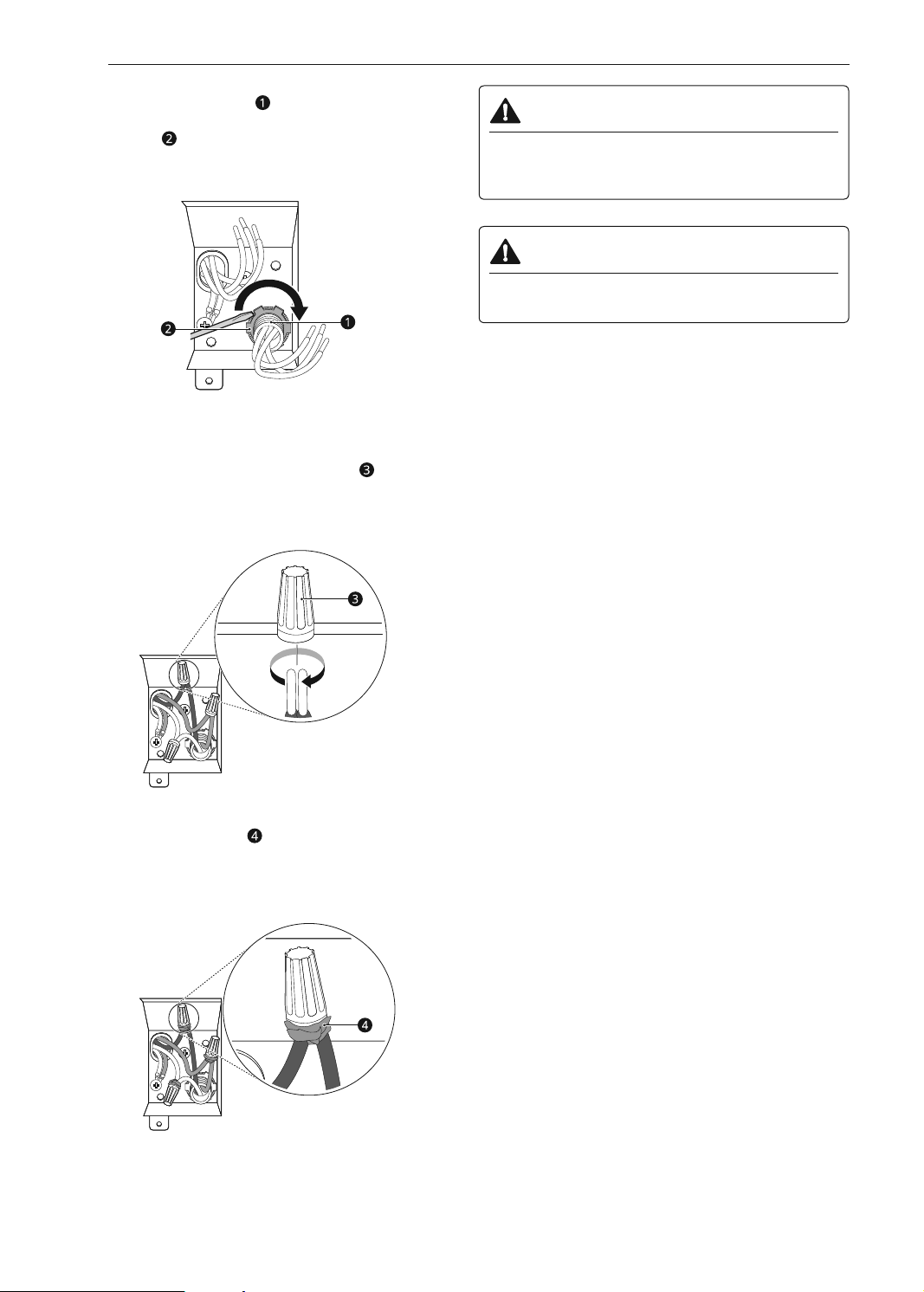

xThe included 16AWG wire nuts should be used.
xIt is the personal responsibility and obligation
of the product owner to have a proper outlet
installed by a qualified electrician.
CAUTION
xWhen connecting the dishwasher water supply
line to the house water supply, sealing tape or
compound should be used on pipe threads to
avoid leaks. Tape or compound should not be
used on compression fittings.
xConnect the dishwasher to a hot water supply
with a temperature range between 120 °F (49
°C) and 149 °F (65 °C). This temperature range
provides the best washing results and shortest
cycle time. To prevent damage to dishes, the
temperature should not exceed 149 °F (65 °C).
xWater supply pressure must be between 20 psi
and 80 psi (140–550 kPa). If the water supply
pressure exceeds 80 psi, a pressure reducing
valve must be installed. Otherwise premature
failure of the inlet valve may occur.

15INSTALLATION
ENGLISH
Preparing Dishwasher
WARNING
xDo not remove safety cover . Removal can
result in fire, electric shock or death.
Releasing Drain Hose

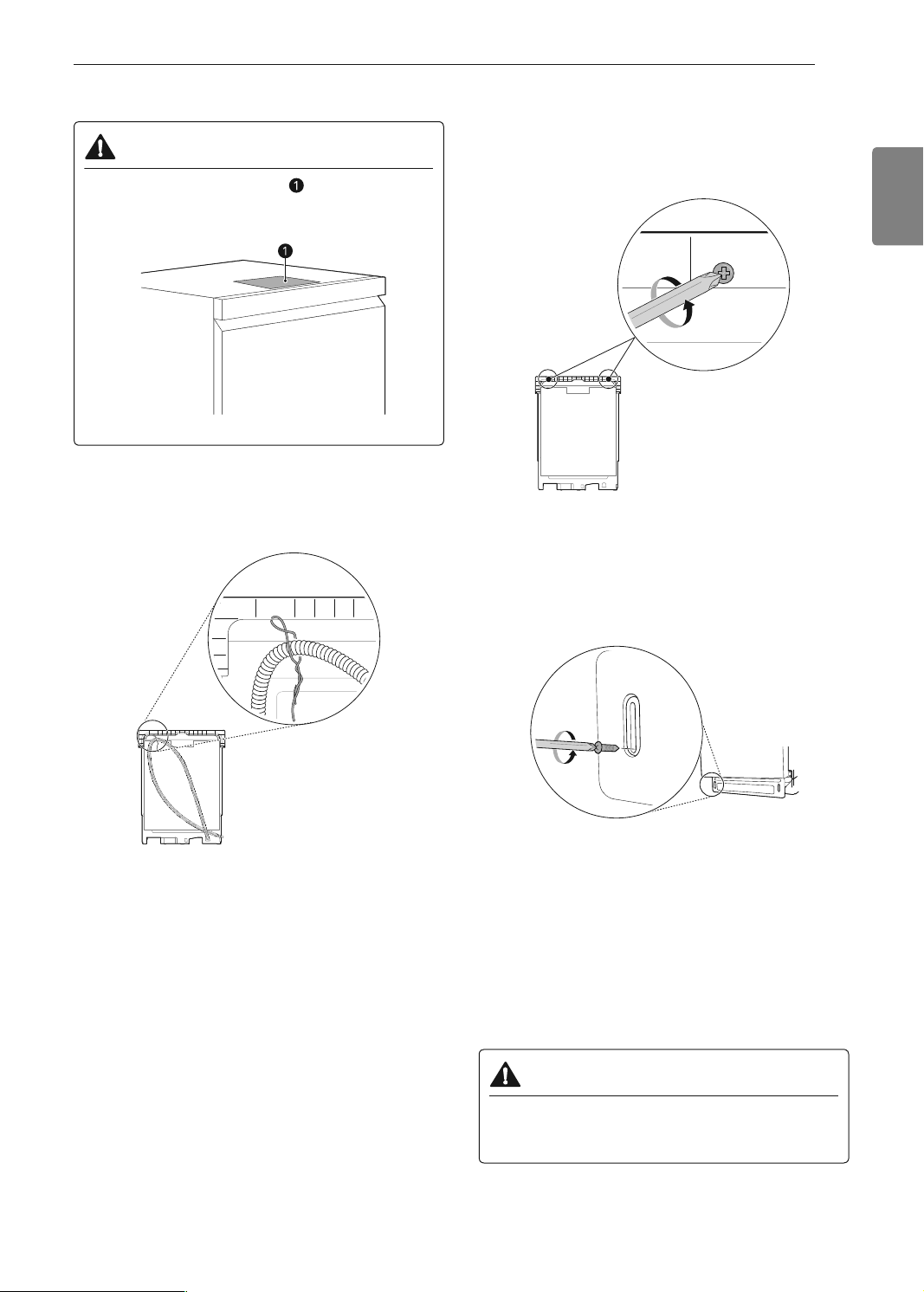

Remove the twist tie holding the drain hose to the
back of the shipping brace.
Removable Shipping Brace
The rear shipping brace can be removed if additional
clearance is needed when installing the dishwasher
under a low countertop.
Removing Lower Cover
1Remove the screws at either side which attach
the lower cover to the dishwasher.
2Remove the lower cover.
3If there is insulation padding behind the lower
cover, remove it.
4Set the parts aside until the installation is
complete.
CAUTION
xIf you lay the dishwasher on its back, do so
carefully to avoid damaging the drain hose and
the tub.

16 INSTALLATION
Removing Packing Materials from the
Interior
Remove all packing materials from the interior of the
dishwasher before installing the appliance.
2
3
Attaching Installation
Brackets
For countertops made of wood or other material
that will not be damaged by drilling, use the metal
installation brackets provided.
For countertops made of granite, marble, or other
materials that could be damaged by drilling, use the
wood screws to attach the dishwasher to the cabinet.
See installation instructions in Securing Dishwasher
to Cabinet Opening.
NOTE
xInstallation brackets and screws can be found in the
silverware basket.
1Insert the tabbed end of the installation brackets
into the slots in the upper frame. Rotate the
brackets until the tabbed ends are facing up.
2Bend the tabs on the brackets to secure them to
the frame using a pair of needle nose pliers.

17INSTALLATION
ENGLISH
Sliding Dishwasher into
Cabinet Opening
CAUTION

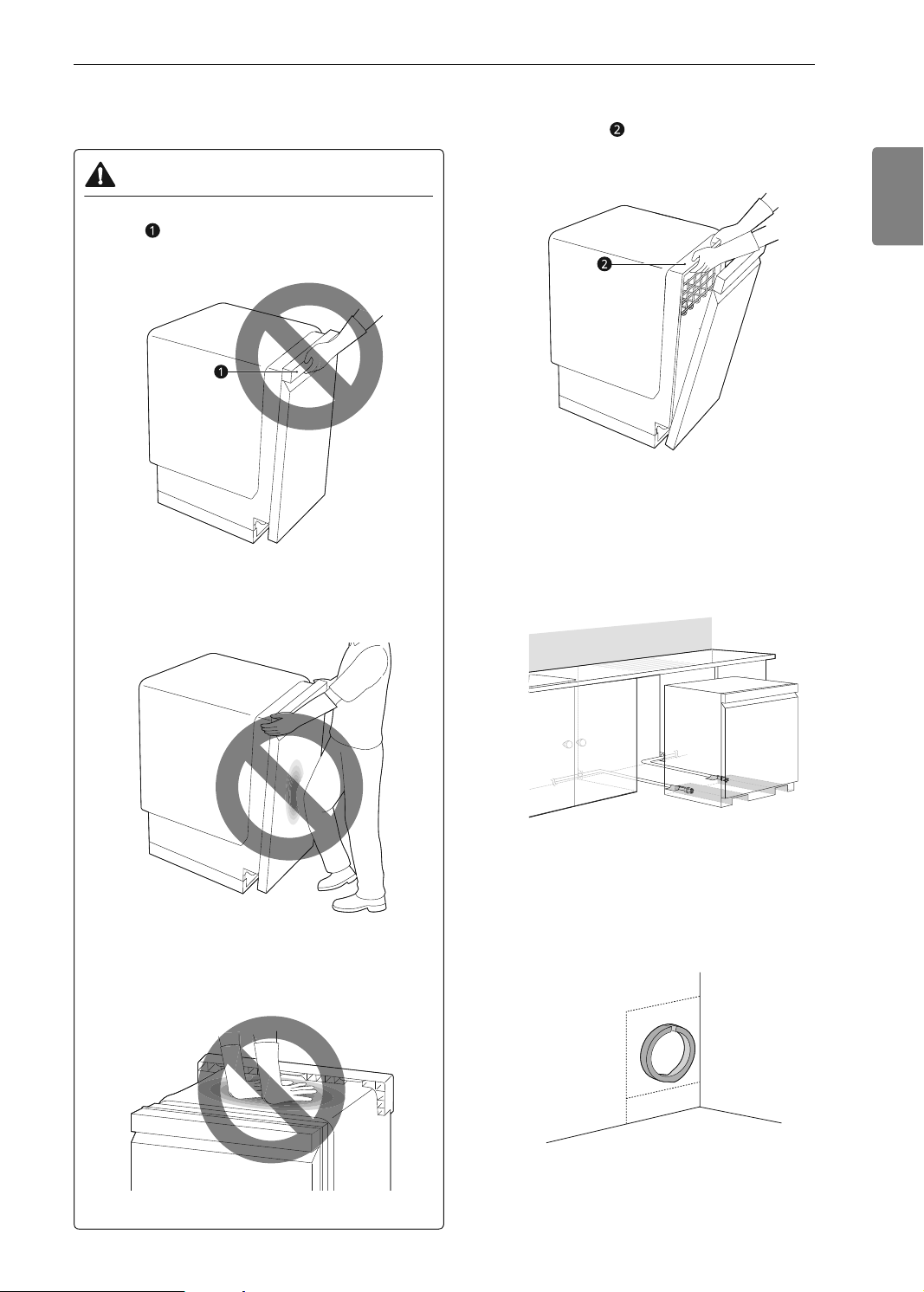

xDo not pull or lift the dishwasher using the
handle . Doing so can damage the door and
hinges.
xDo not push the door of the dishwasher with
knees when sliding the dishwasher into position.
Doing so can damage the front cover.
xDo not push the top of the dishwasher. Doing so
can damage the interior of the dishwasher.
NOTE
xOpen the door and grab the body frame and the
top front opening of the tub to move or lift the
dishwasher.
1Align the dishwasher with the opening. Make
sure the water supply line and electrical cable
are in the correct positions to slide into their
channels properly.
2Smooth out or pad the edges of the hole drilled
for the water supply to avoid damaging the drain
hose.

18 INSTALLATION

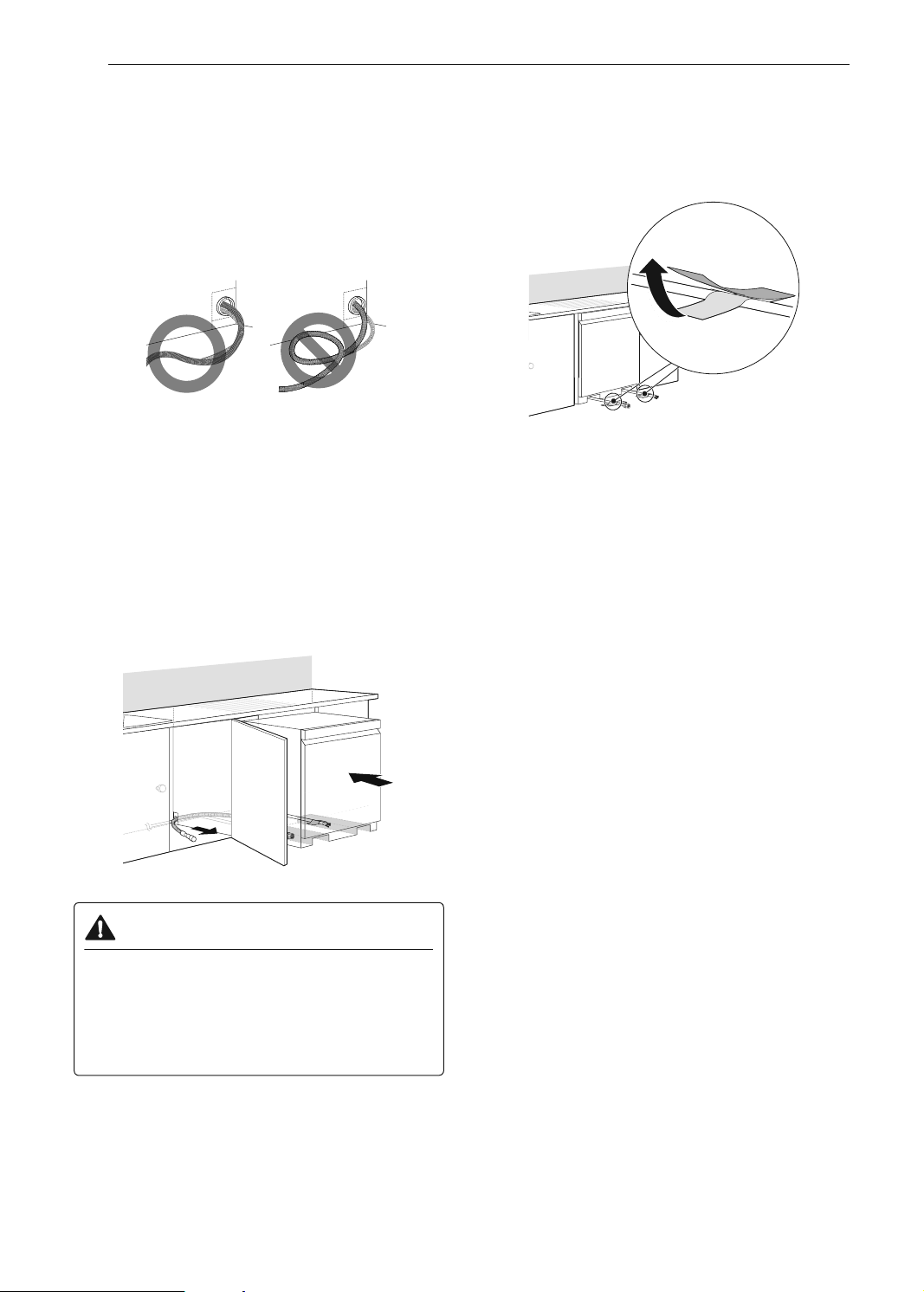

3Make sure the drain hose is straight before
feeding the end of it through the hole for the
water supply. As you slide the dishwasher into
the opening, you will want to slowly pull on the
drain hose from inside the cabinet to take up
some slack. Be careful not to kink, pinch, crush
or stress the drain hose during installation to
avoid leaking and water damage.
4Gradually slide the dishwasher into the opening,
making sure that the water supply line and
electrical cable are passing freely through the
channels and do not get caught under the
dishwasher.
• As you slide the dishwasher into the opening,
stop periodically (or have an assistant help)
to take up the slack by pulling the drain hose
farther into the cabinet.
CAUTION
xTo avoid malfunctions or leakage, it is important
that the drain hose not get kinked, pinched,
stressed or crushed behind or under the
dishwasher or inside the neighboring cabinet.
xDamage resulting from improper installation is
not covered under the warranty.
5Remove the tape from the water supply line and
the electrical cable.

19INSTALLATION
ENGLISH
Connecting Water Supply
Line and Power
Connecting Water Supply Line
1 With the home water supply turned off, connect
the water supply line to the inlet valve on the left
front of the dishwasher.
2Tighten the compression nut.
3Slide the water supply line back through the
channel, pulling gently from inside the cabinet
to make sure the line is not kinked, pinched,
stressed or crushed.
Connecting Power
The dishwasher should have a dedicated properly
grounded branch circuit to connect the 3 wire setup
which includes the ground wire.
If a 3-prong power supply is used, it should be in an
accessible location adjacent to the dishwasher within
4 ft. (1.22 m) of the dishwasher side and not behind
the dishwasher.
NOTE
xThe best location for the electrical conduit is on the
right side of the back wall. Re-route the electrical
cable before installation if the electrical conduit pipe
is longer than 3” (76 mm) and is centered on the
back wall.
1 Turn off electrical power to the unit at the circuit
breaker.
2Use a Phillips screwdriver to remove the screw
from the junction box cover and remove the
cover.
3Slide a strain relief onto the end of the
electrical cable.

20 INSTALLATION
4Insert the strain relief and the electrical cable
through the hole in the junction box. Tighten the
ring nut to secure them in place.
5Pair the white, black, and green wires to the
matching colored wires from the dishwasher.
Then twist on the provided wire nuts tightly to
connect the corresponding wires.
6Wrap electrical tape around each connection.
7Fold the connected wires back into the junction
box and screw on the junction box cover.
WARNING
xVerify that the black wire is hot (120 V). If not,
or if you are unsure of the power supply, have it
checked by a licensed electrician.
CAUTION
xDo not leave stripped wire exposed. Trim
stripped wire to fit completely inside wire nuts.
