SONIQ Qmedia QMS300B User manual

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral
triangle is intended to alert the user
to the presence of insulated
‘dangerous voltage’ within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BACK) , NO USER
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying
the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all instructions.
5.) Do not use this apparatus near water.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.) Do not defeat the safety purpose of the plug. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.) Only use attachments / accessories specified by the manufacturer.
12.) Unplug this apparatus during lightning storms or when unused for long periods of time.
13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
14.) This appliance shall not be exposed to dripping or splashing water and no object filled with l
liquids such as vases shall be placed on the apparatus.
15.) Do not overload wall outlet. Use only power source as indicated.
16.) Use replacement parts as specified by the manufacturer.
17.) The product may be mounted to a wall only if recommended by the manufacturer.
18.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
19.) Attention should be drawn to the environmental aspects of battery disposal

zDo not attempt to clean this unit with
chemical solvents as this might
damage the finish. Use a clean dry
cloth.
zAvoid installing this unit in places
exposed to direct sunlight or close to
heat radiating appliances such as
electric heaters, on top of other stereo
equipment that radiates too much heat,
places lacking ventilation or dusty
areas, places subject to constant
vibration and/or humid or moist areas.
zOperate controls and switches as
described in the manual.
zBefore turning ‘On’ the power, make
certain that power cord is properly
installed.
zNo naked flame sources, such as
lighted candles, should be placed on
the apparatus.
zWhen moving the set, be sure to first
disconnect the power cord. zThe apparatus shall not expose to
dripping or splashing. No objects filled
with liquids, such as vases, shall be
placed on the apparatus.
UNPACKING AND SET UP
zCarefully remove all the components from the display carton and verify that
you have all the necessary components before you dispose of the display
carton.
zRemove all packing materials from the individual components. Remove any
descriptive labels that may be attached to the front panel of the main unit. Do
not remove any labels or stickers on the back panels of the main unit or the
speakers.
zPlace all the components in the desired location. This system is designed to
be used on level, stable, flat surface such as a table, desk, shelf, or stand,
convenient to an AC outlet, out of direct sunlight, and away from sources of
excess heat, dust, moisture, or vibration.
zUnwind the AC power cord on the back of the unit and extend the cord to its
full length
.
- 2 -

POWER SOURCE
This system is designed to operate on 240V AC
50Hz house current only.
Connecting this system to any other power source
may cause damage to the system and such damage
is not covered by your warranty.

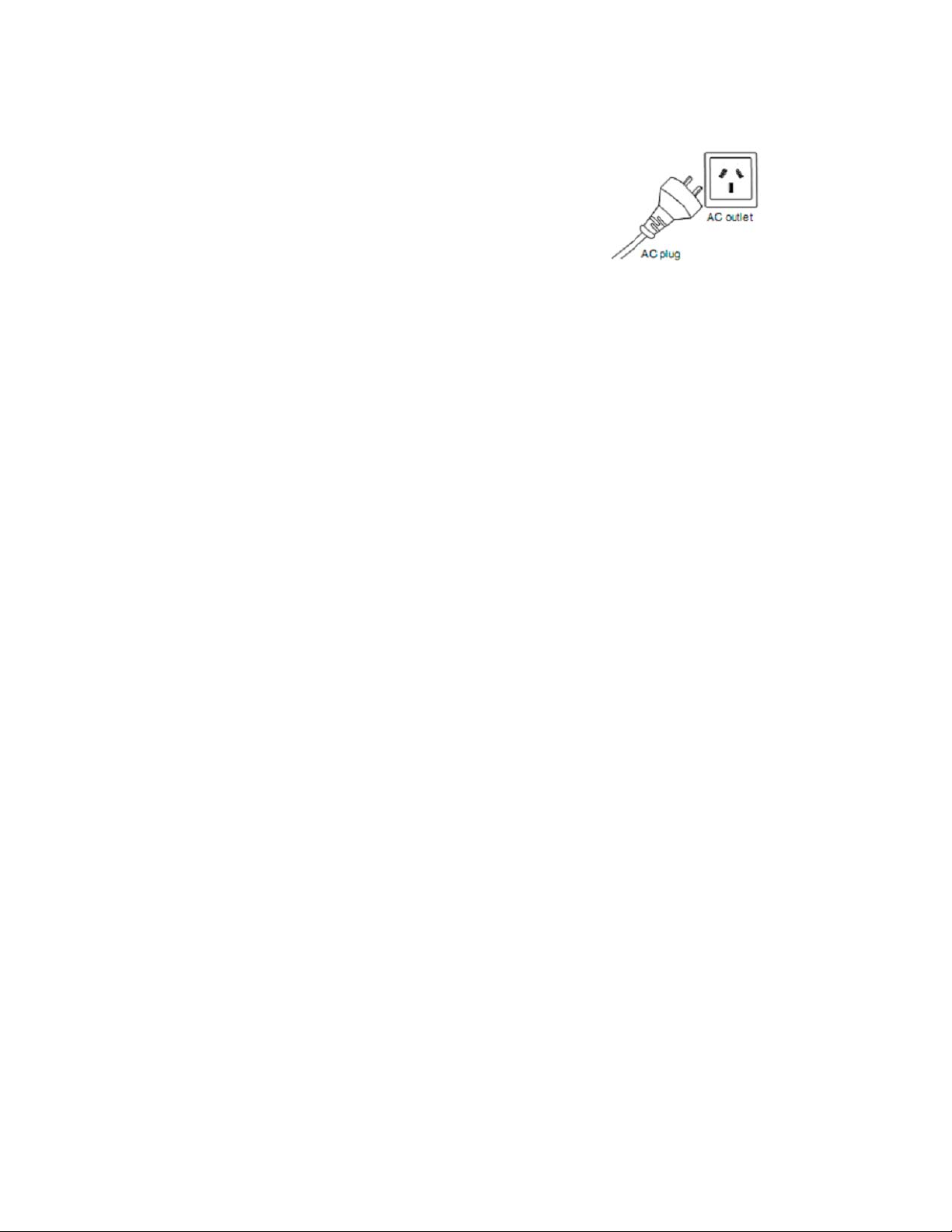

NOTE: The system has an AC plug and will only fit into matching AC outlets. This
is a safety feature to reduce the possibility of electric shock. If the plug will not fit in
your AC outlets, you should have the outlet changed by a qualified, licensed
electrician. Do not use an adapter to make the plug fit into your outlet. This
defeats the safety feature and could expose you to electric shock.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood
preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave
marks or a rubber residue on the furniture. To prevent any damage to your
furniture we strongly recommend that you purchase small self-adhesive felt pads,
available at hardware stores and home improvement centers everywhere, and
apply these pads to the bottom of the rubber 'feet' before you place the product on
fine wooden furniture.
- 3 -

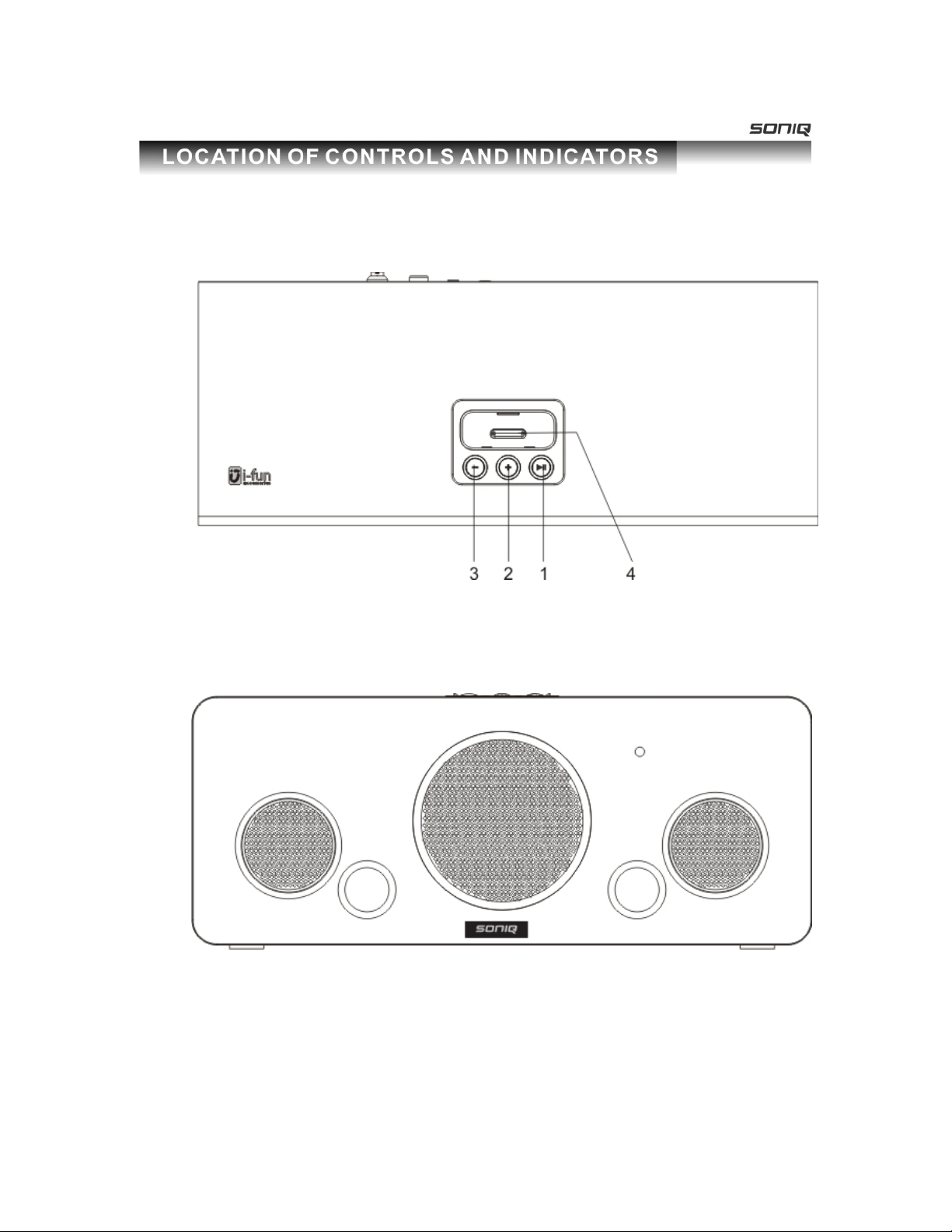

TOPPANEL
FRONT PANEL
- 4 -

BACK PANEL
1.) PLAY / PAUSE Button
2.) VOLUME + Button
3.) VOLUME - Button
4.) IPOD Connector
5.) Main Power Switch
6.) AC Power Input
7.) AUX Input
8.) VIDEO Output
- 5 -

Remote Control
1.) STANDBY Button
2.) iPod UP Button
3.) ENTER Button
4.) PLAY / PAUSE Button
5.) TUNE/SKIP Button
6.) TUNE/SKIP Button
7.) MENU Button
8.) iPod/AUX Button
9.) iPod DOWN Button
10.) TREBLE - Button
11.) TREBLE + Button
12.) BASS - Button
13.) BASS + Button
14.) MUTE Button
15.) VOLUME + Button
16.) VOLUME – Button
- 6 -

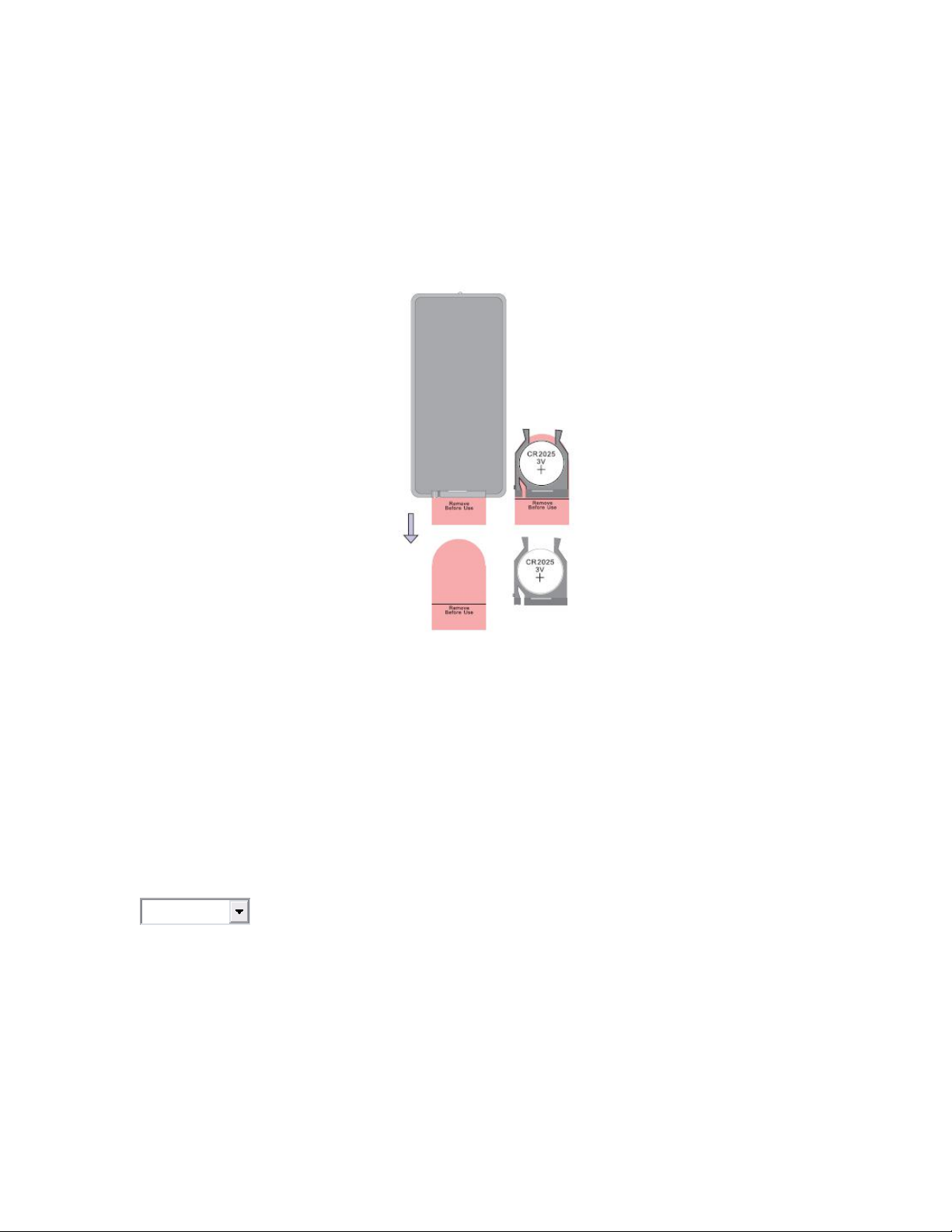

REMOTE CONTROL BATTERY
The remote control requires one “button-type” 3-volt lithium battery, included. To
extend the life of the original battery we have inserted a small clear plastic spacer
tab between the lithium battery and the battery terminal. You must remove this
battery spacer tab before you can use the remote control. To remove the tab, pull
it in the direction of the arrow in the illustration as shown.
When the operation of the remote control becomes intermittent or unsatisfactory,
replace the original battery with a new 3-volt lithium battery.
1.) Slide out the battery holder from the remote control case.
2.) Place one 3V CR2025 battery in the battery holder, observing the positive (+)
direction. If the battery is placed incorrectly the remote control will not work.
CAUTION
Danger of explosion if the battery is replace incorrectly.
Replace only with the same or equivalent type.
3.) Insert the battery holder into the battery slot.
Notes: Use a well-known brand of cell battery for longest life and best
performance. When the remote operation becomes intermittent, replace the
battery.
- 7 -

zMake sure the AC power cord from this unit is properly connected to a
240V 50Hz household AC power outlet.
zMake sure that the minimum distance around the whole unit for
sufficient ventilation is 10cm.
Listening to Your iPod / Charging The Battery
IMPORTANT!
In order to prevent unwanted distortion during iPodplayback, it is
recommended that you set the EQ in your iPod to the “Off” position.
Go to the Main Menu in your iPod and then select the Settings Menu,
select the EQ Setting, and make sure that the EQ function is set to
“Off”.
( Main Menu > Settings Menu > EQ Setting > Select “Off” )
Note : We have also included one flat adaptor
with no opening at all. This serves as a dust
cover that can be inserted in the docking station
if no iPod will be connected to this unit for an
extended period of time. Remove this dust cover
before use.
This unit provides an iPoddocking station on the top panel. You can connect
any “dockable” iPod, available as of August 2006, to the docking station and play
your iPodthrough the speakers of this unit. The power to your device is being
supplied by this unit, not by the iPod internal battery.
1) Turn the main power switch to ‘On’ position at the back of the unit.
2) Plug the iPod to the iPod docking station. Then press PLAY/PAUSE button on
the top panel or remote control to start music playback.
3) To pause momentarily during iPod playback, press the PLAY/PAUSE button
on the top panel or remote control or iPod unit. Press the PLAY/PAUSE button
once more to cancel Pause mode and resume playback.
4) Press NEXT button on the remote control or iPod unit to go to the next song.
- 8 -

To Fast Forward, Press and Hold the NEXT button of iPod unit while playing a
song.
5) Press PREV button on the remote control or iPod unit to go back to the
previous song. To Rewind, Press and Hold the PREV button of iPod unit while
playing a song.
6) Press MENU button on the remote control, the iPod will go to the previous
menu. Press UP/ DOWN button on the remote control to select up or down of
the iPod menu; then press the ENTER button to enter selected menu.
7) Press BASS+ / BASS- on the remote control to adjust the BASS level, it will
enhance/reduce the BASS effect.
8) Press TREBLE+ / TREBLE- on the remote control to adjust theTREBLE level,
it will enhance/reduce the TREBLE effect.
9) When iPod®Video is plugged into this unit, the video can be viewed from other
display by connecting the VIDEO OUT jack to the desired video display
( video connection cable is not included).
Remarks: Please make sure the TV Out is set to ON in the iPod®Video
Setting menu. Otherwise the video signal will not be able to
show on the display. (For detail, please check the iPod®Video
Instruction Manuel.)
For iPod touch users. Simply just choose the video file you
would like to play and the iPod touch will display “ Display on
TV? Yes/No” Simlply choose YES if you want to output the file
to the desired video display.
10) When the iPod is docked in the unit, the iPod internal battery can be charged
during iPod playback, Pause mode or AUX mode, if the main power is
switched “Off”, the charging will be cut off
Note : You must keep the main power switch “On” during iPod internal
battery charging.
AUXILIARY IN
Connect the Audio Output jacks of your auxiliary sound source (TV, VCR, DVD
Player, Cassette Deck, Mini Disc player, etc., etc.,) to the AUX IN jack on the back
- 9 -

panel of the unit. The auxiliary function will only activate when the aux in jack
is fitted with connection cable
Note: The connection cables are not included.
1. Press and hold the PLAY/PAUSE button on the main unit or FUNCTION
button on the remote control to inter-change the play mode from iPod to Aux.
Press PLAY/PAUSE button once on the main unit or remote control to
inter-change the play mode from Aux to iPod. During AUX playback, the
iPod display will not light up.
2. Turn your auxiliary source ‘On’ and operate it as usual. The sound from the
auxiliary source will be heard through the speakers of this system.
3. Adjust the VOLUME level controls of this system as desired.
RESETTING
If the system does not have any respond, you may have experienced a severe
electric shock (ESD) or a power surge that triggered the internal computer to shut
down automatically. If this occurs, simply disconnect the main power and connect
the main power again after one minute.
Note: Although disconnect the power will unlock the internal computer after a
power surge, it will also erase all of the settings. After turning ‘On’ the unit, you will
need to reset the settings again.
CARE OF THE CABINET
If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax,
polish sprays, or abrasive cleaners on the cabinet.
CAUTION
Never allow any water or other liquids to get inside the unit while cleaning.
AC Power: AC 240V ~50Hz
Remote Handset DV 3V size: CR2025 X 1
Unit Output Power: 2 X 15 Watts RMS (Main Speaker)
1 X 40 Watts RMS (Subwoofer)
Power Consumption: 96 W
- 10 -

- 11 -
成品尺寸： 10.5x14.8cm
