SONIQ G50UW40A User manual

50 UHD Android TV

-1-
CAUTION ............................... ........................ ........... ............ ........ 2
........................................................................................ 5
CONTROL BUTTON ....................................................................................... 6
TERMINAL .................................................................................................... 7
......... .......................................................................8
SIMPLE TROUBLESHOOTING ......................................................................... 20
............ . .. .
STAND ASSEMBLY
.......... . .... .................................................................................. 4
ACCESSORY
REMOTE CONTROLLER
...... .... ... ... .......................................................................11MENU OPERATION

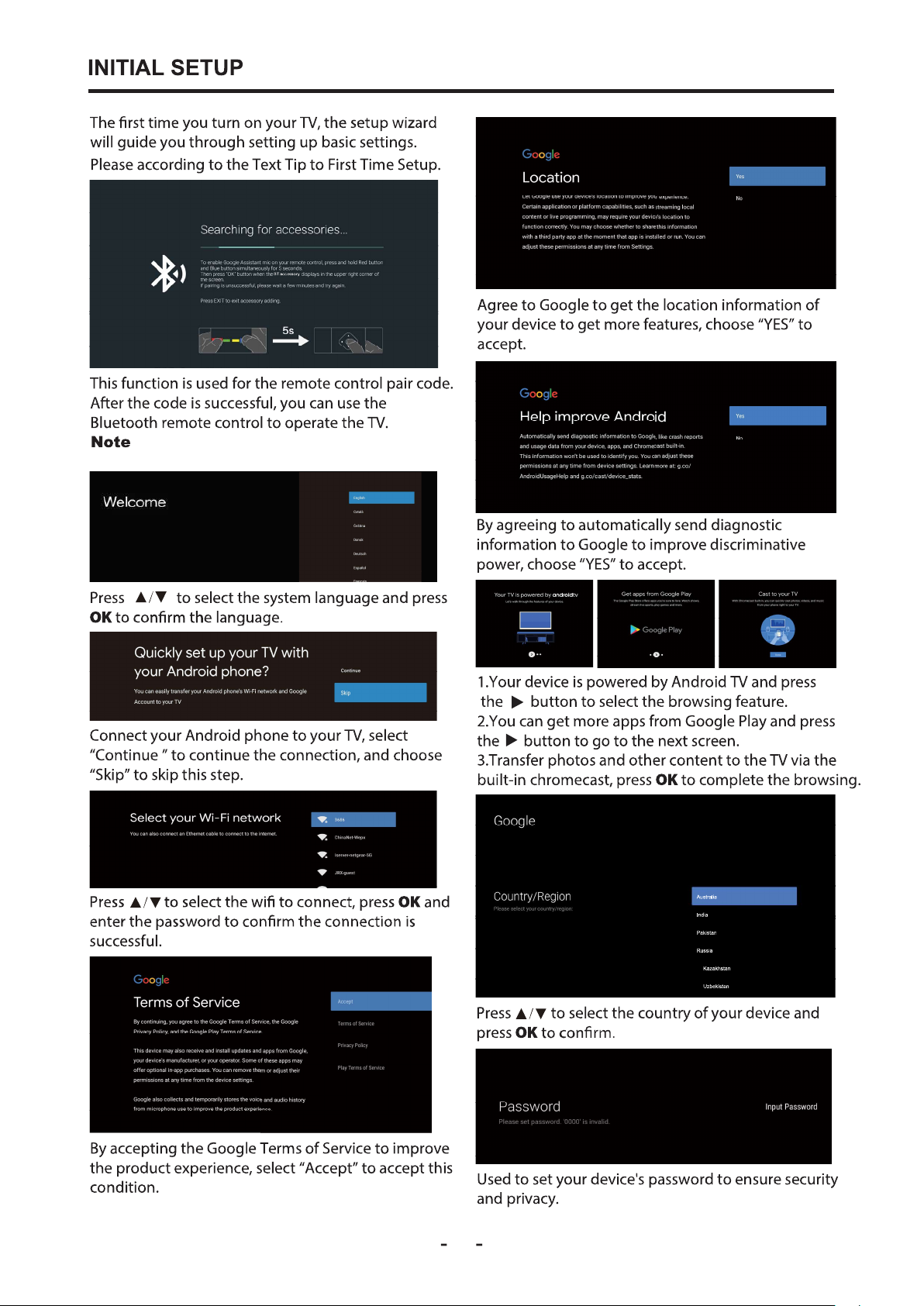

...... .... ... . .... ... ... .......................................................................10 INITIAL SETUP
...... .... .... ... ... .......................................................................19
SPECIFICATIONS

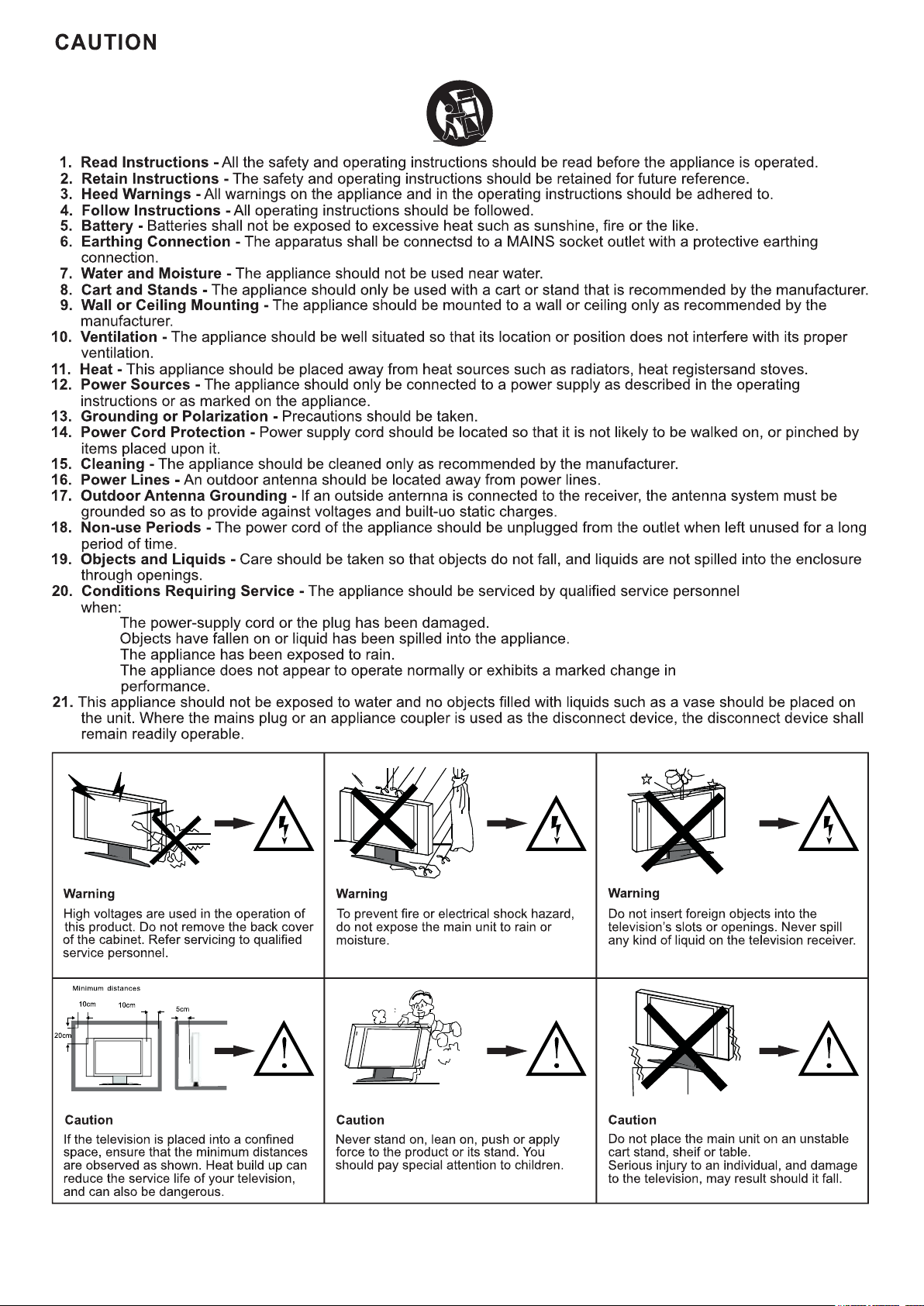

-2-

-3-

-4 -
ACCESSORY
There are these accessories in the carton, the style will be different according to the
product model.
Note
Quick installation manual
BB4*14 (X6)
Tipping prevention materials

-5-
1. Please disconnect all the cable connections before installation.
2. Lay the TV face down on a flat surface, on a blanket or towel to avoid damaging the screen.
3. Please keep the TV in a horizontal position and fix the standing base with screws.
stand of TV unit, in order to avoid damaging the TV unit.
Only use matching screws provided by manufacturer in the accessory bag to install the
Wall Mounting Instruction:
This TV is equipped with mounting holes of 200 x 200mm.If the thickness of the wall mount is 2mm,
4PCS of type M6x10mm screws are required (the length of the screws fixed in the interior of the TV
should not be longer than 12mm) Recommend to use SONIQ wall mount and install by professional
people (do not operate while the TV is on).
MA X 10 mm
200mm
200mm
STAND ASSEMBLY

-6-

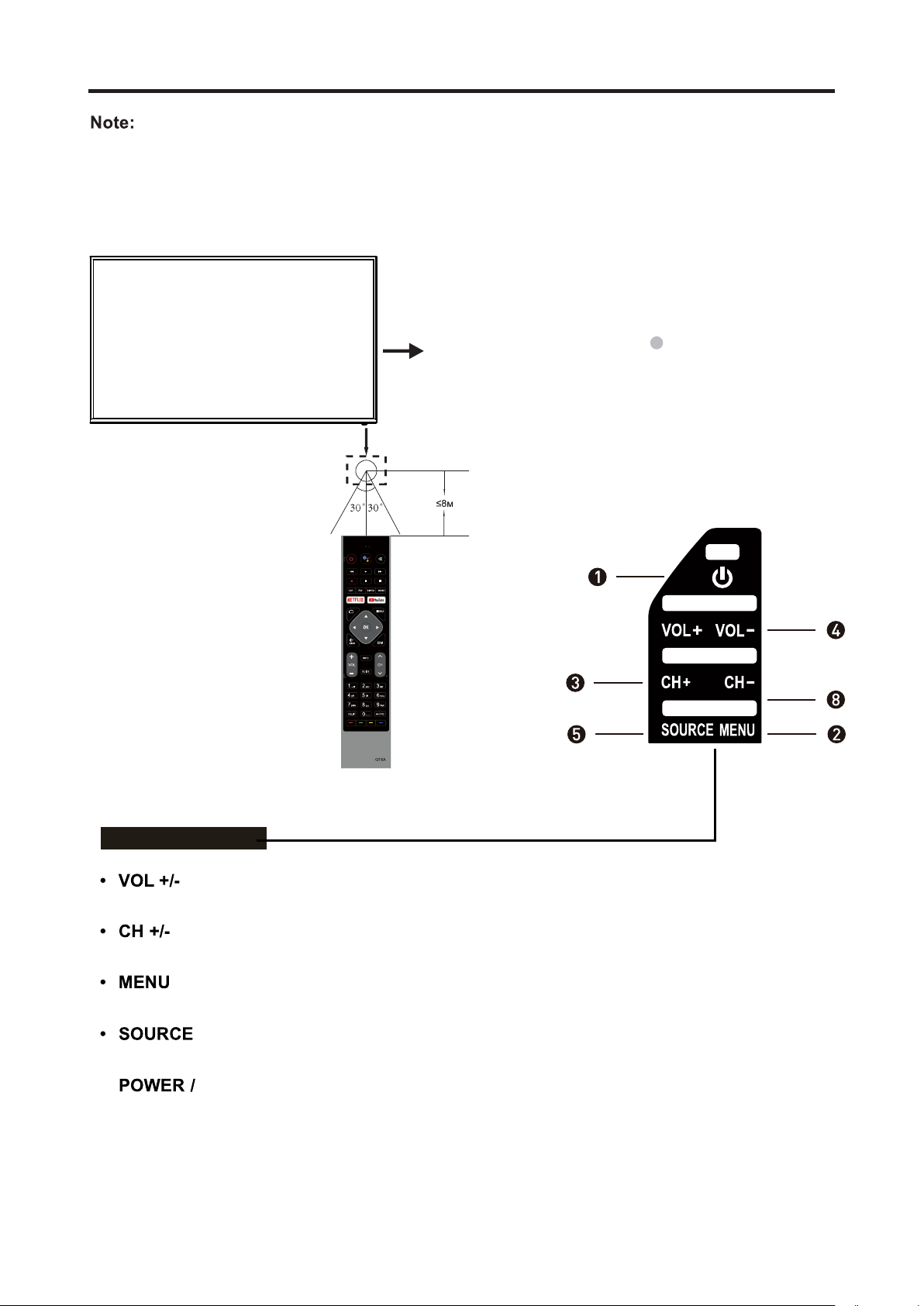

CONTROL BUTTON
The following is only functional schematic, And the actual position and arrangement of differect
models may be different. Some models has 5 buttons, some models has 7 buttons.
Middle key
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
•
Switch the TV between On and Standby mode.
Press to select among different input signal sources.
Display the OSD (on screen display) menu.
Press to select a channel.
Press to adjust the volume.

-7-
TERMINAL
The LED TV has many multimedia functions. It can be connected to many types of equipment.
The following paragraph shows how to connect to other Audio and Video devices.
Optical input
USB
USB
SONIQ does not supply
these cables.
All the terminals are (from left to right):
HDMI4(ARC), ANT IN, USBTF, EARPHONE, YPbPr Input.
USBAll the terminals are (from left to right):
RJ45, OPTICAL output, AUDIO input(L/R), VIDEO, HDMI1, HDMI2. , HDMI3.
VIDEO and YPbPr share one audio channel.When HDMI port get DVI signal, the
audio signal receives from the AV Audio channel.
HDMI
HDMI
Red (audio R)
White(audio L)
Red(Pr or Cr)
R
W
R
Blue(Pb or Cb)
Green(Y)
B
G
Yellow (video)
Y
GB R
GB R
GB R
VIDEO EQUIPMENT
Y
Y
W R
WR
W R
W R
4
VIDEO EQUIPMENT with YPbPr
Router network interface

-8-

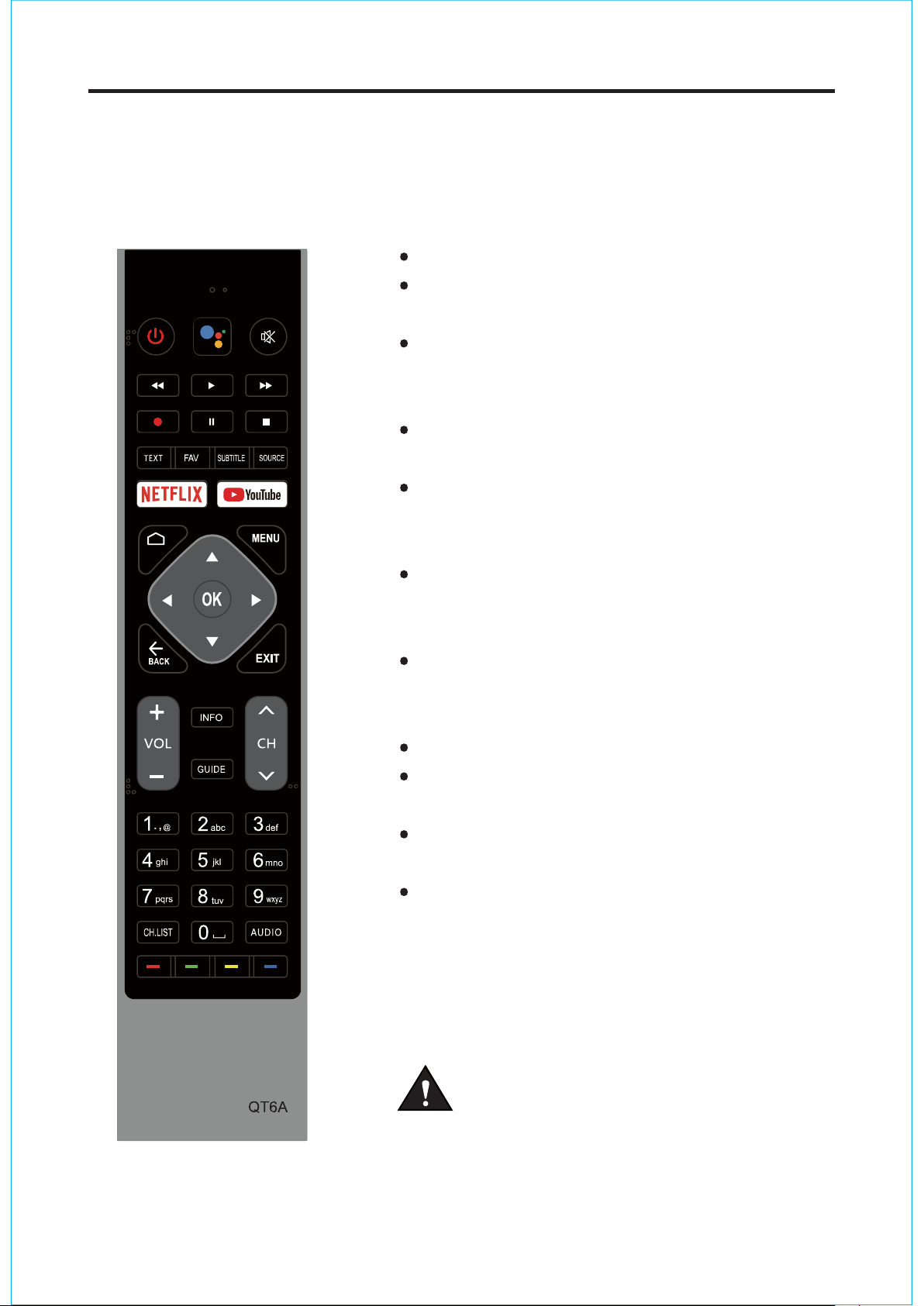

REMOTE CONTROLLER
Open the battery cover and insert 2 "AAA" batteries.
Point the remote control at the remote sensor located
on the unit.
When there is a strong ambient light source,
the performance of the infrared remote sensor may be
degraded, causing unreliable operation.
The recommended effective distance for remote is
about 16 feet (5 meters).
When the batteries become weak and the operating
distance of the remote control is greatly reduced, you
will need to replace the batteries.
If the remote control is not going to be used for a long
period of time, remove the batteries to avoid damage
caused by battery leakage or corrosion.
Do not mix old and new batteries or ALKALINE or
standard (CARBON-ZINC) or rechargeable
(NICKEL-CADMIUM) batteries.
Always remove batteries as soon as they become weak.
Weak batteries can leak and severely damage the
remote control.
Do not dispose of batteries in fire, they may explode
or leak.
Batteries should not be exposed to excessive heat such
as sunshine, fire or the like.
CAUTION :
Danger of explosion may occur if
battery is incorrectly replaced.
The remote controller cannot be used unless it is within the receivable range. Before you
use the remote control, please make sure there's no obstacle between the remote control
and the receiver.

-9 -

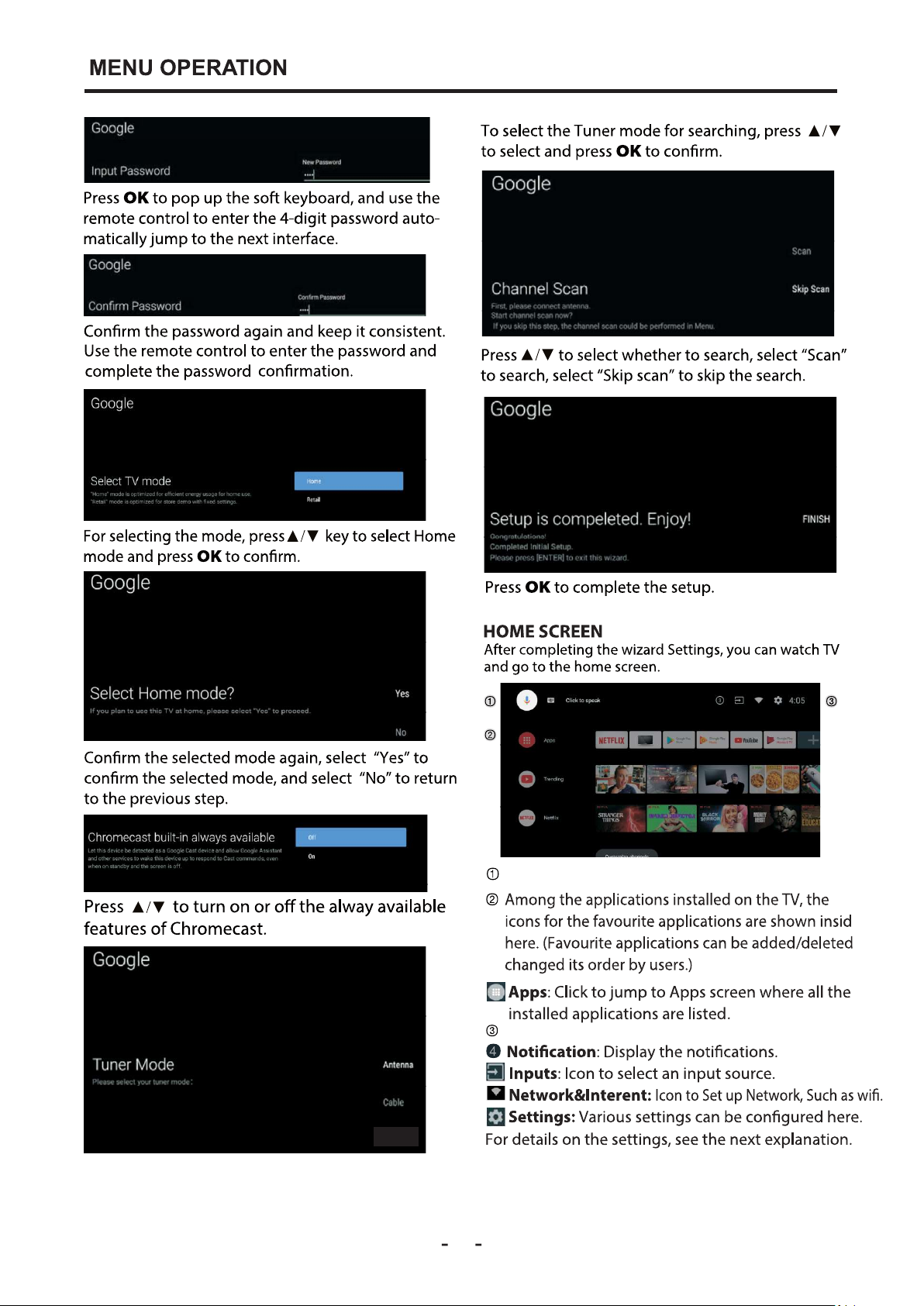

O O OLL
launches the built-in virtual assistant.

10
: It is only available to the remote control with
Bluetooth.

11
Open Google Assistant or start a voice search.

TV
Composite
Component
HDMI1
HDMI2
HDMI3

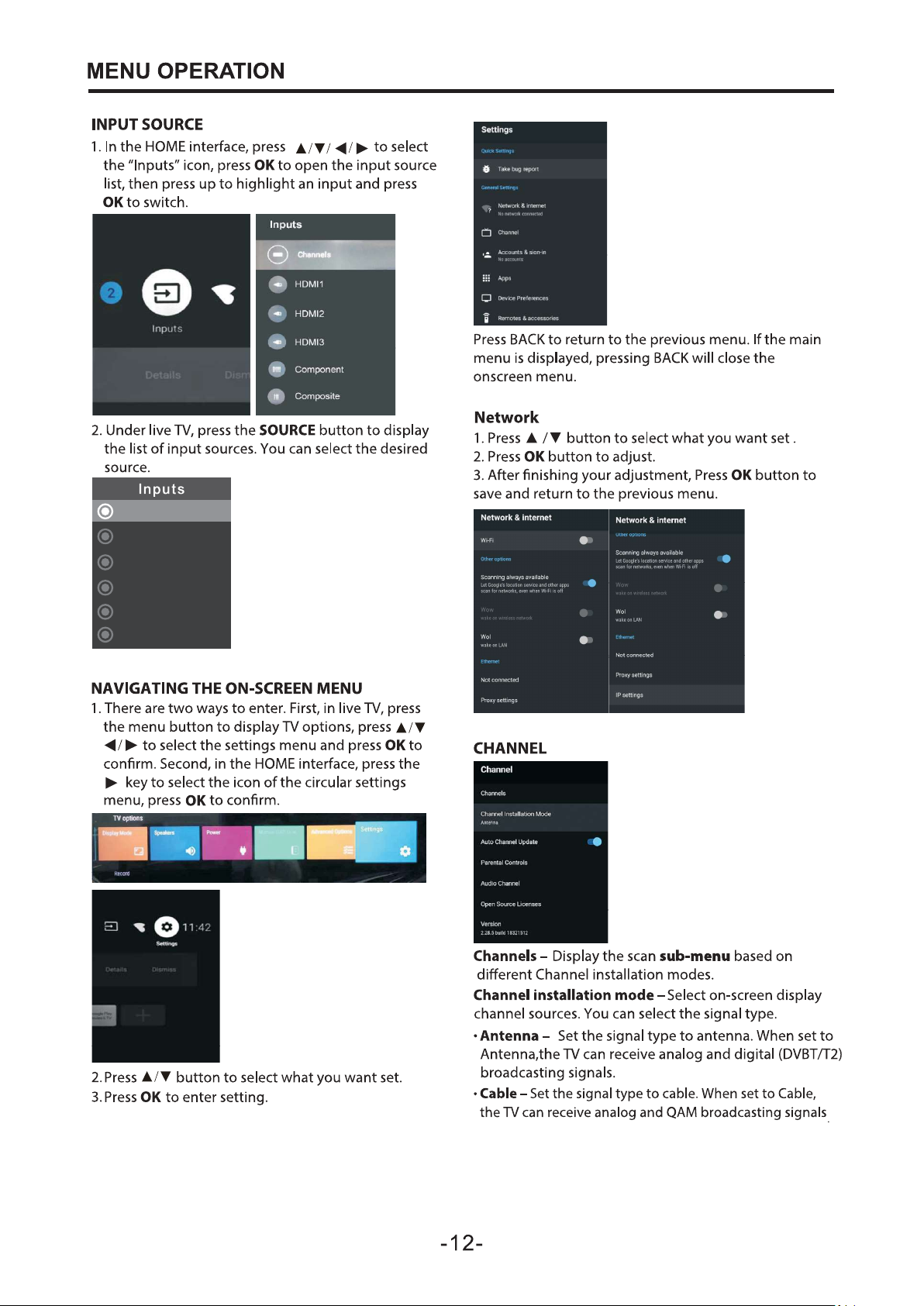

13
Channel Installation Mode
Antenna
Cable
Antenna
Cable
Channel Installation Mode

-14 -

-15-
Inputs
HDMI 3
HDMI 3
HDMI 2
HDMI 2
HDMI 1
HDMI 1
Composite
Composite
Component
Component
Consumer Electronic Control(CEC)
HDMI control
Allow the TV to control HDMI devices
Saturation 50
HUE 0
Sharpness 10
Gamma
Middle
Contrast 50
Color Temperature
Advanced Video
Reset to Default

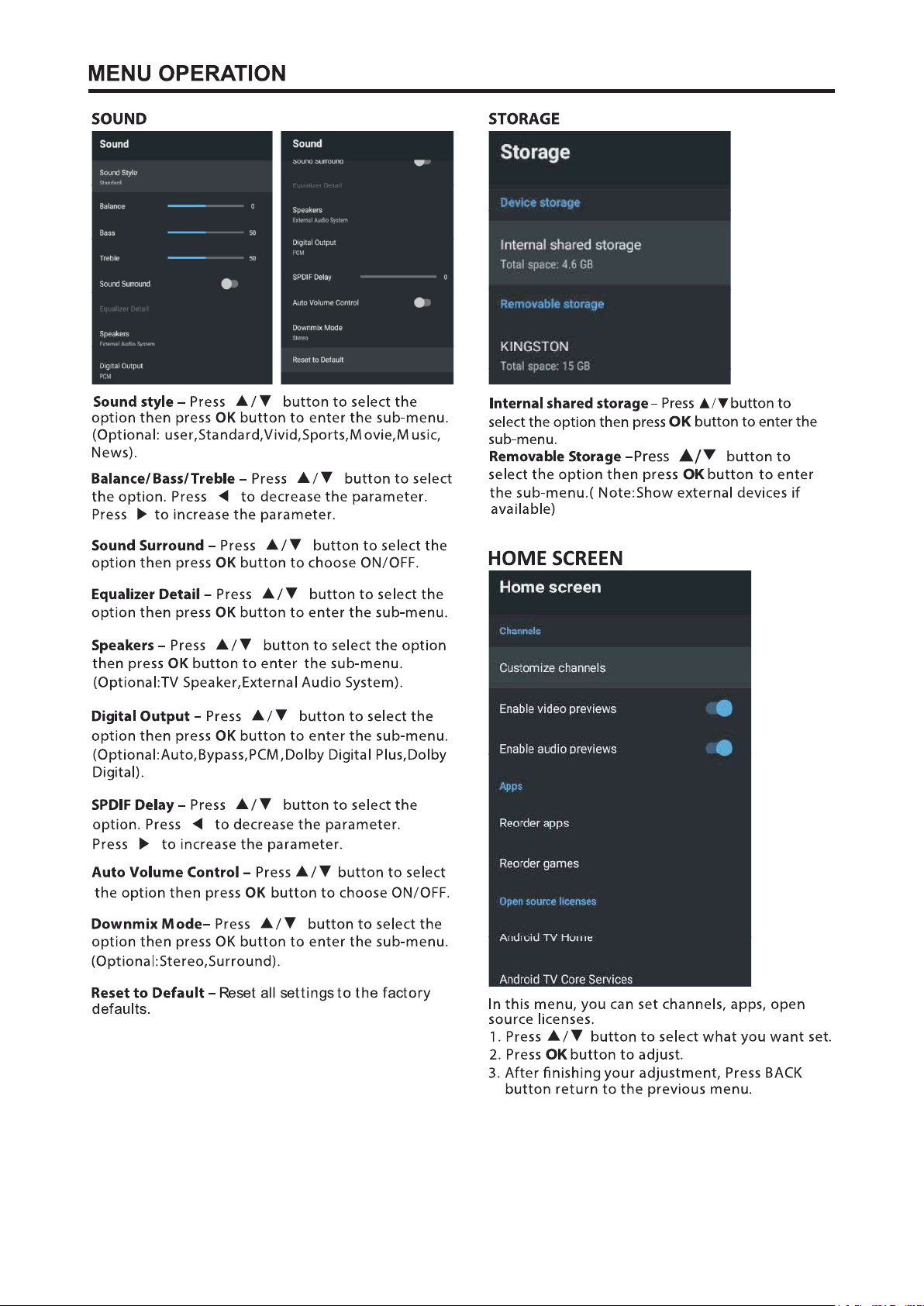

-16-

-17-

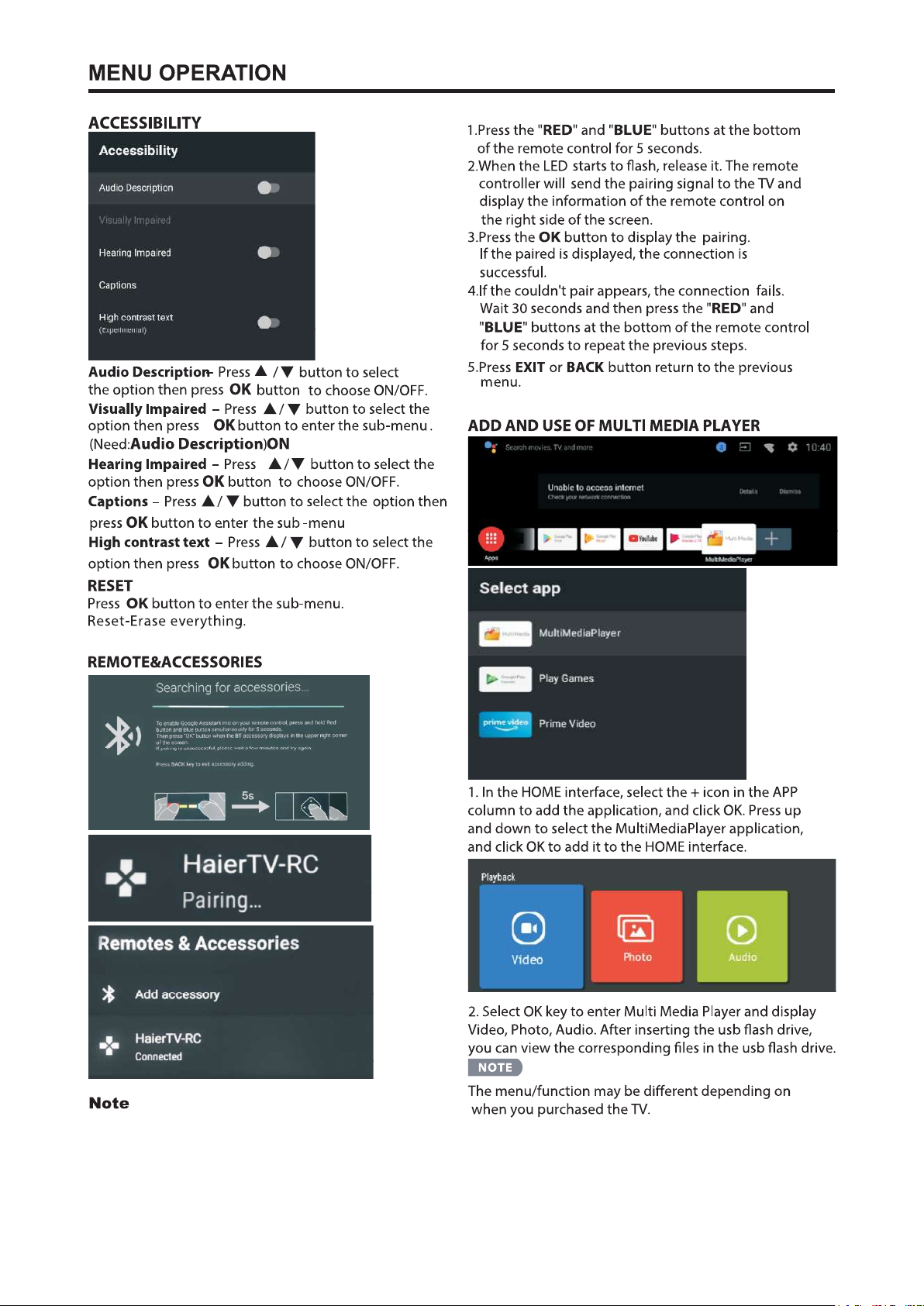

-18-
: It is only available to the remote control
with Bluetooth.
