The Portable Signalling Unit (PSU) is a compact light and audio signalling device which incorporates
a class 1 GYROLED® beacon with loud-speaker and integrated siren module.
To enable flexibility in the installation of the product, two versions are available:
For Temporary Installation: CSP with magnetic mount, supplied with 1.10 m spiral cable
(extending to 3.5 m) and cigarette lighter plug.
For Permanent Installation: CSP with ISO 3 point fixing system, supplied with 6 m length
wiring loom.
Both CSP versions are equipped with either the rotating or flash GYROLED® beacons and various
siren tones.
The adherance of the magnetic version has been tested at up to 180 km/hour.
1. TECHNICAL CHARACTERISTICS
Protection Index: IP67
MAGNETIC MOUNT VERSION
ISO 3 POINT FIXING SYSTEM
Voltage: 12 Volts for both versions
Consumption
Rotating
Flash
PSU 12 Volts
4.26 A
4.46 A / 7.12 A (peak)
Loudspeaker / Siren Power: 115 db

More information on our website:http://www. mercura.eu
GT-0369-SIRHP Ind E
Head-Office: Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR
Tel: [phone] –Fax [phone]
SAS with capital 102. 400 € - APE (NAF) 2790 Z –SIRET 310 999 891 00040
25766-05
2. REFERENCES
PSU
GYROLED
COLOUR
MODE
CONTROL
SWITCH
SIREN TONE
MOUNTING
REFERENCE
CLASS 1
REFERENCE
CLASS 2
SPO
Blue
Rotating
2 switch plug
French Fire-
brigade
Magnetic
23497
24127
SPO
Blue
Flash
2 switch plug
French Fire-
brigade
Magnetic
24806
26648
French
Police (PM)
Blue
Rotating
2 switch plug
French Police
Magnetic
22644
25747
French
Police (PM)
Blue
Flash
2 switch plug
French Police
Magnetic
26583
26649-00
French
Police (MI)
Blue
Rotating
Control panel
French Police
Magnetic
22644
26650
French
Gendarmerie
Blue
Rotating
Control panel
French
Gendarmerie
Magnetic
22645
26651
SAMU
Blue
Rotating
2 switch plug
UMH
Magnetic
23498
26652
Doctor
Blue
Flash
2 switch plug
ASA
Magnetic
23499
25094
Export US1
Blue
Rotating
2 switch plug
US (Wail, Hi-Lo,
Yelp)
Magnetic
23500
26653
Export US2
Blue
Flash
2 switch plug
US (Wail, Hi-Lo,
Yelp)
Magnetic
23501
26654
Export D1
Blue
Rotating
2 switch plug
D-city, D-
country, Yelp
Magnetic
26655
26656
Export D2
Blue
Flash
2 switch plug
D-city, D-
country, Yelp
Magnetic
26657
26658
French Road
Service
Vehicles 1
Amber
Rotating
2 switch plug
ASA
Magnetic
23502
26659
French Road
Service
Vehicles 2
Amber
Flash
2 switch plug
ASA
Magnetic
23503
26660
SPO
Blue
Rotating
Without
control switch
French Fire-
brigade
ISO 3 pts
26046
24354
French
Police (PM)
Blue
Rotating
Without
control switch
French Police
ISO 3 pts
24047
26661
French
Gendarmerie
Blue
Rotating
Without
control switch
French
Gendarmerie
ISO 3 pts
26662
26663
SAMU
Blue
Rotating
Without
control switch
UMH
ISO 3 pts
24048
26664
Doctor
Blue
Flash
Without
control switch
ASA
ISO 3 pts
24049
26665
Export US1
Blue
Rotating
Without
control switch
US (Wail, Hi-Lo,
Yelp)
ISO 3 pts
26668
26669-00
Export US2
Blue
Flash
Without
control switch
US (Wail, Hi-Lo,
Yelp)
ISO 3 pts
26670
26671
Export D1
Blue
Rotating
Without
control switch
D-city, D-
country, Yelp
ISO 3 pts
26672
26673
Export D2
Blue
Flash
Without
control switch
D-city, D-
country, Yelp
ISO 3 pts
26674
26675
French Road
Service
Vehicles 1
Amber
Rotating
Without
control switch
ASA
ISO 3 pts
24050
26666
French Road
Service
Vehicles 2
Amber
Flash
Without
control switch
ASA
ISO 3 pts
24051
26667
3. PSU INSTALLATION FOR MAGNETIC MOUNT VERSION
The base is equipped with very strong magnets guaranteeing a very strong adherence on the
vehicle roof panel. Before mounting, however, it is important to maximize the magnetic
capacity of the surface, therefore it must be clean, dry and flat to optimize adherence.
When mounting the PSU, the loud-speaker must be directed towards the front of the vehicle.
For the electrical installation, it is important to take into account the electrical characteristics of the
cigarette lighter plug to avoid any damage to the PSU. (see paragraph 2.2.).

More information on our website:http://www. mercura.eu
GT-0369-SIRHP Ind E
Head-Office: Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR
Tel: [phone] –Fax [phone]
SAS with capital 102. 400 € - APE (NAF) 2790 Z –SIRET 310 999 891 00040
25766-05
Once the PSU has been mounted, connect the connector to the cigarette lighter plug.
4. OPERATING WITH CIGARETTE LIGHTER PLUG CONNECTOR
* The Night siren mode is not kept in memory when the siren is turned off.
** Another short push on the ON/OFF button: deactivation of the GYROLED function turns off the
siren.
5. PSU INSTALLATION FOR ISO 3 POINT MOUNTING VERSION
Install the chosen control system (traditional control with fuse and button or electronic
control system)
Identify the chosen position for the PSU. The surface must be clean, dry and flat and the
loudspeaker must be directed towards the front of the vehicle.
Place the PSU and mark the position of the 3 holes.
Mark the cable entry position which must be situated in the middle of the 3 holes.
Assess the cable entry to the control system.
Drill all the holes and pass the cable through.
Place the PSU.
Insert the screws, ensuring that everything is water tight
Connect the power cable to the control system.
6. WIRED PSU ISO 3 POINT MOUNTING VERSION
* Buttons and fuses not supplied
The GYROLED® button is used to control the GYROLED and to power the entire PSU.
Pressing shortly the siren ON / OFF button actives the siren if Gyroled® is on.
Pressing longer the siren ON / OFF button selects the siren tone.
ON/OFF BLACK BUTTON
PSU MONO-TONE
Press the button shortly: Activates
the siren if Gyroled® is on**
Press the button longer: Night Siren
Mode*
PSU MULTI-TONE
Press the button shortly: Activates
the siren if Gyroled® is on**
Press the button longer : Siren tone
selection
RED BUTTON:
Gyroled® Function
& PSU power supply
Blue wire
Siren
Brown wire
GYROLED®
ON / OFF button*
Button*
Fuse 5A*
BATTERY
GROUND
+ BATTERY
BATTERY
GROUND
Green / Yellow wire

More information on our website:http://www. mercura.eu
GT-0369-SIRHP Ind E
Head-Office: Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR
Tel: [phone] –Fax [phone]
SAS with capital 102. 400 € - APE (NAF) 2790 Z –SIRET 310 999 891 00040
25766-05

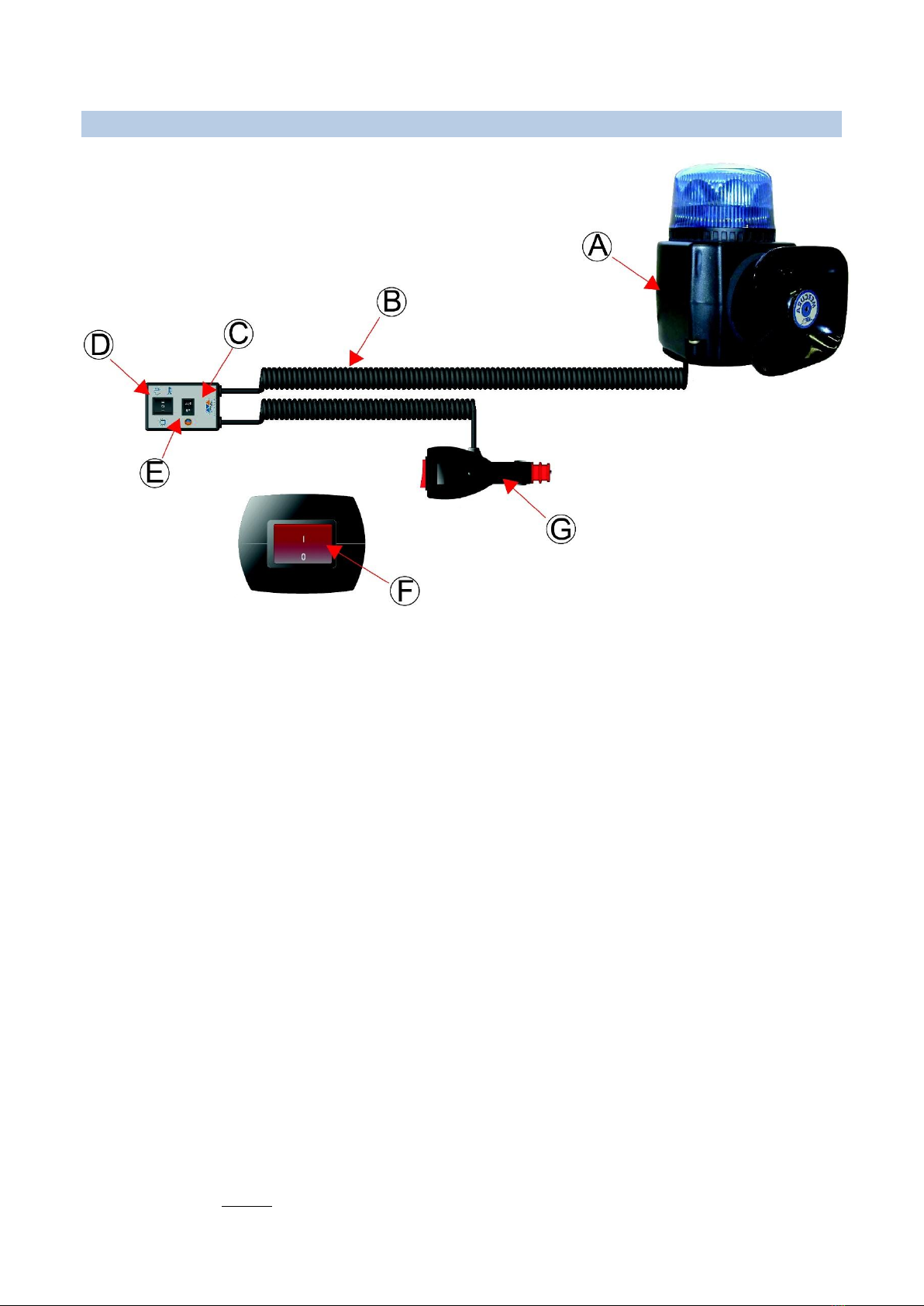

7. VERSION WITH CONTROL PANEL
A. PSU
B. CONTROL AND POWER CABLE
C. CONTROL PANEL
D. 3 POSITION BUTTON: GYROLED / PAUSE / GYROLED + SIREN
E. 2 POSITIONS NIGHT SIREN FUNCTION BUTTON: ON / OFF
F. ON / OFF PSU POWER SUPPLY BUTTON OF THE CIGARETTE LIGHTER PLUG CONNECTOR
G. CIGARETTE LIGHTER PLUG CONNECTOR
